4-679-893-11(1)
®

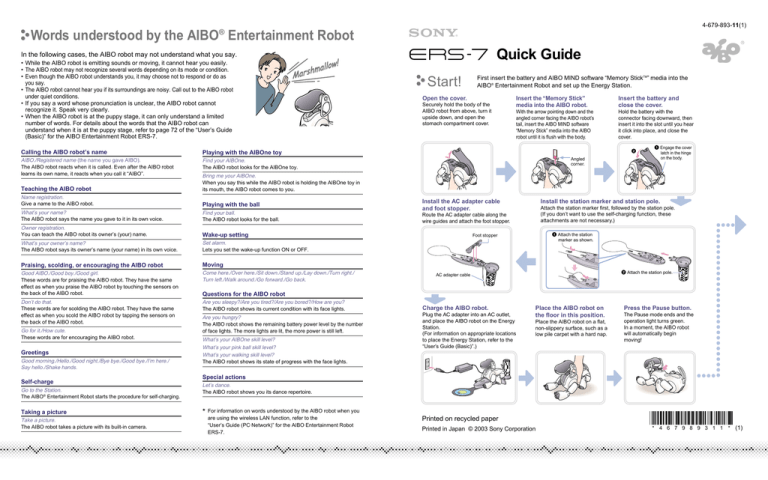

Words understood by the AIBO Entertainment Robot
Quick Guide
In the following cases, the AIBO robot may not understand what you say.
• While the AIBO robot is emitting sounds or moving, it cannot hear you easily.
• The AIBO robot may not recognize several words depending on its mode or condition.
• Even though the AIBO robot understands you, it may choose not to respond or do as
you say.
• The AIBO robot cannot hear you if its surroundings are noisy. Call out to the AIBO robot
under quiet conditions.
• If you say a word whose pronunciation is unclear, the AIBO robot cannot
recognize it. Speak very clearly.
• When the AIBO robot is at the puppy stage, it can only understand a limited
number of words. For details about the words that the AIBO robot can
understand when it is at the puppy stage, refer to page 72 of the “User’s Guide
(Basic)” for the AIBO Entertainment Robot ERS-7.
Calling the AIBO robot’s name
Playing with the AIBOne toy
AIBO./Registered name (the name you gave AIBO).
The AIBO robot reacts when it is called. Even after the AIBO robot
learns its own name, it reacts when you call it “AIBO”.
Find your AIBOne.
The AIBO robot looks for the AIBOne toy.
Teaching the AIBO robot
Bring me your AIBOne.
When you say this while the AIBO robot is holding the AIBOne toy in
its mouth, the AIBO robot comes to you.
Name registration.
Give a name to the AIBO robot.
Playing with the ball
What’s your name?
The AIBO robot says the name you gave to it in its own voice.
Find your ball.
The AIBO robot looks for the ball.
Owner registration.
You can teach the AIBO robot its owner’s (your) name.
Wake-up setting
What’s your owner’s name?
The AIBO robot says its owner’s name (your name) in its own voice.
Set alarm.
Lets you set the wake-up function ON or OFF.
Praising, scolding, or encouraging the AIBO robot
Moving
Good AIBO./Good boy./Good girl.
These words are for praising the AIBO robot. They have the same
effect as when you praise the AIBO robot by touching the sensors on
the back of the AIBO robot.
Come here./Over here./Sit down./Stand up./Lay down./Turn right./
Turn left./Walk around./Go forward./Go back.
Don’t do that.
These words are for scolding the AIBO robot. They have the same
effect as when you scold the AIBO robot by tapping the sensors on
the back of the AIBO robot.
Are you sleepy?/Are you tired?/Are you bored?/How are you?
The AIBO robot shows its current condition with its face lights.
Go for it./How cute.
These words are for encouraging the AIBO robot.
Greetings
Good morning./Hello./Good night./Bye bye./Good bye./I’m here./
Say hello./Shake hands.
Self-charge
Go to the Station.
The AIBO® Entertainment Robot starts the procedure for self-charging.
Taking a picture
Take a picture.
The AIBO robot takes a picture with its built-in camera.
Start!
First insert the battery and AIBO MIND software “Memory StickTM” media into the
AIBO® Entertainment Robot and set up the Energy Station.
Open the cover.
Securely hold the body of the
AIBO robot from above, turn it
upside down, and open the
stomach compartment cover.
Insert the “Memory Stick”
media into the AIBO robot.
Insert the battery and
close the cover.
With the arrow pointing down and the
angled corner facing the AIBO robot’s
tail, insert the AIBO MIND software
“Memory Stick” media into the AIBO
robot until it is flush with the body.
Hold the battery with the
connector facing downward, then
insert it into the slot until you hear
it click into place, and close the
cover.
2
Angled
corner.
Install the AC adapter cable
and foot stopper.
1 Engage the cover
latch in the hinge
on the body.
Install the station marker and station pole.
Attach the station marker first, followed by the station pole.
(If you don’t want to use the self-charging function, these
attachments are not necessary.)
Route the AC adapter cable along the
wire guides and attach the foot stopper.
1 Attach the station
marker as shown.
Foot stopper
2 Attach the station pole.
AC adapter cable
Questions for the AIBO robot
Are you hungry?
The AIBO robot shows the remaining battery power level by the number
of face lights. The more lights are lit, the more power is still left.
What’s your AIBOne skill level?
What’s your pink ball skill level?
What’s your walking skill level?
The AIBO robot shows its state of progress with the face lights.
Charge the AIBO robot.
Plug the AC adapter into an AC outlet,
and place the AIBO robot on the Energy
Station.
(For information on appropriate locations
to place the Energy Station, refer to the
“User’s Guide (Basic)”.)
Place the AIBO robot on
the floor in this position.
Place the AIBO robot on a flat,
non-slippery surface, such as a
low pile carpet with a hard nap.
Press the Pause button.
The Pause mode ends and the
operation light turns green.
In a moment, the AIBO robot
will automatically begin
moving!
Special actions
Let’s dance.
The AIBO robot shows you its dance repertoire.
*
For information on words understood by the AIBO robot when you
are using the wireless LAN function, refer to the
“User’s Guide (PC·Network)” for the AIBO Entertainment Robot
ERS-7.
Printed on recycled paper
Printed in Japan © 2003 Sony Corporation
* 4 6 7 9 8 9 3 1 1 * (1)
The AIBO® Entertainment Robot feature and mode map
Station mode
Mode indicators OFF
When the AIBO robot
is awake
At bedtime
At wake-up
time
The game starts!
L
The AIBO robot is sound asleep.
If you remove the AIBO robot
from the Energy Station, it will be
in Autonomous mode, even if the
hour is outside its set activity
period.
• The AIBO robot mounts the Energy
Station by itself
• The AIBO robot is placed on the Energy
Station while active
• Mail
received
• Message
received
• The AIBO robot dismounts the Energy
Station by itself
• The AIBO robot is removed from the
Energy Station
AIBO EYES
The AIBO robot moves around on its own.
The AIBO robot collects information via its
camera/microphones/sensors and acts
autonomously based on its own feelings
and instincts.
Mode indicators slowly flash green
Touch the
head
sensor for
3 seconds
Refer to the “User’s Guide
(PC • Network)” for the AIBO
Entertainment Robot.
Note
When you press two or more of the paw
sensors of the AIBO robot, the AIBO robot
thinks it has been placed on the floor, and
returns to Autonomous mode. the AIBO
robot may start to walk after returning to
Autonomous mode, so avoid touching any
of the AIBO robot’s paw sensors when you
are holding it.
• Touch the front and
rear back sensors
simultaneously for
3 seconds
Voice Guide
mode
• Touch the center
(orange) back
sensor
Setup
mode
• Touch the center
(orange) back
sensor
When you show the AIBO robot the
“Alarm Clock Set Up (I)” card in
Autonomous mode, it goes straight into
the mode to set up the time you want it
to wake up.
Energy Station
dismount setup
When self-charging is
complete, the AIBO robot
will dismount the Energy
Station by itself.
Top menu
• Talk to the AIBO robot
•
Show “Alarm
On/Off (J)” card
Alarm
ON/OFF
Something
has jammed
one of the
AIBO robot’s
joints
Mode indicators turn orange
• Talk to the
AIBO robot
Touch the
head
sensor for
3 seconds
Touch the chin and
front (blue) sensors
on the AIBO robot’s
back for 3 seconds
Mode indicators turn green
Pick-up condition
When you lift the AIBO robot, the AIBO
robot assumes a position that makes it
easier for you to hold it. This is to
prevent people from dropping the AIBO
robot, in reaction to movements that
may cause surprise.
I
• Touch the front (blue)
back sensor
• Touch the front (blue)
back sensor
• Touch the head
sensor for 3
seconds
Notes
• Do not put the AIBO robot on an unstable surface
where it might fall or be subject to vibrations.
• Do not place anything near the AIBO robot that may
hinder its movements.
• Pick up while
touching the
back sensors*1
• Pick up quickly
• Wake-up time for the AIBO
robot
• Bedtime for the AIBO robot
• Chime ON/OFF
When you show the AIBO robot the
“Game Mode (L)” card in Autonomous
mode, the game begins right away.
• Mail check
• Message check
Autonomous mode
• Place on the
floor
• Touch the
head sensor
for 3 seconds
You can set up the
following:
Game mode
When the AIBO robot is sleeping
The AIBO robot
relaxes while
being recharged.
Clock setup
Mode indicators
turn pink
On the Energy Station, the AIBO robot wakes up
and goes to sleep at a preset time.
Mode indicators OFF
When the AIBO robot is in Autonomous mode, all the activities and settings shown below are possible. When the AIBO robot is in
Station mode (when it is awake), all the activities and settings shown below except those marked with an asterisk (*) are possible.
Jam condition
Rest mode
If something gets
jammed in any of the
AIBO robot’s joints, the
AIBO robot goes into
this condition and all of
its joints become loose.
This mode is provided to
protect your fingers from
being caught between
the AIBO robot’s joints.
The AIBO robot does not
move around. In this mode
the AIBO robot stays still
and does not respond to
voice commands, other
sounds, or show interest in
the ball and AIBOne toy.
Front
*1 Touch two or more
back sensors (any
Rear
of the combinations
on the left) for 3
seconds.
• Touch the rear (red)
back sensor
• Touch the rear (red)
back sensor
Have the AIBO
robot wake you up!
• Name the AIBO
robot*
• Teach the AIBO
robot your name and
your face*
• Have the AIBO robot
take a picture
Pause mode
(inactive condition)
The Pause button on the back of the
AIBO robot was pressed to turn the
power OFF.
The AIBO robot must be in this mode
to replace the battery or
“Memory Stick” media, or to change
the ON/OFF setting of the wireless
LAN switch.
Clinic
mode*
You can check the
AIBO robot’s
motions.
When you show the AIBO robot
the “Clinic Mode (O)” card in
Autonomous mode, it goes
straight into Clinic mode.
Sensor locations
Head sensor
Development control
Mode indicators
turn yellow
Back sensors
To cancel setup by
voice guide, touch
the head sensor for
3 seconds to return
the AIBO robot to
Autonomous mode.
You can also have fun
raising the AIBO robot
from the puppy stage.
