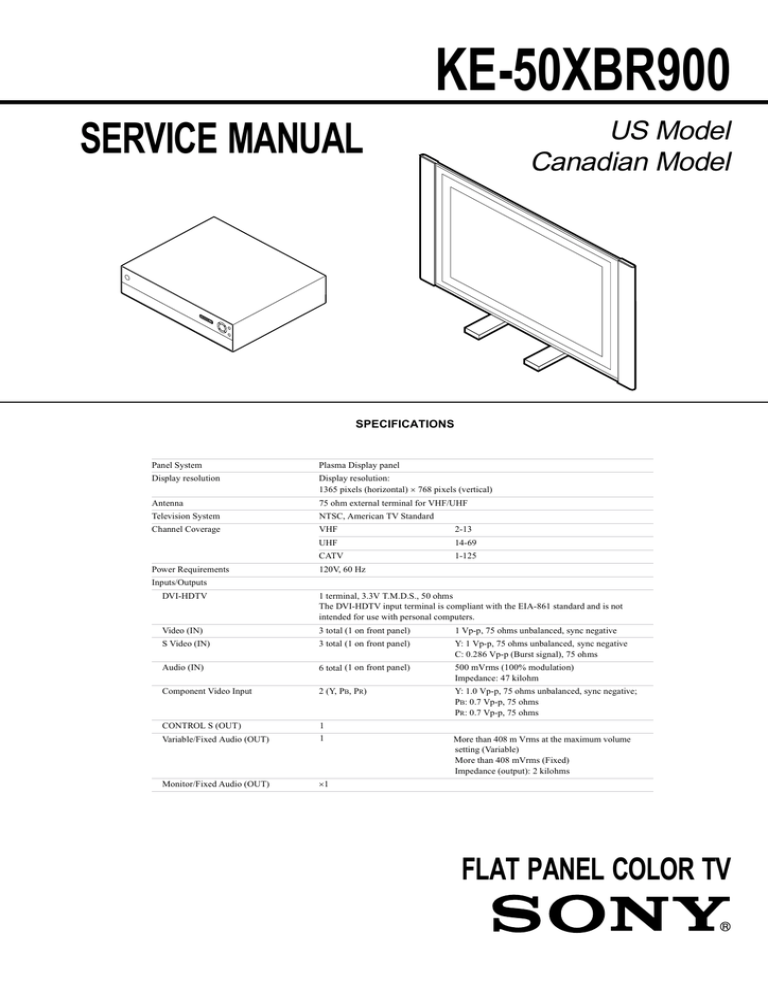

Sony KE-50XBR900 User's manual
KE-50XBR900
US Model
Canadian Model
SERVICE MANUAL
SPECIFICATIONS
Panel System
Plasma Display panel
Display resolution
Display resolution:
1365 pixels (horizontal) × 768 pixels (vertical)
Antenna
75 ohm external terminal for VHF/UHF
Television System
NTSC, American TV Standard
Channel Coverage
VHF
2-13
UHF
14-69
CATV
1-125
Power Requirements
120V, 60 Hz
Inputs/Outputs
DVI-HDTV
1 terminal, 3.3V T.M.D.S., 50 ohms
The DVI-HDTV input terminal is compliant with the EIA-861 standard and is not
intended for use with personal computers.
Video (IN)
3 total (1 on front panel)
1 Vp-p, 75 ohms unbalanced, sync negative
S Video (IN)
3 total (1 on front panel)
Y: 1 Vp-p, 75 ohms unbalanced, sync negative
C: 0.286 Vp-p (Burst signal), 75 ohms
Audio (IN)
6 total (1 on front panel)
500 mVrms (100% modulation)
Impedance: 47 kilohm
Component Video Input
2 (Y, PB, PR)
Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative;
PB: 0.7 Vp-p, 75 ohms
PR: 0.7 Vp-p, 75 ohms
CONTROL S (OUT)
Variable/Fixed Audio (OUT)
1
1
Monitor/Fixed Audio (OUT)
×1
More than 408 m Vrms at the maximum volume
setting (Variable)
More than 408 mVrms (Fixed)
Impedance (output): 2 kilohms
FLAT PANEL COLOR TV
Sub woofer (OUT)
1
RF Input
2
1
Converte
Supplied Accessories
phono jack
Remote Control
RM-927Y
AAA (LR03) Batteries
2 supplied for remote control
Screen Size (measured diagonally)
KE-50XBR900
50 inches
Speaker Output
15W ×2
Dimensions (W × H × D)
PDM-5000
1573 × 856 × 108 mm
(62 1/8 × 33 3/4 × 4 3/8 in)
MBT-XBR900
430 × 105 × 360 mm
(17 × 4 1/4 × 14 1/4 in)
Mass
Display unit
PDM-5000: 53kg (114 lbs)
Media receiver unit
MBT-XBR900: 7.5kg (16 lbs)
Power Consumption
In Use
Display unit
PDM-5000: 480 W
Media receiver unit
MBT-XBR900: 36 W
In Standby
Under 1.5 W
Design and specifications are subject to change without notice.
KE-50XBR900(UC)
2
SAFETY CHECK-OUT
After correcting the original service problem, perform the following safety
checks before releasing the set to the customer:
1. Check the area of your repair for unsoldered or poorly-soldered
connections. Check the entire board surface for solder splashes and
bridges.
2. Check the interboard wiring to ensure that no wires are “pinched” or
contact high-wattage resistors.
3. Check that all control knobs, shields, covers, ground straps, and
mounting hardware have been replaced. Be absolutely certain that you
have replaced all the insulators.
4. Look for unauthorized replacement parts, particularly transistors, that
were installed during a previous repair. Point them out to the customer
and recommend their replacement.
5. Look for parts which, though functioning, show obvious signs of
deterioration. Point them out to the customer and recommend their
replacement.
6. Check the line cords for cracks and abrasion. Recommend the
replacement of any such line cord to the customer.
7. Check the B+ and HV to see if they are specified values. Make sure your
instruments are accurate; be suspicious of your HV meter if sets always
have low HV.
8. Check the antenna terminals, metal trim, “metallized” knobs, screws, and
all other exposed metal parts for AC Leakage. Check leakage as
described right.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and from all
exposed metal parts to any exposed metal part having a return to chassis,
must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA WT540A. Follow the manufacturers’ instructions to use these instruments.
2. A battery-operated AC milliammeter. The Data Precision 245 digital
multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a VOM or
battery-operated AC voltmeter. The “limit” indication is 0.75 V, so
analog meters must have an accurate low-voltage scale. The Simpson 250
and Sanwa SH-63Trd are examples of a passive VOMs that are suitable.
Nearly all battery operated digital multimeters that have a 2 V AC range
are suitable. (See Fig. A)
To Exposed Metal
Parts on Set
0.15 µF
1.5 kΩ
AC
Voltmeter
(0.75 V)
Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.
KE-50XBR900(UC)
3
WARNING!!
AVERTISSEMENT!!
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY SHADING AND MARK ! ON THE
SCHEMATIC DIAGRAMS, EXPLODED VIEWS AND IN THE
PARTS LIST ARE CRITICAL FOR SAFE OPERATION. REPLACE
THESE COMPONENTS WITH SONY PARTS WHOSE PART
NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN
SUPPLEMENTS PUBLISHED BY SONY. CIRCUIT ADJUSTMENTS THAT ARE CRITICAL FOR SAFE OPERATION ARE
IDENTIFIED IN THIS MANUAL. FOLLOW THESE PROCEDURES
WHENEVER CRITICAL COMPONENTS ARE REPLACED OR IMPROPER OPERATION IS SUSPECTED.
ATTENTION AUX COMPOSANTS RELATIFS À LA SÉCURITÉ!!
LES COMPOSANTS IDENTIFIÉS PAR UNE TRAME ET UNE
MARQUE ! SONT CRITIQUES POUR LA SÉCURITÉ. NE LES
REMPLACER QUE PAR UNE PIÈCE PORTANT LE NUMÉRO
SPECIFIÉ. LES RÉGLAGES DE CIRCUIT DONT L’IMPORTANCE EST
CRITIQUE POUR LA SÉCURITÉ DU FONCTIONNEMENT SONT
IDENTIFIÉS DANS LE PRÉSENT MANUEL. SUIVRE CES
PROCÉDURES LORS DE CHAQUE REMPLACEMENT DE
COMPOSANTS CRITIQUES, OU LORSQU’UN MAUVAIS
FONCTIONNEMENT EST SUSPECTÉ.
KE-50XBR900(UC)
4
TABLE OF CONTENTS
Section
Title
Page
Section
Title
Page
1. EXPLODED VIEWS
1-1.
1-2.
1-3.
1-4.
Display Unit (PDM-5000) ...................................
Media Receiver Unit-1 (MBT-XBR900) .............
Media Receiver Unit-2 (MBT-XBR900) .............
Packing Materials for Display Unit
(PDM-5000) .........................................................
1-5. Packing Materials for Media Receiver Unit
(MBT-XBR900) ..................................................
1-2
1-4
1-6
1-8
2. ELECTRICAL PARTS LIST ...............................
2-1
1-7
KE-50XBR900(UC)
5
SECTION 1
EXPLODED VIEWS
• Items with no part number and no
description are not stocked because they
are seldom required for routine service.
• The construction parts of an assembled
part are indicated with a collation number
in the remark column.
• Items marked " * " are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
The components identified ! marked are
critical for safety.
Replace only with the part number specified.
Les composants identifiés par la marque !
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
KE-50XBR900(UC)
1-1
1-1. DISPLAY UNIT(PDM-5000)
#2
17
#1
16
15
#1
21 22
18
31
#1
#5
6
9
#2
#8
#1
4
#2 #2
28
29
#2
#8
8
4
#5
12
#5
30
#3
#2
#2
3
27
6
#2
1
#1
#2
#2
5
#5
#2
#2
#2
7
26
#4
32
34
3
2
#2
#1
#2
5
25
14
17
24
#5
#1
#2
35
#5
#4
#4
#2
10
23
33
33
19
#2
#2 #2
#2
#6
20
31
8
#9
#4
#7
#4
33
#2
7
13
#3
11
9
#2
10
36
KE-50XBR900(UC)
1-2
REF.NO. PART NO.
DESCRIPTION
REMARK
1
2
3
4
5
A-1603-818-D
A-1603-817-D
4-091-706-01
1-825-250-11
1-825-251-11
SP (R) ASSY
SP (L) ASSY
GRILLE, SP
SPEAKER (5 CM)
SPEAKER (13X6 CM)
6
7
8
9
10
4-091-957-01
1-825-249-11
4-091-958-01
4-091-991-01
4-091-675-01
COVER (A), SCREW
SPEAKER (13X6 CM)
COVER (B), SCREW
BAR
SCREW, FIXED
11
12
13
14
15
* A-1401-891-B
4-635-966-01
* A-1401-606-B
2-433-598-01
4-091-681-01
R2 BOARD, MOUNT
SCREW (HEX)
R1 BOARD, MOUNT
HOLDER (LT-11U), WIRE
HOOK
16
17
18
19
20
* X-4041-100-1
* 4-091-684-01
1-763-961-11
* A-1401-892-A
3-910-042-01
COVER ASSY, REAR
GASKET (ER)
FAN, D.C
F2 BOARD, MOUNT
SPACER (A)
21
22
23
24
25
4-035-160-01
* A-1300-778-D
1-763-962-11
4-314-843-02
* A-1401-608-B
PURSE LOCK (S) (DIA. 12)
G BOARD, COMPLETE
FAN, D.C
SCREW, TAPPING, +4X12
F BOARD, MOUNT
26
27
28
29
30
3-8
3-8
REF.NO. PART NO.
31
32
33
34
35
* 4-091-684-11
X-4040-983-1
4-374-745-11
* 1-805-056-11
4-091-702-01
DESCRIPTION
REMARK
GASKET (ER)
BRACKET (50) ASSY, U
CUSHION (A)
PLASMA DISPLAY PANEL
BOX (FL), SP
36
4-091-703-01 BOX (FR), SP
#1
#2
#3
#4
#5
#6
#7
#8
#9
7-682-973-49
7-685-663-79
7-685-647-79
7-682-663-09
7-682-948-09
7-685-648-79
7-682-667-09
7-685-533-19
7-685-167-19
+PSW 5X16
+BVTP 4X16, TYPE 2, IT-3
+BVTP 3X10, TYPE 2, IT-3
+PSW 4X12
+PSW 3X8
+BV 3X12, TYPE 2, IT-3
+PS 4X25
+BTTP 2.6X6
+PTP 4X35
17, 31
* A-1401-609-B K BOARD, MOUNT
* A-1300-780-G P BOARD,COMPLETE
2-990-241-02 HOLDER (A), PLUG
! 1-417-336-11 AC INLET
4-662-693-03 GRIP, M2.6 S HEAD(EG)
