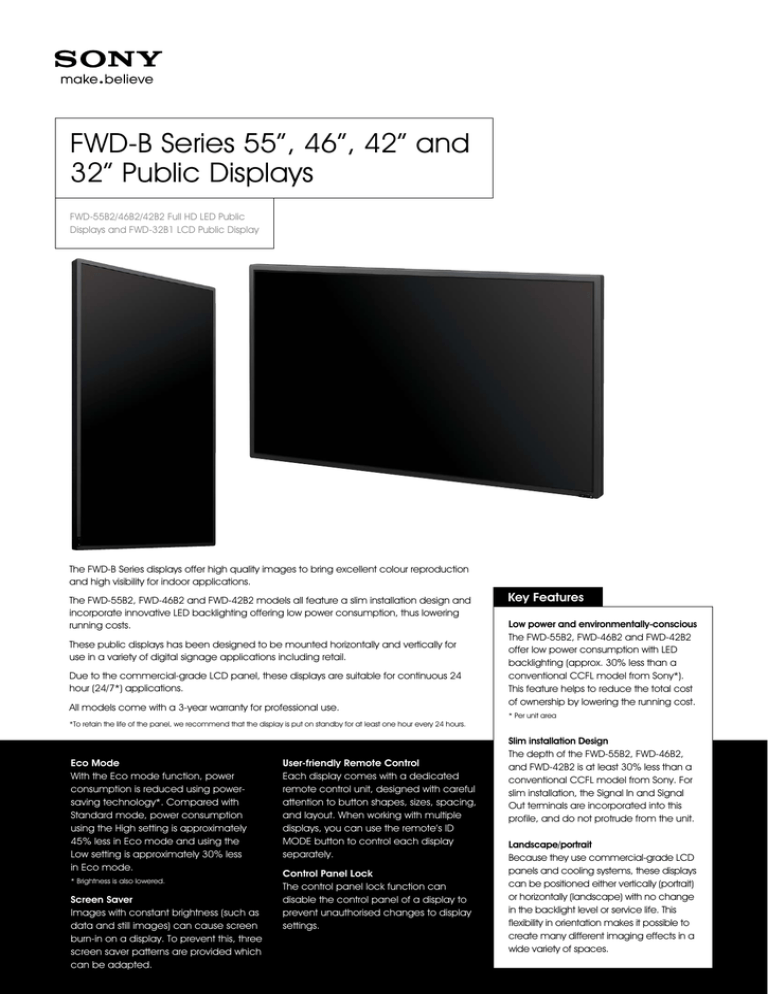

FWD-B Series 55”, 46”, 42” and
32” Public Displays
FWD-55B2/46B2/42B2 Full HD LED Public
Displays and FWD-32B1 LCD Public Display
The FWD-B Series displays offer high quality images to bring excellent colour reproduction
and high visibility for indoor applications.
The FWD-55B2, FWD-46B2 and FWD-42B2 models all feature a slim installation design and
incorporate innovative LED backlighting offering low power consumption, thus lowering
running costs.
These public displays has been designed to be mounted horizontally and vertically for
use in a variety of digital signage applications including retail.
Due to the commercial-grade LCD panel, these displays are suitable for continuous 24
hour (24/7*) applications.
All models come with a 3-year warranty for professional use.
*To retain the life of the panel, we recommend that the display is put on standby for at least one hour every 24 hours.
Eco Mode
With the Eco mode function, power
consumption is reduced using powersaving technology*. Compared with
Standard mode, power consumption
using the High setting is approximately
45% less in Eco mode and using the
Low setting is approximately 30% less
in Eco mode.
* Brightness is also lowered.
Screen Saver
Images with constant brightness (such as
data and still images) can cause screen
burn-in on a display. To prevent this, three
screen saver patterns are provided which
can be adapted.
User-friendly Remote Control
Each display comes with a dedicated
remote control unit, designed with careful
attention to button shapes, sizes, spacing,
and layout. When working with multiple
displays, you can use the remote’s ID
MODE button to control each display
separately.
Control Panel Lock
The control panel lock function can
disable the control panel of a display to
prevent unauthorised changes to display
settings.
Key Features
Low power and environmentally-conscious
The FWD-55B2, FWD-46B2 and FWD-42B2
offer low power consumption with LED
backlighting (approx. 30% less than a
conventional CCFL model from Sony*).
This feature helps to reduce the total cost
of ownership by lowering the running cost.
* Per unit area
Slim installation Design
The depth of the FWD-55B2, FWD-46B2,
and FWD-42B2 is at least 30% less than a
conventional CCFL model from Sony. For
slim installation, the Signal In and Signal
Out terminals are incorporated into this
profile, and do not protrude from the unit.
Landscape/portrait
Because they use commercial-grade LCD
panels and cooling systems, these displays
can be positioned either vertically (portrait)
or horizontally (landscape) with no change
in the backlight level or service life. This
flexibility in orientation makes it possible to
create many different imaging effects in a
wide variety of spaces.
Other Features Continued
Power-on Delay
Switching on multiple displays at the same time can potentially
cause a damaging power surge. The Power-on Delay feature avoids
this risk by allowing you to stagger the timing so that each unit powers
up at a slightly different time.
Display Control via RS232C/RJ45
You can monitor the display status and control multiple displays over a
LAN, VPN, or the Internet using Microsoft® Internet Explorer® 7.0 or later.
High quality images
All B-Series displays achieve high brightness of 450-500 cd/m2 and a
high contrast ratio of 4000:1*. This quality enables excellent excellent
colour reproduction and high visibility for indoor applications.
* The FWD-32B1 has a 3000:1 contrast ratio.
Centre
High contrast of 4000:1
Low contrast
image simulated
Multi-display
All B-Series displays can present a single large dynamic image,
simply by combining up to 16 display units (1x2, 1x3, 1x4, 2x1, 3x1,
4x1,2x2, 3x3, 4x4)*.
* Multi-display function supports progressive signals only.
VESA-compliant Flexible Mounting
VESA-compliant mounting points help ensure safety when units are
mounted. Optional mounting brackets are sold separately.
FWD-46B2
Back aspect
connection type
FWD-55B2, FWD-46B2, and FWD-42B2
VESA pitch:
400×400
In and out terminals
Installed side view images
FWD-32B1
Optional Accessories
SS-SPG02
Speaker Systems
VESA pitch:
200×200
WBPM1-Slim
Wall Bracket
SU-S02
Tabletop Stand
www.pro.sony.eu/publicdisplays
Dimensions
FWD-55B2
FWD-46B2
FWD-42B2
FWD-32B1
* with Speaker
** with Tabletop stand
Unit: mm (inches)
www.pro.sony.eu/publicdisplays
Technical Specifications
Specifications
FWD-55B2
FWD-46B2
FWD-42B2
FWD-32B1
LCD Panel
Type
Panel Size (diagonal)
Picture Size (h x v)
Panel Resolution (h x v)
Pixel Pitch
Colour Depth
Brightness
Contrast Ratio
Viewing Angle*
a-Si TFT Active Matrix LCD Edge lit type LED Backlight
55 inches
46 inches
42 inches
1,209.6 x 680.4 mm (47 5/8 x 26 3/4 inches) 1018.1 x 572.7 mm (40 1/8 x 22 5/8 inches) 930.2 x 523.3 mm (36 5/8 x 20 5/8 inches)
1920 x 1080 pixels, Full HD
0.63 x 0.63 mm
0.53 x 0.53 mm
0.48 x 0.48 mm
8 bits + FRC, 1.06 billion colours
450 cd/m2 (typical)
500 cd/m2 (typical)
4,000 : 1 (typical)
178 degrees (typical)
a-Si TFT Active Matrix LCD CCFL Backlight
32 inches
697.7 x 392.3 mm (27 1/2 x 15 1/2 inches)
1366 x 768 pixels, WXGA
0.51 x 0.51 mm
8 bits + FRC, 16.7 million colours
450 cd/m2 (typical)
3,000 : 1 (typical)
Signal
Colour System
Sampling Rate
NTSC, PAL
13.5 MHz to 162 MHz
Inputs/Outputs
Digital Video
HDMI(1080p) in with audio in DVI in with audio in Rev. 1.0 compliant
HD15 in with audio in (RGB/Component Video) HD15 out (RGB/Component Video)
Composite Video in/out with audio in** (BNC (x2)) Component Video in with audio in** (pin jack (x3))
Network port (RJ45, 10BASE-T/100BASE-TX) RS-232C (D-sub 9-pin, straight)
Audio out (L/R, pin jack (x2))
L/R, 7W + 7W, 6 ohms
(Internal Speaker, L/R, 7W + 7W, 6 ohms)
Analogue Video
Remote Control
Audio
Speaker Out
General
Power Requirements
Power Consumption
Operating Temperature
Storage Temperature
Humidity
Dimensions (w x h x d)
Mass
Regulation Compliance
AC 100 V to 240 V, 50/60 Hz, 1.5 A (maximum) AC 100 V to 240 V, 50/60 Hz, 1.3 A (maximum) AC 100 V to 240 V, 50/60 Hz, 1.4 A (maximum) AC 100 V to 240 V, 50/60 Hz, 1.1 A (maximum)
130 W (typical) 150 W (maximum)
110 W (typical) 130 W (maximum)
120 W (typical) 135 W (maximum)
85 W (typical) 110 W (maximum)
0°C to 40°C (32°F to 104°F)
-10°C to 40°C (14°F to 104°F)
20% to 90%, no condensation
1,245.0 x 715.8 x 84.0 mm
1,053.6 x 608.2 x 84.0 mm
967.8 x 560.7 x 88.0 mm
763.3 x 457.9 x 116.9 mm
(49 1/8 x 28 1/4 x 3 3/8 inches)
(41 1/2 x 24 x 3 3/8 inches)
(38 1/8 x 22 1/8 x 3 1/2 inches)
(30 1/8 x 18 1/8 x 4 5/8 inches)
(excluding protruding parts)
(excluding protruding parts)
(excluding protruding parts)
(excluding protruding parts)
29.5 kg (65.0 lb)
22.4 kg (49.4 lb)
20.2 kg (44.5 lb)
13.4 kg (29.5 lb)
UL, CSA, CE, GOST-R, IEC, FCC Class B, IC, CISPR, ErP Lot6
AC power cord (x1), AC plug holder (x2),
Cable holder (x6),
Remote Control RM-FW002 (x1),
Size AA (R6) batteries (x2),
Operating instructions (x1)
Supplied Accessories
AC power cord (x1), AC plug holder (x2),
Cable holder (x3),
Remote Control RM-FW002 (x1),
Size AA (R6) batteries (x2),
Operating instructions (x1)
* Measured at athe contrast ration of more than 10:1
** Component video and composite video share an audio input (stereo mini jack (x1))
Connector Panels
AC IN socket
Main power switch
SPEAKER socket
(FWD-55B2, FWD-46B2, FWD-42B2)
