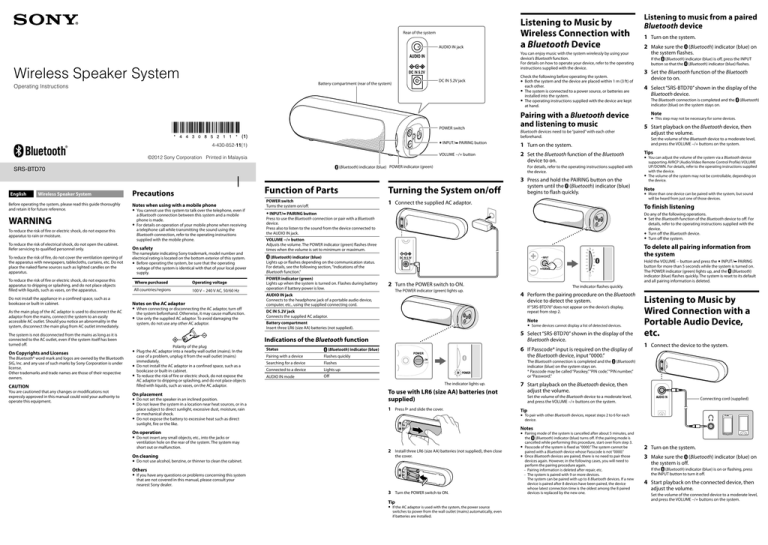

Sony SRS-BTD70 User's manual

Sony SRS-BTD70 User's manual
Rear of the system
AUDIO IN jack
Listening to Music by
Wireless Connection with
a Bluetooth Device
You can enjoy music with the system wirelessly by using your
device’s Bluetooth function.
For details on how to operate your device, refer to the operating
instructions supplied with the device.
Wireless Speaker System
DC IN 5.2V jack
Battery compartment (rear of the system)
Operating Instructions
POWER switch
4-430-852-11(1)
©2012 Sony Corporation Printed in Malaysia
Check the following before operating the system.
 Both the system and the device are placed within 1 m (3 ft) of
each other.
 The system is connected to a power source, or batteries are
installed into the system.
 The operating instructions supplied with the device are kept
at hand.
Pairing with a Bluetooth device
and listening to music
Bluetooth devices need to be “paired” with each other
beforehand.
 INPUT/ PAIRING button
1 Turn on the system.
VOLUME −/+ button
2 Set the Bluetooth function of the Bluetooth
device to on.
(Bluetooth) indicator (blue) POWER indicator (green)
SRS-BTD70
For details, refer to the operating instructions supplied with
the device.
3 Press and hold the PAIRING button on the
English
Wireless Speaker System
Before operating the system, please read this guide thoroughly
and retain it for future reference.
WARNING
To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture.
To reduce the risk of electrical shock, do not open the cabinet.
Refer servicing to qualified personnel only.
To reduce the risk of fire, do not cover the ventilation opening of
the apparatus with newspapers, tablecloths, curtains, etc. Do not
place the naked flame sources such as lighted candles on the
apparatus.
To reduce the risk of fire or electric shock, do not expose this
apparatus to dripping or splashing, and do not place objects
filled with liquids, such as vases, on the apparatus.
Do not install the appliance in a confined space, such as a
bookcase or built-in cabinet.
As the main plug of the AC adaptor is used to disconnect the AC
adaptor from the mains, connect the system to an easily
accessible AC outlet. Should you notice an abnormality in the
system, disconnect the main plug from AC outlet immediately.
The system is not disconnected from the mains as long as it is
connected to the AC outlet, even if the system itself has been
turned off.
On Copyrights and Licenses
The Bluetooth® word mark and logos are owned by the Bluetooth
SIG, Inc. and any use of such marks by Sony Corporation is under
license.
Other trademarks and trade names are those of their respective
owners.
CAUTION
You are cautioned that any changes or modifications not
expressly approved in this manual could void your authority to
operate this equipment.
Function of Parts
Precautions
Notes when using with a mobile phone
 You cannot use this system to talk over the telephone, even if
a Bluetooth connection between this system and a mobile
phone is made.
 For details on operation of your mobile phone when receiving
a telephone call while transmitting the sound using the
Bluetooth connection, refer to the operating instructions
supplied with the mobile phone.
On safety
The nameplate indicating Sony trademark, model number and
electrical rating is located on the bottom exterior of this system.
 Before operating the system, be sure that the operating
voltage of the system is identical with that of your local power
supply.
Where purchased
Operating voltage
All countries/regions
100 V – 240 V AC, 50/60 Hz
Notes on the AC adaptor
 When connecting or disconnecting the AC adaptor, turn off
the system beforehand. Otherwise, it may cause malfunction.
 Use only the supplied AC adaptor. To avoid damaging the
system, do not use any other AC adaptor.
POWER switch
Turns the system on/off.
1 Connect the supplied AC adaptor.
On placement
 Do not set the speaker in an inclined position.
 Do not leave the system in a location near heat sources, or in a
place subject to direct sunlight, excessive dust, moisture, rain
or mechanical shock.
 Do not expose the battery to excessive heat such as direct
sunlight, fire or the like.
On cleaning
If the (Bluetooth) indicator (blue) is off, press the INPUT
button so that the (Bluetooth) indicator (blue) flashes.
3 Set the Bluetooth function of the Bluetooth
device to on.
4 Select “SRS-BTD70” shown in the display of the
Bluetooth device.
The Bluetooth connection is completed and the
indicator (blue) on the system stays on.
(Bluetooth)
Note
 This step may not be necessary for some devices.
5 Start playback on the Bluetooth device, then
adjust the volume.
Set the volume of the Bluetooth device to a moderate level,
and press the VOLUME –/+ buttons on the system.
Tips
 You can adjust the volume of the system via a Bluetooth device
supporting AVRCP (Audio/Video Remote Control Profile) VOLUME
UP/DOWN. For details, refer to the operating instructions supplied
with the device.
 The volume of the system may not be controllable, depending on
the device.
Note
 More than one device can be paired with the system, but sound
will be heard from just one of those devices.
Hold the VOLUME − button and press the  INPUT/ PAIRING
button for more than 5 seconds while the system is turned on.
The POWER indicator (green) lights up, and the (Bluetooth)
indicator (blue) flashes quickly. The system is reset to its default
and all pairing information is deleted.
2 Turn the POWER switch to ON.
The POWER indicator (green) lights up.
AUDIO IN jack
Connects to the headphone jack of a portable audio device,
computer, etc., using the supplied connecting cord.
The indicator flashes quickly.
4 Perform the pairing procedure on the Bluetooth
device to detect the system.
If “SRS-BTD70” does not appear on the device’s display,
repeat from step 2.
DC IN 5.2V jack
Connects the supplied AC adaptor.
Note
Battery compartment
Insert three LR6 (size AA) batteries (not supplied).
 Some devices cannot display a list of detected devices.
5 Select “SRS-BTD70” shown in the display of the
Bluetooth device.
6 If Passcode* input is required on the display of
(Bluetooth) indicator (blue)
Pairing with a device
Flashes quickly
the Bluetooth device, input “0000.”
Searching for a device
Flashes
Connected to a device
Lights up
AUDIO IN mode
Off
The Bluetooth connection is completed and the (Bluetooth)
indicator (blue) on the system stays on.
* Passcode may be called “Passkey,” “PIN code,” “PIN number,”
or “Password.”
The indicator lights up.
To use with LR6 (size AA) batteries (not
supplied)
1 Press  and slide the cover.
Listening to Music by
Wired Connection with a
Portable Audio Device,
etc.
1 Connect the device to the system.
7 Start playback on the Bluetooth device, then
adjust the volume.
Set the volume of the Bluetooth device to a moderate level,
and press the VOLUME –/+ buttons on the system.
Connecting cord (supplied)
Tip
 To pair with other Bluetooth devices, repeat steps 2 to 6 for each
device.
Notes
On operation
 Do not insert any small objects, etc., into the jacks or
ventilation hole on the rear of the system. The system may
short out or malfunction.
the system flashes.
To delete all pairing information from
the system
(Bluetooth) indicator (blue)
Lights up or flashes depending on the communication status.
For details, see the following section, “Indications of the
Bluetooth function.”
Status
2 Make sure the (Bluetooth) indicator (blue) on
Do any of the following operations.
 Set the Bluetooth function of the Bluetooth device to off. For
details, refer to the operating instructions supplied with the
device.
 Turn off the Bluetooth device.
 Turn off the system.
VOLUME −/+ button
Adjusts the volume. The POWER indicator (green) flashes three
times when the volume is set to minimum or maximum.
POWER indicator (green)
Lights up when the system is turned on. Flashes during battery
operation if battery power is low.
1 Turn on the system.
To finish listening
 INPUT/ PAIRING button
Press to use the Bluetooth connection or pair with a Bluetooth
device.
Press also to listen to the sound from the device connected to
the AUDIO IN jack.
Indications of the Bluetooth function
Polarity of the plug
 Plug the AC adaptor into a nearby wall outlet (mains). In the
case of a problem, unplug it from the wall outlet (mains)
immediately.
 Do not install the AC adaptor in a confined space, such as a
bookcase or built-in cabinet.
 To reduce the risk of fire or electric shock, do not expose the
AC adaptor to dripping or splashing, and do not place objects
filled with liquids, such as vases, on the AC adaptor.
system until the (Bluetooth) indicator (blue)
begins to flash quickly.
Turning the System on/off
Listening to music from a paired
Bluetooth device
2 Install three LR6 (size AA) batteries (not supplied), then close
the cover.
 Do not use alcohol, benzine, or thinner to clean the cabinet.
Others
 If you have any questions or problems concerning this system
that are not covered in this manual, please consult your
nearest Sony dealer.
3 Turn the POWER switch to ON.
Tip
 If the AC adaptor is used with the system, the power source
switches to power from the wall outlet (mains) automatically, even
if batteries are installed.
 Pairing mode of the system is cancelled after about 5 minutes, and
the (Bluetooth) indicator (blue) turns off. If the pairing mode is
cancelled while performing this procedure, start over from step 3.
 Passcode of the system is fixed as “0000.” The system cannot be
paired with a Bluetooth device whose Passcode is not “0000.”
 Once Bluetooth devices are paired, there is no need to pair those
devices again. However, in the following cases, you will need to
perform the pairing procedure again.
– Pairing information is deleted after repair, etc.
– The system is paired with 9 or more devices.
The system can be paired with up to 8 Bluetooth devices. If a new
device is paired after 8 devices have been paired, the device
whose latest connection time is the oldest among the 8 paired
devices is replaced by the new one.
2 Turn on the system.
3 Make sure the (Bluetooth) indicator (blue) on
the system is off.
If the (Bluetooth) indicator (blue) is on or flashing, press
the INPUT button to turn it off.
4 Start playback on the connected device, then
adjust the volume.
Set the volume of the connected device to a moderate level,
and press the VOLUME –/+ buttons on the system.
Troubleshooting
What is Bluetooth wireless
technology?
No sound / Sound from only one speaker /
Low sound level
Check that both this system and
the connected device are turned
on.
If you are connecting a personal
computer to the system, make
sure the audio output setting of
the computer is set for a Bluetooth
device.
Turn up the volume of the system
and the connected device.
Pair this system and the Bluetooth
device again.
Check that the connected device
is being played back.
If the connected device is monaural,
sound will only be output from the
left speaker.
Check that both plugs of the
connecting cord (supplied) are
firmly inserted into the system
and the connected device.
Distorted sound /
Humming or noise in the system output
Turn down the volume of the
connected device.
Keep the system away from a TV.
If the connected device has an
equalizer function, set it to off.
If the POWER indicator (green) is
flashing, replace all the batteries
with new ones.
Keep the system away from a
microwave oven, wireless LAN,
etc.
If you connect a device with a builtin radio or tuner to this system,
broadcasts may not be received, or
sensitivity may be reduced. Locate
the system farther away from the
device and check that you can listen
to the broadcasts satisfactorily.
Bring this system and the
Bluetooth device closer together.
Remove any obstacle between
this system and the Bluetooth
device.
Pairing is not possible
Bring this system and the
Bluetooth device to within 1 m
(3 ft) of each other.
Make sure pairing mode of the
system is activated.
Bluetooth wireless technology is a short-range wireless
technology that enables wireless data communication between
digital devices, such as a computer and digital camera. Bluetooth
wireless technology operates within a range of about 10 m
(about 30 ft).
Connecting two devices as necessary is common, but some
devices can be connected to multiple devices at the same time.
You do not need to use a cable for connection, nor is it necessary
for the devices to face one another, such is the case with infrared
technology. For example, you can use such a device in a bag or
pocket.
Bluetooth standard is an international standard supported by
thousands of companies all over the world, and employed by
various companies worldwide.
Specifications
Speaker section
Speaker system
Enclosure type
Satellite speaker: 28 mm (1 1/8 in.)
Subwoofer: 40 mm (1 5/8 in.)
Satellite speaker: closed type
Subwoofer: ASW (Acoustic Super Woofer)
type
Amplifier section
Reference output power
Satellite speaker: 1.3 W + 1.3 W (10 % T.H.D.,
1 kHz, 8 Ω)
Subwoofer: 2.4 W (10 % T.H.D., 100 Hz, 3 Ω)
Input
Stereo mini jack × 1
Bluetooth
Use Bluetooth devices within 10 m (about 30 ft) (line of sight) of
the system.
Maximum communication range may shorten under the
following conditions.
– There is an obstacle such as a person, metal, or wall between
the system and Bluetooth device.
– A wireless LAN device is in use near the system.
– A microwave oven is in use near the system.
– A device that generates electromagnetic radiation is in use
near the system.
Communication System
Bluetooth Specification version 3.0
Output
Bluetooth Specification Power Class 2
Maximum communication range
Line of sight approx. 10 m (about 30 ft)*1
Frequency band 2.4 GHz band (2.4000 GHz - 2.4835 GHz)
Modulation method
FHSS
Compatible Bluetooth Profiles*2
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio Video Remote Control Profile)
VOLUME UP/DOWN
Supported Codec*3
SBC*4
Transmission range (A2DP)
20 Hz - 20,000 Hz (Sampling frequency
44.1 kHz)
1
* The actual range will vary depending on factors such as
obstacles between devices, magnetic fields around a
microwave oven, static electricity, reception sensitivity, aerial’s
performance, operating system, software application, etc.
2
* Bluetooth standard profiles indicate the purpose of Bluetooth
communication between devices.
*3Codec: Audio signal compression and conversion format
4
* Subband Codec
Interference from other devices
General
Communication System and Compatible
Bluetooth Profiles of the system
Profile is standardisation of the function for each Bluetooth
device specification. The system supports the following
Bluetooth version and profiles:
Communication System:
Bluetooth Specification version 3.0
Compatible Bluetooth Profiles:
– A2DP (Advanced Audio Distribution Profile): Transmitting or
receiving audio content of high-quality.
– AVRCP (Audio Video Remote Control Profile): Controlling the
sound volume.
Maximum communication range
Because Bluetooth devices and wireless LAN (IEEE802.11b/g) use
the same frequency, microwave interference may occur and
resulting in communication speed deterioration, noise, or invalid
connection if the system is used near a wireless LAN device. In
such a case, perform the following.
– Use the system at least 10 m (about 30 ft) away from the
wireless LAN device.
– If the system is used within 10 m (about 30 ft) of a wireless
LAN device, turn off the wireless LAN device.
Interference to other devices
Microwaves emitting from a Bluetooth device may affect the
operation of electronic medical devices. Turn off the system and
other Bluetooth devices in the following locations, as it may
cause an accident.
– where inflammable gas is present, in a hospital, train,
airplane, or a gas station
– near automatic doors or a fire alarm
Notes
 To be able to use the Bluetooth function, the Bluetooth device
to be connected requires the same profile as the system’s.
Note also that even if the same profile exists, devices may vary
in function depending on their specifications.
 Due to the characteristic of Bluetooth wireless technology, the
sound played on the system is slightly delayed from the sound
played on the Bluetooth device during talking on the
telephone or listening to the music.
 This system supports security capabilities that comply with
the Bluetooth standard to provide a secure connection when
the Bluetooth wireless technology is used, but security may
not be enough depending on the setting. Be careful when
communicating using Bluetooth wireless technology.
 We do not take any responsibility for the leakage of
information during Bluetooth communication.
 A device featuring the Bluetooth function is required to
conform to the Bluetooth standard specified by Bluetooth SIG,
and be authenticated. Even if the connected device conforms
to the above mentioned Bluetooth standard, some devices
may not be connected or work correctly, depending on the
features or specifications of the device.
 Noise or sound skips may occur depending on the Bluetooth
device connected with the system, the communication
environment or the usage environment.
Power
DC 5.2 V (when using the supplied AC
adaptor connected to AC 100 V - 240 V power
supply)
Three LR6 (size AA) batteries
Rated power consumption
1.8 W (when using the supplied AC adaptor)
Approx. 0.2 W (in standby mode when using
the supplied AC adaptor)
Battery life (when using the Bluetooth connection)
Sony alkaline battery LR6 (size AA):
approx. 13 hours*5
Sony nickel metal hydride rechargeable
battery NHAAB2K (size AA):
approx. 15 hours*5
Dimensions
Approximately 206 mm × 63 mm × 77 mm
(8 1/8 in. × 1 1/2 in. × 3 1/8 in.) (w/h/d)
Mass
Approximately 620 g (1 lb. 6 oz.) including
batteries
Supplied accessories
AC adaptor (AC-E5212) (1)
Connecting cord (1)
Carrying pouch (1)
Operating Instructions (this document) (1)
*5Time may vary, depending on the temperature or conditions
of use.
Design and specifications are subject to change without notice.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
