HOME THEATRE SYSTEM
HT-DDW665
Speaker Connection

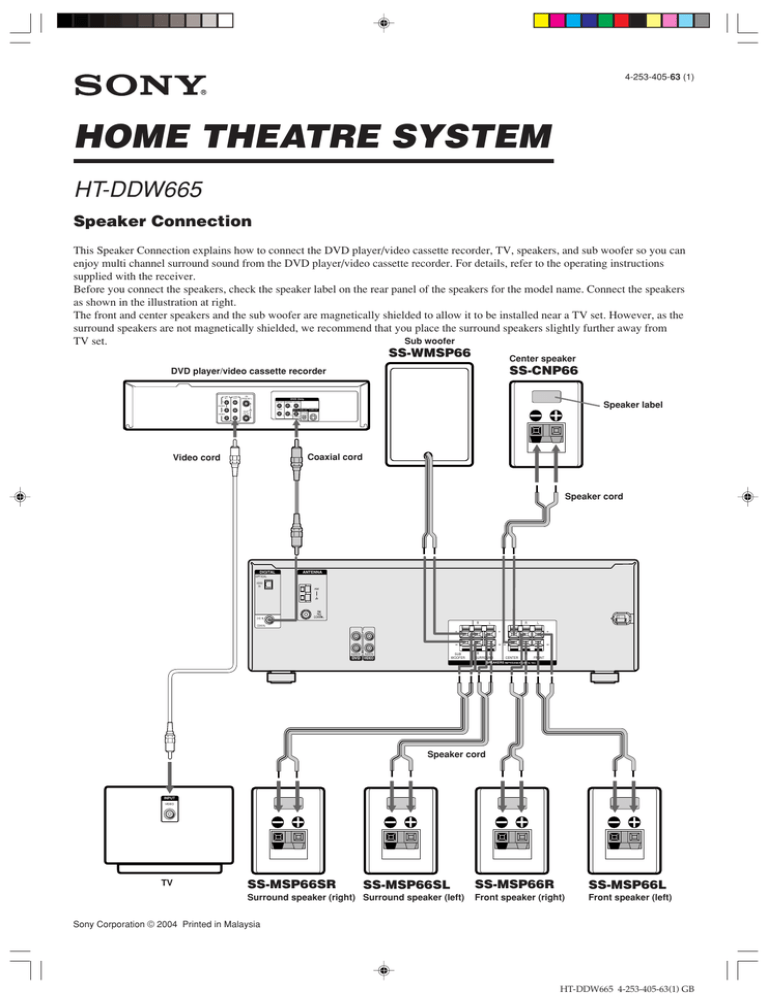

This Speaker Connection explains how to connect the DVD player/video cassette recorder, TV, speakers, and sub woofer so you can
enjoy multi channel surround sound from the DVD player/video cassette recorder. For details, refer to the operating instructions
supplied with the receiver.
Before you connect the speakers, check the speaker label on the rear panel of the speakers for the model name. Connect the speakers
as shown in the illustration at right.
The front and center speakers and the sub woofer are magnetically shielded to allow it to be installed near a TV set. However, as the
surround speakers are not magnetically shielded, we recommend that you place the surround speakers slightly further away from
Sub woofer
TV set.
SS-WMSP66
Center speaker
SS-CNP66
DVD player/video cassette recorder
LINE
IN 1
LINE
OUT
IN
(FROM ANT.)
DVD Only
R
L
VIDEO
Speaker label
LINE OUT COMPONENT VIDEO OUT
AUDIO
L
Pr
R
Pb
AUDIO
OUT RF
Y
DIGITAL AUDIO OUT S-VIDEO OUT
OPTICAL
(TO TV)
COAXIAL
Coaxial cord
Video cord
Speaker cord
DIGITAL
ANTENNA
OPTICAL
VIDEO
IN
AM
DVD IN
R
COAXIAL
L
+
L
R AUDIO IN
DVD VIDEO
SUB
WOOFER
AUDIO IN
R
L
+ +
R
L
SURROUND
+
R
CENTER
L
FRONT
SPEAKERS
Speaker cord
INPUT
VIDEO
TV
SS-MSP66SR
SS-MSP66SL
Surround speaker (right) Surround speaker (left)
SS-MSP66R
SS-MSP66L
Front speaker (right)
Front speaker (left)
