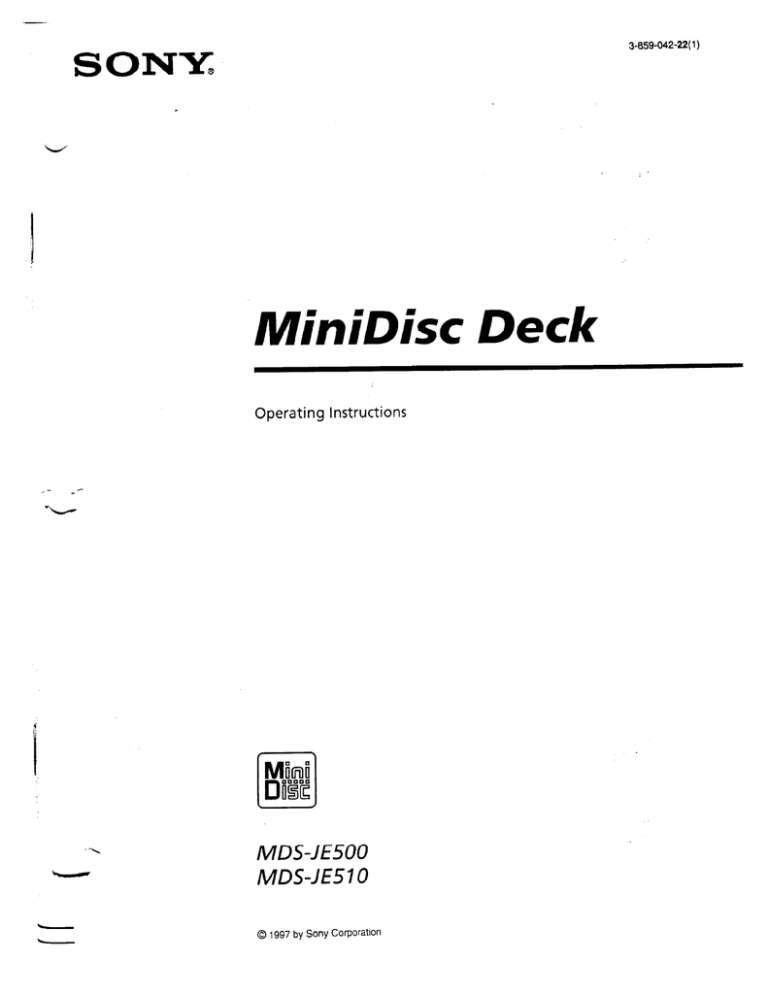

3-859-042-22(1)
SONY.
MiniDisc Deck
Operating Instructions
an MDS-JE500
UT MDS-JE510
© 1997 by Sony Corporation
To prevent fire or shock
hazard, do not expose the unit
to rain or moisture.
To avoid electrical shock, do
not open the cabinet. Refer
servicing to qualified
personnel only.
The laser component in this product is
capable of emitting radiation exceeding
the limit for Class 1.
Y | RISK OF ELECTRIC SHOCK |
; 9 NOT CPEN i -
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO ROT AEMOYE COVER (OA BACK).
NO USER-SERVICÉABLE PARTS INSIDE.
REFER SERVICING TO GuAL'F ED SERVICE PERSONNEL
This svmbol is intended to
A alert the user to the presence of
uninsulated “dangerous
voltage” within the product's
enclosure that may be of
sufficient magnitude to
constitute a risk of electric
shock to persons.
This symbol is intended to
AN alert the user to the presence of
important operating and
maintenance (servicing)
instructions in the literature
accompanving the appliance.
INFORMATION
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses, and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio
communications.
However, there is no guarantee that
interference will not occur in a
particular installation. If this equipment
does cause harmful interference to radio
or television reception, which can be
determined by turning the equipment
off and on, the user is encouraged to try
to correct the interference by one or
more of the following measures:
— Reorient or relocate the receiving
antenna.
— Increase the separation between the
equipment and receiver.
- Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
— Consult the dealer or an experienced
radio/ TV technician for help.
CAUTION
You are cautioned that any changes or
modification not expressly approved in
this manual could void your authority
to operate this equipment.
Owner's Record
The model and serial numbers are
located on the rear of the unit.
Record the serial number in the space
provided below. Refer to them
whenever you call upon your Sony
dealer regarding this product.
Model No.
Serial No.
IN NO EVENT SHALL SELLER BE
LIABLE FOR ANY DIRECT,
INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF
ANY NATURE, OR LOSSES OR
EXPENSES RESULTING FROM ANY
DEFECTIVE PRODUCT OR THE
USE OF ANY PRODUCT.
E
Precautions
On safety
* The use of optical instruments with
this product will increase eye hazard.
e Should anv solid object or liquid fall
into the cabinet, unplug the deck and
have it checked by qualified
personnel before operating 1t any
further.
On power sources
+ Before operating the deck, check that
the operating voltage of the deck is
identical with your local power
supply. The operating voltage is
indicated on the nameplate at the rear
of the deck.
e If vou are not going to use the deck
for a long time, be sure to disconnect
the deck from the wall outlet. To
disconnect the AC power cord, grasp
the plug itself; never pull the cord.
On operation
If the deck is brought directly from a
cold to a warm location, or is placed in a
verv damp room, moisture may
condense on the lenses inside the deck.
Should this occur, the deck may not
operate properly. In this case, remove
the MD and leave the deck turned on for
about an hour until the moisture
evaporates.
On the MiniDisc cartridge
« Do not open the shutter to expose the
MD.
+ Do not place the cartridge where it
will be subject to extremes of sunlight,
temperature, moisture or dust.
On cleaning
Clean the cabinet, panel and controls
with a soft cloth slightly moistened with
a mild detergent solution. Do not use
any type of abrasive pad, scouring
powder or solvent such as alcohol or
benzine.
If you have any questions or problems
concerning your deck, please consult
your nearest Sony dealer.
2 ep re dm a
os E fore rm =
E
Welcome!
Thank you for purchasing the Sony
MiniDisc Deck. Before operating the
deck, please read this manual
thoroughly and retain it for future
reference.
About This Manual
Conventions
* Controls in the instructions are those
on the deck; these may, however, be
substituted by controls on the remote
that are similarly named or, when
different, appear in the instructions
within brackets.
* The following icons are used in this
manual:
Indicates a procedure that
i requires use of the remote.
vis . . .
Q Indicates tips for making the
task easier and hints.
TABLE OF CONTENTS
Getting Started
Un pacKing ….……eserseneneeermenenmnçnnnennennçennennennennnÊünnennnnnennenn 4
Hooking Up the System coir sss 4
Recording on an MD ...........c..ee2e=esteeneeceeccenarencanenennennonernenas ©
Playing an MD -.......eeeeeeeeeeeeeeeeneeneceeneceranene nenes pnneneneneoos . 8
Recording on MDs
Notes on Recording ..................-.—.-..im0eeeee snes 9
Useful Tips for Recording ……….……iesmeeesceceennceenmennennenmnennnmnnn 9
Recording Over Existing Tracks conic 11
Adjusting the Recording Level oes 11
Marking Track Numbers While Recording (Track Marking) ...... 12
Starting Recording With 6 Seconds of Prestored Audio Data
(Time Machine Recording) cc... scr 12
Synchro-Recording With Audio Equipment of Your Choice....... 13
Synchro-Recording With a Sony CD Player... 14
Recording on an MD Using a Timer ............. OC sanents 15
Playing MDs
Using the Display coun, SE es 16
Locating a Specific Track «ooo, 17
Locating a Particular Point in a Track won, 18
Playing Tracks Repeatedly ….…….……....……asesenennennenççennnnnnnnnnnme 18
Playing in Random Order (Shuffle Play)... nr 19
Creating Your Own Program (Program Play) ……nense 20
Useful Tips When Recording From MDs to Tape ..............—.—....—...- 21
Playing an MD Using a Timer ...................eee-—-.—-i0mmeemaneen nene 21
Editing Recorded MDs
Notes on Editing ……….….imseeensenetntanenççensnnennennennnnnnnnennnnûnne 22
Erasing Recordings (Erase Function) .…………….…iiesennennnçnu 22
Dividing Recorded Tracks (Divide Function)... 24
Combining Recorded Tracks (Combine Function) ...............-...... 25
Moving Recorded Tracks (Move FurCtiOn)...….……cemennee 26
Labeling Recordings (Title Function) ………….…ercenennnsnnnsnnn 26
Undoing the Last Edit (Undo Function) wn 29
Additional Information
Display MEssageES .………umreerereenmennennnnnmnnnnnnnnnnnnnnnnnennnnnm 30
System Limitations ….………sireerceriesrainentenennen snes 30
TroubleshOOHNE «cove 31
Specifications ….…….….….icieieerieeceneancncerenenennennennnannnnnnnnnnnnûünn 31
Guide to the Serial Copy Management System ee 33
Index ............ erecceneerverenentene Pnarenienrsenooarevranerraderacavecarenecmnames 34
DE
Unpacking
Check that you received the following items:
* Audio connecting cords (2)
* Remote commander (remote) RM-D7M (1)
* Sony SUM-3 (NS) batteries (2)
Inserting batteries into the remote
You can control the deck using the supplied remote.
Insert two R6 (size-AA) batteries by matching the +
and — on the batteries. When using the remote, point it
at the remote sensor Hi on the deck.
q When to replace batteries
With normal use, the batteries should last for about six
months. When the remote no longer operates the deck,
replace all the batteries with new ones.
Notes
* Do not leave the remote near an extremely hot or humid
place.
* Do not drop any foreign object into the remote casing,
particularly when replacing the batteries.
e Do not expose the remote sensor to direct sunlight or
lighting apparatuses. Doing so may cause a malfunction.
e If you don't use the remote for an extended period of time,
remove the batteries to avoid possible damage from
battery leakage and corrosion.
Hooking Up the System
Overview
This section describes how to hook up the MD deck to
an amplifier or other components such as a CD player
or DAT deck. Be sure to turn off the power of each
component before connection.
: |
i E | -
Е ЭС
La
ial
|
|
TS ff
=
to a wall outlet
A (or to a timer during timer
- recording or playback)
REC TAPE :
OUT IN : Connect only ;
--: one digital ~~ ---»
: component at :
Amplifier | a time
"a.
| DIGITAL |
| our |
CD player
DIGITAL DIGITAL
OUT IN
A
DAT deck or
MO deck, etc.
==: Signal flow — Lo]
What cords will | need?
* Audio connecting cords (supplied) (2)
* Optical cable (not supplied) (2)
En === р
Hookups
Connecting the deck to an amplifier
Connect the amplifier to the LINE (ANALOG) IN/OUT jacks
using the audio connecting cords (supplied), making sure to
match the color-coded cords to the appropriate jacks on the
components: red (right) to red and white (left) to white. Be
sure to make connections firmly to prevent hum and noise.
MD deck Amplifier
LINE
(ANALDG) a
=: Signal flow
Connecting the deck to a digital component such as a CD
player, DAT deck, digital amplifier, or another MD deck
Connect the component through the DIGITAL IN/OUT
connectors with two optical cables (not supplied). Take the
caps off the connectors before plugging in the cables.
MD deck Digital component
DIGITAL
==! Signal flow
5
. ls
Automatic conversion of digital sampling rates
during recording
A built-in sampling rate converter automatically
converts the sampling frequency of various digital
sources to the 44.1 kHz sampling rate of your MD deck.
This allows you to record sources such as 32- and 48-
kHz DAT or satellite broadcasts, as well as compact
discs and other MDs.
Notes |
* If “Din Unlock” or “Cannot Copy” appears in the display,
recording through the digital connector is not possible.
In this case, record the program source through the LINE |
(ANALOG) IN jacks with INPUT set to ANALOG. ~~
* When recording through the DICITAL IN connector, you...
cannot adjust the recording level. |
Connecting the AC power cord
Connect the AC power cord to a wall outlet or to the
outlet of a timer.
Basic Operations
Recording on an MD
-
= Ari À
| | O O ar С
=) —— = |
JL ELA
| a
1 Turn on the amplifier and play the program source you want to
record.
2 Press POWER.
The POWER indicator changes from red to green.
Sr
Monitor audio during recording
~~ Even if you set REC MODE to
MONO, the monitor signal does
not become monaural.
Insert a recordable MD.
With the label side up
With the arrow :
pointing this way
If the MD has a recorded material on it, the deck will
automatically start recording from the end of the last recorded
track.
Set INPUT to the corresponding input connector.
To record through Set INPUT to
DIGITAL IN DIGITAL
LINE (ANALOG) IN ANALOG
Set REC MODE to the mode you want to record in.
To record in Set REC MODE to
Stereo sound STEREO
Monaural sound* MONO
* In the monaural recording, you can record about two times longer than in
the ctaren recnrdino
Er UE dr E
When "TOC" flashes in the display
The deck is currently updating the
| Table Of Contents (TOC).
“Do not move the deck or pull out
the AC power cord. Changes to an
MD made through recording are
saved only when you update the
TOC by ejecting the MD or
“— changing the deck to standby by
pressing POWER.
Basic Operations
6 Press O REC.
The deck becomes ready to record.
7 When recording the analog input signal, adjust the recording
level with REC LEVEL.
The fourth dot is satisfactory for most purposes. For details,
refer to “Adjusting the Recording Level” on page 11.
8 Press [> or IH.
Recording starts.
9 Start playing the program source.
Do not disconnect the deck from the power source immediately after
recording
If you do, recorded material may not be saved to the MD. To save the material,
after recording, press 2 EJECT to take out the MD or change the deck to
standby by pressing POWER. “TOC” will flash in the display at this time.
After “TOC” stops flashing and goes out, you can pull out the AC power
cord.
To Press
Stop recording |
Pause recording* HI. Press the button again or press > to
resume recording.
Take out the MD = EJECT after stopping recording
* Whenever you pause recording, the track number increases by one. For example, if
you paused recording while recording on track 4, the track number increases by
one and recording continues on the new track when restarted.
To protect an MD against accidental erasure
To make it impossible to record on an MD, slide the tab in the direction of
arrow, opening the slot. To allow recording, close the slot.
Rear of the disc =
Record-protect tab
=
Slide the tab in
(the direction of arrow,
Note
If you switch REC MODE during recording or recording pause, recording stops.
y
=
E
“ia
Playing an MD
2
3
Adjust the
e You can locate and play back
a track while the deck is
stopped
1 Turn AMS (or press «<
or >) until the number
of the track you want to
play appears.
2 Press AMS or ">.
'Q To use headphones
Connect them to PHONES
jack. Use PHONE LEVEL to
adjust the volume.
headphone
volume.
Connect the
4 headphones.
1 Turn on the amplifier and set the source selector to the position
for MD deck.
Press POWER.
The POWER indicator changes from red to green.
3 Insert an MD.
With the label side up
With the arrow
pointing this way
Press >.
The deck starts playing. Adjust the volume on the amplifier.
TO Do the following:
Stop playing Press M.
Pause playing Press IN. Press the button again or press
> to resume playing.
Go to the next track Turn AMS clockwise (or press >» on
the remote).
Go to the preceding track Turn AMS counterclockwise (or press
| FH on the remote).
Take out the MD Press £ EJECT after stopping playing.
| Recording on MDs
Notes on Recording
If “Protected” appears in the display
The MD is record-protected. Close the slot to record on the
disc (see “To protect an MD against accidental erasure” on
page 7). |
If “Din Unlock” flashes in the display .
* The digital program source is not connected as you set
with INPUT in Step 4 on page 6.
To continue, connect the program source properly.
* The program source is not on.
Turn on the program source.
Depending on source being recorded, track numbers are
marked in following ways:
* When recording from a CD or MD with INPUT at
DIGITAL and the source connected through DIGITAL IN:
The deck automatically marks track numbers in the same
sequence as the original. If, however, a track is repeated
two or more times (e.g. by single-track repeat play) or two
or more tracks with the same track number (e.g. from
ditferent MDs or CDs) are played, the track or tracks are
recorded as part of a single, continuous track with a single
track number.
If the source is an MD, track numbers may not be marked
for tracks of less than 4 seconds.
When recording from source connected through LINE
(ANALOG) IN with INPUT at ANALOG, and “LEVEL-
SYNC” does not light up (see “Marking Track Numbers
While Recording” on page 12) or when recording from
DAT or satellite broadcasts connected through DIGITAL
IN with INPUT at DIGITAL:
The source will be recorded as a single track. You can
divide the track afterwards using the Divide Function (see
“Dividing Recorded Tracks” on page 24) or mark track
numbers during recording by using the Track Marking
Function on page 12.
If "LEVEL-SYNC" appears in the display, the deck
automatically marks track numbers when recording
analog source or digital recording of DAT or satellite
broadcasts (see “Marking track numbers automatically”
on page 12).
* When recording from DAT or satellite broadcasts with
INPUT at DIGITAL, the deck automatically marks a track
number whenever the sampling frequency of the input
signal changes.
When “TOC” flashes in the display
The deck is currently updating the Table Of Contents (TOC).
Do not move the deck or pull out the AC power cord.
Changes to an MD made through recording are saved only
when you update the TOC by ejecting the MD or changing
the deck to standby by pressing POWER.
The MD deck uses the SCMS (Serial Copy Management **
System on page 33)
MDs recorded through digital input connector cannot be
copied onto other MDs or DAT tapes through the digital
output connector.
When recording digital signals that have been emphasized
(in the higher frequencies) a
The signal is automatically de-emphasized (with attenuation
proportional to the degree of emphasis) and the level of the
de-emphasized signal is indicated on the peak level meters.
When the deck is recording or in recording pause, digital
signals input through DIGITAL IN are output to DIGITAL
OUT with the same sampling rate.
To change the digital input signal to another sampling rate
for output (without recording it to an MD), use Input
Monitor Function (see page 10).
Useful Tips for Recording
DISPLAY/CHAR
SONY ] Г В
Ei 7774 630 2. À
= 9: Зо 3
С!
Checking the remaining recordable time on
the MD
* When you press DISPLAY /CHAR while recording,
the remaining recordable time on the MD appears.
* When you press DISPLAY/CHAR repeatediy while
the deck is stopped, the display changes as follows:
total recorded time, remaining recordable time on
the MD, disc name (see page 16).
(Continued)
_suonesado diseg
EA
AT
Recording on MDs
Monitoring the input signal (Input Monitor)
Before starting recording, you can monitor the selected
input signal through the deck’s output connectors.
1 Press SFJECT to remove the MD.
2 Set INPUT according to the input signal you want
to monitor. `
When INPUT is at ANALOG
The analog signal input through LINE (ANALOG) IN is
output to DIGITAL OUT after A/D conversion, and
then to the LINE (ANALOG) OUT connectors and
PHONES jack after D/A conversion.
When INPUT is at DIGITAL
The digital signal input through DIGITAL IN is output
to DIGITAL OUT, and then to the LINE (ANALOG)
OUT connectors and PHONES jack after D/A
conversion.
Note
Even if vou set REC MODE to MONO, the monitor
signal does not become monaural.
3 Press @ REC.
If INPUT is at ANALOG, “AD-DA” appears in
the display.
If INPUT is at DIGITAL, “-DA”appears in the
display.
If “Auto Cut” appears in the display
(Auto Cut)
There has been no sound input for 30 seconds while ‘
INPUT is set to DIGITAL and the source is connected
through DIGITAL IN. The 30 seconds of silence are
replaced by a blank of about 3 seconds and the deck
changes to recording pause.
q You can turn off the Auto Cut Function
For details, see “If “Smart Space” appears in the
display” below.
If “Smart Space” appears in the display
(Smart Space)
There has been an extended silence of 4 to 30 seconds
in length when INPUT is set to DIGITAL and the
source is connected through DIGITAL IN. The silence
is replaced with a blank of about 3 seconds and the
deck continues recording.
To turn off the Smart Space Function and Auto Cut
Function
1 During recording pause, press EDIT/NO repeatedly until
“S. Space ?” appears in the display.
2 Press YES.
3 Press EDIT/NO to display “S. Space OFF.”
To turn on the Smart Space Function and Auto Cut
Function again
1 During recording pause, press EDIT/NO repeatedly until
“S. Space ?” appears in the display.
2 Press YES twice to display “S. Space ON.”
Notes
When you turn off the Smart Space Function, the Auto Cut
Function is also turned off automatically.
The Smart Space Function and Auto Cut Function are
factory set to on.
The Smart Space Function does not affect the order of the
track numbers being recorded, even if the blank space
occurs in the middle of a track.
* If you turn off the deck or disconnect the AC power cord,
the deck will recall the last setting (on or off) of the Smart
Space and Auto Cut Functions the next time you turn on
the deck.
Playing back tracks just recorded
Do this procedure to immediately play back tracks that
have just been recorded.
Press > immediately after stopping recording.
Playback starts from the first track of the material just
recorded.
To play from the first track of the MD after recording
1 Press M again after stopping recording.
2 Press >.
Playback starts from the first track of the MD.
E
Recording Over Existing Tracks
Follow the procedure below to record over existing
material just as you would on an analog cassette tape.
J
0
Ú
|
HE
|
Je
0
OCOO0O00O0 0
00000
00000 0
O00O00 D
OOCOOD0
00
00
00
00
О
—= Ja)
a =D DI
1 Do Steps 1 to 5 in “Recording on an MD” on page
6.
2 Turn AMS (or press HE or DMI) until the
number of the track to be recorded over appears.
3 To record from the start of the track, continue
from Step 6 in “Recording on an MD” on page 7.
"J While “TRACK” flashes in the display
The deck is recording over an existing track, and stops
flashing when it reaches the end of the recorded
portion.
CT To record from the middle of the track
1 After Step 2 above, press [> to start playback.
2 Press II where you want to start recording.
3 Continue from Step 6 in “Recording on an MD” on
page 7.
Note
You cannot record from the middle of an existing track when
the “PROGRAM” or “SHUFFLE” is on.
Recording on MDs |
E
Adjusting the Recording Level
When recording with INPUT at ANALOG and the
signal input through LINE (ANALOG) IN jacks, use
REC LEVEL to adjust the recording level before
starting recording. |
You cannot adjust the recording level during digital
recording.
REC LEVEL
oF === >. @
st 2:13
aL
Cm 2 nia]
1 Do Steps 1 to 6 in “Recording on an MD” on
pages 6 and 7.
2 Play the portion of the program source with the
strongest signal level.
3 While monitoring the sound, turn REC LEVEL to
adjust the recording level so that the peak level
meters reach their highest point without turning
on the OVER indication. Occasional lighting of
“OVER” is acceptable.
TRACK 1 234
pl CT)
k EL] HH
LITTLE TITI
na - 2 +
Л
че
-8
4 Stop playing the program source.
3 Tostart recording, do the procedure starting from
Step 8 in “Recording on an MD” on page 7.
11
Recording on MDs
|
Marking Track Numbers While -
Recording (Track Marking)
You can mark track numbers either manually or
automatically. By marking track numbers at specific
points, you can quickly locate the points later using the
AMS Function or Editing Functions.
[ sony — à
FC | — 2: D
> | | aw Dedo
rt
— mme |
EDIT/NO YES @ REC
Marking track numbers manually
(Manual Track Marking)
You can mark track numbers at any time while
recording on an MD.
Press O REC at the place you want to add a track mark
while recording.
Marking track numbers automatically
(Automatic Track Marking)
The deck adds track marks differently in the following
cases:
* When recording from CDs or MDs with INPUT at
DIGITAL and the source connected through
DIGITAL IN:
The deck marks track numbers automatically. When
you record from a CD or MD, the track numbers are
marked as they are found on the original.
* When recording with INPUT at ANALOG and the
source connected through LINE (ANALOG) IN, or
when recording from DAT or satellite broadcasts
with INPUT at DIGITAL and the DAT or satellite
broadcasts connected through DIGITAL IN:
The deck marks a new track number whenever the
signal level drops and rises to a certain point*
(Automatic Track Marking). If “LEVEL-SYNC” does
not light up, set the LevelSync to ON as follows:
1 Press EDIT/NO to display “LevelSync ?”during
recording or recording pause.
2 Press YES twice to display “LevelSync ON.”
“LEVEL-SYNC” appears in the display.
To cancel Automatic Track Marking
1 Press EDIT /NO during recording or recording pause.
“LevelSync ?” appears in the display.
2 Press YES.
3 Press EDIT/NO.
“LevelSyncOFF” appears in the display.
* The signal level must remain low for 2 or more seconds
before a new track number is marked.
© When you want to mark track numbers after you've
finished recording
Use the Divide Function (see “Dividing Recorded
Tracks” on page 24).
Note
If vou turn otf the deck or disconnect the AC power cord, the
deck will recall the last setting (LevelSync on or off) of the
Automatic Track Marking Function the next time vou turn
on the deck.
|
Starting Recording With
2 Seconds of Prestored Audio
Data (Time Machine Recording)
When recording from an FM or satellite broadcast, the
first few seconds of material are often lost due to the
time it takes you to ascertain the contents and press the
record button. To prevent the loss of this material, the
Time Machine Recording Function constantly stores 2
seconds of the most recent audio data in a buffer
memory so that when you begin recording the
program source, the recording actually begins with the
2 seconds of audio data stored in the buffer memory in
advance, as shown in the illustration below:
End of the program
source to be recorded
When you press
AMS in Step 3
| | e
fe > Time
Audio data in 2-second buffer memory
Recorded
portion
Beginning of the program
source to be recorded
Recording on MDs
<< AMS DD
р
“
о
1 Do Steps 1 to 6 in “Recording on an MD” on
Ww
pages 6 and 7.
The deck changes to recording pause.
0000000 ®
OCOOOOC 0
OOOO
DODOO
T.REC
Start playing the program source you want to
record.
The most recent 2 seconds of audio data is stored
in the buffer memory.
Press AMS (or T.REC) to start Time Machine
Recordin g.
Recording of the program source starts with the
2 seconds of audio data stored in the buffer
memory.
© To stop Time Machine Recording
Press M.
Note
The deck starts storing audio data when the deck is in
recording pause and you start playing the program source.
With less than 2 seconds of playing of the program source
and audio data stored in the buffer memory, Time Machine
Recording starts with less than 2 seconds of audio data.
La —;———;].;; A] ]—]l;
Synchro-Recording With Audio
Equipment of Your Choice 7
By using the MUSIC SYNC button on the remote, you
can automatically start recording in sync with the
signal input from the program source through the
LINE (ANALOG) IN jacks or the DIGITAL IN
connector (Music Synchro-Recording).
The method of marking track numbers differs,
depending on the program source being recorded and
how the deck is connected to the program source. (See
“Notes on Recording” on page 9.)
pr in сн еже ———=
VOCOOL
POMO |
— — — — —
== I 2+ MUSIC SYNC
1 DosSteps 1 to 5 in “Recording on an MD” on page
6.
2 Press MUSIC SYNC.
The deck changes to recording pause.
3 Start playing the program source you want to
record.
The deck starts recording automatically.
y To stop Music Synchro-Recording
Press M.
Note
When Music Synchro-Recording, the Smart Space Function
and the Auto Cut Function turn on automatically regardless
of their setting (ON or OFF) and type of input (digital or
analog).
13
Sir”
14
Recording on MDs
Synchro-Recording With a Sony
CD Player [7]
By connecting your deck to a Sony CD player or Hi-Fi
Component System, you can easily dub CDs onto MDs
using the CD synchro buttons on the remote. If your
deck is connected to a Sony CD player by a digital
input cable, track numbers are automatically marked
as appear on the original regardless of whether —
“LevelSync ON” or “LevelSyncOFF” is selected. If
your deck is connected to a Sony CD player by audio
connecting cords through LINE (ANALOG) IN, track
numbers are automatically marked when you select
“LevelSync ON” (see “Marking Track Numbers While
Recording” on page 12).
As the same remote controls both the CD player and
the deck, you may have trouble operating both units if
they are far from each other. If you do, place the CD
player close to this deck.
f —
© 2
QOOOOO0 0
OOOUOUU
OOOCC 0
OOOO0O0
OOOOO0
0
Ú
Ü
С
Ú
о
STANDBY = a)
e) ee le
START ==
STOP == @
CD PLAYER IN —H? ==
1 Set the source selector on the amplifier to CD.
2 Do Steps 2 to 5 in “Recording on an MD” on page
6 to prepare the deck for recording.
Insert a CD into the CD player.
4 Select the playback mode (Shuffle Play, Program
Play, etc.) on the CD player.
5 Press STANDBY.
The CD player pauses for playing and the deck
pauses for recording.
6 Press START.
The deck starts recording and the CD player starts
plavback.
The track number and elapsed recording time of
the track appear in the display.
If the CD player does not start playing
Some CD player models may not respond when you
press START on the remote of the deck. Press IT on the
remote of the CD plaver instead. |
7 Press STOP to stop synchro-recording.
To pause recording
Press STANDBY or CD PLAYER I.
To restart recording, press START or CD PLAYER 11.
A new track number is marked each time you pause
recording.
q You can use the remote of the CD player during
synchro-recording
When you press IM. the CD plaver stops and the deck
pauses for recording.
When you press II, the CD player pauses and the deck
pauses for recording.
To restart synchro-recording, press C>.
`СУ You can change CDs during synchro-recording
Do the following steps instead of Step 7 above.
1 Press MH on the remote of the CD player.
The deck pauses for recording.
2 Change the CD.
3 Press [= on the remote of the CD player.
Svnchro-recording restarts.
"CY" You can also do synchro-recording with a Sony video
CD player
Using the procedure for synchro-recording with a Sony
CD player, you can do synchro-recording with a Sony
video CD player also.
To select the video CD plaver, press button number 2
while pressing down the POWER button before starting
the procedure.
To select the CD player again, press button number 1
while pressing down the POWER button.
The deck is factory set to a CD player for synchro-
recording.
q You can check the remaining recordable time on the
MD
Press DISPLAY (see page 16).
a
E
Recording on an MD Using a'
Timer
By connecting a timer (not supplied) to the deck, you
can start and stop recording operations at specified
times. For further information on connecting the
timer and setting the starting and ending times, refer
to the instructions that came with the timer.
SONY на
T
TIMER a
ны
1 Ро Steps 1 to 7 in “Recording on an MD” on
pages 6 and 7.
2 If you want to specify the time for the start of
recording, press №.
* If you want to specify the time for the end of
recording, do Steps 8 and 9 of “Recording on
an MD” on page 7.
If you want to specify the time for both start
and end of recording, press M.
3 Set TIMER on the deck to REC.
4 Set the timer as required.
* When vou have set the time for the start of
recording, the deck turns off. When the
specified time arrives, the deck turns on and
starts recording.
* When vou have set the time for the end of
recording, recording continues. When the
specified time arrives, the deck stops recording
and turns off.
When vou have set the time for both the start
and end of recording, the deck turns off. When
the starting time arrives, the deck turns on and
starts recording. When the ending time
arrives, the deck stops recording and turns off.
Recording on MDs
5 After you have finished using the timer, set
TIMER on the deck to OFF. Then place the deck in
standby status by plugging the AC power cord of
the deck into a wall outlet or set the timer to
continuous operation.
* It TIMER is left at REC, the deck will
automatically start recording the next time you
turn the deck on.
* If you do not change the deck to standby status
for more than a month after timer recording has
finished, the recorded contents may disappear.
Make sure to change the deck to standby status within a
month after timer recording is completed
The TOC on the MD is updated and recorded contents are
written to the MD when vou turn the deck on. If the
recorded contents have disappeared, “STANDBY” flashes
when you turn the deck on.
Notes
* During timer recording, new material is recorded from the
end of the recorded portion on the MD.
* Material recorded during timer recording will be saved to
the disc the next time you turn the deck on. “TOC” will
flash in the display at that time. Do not move the deck or
pull out the AC power cord while “TOC” is flashing.
* Timer recording will stop if the disc becomes full.
15
+ Playing MDs
= Using the Display
You can use the display to check disc and track
information such as the total track number, total
playing time of the tracks, remaining recordable time
of the disc and disc name.
. DISPLAY/CHAR SCROLL
| ео
5 — ==: ©
s =) = Ге © ®@
“a
Coman | |
ыы
o
DISPLAY SCROLL
Checking the total track number, total disc
playing time, remaining recordable time of
the disc and the title of the disc
Each time you press DISPLAY / CHAR (or DISPLAY)
while the deck is stopped, you can change the display
as follows:
Total track number and total playing time of
all recorded tracks
> TT dm CS
ka
8-00 -4 -20-17 de
Press
Remaining recordable time of the disc
(Recorded MDs only)
12 3 4 5
6 7 & à 10
11 12 13 14 15
The remaining recordable time of the disc
is not shown for premastered MDs.
+ Press
Disc name
Press Ai 26-11 4 à
16
When you insert an MD, the disc name, total number
of tracks, and total disc playing time appear in the
display as follows:
Disc name Music calendar _
1 4
A =
й =
06 WE 448
v
Total number of tracks Total disc playing time
i foo, =: Tai EI '
La
т =
ooo -% Nl 840
The disc name appears, followed by the total number
of tracks (Tr) and total disc playing time.
A music calendar showing all the track numbers
appears within a grid if the MD is a premastered disc,
or without a grid if the MD is a recordable disc.
If the total track number exceeds 25, » appears to the
right of number 25 in the music calendar.
To label a recordable disc and its tracks, see “Labeling
Recordings” on page 26.
Note
When you insert a new MD or turn off the deck and turn it
on again, the last item displayed will reappear.
If, however, you disconnect the AC power cord, the display
will show the total track number and total playing time of all
recorded tracks the next time you turn on the deck, no
matter what the last display was.
Checking remaining time and the title of a
track
Each time you press DISPLAY / CHAR (or DISPLAY)
while playing an MD, you can change the display as
shown below. The track numbers in the music
calendar disappear after they are played.
Track number and playing time of the
current track
2345
: = 673
Kal
Гат
y Рай
[ui
>
Bar
=
00 -E M6 4 4
+ Press
Track number and remaining time of the
current track
TRACK 2348
at 1 ‘= в та
f
fd i
я
a
-
ED wm Nc 44
{+ Press
Bm
Track name
TRACK
x — x - 2
ono
1]
Press
Y E
der
=
a
— a E OA À
If no title is recorded, "No Name” appears,
followed by the elapsed playing time.
q You can check the track name at any time while
playing an MD
Press SCROLL.
Since the display shows up to 12 characters at a time,
press SCROLL again to see the rest of the track title if
the title has 13 characters or more.
Press SCROLL again to pause scrolling, and again to
continue scrolling.
Locating a Specific Track
You can quickly locate any track while playing a disc
by using AMS (Automatic Music Sensor), Het and
PP, number buttons or M SCAN on the remote.
I<] AMS >> SE
© ©
\ с
=O: > STD
= ea 0977
MOIS 69 O09000 Number
ODO
г 53555 buttons
OIT
DO.
> 4 IE)
H/D>>] HS So
=D EII)
To locate
Do the following:
The next or
succeeding tracks
During playback, turn AMS clockwise
or press PB repeatedly until you
find the track.
The current or
preceding tracks
During playback, turn AMS
counterclockwise or press |<
repeatedly until you find the track.
A specific track Press number buttons to enter the
directly H track number.
A specific track by 1 Turn AMS until the track number
using AMS you want to locate appears while
the deck is stopped. (The track
number is flashing.)
2 Press AMS or (>,
By scanning each
track for 6 seconds
(music scan)
Jud
Press M.SCAN before you start
playing.
2 When you find the track you want,
press [> to start playing.
Playing MDs
© When you directly locate a track with a number over
251] |
You must press >25 first, before entering the
corresponding digits.
Press >25 once if it is a 2-digit track number, and twice
if it is a 3-digit track number.
To enter “0,” press button 10.
Examples: « To play track number 30
Press >25 once, then 3 and 10.
* To play track number 100
Press >25 twice, then 1, 10 and 10:
© You can extend the playing time during music scan
т
While the deck is stopped, press M.SCAN repeatedly
until the playing time you want (6, 10 or 20 seconds)
appears in the display. Each press changes the time in
order of 6 to 20, then from 6 again.
[e] To pause playing at the beginning of a track
Turn AMS (or press 4d or M1) after pausing
playback.
& To go quickly to the beginning of the last track
Turn AMS counterclockwise (or press HE) while the
display shows the total track number and total disc
playing time, remaining recordable time of the disc, or
disc name (see page 16).
17
LS
18
Playing MDs
A
Locating a Particular Point in a
Track
You can also use << and > to locate a particular
point in a track during playback or playback pause.
<<4/>>
== ) La | = “13 € | Е
= | > Yee: Y
= SEL 0 0
мной Бе)
То locate a point Press
While monitoring the »» (forward) or 4d (backward)
sound and keep pressing until you find
the point.
Quickly by observing №» ог << and keep pressing
the display during until you find the point. There is
playback pause no sound output during this
operation.
Notes
* If the disc reaches the end while you are pressing »»-
during playback pause, “OVER” appears in the display.
Press <td (or 4) or turn AMS counterclockwise to go
back.
If the disc reaches the end while you are pressing Mm»
during sound monitoring, the deck stops.
Tracks that are only a few seconds long may be too short
to scan using the search function. For such tracks, it is
better to play the MD at normal speed.
—————————
Playing Tracks Repeatedly
You can play tracks repeatedly in any play mode.
и
® O
DO
x ооо
— IN) == 9 3e Uy
1 ОС) е 3 93000
OOOOO0
Cd OOO
ОРФО
КЕРЕАТ a ОФ
—=000)
== (0 (9)
>> =
25
Press REPEAT.
“REPEAT” appears in the display.
The deck repeats the tracks as follows:
When the MD is The deck repeats
played in
Normal play (page 8) All the tracks
Shuffle Play (page 19) Al] the tracks in random order
Program Play (page 20) The same program
To cancel repeat play
Press REPEAT several times until “REPEAT” disappears.
The deck returns to the original playing mode.
Repeating the current track
While the track you want to repeat is playing in normal
play, press REPEAT several times until “REPEAT 1”
appears in the display.
Playing MDs
Repeating a specific portion (A-B Repeat) [TEN A
Playing in Random Order
"You can play a specific portion of a track repeatedly. (Shuffle Play)
This might be useful when you want to memorize -
lyrics. You can have the deck “shuffle” tracks and play them
Note that you can only repeat a portion within the in random order.
boundaries of a single track. ses
1 While playing a disc, press AB at the starting PLAY MODE co
point (point A) of the portion to be played ODIOSO
SHUFFLE
repeatedly. \ OOOOO
“REPEAT A-” flashes in the display. === 3 x o 3 9 9 9 3
— ETT € D QOOOOO
2 Continue playing the track or press PB until you << OJO
reach the ending point (point B), then press A+—B 2555 =
again. = > — Ja)
“REPEAT A-B” lights continuously. The deck SO
starts to play the specified portion repeatedly. IQ
To cancel A-B Repeat 1 Press PLAY MODE repeatedly (or SHUFFLE
Press REPEAT or Bi once) until “SHUFFLE” appears in the display
when the deck is stopped.
Setting new starting and ending points
You can repeat the portion immediately after the currently 2 Press = to start Shuffle Play .
or - ` £3” appears in the display while the deck is
specified portion by changing the starting and ending “shuffling” the tracks.
points.
1 Press A«—sB while “REPEAT A-B” appears. |
Na The current ending point B becomes the new starting To cancel Shuffle Play
point A and “REPEAT A-” flashes in the display. Press PLAY MODE repeatedly (or CONTINUE once) until
à Continue playing the track or press BB until you reach “SHUFFLE” disappears.
the new ending point (point B), then press A+—B again.
КЕРВАТ A-B” lights continuously and the deck starts Ley You can specify tracks during Shuffle Play
playing repeatedly the newly specified portion.
* To play the next track, turn AMS clockwise (or press
>>).
Note * To play from the beginning of the current track again,
If you turn off the deck or disconnect the AC power cord, the turn AMS counterclockwise (or press ld). You
deck will recall the last setting of the Repeat Function the cannot use AMS (or Fé) to go to tracks that have
next time you turn on the deck. already been played.
The A-B Repeat settings, however, are lost.
_—
19
E wow om
LA a aT Ta.
20
Playing MDs
‘Creating Your Own Program
(Program Play)
You can specify the playback order of the tracks on an
MD and create your own programs containing up to 25
tracks.
=
a
LL
(meee \
a ©
DO
53545517 PROGRAM
ee > О >
ЗОО
230 OOH buttons
1O 29 99
>25 HD II
DODS CLEAR
> IS @
HE / DP] —— E) Gee)
DEI
1 Press PLAY MODE repeatedly (or PROGRAM
once) until “PROGRAM” appears in the display
when the deck is stopped.
2 Do either a) or b):
a) When using the remote
Press the number buttons to enter the tracks
you want to program in the order you want.
To program a track with a number over 25, use
the >25 button (see page 17).
If you've made a mistake
Press CLEAR, then press the right number button.
b) When using the controls on the deck
1 Turn AMS until the track number you want
appears in the display.
2 Press AMS or PLAY MODE.
3 Repeat Step 2 to enter other tracks. Each time you
enter a track, the total program time is added up
and appears in the display.
4 Press => to start Program Play.
To cancel Program Play
Press PLAY MODE repeatedly (or CONTINUE once) when
the deck is stopped until “PROGRAM” disappears.
© You can program the same track repeatedly
While the track number appears in the display, press
AMS as many times as you want.
'Q The program remains even after Program Play ends
When you press I, you can play the same program
again.
Notes
* The program created by the Program Play Function is lost
when you turn off the deck or disconnect the AC power
cord. The program is, however, recalled during timer
playback.
* The display shows “- -m - -s” instead of the total playing
time when the total playing time of the program exceeds
160 minutes.
Checking the track order
You can check the order of tracks in your program
during playback or playback pause.
Turn AMS (or press 44 or PH) during playback or
playback pause. The track numbers appear in the
order they were programmed.
Changing the track order
You can change the order of the tracks in your
program before you start playing.
To Do the following:
Press CLEAR. Each time you
press the button, the last track
will be cleared.
Erase the last track in the
program T
Add tracks to the end of the Do Steps 2 and 3 in “Creating
program Your Own Program.”
Change the whole program 1 Press IM while the deck is
completely stopped.
2 DoSteps2and 3in “Creating
Your Own Program.”
a ri =
FE
Useful Tips When Recording
From MDs to Tape 4
The Auto Space and Auto Pause Functions described in
this section make recording from MDs to tape more
easy.
J
22-22 A.SPACE
Inserting blank spaces while recording to
tape (Auto Space)
The Auto Space Function inserts a 3-second blank
space between each track while recording from MDs to
tapes, allowing you to use the AMS function during
later playback.
Press A.SPACE repeatedly until “A.SPACE” appears in
the display.
To cancel Auto Space
Press A.SPACE repeatedly until “A.SPACE” disappears.
Note
If the Auto Space Function is on while recording a selection
containing multiple track numbers, (for example, a medley
or symphony), blank spaces will be inserted within the
selection whenever the track number changes.
Pausing after each track (Auto Pause)
When the Auto Pause Function is on, the deck pauses
after playing each track. Auto Pause is convenient
when recording single tracks or multiple, non-
consecutive tracks.
Press A.SPACE repeatedly until “A. PAUSE” appea rs
in the display.
To restart playback
Press [> or 11.
To cancel Auto Pause
Press A.SPACE repeatedly until “A.PAUSE” disappears.
Note
If you turn off the deck or disconnect the AC power cord, the
deck will recall the last setting of the Auto Space and Auto
Pause Functions the next time you turn on the deck.
Playing MDs
Playing an MD Using a Timer
By connecting a timer (not supplied) to the deck, you
can start and stop playback operations at specified
times. For further information on connecting the timer
or setting the starting and ending times, refer to the
instructions that came with the timer.
SONY
ALL)
b= =
he
|
TIMER [> PLAY MODE
||
U ©
a
О
|
) QUOUO(
PLAY MODE ==
ООО)
1 Do Steps 1to 3 in “Playing an MD” on page 8.
2 Press PLAY MODE repeatedly (or one of the
PLAY MODE buttons once) to select the play
mode you want.
To play only specific tracks, create a program (see
page 20).
3 * If you want to specify the time for the start of
playback, go to Step 4.
* If you want to specify the time for the end of
playback, press [= to start playback, then go to
Step 4.
* If you want to specify the time for both start
and end of playback, go to Step 4.
4 Set TIMER on the deck to PLAY.
(Continued)
21
0 tn re ie gg
22
NE ying MDs
3 Set the timer as required.
* When you have set the time for the start of
playback, the deck turns off. When the
specified time arrives, the deck turns on and
starts playing.
* When you have set the time for the end of
playback, playback continues. When the
specified time arrives, the deck stops playing
and turns off.
* When you have set the time for both the start
and end of playback, the deck turns off. When
the starting time arrives, the deck turns on and
starts playing. When the ending time arrives,
the deck stops playing and turns off.
6 After vou have finished using the timer, set
TIMER on the deck to OFF.
Note
You can select Program Play in Step 2. Note, however, that
programs eventually fade away when the standby status is
off, and therefore if vou set the time too far in the future, the
program may be gone when the specified time arrives. If
this has occurred, the deck enters normal play mode at the
specified time and the tracks play in consecutive order.
Editing Recorded MDs
IE
Notes on Editing BE
You can edit the recorded tracks after recording, using
the following functions:
* Erase Function allows you to erase recorded tracks
simply by specifying the corresponding track
number.
* Divide Function allows you to divide tracks at
specified points so that you can quickly locate those
points afterwards, using the AMS function.
Combine Function allows you to combine two
consecutive tracks into one.
Move Function allows you to change the order of
tracks by moving a specific track to a track position
you want,
Title Function allows you to create titles for your
recorded MDs and tracks.
If “Protected” appears in the display
The deck could not edit because the record-protect slot on
the MD is open. Edit after closing the slot.
When “TOC” flashes in the display
Do not move the deck or pull out the AC power cord. After
editing, “TOC” lights continuously until you eject the MD or
turn off the power. “TOC” flashes while the deck is
updating the TOC. When the deck finishes updating the
TOC, “TOC” goes off.
E
Erasing Recordings
(Erase Function)
Do the procedures below to erase following:
* A single track
e All tracks
e Parts of a track
Note, however, that once erased, MD data cannot
be recovered.
EDIT/NO [IAMS Df YES
SONY _
=" 1223001
> eo Y
Et В Coma
- —Ñ]|iée—]]]—T-LM © Co .
ua
Erasing a single track
You can erase a track simply by specifying the
respective track number. When you erase a track, the
total number of tracks on the MD decreases by one and
all tracks following the erased one are renumbered.
Since erasing merely updates the TOC, there is no need
to record over material.
e To avoid confusion when erasing multiple tracks, you
should proceed in order of high to low track number to
prevent the renumbering of tracks that have not been
erased yet.
Example: Erasing B
Track 1 4
number |
| ^ Г ß Т ; J
‘8 is erased ,
1 Г. 2 3
[+] <>
1 Turn AMS until the track number you want to
erase appears in the display.
|
Erasing |
|
I
2 Press EDIT/NO repeatedly until “Erase ?”
appears in the display.
The track number you selected starts flashing in
the music calendar.
3 Press YES.
When the track selected in Step 1 has been
erased, “Complete” appears for a few seconds
and the total number of tracks in the music
calendar decreases by one.
If you erase a track during playback, the track
following the deleted track begins playing
afterwards.
4 Repeat Steps 1 to 3 to erase more tracks.
To cancel the Erase Function
Press EDIT/NO, №, ог turn AMS to change the track
number.
Note
If “Erase!! ?”appears in the display, the track was recorded
or edited on another MD deck and is record-protected.
If this indication appears, press YES to erase the track.
Editing Recorded MDs
Erasing all tracks onan MD
Erasing a recordable MD deletes the disc name, all
recorded tracks, and titles (see page 29). Tro
1 While the deck is stopped, press EDIT/NO
repeatedly until “All Erase ?” appears in the |
display.
2 Press YES.
All tracks in the music calendar start flashing.
3 Press YES again.
When the disc name, all recorded tracks, and titles
on the MD have been erased, “Complete” appears
for a few seconds and the music calendar
disappears.
To cancel the Erase Function
Press EDIT/NO or M.
Erasing a part of a track
By using the Divide (see page 24), Erase (see page 22)
and Combine (see page 25) Functions, you can erase
specific portions of a track.
Example: Erasing a part of track A
Part to be erased
Track > 1 | 2 3
number
| ^ | ° ||
| | Aisdivided
| "into 3 parts '
Dividing ) I ! 1
SL 1 2 3 14 5
A A A
| #1 | #2 | #3 | В | © |
| “#2 is / /
Erasing | / И erased И И
gro! +
NU 11 y 2 , ‘4 ,;
A A
#1 43 с
4 #4 and #3 are
Combiningi | : combined
y я Ÿ 2 3 |
| A (#1+43) | B | C |
23
24
Editing Recorded MDs
Dividing Recorded Tracks
(Divide Function)
With the Divide Function you can assign a track
number at places that you want to randomly access
afterwards. Use this function to add tracks to MDs
recorded from an analog source (and therefore contain
no track numbers), or to divide an existing track into
multiple portions. When you divide a track, the total
number of tracks on the MD increases by one and all
tracks following the divided track are renumbered.
Example: Dividing track 2 to create a new track for C
Track 1 2 3
number
[ax || < | |
Р
t
Dividi | Track 2 Is divided and a
viens | | ; new track is created for C
1 2
as] ce |
EDIT/NO <I AMS >> YES IN
1 While playing the MD, press IE at the point where
you want to create a new track.
The deck pauses playing.
2 Press EDIT/NO repeatedly until “Divide ?”
appears in the display.
3 Press YES to divide the track.
“Rehearsal” alternates with “Position ok?” in the
display, the track to be divided starts flashing in
the music calendar, and the starting portion of the
new track begins playing repeatedly.
4 Ifthe starting position is incorrect, press EDIT/
NO. (If it is correct, go to Step 7.)
© - Meg
= [ie a 87 в
- 11 12 12 14 15
16 17 18
5 While monitoring the sound, turn AMS to find the
starting position of the new track.
The starting portion of the new track is played
back repeatedly.
“Rehearsal” alternates with “Position ok?” in the
display.
The starting position can be moved within a
maximum range of -128 to +127 steps of about
0.06 second each within a track.
6 Ifthe starting position is still incorrect, repeat
Step 5 until it is correct.
7 Press YES or AMS when the position is correct.
When the track has been divided, “Complete”
appears for a few seconds and the newly created
track begins playing. The new track will have no
track title even if the original track was labeled.
To cancel the Divide Function
Press Il.
T You can undo a track division
Combine the tracks again (see “Combining Recorded
Tracks” on page 25) then redivide the tracks if
necessary.
“O You can divide a track while recording
Use the Track Marking Function (see page 12).
E
Combining Recorded Tracks
(Combine Function)
Use the Combine Function while the deck is stopped,
playing or in pause to combine consecutive tracks on a
recorded MD. This function is useful for combining
several songs into a single medley, or several
independently recorded portions into a single track.
When you combine two tracks, the total number of
tracks decreases by one and all tracks following the
combined tracks are renumbered.
Example: Combining B and C
Track 1 2 3 4
number
| А [о] < |» |
B and C are combined
into one track |
2 Y 3
| а |+ | < | > |
EDITVNO I<KIl AMS D>>i YES BB
Combining
—J
J
1 Turn AMS until the second track of the two to be
combined appears.
For example, when combining tracks 3 and 4, turn
AMS until 4 appears.
2 Press EDIT/NO repeatedly until “Combine 2”
appears in the display.
3 Press YES.
“Rehearsal” alternates with “Track ok?” in the
display. The place where the two tracks will join
(i.e., the end of the first track and the beginning of
the second track) repeatedly plays back and the
respective track number flashes in the music
calendar.
4 If the track is the wrong one, press EDIT/NO or
EM, then start from Step 1 again.
5 Ifthe place is correct, press YES.
When the tracks have been combined, “Complete”
appears for a few seconds and the total number of
tracks in the music calendar decreases by one.
If both of the combined tracks have track titles,
the title of the second track is erased.
Editing Recorded MDs
To cancel the Combine Function - A
Press EDIT/NO or 8.
C You can undo a track combination
Divide the tracks again (see “Dividing Recorded
Tracks” on page 24), then repeat the combine function
with the correct tracks if necessary.
Note
If “Sorry” appears in the display, the tracks cannot be
combined. This sometimes happens when you've edited the
same track many times, and is due to a technical limitation
of the MD system, not a mechanical error.
25
Editing Recorded MDs
E
Moving Recorded Tracks Labeling Recordings
(Move Function) . (Title Function)
Use the Move Function to change the order of any You can create titles for vour recorded MDs and tracks.
track. After you move a track, the track numbers Titles — which may consist of uppercase and
between the new and old track positions are lowercase letters, numbers and symbols for a
automatically renumbered. maximum of about 1,700 characters per disc — appear
in the display during MD operation.
Example: Moving track C to track position 2
EDIT/NO 143 AMS Di DISPLAY/CHAR <</P>> YES
Track 1 2 3 4
number |
A B | С | D | ,
Track C moves to \
Moving | | = track position 2
я 2 3 4
[+ | < Pl?
‘ Use the following procedure to label a track or an MD.
You can label a track while it is playing, pausing or
EDIT/NO 11 AMS >>] YES . . . .
recording. if the track is playing or recording, be
— \ sure to finish labeling before the track ends. if the
—37 I —]— © 222: 3 track ends before you've completed the labeling
= | i ya he dure, the ch ready entered t
= U Ji : Ye 9 procedure, the characters already entered are no
— 7 recorded and the track will remain unlabeled.
т a
1 Press EDIT/NO repeatedly until “Name in 2”
1 Turn AMS until the track number you want to
appears in the display, then do the following:
move appears in the display.
To label Make sure that the deck is
2 Press EDIT/NO repeatedly until “Move ?”
appears in the display. A track Playing, pausing, recording the track
to be labeled, or stopped after
3 Press YES. locating the track to be labeled
The track number to be moved and the new track An MD Stopped with no track number
appearing in the display
position appears.
TRACK
Bo Ne 3 2 Press YES.
и Feo ЮР РО: . . >
A flashing cursor appears in the display.
La = |
i = 2-17 E 4 À
| | TRACK SNM, 4 5
- - 8 78 % 10
Track number New track ITN 12 13 16 18
to be moved position > Ч 1617 18
4 Turn AMS until the new track position appears.
“57 o 3
; == 0
E.
71
TRACK
“=;
43
(En A AM
%
a da
E
"1
5 Press YES or AMS.
After you have moved the track, “Complete”
appears for a few seconds and the moved track
begins playing back if the deck is in playback
mode.
To cancel the Move Function
Press EDIT/NO or Ml.
= тенор ен.
3 Press DISPLAY /CHAR to select the character
type as follows:
To select
Press DISPLAY/CHAR repeatedly
until
Uppercase letters
“A” appears in the display
Lowercase letters
“a” appears in the display
Editing Recorded MDs
Repeat Steps 3 to 5 until you have entered the
entire title.
If you entered the wrong character
Press 44 or PP until the character to be corrected starts
flashing, and repeat Steps 3 to 5 to enter the correct
character. В
To erase a character
Press «dl or P” until the character to be erased starts
Numbers “0” appears in the displ |
| PP PY Hashing, then press EDIT/NO.
| To enter a space ‘
| “= Dire .: Press AMS or »¥ while the cursor is flashing.
> = 6 78391
fas 11 12 13 14 15
в Un 16 17 18
A. 0-11 44 Press YES.
This completes the labeling procedure and the
¿ 4 Turn AMS to select the character. title appears on the left side of the display.
: ^^ MS a7atá To cancel labeling
1% 11 12 19 14
| > В ' a Press M.
| Note
The selected character flashes. :
You cannot label a track or an MD while you are recording
Letters, numbers, and symbols appear in ns
7 Over an existing track.
J a aaa EE
Fo
sequential order as you turn AMS.
You can use the following symbols in titles:
PUHEZDE' ()*+,-./7: <=>720 °
You can press DISPLA Y /CHAR to change the
character type at any time during Step 4 (see
Step 3).
5 Press AMS to enter the selected character.
The cursor shifts rightward and waits for the
input of the next character.
TRACE LL 45
er в 7 8 910
214 11 12 13 14 15
| 18 17 18
Lu
Am
18-05 1 N11 -§ +4 à
(Continued)
27
ra
Ere META A rrr НЧ ELA NEAR TT OUT TA TOTO
28
Editing Recorded MDs
Labeling tracks and MDs with the remote [J]
| Alphabet/number
buttons
NAME —# CLEAR
=
CHAR NUM
44 / >> —
1 Press NAME repeatedly until a flashing cursor
appears in the display, then do the following:
_starts flashing. _
To label Make sure that the deck is
A track Playing, pausing, recording the track
to be labeled, or stopped after
locating the track to be labeled
An MD Stopped with no track number
appearing in the display
2 Select the character type as follows:
To select Press
Uppercase letters CHAR repeatedly until “Selected
ABC” appears in the display
CHAR repeatedly until “Selected
abc” appears in the display
Lowercase letters
Numbers NUM repeatedly until “Selected
123” appears in the display
3 Enter one character at a time.
After you enter a character, the cursor shifts
rightward and waits for the input of the next
character.
4 Repeat Steps 2 and 3 until you have entered the ..
entire title.
if you entered the wrong character ---—-
Press << or P¥ until the character to be corrected
Press CLEAR to erase the incorrect character, then enter
“the correct one.
Press NAME again.
The entered title appears on the left side of the
display window after the label has been recorded.
To cancel labeling
Press Ш.
Changing an existing title 1] _
— 1 Press NAME, then do the following:
To change Make sure that the deck is
A track title Playing, pausing the track whose title
is to be changed, or stopped after
locating the track whose title is to be
changed
A disc name Stopped with no track number
appearing in the display
2 Keep pressing CLEAR (or EDIT/NO on the deck)
until the current title is erased. |
3 Enter the new title.
Do Steps 3 to 6 of “Labeling Recordings” on page
26, or Steps 2 to 4 of “Labeling tracks and MDs
with the remote” on page 28.
4 Press NAME.
Erasing all titles on a disc (Name Erase
Function)
Use this function to erase all titles on an MD
simultaneously.
~~~ Note that once erased, titles cannot be recovered.
1 Press EDIT/NO repeatedly while the deck is
2 Press EDIT/NO again.
“Name Erase ?” appears in the display.
3 Press YES.
All titles are erased.
To cancel the Name Erase Function
Press Ш.
© You can erase all recorded tracks and titles
See “Erasing all tracks on an MD” on page 23.
PD с)
stopped until “All Erase ?” appears in the display.
Ma TO Ca
Editing Recorded MDs
|]
Undoing the Last Edit |
(Undo Function)
You can use the Undo Function to cancel the last edit
and restore the contents of the MD to the condition that
existed before editing was done. Note, however, that
you cannot undo an edit if you do any of the following
after the edit:
* Press the @ REC button on the front panel.
Press the @ button, the MUSIC SYNC button, or the
CD-SYNC STANDBY button on the remote.
* Update the TOC by turning off the power or ejecting
the MD.
e Disconnect the AC power cord.
SONY ——
2 не — F | 55 а ES
= ae — TJ) © 9
Le
|
EDIT/NO YES
1 With the deck stopped and no track number
appearing in the displav, press EDIT/NO
repeatedly until “Undo ?” appears in the display.
“Undo ?” does not appear if no editing has been
done. |
2 Press YES.
One of the following messages appears in the
display, depending on the type of editing to be
undone:
Editing done: Message:
Erasing a single track
“Erase Undo ?”
Erasing all tracks on an MD
Dividing a track “Divide Undo 7”
Combining tracks “Combine Undo ?”
Moving a track “Move Undo 7”
Labeling a track or an MD
Changing an existing title “Name Undo ?”
Erasing all titles on an MD
3 Press YES again.
“Complete” appears for a few seconds and the
contents of the MD are restored to the condition
that existed before the edit.
To cancel the Undo Function
Press EDIT/ NO or Il.
29
Additional Information
EA DS
Display Messages
The following table explains the various messages that
appear in the display.
Message Meaning
Blank Disc A new (blank) or erased MD has been
inserted.
Cannot Copy An attempt was made to make a second
copy from a digitally dubbed MD (see
page 33).
Cannot EDIT An attempt was made to edit the MD
during Program or Shuffle Play.
Disc Error The MD is scratched or missing a TOC.
Erase all tracks on a new recordable MD
before use (see “Erasing all tracks on an
MD” on page 23).
Disc Full The MDis full (see “System Limitations”
on this page).
Impossible An attempt was made to combine tracks
while playing back the first track.
Name Full The titling capacity of the MD has reached
its limit (about 1,700 characters).
NO DISC There is no MD in the deck.
No Track The inserted MD has a disc title but no
tracks.
Protected The inserted MD is record-protected.
Retry The first recording attempt failed due to a
disturbance or scratch on the MD, and a
second attempt is being made.
Retry Error Due to vibrations to the deck or scratches
on the MD, several recording attempts
were made but with no success.
Sorry An attempt was made to combine tracks
that cannot be combined.
STANDBY The contents recorded by timer have
(flashing) disappeared over time and are not be
available for saving to disc, or Program
Play could not be activated since the
program has disappeared over time.
System Limitations
The recording system in your MiniDisc deck is
radically different from those used in cassette and DAT
decks and is characterized by the limitations described
below. Note, however, that these limitations are due to
the inherent nature of the MD recording system itself
and not to mechanical causes.
“Disc Full” lights up even before the MD has reached the
maximum recording time (60 or 74 minutes)
When 255 tracks have been recorded on the MD, “Disc Full”
lights up regardless of the total recorded time. More than
255 tracks cannot be recorded on the MD. To continue
recording, erase unnecessary tracks or use another
recordable MD.
"Disc Full” lights up before the maximum number of
tracks is reached
Fluctuations in emphasis within tracks are sometimes
interpreted as track intervals, incrementing the track count
and causing “Disc Full” to light up.
The remaining recording time does not increase even
after erasing numerous short tracks
Tracks under 12 seconds in length are not counted and so
erasing them may not lead to an increase in the recording
time.
Some tracks cannot be combined with others
Track combination may become impossible when tracks are
edited.
The total recorded time and the remaining time on the
MD may not total the maximum recording time (60 or
74 minutes)
Recording is done in minimum units of 2 seconds each, no
matter how short the material. The contents recorded may
thus be shorter than the maximum recording capacity. Disc
space may also be further reduced by scratches. |
Tracks created through editing may exhibit sound dropout
during search operations. .
Track numbers are not recorded correctly
Incorrect assignment or recording of track numbers may
result (1) when CD tracks are divided into several smaller
tracks during digital recording, or (2) while recording certain
CDs with the "LEVEL-SYNC” indication on (i.e., the
automatic track marking function on).
= ен о = пенек
"TOC Reading” appears for a long time
If the inserted recordable MD is brand new, “TOC Reading”
appears in the display longer than for MDs that have been
used.
Limitations when recording over an existing track
* The correct remaining recording time may not be
displayed.
¢ You may find it impossible to record over a track if that
track has been recorded over several times already. If this
happens, erase the track using the Erase Function (see
page 22).
* The remaining recording time may be shortened out of
proportion to the total recorded time.
Recording over a track to eliminate noise is not
recommended since this may shorten the duration of the
track.
* You may find it impossible to label a track while recording
over it.
The correct recarded/playing time may not be displayed
during playback of monaural-format MDs.
|
Troubleshooting
If you experience any of the following difficulties while
using the deck, use this troubleshooting guide to help you
remedy the problem. Should any problem persist, consult
your nearest Sony dealer.
The deck does not operate or operates poorly.
=p The MD may be damaged (“Disc Error” appears).
Take the MD out and insert it again. It “Disc Error”
remains, replace the MD.
The deck does not play back.
wp Moisture has formed inside the deck. Take the MD
out and leave the deck in a warm place for several
hours until the moisture evaporates.
=P The deck is not on. Press POWER to turn the deck
on.
=p The MD is inserted in the wrong direction. Slide the
MD into the disc compartment with the label side up
and the arrow pointing towards the opening until
the deck grips it.
> The MD may not be recorded (the music calendar
does not appear). Replace the disc with one that has
been recorded.
Additional Information
The deck does not record. >» . Cm
=p The MD is record-protected (“Protected” appears). -
Close the record-protect slot (see page 7).
=P The deck is not connected properly to the sound
source. Make connections properly to the sound
source.
> The recording level is not adjusted properly (in case
of input through LINE (ANALOG) IN). Turn REC
LEVEL to adjust the recording level properly (see
page 11).
=P A premastered MD is inserted. Replace it with a
recordable MD.
=p There is not enough time left on the MD. Replace it
with another recordable MD with fewer recorded
tracks, or erase unnecessary tracks.
=p There has been a power failure or the AC power
cord has been disconnected during recording. Data
recorded to that point may be lost. Repeat the
recording procedure.
The deck does not work during synchro-recoding.
=p The currently selected CD player type (CD player or
video CD player) does not match the CD player
being used. Reset the CD plaver type (see page 14).
The sound has a lot of static.
= Strong magnetism from a television or a similar
device is interfering with operations. Move the deck
away from the source of strong magnetism.
Note
If the deck does not operate properly even after you've
attempted the prescribed remedies, turn off the power, then
reinsert the plug into the power outlet.
31
Additional Information
Specifications -
— System MiniDisc digital audio system
Disc MiniDisc
Laser Semiconductor laser (A = 780 nm)
Laser output
Laser diode properties
Revolutions (CLV)
Error correction
Sampling frequency
Coding
Modulation system
Number of channels
Frequency response
Signal-to-noise ratio
Wow and flutter
Emission duration: continuous
Less than 44.6 uW*
* This output is the value measured at a
distance of 200 mm from the objective
lens surface on the Optical Pick-up
Block with 7 mm aperture.
Material: GaAlAs
400 rpm to 900 rpm
Advanced Cross Interleave Reed В
Solomon Code (ACIRC)
44.1 kHz
Adaptive Transform Acoustic Coding
(ATRAC)
EFM (Eight-to-Fourteen Modulation)
2 stereo channels
5 to 20,000 Hz +0.3 dB
Over 96 dB during playback
Below measurable limit
Inputs
Jack type Input Rated Minimum
impedance input input
>— LINE Phono jacks 47 kilohms 500 mVrms 125 mVrms
(ANALOG) IN
DIGITAL IN Square Optical
optical Wave _
connector length:
jack 660 nm
Outputs
Jack type Rated output Load impedance
PHONES Stereo 10 mW 32 ohms
phone
jack
LINE Phono 2 Vrms Over 10 kilohms
(ANALOG) jacks (at 50 kilohms)
OUT
DIGITAL Square —18 dBm Wave length:
OUT optical 660 nm
connector
jack
32
General A Co
Power requirements 120 V AC, 60 Hz
Power consumption 19 W
Dimensions (approx.) (w/h/d} incl. projecting parts
430 x 93 x 280.5 mm ... i.
(17x33, x11'/ in)
Mass (approx.) 3.5 kg (7 Ibs 11 oz)
Supplied accessories See page 4.
Optional accessories
Recordable MDs: MDW-60 (60 min), MDW-74 (74 min)
Optical cable: POC-15A
US. and foreign patents licensed from Dolby Laboratories
Licensing Corporation.
Design and specifications are subject to change without
notice.
nh o pina me oy nL
vtr a ré NE ка
DE
Guide to the Serial Copy
Management System
This MD deck uses the Serial Copy Management
System, which allows only first-generation digital
copies to be made of premastered software via the
deck’s digital input jack. An outline of this system
appears below:
wb
You can record from digital program sources (CDs, DATs
or premastered MDs) onto a DAT tape or recordable MD
via digital input jack on the DAT or MD deck.
You cannot, however, record from this recorded DAT tape
or MD onto another DAT tape or recordable MD via the
digital input jack on the DAT or MD deck.
CD player DAT deck
MD deck
Playing ~~
Optical cable or Digital output jack
coaxial digital
connecting cable o ,
Digital input jack
DAT deck or
Recording MD deck
¥ First-generation
DAT tape or MD
DAT or MD recorded via
digital-to-digital
connection
+
Playing DAT deck or
MD deck
Digital output jack Line (analog) output jacks
Optical cable or
coaxial digital
connecting cable
Audio connecting
cord
Digital input jack Line (analog) input jacks
DAT deck or
Recording MD deck
MD dec
Additional Information
2 You can record the digital input signal of a digital satellite
broadcast onto a DAT tape or recordable MD via the
digital input jack on the DAT or MD deck which is capable
of handling a sampling frequeny of 32 kHz or 48 kHz.
You can then record the contents of this recorded DAT
tape or MD (first-generation) onto another DAT tape or
recordable MD via digital input jack on the DAT or MD
deck to create a second-generation digital copy.
Subsequent recording from the second-generation copy
onto another recordable DAT tape or MD is possible only
through the analog input jack on the DAT or MD deck.
Note, however, that on some BS tuners, second-generation
digital copying may not be possible.
Playing BS tuner
= Digital output jack
Optical cable or 5 9! put]
coaxial digital |
connecting cable 3
E Digital input jack
Recording DAT deck or
MD deck
+
First-generation
DAT tape or MD
DAT or MD recorded via
| digital-to-digital
+ connection
Playback DAT deck or
MD deck
Digital output jack
Optical cable or
coaxial digital
connecting cable
Digital input jack
Recording DAT deck or
MD deck
+ Second-
generation DAT
DAT or MD tape or MD
or recorded via
digital-to-digital
—.. connection
+
Playback DAT deck or
MD deck TO MT
Digital output jack Line (analog) output jacks
Optical cable or
coaxial digital
connecting cable
Audio connecting
cord
Digital input jack Line (analog) input jacks
DAT deck or
Recording MD deck
e
(Continued)
34
Additional Information
3 You can record a DAT tape or MD recorded via the DAT
or MD deck’s analog input jack onto another DAT tape or
MD via the DAT or MD deck's digital output jack. You
cannot, however, make a second-generation DAT tape or
MD copy via the DAT or MD deck's digital output jack.
Turntable Tuner
CD player Cassette deck
DAT deck Microphone
amplifier
Playing MD deck I
Line (analog)
output jacks
Audio connecting cord
Line (analog)
input jacks
DAT deck or
Record
e MD deck
DAT tape or MD
DAT or MD recorded via
analog-to-digital
connection
Playing DAT deck or
MD deck
Optical cable or E Digital output jack
coaxial digital
connecting cable —
= Digital input jack
. DAT deck or
Recording MD deck
First-generation
“ DAT tape or MD
DAT or MD || recorded via
„| digital-to-digital
connection
10 DAT deck or
Playing MD deck
Digital output jack Line (analog) output jacks
Optical cable or
coaxial digital
connecting cable
- Audio connecting
cord
Digital input jack Line (analog) input jacks
DAT deck or
MD deck
Recording
A-B repeat 19
AMS (Automatic Music Sensor) 17
Audio connecting cord 4, 5, 33
Auto cut 10
Auto pause 21
Auto space 21
CD synchro-recording 14
Changing
an existing title 29
order of programmed tracks 20
Checking
order of programmed tracks 20
remaining recordable time on the MD 9, 16
Cleaning 2
Combining 25
Display messages 30
Dividing 24
E, F, G
Erasing
all titles 29
all tracks 23
a part of a track 23
a single track 23
H
Hooking up
a digital component >
an analog component 5
l, 5, К
Input monitor 10
L
Labeling
an MD 26
a track 26 .
LEVEL-SYNC 9, 12
Locating DL IT
a particular point in a track 18
a specific track 17 a
-_—— =
M, N
MD
inserting 6,8
premastered 16
“Ww recordable 6,16
taking out 7, 8
Moving 26
Music
scan 17
synchro-recording 13
Optical cable 4, 5, 33
Optional accessories 32
P, Q
Pausing
playback 8
recording 7
Playing
normal play 8
program play 20
repeat play 18
shuffle play 19
R
Recording
normal recording 6,7
over existing tracks 11
time machine recording 12
Recording level 11
“nu Record-protect tab 7
Remote commander (remote) 4
S
Sampling frequency 5, 33
Sampling rate converter 5
SCMS (Serial Copy
Management System) 9, 33
Smart space 10
Specifications 32
Supplied accessories 4
System limitations 30
Timer
playing 21
recording 15
TOC (Table Of Contents)
7, 9, 15, 22
Track marking
automatic track marking 12
manual track marking 12
Troubleshooting 31
U. V, W, X, Y, Z
Ч Undoing the last edit 29
Names of controls Others
| Display 16
Buttons Music calendar 16
A+B 18 4
Alphabet/Number 17, 20, 28
A.SPACE 21
CD PLAYER 18 14
CHAR 28
CLEAR 20, 28
CONTINUE 19, 20
DISPLAY 14, 16
DISPLAY/CHAR 9, 16
EDIT/NO/YES 10, 12,
22 to 26, 29
S EJECT 7,8, 10
M.SCAN 17
MUSIC SYNC 13, 29
NAME 28
NUM 28
PLAY MODE 19 to 21
PROGRAM 20
O REC (recording) 7, 10, 12, 29
REPEAT 18
SCROLL 16
SHUFFLE 19
STANDBY 14, 29
START 14
STOP 14
T.REC 13
[> (play) 7, 8, 17, 19 to 21
IE (pause) 7, 8, 21, 24
№ (stop) 7, 8, 15, 19, 20, 23
O (recording) 29
«</ >> (manual search)
18, 26 to 28
HE / >>i (AMS: Automatic
Music Sensor) 8, 11,17,
18 to 20
> 25 17,20
Switches
INPUT 6,10
POWER 6,8
REC MODE 6
TIMER 15, 21
Connectors
DIGITALIN/OUT 5, 9,10
Controls
II AMS P>> 8, 11, 13, 17, 20,
22 to 26
PHONE LEVEL 8
REC LEVEL 7, 11
Indicator
POWER 6, 8, 14
Jacks
LINE (ANALOG) IN/OUT
5,9,10
PHONES 8, 10
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
