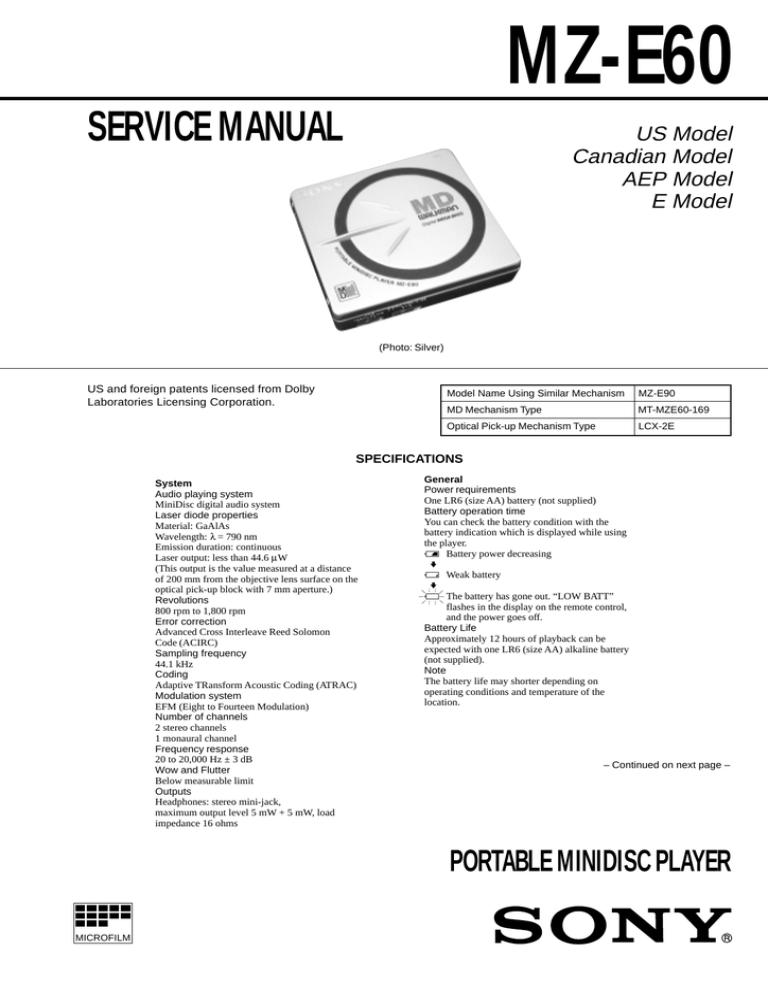

MZ-E60
SERVICE MANUAL
US Model
Canadian Model
AEP Model
E Model
(Photo: Silver)
US and foreign patents licensed from Dolby
Laboratories Licensing Corporation.
Model Name Using Similar Mechanism
MZ-E90
MD Mechanism Type
MT-MZE60-169
Optical Pick-up Mechanism Type
LCX-2E
SPECIFICATIONS
System
Audio playing system
MiniDisc digital audio system
Laser diode properties
Material: GaAlAs
Wavelength: λ = 790 nm
Emission duration: continuous
Laser output: less than 44.6 µW
(This output is the value measured at a distance
of 200 mm from the objective lens surface on the
optical pick-up block with 7 mm aperture.)
Revolutions
800 rpm to 1,800 rpm
Error correction
Advanced Cross Interleave Reed Solomon
Code (ACIRC)
Sampling frequency
44.1 kHz
Coding
Adaptive TRansform Acoustic Coding (ATRAC)
Modulation system
EFM (Eight to Fourteen Modulation)
Number of channels
2 stereo channels
1 monaural channel
Frequency response
20 to 20,000 Hz ± 3 dB
Wow and Flutter
Below measurable limit
Outputs
Headphones: stereo mini-jack,
maximum output level 5 mW + 5 mW, load
impedance 16 ohms
General
Power requirements
One LR6 (size AA) battery (not supplied)
Battery operation time
You can check the battery condition with the
battery indication which is displayed while using
the player.
t Battery power decreasing
v
r Weak battery
v
e The battery has gone out. “LOW BATT”
flashes in the display on the remote control,
and the power goes off.
Battery Life
Approximately 12 hours of playback can be
expected with one LR6 (size AA) alkaline battery
(not supplied).
Note
The battery life may shorter depending on
operating conditions and temperature of the
location.
– Continued on next page –
PORTABLE MINIDISC PLAYER
MICROFILM
–1–
Dimensions
Approx. 81 × 25 × 74 mm (w/h/d)
(3 1/ 4 × 1 × 3 in.) not including projecting
parts and controls
Mass
Approx. 95 g (3.4 oz.) the player only
Approx. 136 g (4.8 oz.) incl. a premastered MD
and a LR6 (size AA) alkaline battery
Supplied accessories
Headphones with a remote control (1)
Carrying pouch (1)
This MiniDisc player is classified as a CLASS 1 LASER
product.
The CLASS 1 LASER
PRODUCT label is located on
the bottom exterior.
IN NO EVENT SHALL SELLER BE
LIABLE FOR ANY DIRECT,
INCIDENTAL OR CONSEQUENTIAL
DAMAGES OF ANY NATURE, OR
LOSSES OR EXPENSES RESULTING
FROM ANY DEFECTIVE PRODUCT
OR THE USE OF ANY PRODUCT.
Design and specifications are subject to change
without notice.
“MD WALKMAN” is a trademark of Sony
Corporation.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
Flexible Circuit Board Repairing
• Keep the temperature of the soldering iron around 270°C
during repairing.
• Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
• Be careful not to apply force on the conductor when soldering
or unsoldering.
Precautions for Laser Diode Emission Check
When checking the emission of the laser diode during adjustments, never view directly downwards as this may lead to
blindness.
Precautions for Using Optical Pick-up (LCX-2E)
As the laser diode inside the optical pick-up damages by static
electricity easily, solder the laser tap of the Optical pick-up
flexible board when handling. Also take the necessary measures
to prevent damages by static electricity. Handle the Optical pickup flexible board with care as it breaks easily.
Notes on chip component replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be
damaged by heat.
Laser tap
Optical Pick-up flexible board
SAFETY-RELATED COMPONENT WARNING!!
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH
MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN
SUPPLEMENTS PUBLISHED BY SONY.
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES
SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT.
NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES
SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL
OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
–2–
TABLE OF CONTENTS
1. SERVICING NOTE ......................................................... 4
2. GENERAL ......................................................................... 5
Playing an MD right away! ................................................... 5
3. DISASSEMBLY ............................................................... 7
3-1.
3-2.
3-3.
3-4.
3-5.
Panel Assy, Upper ................................................................. 7
Holder Assy ........................................................................... 7
Mechanism Deck .................................................................. 8
Main Board ........................................................................... 8
Service Assy, OP ................................................................... 9
4. TEST MODE ................................................................... 10
4-1. General ................................................................................ 10
4-2. Setting the Test Mode ......................................................... 10
4-2-1. How to Set the Test Mode ........................................... 10
4-2-2. Operations when the Test Mode is Set ........................ 10
4-2-3. How to Release the Test Mode .................................... 10
4-3. Test Mode Structure ............................................................ 10
4-4. Manual Mode ...................................................................... 11
4-4-1. Outline of the Function ............................................... 11
4-4-2. How to Set the Manual Mode ...................................... 11
4-5. Overall Adjustment Mode ................................................... 11
4-5-1. Outline of the Function ............................................... 11
6. DIAGRAMS ..................................................................... 14
6-1. IC Pin Description .............................................................. 14
6-1-1. IC801 RU6915MF-0006 (System Control) ................. 14
6-2. Block Diagrams .................................................................. 17
6-2-1. MD Block Diagram ..................................................... 17
6-2-2. Servo, System Control Block Diagram ....................... 19
6-3. Printed Wiring Boards and Schematic Diagrams ................ 21
6-3-1. Printed Wiring Board – Main Board – ........................ 21
6-3-2. Schematic Diagram – Main Board (1/4) – .................. 25
6-3-3. Schematic Diagram – Main Board (2/4) – .................. 27
6-3-4. Schematic Diagram – Main Board (3/4) – .................. 29
6-3-5. Schematic Diagram – Main Board (4/4) – .................. 31
6-4. IC Block Diagrams ............................................................. 33
7. EXPLODED VIEWS ..................................................... 37
7-1. Main Unit Section ............................................................... 37
7-2. Mechanism Deck Section ................................................... 38
8. ELECTRICAL PARTS LIST ...................................... 39
5. ELECTRICAL ADJUSTMENTS .............................. 12
5-1. General ................................................................................ 12
5-2. Notes for Adjustment .......................................................... 12
5-2-1. Jigs ............................................................................... 12
5-2-2. Adjustment Sequence .................................................. 12
5-2-3. Power ........................................................................... 12
5-3. Reset NV ............................................................................. 12
5-3-1. How to Reset NV ........................................................ 12
5-4. Overall Adjustment Mode ................................................... 12
5-4-1. Overall Adjustment Mode Structure ............................ 12
5-4-2. Overall CD and MO Adjustment Method ................... 12
5-4-3. Overall CD and MO Adjustment Items ....................... 13
–3–
SECTION 1
SERVICING NOTE
1) When repairing this device with the power on, if you remove
the main board or open the upper panel assy, this device stops
working.
In this case, you can work without the device stopping by
fastening the hook of the OPEN/CLOSE switch (MAIN board
S809) with tape.
MAIN board S809
2) This set is designed to perform automatic adjustment for each
adjustment and write its value to EEPROM. Therefore, when
EEPROM (MAIN board IC802) has been replaced in service,
be sure to perform automatic adjustment and write resultant
values to the new EEPROM.
Refer to section 4 Test Mode (page 10) for details.
–4–
SECTION 2
GENERAL
–5–
This section is extracted from
instruction manual.
–6–
SECTION 3
DISASSEMBLY
Note : This set can be disassemble according to the following sequence.
Set
Panel Assy, Upper
Holder Assy
Mechanism Deck
Main Board
Service Assy, OP
Note : Follow the disassembly procedure in the numerical order given.
3-1. PANEL ASSY, UPPER
4 screws(1.4),MI
5 panel assy, upper
3 screws(1.4),MI
2
1
3-2. HOLDER ASSY
3 holder assy
2 shaft
1 shaft
–7–
3-3. MECHANISM DECK
1 sheet (BLIND)
2 screw (MD), step
4
7 mechanism deck
3
5 CN501
6 CN551
claw
3-4. MAIN BOARD
Note : When installing, fit the knobs (HOLD, MB) and the switchs (S806, 807, 808).
2 screws(1.7x2.5)
1 screws(1.7x2.5)
S808
S806
S807
3
4 MAIN board
knobs (MB)
knob (HOLD)
–8–
3-7. SERVICE ASSY, OP
4 M 1.4
3 M 1.4
5 service assy, OP
1 washer
2 gear (SA)
–9–
SECTION 4
TEST MODE
4-1. GENERAL
Remote control LCD
• When entered in the TEST MODE, this set provides the Overall
Adjustment mode which allows CD and MO discs to be automatically adjusted. In the Overall Adjustment mode , the system
discriminates between CD and MO discs, performs adjustments
in sequence automatically, and displays the faulty location if any
fault is found. In the Manual mode, selected adjustments can be
performed automatically.
• The attached remote control is used to operate the TEST MODE.
Unless otherwise specified in the text, the key means that on the
remote control.
888
u
All on
All off
004 V1.100
4-2. SETTING THE TEST MODE
Microprocessor
version
display
4-2-1. How to set the TEST MODE
To set the TEST MODE, two methods are available.
1 Solder bridge and short TAP801 (TEST) on the main board.
Then turn on the power.
• Press and hold down PLAY MODE to hold the current display
while the key is being pressed.
MAIN BOARD (SIDE B)
4-2-3. How to release the TEST MODE
When method 1 was used:
Turn off the power and open the solder bridge on TAP801 on the
main board.
Note: The solder should be removed clean. The remaining
solder may make a short with the chassis and other part.
When method 2 was used:
Turn off the power.
1
5
CN501
CN551
8
10
15
5
1
L501
TAP801
4-3. TEST MODE STRUCTURE
20
C518
TP518
Test Mode
(Display Check Mode)
+ key
TAP801
Manual Mode
2 In the normal mode, operate the keys on the set and those on the
remote control as specified below:
Turn on HOLD switch on the set. Holding down x (STOP)
key on the set, press the keys on the remote control in the
following sequence:
>N t >N t . t . t >N
t . t >N t . t X t X
x
+ key
Servo Mode
Audio Mode
Power Mode
key
4-2-2. Operations when the TEST MODE is set
When the TEST MODE is entered, the system switches to the
display check mode within the TEST MODE. From this mode, the
other Test modes can be accessed.
When the TEST MODE is set, the LCD repeats a cycle of the
following displays:
OP Alignment Mode
key
Overall Adjustment Mode
x
– 10 –
key
key
4-4. MANUAL MODE
4-4-1. Outline of the function
Address Value & Adjustment Value
The Manual mode is designed to perform adjustments and
operational checks on the set’s operation according to each
individual function.
Usually, no adjustments are made in this mode.
However, the Manual mode is used to clear the memory before
performing automatic adjustments in the Overall Adjustment mode.
LCD display
011 XXXSXX
Block Error Value & Adjustment Value
LCD display
011 XX BXX
4-4-2. How to set the Manual mode
1. Set the TEST MODE and press + key to set the Manual mode.
ADIP Error Value & Adjustment Value
LCD display
Remote control LCD display
011 XX AXX
000 AAASCC
Jitter Value & Adjustment Value
LCD display
011 XXXJXX
2. Each test item is assigned with a three-digit item number. The
third digit stands for a major item, the second digit for a middle
item, and the first digit for a moniro item.
Asy Mmetry Feed Back Gain Value & Adjustment Value
LCD display
011 XX RXX
+ key : Up
key : Down
Change Major
Item
Power Adjustment Value
> N key
x
key
LCD display
731 XX VXX
+ key : Up
key : Down
Change Middle
Item
> N key
x
Memory Monitor Mode
key
Change Minor
Item
> N key : Up
. key : Down
Change Adjustment
Value
Write Adjustment
Value
XXX: Each Value
XX: Adjustment Value
for Item number
Note: In the Power mode, the power adjustment value is only
displayed.
+ key : Up
key : Down
4. During each test, press and hold down > N key or .
key for a while to move the optical pickup on the sled outer or
inner perimeter.
X key : Write
5. To terminate the Manual mode and return to the TEST MODE,
press x key.
3. During each test mode, the display is changed from one to
another each time DISPLAY key is pressed.
4-5. OVERALL ADJUSTMENT MODE
4-5-1. Outline of the function
This mode is designed to adjust the servo system automatically by
going through all the adjustment items.
Usually, this mode is used to perform automatic adjustments when
servicing the set.
For further information, refer to section 5. ELECTRICAL ADJUSTMENTS (page 12).
– 11 –
SECTION 5
ELECTRICAL ADJUSTMENTS
5-1. GENERAL
5-4. OVERALL ADJUSTMENT MODE
In this set, CD and MO discs can be automatically adjusted by setting the Overall Adjustment mode within the TEST MODE,
Before performing these automatic adjustments, it is necessary to
clear the memory and adjust the power in the Manual mode.
5-4-1. Overall adjustment mode structure
Overall Adjustment Mode
5-2. NOTES FOR ADJUSTMENT
. key
5-2-1. Jigs
• CD disc TDYS-1 (part code: 4-963-646-01)
• MO disc PTDM-1 (part code: J-2501-054-A)
or commercially available MO disc (recorded)
• Digital voltmeter
Overall CD Adjustment
x
key
. key
5-2-2. Adjustment sequence
The adjustments should be always performed in the following
sequence:
> N key
> N key
Overall MO Adjustment
1 Reset NV (Clear the memory) Manual mode
x
key
2 Overall CD adjustments
Overall adjustment mode
Note: The overall adjustments should be always performed in the
sequence of CD t MD adjustments.
3 Overall MO adjustments
5-2-3. Power
A stablized power supply is used to supply 1.5 V DC to the battery
terminal.
Otherwise, an AA alkali battery with the remaining level of 1.5 V
DC or more is used. (In this case, make sure that the battery
indication on the remote control is “FULL”)
5-4-2. Overall CD and MO adjustment method
1. Set the TEST MODE (see page 10) and press – key to set the
Overall Adjustment mode.
LCD display
044 Assy ?
5-3. RESET NV
2. Insert CD disc in the set, and press . key to set the Overall
CD Adjustment mode.
Automatic adjustments are made.
5-3-1. How to reset NV
1. Set the TEST MODE. (See page 10)
Display on Adjustment state
for Each Items.
LCD display
2. Set the Manual mode and set the item No. 021, Reset NV.
LCD display
XXX XXXSXX
021 AAASCC
XXX: Item No. for which an adjustment is being executed.
3. If NG in the overall CD adjustments, return to Reset NV and
perform the adjustment again.
3. Press X key on the remote control.
LCD display
LCD display
021 AAASCC
Adjustment Value becomed to NG.
XXX NGXX
Note: CC is blink.
4. Press X key on the remote control again.
XXX: NG item No.
LCD display
4. If OK through the overall CD adjustments, then perform overall
MO adjustments.
021 AAASCC
LCD display
Note: CC blink. t Finish the CC light on.
XXX End-OK
5. Press x key to terminate the Manual mode and return to the
TEST MODE.
5. Insert MO disc in the set, and press > N key to set the
Overall MO Adjustment mode. Automatic adjustments are made.
LCD display
XXX XXXSXX
XXX: Item No. for which an adjustment is being executed.
– 12 –
6. If NG in the overall MO adjustments, return to Reset NV and
perform the adjustment again.
LCD display
XXX NGXX
XXX: NG item No.
7. If OK through the overall MO adjustments, press x key to
return to the TEST MODE and terminate the Overall Adjustment mode.
LCD display
XXX End-OK
5-4-3. Overall CD and MO adjustment items
1. Overall CD adjustment items
Item No.
312
313
Contents
CD electrical offset adjustment
314
321
CD TE gain adjustment
328
CD TWPP gain adjustment
323
CD TE offset adjustment
336
CD ABCD gain adjustment
344
CD focus gain adjustment
345
CD tracking gain adjustment
521
522
341
CD two-axis sensitivity adjustment
CD focus bias adjustment
2. Overall MO adjustment items
Item No.
112
113
Contents
MO electrical offset adjustment
114
221
Low reflective CD TE gain adjustment
223
Low reflective CD TE offset adjustment
236
Low reflective CD ABCD gain adjustment
244
Low reflective CD focus gain adjustment
245
Low reflective CD tracking gain adjustment
121
MO TE gain adjustment
122
MO TE offset adjustment
144
MO focus gain adjustment
145
MO tracking gain adjustment
131
132
MO TWPP offset adjustment
136
MO ABCD gain adjustment
134
MO TWPP gain adjustment
141
MO focus bias adjustment
– 13 –
SECTION 6
DIAGRAMS
6-1. IC PIN DESCRIPTION
6-1-1. IC801 RU6915MF-0006 (SYSTEM CONTROL)
Pin No.
1
Pin Name
S MON
I/O
I
Description
S-MON monitor signal input from the µPD63732GC (IC601)
2
UREG MON
I
3
NC
—
4
VREF
I
5
DVDD MON
I
6
NC
—
7
RMC KEY
I
Remote commander with headphone key input terminal (A/D input)
8
SET KEY
I
Set key input terminal (A/D input) S801 to S804 (x, >/N, ., +/– VOLUME keys input)
9
MRST
I
10
AVDD
—
Power supply pin (+2.4 V or +2.8 V)
11
AVSS
—
Ground terminal (for A/D converter)
12 – 15
TYPE0 – 3
I
Setting terminal for model discrimination (bit 0 to bit 3)
16
XOUT
O
Main system clock output terminal (16.9344 MHz)
Un-regulator power supply voltage monitor input terminal (A/D input)
Not used. (open)
Input terminal for power supply voltage adjustment reference voltage (+2 V) (A/D input)
Not used. (Fixed at “H”.)
Not used. (open)
System reset signal input
“L”: reset
For several hundreds msec. after the power supply rises, “L” is input, then it change to “H”
17
XIN
I
Main system clock input terminal (16.9344 MHz)
18
SX OUT
O
Sub system clock output terminal
Fixed at “L” in this set
Not used. (open)
19
SXIN
I
Sub system clock input terminal
20
COUT
O
Not used. (open)
Not used. (fixed at “L”)
21
VDD
—
Power supply terminal (+2 V) (digital system)
22
VSS
—
Ground terminal (digital system)
23
HOLD SW
I
HOLD switch (S808) input terminal
24
VG CON
O
Power supply control signal output to each ICs
25
XCLK
O
26
KEY EN
O
Ground control output terminal of remote control
27
AVLS SW
I
AVLS switch (S803) input terminal
“L”: hold off, “H”: hold on
System clock supply output terminal (16.934 MHz) to the µPD63732GC (IC601) or AK4352
(IC302)
“L”: LIMIT
“H”: NORM
28
DSP SINT
I
Interruption status input from the µPD63732GC (IC601)
29, 30
DBB0, DBB1
I
DIGITAL MEGABASS switch (S806) input terminal *1
31
OPR LED
O
OPERATE LED (D802) drive signal output terminal
“H”: LED on
Upper panel open/close detect switch (S801) input terminal
32
OPEN CLS SW
I
33
XWAKE RMC
I
34
XWAKE SET
I
Wake up signal input from this set key
35
SBUS CLK
O
SSB serial clock signal output terminal
36
SBUS DATA
I/O
37
XRST
O
Reset signal output terminal to each ICs
38
SLD 1 MON
I
Sled servo timing signal input from the TLC372CPW (IC552)
39
SLD 2 MON
I
Sled servo timing signal input from the TLC372CPW (IC552)
40
VDD
—
Power supply terminal
41
VPP
—
Test terminal (fixed at “L”)
42
CLV VCON
O
43
APC REF
O
Laser power control signal output terminal
44
RM VCON
O
Remote control power voltage select signal output to power circuit
45
CLV U MON
I
Spindle servo (U) timing signal input from the BD6602KUT (IC551)
46
CLV V MON
I
Spindle servo (V) timing signal input from the BD6602KUT (IC551)
47
CLV W MON
I
Spindle servo (W) timing signal input from the BD6602KUT (IC551)
48
CLV U CON
I
Spindle servo (U) drive signal input from the BD6602KUT (IC551)
49
CLV V CON
I
Spindle servo (V) drive signal input from the BD6602KUT (IC551)
“L”: upper panel close, “H” : upper panel open
Wake up signal input from remote control key
SSB serial data input/output terminal
Spindle servo drive voltage control signal output to the BD6602KUT (IC551) or µPD63732GC
(IC601)
– 14 –
“L”:2.4 V, “H”: 2.8 V
Pin No.
50
Pin Name
CLV W CON
I/O
I
Description
Spindle servo (W) drive signal input from the BD6602KUT (IC551)
51
DRV VCON
O
Driver output control terminal to the DB6602KUT (IC551)
52
NC
—
Not used. (open)
53
SLED 1R CON
O
Sled motor control signal output to the BD6602KUT (IC551)
54
SLED 1F CON
O
Sled motor control signal output to the BD6602KUT (IC551)
55
SLED 2R CON
O
Sled motor control signal output to the BD6602KUT (IC551)
“L”: prohibited, “H”: permission
56
SLED 2F CON
O
Sled motor control signal output to the BD6602KUT (IC551)
57 – 60
NC
—
Not used. (open)
61
VSS
—
Ground terminal (digital system)
62
NC
—
Not used. (open)
63
RMC DTCK
I/O
TSB serial communication data input/output terminal for remote commander with headphone
64
S0
O
PD-IC mode select signal output
65
S1
O
PD-IC mode select signal output
66, 67
NC
—
Not used. (open)
68
SLD VCON
O
Sled servo control PWM signal output to the BD6602KUT (IC551)
69
NC
—
Not used. (open)
70
HP MUTE
O
Muting on/off control signal output to the headphone amplifier (IC301)
71
HP STBY
O
72
NC
—
“H”: muting on
Standby on/off control signal output to the headphone amplifier (IC301)
“L”: standby mode, “H”: amplifier on
Not used. (open)
73
NV DI
I
Serial data input from the EEPROM (IC802)
74
NV DO
O
Serial data output from the EEPROM (IC802)
75
NV CLK
O
Serial clock signal output to the EEPROM (IC802)
76
NV CS1
O
Chip select signal output to the EEPROM (IC802)
77
ADJUST
I
Test mode institution input terminal
78
XREBOOT
O
System reboot control output terminal
79
VDD
—
Power supply terminal (+2 V) (digital system)
80
VSS
—
Ground terminal (digital system)
– 15 –
“L”: test mode (Normally, fixed at “H”)
– 16 –
MZ-E60
6-2. BLOCK DIAGRAMS
6-2-1. MD BLOCK DIAGRAM
MAIN BOARD
(1/2) MD SECTION
DIGITAL SERVO
ATRAC
IC601
• Signal path
: MD
B+
(Q907)
B+
(Q907)
B+
(Q907)
RF AMP, FOCUS/TRACKING ERROR AMP
IC501
VREF
CN501
6
3
VREF
DVDD
AVCC
–
+
21
38
lx
–
+
82V
20
•
37
•
51 VDD
•
75
•
87
47 MCK I/O
97 ID3
98 ID4
30
Jx
–
+
Jx Jy Jx
Jy
–
+
lx ly lx
A
–
+
a bc d
B
F
–
+
RF OUT
ly
lx
Jx
Jy
A
B
C
D
9
10
14
15
16
17
7
8
7
8
9
10
11
13
4
5
Iy
Ix
Jx
Jy
A
B
C
D
RF AMP,
FOCUS
ERROR,
TRACKING
ERROR
DFCT
OFTRK
12
6
D
–
+
MON
MON
18
–
+
19
5
LD-A
LD
15
20
AVCC
(Q907)
LD-K
12
LASER
AUTO POWER
CONTROL
Q501
18
13
A-C
D-C
OFTRK
ABCD
FE
TE
S MON
C
–
+
DFCT
33
9
74
•
70
DRA0
66
|
•
DRA11 62
•
65
•
64
12
•
15 A0
19 |
• A11
21
•
8
•
6
DRD0
|
DRD3
52
•
53
•
58
•
57
2
•
3 D0
• |
24 D3
•
25
XRAS
XOE
XCAS
XWE
63
60
59
54
5
22
23
4
VSS 1
VSS 13
XRAS
XOE VSS 14
XCAS VSS 26
XWE
18BIT D/A CONVERTER
IC302
7 RF
27
13 DEFECT
26
14 OFTRK
39
40
44
41
71
2 VREF
1 VDD ADJ
MINIDISC
OPTICAL PICK-UP BLOCK
(LCX-2E)
ly
16M DRAM
IC602
LRCK 39
AUDATA 40
BCK 41
LRCK
5
SDATA
4
BICK
3
8X
INTERPOLATOR
SERIAL
INPUT
INTERFACE
∆Σ
MODULATOR
PD-I
PD-O
LD-EMIT
APC
MCLK 50
T COUNT
8X
INTERPOLATOR
∆Σ
MODULATOR
1
MCLK
S0
S1
AVCC
S0
S1
ADIP IN
ADIP
20
11
19
SERIAL
I/F
XRST
SCK
S BUS
LPF
AOUTR
13
AOUTR
17
28
12 T COUNT
43
42
9 ADIP
TF1
TR1
FR1
FF1
21
22
23
24
24
23
22
TRK+
1
TRK–
SINT 30
SCK 29
S BUS 28
4
FCS+
3
FCS–
FOCUS
COIL
XRST
S MON
PD
SSB CLK
SSB DATA
SERVO,
SYSTEM CONTROL
SECTION
(Page 19)
04
– 17 –
SERVO,
SYSTEM CONTROL
SECTION
(Page 19)
27 XRESET
TRACKING
COIL
1
3
VREF
MCLK
SINT
S0
S1
2
SERVO,
SYSTEM CONTROL
SECTION
(Page 19)
VREF
11
CKS
16
VDD
10
PD 2
CLOCK
DIVIDER
AVCC (Q907)
AVCC
AOUTL
16
TF OUT
TR OUT
FR OUT
FF OUT
T-COUNT
14
B+
(Q907)
4 ABCD
3 FE
5 TE
PD-DRV
ADIP
AOUTL
2
TPP/WPP
PD-NI
LD-VDD
LPF
– 18 –
4
SERVO,
SYSTEM CONTROL
SECTION
(Page 19)
MZ-E60
6-2-2. SERVO, SYSTEM CONTROL BLOCK DIAGRAM
MAIN BOARD
(2/2)
SERVO, SYSTEM CONTROL SECTION
• Signal path
: MD
MD
SECTION
(Page 18)
B+
(UNREG)
AOUTL
AOUTR
2
B+
(Q907)
B+
(Q907)
EEPROM
IC802
8 VCC CS
SK
DO
DI
7 PE
1
2
3
4
76
75
74
73
VREF
MCLK
SINT
MD
SECTION
(Page 18)
NV CS1
NV CLK
NV DI
NV DO
4 VREF
25 XCLK
28 DSP SINT
XRST
S MON
PD
SSB CLK
SSB DATA
4
37
1
43
35
36
TRK–
SYSTEM
CONTROL
IC801
XRST
S MON
APC REF
SBUS CLK
SBUS DATA
MD
SECTION
(Page 17)
MINIDISC
MECHANISM
BLOCK
M902
(SLED)
1
+
–
7
39 SLD 2 MON
3
2
+
–
1
38 SLD 1 MON
FCS+
FCS–
SLED1+
CN551
PREDRIVE
PREDRIVE
SLED2+
6
SLED2–
8
51
52
50
PREDRIVE
CLVN
1
M901
(SPINDLE)
CLVU
CLVV
CLVW
2
3
4
12
PW
SW
18
MUTE
17
B+
(D903)
VCC2
+
–
35
+
–
36
+
–
45
B+
(Q907)
64
TF1
1
TR1
2
FF1
3
FR1
VREF
REFERENCE
VOLTAGE
SWITCHING
Q301
13
HP MUTE 70
HP STB 71
KEY EN 26
RMC KEY 7
RMC DTCLK 63
S806
DIGITAL MEGABASS
0
1 2
S807
AVLS
NORM
LIMIT
S808
HOLD
16 XOUT
MD
SECTION
(Page 18)
57
58
56
53 SLD 1R CON
54 SLD 1F CON
68 SLD VCON
54
55
55 SLD 2R CON
56 SLD2F CON
PREDRIVE
46
32
DBB0
DBB1
AVLS SW
HOLD SW
29
30
27
23
SET KEY
XWAKE SET
OPEN CLS SW
ADJUST
OPR LED
8
34
32
77
31
S801
D802
OPERATE
S809
OPEN/
CLOSE
TAP801
TAP803
–
RESET
IC803
S804
+
S803
S802
. >N
VOL
B+
(D901)
MRST 9
XREBOOT 78
B+
(Q907)
3 OUT
VSS 5
B+
(UNREG)
47 CLV W MON
PWM/PFM CONTROL
IC903
Q905
2 VDD
46 CLV V MON
POWER SUPPLY
VOLTAGE CONTROL
SWITCH
Q906
RM VCOM 44
30
16
15
14
13
DECODER
Q908
D903
B+
UNREG MON 2
31
45 CLV W MON
48
49
50
42
CLV U CON
CLV V CON
CLV W CON
CLV V CON
EXT 5
1 VOUT
Q907
B+
Q904
(2/2)
VG
B+
Q904(1/2)
D901
B+
(UNREG)
Q903
VG
TO EACH
BLOCK
TO BEMF
COMPARATOR
VCC1
STANDBY
OE
2 VDD
1 FB EXT 5
3 CE
4
17
51 DRV VCON
VG CON 24
VCC2
BIAS
VG
PWM/PFM CONTROL
IC902
2 VDD
VOUT 1
Q901
5 EXT
PWM/PFM CONTROL
IC901
04
– 19 –
GND
KEY
DATA
VDD
VDD 4
33
34
23
24
26
29
28
4
S805
7
SLED1–
X601
16.9344MHz
3
62
61
60
5
Q802
21
AVDD 10
17 XIN
VCC1
10
11
8
9
6
7
i
2
PW B
B+
21 (D901)
•
VDD 40
•
79
B+
(D903)
Q801
5
6
PREDRIVE
J301
PW A
XWAKE RMC 33
FOCUS/TRACKING COIL DRIVE,
SPINDLE/SERVO MOTOR DRIVE
IC551
TRK+
20 VCC
22
SLED
VOLTAGE MONITOR
IC552
42
43
40
41
38
39
HEADPHONE
AMP
IC301
1 B+
DVDD MON 5
64 S0
65 S1
S0
S1
B+
(UNREG)
B+
(Q907)
– 20 –
B+ SWITCH
Q902
DRY BATTERY
SIZE "AA"
(IEC DESIGNATION R6)
1PC, 1.5V
MZ-E60
6-3. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
6-3-1. PRINTED WIRING BOARD — MAIN BOARD —
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
• Semiconductor
Location
35
30
25
21
41
8
9
C304
R809
5
55
60
TP825
4 1
R821
TP826
1
8
C512
R509
R508
19
C813
2
S806
DIGITAL MEGABASS
1
0
C809
5
LIMIT
– 21 –
Parts on the pattern face side seen from the
pattern face are indicated.
Parts on the parts face side seen from the
parts face are indicated.
C551
NORM
C552
11
1-676-495- (11)
I
Caution:
Pattern face side:
(Side B)
Parts face side:
(Side A)
26
S807
AVLS
04
Note:
• Y : parts extracted from the conductor side.
f
•
: internal component.
• b : Pattern from the side which enables seeing.
(The other layer’s patterns are not indicated.)
R811
R812
C601
C602
14
IC802
4
21
IC602
R556
R806
80
R801
75
R802
70
R819
65
70
1
C612
C815
1
61
C814
R102
C302
C101
C201
C303
C305
R301
(CHASSIS)
R202
60
65
6
76
75
IC803
3 2
C801
H
8
80
50
51
10
IC801
55
R101
C608
15
50
16
R201
R513
R507
45
TP103
13
85
X601
20
IC302
G
IC601
1
45
R601
C614
90
40
40
C609
95
C607
R810
L601
RB551 RB552
4 TP203
C805
R804
D354
R833
1
100
35
R832
D353
C806
C610
D855
F
5
5
30
RB802
TP302 1
2
3
D352
C351
D351
C603
C811
R823
10
C559
R822
15
R555
D
FB802
20
C558
E
TP813
25
26
S802
>N
S803
.
R554
C854
C812
R818
S801
x
C557
TP812
C853
R814
TP531
R825
R837
Q802
R817
B
44
R553
TP811
R827 C
G
40
C515
TP529
FB803
C852
S
Q801
FB801
C851
E
S804
R816
B
TP810
D
S805
C604
R924
35
C605
R923
30
R813
R921
E R925
C502
VOL
D802
OPERATE
R824
C
23 25
C611
Q906
R920
1
S
R836
R919 5
R826
C909
C911
3 R922
2
1 C910
IC903
HO S8
LD 08
C
4
G
5
TP530
Q908
B
R903
10
IC501
L502
Q905
C
15
D
D903
R835
L903
C952
GND2
E
22 20
GND1
C501
C511
B
R501
C524
MAIN BOARD (SIDE A)
• Main board is four-layer printed board.
However, the patterns of layers 2 and 3 have not been included in this diagrams.
– 22 –
Ref. No.
D351
D352
D353
D354
D802
D855
D903
Location
F-2
F-3
F-3
E-3
C-5
F-3
B-4
IC302
IC501
IC601
IC602
IC801
IC802
IC803
IC903
F-4
B-9
E-9
F-11
G-6
H-6
G-7
C-4
Q801
Q802
Q905
Q906
Q908
D-4
D-3
C-4
D-4
B-5
MZ-E60
9
8
7
6
5
4
CN551
CN501
TP804
TP563
TP615
TP602
8
10
C518
R916
TP518
TP565
TP558
5
60
55
C556
C951
VDD
6
DATA
5
KEY
4
GND
D
TP806
E
3
2
1
4
5
6
J301
i
45
TP568
L551
20
25
TP556
TP511
TP814
16
30 32
C803
R203
C202
TP202
TP102
40
E
TP803
TP553
C554
TP554
TP802
TP801
C309
C
12
13
C203
G
R103
C307
B
C102
Q301
TP561
TP562
35
33
17
TP517
TP567
C553
L552
F
TP808
TP301
TP552 TP551
TP501
TP569 TP566
48
IC551
5
6
7
8
C561
49
10
8
5
7
6
C103
R104
M902
SLED
MOTOR
64
1
L554
IC552
4
R204
IC301
18
19
1
24
11
1-676-495- (11)
C306
4
W
C613
5
1
7
R928
C308
L553
4
R803
TP557
C555
V3
TP502
TP555
C310
R552
R551
TP559
TP560
C906
2 1
R915
R302
U
3
J301
IC902
G
1
TAP801
20
TP504
D
L501
15
TP564
TP503
5
S
R913
R912
D902
5
TP601
C
TP951
C904
C907
TP606 TP603
TP609
C901 TAP803
R902
C903
1
TP526
E
S809
(OPEN/CLOSE)
TP805
TP604 TP605
TP612 TP611
B
R917
D
L901
TP571 R926
TP903
TP575 TP573 TP570
C
D901
Q907
R503
E
R911
TP505
C
R914
TP577
C517
C912
R505
R504
TP574 TP572
TP576
TP512
S
1 2 3
B
C908
Q904
TP527
TP911
TP608
R927 G
B
C
C514
TP607
MINI-DISC
OPTICAL
PICK-UP BLOCK
(LCX-2E)
E
B
L902
TP613
1
2
1
Q901
IC901
Q903
TP524
TP809 TP610
TP519
R502
C521
TP523
R506
Q501
C516
TP525
TP516
TP522
C510
TP528
C509
C505
TP509 TP510 TP515
H-6
C-7
B-4
B-3
D-4
E-4
C-6
TP514
C504
4
Q902
TP513
TP507
TP508
C503
TP520
TP952
N
2
A
5
TP506
M901
SPINDLE
MOTOR
3
DRY BATTERY
SIZE"AA"
(IEC DESIGNATION R6)
1PC,1.5V
Location
C-5
D-5
H-5
G-10
G-13
B-5
D-4
Q301
Q501
Q901
Q902
Q903
Q904
Q907
10
C513
IC301
IC551
IC552
IC901
IC902
11
MAIN BOARD (SIDE B)
• Semiconductor
Location
Ref. No.
D901
D902
12
R929
13
R514
14
H
11
04
MOTOR FLEXIBLE BOARD
– 23 –
1-675-668- 12
I
– 24 –
MZ-E60
6-3-2. SCHEMATIC DIAGRAM — MAIN BOARD (1/4) — • Refer to page 33 for IC Block Diagrams.
(Page
27)
(Page
31)
(Page 29)
Note:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and 1/ 4 W or less unless otherwise
specified.
Note:
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part
number specified.
Note:
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.
• A : B+ Line.
• Power voltage is dc 1.5V and fed with regulated dc power
supply from battery terminal.
• Voltage and waveforms are dc with respect to ground
under no-signal conditions.
no mark : PB
: Impossible to measure
∗
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F : PB
– 25 –
• Waveforms
1
(MODE:PLAY)
100mV/div 5µs/div
Approx.
180mVp-p
IC501 7890
2
3
0.5V/div 5µs/div
Approx.
10mVp-p
Approx.
0.8Vp-p
IC501 ed (RF OUT) (TP528)
4
5mV/div 1µs/div
IC501 r; (FE) (TP525)
– 26 –
5mV/div 1µs/div
Approx.
12mVp-p
IC501 rf (TE) (TP523)
MZ-E60
6-3-3. SCHEMATIC DIAGRAM — MAIN BOARD (2/4) — • Refer to page 34 for IC Block Diagrams.
(OPEN/CLOSE)
(Page
26)
(Page 31)
Note:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and 1/ 4 W or less unless otherwise
specified.
•
%
: indicates tolerance.
• C : panel designation.
• A : B+ Line.
• Power voltage is dc 1.5V and fed with regulated dc power
supply from battery terminal.
• Voltage is dc with respect to ground under no-signal
condition.
no mark : PB
: Impossible to measure
∗
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production tolerances.
• Signal path.
F : PB
– 27 –
– 28 –
MZ-E60
6-3-4. SCHEMATIC DIAGRAM — MAIN BOARD (3/4) — • Refer to page 34 for IC Block Diagrams.
(Page 26)
(Page 31)
(Page 31)
TOTAL CURRENT
PLAY
: 40mA
PAUSE : 36mA
FF/REW : 60mA
Note:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and 1/ 4 W or less unless otherwise
specified.
•
% : indicates tolerance.
• A : B+ Line.
• Power voltage is dc 1.5V and fed with regulated dc power
supply from battery terminal.
• Voltage is dc with respect to ground under no-signal
condition.
no mark : PB
: Impossible to measure
∗
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production tolerances.
– 29 –
– 30 –
MZ-E60
6-3-5. SCHEMATIC DIAGRAM — MAIN BOARD (4/4) — • Refer to page 35 for IC Block Diagrams.
(Page 27)
(Page 30)
(Page 26)
(Page 30)
Note:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and 1/4 W or less unless otherwise
specified.
• A : B+ Line.
• Waveform
• Power voltage is dc 1.5V and fed with regulated dc power
supply from battery terminal.
• Voltage and waveforms are dc with respect to ground
under no-signal conditions.
no mark : PB
– 31 –
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production tolerances.
• Circled numbers refer to waveforms.
5
(MODE:PLAY)
0.2V/div 0.05µs/div
0.46Vp-p
16.9344MHz
IC801 qj (XIN)
– 32 –
VSS
MI0
MI1
MI2
MI3
MICK
MOCK
MO0
MO1
MO2
MO3
VDD
PLCK
EFM
TEST
CRCF
ERFLAG
FON
FOK
IO3
IO2
IO1
IO0
IC501 SN761056DBT
ADIP–DATA
UPD63731GC-9EU
ADPLCK
IC601
6-6. IC BLOCK DIAGRAMS
100 99 98 97 96 95 94 93 92 91 90 89 86 87 86 85 84 83 82 81 80 79 78 77 76
44 TE
EFM
PLL
DSSP
TE
7
VRT2 8
ADIP 9
Tpp/Wpp
FE
ABCD
AVCC
OFC C1
OFC C2
35 OFC C3
34 OFC C4
RF
Iy 7
FE
33
32
31
30
29
28
Jx 9
Jy 10
ABCD
A 11
A-C 12
B 13
TON-C
VSS 15
NC 16
NC 17
8 8
NC 18
NC 19
5
TPP LPF
T COUNT
FROUT 23
FFOUT 24
8
26 OFTRK
RD DT ECC
8
ATDT
16
10
71 DRA0
70 DRA4
69 DRA5
68 DRA6
67 DRA7
66 DRA8
65 DRA10
64 DRA11
63 XRAS
62 DRA9
61 XOE2
60 XOE
59 XCAS
58 DRD2
57 DRD3
56 VSS
55 XWE2
54 XWE
53 DRD1
XBUSY
52 DRD0
51 VDD
CK176 25
CLOCK
GENERATOR
ATRAC
DECODER
ADIP
MCK
X0
X1
MCK I-O
VSS
MCK/2
PMCK
DOUT
VSS
BCK
AUDATA
LRCK
VDD
EMP
DA AGND
AOUTL
VREF IN
16 CKS
XC6368B101MR
GND
CLOCK DIVIDER
IC902
CE
3
18
17
16
15
14
13
PW
SW
MT
SW
BST
SW
BEEP
VREF WITH
SOFT START,
CE
MUTE
PWSTB
IC302 AK4352VT-E2
VCON
TA2131FL
BEEP IN
IC301
AOVTR
25 DGND
24 RESET
23 SCK
DA-AVDD
SERIAL
I/F
SBUS
26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
T COUNT
MCLK 1
8
12
XATWE
DREQ
APC
DVDD 21
SBUS 22
8
16
WR REQ etc.
SSB CONTROL
MONITOR I/O etc.
OFTRK
S DATA
EFM DATA A/B
ECC DATA
EBA
VDD 20
TFOUT 21
TROUT 22
27 DFCT
SECTOR
DECODER
AC
WDCK
8
OF TRX 14
RFOUT
AGND
LP
82V
DFCT
AC BYCK
AC DATA
RST SW
14
15
16
17
18
19
20
AC LRCK
AC WDCK
EFM ACIRC
DECODER
T COUNT 12
DEFECT 13
NC
TON-C
PD-NI
PD-I
PD-O
LD-DRV
LD-EMIT
LD-VDD
FLAG
VRT3 10
VSS ADC 11
XRESET
Ix 8
72 DRA1
SBW
SBR
40
39
38
37
36
SBD
D-C 6
4
3
73 DRA2
SUBQ/ADIP
DECODER
DRAM & PERIPHERAL CONTROL ADDRESS GENERATOR
RF
74 DRA3
FE
ABCD
VRT1 6
75 VDD
SQREQ
ABCD 4
TE 5
2nd MSB
VREF 2
FE 3
XBSY
TE
RF
VDD ADC 1
41 S MONIT
S-MONITOR
SBA
D 5
ADIP
PLL
SINT
C 4
ADIP
SCK
Wpp-LPF 2
VREF 1.1 3
820mV
ALFA B
IJ B
TE C
TON C
TWpp C
AwDw C
TON PEAK
TON BOTM
ADC
REXT 1
EFM
PLCK
43 ADIP IN
42 ADIP
V REF
12 VREF
VDD
2
FB
1
– +
11 LPF1
PD 2
15 VCML
TC MT 19
VCC1 20
8X
INTERPOLATOR
BICK 3
SDATA 4
SERIAL
INPUT
INTERFACE
8X
INTERPOLATOR
LRCK 5
∆Σ
MODULATOR
∆Σ
MODULATOR
LPF
14 AOUTL
PWM/PFM
CONTROLAR
ADD
VINR 21
10 BST NF1
BST1
VINL 22
LPF
9 LPF2
12 VCMR
BEEP
23
OUTB
11 VREF
BEEP
24
OUTA
PW
A
PW
B
BST2
– 33 –
– +
8 BST NF2
DIF1 7
7 BST OUT
BUFFER,
DRIVER
10 VDD
1
2
3
4
5
6
9 VSS
LOUT
PWR
GND
ROUT
DET
AGC IN
BST
AGC
+B
DEM 8
RAMP WAVE
GENERATOR,
OSC
13 AOUTR
DIF0 6
DE-EMPHASIS
CONTROL
PHASE
COMPENSATION
4
GND
– 34 –
5
EXT
IC602
MN41X17400CTT-10T1
VCC 1
D0 2
D1 3
26 VSS
XWE 4
XRAS 5
TIMING AND CONTROL
25
24
23
22
D3
D2
XCAS
XOE
21
20
19
18
17
16
15
14
A9
NC
A8
A7
A6
A5
A4
VSS
A11 6
NC 7
A10 8
4M
ARRAY
ROW DECODER
ROW
ADDRESS
BUFFERS
A0
A1
A2
A3
9
10
11
12
COLUMN
ADDRESS
BUFFERS
4M
ARRAY
4M
ARRAY
I/O
BUFFER
4M
ARRAY
COLUMN
DECODER
VCC 13
IC903
S-8328E20MC-EYA-T2
NC
3
VDD
2
IC552
VOUT
1
8
TLC372CPW
7
6
5
2
3
V–
4
V+
VREF
+ –
SOFT
START
CIRCUIT
PWM
CONTROL
CIRCUIT
1
4
VSS
5
EXT
IC803
S-8081ANNP-EDF-T2
4 VDD
NC 1
3 OUT
+
–
VREF
VSS 2
– 35 –
H3PG1
FO3
FO3
H3VM
H3VM
RO3
RO3
H3PG2
CPUI
CPVI
CPWI
COM
BD6602KUT
NC
NC
VCC2
VCC1
IC551
48 47 46 45
44
43 42
41 40
39 38
37
36
35
34
33
H4PG2 49
RO4 50
+ –
+ –
+ –
VCC2
32 CPWO
31 CPVO
30 CPUO
PRE-DRIVE
H4VM 51
29 VMU
28 UO
FO4 52
H4PG1 53
27 GNDUV
26 VO
RI4 54
FI4 55
PRE-DRIVE
25 NC
PWM24 56
24 VMVW
RI2 57
FI2 58
PRE-DRIVE
23 WO
PRE-DRIVE
H2PG2 59
RO2 60
VCC1
DECODER
H2VM 61
FO2 62
H2PG1 63
FI3 64
22
21
20
19
18
TO
EACH
BLOCK
STANDBY
TO
BEMF
COMPARATOR
BIAS
GNDW
NC
NC
SGND
ASGND
17 OE
VCC2
IC802
2 3
4
5
6 7
8 9
10 11
12 13 14 15 16
VG
H1PG1
FO1
FO1
H1VM
H1VM
RO1
RO1
H1PG2
PWM
WI
VI
UI
RI3
1
FI1
RI1
PRE-DRIVE
AK93C55AV-L
VPP
GENERATOR
VREF
XCS
1
SK
2
DO
VPP SW
INSTRUCTION
DECODE
CONTROL
AND
CLOCK
GENERATION
ADD
BUFFERS
8
VCC
7
XBUSY
6
RST
5
GND
DECODER
3
EEPROM
DI
4
INSTRUCTION
REGISTER
R/W AMPS
AND
AUTO ERASE
DATA
REGISTER
– 36 –
SECTION 7
EXPLODED VIEWS
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• Abbreviation
FR : French model
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
R
R
Parts Color Cabinet’s Color
• Accessories and packing materials are
given in the last of this parts list.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
7-1. MAIN UNIT SECTION
11
9
8
10
A
12
12
MT-MZE60-169
14
8
7
15
12
16
13
23
A
22
6
1
20
17
21
18
3
5
Ref. No.
1
2
3
3
4
5
5
6
6
7
8
8
Part No.
Description
2
19
4
Remark
Ref. No.
Part No.
Description
Remark
4-225-573-01 KNOB (MB)
4-225-574-01 BUTTON (OPEN)
X-3378-853-1 CASE (REAR) ASSY (S1)
(SILVER)...(SILVER) (EXCEPT US)
X-3378-854-1 CASE (REAR) ASSY (L1) (BLUE)...(BLUE)
4-225-572-01 KNOB (HOLD)
9
9
10
11
12
X-3378-851-1 PANEL ASSY, (S-S), UPPER (SILVER)...(SILVER)
(EXCEPT US)
X-3378-852-1 PANEL ASSY, (S-L), UPPER (BLUE)...(BLUE)
4-225-587-01 SCREW (MD), STEP
X-4951-947-1 HOLDER ASSY
3-318-382-91 SCREW (1.7X2.5), TAPPING
X-3378-849-1 LID ASSY (S), BATTERY CASE
(SILVER)...(SILVER) (EXCEPT US)
X-3378-850-1 LID ASSY (L), BATTERY CASE (BLUE)...(BLUE)
4-225-566-01 FULCRUM (BATTERY CASE LID)
(SILVER)...(SILVER) (EXCEPT US)
4-225-566-11 FULCRUM (BATTERY CASE LID)
(BLUE)...(BLUE)
4-225-569-01 SHEET (BLIND)
13
13
14
15
16
A-3323-416-A
A-3323-417-A
4-225-567-01
4-225-568-01
4-225-580-01
MAIN BOARD, COMPLETE (EXCEPT FR)
MAIN BOARD, COMPLETE (FR)
SPRING (CONTACT)
SPRING, BATTERY COIL
SPRING (POP UP L)
17
18
19
20
21
X-4952-479-1
4-225-581-01
4-225-583-01
4-989-078-01
3-045-227-01
CHASSIS ASSY, REAR
SPRING (POP UP R)
SHEET, INSULATING
SPRING (OPEN), TENSION
SPACER (HOOK)
22
23
3-045-576-01 SPACER (KNOB)
3-045-221-01 RETAINER (REAR), SPACER CHASSIS
4-218-229-17 SCREW (1.4), MI (SILVER)...(SILVER)
(EXCEPT US)
4-218-229-19 SCREW (1.4), MI (BLUE)...(BLUE)
– 37 –
7-2. MECHANISM DECK SECTION
(MT-MZE60-169)
55
54
53
56
57
M902
A
M901
59
58
61
60
A
52
62
57
60
51
63
57
57
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Ref. No.
Part No.
Description
51
52
53
54
55
1-675-668-11
4-963-883-42
X-4951-926-1
4-222-206-01
4-222-216-01
MOTOR FLEXIBLE BOARD
SCREW (M1.4), PRECISION PAN
CHASSIS ASSY
SPRING, THRUST
GEAR (SA)
56
57
58
3-338-645-31 WASHER (0.8-2.5)
4-963-883-31 SCREW (M1.4), PRECISION PAN
3-349-825-21 SCREW
Remark
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
Ref. No.
Part No.
Description
59
60
61
0 62
63
4-222-208-01
4-222-204-01
4-222-203-01
X-4952-387-1
4-222-205-01
GEAR (SB)
BEARING
SCREW, LEAD
SERVICE ASSY, OP (LCX-2E)
SPRING, RACK
M901
M902
– 38 –
Remark
8-835-666-01 MOTOR, DC SSM-01C14A/C-NP (SPINDLE)
1-763-399-11 MOTOR, DC (SLED) (WITH PULLEY GEAR)
SECTION 8
ELECTRICAL PARTS LIST
NOTE:
• Due to standardization, replacements in
the parts list may be different from the
parts specified in the diagrams or the
components used on the set.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• RESISTORS
All resistors are in ohms.
METAL:Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F:nonflammable
• Abbreviation
FR : France model
Ref. No.
Part No.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• SEMICONDUCTORS
In each case, u : µ, for example:
uA.. : µA.. uPA.. : µPA..
uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD..
• CAPACITORS
uF : µF
• COILS
uH : µH
MAIN
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
When indicating parts by reference
number, please include the board.
Description
Remark
A-3323-416-A MAIN BOARD, COMPLETE (EXCEPT FR)
A-3323-417-A MAIN BOARD, COMPLETE (FR)
*********************
< CAPACITOR >
Ref. No.
Part No.
Description
C558
C559
C561
C601
C602
1-164-677-11
1-164-677-11
1-164-156-11
1-164-156-11
1-162-970-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.033uF
0.033uF
0.1uF
0.1uF
0.01uF
10%
10%
Remark
10%
16V
16V
25V
25V
25V
C101
C102
C103
C201
C202
1-135-181-21
1-115-467-11
1-113-690-11
1-135-181-21
1-115-467-11
TANTALUM CHIP
CERAMIC CHIP
ELECT CHIP
TANTALUM CHIP
CERAMIC CHIP
4.7uF
0.22uF
220uF
4.7uF
0.22uF
20%
10%
20%
20%
10%
6.3V
10V
4V
6.3V
10V
C603
C604
C605
C607
C608
1-162-970-11
1-162-970-11
1-164-156-11
1-164-156-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.01uF
0.01uF
0.1uF
0.1uF
0.1uF
10%
10%
C203
C302
C303
C304
C305
1-113-690-11
1-135-259-11
1-135-259-11
1-164-156-11
1-135-259-11
ELECT CHIP
TANTAL. CHIP
TANTAL. CHIP
CERAMIC CHIP
TANTAL. CHIP
220uF
10uF
10uF
0.1uF
10uF
20%
20%
20%
C609
C610
C611
C612
C613
1-119-750-11
1-110-569-11
1-164-156-11
1-164-156-11
1-164-156-11
TANTAL. CHIP
TANTAL. CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
22uF
47uF
0.1uF
0.1uF
0.1uF
20%
20%
20%
4V
6.3V
6.3V
25V
6.3V
C306
C307
C308
C309
C310
1-107-826-11
1-125-838-11
1-135-259-11
1-135-181-21
1-125-837-11
CERAMIC CHIP
CERAMIC CHIP
TANTAL. CHIP
TANTALUM CHIP
CERAMIC CHIP
0.1uF
2.2uF
10uF
4.7uF
1uF
10%
10%
20%
20%
10%
16V
6.3V
6.3V
6.3V
6.3V
C614
C801
C803
C805
C806
1-164-156-11
1-162-962-11
1-162-970-11
1-164-156-11
1-164-227-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
470PF
0.01uF
0.1uF
0.022uF
C351
C501
C502
C503
C504
1-164-156-11
1-107-826-11
1-110-563-11
1-162-969-11
1-162-969-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.1uF
0.068uF
0.0068uF
0.0068uF
10%
10%
10%
10%
25V
16V
16V
25V
25V
C809
C811
C812
C813
C814
1-164-156-11
1-162-970-11
1-125-837-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.01uF
1uF
0.1uF
0.1uF
C505
C509
C510
C511
C512
1-162-970-11
1-164-227-11
1-162-962-11
1-164-156-11
1-162-969-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.01uF
0.022uF
470PF
0.1uF
0.0068uF
10%
10%
10%
10%
25V
25V
50V
25V
25V
C815
C851
C852
C853
C854
1-164-156-11
1-164-156-11
1-162-964-11
1-162-964-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.1uF
0.001uF
0.001uF
0.1uF
C513
C514
C515
C516
C517
1-125-837-11
1-125-837-11
1-162-967-11
1-162-945-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
1uF
1uF
0.0033uF
22PF
0.1uF
10%
10%
10%
5%
10%
6.3V
6.3V
50V
50V
16V
C901
C903
C904
C906
C907
1-119-749-11
1-110-975-11
1-110-975-11
1-162-923-11
1-109-982-11
TANTAL. CHIP
TANTAL. CHIP
TANTAL. CHIP
CERAMIC CHIP
CERAMIC CHIP
33uF
47uF
47uF
47PF
1uF
20%
20%
20%
5%
10%
4V
6.3V
6.3V
50V
10V
C518
C521
C524
C551
C552
1-117-720-11
1-164-677-11
1-117-920-11
1-107-826-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
TANTAL. CHIP
CERAMIC CHIP
CERAMIC CHIP
4.7uF
0.033uF
10uF
0.1uF
0.1uF
10%
20%
10%
10%
10V
16V
6.3V
16V
16V
C908
C909
C910
C911
C912
1-119-749-11
1-162-962-11
1-162-923-11
1-104-630-11
1-162-966-11
TANTAL. CHIP
CERAMIC CHIP
CERAMIC CHIP
TANTAL. CHIP
CERAMIC CHIP
33uF
470PF
47PF
33uF
0.0022uF
20%
10%
5%
20%
10%
4V
50V
50V
6.3V
50V
C553
C554
C555
C556
C557
1-107-765-11
1-107-765-11
1-135-238-21
1-135-238-21
1-164-677-11
TANTAL. CHIP
TANTAL. CHIP
TANTAL. CHIP
TANTAL. CHIP
CERAMIC CHIP
3.3uF
3.3uF
6.8uF
6.8uF
0.033uF
20%
20%
20%
20%
10%
16V
16V
10V
10V
16V
C951
C952
1-164-156-11 CERAMIC CHIP
1-125-976-11 TANTAL. CHIP
0.1uF
150uF
20%
25V
2.5V
– 39 –
10%
10%
10%
10%
10%
10%
10%
10%
25V
25V
25V
25V
16V
6.3V
6.3V
25V
25V
25V
25V
50V
25V
25V
25V
25V
25V
6.3V
25V
25V
25V
25V
50V
50V
25V
MAIN
Ref. No.
Part No.
Description
Remark
< CONNECTOR >
* CN501
CN551
1-778-168-11 CONNECTOR, FFC/FPC (ZIF) 20P
1-784-228-21 CONNECTOR, FFC/FPC (ZIF) 8P
Ref. No.
Part No.
Description
Q801
Q802
Q901
Q902
Q903
8-729-905-35
8-729-046-48
8-729-044-50
8-729-230-60
8-729-046-48
TRANSISTOR 2SC4081-R
FET FDV303N
TRANSISTOR 2SD2153
TRANSISTOR 2SA1586-YG
FET FDV303N
Remark
Q904
Q905
Q906
Q907
Q908
8-729-402-16
8-729-809-46
8-729-420-44
8-729-046-48
8-729-046-48
TRANSISTOR XN4608
TRANSISTOR 2SD1935-CT6
TRANSISTOR UN5210
FET FDV303N
FET FDV303N
< DIODE >
D351
D352
D353
D354
D802
8-719-017-58
8-719-056-72
8-719-056-72
8-719-056-80
8-719-061-82
DIODE MA8068
DIODE UDZ-TE-17-2.4B
DIODE UDZ-TE-17-2.4B
DIODE UDZ-TE-17-5.1B
LED TLSU1002(TPX1,SONY) (OPERATE)
D855
D901
D902
D903
8-719-066-17
8-719-072-27
8-719-049-09
8-719-049-09
DIODE
DIODE
DIODE
DIODE
< RESISTOR >
FTZ6.8E-T148
MA2Z748001S0
1SS367-T3SONY
1SS367-T3SONY
< FERRITE BEAD >
FB801
FB802
1-414-228-11 FERRITE BEAD INDUCTOR
1-414-228-11 FERRITE BEAD INDUCTOR
< IC >
IC301
IC302
IC501
IC551
IC552
8-759-598-15
8-759-665-50
8-759-657-49
8-759-657-50
8-759-358-40
IC
IC
IC
IC
IC
TA2131FL-EL
AK4352VT-E2
SN761055DBT
BD6602KUT
TLC372CPW-E20
IC601
IC602
IC801
IC802
IC803
8-759-657-48
8-759-559-57
8-759-659-63
8-759-449-23
8-759-665-49
IC
IC
IC
IC
IC
uPD63732GC-9EU
MN41X17400CTT-10T1
RU6915MF-0006
AK93C55AV-L
S-80818ANNP-EDF-T2
IC901
IC902
IC903
8-759-665-47 IC S-8328B24MC
8-759-657-26 IC XC6368B101MR
8-759-665-48 IC S-8328E20MC-EYA-T2
< JACK >
J301
1-216-833-11
1-216-827-11
1-216-797-11
1-216-829-11
1-216-833-11
RES-CHIP
METAL CHIP
METAL CHIP
METAL CHIP
RES-CHIP
10K
3.3K
10
4.7K
10K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R202
R203
R204
R301
R302
1-216-827-11
1-216-797-11
1-216-829-11
1-216-803-11
1-216-831-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
3.3K
10
4.7K
33
6.8K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R501
R502
R503
R504
R505
1-216-839-11
1-216-853-11
1-216-827-11
1-216-821-11
1-216-864-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
33K
470K
3.3K
1K
0
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R506
R507
R508
R509
R513
1-216-793-11
1-216-843-11
1-216-864-11
1-216-864-11
1-216-864-11
RES-CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
4.7
68K
0
0
0
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R514
R551
R552
R553
R554
1-216-864-11
1-216-833-11
1-216-833-11
1-216-829-11
1-216-829-11
METAL CHIP
RES-CHIP
RES-CHIP
METAL CHIP
METAL CHIP
0
10K
10K
4.7K
4.7K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R555
R556
R601
R801
R802
1-216-829-11
1-216-829-11
1-216-803-11
1-218-895-11
1-218-895-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
4.7K
4.7K
33
100K
100K
5%
5%
5%
0.5%
0.5%
1/16W
1/16W
1/16W
1/16W
1/16W
R803
R804
R806
R809
R810
1-216-853-11
1-216-853-11
1-216-841-11
1-216-833-11
1-216-827-11
METAL CHIP
METAL CHIP
METAL CHIP
RES-CHIP
METAL CHIP
470K
470K
47K
10K
3.3K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R811
R812
R813
R814
R816
1-216-825-11
1-216-829-11
1-216-831-11
1-216-835-11
1-216-825-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
2.2K
4.7K
6.8K
15K
2.2K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R817
1-216-809-11 METAL CHIP
100
5%
1/16W
1-778-368-11 JACK, HEADPHONE (i)
< COIL >
L501
L502
L551
L552
L553
1-412-006-31
1-412-006-31
1-410-389-31
1-410-389-31
1-414-400-41
INDUCTOR CHIP
INDUCTOR CHIP
INDUCTOR CHIP
INDUCTOR CHIP
INDUCTOR
10uH
10uH
47uH
47uH
22uH
L554
L601
L901
L902
L903
1-414-400-41
1-412-006-31
1-419-478-11
1-412-064-11
1-412-064-11
INDUCTOR
INDUCTOR CHIP
COIL, CHOKE
INDUCTOR CHIP
INDUCTOR CHIP
22uH
10uH
22uH
100uH
100uH
< TRANSISTOR >
Q301
Q501
R101
R102
R103
R104
R201
8-729-037-52 TRANSISTOR 2SD2216J-QR
8-729-922-10 TRANSISTOR 2SA1577-QR
– 40 –
MAIN
Ref. No.
Part No.
Description
R818
R819
R821
R822
R823
1-216-809-11
1-216-853-11
1-216-857-11
1-216-845-11
1-216-864-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
470K
1M
100K
0
5%
5%
5%
5%
5%
Remark
1/16W
1/16W
1/16W
1/16W
1/16W
R824
R825
R826
R827
R832
1-218-871-11
1-218-887-11
1-216-857-11
1-216-857-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
10K
47K
1M
1M
100K
0.5%
0.5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R833
R835
R836
R837
R902
1-216-864-11
1-216-864-11
1-216-839-11
1-216-864-11
1-216-853-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
0
0
33K
0
470K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R903
R911
R912
R913
R914
1-216-857-11
1-216-864-11
1-218-895-11
1-218-911-11
1-218-883-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
1M
0
100K
470K
33K
5%
5%
0.5%
0.5%
0.5%
1/16W
1/16W
1/16W
1/16W
1/16W
R915
R916
R917
R919
R920
1-216-863-11
1-216-851-11
1-216-853-11
1-216-829-11
1-216-864-11
RES-CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
3.3M
330K
470K
4.7K
0
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R921
R922
R923
R924
R925
1-218-879-11
1-218-895-11
1-218-911-11
1-218-911-11
1-218-891-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
22K
100K
470K
470K
68K
0.5%
0.5%
0.5%
0.5%
0.5%
1/16W
1/16W
1/16W
1/16W
1/16W
R926
R927
R928
R929
1-216-853-11
1-216-857-11
1-216-857-11
1-216-823-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
470K
1M
1M
1.5K
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
Ref. No.
Part No.
Description
Remark
MISCELLANEOUS
***************
51
1-675-668-12 MOTOR FLEXIBLE BOARD
0 62
X-4952-387-1 SERVICE ASSY, OP (LCX-2E)
M901
8-835-666-01 MOTOR, DC SSM-01C14A/C-NP (SPINDLE)
M902
1-763-399-11 MOTOR, DC (SLED) (WITH PULLEY GEAR)
*************************************************************
ACCESSORIES & PACKING MATERIALS
********************************
1-418-493-71 REMOTE CONTROL UNIT (RM-MZ2N)
3-043-288-11 MANUAL, INSTRUCTION (ENGLISH,SPANISH,
TRADITIONAL CHINESE) (E)
3-043-288-21 MANUAL, INSTRUCTION (ENGLISH,FRENCH)
(US/CND/AEP)
3-043-288-31 MANUAL, INSTRUCTION (GERMAN,ITALIAN)
(AEP)
3-043-288-41 MANUAL, INSTRUCTION (DUTCH,PORTUGUESE)
(AEP)
3-043-288-51 MANUAL, INSTRUCTION (SWEDISH,FINNISH)
(AEP)
3-043-288-61 MANUAL, INSTRUCTION (SPANISH,RUSSIAN)
(AEP)
4-221-117-01 CASE, CARRYING
8-953-278-90 HEADPHONE MDR-A34SP SET (US)
8-953-304-90 RECEIVER MDR-E805SP SET (EXCEPT US)
< NETWORK RESISTOR >
RB551
RB552
RB802
1-233-965-11 RES, NETWORK (CHIP TYPE) 4.7K
1-233-979-11 RES, NETWORK (CHIP TYPE) 1M
1-233-977-11 RES, NETWORK (CHIP TYPE) 470K
< SWITCH >
S801
S802
S803
S804
S805
1-771-138-21
1-771-138-21
1-771-138-21
1-771-138-21
1-771-138-21
SWITCH, KEY BOARD (x)
SWITCH, KEY BOARD (> N)
SWITCH, KEY BOARD (.)
SWITCH, KEY BOARD (VOL +)
SWITCH, KEY BOARD (VOL –)
S806
S807
S808
S809
1-762-079-11
1-762-078-11
1-762-078-11
1-762-342-11
SWITCH, SLIDE (DIGITAL MEGABASS)
SWITCH, SLIDE (AVLS)
SWITCH, SLIDE (HOLD)
SWITCH, PUSH (1 KEY) (OPEN/CLOSE)
< VIBRATOR >
X601
1-767-621-11 VIBRATOR, CERAMIC (16.9344MHz)
*************************************************************
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
– 41 –
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
MZ-E60
Sony Corporation
9-927-633-11
Personal Audio Division Company
– 42 –
2000A0478-1
Printed in Japan C2000. 1
Published by General Engineering Dept.
Download PDF

advertising
