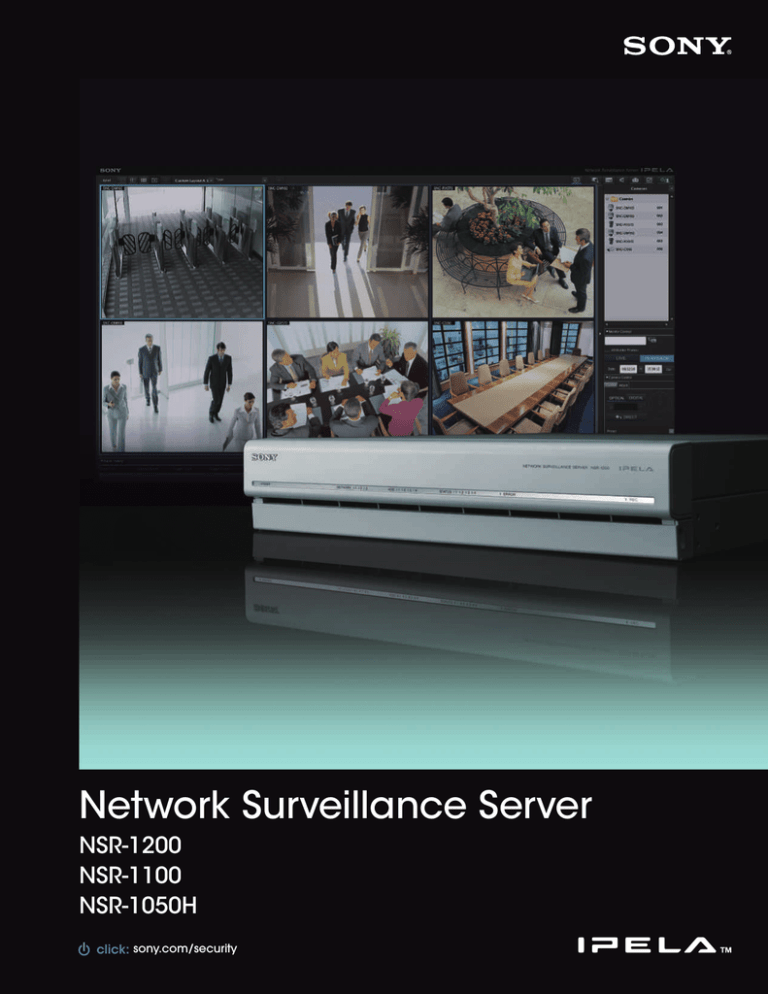

Network Surveillance Server
NSR-1200
NSR-1100
NSR-1050H
sony.com/security
click: sony.com/sonysports
/434FSJFT
4UVOOJOHWJEFPBOEBVEJPCSPVHIUUPZPVCZUIF*1&-"TFSJFTPG
WJTVBMDPNNVOJDBUJPOQSPEVDUTUIBUFODPNQBTTUIFUISFFQSPOHFE
3FBMJUZ
DPODFQUPGi3FBMJUZwi*OUFMMJHFODFwBOEi6TBCJMJUZw*1&-"JT
t)JHI'SBNF3BUF
UIFJEFOUJUZTZNCPMJ[JOHUIF4POZWJTJPOGPSUIFXPSLQMBDFPGUIF
t%ZOBNJD'SBNF
GVUVSFDPOOFDUJOHQFPQMFQMBDFTBOEJOGPSNBUJPOXJUISFBMJUZ
*OUFHSBUJPO
UIBUIBTOFWFSCFGPSFCFFOBDIJFWFE*1&-"QSPEVDUTMFUZPV
TIBSFVOEFSTUBOEBOEFYQFSJFODFBTJGZPVBSFBDUVBMMZUIFSF
XIFOJOGBDUZPVBSFNJMFTBXBZ*UBMMPXTZPVUPRVJDLMZHSBTQB
TJUVBUJPOUPNBLFCFUUFSCVTJOFTTEFDJTJPOT
*OUFMMJHFODF
t7JEFP.PUJPO'JMUFS
"MBSN
t7JEFP.PUJPO'JMUFS
4FBSDI
t*OUFMMJHFOU4FUVQ
6TBCJMJUZ
t*OUVJUJWF3FNPUF
$POUSPM6OJU
t6TFS'SJFOEMZ(6*
t2VJDL4FBSDI
1MBZCBDL
3FBMBVEJPWJTVBMDPNNVOJDBUJPOPWFSOFUXPSLToUIJTJTCVTJOFTTDPNNVOJDBUJPOPGUIFGVUVSFUIJTJTCVTJOFTTDPNNVOJDBUJPOCSPVHIUUPZPVUPEBZUIJTJTi*1&-"w
Hybrid, Open-platform, Easy-to-operate
Network Surveillance Server
The demand for surveillance systems is growing, and the adoption of IP as a transport mechanism for video is
ever increasing. Sony recognized this trend early on, and has been focused on developing products and
solutions aligned with this trend. Sony is pleased to announce the introduction of the NSR-1000 Series of
recording servers.
The key concept of the NSR-1000 Series is a hybrid capability – with an open-platform design, these recording
servers support both legacy analog and current IP cameras, and are easy to setup and operate.
With the NSR-1000 Series, you’ll open doors to a world of new possibilities in video surveillance.
NSR-1200
NSR-1100
NSR-1050H
2 TB
1 TB
0.5 TB
64 Units
32 Units
20 Units
Option (16 Inputs)
Option (16 Inputs)
Standard (16 Inputs)
8 Unit
4 Unit
4 Unit
480 fps
240 fps
120 fps
2
2
2
RAID 5
RAID 0
–
Internal storage
Max. number of IP/Analog cameras
supported*1
Max. number of analog cameras supported
(directly connected)
Max. number of megapixel cameras
supported at full resolution
Max. frame rate for recording*2
HDMI outputs
RAID
*1 Total of IP and analog cameras. *2 Without local displays.
Why Choose the NSR-1000 Series?
Hybrid System
Open Platform
Easy to Migrate From Analog to IP Camera Systems
Free to Select From a Wide Range of Cameras
Up to 16 analog cameras can be connected to the NSR-1000
Series (NSR-1050H: directly connected; NSR-1200/1100: connected
using the NSBK-A16 Analog Encoder Kit). You can simply add
network cameras, including megapixel cameras, while
maintaining your analog cameras.
The NSR-1200/1100/1050H can be used not only with Sony's
network cameras but also with other major brand network
cameras.
Easy to Migrate to Large-screen HDTV Display Systems
Quick Setup
The NSR-1200/1100/1050H has two analog RGB and two HDMI
monitor output connectors on the rear panel. You can use two of
these four outputs simultaneously in any combination to meet
your system requirements.
With the set-up wizard, you can set up the system in a simple and
straightforward manner.
With Sony’s IP cameras, the NSR-1200/1100/1050H detects
cameras instantly, drastically reducing the time required for
system installation. Images from cameras are assigned
automatically to Monitor Layout, so that you can start monitoring
instantly.
Easy to Migrate to HD Camera Systems
In answer to growing demands for HD (high definition) network
cameras, the NSR-1200/1100/1050H is planned to offer this
migration capability in the near future.
Quick Setup & Easy Operation
Features
Monitoring & Quick Search (Intuitive Main GUI)
High Quality Display Capability
The Main GUI (Graphical User Interface)
High Frame Rate Display
The video readout frame rate of the NSR-1200/1100/1050H is
much higher than that of conventional models. With the
NSR-1200 connected with 16 cameras, video movement (VGA,
MPEG-4) can be viewed through a monitor much more clearly
and smoothly at approximately 25 fps.
HDMI Outputs for Full HD Displays
You can view and monitor video via the HDMI interface with Full
HD (1920 x 1080) displays. If you use megapixel cameras, you
can view full-resolution images with this equipment. What's more,
you can set a six-screen display layout and still view VGA video in
full resolution.
Application of Full HD Display
(Image simulated)
7("
.FHBQJYFM
Y
7("
7("
7("
7("
(1) Camera Pane
(2) Monitor Frame (3) Monitor Control
(4) Camera Control (5) Alarm List
(6) Playback Control
Drag-and-drop Operation (Camera Switching)
All cameras connected to the NSR-1200/1100/1050H are shown in
a tree configuration in the Camera Pane (1). By dragging a
camera icon and dropping it onto a Monitor Frame (2), you can
easily view live images from a camera.
.FHBQJYFMY7("Y
7("
With the NSR-1200/1100/1050H’s user-friendly GUI, you can use
various monitoring functions with intuitive operation, such as
drag-and-drop. You can also run a quick search, and playback
recorded images, while monitoring.
7("
Easy-to-use Monitoring Functions
7("
On the NSR-1200/1100/1050H’s GUI, each Monitor Frame (2) shows
the status of the video (live or recorded), and the name of the
camera, above each video image. Up to 8 x 8 Monitor Frames
can be used.
By double-clicking a specific Monitor Frame, the display is
switched to Single Monitor Frame mode as below.
7("Y
By Double-clicking a Frame
Expandability and Flexibility
Additional Storage of Up To 2 TB x 7
The NSR-1200/1100/1050H has an internal storage of up to
2 TB/1 TB/0.5 TB respectively. Each server can connected up to
seven NSRE-S200 units, a 2 TB hard disk storage device. With the
NSR-1200 in RAID 5 configuration and seven NSRE-S200 units, the
total recording capacity is approximately 11 TB (max.).
Remote Viewing by Controller Software
If you install the bundled Controller Software on a personal
computer in a remote location, you can supervise
NSR-1200/1100/1050H recording servers simultaneously in various
locations, with flexibility in selecting and viewing live and recorded
images.
IMZ-NS100 Series
In the same series of software solutions, Sony also provides the
IMZ-NS101/NS104/NS109/NS116/NS132 Intelligent Monitoring
Software. This can be installed on your own Microsoft Windows®
server to monitor and control 1/4/9/16/32 network cameras,
respectively. It features the same functionality and graphical user
interface as the NSR-1200/1100/1050H. The supplied Controller
Software can be used for multiple NSR-1200/1100/1050H servers
with IMZ-NS100 Series software.
(Images simulated)
Hot Spot Monitoring/Dual Monitor Support
With the NSR-1200/1100/1050H, a specific window in a multicamera view (i.e. a larger window within the multi-camera
window) can be assigned as the Hot Spot area, or a second
monitor may be used for this purpose.
The Hot Spot area is used to display an image of interest to get a
more detailed view – this image can be manually selected or
triggered by an alarm.
Monitor 1
Monitor 2 (Hot spot)
(Images simulated)
Monitoring & Quick Search (Intuitive Main GUI)
Sophisticated Search Functions
Camera Pan/Tilt/Zoom (PTZ) Control
Dedicated Search Menu
PTZ network cameras from Sony and other supported brands
can be controlled by the Camera Control pane (4) of the
NSR-1200/1100/1050H. In PTZ Direct Control mode, when a point
in the image is clicked, the camera automatically pans and tilts to
make that point the center of the image. You can also zoom into
the image simply by dragging out the specified area of the
image with a mouse.
Zoom
%SBH
;PPN
(Images simulated)
(1) Switching Tab (Normal Search/Object Search)
(Images simulated)
(2) Search Menu (Search Conditions, VMD,
DEPA™ Setting, etc.)
Audio Monitoring
(3) Image Control (Zoom, etc.)
The sound from a microphone connected to the camera can be
monitored at the NSR-1200/1100/1050H server. The audio signal is
output from the HDMI or the audio connectors on the rear panel
of the NSR-1200/1100/1050H.
(4) Playback Control (Reverse, Forward, Stop, etc.)
Quick Search and Playback While Monitoring
If you click PLAYBACK in the Monitor Control pane (3) of the
NSR-1200/1100/1050H, you can play back the images recorded a
certain number of seconds before (this is initially set in the GUI
Setting menu). You can also quickly search for the recorded image
by date/time search in the Monitor Control pane.
Alarm List Playback
When an alarm recording is executed on the NSR-1200/1100/1050H,
the date, time, and the camera name are noted in the Alarm List (5).
Simply by double-clicking a line in the alarm list, you can play back
the recorded image.
Playback Control and Data Export
With the Playback Control pane (6) on the NSR-1200/1100/1050H,
you can control the playback functions such as slow and reverse/
forward. You can also export the still or moving images of your
specified date and time to external media, such as CD-R, DVD-R,
and USB Flash Memory.
Customized Layouts
The Layout Editor on the NSR-1200/1100/1050H, is a powerful feature
that creates customized site layouts and allows the user to insert
backgrounds (e.g., a floor plan or campus layout), camera icons,
and company logos.
Monitoring GUI (Customized)
(5) Display Area (Playback of Searched Images)
(6) Search Result Area
Two Search Functions
With the Switching Tab (1) of the NSR-1200/1100/1050H, you can
select either Normal Search or Object Search.
• Normal Search
You can search for specific images on the NSR-1200/1100/1050H,
by setting search conditions such as the camera name, date,
time, and the type of recording (manual/schedule/alarm/event).
• Object Search
You can search for specific images on the NSR-1200/1100/1050H,
in the recorded video using intelligent functions. There are two
types of search – Post VMD (Video Motion Detection), and VMF
(Video Motion Filter). With Post VMD, you can search for images
in the recorded video with search conditions that are set after
the recording, such as specific object movements. (see below
1) With VMF, you can search for images in the recorded video
using DEPA (Distributed Enhanced Processing Architecture)
system features. With a VMF search, you should record
metadata with DEPA-enabled cameras during the video
recording. For example, you can count the number of people
who passed a line that is set on the screen. (see below 2)
(Please refer to “What is DEPA?”)
1. Post VMD Search
(Images simulated)
(Image simulated)
2. VMF Search
What is DEPA Architecture?
Concept of DEPA Architecture
In conventional video analytic systems, the camera only
/FUXPSL$BNBSB
sends video images to recorders, and video image
5IF/434FSJFT
analysis is processed solely on the recorder side.
In Sony’s DEPA system, the DEPA-enabled camera sends to
the DEPA-enabled recorder not only video images but
*NBHF
%BUB
also related metadata such as the camera ID, date/time,
and information about the shot object (size and position).
*NBHFEBUBJT
SFDPSEFECZUIF
USJHHFSPGUIFBMBSN
*NBHFT
.FUBEBUBJTHFOFSBUFE
JO%&1"FOBCMFEDBNFSB
The recorder checks this metadata with a search filter
"MBSN
called a VMF (Video Motion Filter), to send an alarm
signal when the metadata matches a preset condition of
the VMF. Since the partial image processing is done on
the camera side, the system can be configured in a much
simpler manner, and can be expanded more easily.
Search Results by Timeline or List
.FUBEBUB
7JEFP.PUJPO'JMUFS
7.'
.FUBEBUB
5IF/434FSJFTEFUFDUUIFBMBSN
CZNBUDIJOHUIFNFUBEBUBBOE7.'
.FUBEBUB
$BNBSB*%5JNF-PDBUJPOBOE
4J[FPG0CKFTUFUD
Timeline Mode
The search result on the NSR-1200/1100/1050H is
displayed either by timeline or list (6). In a timeline
chart, search results are displayed in different
colors depending on the type of recording. You
can easily playback video just by clicking on a
specific part of the timeline, or on the list.
List Mode
Versatile Recording Functions
There are various recording functions on the NSR-1200/1100/1050H:
Manual Recording
Manual Recording is started manually anytime the operator wants.
Schedule Recording
Schedule Recording is started based on a set schedule.
Schedule Recording with Alarm Marking
While using Schedule Recording, the time when the alarm is
detected can be marked in the timeline. This function enables
images to be searched quickly.
"MBSN&WFOU3FDPSEJOH
Alarm/Event Recording
There are two types of alarm-triggered recording – Alarm and
Event (i.e., Activity) Recording. While it is important to initiate
recordings based on video motion detection or alarm signal input,
it is also helpful if the user can define what is considered an alarm.
For example, a camera may be looking at an area where there
are people moving about during office hours, but the recording of
such motion should not be considered a true alarm; it is rather a
normal event or activity. However, such motion out of office hours
should be considered a true alarm, and an action or alert needs
to be initiated. The former is performed by Event Recording and
the latter by Alarm Recording. The date/time of Alarm Recording is
listed in an Alarm List in the main GUI (but this does not occur with
Event Recording). Having this capability accomplishes two things
– it saves on storage (with motion/alarm recording only), and
reduces seek times when searching Alarms and Events.
"MBSNSFDPSEJOHTUBSUFE
4DIFEVMF3FDPSEJOH
4DIFEVMF3FDPSEJOHJTEPOFGSPNUP
4DIFEVMF3FDPSEJOHXJUI"MBSN.BSLJOH
"MBSNJTNBSLFE
Other Key Features
Others
• Privacy Zone Masking
MPEG4/JPEG Dual Stream
cameras,*3
Connected with Sony’s major network
the NSR-1200/
1100/1050H can accept both JPEG and MPEG4 from cameras at
the same time. With a limited storage capacity, for example, you
can monitor live video via MPEG4 at frame rates as high as 30 fps,
and record video via JPEG at frame rates as low as 1 fps.
*3
S NC-RX570/RX550/RX530, SNC-RZ50, SNC-DF85/DF80/DF50, SNC-DM160/DM110,
SNC-CS50/CS20, SNC-CM120, and later models.
Light Funnel Control for Higher Sensitivity
Light Funnel is a technology in Sony’s megapixel network cameras
to provide high sensitivity. By combining the information of four
pixels and handling them as a single pixel, this type of camera
provides sensitivity four times higher than conventional cameras.
With the NSR-1200/1100/1050H, there is a menu to control the
Light Funnel settings of applicable cameras; this simplifies control.
(Please note that when Light Funnel technology is applied to a
1280 x 960 image, its size becomes 640 x 480.)
• Data Export to CD-R, DVD-R, USB Media, etc
Flexible User Management Setting
All access to the NSR-1200/1100/1050H is managed by user
authorization, which is set by the system administrator.
The administrator can simply provide each user with a permission
level selected from the five ready-made levels of operational
permission, or set the accessibility in a more customized way. The
accessible cameras for each user can be set for each camera, or
for each NSR-1200/1100/1050H server. When the system is
configured with more than one NSR-1200/1100/1050H server, all
user information is shared throughout the whole system.
Image of Light Funnel Function
-JHIU'VOOFM0''
-JHIU'VOOFM0/
System Examples
Stand Alone Configuration
Client-Server Configuration
)%.*
3(#.POJUPS "OBMPH$BNFSBT.BY6OJUT
/434FSJFT
4POZT
/FUXPSL
$BNFSBT
/43&4
)%%&YQBOTJPO6OJU
.BY6OJUT
/FUXPSL
4FSWFS3PPN
4POZT
/FUXPSL
$BNFSBT
)%.*
3(#.POJUPS /434FSJFT
5IJSE1BSUZ
/FUXPSL
$BNFSBT
/FUXPSL
"9*4
/FUXPSL$BNFSB
!8)3
# / - - 5 . ) # !4 ) / . 3
4/57
5IJSE1BSUZ
/FUXPSL
$BNFSBT
"9*4
/FUXPSL$BNFSB
$POUSPMMFS4PGUXBSF*OTUBMMFE1$
"9*4
$ 0 . . 6 / * $ " 5 * 0 / 4
"OBMPH$BNFSBT
5IF/43)DBOCFEJSFDUMZDPOOFDUFEXJUIBOBMPHDBNFSBTBTTUBOEBSE
5IF/43SFRVJSFTBOPQUJPOBM/4#,""OBMPH&ODPEJOH,JU
5IF/434FSJFTIBTUXPBOBMPH3(#BOEUXP)%.*NPOJUPSPVUQVU
DPOOFDUPSTPOUIFSFBSQBOFM
:PVDBOVTFUXPPVUPGUIFGPVSPVUQVUTTJNVMUBOFPVTMZJOBOZDPNCJOBUJPO
/FUXPSL
.POJUPSJOH3PPN
Optional Products
NSBK-A16
Analog Encoding Kit
NSRE-S200
HDD Expansion Unit
SNT-V704
Video Network Station
NSR-RM1
Rack Mount Kit
Connectors
'SPOU1BOFM$PWFS0QFO
/43)
3FBS1BOFM/43
3FBS1BOFM/43)
3FBS1BOFM/43&4
Specifications
Video/Recording
Number of cameras supported
NSR-1200
NSR-1100
NSR-1050H
Max. 64 (IP/Analog total)
Max. 32 (IP/Analog total)
Max. 20 (IP/Analog total)
Number of megapixel cameras to be connected
Number of megapixel cameras supported
at full resolution
Number of analog cameras
Max. 64
Max. 32
Max. 20
Max. 8
Max. 4
Video compression (IP camera)
MPEG-4 or JPEG
Video compression (Analog camera)
Option (NSBK-A16)
Maximum recording rate (IP/Analog total)*1
480 fps VGA (640 × 480) at JPEG, 480 fps CIF (352 x 240)
240 fps VGA (640 × 480) at JPEG, 480 fps CIF (352 x 240)
120 fps VGA (640 × 480) at JPEG, 480 fps CIF (352 x 240)
Hard disk drives (Physical capacity)
2 TB (500 GB x4)
1 TB (500 GB x2)
500 GB (500 GB x1)
Hard disk drives (Interface)
Serial ATA
Hard disk drives (RAID level)
RAID 5
RAID 0
–
Hard disk drives (Recording capacity)
Approx. 1366 GB
Approx. 886 GB
Approx. 443 GB
Optical disc drive
DVD/CD Drive x1 (DVD-R, DVD+R, DVD-ROM, CD-ROM, CD-R, CD-RW)
Expansion storage
Supports NSRE-S200 (2000 GB) (Max. 7 Units)
Option (NSBK-A16)
Max. 16
MPEG-4
Analog Camera Input
Analog camera interface
Video input x16, Audio input x4 (Supplied cable)
Video compression
MPEG-4
NTSC: 704 x 480, 704 x 240, 352 x 240
PAL : 704 x 576, 704 x 288, 352 x 288
NTSC: 120 fps 704 x 480, 240 fps 704 x 240, 480 fps 352 x 240
PAL : 100 fps 704 x 576, 200 fps 704 x 288, 400 fps 352 x 288
Option (NSBK-A16)
Resolution
Maximum frame rate*2
Video Output
Monitor OUT 1*3
HDMI™ (Type A) x1 and D-sub 15-pin x2 (Front and rear)
Monitor OUT 2*3
HDMI (Type A) x1 or D-sub 15-pin x1 (Rear)
Audio Output
Audio line OUT
RCA-pin L/R x1 Stereo Pair
Sensor Input/Alarm Output
Sensor input
8-channel photo-coupler (DC 3.3 to 24 V)
Alarm output
8-channel mechanical relay (Max. DC 24 V/ 1 A)
Other Interfaces
Ethernet*4
1000BASE-T/100BASE-TX/10BASE-T x4 (Auto switching)
USB
USB2.0 x3 (Front), USB2.0 x3 (Rear)
Serial interface (for UPS)
RS-232C : D-sub 9-pin x1
Serial interface (for analog camera control)*5
RS-232C : D-sub 9pin x1, RS-422/485 x1
Serial attached SCSI (SAS1.1)
SFF-8088 (mini-SAS 26-pin) x1
General
Dimensions (W x H x D)
17 x 3 1/2 x 16 1/2 inches (430 x 87 x 417 mm) excluding protrusions
Weight
Approx. 29 lb 12 oz (13.5 kg)
Power requirements
AC 100 V to 127 V/ 200 V to 240 V (50/60 Hz)
Power consumption
Approx. 265 W (typical) (Max. 350 W)
Operating temperature
41 to 104 ˚F (5 to 40 ˚C)
Operation humidity
20 to 80 %
Analog camera input cable (NSR-1050H only), Front panel key (2), Installation manual, First step guide, Monitoring window operations guide, Safety regulations, WEEE booklet,
Warranty booklet, Rubber foot (4)
Supplied accessories
Approx. 26 lb 7 oz (12 kg)
Approx. 185 W (typical) (Max. 350 W)
Approx. 25 lb 6 oz (1.5 kg)
Approx. 175 W (typical) (Max. 350 W)
*1 With 16 cameras connected. JPEG compression by a standard rate. *2 Total of all the channels. Maximum frame rate for one channel is 30 fps (NTSC)/ 25 fps (PAL). *3 More than one connector cannot be used at a time.
*4 Port #1 is for network connection. Port #2 is for connecting controlers. Port #3 and #4 is for the future expansion. *5 VISCA and Pelco-D are supported.
NSRE-S200
Storage Capacity
Hard disk
drive
NSBK-A16
Video / Audio Interfaces
Physical capacity
2 TB (500 GB x4)
Number of analog input
Video input x16/Audio input x4
Interface
Serial ATA
Video compression
MPEG-4
RAID level
RAID 5
Input video format
Recording capacity
Approx. 1396 GB
NTSC or PAL
NTSC: 704 x 480, 704 x 240, 352 x 240
PAL : 704 x 576, 704 x 288, 352 x 288
NTSC: 120 fps 704 x 480, 240 fps 704 x 240, 480 fps 352 x 240
PAL : 100 fps 704 x 576, 200 fps 704 x 288, 400 fps 352 x 288
Analog
input
Interfaces
Resolution
Maximum frame rate*6
Ethernet
100BASE-TX/10BASE-T x1 (Auto switching) (For maintenance)
Serial interface
RS-232C x1 (For maintenance)
General
Serial attached SCSI (SAS1.1)
SFF-8088 (mini-SAS 26pin): input x1, output x2
Dimensions (Board)
Approx. 6.6 x 2.5 inches (168 x 64 mm)(exclusive projections)
Cable length
Approx. 11.8 inches (300 mm)
General
Weight
16.9 x 3.4 x 16.4 inches (430 x 87 x 417 mm)
(Excluding protrusions)
Approx. 26 lb 7 oz (12 kg)
Power requirements
AC 100 to 127 V/200 to 240 V (50/60 Hz)
Power consumption
Approx. 80 W (typical) (Max. 350 W)
Operating temperature
41 to 104 ºF (5 to 40 ºC)
Operating humidity
20 to 80 %
Mini-SAS cable (1 m), Front panel key (2), Installation manual,
Safety regulations, WEEE booklet, Warranty booklet, Rubber foot (4)
Dimensions (W x H x D)
Supplied accessories
Weight
Connector
Board
Approx. 2.5 oz (72 g)
Cable
Approx. 8.3 oz (235 g)
Input connector (Board)
DVI-connector
Video input connector (Cable)
Composite BNC x16 (Black)
Audio input connector (Cable)
RCA x4 (White)
Operating temperature
41 to 104 ˚F (5 to 40 ˚C)
Operating humidity
20 to 80 %
Supplied accessories
Analog camera input cable, Installation manual, Warranty booklet
*6 Total of all the channels. Maximum frame rate for one channel is 30 fps (NTSC)/ 25 fps (PAL).
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
sony.com/security
click: sony.com/sonysports
S-IP2027-A (MK10552V2)
© 2009 Sony Electronics Inc. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
All non-metric weights and measurements are approximate.
Sony, IPELA, and DEPA are trademarks of Sony.
Windows is a registered trademark of Microsoft Corporation.
HDMI is a trademark or a registered trademark of HDMI Licensing LLC.
Printed in USA (2/09)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
