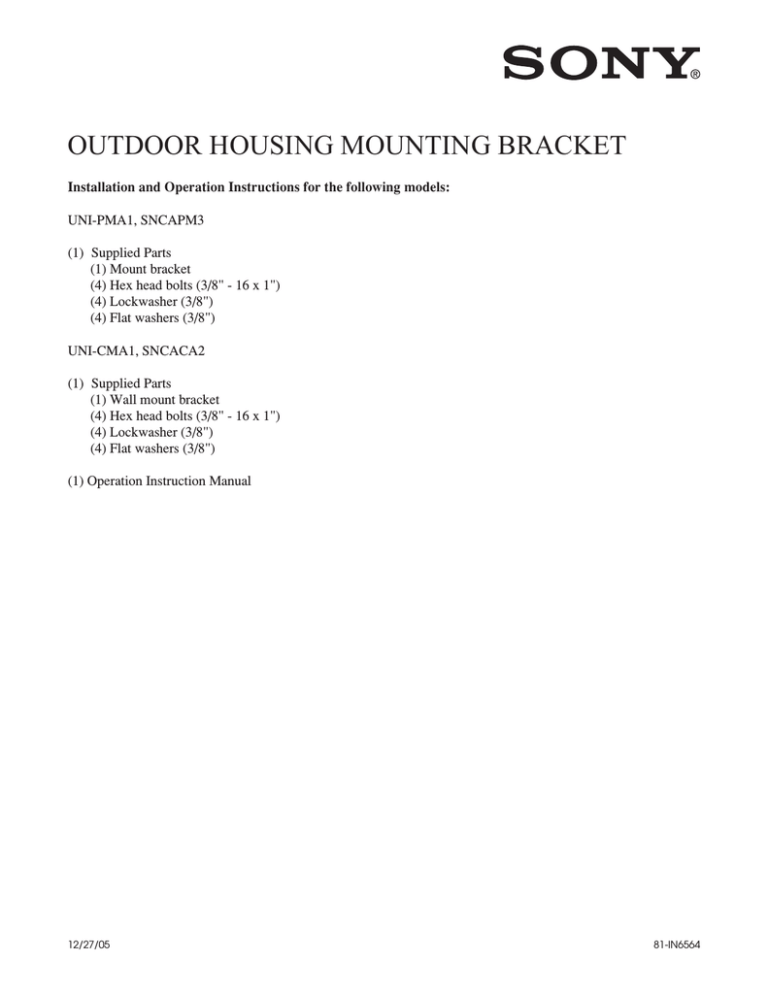

OUTDOOR HOUSING MOUNTING BRACKET
Installation and Operation Instructions for the following models:
UNI-PMA1, SNCAPM3
(1) Supplied Parts
(1) Mount bracket
(4) Hex head bolts (3/8" - 16 x 1")
(4) Lockwasher (3/8")
(4) Flat washers (3/8")
UNI-CMA1, SNCACA2
(1) Supplied Parts
(1) Wall mount bracket
(4) Hex head bolts (3/8" - 16 x 1")
(4) Lockwasher (3/8")
(4) Flat washers (3/8")
(1) Operation Instruction Manual
12/27/05
81-IN6564
PRECAUTIONS ON INSTALLATION
1
Both the pole mount adapter and the corner
mount adapter are designed for outdoor use in
conjunction with a wall mount bracket.
2
The combined weight of camera, lens, housing,
pan/tilt, and the wall mount bracket must not
exceed 75 lbs. (34 kg).
3
Select a location where the combined weight of
the bracket, housing, pan/tilt and the wall mount
bracket can be properly supported.
INSTALLING THE POLE MOUNT ADAPTER
INSTALLING THE CORNER MOUNT ADAPTER
(UNI-PMA1 or SNCAPM3)
(UNI-CMA1 or SNCACA2)
GENERAL INSTRUCTIONS:
Tools Required: .100" Flat Head Screwdriver
Phillips Head Screwdriver
1
Mount the bracket assembly to the pole using
metal straps (not provided). Place the straps
through the slots on the UNI-PMA1 or SNCAPM3
and then around the pole. Tighten straps.
2
Combine the wall mount bracket with the pole
mount adapter and securely attach the four
hex head bolts, lock washers, and flat washers
provided into the 3/8" inserts on the adapter.
1
Mount the bracket assembly to the selected
corner location using appropriate hardware (not
provided).
2
Combine the wall mount bracket with the corner
mount adapter and securely attach the four
hex head bolts, lock washers, and flat washers
provided into the 3/8" inserts on the adapter.
Figure 2
Figure 1
.40
1.80
2.62
45˚
76˚
.88
5.69
6.70
4.00
(4) 3/8-16 inserts
2.55
2X Ø .75
(4) .438" DIA. holes
.75
3.82
(4) 3/8-16 inserts
2X Ø .75
2.00
.88
1.00
5.50
1.00
2.00
1.00
5.50
7.00
7.25
1.00
2.00
UNI-PMA1/SNCAPM3 Dimensions
11.87
UNI-CMA1/SNCACA2 Dimensions
IMPORTANT SAFEGUARDS
1
SAFETY PRECAUTIONS
Read Instructions - All the safety and operating
instructions should be read before the unit is
operated.
2
Retain Instructions - The safety and operating
instructions should be retained for future
reference.
3
Heed Warnings - All warnings on the unit and in
the operating instructions should be adhered to.
4
Follow Instructions - All operating and user
instructions should be followed.
5
Electrical Connections - Only a qualified
electrician should make electrical connections..
6
Attachments - Do not use attachments not
recommended by the product manufacturer as
they may cause hazards.
7
Cable Runs - All cable runs must be within
permissible distance
8
Mounting - This unit must be properly and securely
mounted to a supporting structure capable of
sustaining the weight of the unit.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
The lightning flash with an arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the presence
of non-insulated “dangerous voltage”
within the product’s enclosure that may be
of sufficient magnitude to constitute a risk
of electric shock to persons.
!
Accordingly:
a. The installation should be made by a qualified installer.
b. The installation should be in compliance with local codes.
c.
Care should be exercised to select suitable hardware to install the unit, taking into account both the composition of the mounting
surface and the weight of the unit.
!
The exclamation point within an equilateral
triangle is intended to alert the user to
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
UNPACKING
Unpack carefully. Electronic components can be
damaged if improperly handled or dropped. If an item
appears to have been damaged in shipment, replace
it properly in its carton and notify the shipper.
Be sure to save:
Be sure to periodically examine the unit and the supporting structure to make sure that the integrity
of the installation is intact. Failure to comply with the
foregoing could result in the unit separating from the
support structure and falling, with resultant damages or
injury to anyone or anything struck by the falling unit.
1
The shipping carton and packaging material.
They are the safest material in which to make
future shipments of the equipment.
2
These Installation and Operating Instructions.
SERVICE
If technical support or service is needed, contact Sony
at the following number:
TECHNICAL SUPPORT
8:15AM to 7:30PM (Eastern Time)
1-800-883-6817
©2005 Sony Corporation
PRODUCT DISCLAIMER
Caution
This unit must be properly and securely mounted to a supporting structure capable of sustaining the weight of the
bracket and camera assembly. Accordingly,
1. The installation should be made by a qualified installer.
2. The installation should be in compliance with local codes.
3. Care should be exercised to select suitable hardware to install the unit, taking into account both the compostition
of the mounting surface and the weight the hardware will be required to sustain.
Be sure to periodically examine the unit and the supporting structure to make sure that the integrity of the installation
is intact.
Failure to comply with the foregoing could result in the unit coming loose from the support structure and falling, with
resultant damages or injury to anyone or anything struck by the falling unit.
© 2005 by Sony Corporation
