Sony DPP-MP1 User's Manual

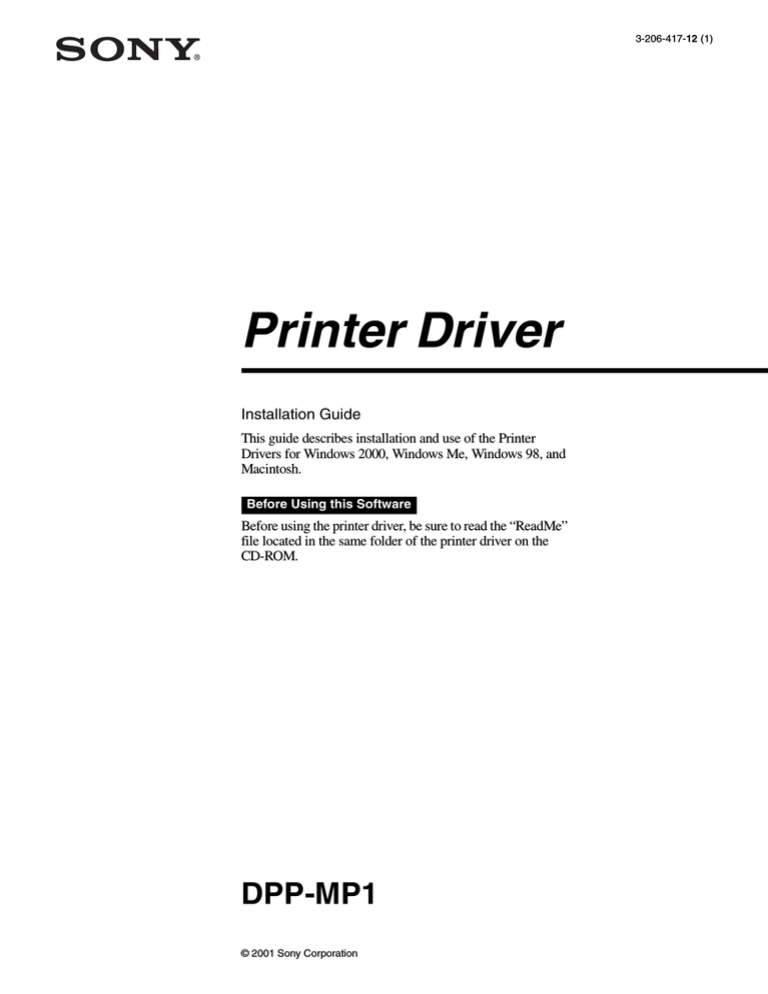

3-206-417-12 (1)
Printer Driver
Installation Guide
This guide describes installation and use of the Printer
Drivers for Windows 2000, Windows Me, Windows 98, and
Macintosh.
Before Using this Software
Before using the printer driver, be sure to read the “ReadMe”
file located in the same folder of the printer driver on the
CD-ROM.
DPP-MP1
© 2001 Sony Corporation
Windows 2000
Table of Contents
Windows 2000 Printer Driver
Installing the Printer Driver .................................4
Removing the Printer Driver ................................5
To remove the printer driver ...............................5
To delete the INF file ..........................................5
Using the Printer Driver ........................................6
[Paper] Tab ..........................................................6
[Graphics] Tab ....................................................7
Microsoft and Windows are registered trademarks of
Microsoft Corporation.
Macintosh, Mac and ColorSync are registered
trademarks of Apple Computer, Inc.
Other company names and product names mentioned in
this guide are also trademarks and registered
trademarks.
Windows Me Printer Driver
Installing the Printer Driver ...............................10
Removing the Printer Driver ..............................11
To remove the printer driver .............................11
To remove the Sony USB driver .......................11
Using the Printer Driver ......................................12
[Paper] Tab ........................................................12
[Graphics] Tab ..................................................13
Windows 98 Printer Driver
Installing the Printer Driver ...............................16
Removing the Printer Driver ..............................18
To remove the printer driver .............................18
To remove the Sony USB driver .......................18
Using the Printer Driver ......................................19
[Paper] Tab ........................................................19
[Graphics] Tab ..................................................20
Macintosh Printer Driver
Installing the Printer Driver ...............................23
Removing the Printer Driver ..............................23
Making Printer Settings ......................................24
Select the DPP-MP1 with the Chooser .............24
Selecting the Paper Type ...................................24
Making Print Settings .......................................25
2
Windows 2000
Printer Driver
DPP-MP1
Windows 2000
5
Make sure that the [Search for a suitable driver ...]
option is selected, and then click the [Next] button.
The next screen opens.
6
Insert the provided “digital photo printer for DPPMP1” CD-ROM into the CD-ROM drive.
7
Click the [Specify a location] check box on, and
then click the [Next] button.
The following dialog box opens.
8
Click the [Browse] button, click the [Win2000]
folder on the CD-ROM, and then click the [OK]
button.
The next screen opens.
Installing the Printer
Driver
1
Connect the DPP-MP1 to the computer.
2
Switch the DPP-MP1 on.
3
Switch on the computer, and then log in as the
system administrator.
After Windows 2000 starts up, the [Found New
Hardware Wizard] opens.
If the [Found New Hardware Wizard] does not
open, open the [Printers] folder in the [Control
Panel], double-click [Add Printer], and then follow
the instructions to install the printer driver.
4
Click the [Next] button.
The next screen opens.
Installing the Printer Driver
4
Windows 2000
9
Click the [Next] button.
Removing the Printer
Driver
This section describes the procedure to remove the
printer driver.
After removing the printer driver, delete the INF file as
described further.
To remove the printer driver
If the [Digital Signature Not Found] dialog box
opens, click the [Yes] button.
The next screen opens.
1
Turn on the computer.
2
Select [Printers] from [Settings] in the [Start]
menu.
The [Printers] window opens.
3
Select the printer that you want to remove.
4
On the [File] menu, click [Delete].
The printer driver removal is complete.
To delete the INF file
Delete the DPP-MP1 INF file located in C://WinNT/Inf.
Note
10 Click the [Finish] button.
The printer driver installation for Windows 2000 is
complete.
Depending on your Windows settings, the “Inf” folder
may not be displayed. To display the folder, open [My
Computer] and click [Folder Options] on the [Tools]
menu. In the [Folder Options] dialog box, click the
[View] tab, then select [Show hidden files and folders].
1
In the “Inf” folder, double-click “OemX.inf”
(where X is a number). The contents of the INF file
appear.
2
In the INF file, confirm that the following appears
at the top.
SONY DPP-MP1 Printer Driver for Windows 2000
Note
If there is more than one “OemX.inf” file, repeat
steps 1 and 2 as necessary.
3
Delete all the INF files indicated above.
Removing the Printer Driver
5
Windows 2000
Using the Printer Driver
You can use the printer driver [Printing Preferences] to
set the default settings for the paper size, orientation,
and other important settings. Open the [Printers] folder
in the [Control Panel], right-click the [Sony DPP-MP1]
icon, and then select [Printing Preferences].
[Orientation]
Select [Portrait] or [Landscape] for the print direction.
[Copies]
Set the number of copies to print. You can select from 1
to 24 for the number of copies.
[Scale]
Select the rate of enlargement or reduction. You an
select a setting within the range of 10% to 400%.
[Border]
Select this check box to print a border in the margins.
[Image Layout]
Select the number of images to print on one sheet: 1up,
2up, 4up, or 8 up.
[Laminate Pattern]
The [Sony DPP-MP1 Printing Preferences] sheet opens
and presents the following tabs and items for setting.
[Paper] Tab
Select a laminate pattern for the surface of the print from
the three available options:
• [Glossy] The image is printed with a glossy, slick
finish.
• [Texture] The image is printed with a silk screen
finish.
• [Matte] The image is printed with a matte finish.
[Paper Type]
Select the type of paper loaded for printing. Types of
printer packs that can be loaded and maximum image
size settings are as follows,
Print Pack
Max. Image Size
SVM-24CS
1010 × 628 pixels
SVM-24CW
Using the Printer Driver
6
Windows 2000
[Graphics] Tab
[Color Balance]
This tab presents adjustments for image color,
brightness and so forth.
From the [Color Adjust] pull-down list, you can select
[Digital Camera Correction], [Color Balance],
[Sharpness], or [Color Correction], and then adjust the
image with the settings provided for each selection.
[Digital Camera Correction]
You can adjust the balance for each color by dragging
the slider to the left or right, entering a value directly
into a box, or clicking the arrows next to a box to
increase or decrease the setting.
[Sharpness]
When printing an image captured with a digital camera,
you can use the [Brightness], [Contrast] and [Saturation]
settings to adjust the image.
• Select [Auto] to achieve the best possible processing
for a digital image.
• Select [Custom] to manually adjust the [Brightness],
[Contrast], and [Saturation] of the image.
You an adjust the sharpness of the image outline by
dragging the slider to the left or right, entering a value
directly into the box, or clicking the arrows next to the
box to increase or decrease the setting.
Using the Printer Driver
7
Windows 2000
[Color Correction]
Select the color correction method.
• Select [Printer Hardware Color Correction] to have
the printer correct the color automatically.
• Select [ICM Color Correction] to use a color profile
for color correction.
Using the Printer Driver
8
Windows Me
Printer Driver
DPP-MP1
Windows Me
6
Click the [Finish] button.
A dialog box opens.
7
Click [Yes] to re-start your computer. If the [System
Settings Change] dialog box does not open after the
desktop screen appears, re-start the computer.
8
After the computer re-starts, the next screen
appears.
Installing the Printer
Driver
1
Connect the DPP-MP1 to the computer.
2
Switch the DPP-MP1 on.
3
Switch on the computer.
After Windows Me starts, the [Add New Hardware
Wizard] opens.
If the [Add New Hardware Wizard] does not open,
double-click the [My Computer] icon. Then
double-click the [Control Panel] folder, doubleclick the [Printers] folder, and double-click [Add
Printer]. Follow the instructions displayed to install
the printer driver.
4
Insert the provided “digital photo printer for DPPMP1” CD-ROM into the CD-ROM drive.
5
Click the [Next] button.
After the files are copied, the next screen appears.
If the [Add New Hardware Wizard] does not open,
double-click the [My Computer] icon. Then
double-click the [Control Panel] folder, doubleclick the [Printers] folder, and double-click [Add
Printer]. Follow the instructions displayed to install
the printer driver.
9
Click the [Next] button.
The next screen opens.
Installing the Printer Driver
10
Windows Me
10 Click the [Finish] button.
After the files are copied, the next screen opens.
Removing the Printer
Driver
This section describes the procedure to remove the
printer driver.
After removing the printer driver, remove the Sony USB
driver.
To remove the printer driver
11 Click the [Finish] button.
The printer driver installation for the USB connection is
complete.
1
Turn on the computer.
2
Select [Printers] from [Settings] in the [Start]
menu.
The [Printers] window opens.
3
Select the printer that you want to remove.
4
On the [File] menu, click [Delete].
The printer driver removal is complete.
To remove the Sony USB driver
Note
• Exit all programs before you remove the Sony USB
driver.
• Before removing the Sony USB driver, make sure that
all Sony printer drivers that use the USB port have
been removed.
1
Select [Control Panel] from [Settings] in the [Start]
menu.
The [Control Panel] window opens.
2
Double-click [Add/Remove Programs].
The [Add/Remove Programs Properties] dialog box
opens.
3
In the list that appears on the [Install/Uninstall] tab,
select “Sony USB Driver”, and then click the [Add/
Remove] button.
The following dialog box opens.
Removing the Printer Driver
11
Windows Me
4
Click the [OK] button.
When the removal procedure finishes, the
following dialog box opens.
Using the Printer Driver
You can use the printer's [Properties] sheet to set the
default settings for the paper size, orientation, and other
important settings.
Double-click the [My Computer] icon, double-click
[Printers], right-click the [Sony DPP-MP1] icon, and
then click [Properties].
Note
If another printer is using the Sony USB driver, the
following dialog box appears.
Click the [OK] button. This stops the removal
procedure.
5
Click the [OK] button.
The computer restarts.
The [SONY DPP-MP1 Properties] sheet opens and
presents the following tabs and items for setting.
The Sony USB driver removal is complete.
[Paper] Tab
[Paper Type]
Select the type of paper loaded for printing. Types of
printer packs that can be loaded and maximum image
size settings are as follows,
Print Pack
Max. Image Size
SVM-24CS
1010 × 628 pixels
SVM-24CW
Using the Printer Driver
12
Windows Me
[Orientation]
Select [Portrait] or [Landscape] for the print direction.
[Copies]
Set the number of copies to print. You can select from 1
to 24 for the number of copies.
[Graphics] Tab
This tab presents adjustments for image color,
brightness and so forth.
From the [Color Adjust] pull-down list, you can select
[Digital Camera Correction], [Color Balance],
[Sharpness], or [Color Correction], and then adjust the
image with the settings provided for each selection.
[Scale]
Select the rate of enlargement or reduction. You can
select a setting within the range of 10% to 400%.
[Digital Camera Correction]
[Border]
Select this check box to print a border in the margins.
[Image Layout]
Select the number of images to print on one sheet: 1up,
2up, 4up, or 8 up.
[Laminate Pattern]
Select a laminate pattern for the surface of the print from
the three available options:
• [Glossy] The image is printed with a glossy, slick
finish.
• [Texture] The image is printed with a silk screen
finish.
• [Matte] The image is printed with a matte finish.
When printing an image captured with a digital camera,
you can use the [Brightness], [Contrast] and [Saturation]
settings to adjust the image.
• Select [Auto] to achieve the best possible processing
for a digital image.
• Select [Custom] to manually adjust the [Brightness],
[Contrast], and [Saturation] of the image.
Using the Printer Driver
13
Windows Me
[Color Balance]
[Color Correction]
You can adjust the balance for each color by dragging
the slider to the left or right, entering a value directly
into a box, or clicking the arrows next to a box to
increase or decrease the setting.
Select the color correction method.
• Select [Printer Hardware Color Correction] to have
the printer correct the color automatically.
• Select [ICM Color Correction] to use a color profile
for color correction.
[Sharpness]
You an adjust the sharpness of the image outline by
dragging the slider to the left or right, entering a value
directly into the box, or clicking the arrows next to the
box to increase or decrease the setting.
Using the Printer Driver
14
Windows 98
Printer Driver
DPP-MP1
Windows 98
5
Make sure the first item, [Search for the best driver
...] is selected, and then click the [Next] button.
The next screen opens.
6
Insert the provided “digital photo printer DPPMP1” CD-ROM into the CD-ROM drive.
7
Click the [Specify a location] check box on, click
the [Browse] button, open the [Win9X] folder on
the CD-ROM, and then click the [Next] button.
The next screen opens.
8
Click the [Next] button.
After the files are copied, the next screen appears.
Installing the Printer
Driver
1
Connect the DPP-MP1 to the computer.
2
Switch the DPP-MP1 on.
3
Switch on the computer.
After Windows 98 starts, the [Add New Hardware
Wizard] opens.
If the [Add New Hardware Wizard] does not open,
double-click the [My Computer] icon. Then
double-click the [Control Panel] folder, doubleclick the [Printers] folder, and double-click [Add
Printer]. Follow the instructions displayed to install
the printer driver.
4
Click the [Next] button.
The next screen opens.
Installing the Printer Driver
16
Windows 98
9
Click the [Finish] button.
A dialog box opens.
13 Make sure the first item, [Search for the best driver
...] is selected, and then click the [Next] button.
The next screen opens.
10 Click [Yes] to re-start your computer. If the [System
Settings Change] dialog box does not open after the
desktop screen appears, re-start the computer.
11 After the computer re-starts, the next screen
appears.
14 Click the [Specify a location] check box on, click
the [Browse] button, open the [Win9X] folder on
the CD-ROM, and then click the [Next] button.
The next screen opens.
If the [Add New Hardware Wizard] does not open,
double-click the [My Computer] icon. Then
double-click the [Control Panel] folder, doubleclick the [Printers] folder, and double-click [Add
Printer]. Follow the instructions displayed to install
the printer driver.
12 Click the [Next] button.
The next screen opens.
15 Click the [Next] button.
The next screen opens.
Installing the Printer Driver
17
Windows 98
16 Click the [Finish] button.
After the files are copied, the next screen opens.
Removing the Printer
Driver
This section describes the procedure to remove the
printer driver.
After removing the printer driver, remove the Sony USB
driver.
To remove the printer driver
17 Click the [Finish] button.
The printer driver installation for the USB connection is
complete.
1
Turn on the computer.
2
Select [Printers] from [Settings] in the [Start]
menu.
The [Printers] window opens.
3
Select the printer that you want to remove.
4
On the [File] menu, click [Delete].
The printer driver removal is complete.
To remove the Sony USB driver
Note
• Exit all programs before you remove the Sony USB
driver.
• Before removing the Sony USB driver, make sure that
all Sony printer drivers that use the USB port have
been removed.
1
Select [Control Panel] from [Settings] in the [Start]
menu.
The [Control Panel] window opens.
2
Double-click [Add/Remove Programs].
The [Add/Remove Programs Properties] dialog box
opens.
3
In the list that appears on the [Install/Uninstall] tab,
select “Sony USB driver”, and then click the [Add/
Remove] button.
The following dialog box opens.
Removing the Printer Driver
18
Windows 98
4
Click the [OK] button.
When the removal procedure finishes, the
following dialog box opens.
Using the Printer Driver
You can use the printer's [Properties] sheet to set the
default settings for the paper size, orientation, and other
important settings.
Double-click the [My Computer] icon, double-click
[Printers], right-click the [Sony DPP-MP1] icon, and
then click [Properties].
Note
If another printer is using the Sony USB driver, the
following dialog box appears.
Click the [OK] button. This stops the removal
procedure.
5
Click the [OK] button.
The computer restarts.
The Sony USB driver removal is complete.
The [SONY DPP-MP1 Properties] sheet opens and
presents the following tabs and items for setting.
[Paper] Tab
Using the Printer Driver
19
Windows 98
[Paper Type]
Select the type of paper loaded for printing. Types of
printer packs that can be loaded and maximum image
size settings are as follows,
Print Pack
Max. Image Size
SVM-24CS
1010 × 628 pixels
[Graphics] Tab
This tab presents adjustments for image color,
brightness and so forth.
From the [Color Adjust] pull-down list, you can select
[Digital Camera Correction], [Color Balance],
[Sharpness], or [Color Correction], and then adjust the
image with the settings provided for each selection.
SVM-24CW
[Digital Camera Correction]
[Orientation]
Select [Portrait] or [Landscape] for the print direction.
[Copies]
Select the number of copies to print (1 to 24).
[Scale]
Select the rate of enlargement or reduction. You an
select a setting within the range of 10% to 400%.
[Border]
Select this check box to print a border in the margins.
[Image Layout]
Select the number of images to print on one sheet: 1up,
2up, 4up, or 8 up.
[Laminate Pattern]
Select a laminate pattern for the surface of the print from
the three available options:
• [Glossy] The image is printed with a glossy, slick
finish.
• [Texture] The image is printed with a silk screen
finish.
• [Matte] The image is printed with a matte finish.
When printing an image captured with a digital camera,
you can use the [Brightness], [Contrast] and [Saturation]
settings to adjust the image.
• Select [Auto] to achieve the best possible processing
for a digital image.
• Select [Custom] to manually adjust the [Brightness],
[Contrast], and [Saturation] of the image.
[About]
Click to display the number of the installed printer driver
and other information.
[Restore Defaults]
Restores the default selections for these settings.
Using the Printer Driver
20
Windows 98
[Color Balance]
[Color Correction]
You can adjust the balance for each color by dragging
the slider to the left or right, entering a value directly
into a box, or clicking the arrows next to a box to
increase or decrease the setting.
Select the color correction method.
• Select [Printer Hardware Color Correction] to have
the printer correct the color automatically.
• Select [ICM Color Correction] to use a color profile
for color correction.
[Sharpness]
You an adjust the sharpness of the image outline by
dragging the slider to the left or right, entering a value
directly into the box, or clicking the arrows next to the
box to increase or decrease the setting.
Using the Printer Driver
21
Macintosh
Printer Driver
DPP-MP1
© 2001 Sony Corporation
Macintosh
Installing the Printer
Driver
Removing the Printer
Driver
Install the printer driver from the CD-ROM provided
with the printer.
Remove the printer driver with the following procedure.
1
Note
Insert the provided “digital photo printer for DPPMP1” CD-ROM into the CD-ROM drive.
The “PRINTER SOFTWARE” icon is displayed on
the desktop.
2
Double-click the “Driver” icon to open the folder.
3
Double-click the “Chooser” icon to open the folder.
4
Double-click [DPP-MP1 Install-English].
5
Follow the instructions displayed on the screen.
6
When installation is complete, restart the
Macintosh.
Before beginning this procedure, turn off the DPP-MP1
or disconnect it from the Macintosh.
1
Note
If spool files remain when you delete the desktop
printer icon, a confirmation dialog box opens. Wait
until all the data is printed or delete it before
continuing the procedure.
2
In “System Folder”, open the “Extensions” folder.
3
Delete the following four files in the “Extensions”
folder.
If you cannot delete the files, restart the Macintosh
after disconnecting the printer and try to delete the
files again.
• DPP-MP1
• DPP-MP1 Printer Class Driver
• UPDP10Lib.PPC
• UPDP10USBLib.PPC
Note
When UP-DP10 is installed, do not delete the
following two files.
• UPDP10Lib.PPC
• UPDP10USBLib.PPC
Note
• When using the DPP-MP1 and the UP-DP10 at
the same time, install the printer driver for the
UP-D10 first, and then install the printer driver
for the DPP-MP1.
• Before using the printer driver, be sure to read the
“Readme (English)” file in the “Chooser” folder.
When there is a desktop a desktop printer present,
delete the icon.
4
When you want to delete the printer preferences, in
“System Folder”, open the “Preferences” folder,
then delete the “Sony DPP-MP1 Prefs” folder.
5
Empty the Trash can.
If it you cannot empty the Trash can, restart the
Macintosh after disconnecting the printer and try to
empty the trash can again.
6
When removal is complete, restart the Macintosh.
Installing the Printer Driver / Removing the Printer Driver
23
Macintosh
Making Printer Settings
Select the DPP-MP1 with the
Chooser
Select the DPP-MP1 with the Chooser it use it for the
first time, or whenever you want to use it after using
another printer.
First, make sure that the DPP-MP1 is properly
connected to the Macintosh with the USB cable, and that
the DPP-MP1 is on.
1
Select [Chooser] on the Apple menu.
The “Chooser” window opens.
2
Select the DPP-MP1 icon from among those
displayed in the “Chooser” window’s left-hand
frame.
[DPP-MP1] appears in the Choose Printer box on
the right.
3
Select [DPP-MP1] in the list box.
Selecting the Paper Type
Paper type selection and basic print settings such as
image layout are made through the [Page Setup] dialog
box. Be sure to make these settings before printing.
To display the [Page Setup] dialog box, select [Page
Setup] on the [File] menu. Options available in the [Page
Setup] dialog box are as follows.
s [Paper Type]
You can print using either [SVM-24CS] or [SVM24CW].
s [Scale]
Select the rate of enlargement or reduction. You can
select a setting within the range of 10% to 400%.
s [Orientation]
Select the print direction.
s [Image Layout]
Select the number of images to print on one sheet: 1up,
2up, 4up, or 8up.
Below the list box, select [On] or [Off] for
[Background Printing], as desired.
4
Close the “Chooser” window.
s [Laminate Pattern]
Select a laminate pattern for the surface of the print
from
the three available options:
• [Glossy] The image is printed with a glossy, slick
finish.
• [Texture] The image is printed with a silk screen
finish.
• [Matte] The image is printed with a matte finish.
s [Border]
Select this check box to print a border in the margins.
Selecting this option slightly reduces the size of
images that can be printed.
• After selecting the desired options, click the [Set]
button to save the settings.
• To cancel the settings without saving them, click
the [Cancel] button.
Making Printer Settings
24
Macintosh
Making Print Settings
The [Print] dialog box appears when you select [Print]
from the “File” menu. Select [General] or [Color
Adjust] in the pull-down list at the top of the dialog box
and make settings for both.
• After setting options, printing starts when you click
the [Print] button.
• If you click the [Cancel] button, printing is canceled.
• If you click the [Preview] button, a window like the
following appears to show the expected appearance of
the printed image on the Macintosh’s screen.
[General] Settings
s [Copies]
Set the number of copies to print. You can select from
1 to 24 copies.
s [Pages]
Set the range of pages to print.
• When you select [All], all the pages are printed.
• When you enter numbers in the [From] and [To]
boxes, the pages in the specified range are printed.
Enter the numbers with the keyboard.
• If you click the [Print] button in this window, the
image is printed.
• If you click the [Cancel] button, printing is canceled.
• When previewing a multi-page document, you can
view the following or preceding pages by clicking the
[Next] and [Previous] buttons.
These setting are described below.
[Color Adjust] Settings
With the [Color Adjust] settings, you can adjust the
appearance of printed images, such as color and
brightness. Make these settings when you are not
satisfied with the print finish or need to make fine
adjustments.
When you select [Color Adjust] in the [Print] dialog
box, a new pull-down list appears.
s [Digital Camera…]
When printing an image captured with a digital camera,
you can use the [Brightness], [Contrast], and
[Saturation] settings to adjust the image.
• Select [Auto] to achieve the best possible
processing for a digital image.
Making Printer Settings
25
Macintosh
• Select [Custom] to manually adjust the
[Brightness], [Contrast], and [Saturation] of the
image.
• Click [Restore Defaults] to restore all custom
changes made to their defaults.
s [Sharpness]
s [Color Balance]
You can adjust the sharpness of the image outline by
dragging the slider left or right. The larger the value, the
more the image outline is emphasized.
• Clicking [Restore Defaults] restores the sharpness
setting to its default.
You can adjust the balance for each color by dragging
the slider left or right.
• Clicking [Restore Defaults] restores the color
balance settings to their defaults.
s [Color Sync]
When “Use ColorSync” is selected, you can select the
following options.
• In the [Profile] pull-down list, you can specify the
DPP-MP1 profile.
• In the [Intent] pull-down list, you can select any of the
following color reproduction mapping.
Perceptual (Images)
Saturation (Graphics)
Relative Colorimetric
Absolute Colormetric
• In the [Quality] pull-down list, you can select the any
of the following for color matching quality.
Best
Normal
Draft
Color adjustment settings are saved for use on the
Macintosh computer on which they are made. (The
settings do not apply to individual jobs or applications
only.) Once the settings have been made, you can print
using them from any application.
Making Printer Settings
26
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
