Sony Projector DX100 User's manual

Sony Projector DX100 User's manual

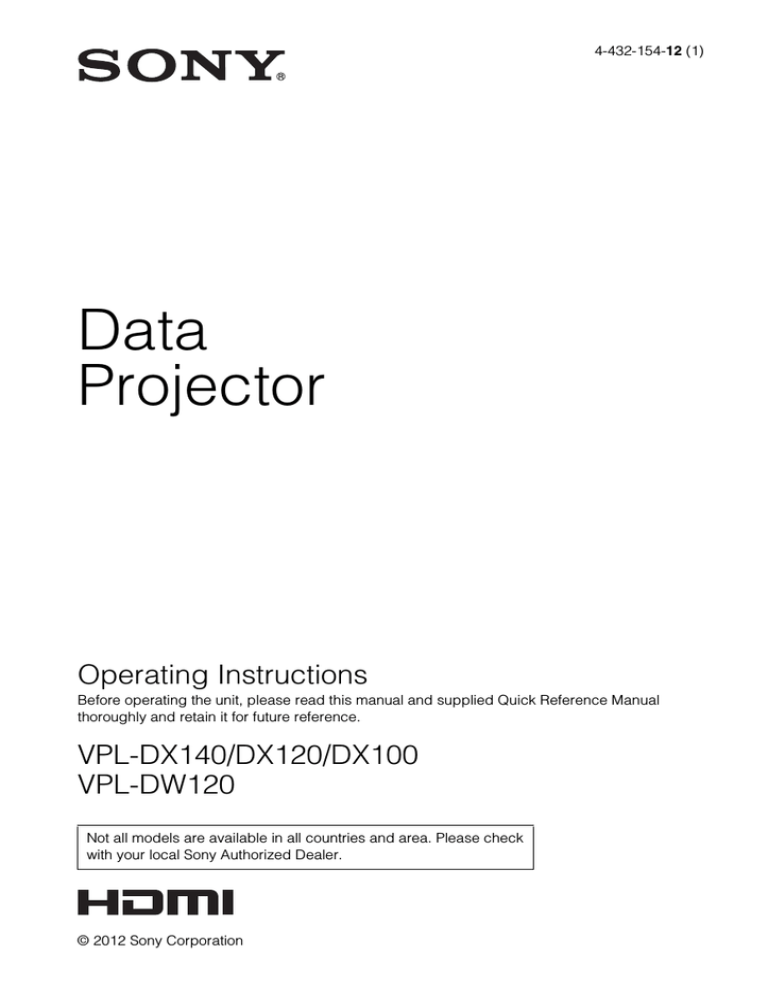

4-432-154-12 (1)
Data
Projector
Operating Instructions
Before operating the unit, please read this manual and supplied Quick Reference Manual
thoroughly and retain it for future reference.
VPL-DX140/DX120/DX100
VPL-DW120
Not all models are available in all countries and area. Please check
with your local Sony Authorized Dealer.
© 2012 Sony Corporation
Table of Contents
Overview
Others
Location and Function of Controls .... 3
Main Unit ..................................... 3
Connector Panel ........................... 4
Remote Commander and Control
Panel Keys ................................. 5
Indicators ..........................................25
Messages List ...................................26
Troubleshooting ................................27
Replacing the Lamp ..........................29
Cleaning the Air Filter ......................31
Specifications ...................................32
Projection Distance ...........................37
Dimensions .......................................42
Index .................................................45
Preparation
Connecting the Projector ................... 7
Connecting a Computer ................ 7
Connecting a Video equipment .... 8
Projecting/Adjusting an
Projecting an Image ........................... 9
Adjusting the Projected image ... 10
Turning Off the Power ................ 13
Adjustments and Settings
Using a Menu
Using a MENU ................................ 14
The Picture Menu ............................. 15
The Screen Menu ............................. 16
The Function Menu .......................... 20
The Operation Menu ........................ 21
The Connection/Power Menu .......... 22
The Installation Menu ...................... 23
The Information Menu ..................... 24
2
Table of Contents
B Overview
Location and Function of Controls
Main Unit
5
3
4
0
6
7
8
Overview
1
2
qk
qj
qa
qs
qd
qh
qg
qf
k Connector panel (page 4)
9
a Focus ring (page 10)
b Zoom ring (page 10)
l Security bar
Connects to a commercially available
security chain or wire.
m Security lock
Connects to an optional security cable
manufactured by Kensington.
For details, visit Kensington’s web site.
http://www.kensington.com/
c Lens
n Control panel keys (page 5)
d Remote control detector
o Ventilation holes (intake)
e Foot adjust button (page 11)
p Speaker
f Front foot (adjustable) (page 11)
q LAMP/COVER indicator
(page 25)
g Air filter cover/Ventilation holes
(intake) (page 31)
r ON/STANDBY indicator
(page 25)
h Lamp cover (page 29)
i Rear feet (adjustable) (page 11)
j Ventilation holes (exhaust)
Caution
Do not place anything near the ventilation
holes as this may cause internal heat
buildup. Do not place your hand near the
ventilation holes and the circumference as
this may cause injury.
Location and Function of Controls
3
Connector Panel
31 1
4
Input (pages 7, 8)
a INPUT A
Video: RGB/YPBPR input connector
Audio: Audio input connector
b INPUT B
Video: HDMI input connector
Audio: HDMI input connector
2
3
c VIDEO
Video: Video input connector
Audio: Audio input connector
Note
The audio inputs of INPUT A and VIDEO are
shared.
Others
d AC IN (∼) socket
Connects the supplied AC power cord.
4
Location and Function of Controls
Remote Commander and Control Panel Keys
Remote Commander
a Turning on the power/Going to
standby mode
7
INPUT
APA
1
6
ECO MODE
2
MENU
3
RESET
b Selecting an input signal
(page 9)
INPUT key
c Operating a menu (page 14)
ENTER
RETURN
4
Overview
4
?/1 (On/Standby) key
ASPECT
KEYSTONE PATTERN
D ZOOM
VOLUME
BLANK
FREEZE
MUTING
5
MENU key
RESET key
ENTER /V/v/B/b (arrow) keys
RETURN key
d Adjusting the image (page 10)
Control Panel Keys
1
2
3
6
ASPECT key (page 16)
KEYSTONE key (page 12)
PATTERN key (page 10)
APA (Auto Pixel Alignment) key*
(page 12)
Note
* Use this key when inputting a computer
signal via the RGB input connector
(INPUT A).
e Using various functions during
projecting
D ZOOM (Digital Zoom) +/– key*1
Enlarges the image with the center of it
as a starting point while projecting.
1 Press the D ZOOM + key to display
the digital zoom icon on the projected
image.
2 Press the D ZOOM + key or the D
ZOOM – key repeatedly to change the
enlargement ratio. The image can be
enlarged up to 4 times.
Press the RESET key to restore the
previous image.
Location and Function of Controls
5
BLANK key
Cuts off the projected image
temporarily. Press again to restore the
previous image. Picture muting helps
reduce power consumption.
MUTING key
Mutes the audio output temporarily.
Press again to restore the previous
volume.
VOLUME +/– key
Adjusts the volume output.
FREEZE key*2
Pauses a projected image. Press again to
restore the image.
2 Press the V/v key or ECO MODE key
to select “ECO” or “User” mode.
ECO: Sets each mode to the optimum
energy-saving value.
Lamp Mode: Low
With No Input: Standby
With Static Signal: Lamp
Dimming
User: Sets each item of the ECO
mode menu as you desire (go to
step 3).
3 Select “User” then press the b key.
The setting items appear.
User
Notes
Lamp Mode
*1: Use this key when inputting a
computer signal. But it may not be
used depending on the resolution of
the input signal.
*2: Use this key when inputting a
computer signal.
f Setting the energy–saving mode
easily
ECO MODE key
Energy-saving mode can be set easily.
Energy-saving mode consists of “Lamp
Mode,” “With No Input,” and “With
Static Signal.”
1 Press the ECO MODE key to display
the ECO Mode menu.
ECO Mode Menu
ECO
User
6
With No Input
With Static Signal
:Sel
Off
Lamp Dimming
:Set
RETURN
:Back
4 Press the V/v key to select the item
then press the ENTER key.
5 Press the V/v key to select the setting
value.
6 Press the ENTER key.
The screen returns to the previous
menu.
For details on ECO Mode settings, see
“Lamp Mode”, “With No Input” and
“With Static Signal” on the Connection/
Power menu (page 22).
Others
g Infrared transmitter
ECO Mode
:Sel
High
Auto Power Saving
RETURN
:Back
Location and Function of Controls
About remote commander operation
• Direct the remote commander toward the
remote control detector.
• The shorter the distance between the
remote commander and the projector is,
the wider the angle within which the
remote commander can control the
projector becomes.
• Make sure that nothing obstructs the
infrared beam between the remote
commander and the remote control
detector on the projector.
B Preparation
Connecting the Projector
Notes
• Make sure all the equipment is powered off when connecting the projector.
• Use the proper cables for each connection.
• Insert the cable plugs firmly; Loose connections may reduce performance of picture signals or
cause a malfunction. When pulling out a cable, be sure to grip it by the plug, not the cable itself.
• For more information, refer also to the instruction manuals of the equipment you are connecting.
• Use a no-resistance audio cable.
Preparation
Connecting a Computer
Connection with a computer is explained for each input signal.
INPUT A
For connecting a computer with an RGB output connector.
Mini D-sub 15-pin cable (supplied)
RGB output
connector
Computer
Audio output
connector
Audio cable (Stereo mini plug)
(not supplied)
INPUT B
For connecting a computer with an HDMI output connector.
HDMI output
connector
HDMI cable
(not supplied)
Computer
Notes
• Use HDMI-compatible equipment and cable(s) that have an HDMI logo on them.
• The HDMI connector of this projector is not compatible with DSD (Direct Stream Digital) Signal
or CEC (Consumer Electronics Control) Signal.
• It is recommended that you set the resolution of your computer to 1024 × 768 pixels (VPL-DX140/
DX120/DX100) or 1280 × 800 pixels (VPL-DW120) for the external monitor.
Connecting the Projector
7
Connecting a Video equipment
Connections with a DVD player or BD player are explained for each input signal.
VIDEO
For connecting video equipment with a video output connector.
Video cable (not supplied)
Video output
connector
Video equipment
Audio output
connector
Audio cable (Phono plug × 2 – stereo mini plug) (not supplied)
INPUT A
For connecting video equipment with a YPBPR output connector.
Component – Mini D-sub 15-pin cable (not supplied)
YPBPR output
connector
Video equipment
Audio output
connector
Audio cable (Phono plug × 2 – stereo mini plug) (not supplied)
INPUT B
For connecting video equipment with an HDMI output connector.
HDMI output
connector
HDMI cable
(not supplied)
Video equipment
Notes
• Use HDMI-compatible equipment and cable(s) that have an HDMI logo on them.
• The HDMI connector of this projector is not compatible with DSD (Direct Stream Digital) Signal
or CEC (Consumer Electronics Control) Signal.
8
Connecting the Projector
B Projecting/Adjusting an Image
Projecting an Image
The size of a projected image depends on the distance between the projector and screen. Install
the projector so that the projected image fits the screen size. For details on projection distances
and projected image sizes, see “Projection Distance” (page 37).
Input
Video
Input-A
Input-B
Sel
5
3
Projecting/Adjusting an Image
4
2
Video equipment
Projector
1
6
Wall outlet
Computer
1
Plug the AC power cord into the wall
outlet.
2
Connect all equipment to the projector
(page 7).
3
Press the ?/1 key to turn on the unit.
4
Turn on the connected equipment.
5
Select the input source.
6
When projecting a computer image,
switch your computer’s output to
external display.
The method to switch the output varies
depending on the type of computer.
(Example)
+
Press the INPUT key on the projector to
display the menu for switching input
signal on the screen. Press the INPUT
key repeatedly, or press the V/v key to
select an image to be projected.
7
Adjust the focus, size and position of
the projected image (page 10).
Projecting an Image
9
Adjusting the Projected image
Focus
Size (Zoom)
Position
Zoom ring
Foot adjust
button
Front foot
(adjustable)
Focus ring
Rear feet
(adjustable)
Displaying a pattern for adjusting an image
You can display a pattern for adjusting the projected image with the PATTERN key on the
remote commander. Press the PATTERN key again to restore the previous image.
10
Projecting an Image
Adjusting the tilt of the projector with the foot adjust button/rear feet
(adjustable)
By changing the tilt of the projector with the foot adjust button/rear feet (adjustable), you can
adjust the position of the projected image.
1 Press and hold the foot adjust button,
then lift up the front of the projector to
adjust the angle.
Projecting/Adjusting an Image
2 When the desired angle is achieved,
release the foot adjust button to lock the
position.
3 Set the angle of the projector precisely
by turning the rear feet (adjustable).
Notes
• Be careful not to let the projector down on your fingers.
• Do not push hard on the top of the projector with the front foot (adjustable) extended.
• Do not forcedly turn the rear feet (adjustable) more than they should be adjusted. Doing so may
break them.
Changing the aspect ratio of the projected image
Press the ASPECT key on the remote commander to change the aspect ratio of the projected
image. You can also change the setting in Aspect of the Screen menu (pages 16, 18).
Projecting an Image
11
Correcting trapezoidal distortion of the projected image (Keystone feature) *1
Keystone feature*2 may not work automatically when the screen is tilted. In this case, set
keystone manually.
1 Press the KEYSTONE key on the remote
commander or select V Keystone in the
Installation menu.
2 Use the V/v/B/b the keys to set the value.
The higher the value, the narrower the top
of the projected image. The lower the
value, the narrower the bottom.
Increase the number
towards plus
Notes
*1: Since the Keystone adjustment is an
electronic correction, the image may be
deteriorated.
*2: VPL-DX140/DX120/DW120 only.
Increase the number
towards minus
Automatically adjusts Phase, Pitch and Shift of projected image while a
signal is input from a computer (APA (Auto Pixel Alignment))
Press the APA key on the remote commander. Press again to cancel adjusting during the setting.
You can also set APA in the Screen Menu (page 17). If Smart APA in the Function menu is set
to “On”, executes APA automatically when a signal is input (page 20).
12
Projecting an Image
Turning Off the Power
1
Press the ?/1 key on the unit or the remote commander.
The projector starts shutdown and turns off. If you press the ?/1 key within 10 seconds of
the message being displayed, shutdown is canceled.
2
Unplug the AC power cord from the wall outlet.
To turn off without displaying confirmation message
Press and hold the ?/1 key on the unit for a few seconds (page 26).
ECO gauge
Projecting/Adjusting an Image
This gauge indicates the current effectiveness of the projector’s ECO function.
(For details on the ECO function, see “ECO MODE key” (page 6) and “ECO” (page 22).)
The leaf icons are displayed when the projector is shut down. The number of displayed icons
varies according to how much energy is saved as a result of using the ECO function.
ECO gauge
Projecting an Image
13
B Adjustments and Settings Using a Menu
Using a MENU
Note
The menu displays used for the explanation below may be different depending on the model you are
using.
1
Press the MENU key to display the
menu.
2
Select the setting menu.
Use the V/v key to select the setting
operations in step 3 and then press the
ENTER key to register the setting.
To return to the selection screen of the
setting items, press the B or RETURN
key. As an aid to setting or adjusting
items, you can press the RESET key to
return an item to its factory setting.
menu then press the b key or ENTER
key.
Using a pop-up menu
Press the V/v/B/b key to select an item.
A selected item takes effect
immediately, except “Language”, which
will take effect after you press the
ENTER key.
Setting menu
Picture Mode
Reset
Contrast
Brightness
Color
Hue
Color Temp.
Sharpness
Expert Setting
:Sel
3
Standard
Low
30
:Set
Picture Mode
Dynamic
Standard
Presentation
Blackboard
Game
Cinema
:Back
Select the setting item.
Use the V/v key to select the setting
:Sel
menu then press the b key or ENTER
key.
To return to the selection screen of the
setting menu, press the B or RETURN
key.
Using the setting menu
Press the V/v key to select the item.
A selected item takes effect
immediately. The previous screen is
restored.
Using the adjustment menu
To increase the value, press the V/b key
and to decrease the number, press the
v/B key. If you press the ENTER key,
the selected item takes effect
immediately. The previous screen is
restored.
Setting items
Picture Mode
Reset
Contrast
Brightness
Color
Hue
Color Temp.
Sharpness
Expert Setting
RETURN :Back
Standard
80
50
50
50
Low
30
Contrast
:Sel
4
:Set
:Back
Adjust
Make the setting or adjustment for the
selected item.
The setting method varies, depending on
the setting item.
If the next menu window is displayed,
select the item according to the
14
Using a MENU
5
Back
Press the MENU key to clear the
menu.
The menu disappears automatically if no
operation is performed.
The Picture Menu
The Picture is used to adjust the picture for each input signal.
Item descriptions
Picture Mode
Dynamic: Emphasizes the contrast to produce a dynamic and vivid picture.
Standard: Provides an image which is natural and well balanced.
Presentation*1: Provides a bright image, suitable for presentations.
Blackboard: Provides an image suitable for displaying on a blackboard.
Game: Provides an image suitable for viewing games.
Cinema: Provides an image suitable for viewing movies.
Reset*2
Resets to the factory setting.
Contrast
The higher the value, the greater the contrast. The lower the value, the lower
the contrast.
Brightness
The higher the value, the brighter the picture. The lower the value, the darker
the picture.
Color*3 *4
The higher the value, the greater the intensity. The lower the value, the lower
the intensity.
Hue*3 *4 *5
The higher the value, the more greenish the picture becomes. The lower the
value, the more reddish the picture becomes.
Color Temp.*6
High/Middle/Low: The higher the value, the more bluish the picture
becomes. The lower the value, the more reddish the picture becomes.
Sharpness
The higher the value, the sharper the picture becomes. The lower the value, the
softer the picture becomes.
Expert Setting
Gamma
Mode*1 *7
Graphics 1: Gamma correction to make halftones brighter. This setting is
suitable when projecting highly colorful images, such as photos, in a bright
place.
Graphics 2: Gamma correction to improve the reproduction of halftones.
Highly colorful images, such as photos, can be reproduced in natural tones.
Text: Improves back and white contrast. Suitable for images with lots of text
content.
Notes
Adjustments and Settings Using a Menu
Items
*1:
*2:
*3:
*4:
*5:
*6:
When a computer signal is input, this option is available.
The settings in the Picture return to their factory defaults, except for Picture Mode.
When a video signal is input, this option is available.
When the signal without color burst signal is input, this option is unavailable.
When an analog TV signal is input, this option may not available, depending on the color system.
When “Picture Mode” is set to the item other than “Presentation” or “Blackboard,” this option
is available.
*7: When “Picture Mode” is set to “Blackboard,” this option is unavailable.
The Picture Menu
15
The Screen Menu
The Screen menu is used to adjust the size, position and aspect ratio of the projected image for
each input signal.
Items
Item descriptions
*1
Changes the aspect ratio of the projected image (page 18).
VPL-DX140/DX120/
DX100: When the
computer signal is
input
4:3: Displays the image to fit the maximum projected image size
with an aspect ratio fixed to 4:3.
16:9: Displays the image to fit the maximum projected image size
with an aspect ratio fixed to 16:9.
Full 1: Displays the image to fit the maximum projected image
size without changing the aspect ratio of the input signal.
Normal: Displays the image on the center position of the
projected image without changing the resolution of the input
signal or enlarging the image.
VPL-DX140/DX120/
DX100: When the
video signal is input
4:3: Displays the image to fit the maximum projected image size
with an aspect ratio fixed to 4:3.
16:9: Displays the image to fit the maximum projected image size
with an aspect ratio fixed to 16:9.
Zoom: Zooms the center area of a projected image.
VPL-DW120: When
the computer signal is
input
4:3: Displays the image to fit the maximum projected image size
with an aspect ratio fixed to 4:3.
16:9: Displays the image to fit the maximum projected image size
with an aspect ratio fixed to 16:9.
Full 1: Displays the image to fit the maximum projected image
size without changing the aspect ratio of the input signal.
Full 2: Displays the image to fit the maximum projected image
size changing the aspect ratio of the input signal.
Full 3: Displays the image to fit the maximum width or height, up
to 1280 × 720 pixels, without changing the aspect ratio of the
input signal.
Normal: Displays the image on the center position of the
projected image without changing the resolution of the input
signal or enlarging the image.
VPL-DW120: When
the video signal is
input
4:3: Displays the image to fit the maximum projected image size
with an aspect ratio fixed to 4:3.
16:9: Displays the image to fit the maximum projected image size
with an aspect ratio fixed to 16:9.
Full: Displays the image to fit the maximum projected image size
changing the aspect ratio of the input signal.
Zoom: Zooms the center area of a projected image.
Aspect
16
The Screen Menu
Items
Item descriptions
Adjust Signal
Adjusts the image of a computer signal. Use this item if the edge
of the image is cut, or is not displayed properly.
APA*2 *3
Automatically adjusts the projected image to an optimum quality
when you press the ENTER key (page 5).
Phase*2
Adjusts the dot phase of the display pixel and the input signal. Set
to the value where looks clearest.
Pitch*2
The higher the value, the wider the horizontal image elements
(pitch). The lower the value, the narrower the horizontal image
elements (pitch).
Shift*2
H (Horizontal): The higher the value, the farther right the image
is projected on the screen. The lower the value, the image farther
left.
V (Vertical): The higher the value, the farther up the image is
projected on the screen. The lower the value, the image farther
down.
Notes
The Screen Menu
Adjustments and Settings Using a Menu
*1: • Note that if the projector is used for profit or for public viewing, modifying the original picture
by switching to the aspect mode may constitute an infringement of the rights of authors or
producers, which are legally protected.
• Depending on the input signal, setting items for aspect ratio or some other setting items cannot
be set in some cases, or changing the aspect ratio setting may have no effect.
• A part of the image may be displayed in black, depending on the setting item.
*2: Available when a computer signal is input from the RGB input connector (INPUT A).
*3: If the projected image includes large amount of black portion around it, the APA function will
not work properly and a part of the image may not be displayed on the screen and also optimum
image cannot be obtained, depending on the type of input signal. In this case, adjust the “Phase,”
“Pitch,” and “Shift” items manually.
17
Aspect
Video signal
Computer signal
VPL-DX140/DX120/DX100
18
Input signal
Recommended
setting value and
projected image
4:3
Full1*1
16:9
Full1*1 *2
16:10
Full1*1 *2
4:3
4:3*3
*1: If you select “Normal,” the image is
projected in the same resolution as the
input signal without changing the aspect
ratio of the original image.
*2: If you select “4:3,” the image is projected
to fit the projected image size, regardless
of the aspect ratio of the image.
*3: Depending on the input signal, the
projected image may be projected as
illustrated below. In this case, select
“16:9.”
*4: Depending on the input signal, the
projected image may be projected as
illustrated below. In this case, select
“Zoom.”
16:9
The Screen Menu
16:9*4
Input signal
Recommended
setting value and
projected image
4:3
Full1*1 *2 *3
16:9
Full1*1 *2 *3
16:10
Full1*3
4:3
4:3*4 *5
*1: If you select “Normal,” the image is
projected in the same resolution as the
input signal without changing the aspect
ratio of the original image.
*2: If you select “Full2,” the image is projected
to fit the projected image size, regardless
of the aspect ratio of the image.
*3: If you adjust the projected image position
using an image with 16:9 aspect ratio and
then switch the input source to 4:3 image,
the top and bottom edge of the image may
be hidden. In this case, select “Full3.”
*4: Depending on the input signal, the
projected image may be projected as
illustrated below. In this case, select
“16:9.”
16:9
16:9
*5: Depending on the input signal, the image
may be projected as illustrated below. In
this case, select “Zoom.”
The Screen Menu
Adjustments and Settings Using a Menu
Video signal
Computer signal
VPL-DW120
19
The Function Menu
The Function menu is used for setting various functions of the projector.
Items
Item descriptions
Volume
The higher the value, the louder an audio volume and the lower the
value, the lower the audio volume.
Smart APA
On/Off: When set to “On,” APA functions automatically when a
signal is input.*1
CC Display
Off: Closed caption does not appear.
CC1/CC2/CC3/CC4/Text1/Text2/Text3/Text4: Select the closed
caption service (captions or text).
Lamp Timer Reset
When replacing the lamp, resets the lamp timer (page 29).
Note
*1: APA functions when a computer signal is input via the RGB input connector (INPUT A).
20
The Function Menu
The Operation Menu
The Operation menu is used for setting for the operations by using the menu or the remote
commander.
Item descriptions
Language
Selects the language used in the menu and messages.
Status
On: All on-screen statuses are enabled.
Off: Turns off the on-screen displays, except for menus, warning messages
and messages from the message list.
Security Lock*1
On/Off: This function enables restriction of the projector to authorized users
by password. The setting procedures for security locking are as follows:
1 Select “On” and press the ENTER key to display the setting menu.
2 Input the password with the MENU, V/v/B/b and ENTER keys. (The
default setting password is “ENTER, ENTER, ENTER, ENTER.”)
3 Input a new password with the MENU, V/v/B/b and ENTER keys.
4 Enter the password again to confirm.
Enter the password when you turn on the projector after disconnecting and
reconnecting the AC power cord.
When it is set to “Off,” you can cancel the security lock. You are required to
input the password again.
If you fail to enter the correct password after three consecutive times, the
projector cannot be used. In this case, press the ?/1 key to go Standby mode
then turn on the power again.
Control Key
Lock
On/Off: When set to “On,” locks all the control panel keys of the projector.
However, you can operate the following when set to “On”:
• Press and hold the ?/1 key for approximately 10 seconds during Standby
mode.
c The projector turns on.
• Press and hold the MENU key for approximately 10 seconds during power
on.
c “Control Key Lock” is set to “Off” and enables operation of all keys on
the projector.
Note
*1: You will not be able to use the projector if you forget your password. If you call qualified Sony
personnel because you have forgotten the password, you will be asked to verify the projector’s
serial number and your identity. (This process may differ in other countries/regions.) Once your
identity has been confirmed, we will provide you with the password.
The Operation Menu
Adjustments and Settings Using a Menu
Items
21
The Connection/Power Menu
The Connection/Power menu is used for setting for the connections and power.
Items
Item descriptions
Input-A Signal
Sel.*1
Auto/Computer/Video GBR/Component: When set to “Auto,” selects
the type of video signal input automatically when “Input-A” is selected.
ECO
Lamp Mode
High/Standard/Low/Auto*5: When set to “High,” the image becomes
brighter, and power consumption becomes higher. When set to “Low,”
power consumption is minimized; however, the image will be darker.
When set to “Auto,” brightness is adjusted automatically according to
image content. Dark images are projected with brightness adjusted,
leading to energy-saving. Bright images are projected brightly, without
adjusting brightness.
Auto Power Saving
With No Input
Lamp Cutoff: The lamp turns off automatically and power
consumption is reduced if no signal is input for more than 10 minutes.
The lamp lights again when a signal is input or any key is pressed. In
Lamp Cutoff, the ON/STANDBY indicator lights in orange. (page 25)
Standby*2: If no signal is input to the unit for more than 10 minutes,
the power turns off automatically, and the unit enters standby mode.
Off: You can deactivate the With No Input.
With Static
Signal
Lamp Dimming*4*5: If an image does not change for about
10 seconds, lamp output is gradually reduced (approximately 10% to
15%*3) from that set in the Lamp Mode. Automatically the lamp slowly
darkens to approximately 30% of its lamp output according to the
selected time (with no change to input signal) “5,” “10,” “15,” “20”
minutes or “Demo.,” While dimming the lamp, the message “Lamp
Dimming” appears. If you select “Demo.,” the image will start to
darken about 40 seconds later. When any change in signal is detected,
or an operation (remote control or control panel) is performed, normal
brightness is restored.
Off: You can deactivate the With Static Signal.
Direct Power On
On/Off: When set to “On,” you can turn the power on without going to
Standby mode when the AC power cord is connected to a wall outlet.
With the projector turned off, you can also unplug the AC power cord
without going to Standby mode, regardless of the Direct Power On
setting.
Notes
*1: This may not be optimum depending on the input signal. In this case, set manually according to
the connected equipment.
*2: Select “Off” to avoid entering standby mode when there is no input signal.
*3: This varies depending on the “Lamp Mode” setting.
*4: As the lamp is dimmed gradually, you may not notice any change in brightness. You might only
notice that the lamp has dimmed when its brightness is restored after there is a change in input
signal.
*5: This mode does not work for about three minutes after the lamp lights. A change in signal may
not be detected depending on the input image. The lamp may become brighter at intervals if you
continue to use the projector during lamp dimming. However, this is not a malfunction. If With
No Input is set, it takes priority.
22
The Connection/Power Menu
The Installation Menu
The Installation menu is used for installing the projector.
Items
Item descriptions
Image Flip
HV/H/V/Off: Flips the projected image horizontally or vertically
according to the installation method.
Installation Attitude
Right Side Up/Upside Down/Link to Image Flip: Change the cooling
setting to suit to the installation attitude. When set to “Link to Image Flip,”
the cooling setting changes based on the setting of “Image Flip.”
Continuing to use the wrong setting may affect component reliability.
High Altitude
Mode*1
On/Off: Set to “On” when using the projector at an altitude of 1,500 m or
higher. Continuing to use the wrong setting may affect component
reliability.
V keystone*2
Auto*3/Manual*2: The higher the value, the narrower the top of the
projected image. The lower the value, the narrower the bottom.
Notes
The Installation Menu
Adjustments and Settings Using a Menu
*1: When “High Altitude Mode” is set to “On,” the speed of the fan increases, and the fan noise
becomes slightly louder.
*2: Since the Keystone adjustment is an electronic correction, the image may be deteriorated.
*3: VPL-DX140/DX120/DW120 only.
23
The Information Menu
The Information menu is used to check projector status, such as total usage time of the lamp.
Items
Item descriptions
Model Name
Displays the model name.
Serial No.
Displays the serial number.
fH/fV
*1
Displays the horizontal/vertical frequency of the current input signal.
Signal Type
Displays the type of the current input signal.
Lamp Timer
Indicates the total usage time of a lamp.
Note
*1: These items may not be displayed depending on the input signal.
24
The Information Menu
B Others
Indicators
The indicators allow checking the status and notify you of abnormal operation of the projector.
If the projector exhibits abnormal status, address the problem in accordance with the table
below.
ON/STANDBY indicator
Status
Meaning/Remedies
Lights in red
The projector is in Standby mode.
Flashes in green
• The projector is ready to operate after having been turned on.
• The lamp cools after the projector is turned off.
Lights in green
The projector’s power is on.
Lights in orange
The projector is in With No Input (Lamp Cutoff). (page 22)
Flashes in red
The projector is in abnormal status. Symptoms are indicated by
number of flashes. Address the problem in accordance with the
following. If a symptom persists, despite having taken measures
below, consult with qualified Sony personnel.
Flashes twice
The internal temperature is unusually high. Check the items below.
• Check if nothing is blocking the ventilation holes. (pages 3, 3)
• Check if the air filter is not clogged. (page 31)
• Check if the Installation Attitude in the Installation menu is set
correctly. (page 23)
Flashes six times
Unplug the AC power cord from a wall outlet. After checking that the
ON/STANDBY indicator goes out, plug the power cord to a wall
outlet again then turn on the projector.
Other number of
flashes
Consult with qualified Sony personnel.
LAMP/COVER indicator
Meaning/Remedies
Flashes in red
Symptoms are indicated by number of flashes. Address the problem in
accordance with the following.
Flashes twice
Others
Status
The lamp cover is not attached securely. (page 29)
Flashes three times The temperature of lamp is unusually high. Turn off the power and
wait for lamp to cool then turn on the power again. If the symptom is
shown again, the lamp may be burnt out. In this case, replace the lamp
with a new one (page 29).
Indicators
25
Messages List
When any of the messages listed below appears on the projected image, address the problem in
accordance with the table below.
Messages
Meaning/Remedy
High temp.! Lamp off in Check the items below.
1 min.
• Check if nothing is blocking the ventilation holes.
• Check if the air filter is not clogged.
• Check if the Installation Attitude in the Installation menu is
set correctly.
3, 3,
23, 31
Frequency is out of
range!
Change the output setting of the connected equipment to one
for signals supported by the projector.
36
Please check Input-A
Signal Sel.
Set “Input-A Signal Sel.” to “Auto” or select the input signal
type to suit to the input signal.
22
Please clean the filter.
Clean the air filter.
31
Please replace the Lamp Replace the lamp with a new one and clean the air filter. The
and clean the Filter.
message appears whenever you turn on the power until you
replace the lamp and reset the lamp timer.
26
Page
29, 31
Not applicable!
Invalid key was pressed.
–
The control keys are
locked!
“Control Key Lock” is set to “On.”
21
Projector will shutdown The ?/1 key was pressed and the projector will be shut down
soon. To cancel shutdown, press the ?/1 key again (the
soon
Press ?/1 Key to Restart projector will remain on). To turn off the projector directly,
press and hold the ?/1 key for a few seconds.
13
Lamp Dimming
22
Messages List
Reduces lamp output when “With Static Signal” is set. When
any change in signal is detected, or an operation (remote
control or control panel) is performed, normal brightness is
restored.
Troubleshooting
Before asking to have the projector repaired, try to diagnose the problem, following the
instructions below.
Remedy
The power is not turned
on.
Check if the AC power cord is firmly connected.
–
When the “Control Key Lock” is set to “On,” you cannot turn
on the projector using the ?/1 key on the projector.
21
If the lamp or lamp cover is not attached securely, the projector
cannot be turned on.
29
Check if the connecting cable is connected to external
equipment firmly.
7
Check the computer signal is set for output to an external
monitor only. If you set your computer to output to both the
computer’s display and an external monitor, the external
monitor image may not be displayed properly. Set your
computer to output to only an external monitor.
9
Check if the input source is correctly selected.
9
Check if the picture is muted.
6
On-screen display does
not appear.
The on-screen display does not appear when “Status” in the
Operation menu is set to “Off.”
21
The aspect ratio of the
display is not right/the
image is displayed
smaller /a portion of
image does not appear.
The image may not display correctly because the input signal 5, 16,
cannot be judged correctly. In this case, set “Aspect” manually. 18
The image is a
trapezoid.
The images become trapezoidal because of the projection
angle. In this case, you can correct the trapezoidal distortion,
using a Keystone feature.
5, 12,
23
When the “V Keystone” is set to “Manual,” the keystone
feature does not work automatically. Set “V Keystone” to
“Auto”*1 or “Manual” to set manually.
5, 12,
23
When the projector is installed on an uneven surface, the
keystone feature*1 may not work properly. In this case, select
“Manual” to set “V Keystone” manually.
5, 12,
23
No image.
Page
Troubleshooting
Others
Symptoms
27
Symptoms
Remedy
Page
The image is dark/too
bright.
The settings for “Brightness,” “Contrast,” and “Lamp Mode”
affect brightness of the image. Check if the value is
appropriate.
15, 22
The image will be dark when the lamp is burnt out. Check
“Lamp Timer,” and replace the lamp with a new one if
necessary.
24, 29
The image becomes
darker or brighter.
The image is not clear.
“With Static Signal” is set to “On.”
22
During picture muting, the lamp is dimmed to reduce power
consumption.
22
When video signal is not input, the lamp is dimmed to reduce
power consumption.
–
When the lamp is dimmed for a long time, brightness may
increase temporarily, but this is not malfunction.
–
When the “Lamp Mode” is set to “Auto,” the luminance of the
lamp changes according to the input image.
22
Check if the projector is in focus.
10
The picture will not be clear if condensation has accumulated
on the lens. In this case, let the projector sit for about two
hours with the power on.
–
The image is noisy.
Check if the connecting cable is connected to the external
equipment properly.
7
No sound.
Check that the connecting cables between the projector and
external video or audio equipment are securely connected.
7
Check if the external audio equipment is set properly.
–
Audio is not output if audio muting is activated.
6
Check if the volume is not set to minimum.
6, 20
The remote commander
does not work.
Check if the batteries are installed correctly.
–
Check if the batteries are not exhausted.
–
The fan is noisy.
The sound from the fan is often greater than normal to cool the 22, 23
lamp, etc. in the following cases.
• “Lamp Mode” is set to “High.”
• The unit is used at a high altitude. “High Altitude Mode” is
set to “On.”
• The unit is used in the location where the temperature is high.
If the ventilation holes are blocked, the internal temperature of
the projector rises and the fan noise becomes larger.
Note
*1: VPL-DX140/DX120/DW120 only.
28
Troubleshooting
3, 3
Replacing the Lamp
Replace the lamp with a new one if a message displayed on the projected image (page 26).
Use an LMP-D213 projector lamp (not supplied) for replacement.
Caution
• The lamp remains hot after the projector is
turned off. If you touch the lamp, you may
burn your finger. When you replace the
lamp, wait for at least an hour after
turning off the projector for the lamp to
cool sufficiently.
• Do not allow any metallic or inflammable
objects into the lamp replacement slot after
removing the lamp, otherwise it may cause
electrical shock or fire. Do not put your
hands into the slot.
1
Turn off the projector, and disconnect
the AC power cord from a wall outlet.
2
When the lamp has cooled
sufficiently, open the lamp cover by
loosening one screw.
Notes
• If the lamp breaks, contact qualified
Sony personnel. Do not replace the lamp
yourself.
• When removing the lamp, be sure to pull it
out straight, by holding the designated
location. If you touch a part of the lamp other
than the designated location, you may be
burned or injured. If you pull out the lamp
while the projector is tilted, the pieces may
scatter if the lamp breaks any may cause
injury.
Note
For safety reasons, do not loosen any other
screws.
3
Others
Loosen the two screws on the lamp
unit (1). Fold out the handle (2),
then pull out the lamp unit by the
handle (3).
Fold out the handle.
3
1
2
1
Replacing the Lamp
29
Caution
Do not put your hands into the lamp
replacement slot, and do not allow any
liquid or other objects into the slot to avoid
electrical shock or fire.
4
Insert the new lamp all the way in until
it is securely in place (1). Tighten the
two screws (2). Fold down the handle
to replace it (3).
6
Connect the AC power cord to a wall
outlet and turn on the projector.
7
Reset the lamp timer for notification of
the next replacement time.
Select “Lamp Timer Reset” on the
Function menu then press the ENTER
key. When a message appears, select
“Yes” to reset the lamp timer (page 20).
Caution
Fold down the handle.
1
3
2
2
Notes
• Be careful not to touch the glass surface
of the lamp and a inside conductor.
• Insert the handle firmly to attach it
securely.
• The power will not turn on if the lamp is
not secured properly.
5
30
Close the lamp cover and tighten the
1 screw.
Replacing the Lamp
Disposal of the used lamp
For the customers in the USA
Lamp in this product contains mercury.
Disposal of these materials may be
regulated due to environmental
considerations. For disposal or
recycling information, please contact
your local authorities or the
Telecommunications Industry
Association (www.eiae.org).
Cleaning the Air Filter
When a message appears on the projected image indicating time for a filter cleaning, clean the
air filter (page 26).
If the dust cannot be removed from the air filter even after cleaning, replace the air filter with
a new one. For details on purchasing/fitting a new air filter, consult with the store where you
purchased the projector, or contact qualified Sony personnel.
Caution
If you neglect to clean the air filter, dust may accumulate, clogging it. As a result, the
temperature may rise inside the unit, leading to a possible malfunction or fire.
1
Turn off the projector, and disconnect
the AC power cord from the AC outlet.
2
Slide out and remove the air filter
cover from the unit.
3
Clean the air filter with a vacuum
cleaner.
Pull out and remove the air filter, and
clean it with a vacuum cleaner.
Claws
Air filter
Air filter cover
4
Reattach the air filter cover to the unit.
Cleaning the Air Filter
Others
Note
Install the air filter with its open weave side
facing the bottom of the unit, then place the
air filter cover back in the unit.
31
Specifications
Items
Descriptions
Model
VPL-DX140/DX120/DX100/VPL-DW120
Projection system
Display device
Projection lens
3 LCD system
Effective display
size
VPL-DX140/DX120/DX100: 0.63 inch (16.0 mm),
3 plate panels, Aspect ratio 4:3
VPL-DW120: 0.59 inch (15.0 mm), 3 plate panels,
Aspect ratio 16:10
Effective picture
elements
VPL-DX140/DX120/DX100: 2,359,296 pixels (1024 ×
768 pixels, 3 plate panels)
VPL-DW120: 3,072,000 pixels (1280 × 800 pixels,
3 plate panels)
Zoom
Manual zoom:
VPL-DX140/VPL-DW120: approx.1.3 times
VPL-DX120/DX100: approx.1.2 times
Focus
Manual
Light source
High-pressure mercury lamp, 210 W type
Projected image
size
30 inches to 300 inches (0.76 m to 7.62 m)
Luminous flux
(Brightness)
VPL-DX140: 3200 lm
VPL-DX120/VPL-DW120: 2600 lm
VPL-DX100: 2300 lm
(when “Lamp Mode” is set to “High”)
Speaker
1 W × 1 (monaural)
Applicable
scanning
frequency*1
Horizontal: 15 kHz to 92 kHz, Vertical: 48 Hz to 92 Hz
Resolution*1
When a computer Maximum display resolution: 1600 × 1200 pixels (resize)
signal is input
Panel display resolution:
VPL-DX140/DX120/DX100: 1024 × 768 pixels
VPL-DW120: 1280 × 800 pixels
When a video
signal is input
Color system
32
Specifications
NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p,
576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i,
1080/60p, 1080/50p
NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N
Items
Descriptions
Model
INPUT OUTPUT
(Computer/video)
VPL-DX140/DX120/DX100/VPL-DW120
INPUT A
RGB/YPBPR input connector: Mini D-sub 15 pin
female, G with sync/Y: 1 Vp-p ± 2 dB, sync negative,
75 ohms terminated, RGB/PBPR: 0.7 Vp-p ± 2 dB,
75 ohms terminated, Sync signal: TTL level high
impedance, positive/negative
Audio input connector: Stereo mini jack, rated input
500 mVrms, input impedance more than 47 kohms
INPUT B
HDMI input connector: HDMI 19-pin, HDCP, HDMI
audio support
VIDEO
Video input connector: Pin jack, 1 Vp-p ± 2 dB, sync
negative, 75 ohmes terminated
Audio input connector: Shared with INPUT A
0 °C to 35 °C (32 °F to 95 °F)/20% ~ 80% (no
condensation)
Storage
temperature/
Storage humidity
–10 °C to +60 °C (14 °F to 140 °F)/20% to 80% (no
condensation)
Power
requirements
100V to 240V AC, 2.9 - 1.2 A, 50/60Hz
Power
consumption
100V to 120V AC: 290W
220V to 240V AC: 275W
Standby power
0.5 W
Heat dissipation
100V AC: 936BTU
240V AC: 955BTU
Standard
dimensions
(W/H/D)
Approx. 315 × 87.2 × 233 mm (12 13/32 × 3 7/16 × 9 3/16
inches)
Approx. 315 × 75 × 230.5 mm (12 13/32 × 2 15/16 ×
9 1/16 inches) (without projecting parts)
Mass
Approx. 2.5 kg (5 lb 7 oz)
Supplied
accessories
See “Checking the Supplied Accessories” in the supplied
Quick Reference Manual.
Optional
accessories*2 *3
Projector Lamp LMP-D213 (for replacement)
Others
Operating
temperature/
Operating
humidity
Notes
*1: For details, refer to “Acceptable Input Signals*1” on page 36.
*2: Information on accessories in this manual is current as of June 2012.
*3: Not all optional accessories are available in all countries and area. Please check with your local
Sony Authorized Dealer.
Specifications
33
Design and specifications of the unit, including the optional accessories, are subject to change
without notice.
Always verify that the unit is operating properly before use. SONY WILL NOT BE LIABLE
FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO,
COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT
OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT, EITHER DURING
THE WARRANTY PERIOD OR AFTER EXPIRATION OF THE WARRANTY, OR FOR
ANY OTHER REASON WHATSOEVER.
34
Specifications
Pin assignment
HDMI connector (HDMI, female)
19
1
18
RGB input connector (Mini D-sub
15-pin, female)
2
1
T.M.D.S.
Data2+
11
T.M.D.S.
Clock Shield
2
T.M.D.S.
Data2 Shield
12
T.M.D.S.
Clock –
3
T.M.D.S.
Data2 –
13
N.C.
4
T.M.D.S.
Data1+
14
RESERVED
(N.C.)
5
T.M.D.S.
Data1 Shield
15
SCL
1
Video input
(red) R
9
Power supply
input for DDC
2
Video input
(green) G
10
GND
3
Video input
(blue) B
11
GND
4
GND
12
DDC/SDA
RESERVE
13
Horizontal sync
signal
6
T.M.D.S.
Data1 –
16
SDA
5
7
T.M.D.S.
Data0+
17
DDC
GND
6
GND (R)
14
Vertical sync
signal
8
T.M.D.S.
Data0 Shield
18
+5V Power
7
GND (G)
15
DDC/SCL
8
GND (B)
9
T.M.D.S.
Data0 –
19
Hot Plug
Detect
10
T.M.D.S.
Clock+
Others
Specifications
35
Acceptable Input Signals*1
Resolution
Computer signal
Resolution
fH[kHz]/
640 × 350
fV[Hz]
RGB/
YPBPR
31.5/70
z
37.9/85
z
31.5/70
z
37.9/85
z
31.5/60
z
35.0/67
HDMI
1280 × 800
Input connector
fV[Hz]
RGB/
YPBPR
HDMI
49.7/60
z
z
Digital TV signal*4
Input connector
Signal
fV[Hz]
RGB/
YPBPR
HDMI
480i
60
z
z
576i
50
z
z
z
480p
60
z
z
37.9/73
z
576p
50
z
z
37.5/75
z
1080i
60
z
z
43.3/85
z
1080i
50
z
z
35.2/56
z
720p
60
z
z
37.9/60
z
720p
50
z
z
48.1/72
z
1080p
60
z
46.9/75
z
1080p
50
z
53.7/85
z
832 × 624
49.7/75
z
1024 × 768
48.4/60
z
56.5/70
z
60.0/75
z
68.7/85
z
64.0/70
z
67.5/75
z
Notes
77.5/85
z
1152 × 900
61.8/66
z
1280 × 960
60.0/60
z
z
1280 × 1024
64.0/60
z
z
80.0/75
z
91.1/85
z
1400 × 1050
65.3/60
z
z
1600 × 1200
75.0/60
z
z
1280 × 768
47.8/60
*1: • When a signal other than the signals listed
in table is input, the picture may not be
displayed properly.
• An input signal meant for screen
resolution different from that of the panel
will not be displayed in its original
resolution. Text and lines may be uneven.
*2: This is identified as a movie delivery signal
of 720/60p.
*3: This is identified as a movie delivery signal
of 1080/60p.
*4: Only G with sync/Y is supported.
1280 × 720
45.0/60
1920 × 1080
67.5/60
1366 × 768
47.7/60
z
z
1440 × 900
55.9/60
z
z
640 × 400
640 × 480
800 × 600
1152 × 864
36
Input connector
fH[kHz]/
Specifications
z
z
Analog TV signal
z
z
z
z*2
z*3
Input connector
Signal
fV[Hz]
NTSC
60
z
PAL/SECAM
50
z
VIDEO
Projection Distance
The projection distance is the distance between the front of the lens and the surface of the
projected image. The following describes the projection distance and height from the center of
the lens to edge of screen by each projected screen size. Height H is the height from the bottom
of the projected image (top for ceiling mount) to A (determined by drawing a perpendicular line
from the center of the lens to projected image surface).
Caution
Never mount the projector on the ceiling or move it by yourself. Be sure to consult with
qualified Sony personnel (charged).
Floor Installation
Projection distance L
Height H from
center of lens
to edge of
screen
Projected
Center of lens
A
Others
Projection Distance
37
Ceiling Installation
Height H from center of
lens to edge of screen
Center of lens
A
Top side
Projected
Projection distance L
L: Projection distance L
H: Height H from center of lens to edge of screen
38
Projection Distance
Projection distance table (VPL-DX140)
Unit: m (inches)
Height H from center of lens to edge
of screen
Projected image size
Projection
Distance L
Diagonal D
Width × Height
80 inch (2.03 m)
1.63 × 1.22
(64 × 48)
2.03 × 1.52
(80 × 60)
2.44 × 1.83
(96 × 72)
3.05 × 2.29
(120 × 90)
4.06 × 3.05
(160 × 120)
100 inch (2.54 m)
120 inch (3.05 m)
150 inch (3.81 m)
200 inch (5.08 m)
2.25-2.92 (89-115)
Minimum
Projection
Distance L
-0.20 (-8)
Maximum
Projection
Distance L
-0.20 (-8)
2.81-3.66 (111-144)
-0.25 (-10)
-0.25 (-10)
3.38-4.40 (133-173)
-0.30 (-12)
-0.30 (-12)
4.23-5.51 (167-217)
-0.38 (-15)
-0.38 (-15)
5.65-7.36 (223-289)
-0.51 (-20)
-0.51 (-20)
Projection distance formula (VPL-DX140)
D: Projected image size (Diagonal)
H: Height H from center of lens to edge of screen
Expression#1
Unit: m (inches)
Minimum Projection Distance L
Maximum Projection Distance L
L=0.028366 × D-0.0290
(L=1.116781 × D-1.1416)
L=0.036956 × D-0.0283
(L=1.454972 × D-1.1124)
Expression#2
Height H from center of lens to edge of screen
Maximum Projection Distance L
H=-0.00254 × D+0.00000
(H=-0.10000 × D+0.00000)
H=-0.00254 × D+0.00000
(H=-0.10000 × D+0.00000)
Projection Distance
Others
Minimum Projection Distance L
39
Projection distance table (VPL-DX120/DX100)
Unit: m (inches)
Height H from center of lens to edge
of screen
Projected image size
Projection
Distance L
Diagonal D
Width × Height
80 inch (2.03 m)
1.63 × 1.22
(64 × 48)
2.03 × 1.52
(80 × 60)
2.44 × 1.83
(96 × 72)
3.05 × 2.29
(120 × 90)
4.06 × 3.05
(160 × 120)
100 inch (2.54 m)
120 inch (3.05 m)
150 inch (3.81 m)
200 inch (5.08 m)
2.42-2.88 (95-113)
Minimum
Projection
Distance L
-0.20 (-8)
Maximum
Projection
Distance L
-0.20 (-8)
3.02-3.60 (119-141)
-0.25 (-10)
-0.25 (-10)
3.63-4.33 (143-170)
-0.30 (-12)
-0.30 (-12)
4.55-5.42 (179-213)
-0.38 (-15)
-0.38 (-15)
6.07-7.23 (239-284)
-0.51 (-20)
-0.51 (-20)
Projection distance formula (VPL-DX120/DX100)
D: Projected image size (Diagonal)
H: Height H from center of lens to edge of screen
Expression#1
Unit: m (inches)
Minimum Projection Distance L
Maximum Projection Distance L
L=0.030427 × D-0.0234
(L=1.197898 × D-0.9193)
L=0.036301 × D-0.0236
(L=1.429177 × D-0.9283)
Expression#2
Height H from center of lens to edge of screen
40
Minimum Projection Distance L
Maximum Projection Distance L
H=-0.00254 × D+0.00000
(H=-0.10000 × D+0.00000)
H=-0.00254 × D+0.00000
(H=-0.10000 × D+0.00000)
Projection Distance
Projection distance table (VPL-DW120)
Unit: m (inches)
Height H from center of lens to edge
of screen
Projected image size
Projection
Distance L
Diagonal D
Width × Height
80 inch (2.03 m)
1.72 × 1.08
(68 × 42)
2.15 × 1.35
(85 × 53)
2.58 × 1.62
(102 × 64)
3.23 × 2.02
(127 × 79)
4.31 × 2.69
(170 × 106)
100 inch (2.54 m)
120 inch (3.05 m)
150 inch (3.81 m)
200 inch (5.08 m)
2.36-3.05 (93-120)
Minimum
Projection
Distance L
-0.20 (-8)
Maximum
Projection
Distance L
-0.20 (-8)
2.95-3.82 (117-150)
-0.25 (-10)
-0.25 (-10)
3.55-4.59 (140-180)
-0.29 (-12)
-0.29 (-12)
4.44-5.75 (175-226)
-0.37 (-15)
-0.37 (-15)
5.93-7.67 (234-302)
-0.49 (-19)
-0.49 (-19)
Projection distance formula (VPL-DW120)
D: Projected image size (Diagonal)
H: Height H from center of lens to edge of screen
Expression#1
Unit: m (inches)
Minimum Projection Distance L
Maximum Projection Distance L
L=0.029757 × D-0.0291
(L=1.171525 × D-1.1450)
L=0.038536 × D-0.0282
(L=1.517164 × D-1.1091)
Expression#2
Height H from center of lens to edge of screen
Maximum Projection Distance L
H=-0.00246 × D+0.00000
(H=-0.09675 × D+0.00000)
H=-0.00246 × D+0.00000
(H=-0.09675 × D+0.00000)
Projection Distance
Others
Minimum Projection Distance L
41
Dimensions
315 (12 13/32)
VPL-DX120/DX100
Edge of lens
2.5 (3/32)
7.5 ± 1 (9/32)
11.9 ± 1 (15/32)
230.5 (9 1/16)
Top
VPL-DX140/DW120
Edge of lens
Unit: mm (inches)
Front
46.3 (1
26 (1 1/32)
66 (2 19/32)
78 (3 1/16)
87.2 (3 7/16)
75 (2 15/16)
33.3 (1 5/16)
81 (3 3/16)
13/16)
157.5 (6 3/16)
Unit: mm (inches)
42
Dimensions
Side
69 (2 23/32)
113 (4 7/16)
69 (2 23/32)
31 (1 7/32)
Unit: mm (inches)
16.8 (21/32)
164.4 (6 15/32)
157.5 (6 3/16)
48 (1 7/8)
Rear
28 (1 3/32)
252.5 (9 15/16)
Unit: mm (inches)
Others
Dimensions
43
Bottom
23.9 (15/16)
99.9 (3 15/16)
88.5 (3 15/32)
271 (10 21/32)
207.5 (8 5/32)
79.4 (3 1/8)
76.4 (3)
105.8 (4 5/32)
38.8 (1 17/32)
83.5 (3 9/32)
78.9 (3 3/32)
22 (7/8)
Unit: mm (inches)
44
Dimensions
Index
A
AC IN ........................................................4
Acceptable input signal ...........................36
Adjust Signal ...........................................17
Air filter ...................................................31
Air filter cover/Ventilation holes
(intake) ...............................................3
APA ...........................................................5
Aspect ............................................5, 16, 18
Audio muting .............................................6
B
Brightness ................................................15
C
CC Display ..............................................20
Color ........................................................15
Color Temp. .............................................15
Connecting a computer ..............................7
Connecting a Video equipment .................8
Connector panel .....................................3, 4
Contrast ...................................................15
Control Key Lock ....................................21
Control Panel Keys ....................................5
Correcting trapezoidal distortion of the
projected image
(Keystone feature) ........................5, 12
D
H
H (Horizontal) ......................................... 17
High Altitude Mode ................................ 23
Hue .......................................................... 15
I
Image Flip ............................................... 23
Information menu ................................... 24
Input .......................................................... 4
Installation menu .................................... 23
K
Keystone ................................................... 5
L
Lamp cover ............................................... 3
Lamp Timer ............................................ 24
Lamp Timer Reset ................................... 20
LAMP/COVER indicator .................... 3, 25
Language ................................................. 21
Link to Image Flip .................................. 23
Location and function of controls ............. 3
M
Main unit ................................................... 3
Messages list ........................................... 26
Model Name ........................................... 24
O
Operation menu ...................................... 21
Optional accessories ............................... 33
P
E
Phase, Pitch, Shift ................................... 17
Picture menu ........................................... 15
Picture mode ........................................... 15
Picture muting ........................................... 6
Pin assignment ........................................ 35
Projecting an image .................................. 9
Projection distance .................................. 37
ECO MODE (Energy-saving mode) .........6
F
fH .............................................................24
Focus .......................................................10
Focus ring ..................................................3
Foot adjust button ................................3, 11
Freeze ........................................................6
Front foot (adjustable) .........................3, 11
fV .............................................................24
G
Others
Digital Zoom .............................................5
R
Rear feet (adjustable) .......................... 3, 11
Remote commander .................................. 5
Remote control detector ............................ 3
Replacing the lamp ................................. 29
Reset ....................................................... 15
Gamma Mode ..........................................15
Index
45
S
About Trademarks
Security bar ............................................... 3
Security Lock ...................................... 3, 21
Selecting an input signal ........................... 5
Serial No. ................................................ 24
Sharpness ................................................ 15
Signal Type ............................................. 24
Smart APA .............................................. 20
Specifications .......................................... 32
Status ....................................................... 21
• Adobe and Adobe Acrobat are trademarks
or registered trademarks of Adobe
Systems Incorporated in the United States
and/or other countries.
• Kensington is a registered trademark of
Kensington Technology Group.
• The terms HDMI and HDMI HighDefinition Multimedia Interface, and the
HDMI Logo are trademarks or registered
trademarks of HDMI Licensing LLC in
the United States and other countries.
• All other trademarks and registered
trademarks are trademarks or registered
trademarks of their respective holders. In
this manual, ™ and ® marks are not
specified.
T
The Connection/Power Menu ................. 22
The Function menu ................................. 20
The Screen menu ..................................... 16
Troubleshooting ...................................... 27
Turn off ............................................... 5, 13
Turn on .................................................. 5, 9
U
Using a menu .......................................... 14
V
V Keystone .................................... 5, 12, 23
Ventilation holes ........................................ 3
Volume ...................................................... 6
W
With No Input ......................................... 22
With Static Signal ................................... 22
Z
Zoom ....................................................... 10
46
Index
Sony Corporation
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
