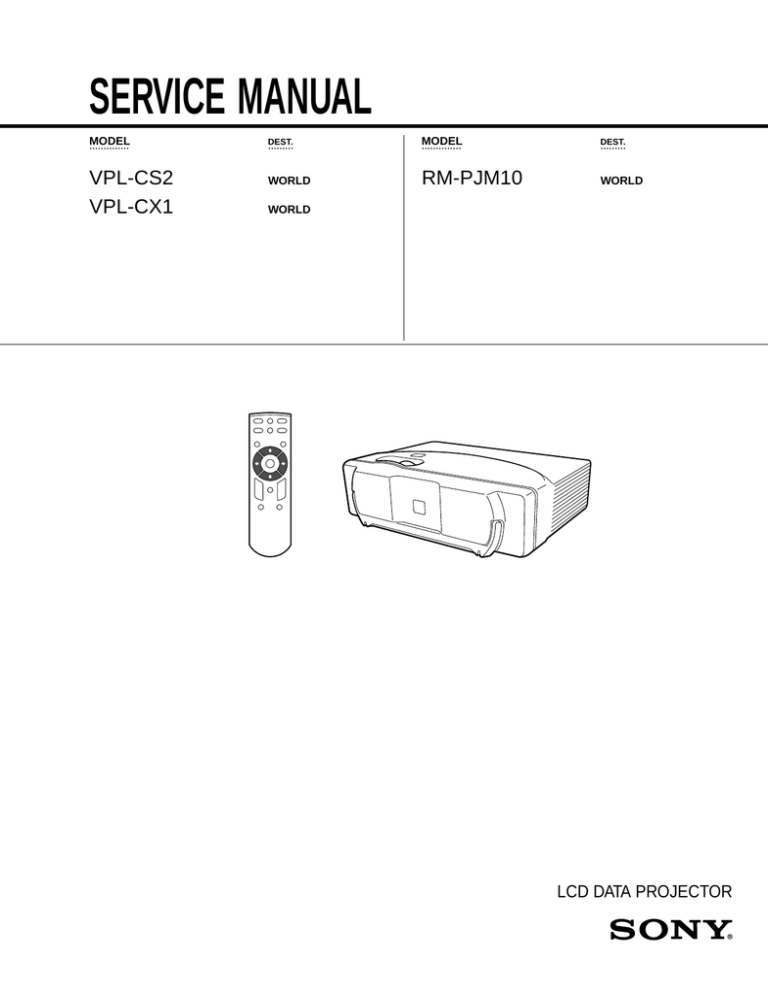

SERVICE MANUAL
MODEL
..............
VPL-CS2
VPL-CX1
DEST.
.........
MODEL
..............
DEST.
.........
WORLD
RM-PJM10
WORLD
WORLD
LCD DATA PROJECTOR
! WARNING
This manual is intended for qualified service personnel only.
To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so. Refer all servicing to
qualified service personnel.
! WARNUNG
Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.
Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die
Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei
Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben
Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung
dazu besitzen.
! AVERTISSEMENT
Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin
de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les
réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.
Pour toute réparation faire appel à une personne compétente uniquement.
For the customers in the Netherlands
Voor de klanten in Nederland
Bij dit produkt zijn batterijen geleverd.
Wanneer deze leeg zijn, moet u ze niet
weggooien maar inleveren als KCA.
WARNING!!
ATTENTION!!
AN INSULATED TRANSFORMER SHOULD BE USED DURING
ANY SERVICE TO AVOID POSSIBLE SHOCK HAZARD, BECAUSE OF LIVE CHASSIS.
THE CHASSIS OF THIS RECEIVER IS DIRECTLY CONNECTED
TO THE AC POWER LINE.
AFIN D’ÉVITER TOUT RISQUE D’ÉLECTROCUTION
PROVENANT D’UN CHÂSSIS SOUS TENSION, UN
TRANSFORMATEUR D’ISOLEMENT DOIT ETRE UTILISÉ LORS
DE TOUT DÉPANNAGE.
LE CHÂSSIS DE CE RÉCEPTEUR EST DIRECTEMENT
RACCORDÉ Á L’ALIMENTATION SECTEUR.
SAFETY-RELATED COMPONENT WARNING !!
ATTENTION AUX COMPOSANTS RELATIFS Á LA
SÉCURITÉ!!
COMPONENTS IDENTIFIED BY A ! MARK ON THE SCHEMATIC
DIAGRAMS, EXPLODED VIEWS AND IN THE PARTS LIST ARE
CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR
AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
LES COMPOSANTS IDENTIFIÉS PAR UNE MAPQUE ! SUR
LES SCHÉMAS DE PRINCIPE, LES VUES EXPLOSÉES ET LES
LISTES DE PIECES SONT D’UNE IMPORTANCE CRITIQUE
POUR LA SÉCURITÉ DU FONCTIONNEMENT. NE LES
REMPLACER QUE PAR DES COMPOSANTS SONY DONT LE
NUMÉRO DE PIÈCE EST INDIQUÉ DANS LE PRÉSENT MANUEL
OU DANS DES SUPPLÉMENTS PUBLIÉS PAR SONY.
Table of Contents
1. Operating Instructions
Operating Instructions ............................................................................................ 1-1
Quick Reference Card .......................................................................................... 1-24
2. Service Informations
2-1.
2-2.
Circuit Boards Location .............................................................................. 2-1
Disassembly and Extension Boards ............................................................ 2-2
2-2-1. Cover Removal ........................................................................... 2-2
2-2-2. Front Panel Assy and NF Board Removal ................................. 2-2
2-2-3. C Board Removal ....................................................................... 2-3
2-2-4. Optics Unit Assy Removal ......................................................... 2-3
2-2-5. GA and GB Boards Removal ..................................................... 2-4
2-2-6. B, BA and QA Boards Removal ................................................ 2-4
2-2-7. Lens Removal ............................................................................. 2-5
2-2-8. Prism Block Assy and In-polarizer Panel Assy Removal ......... 2-5
2-2-9. Extension Boards and Flexible Cables ....................................... 2-6
2-2-10. Extension Boards Connection .................................................... 2-7
3. Electrical Adjustments
3-1.
3-2.
3-3.
3-4.
3-5.
3-6.
VPL-CS2/CX1
Preparations ................................................................................................. 3-1
3-1-1. Equipment Required ................................................................... 3-1
3-1-2. Optical Unit Adjustment ............................................................ 3-1
1) Mirror Adjustment ................................................................. 3-1
2) Polarizing Plate Adjustment .................................................. 3-1
3-1-3. Factory Mode Setting ................................................................. 3-1
V-COM Adjustment .................................................................................... 3-1
Adjustment Item Initialize Data .................................................................. 3-2
Service Kowhow ......................................................................................... 3-6
3-4-1. After Replacing the Prism Block ............................................... 3-6
3-4-2. After Replacing the Board ......................................................... 3-6
1) When Replacing the BA Board ............................................. 3-6
2) When Replacing the C Board ................................................ 3-6
3) When Replacing the Other Board .......................................... 3-6
White Balance Adjustment on Servicing .................................................... 3-7
3-5-1. Signal Level Adjustment ............................................................ 3-7
3-5-2. White Balance Adjustment ........................................................ 3-7
1) HIGH Mode of INPUT-A ...................................................... 3-7
2) LOW Mode of INPUT-A ....................................................... 3-7
3) HIGH Mode of VIDEO ......................................................... 3-7
4) LOW Mode of VIDEO .......................................................... 3-7
Memory ....................................................................................................... 3-8
1
4. Semiconductors ................................................................................... 4-1
5. Exploded Views
5-1.
5-2.
5-3.
5-4.
5-5.
Cover ........................................................................................................... 5-1
Chassis ......................................................................................................... 5-2
Base ............................................................................................................. 5-3
Optics (1/2) .................................................................................................. 5-4
Optics (2/2) .................................................................................................. 5-5
6. Electrical Parts List
NF ................................................................................................................ 6-1
BA ............................................................................................................... 6-1
B .................................................................................................................. 6-3
QA ............................................................................................................... 6-7
GA ............................................................................................................... 6-9
GB ............................................................................................................. 6-11
C (For VPL-CS2) ...................................................................................... 6-11
C (For VPL-CX1) ..................................................................................... 6-15
H ................................................................................................................ 6-19
7. Block Diagrams
Overall Block .............................................................................................. 7-1
QA Block, NF Block ................................................................................... 7-2
BA Block ..................................................................................................... 7-3
B Block ........................................................................................................ 7-4
C Block, H Block (For VPL-CS2) .............................................................. 7-6
C Block, H Block (For VPL-CX1) ............................................................. 7-8
GA Block, GB Block ................................................................................ 7-10
2
VPL-CS2/CX1
8. Diagrams
8-1.
8-2.
Frame Schematic Diagram .......................................................................... 8-2
Schematic Diagrams and Printed Wiring Boards ........................................ 8-4
Schematic Diagrams
QA, NF .................................................................................................... 8-5
BA ............................................................................................................. 8-8
B .............................................................................................................. 8-10
C (For VPL-CS2) .................................................................................... 8-15
C (For VPL-CX1) ................................................................................... 8-21
H .............................................................................................................. 8-26
GA ........................................................................................................... 8-28
GB ........................................................................................................... 8-29
Printed Wiring Boards
QA, NF .................................................................................................... 8-4
BA ............................................................................................................. 8-7
B ................................................................................................................ 8-9
C .............................................................................................................. 8-14
H .............................................................................................................. 8-26
GA ........................................................................................................... 8-27
GB ........................................................................................................... 8-29
VPL-CS2/CX1
3
VPL-CS2/CX1
4-079-834-11 (1)
LCD Data Projector
GB
Mode d’emploi
FR
Manual de instrucciones
ES
Section 1
Operating Instructions
Operating Instructions
VPL-CS2
VPL-CX1
1-1
Reprinted from the
operating instructions
© 2000 Sony Corporation
1-2
WARNING
To prevent fire or shock hazard, do
not expose the unit to rain or
moisture.
To avoid electrical shock, do not
open the cabinet. Refer servicing to
qualified personnel only.
The number below is for FCC related
matters only.
Declaration of Conformity
Trade Name: SONY
Model No.: VPL-CS2, VPL-CX1
Responsible Party: Sony Electronics Inc.
Address: 1 Sony Drive, Park Ridge,
NJ.07656 USA
Telephone No.: 201-930-6972
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
This symbol is intended to
alert the user to the presence
of uninsulated “dangerous
voltage” within the
product’s enclosure that may
be of sufficient magnitude to
constitute a risk of electric
shock to persons.
This symbol is intended to
alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the
appliance.
For the customers in the USA
If you have any questions about this product,
you may contact:
Sony Electronics Inc.
Attn: Business Information Center (BIC)
12451 Gateway Boulevard
Ft. Myers, Florida 33913
Telephone No.: 800-686-7669
VPL-CS2/CX1
GB
2
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct
the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the
equipment and receiver.
- Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/
TV technician for help.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
For the customers in Canada
This Class B digital apparatus complies with
Canadian ICES-003.
For the customers in the United
Kingdom
WARNING
THIS APPARATUS MUST BE
EARTHED
IMPORTANT
The wires in this mains lead are coloured in
accordance with the following code:
Green-and-Yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead
of this apparatus may not correspond with
the coloured markings identifying the
terminals in your plug proceed as follows:
The wire which is coloured green-andyellow must be connected to the terminal in
the plug which is marked by the letter E or
by the safety earth symbol I or coloured
green or green-and-yellow.
The wire which is coloured blue must be
connected to the terminal which is marked
with the letter N or coloured black. The wire
which is coloured brown must be connected
to the terminal which is marked with the
letter L or coloured red.
Voor de klanten in Nederland
Bij dit product zijn batterijen
geleverd. Wanneer deze leeg
zijn, moet u ze niet
weggooien maar inleveren
als KCA.
The socket-outlet should be installed near
the equipment and be easily accessible.
3 GB
VPL-CS2/CX1
Table of Contents
Overview
Maintenance
Precautions ......................................... 6
Maintenance .................................... 31
Features .............................................. 7
Replacing the Lamp ................... 31
Cleaning the Air Filter ............... 32
Troubleshooting .............................. 33
Location and Function of Controls ... 9
Front/Left Side/Bottom ................ 9
Rear/Right Side ............................ 9
Control Panel ..............................11
Connector Panel .........................12
Remote Commander ...................13
Setting Up and Projecting
Installing the Projector .....................15
Connecting the Projector ..................16
Connecting with a Computer ......16
Connecting with a VCR or 15k
RGB/Component
Equipment .......................18
Selecting the Menu Language ..........20
Warning Messages ..................... 35
Caution Messages ...................... 35
Other
Notes on Installation ........................ 36
Unsuitable Installation ............... 36
Unsuitable Conditions ................ 36
Specifications .................................. 37
Index ............................................... 43
Projecting .........................................22
Effective Tools for Your
Presentation .....................25
Adjustments and Settings
Using the Menu
Using the MENU .............................26
The PICTURE CTRL Menu ............27
The INPUT SETTING Menu ...........28
The SET SETTING Menu ...............30
GB
1-3
4
5 GB
GB
1-4
B Overview
Precautions
On preventing internal heat buildup
On safety
After you turn off the power with the I / 1
key, do not disconnect the unit from the wall
outlet while the cooling fan is still running.
On illumination
• To obtain the best picture, the front of the
screen should not be exposed to direct
lighting or sunlight.
• Ceiling-mounted spot lighting is
recommended. Use a cover over
fluorescent lamps to avoid lowering the
contrast ratio.
• Cover any windows that face the screen
with opaque draperies.
• It is desirable to install the projector in a
room where floor and walls are not of
light-reflecting material. If the floor and
walls are of reflecting material, it is
recommended that the carpet and wall
paper be changed to a dark color.
VPL-CS2/CX1
GB
6
Precautions
Caution
The projector is equipped with ventilation
holes (intake) and ventilation holes
(exhaust). Do not block or place anything
near these holes, or internal heat build-up
may occur, causing picture degradation or
damage to the projector.
High portability
• Light weight/small size
This projector has been miniaturized to
approx. 2.9 kg (6 lb 6 oz) in weight and
B5-file size through the adoption of a
retractable mechanism. A carrying handle
is equipped with the projector, so you can
carry it easily with your computer.
Reduced noise
On cleaning
• To keep the cabinet looking new,
periodically clean it with a soft cloth.
Stubborn stains may be removed with a
cloth lightly dampened with a mild
detergent solution. Never use strong
solvents, such as thinner, benzene, or
abrasive cleansers, since these will
damage the cabinet.
• Avoid touching the lens. To remove dust
on the lens, use a soft dry cloth. Do not use
a damp cloth, detergent solution, or
thinner.
• Clean the filter at regular intervals.
On repacking
• Save the original shipping carton and
packing material; they will come in handy
if you ever have to ship your unit. For
maximum protection, repack your unit as
it was originally packed at the factory.
On LCD projector
• The LCD projector is manufactured using
high-precision technology. You may,
however, see tiny black points and/or
bright points (red, blue, or green) that
continuously appear on the LCD projector.
This is a normal result of the
manufacturing process and does not
indicate a malfunction.
Because the projector uses Sony’s unique
cooling mechanism, noise has been reduced.
High brightness, high picture
quality
• High brightness
Adopting the high-efficiency optical
system and the 120 W UHP lamp allows
high brightness (VPL-CS2: light output
600 ANSI lumen, VPL-CX1: light output
550 ANSI lumen) and excellent
uniformity on the picture.
• High resolution
VPL-CS2:
Three 0.7-inch, about 480,000 pixel,
SVGA panels provide a resolution of 800
× 600 dots for RGB input and 600
horizontal TV lines for video input.
VPL-CX1:
Three 0.7-inch, about 790,000 pixel, XGA
panels provide a resolution of 1024 × 768
dots for RGB input and 750 horizontal TV
lines for video input.
Simple setup
• Simple setup with external equipment
This projector is preset for 37 kinds of
input signals. You can project images from
an external signal source just by
connecting the equipment with the
supplied cable and pushing the APA key.
• Compatible with USB (Universal Serial
Bus) hub function
You can connect an USB equipment (e.g.,
USB mouse) to the projector, and also
control the projector by using the
application software (CD-ROM) supplied
with the projector from a computer
operated with Windows 98, Windows 98
SE or Windows 2000. Using this
application software, you can open a file
you want to use for your presentation with
the supplied Remote Commander.
Easy presentation
• Multi function Remote Commander
with mouse control functions
You can operate a computer connected to
this projector with the Remote
Commander since the unit has a build-in
mouse receiver.
• Digital ZOOM and FUNCTION keys
on the Remote Commander
The Digital ZOOM allows you to enhance
your presentation by zooming in on the
image.
You can allocate a presentation file to the
FUNCTION keys by using the application
software (CD-ROM) supplied with the
projector. Just pressing the FUNCTION
key opens the file immediately.
Accepts various input signals
• Scan converter loaded
This projector has a build-in scan
converter that converts the input signal
within 800 × 600 dots (VPL-CS2) or 1024
× 768 dots (VPL-CX1).
• Compatible input signals
This projector accepts video signals of
composite, S video, and component as
well as VGA, SVGA, XGA, and SXGA
signals, which all can be displayed.
• Compatible with six color systems
NTSC, PAL, SECAM, NTSC4.431), PALM, or PAL-N color system can be selected
automatically or manually.
1)NTSC4.43 is the color system used when
playing back a video recorded on NTSC
on a NTSC4.43 system VCR.
Features
7 GB
Overview
• Check that the operating voltage of your
unit is identical with the voltage of your
local power supply.
• Should any liquid or solid object fall into
the cabinet, unplug the unit and have it
checked by qualified personnel before
operating it further.
• Unplug the unit from the wall outlet if it is
not to be used for several days.
• To disconnect the cord, pull it out by the
plug. Never pull the cord itself.
• The wall outlet should be near the unit and
easily accessible.
• The unit is not disconnected to the AC
power source (mains) as long as it is
connected to the wall outlet, even if the
unit itself has been turned off.
• Do not look into the lens while the lamp is
on.
• Do not place your hand or objects near the
ventilation holes. The air coming out is
hot.
• Be careful not to catch your fingers by the
adjuster when you lift up the projector. Do
not push hard on the top of the projector
with the adjuster out.
Features
VPL-CS2/CX1
......................................................................
Front/Left Side/Bottom
1 Lock button
2 Front cover
Slide the lock button to open the front
cover.
3 Carrying handle
Pull up the handle from the projector for
carrying.
4 Zoom ring
Adjusts the picture size.
5 Focus ring
Adjusts the picture focus.
6 Front remote control detector
(SIRCS receiver)
7 Lens
8 AC IN socket
Connects the supplied AC power cord.
9 Ventilation holes (intake)/air
filter cover (bottom)
Notes
Rear/Right Side
• Do not place anything near the
ventilation holes as it may cause internal
heat build-up.
• Do not place your hand or objects near
the ventilation holes as it may cause the
air coming out heat build-up.
• To maintain optimal performance, clean
the air filter every 300 hours.
q; Lamp cover (bottom)
qa Ventilation holes (exhaust)
qs Control panel
For details, see “Control Panel” on
page 11.
qd Speakers
qf Rear remote control detector
(SIRCS receiver)
qg Adjuster
GB
1-5
8
Features
Location and Function of Controls
9 GB
Overview
• Windows is a registered trademark of
Microsoft Corporation in the United States
and/or other countries.
• VGA, SVGA, XGA, and SXGA are
registered trademarks of the International
Business Machines Corporation, U.S.A.
• Macintosh is a registered trademark of
Apple Computer, Inc.
• IBM PC/AT is a registered trademark of
International Business Machines
Corporation, U.S.A.
• VESA is a registered trademark of Video
Electronics Standard Association.
• Display Data Channel is a trademark of
Video Electronics Standard Association.
• PC-98 is a trademark of NEC Corporation.
Location and
Function of Controls
1-6
qh RELEASE (adjuster adjustment)
button
For details, see “How to use the
adjuster” on page 10.
5 Indicators
Control Panel
To adjust the height
Adjust the height of the projector as follows:
1
For details, see “Connector Panel” on
page 12.
Lift the projector and press the
RELEASE button.
RESET
The adjuster will extend from the
projector.
POWER
MENU
INPUT
ENTER
APA
qk Security lock
VOLUME
Connects to an optional security cable
(Kensington’s).
–
LAMP/COVER
The security lock corresponds to
Kensington’s MicroSaver Security
System.
If you have any comment, contact:
Kensington
2853 Campus Drive
San Mates, CA 94403
U.S.A.
Tel: 800-535-4242: extension
3348
+
NDBY
FAN/TEMP POWER SAVING ON/STA
1 I / 1 (on/standby) key
RELEASE button
2
While pressing the button, lower the
projector. Then, release the button.
The adjuster can be set at 6 positions.
Home page address:
http://www.kensington.com/
Turns on and off the projector when the
projector is in standby mode. The ON/
STANDBY indicator lights in green
when the power is turned on.
When turning off the power, press
the I / 1 key twice following the
message on the screen, or press and hold
the key for about one second.
For details on steps for turning off the
power, see “To turn off the power” on
page 24.
ql Ventilation holes (intake)
2 INPUT key
Selects the input signal. Each time you
press the key, the input signal switches
as follows:
INPUT A t VIDEO t S VIDEO
t
Notes
• Be careful not to let the projector down on
your fingers.
• Do not push hard on the top of the
projector with the adjuster out.
3 APA (Auto Pixel Alignment) key
Adjusts a picture clearest automatically
while a signal is input from a computer.
4 VOLUME +/– keys
Adjust the volume of the built-in
speakers.
+ : Increases the volume.
– : Decreases the volume.
VPL-CS2/CX1
GB
10
Location and Function of Controls
• LAMP/COVER: Lights up or flashes
under the following conditions:
– Lights up when the lamp has
reached the end of its life or
becomes a high temperature.
– Flashes when the lamp cover or air
filter cover is not secured firmly.
• FAN/TEMP (Temperature): Lights
up or flashes under the following
conditions:
– Lights up when temperature inside
the projector becomes unusually
high.
– Flashes when the fan is broken.
• POWER SAVING: Lights up when
the projector is in power saving mode.
When POWER SAVING in the SET
SETTING menu is set to ON, the
projector goes into power saving mode
if no signal is input for 10 minutes.
Although the lamp goes out, the
cooling fan keeps running. In power
saving mode, any key does not
function for the first 30 seconds. The
power saving mode is canceled when a
signal is input or any key is pressed.
• ON/STANDBY: Lights up or flashes
under the following conditions:
– Lights in red when a AC power cord
is plugged into a wall outlet. Once in
standby mode, you can turn on the
projector with the I / 1 key.
– Lights in green when the power is
turned on.
– Flashes in green while the cooling
fan runs after the power is turned off
with the I / 1 key. The fan runs for
about 90 seconds after the power is
turned off.
The ON/STANDBY indicator
flashes quickly for the first 30
seconds. During this time, you
cannot light up the ON/STANDBY
indicator with the I / 1 key.
For details on the LAMP/COVER and
the FAN/TEMP indicators, see on page
35.
Location and Function of Controls
11 GB
Overview
qj Connector panel
How to use the adjuster
VPL-CS2/CX1
6 ENTER key
3 MOUSE connector (6-pin)
Enters the settings of items in the menu
system.
7 Arrow keys (M
M/m
m/<
</,
,)
8 RESET key
Resets the value of an item back to its
factory preset value. This key functions
when the menu or a setting item is
displayed on the screen.
9 MENU key
Displays the on-screen menu. Press
again to clear the menu.
Connector Panel
Rear side
AUDIO
MOUSE
VIDEO
S VIDEO
INPUT A
1 INPUT A connector (HD D-sub
15-pin, female)
4 USB connector (USB A-plug for
downstream, 4-pin)
Connect to USB equipment such as a
mouse, camera, etc.
5 Arrow keys (M
M/m
m/<
</,
,)
Remote Commander
The keys that have the same names as those
on the control panel function identically.
You can control a connected computer using
the Remote Commander.
For details, see “To control the computer
using the supplied Remote Commander” on
page 23.
5 USB connector (USB B-plug for
upstream, 4-pin)
Connect to the USB connector on a
computer. When you connect the
projector to the computer, the projector
recognizes the mouse of the computer
connected to the INPUT A connector
and you can control the mouse function
with the supplied Remote Commander.
The supplied application software can
be installed in the computer attached to
this connector.
MUTING
PIC
I/1
+
1
VOLUME
INPUT
–
MENU
APA
2
ENTER
3
4
5
6 AUDIO (stereo minijack)
connector
When listening to sound output from the
computer, connect to the audio output of
the computer.
When listening to sound output from the
VCR, connect to the audio output of the
VCR.
+
–
0
9
RESET
R
1-7
12
Location and Function of Controls
7 FUNCTION 1, 2 keys
These keys function when the supplied
application software is used.
When you connect the projector with a
computer, you can open a file on the
screen by just pressing the FUNCTION
key. This will enhance your
presentation. To use this function,
allocate a file to the FUNCTION key by
using the application software.
For details, see the README file and
the HELP file supplied with the
application software.
8 CONTROL S OUT jack (stereo
minijack)
This does not function with this
projector.
CLICK
6
Resets the value of an item back to its
factory preset value or returns the
enlarged image back to its original size.
(D ZOOM)
0 D ZOOM +/– key
D ZOOM
1 FUNCTION
2
7
8
2 Video input connector
GB
Functions as the right button on a mouse.
9 RESET (D ZOOM) key
Connect to external equipment such as a
computer.
Connects to the monitor output on a
computer using the supplied cable.
When inputting a component or 15k
RGB signal, use an optional cable.
Connect to external video equipment
such as a VCR.
• S VIDEO (mini DIN 4-pin):
Connects to the S video output (Y/C
video output) of video equipment.
• VIDEO (phono type): Connects to
the composite video output of video
equipment.
6 R CLICK key
Enlarges the image at a desired location
on the screen.
+: Pressing the + key once highlights one
of the images divided into 16. Use an
arrow key (M/m/</,) to move the
highlight portion to the point in the
image to be enlarged. Press the + key
repeatedly until the image is enlarged
to your requirements.
–: Pressing the – key reduces an image
that has been enlarged with the D
ZOOM + key.
1 I / 1 key
2 APA (Auto Pixel Alignment) key
3 ENTER key
4 Joystick
Functions as the mouse of the computer
connected to the unit.
Location and Function of Controls
13 GB
Overview
Select the menu or to make various
adjustments.
Connects to the PS/2 mouse port on a
computer via the supplied mouse cable,
to control the mouse function of the
connected computer.
1-8
B Setting Up and Projecting
qa L CLICK key
To install batteries
Functions as the left button on a mouse.
qs MENU key
1
qd INPUT key
Push and slide to open the lid, then
install the two size AA (R6) batteries
(supplied) with the correct polarity.
qf MUTING PIC key
Installing the Projector
This section describes how to install the projector.
The distance between the lens and the screen varies depending on the size of
the screen. Use the following table as a guide.
Cut off the picture. Press again to
restore the picture.
qg VOLUME +/– keys
Setting Up and Projecting
qh Infrared transmitter
Be sure to install
the battery from
the # side.
2
Distance between the screen and
the center of the lens
Replace the lid.
Notes on batteries
• Make sure that the battery orientation is
correct when inserting batteries.
• Do not mix an old battery with a new one
or different types of batteries.
• If you do not use the Remote Commander
for a long time, remove the batteries to
avoid damage from battery leakage. If
batteries have leaked, remove them, wipe
and dry the battery compartment, and
replace the batteries with new ones.
Unit: m (feet)
Screen size
(inches)
40
60
80
100
120
150
Minimum
Distance
1.6
(5.2)
2.4
(7.8)
3.2
(10.5)
4.0
(13.2)
4.9
(15.9)
6.1
(20.0)
Maximum
Distance
2.0
(6.6)
3.1
(10.0)
4.1
(13.5)
5.2
(16.9)
6.2
(20.3)
7.8
(25.5)
Note
Notes on Remote Commander
operation
• Make sure that nothing obstructs the
infrared beam between the Remote
Commander and the remote control
detector on the projector. Direct the
Remote Commander toward the front or
rear remote control detector.
• The operation range is limited. The shorter
the distance between the Remote
Commander and the projector is, the wider
the angle within which the commander can
control the projector becomes.
VPL-CS2/CX1
GB
14
Location and Function of Controls
You can not install the projector upside down, such as on a ceiling.
Installing the Projector
15 GB
VPL-CS2/CX1
Connecting the Projector
When making connections, be sure to do the following:
. Turn off all equipment before making any connections.
. Use the proper cables for each connection.
. Insert the cable plugs properly; plugs that are not fully inserted often
generate noise. When pulling out a cable, be sure to pull it out from the plug,
not the cable itself.
To connect an IBM PC/AT compatible computer
When you use a USB mouse and USB equipment
Rear side
AUDIO
MOUSE
VIDEO
S VIDEO
INPUT A
Computer
to USB equipment
HD D-sub
15-pin cable
(supplied)
to monitor output
Setting Up and Projecting
Connecting with a Computer
This section describes how to connect the projector to a computer.
For more information, refer to the computer’s instruction manual.
Notes
. The projector accepts VGA, SVGA, XGA, and SXGA signals. However, we
recommend that you set the output mode of your computer to SVGA (VPL-CS2) or
XGA (VPL-CX1) mode for the external monitor.
. If you set your computer, such as a notebook type, to output the signal to both your
computer’s display and the external monitor, the picture of the external monitor may
not appear properly. Set your computer to output the signal to only the external
monitor.
For details, refer to the computer’s operating instructions supplied with your
computer.
. Supplied mouse cable may not work properly according to your computer.
. This projector is compatible with a DDC2B (Digital Data Channel 2B). If your
computer is compatible with a DDC, turn the projector on according to the following
procedures.
1 Connect the projector to the computer by using the supplied HD D-sub 15 pin cable.
2 Turn the projector on.
3 Start the computer.
USB cable A type – B type (supplied)
Stereo audio connecting cable (not supplied)
to USB connector
to audio output
On the USB function
When connecting the projector to a computer by using the USB cable for the
first time, the computer recognizes the following devices automatically.
1 USB hub (general use)
2 USB human interface device (wireless mouse function)
3 USB human interface device (projector control function)
The computer also recognizes the device connected to the downstream
connector on the projector.
Recommended operating environment
When you use the USB function, connect your computer as illustrated above.
This application software and the USB function can be used on a computer
loaded with Windows 98, Windows 98 SE or Windows 2000 preinstall
models.
Notes
. As the projector recognizes the USB mouse when the computer is
connected to the USB connector, do not connect anything to the PS/2
mouse port.
. Your computer may not start correctly when connected to the projector
via the USB cable. In this case, disconnect the USB cable, restart the
computer, then connect the computer to the projector using the USB
cable.
. This projector is not guaranteed for suspend, standby mode. When you
use the projector in suspend, standby mode, disconnect the projector
from the USB port on the computer.
. Operations are not guaranteed for all the recommended computer
environments.
GB
1-9
16
Connecting the Projector
Connecting the Projector
17 GB
1-10
To connect a 15k RGB/Component equipment
When you use a PS/2 mouse port
Stereo audio connecting cable (not supplied)
Rear side
AUDIO
MOUSE
VIDEO
S VIDEO
INPUT A
SMF-402 Signal Cable
(not supplied)
3 x phono jack ↔ HD D-sub
15-pin (male)
Computer
HD D-sub
15-pin cable
(supplied)
AUDIO
PS/2 Mouse cable (supplied)
MOUSE
VIDEO
S VIDEO
to audio
output
INPUT A
to mouse port (PS/2)
Stereo audio connecting cable (not supplied)
to audio output
Rear side
15k RGB/Component equipment
Notes
To connect a Macintosh computer
Use an ADP-20 signal adapter (not supplied). In this case, however, you can
not control the mouse of the computer by the Remote Commander.
Connecting with a VCR or 15k RGB/Component Equipment
. Set the aspect ratio using ASPECT in the INPUT SETTING menu
according to the input signal.
. When you connect the unit to 15k RGB/component video equipment,
select RGB or component with the INPUT-A setting in the SET
SETTING menu.
. Use the composite sync signal when you input the external sync signal
from 15k RGB/component equipment.
This section describes how to connect the projector to a VCR and 15k RGB/
component equipment.
For more information, refer to the instruction manuals of the equipment you
are connecting.
To connect a VCR
Rear side
AUDIO
MOUSE
VIDEO
S VIDEO
INPUT A
S-Video cable (not supplied)
Stereo audio
connecting
cable (not
supplied)
Video cable
(not supplied)
to video output
to audio output
to S video output
VCR
Connecting the Projector
VPL-CS2/CX1
GB
18
Connecting the Projector
19 GB
Setting Up and Projecting
to RGB/
component
output
to monitor output
VPL-CS2/CX1
Selecting the Menu Language
4
You can select one of seven languages for displaying the menu and other onscreen displays. The factory setting is English.
Press the > or . key to select the SET SETTING menu, then press the /
or ENTER key.
The selected menu appears.
INPUT-A
SET SETTING
STATUS:
ON
INPUT-A:
RGB
KEYSTONE MEMORY: OFF
Front remote control
detector
DIGITAL KEYSTONE:
OFF
LANGUAGE:
ENGLISH
POWER SAVING:
OFF
SIRCS RECEIVER: FRONT&REAR
LAMP TIMER:
3
2
POWER
MENU
1
I/1
5
MUTING
PIC
2
VOLUME
INPUT
–
MENU
APA
VOLUME
–
APA
3
ENTER
LAMP/COVER
+
RESET
DIGITAL KEYSTONE:
OFF
LANGUAGE:
ENGLISH
POWER SAVING:
OFF
LAMP TIMER:
00010h
NDBY
FAN/TEMP POWER SAVING ON/STA
R
1
Open the front cover, then plug the AC power cord into a wall outlet.
2
Press the I / 1 key to turn on the projector.
3
ON
RGB
SIRCS RECEIVER: FRONT&REAR
4,5,6
4,5,6
+
INPUT-A
STATUS:
INPUT-A:
KEYSTONE MEMORY: OFF
ENTER
I/1
+
Press the > or . key to select “LANGUAGE,” then press the / or
ENTER key.
SET SETTING
INPUT
Setting Up and Projecting
RESET
00010h
6
Press the > or . key to select a language, then press the ? or ENTER
key.
The menu changes to the selected language.
To clear the menu
Press the MENU key.
The menu disappears automatically if a key is not pressed for one minute.
Press the MENU key.
The menu appears.
The menu presently selected is shown as a yellow button.
INPUT-A
PICTURE CTRL
CONTRAST:
80
BRIGHT:
50
GAMMA MODE: GRAPHICS
COLOR TEMP:
GB
1-11
20
HIGH
Selecting the Menu Language
Selecting the Menu Language
21 GB
1-12
5
6
Projecting
Turn the zoom ring to adjust the size of the picture.
Turn the focus ring to adjust the focus.
Caution
Looking into the lens when projecting may cause injury to your eyes.
To adjust the volume
Press VOLUME +/– keys. The volume can be adjusted for each of INPUT A,
VIDEO and S VIDEO input.
1
RESET
MENU
POWER
INPUT
ENTER
MUTING
PIC
I/1
+
VOLUME
INPUT
–
MENU
APA
APA key
APA
2
APA key
2
4
VOLUME
VOLUME +/–
keys
LAMP/COVER
FAN/TEMP
DBY
POWER SAVING ON/STAN
ENTER
VOLUME+/– key
To control the computer using the supplied Remote Commander
When you connect an IBM PC/AT compatible to the projector, you can control
the mouse of the computer using the Remote Commander.
The R/L CLICK keys and joystick function as follows.
ON/STANDBY indicators
4
Key and joystick
Function
R CLICK (front)
Right button
L CLICK (rear)
Left button
Joystick
Corresponds with the movements of the mouse
Note
+
–
1
2
3
4
VPL-CS2/CX1
GB
22
RESET
Make sure that nothing obstructs the infrared beam between the Remote Commander
and the remoter control detector on the projector.
R
CLICK
Open the front cover, plug the AC power cord into a wall outlet, then
connect all equipment.
The ON/STANDBY indicator lights in red and the projector goes into
standby mode.
Press the I / 1 key.
The ON/STANDBY indicator lights in green.
Turn on the equipment connected to the projector.
1
Project a still picture from the computer.
2
Press the APA key.
“Complete!” appears on the screen when the picture is adjusted properly.
Notes
Press the INPUT key to select the input source.
Projecting
To get the clearest picture
You can adjust picture quality when projecting a signal from the computer.
To input from
Press INPUT to display
Computer connected to the INPUT A connector
INPUT A
Video equipment connected to the VIDEO input
connector
VIDEO
Video equipment connected to the S VIDEO input
connector
S VIDEO
• Press the APA key when the full image is displayed on the screen. If there are black
edges around the image, the APA function will not function properly and the image
may extend beyond the screen.
• When you switch the input signal or re-connect a computer, press the APA key again
to adjust the picture again.
• You can cancel the adjustment by pressing the APA key again while “ADJUSTING”
appears on the screen.
• The picture may not be adjusted properly depending on the kinds of input signals.
• Adjust the items in the INPUT SETTING menu when you adjust the picture manually.
Projecting
23 GB
Setting Up and Projecting
To cut off the picture
Press the MUTING PIC key on the Remote Commander.
To restore the picture, press the MUTING PIC key again.
5
6
Rear remote
control detector
VPL-CS2/CX1
To turn off the power
1
Press the I / 1 key.
“POWER OFF? Please press I / 1 key again.” appears to confirm that you
want to turn off the power.
Note
Effective Tools for Your Presentation
To enlarge the image (Digital Zoom function)
You can select a point in the image to enlarge.
1
A message disappears if you press any key except the I / 1 key, or if you do not
press any key for five seconds.
Press the I / 1 key again.
The ON/STANDBY indicator flashes in green and the fan continues to run for
about 90 seconds to reduce the internal heat. Also, the ON/STANDBY
indicator flashes quickly for the first 30 seconds. During this time, you will not
be able to light up the ON/STANDBY indicator with the I / 1 key.
3
Unplug the AC power cord from the wall outlet after the fan stops running
and the ON/STANDBY indicator lights in red.
One of the images divided into 16 is highlighted at the center of the image.
2
Move the highlight portion to the point you want to enlarge by pressing the
arrow keys (M/m/</,).
When you cannot confirm the on-screen message
When you cannot confirm the on-screen message in a certain condition, you can
turn off the power by holding the I / 1 key for about one second.
Note
Do not unplug the AC power cord while the fan is still running; otherwise, the fan will
stop even though the internal heat is still high, which could result in a breakdown of the
projector.
To stow the adjuster on the bottom
If you are not going to use the projector, while holding the RELEASE button
pressed, fold up the adjuster on the bottom of the projector manually.
3
Press the D ZOOM + key again.
The highlight image displayed in step 2 is enlarged.
By pressing the + key repeatedly, the image size increases (ratio of
enlargement: max. 4 times.)
On air filter
To maintain optimal performance, clean the air filter every 300 hours.
Use the arrow keys (M/m/</,) to scroll the enlarged image.
To return the image back to its original size
Press the D ZOOM – key on the Remote Commander. Just pressing the
RESET (ZOOM) key returns the image back to its original size immediately.
1-13
GB
24
Projecting
Projecting
25 GB
Setting Up and Projecting
2
Project the original size picture and press the D ZOOM + key on the
Remote Commander.
1-14
” Adjustments and Settings Using the Menu
Using the MENU
The projector is equipped with an on-screen
menu for making various adjustments and
settings. You can change the menu language
displayed in the on-screen menu.
To change the menu language, see
“Selecting the Menu Language” on page 20.
1
Press the MENU key.
The menu appears.
The menu presently selected is shown as
a yellow button.
INPUT-A
To clear the menu
Press the MENU key.
The menu disappears automatically if a key
is not pressed for one minute.
80
CONTRAST:
BRIGHT:
50
GAMMA MODE: GRAPHICS
COLOR TEMP:
To reset items that have been
adjusted
HIGH
The PICTURE CTRL
Menu
The PICTURE CTRL (control) menu is used
for adjusting the picture.
Items that cannot be adjusted depending on
the input signal are not displayed in the
menu.
For details on the unadjustable items, see
page 40.
When the video signal is input
CONTRAST:
80
BRIGHT:
50
COLOR:
50
HUE:
50
SHARP:
50
D. PICTURE:
OFF
2
Use the > or . key to select a menu,
then press the / or ENTER key.
The selected menu appears.
Setting items
Menus
STATUS:
ON
INPUT-A:
RGB
KEYSTONE MEMORY: OFF
OFF
LANGUAGE:
ENGLISH
POWER SAVING:
OFF
SIRCS RECEIVER: FRONT&REAR
LAMP TIMER:
00010h
D. (Dynamic) PICTURE
3
4
VPL-CS2/CX1
GB
26
AUTO
When the RGB signal is input
INPUT-A
PICTURE CTRL
CONTRAST:
80
BRIGHT:
50
GAMMA MODE: GRAPHICS
COLOR TEMP:
HIGH
About the memory of the settings
The settings are automatically stored in the
projector memory.
If no signal is input
CONTRAST
Adjusts the picture contrast. The higher the
setting, the greater the contrast. The lower
the setting, the lower the contrast.
Select an item.
Use the > or . key to select the item,
then press the / or ENTER key.
BRIGHT
Make the setting or adjustment on an
item.
Adjusts the picture brightness. The higher
the setting, the brighter the picture. The
lower the setting, the darker the picture.
Using the MENU
GAMMA MODE
Selects a gamma correction curve.
GRAPHICS: Improves the reproduction of
halftones. Photos can be reproduced in
natural tones.
TEXT: Contrasts black and white. Suitable
for images that contain lots of text.
COLOR TEMP
Menu Items
If there is no input signal, “NO INPUT–
Cannot adjust this item.” appears on the
screen.
SHARP
Adjusts the picture sharpness. The higher the
setting, the sharper the picture. The lower
the setting, the softer the picture.
Emphasizes the black color.
ON: Emphasizes the black color to produce
a bolder “dynamic” picture.
OFF: Reproduces the dark portions of the
picture accurately, in accordance with
the source signal.
INPUT-A
SET SETTING
DIGITAL KEYSTONE:
COLOR SYS:
HUE
Adjusts color tones. The higher the setting,
the picture becomes greenish. The lower the
setting, the picture becomes purplish.
VIDEO
PICTURE CTRL
COLOR TEMP: LOW
Press the RESET key.
“Complete!” appears on the screen and the
settings appearing on the screen are reset to
their factory preset values.
Items that can be reset are:
. “ CONTRAST,” “BRIGHT,” “COLOR,”
“HUE,” and “SHARP” in the PICTURE
CTRL menu
. “ DOT PHASE,” “SIZE,” and “SHIFT” in
the INPUT SETTING menu
. “ DIGITAL KEYSTONE” in the SET
SETTING menu
COLOR
Adjusts color intensity. The higher the
setting, the greater the intensity. The lower
the setting, the lower the intensity.
Adjusts the color temperature.
HIGH: Makes the white color bluish.
LOW: Makes the white color reddish.
COLOR SYS (System)
Selects the color system of the input signal.
. AUTO: NTSC3.58, PAL, SECAM and
NTSC4.43 (switched automatically)
. PAL-M/N: PAL-M/PAL-N and NTSC3.58
(switched automatically)
Normally, set to AUTO. If the picture is
distorted or colorless, select the color system
according to the input signal.
The PICTURE CTRL Menu
27 GB
Adjustments and Settings Using the Menu
PICTURE CTRL
. When changing the adjustment level:
To increase the number, press the > or
/ key.
To decrease the number, press the .
or ? key.
Press the ENTER key to restore the
original screen.
. When changing the setting:
Press the > or . key to change the
setting.
Press the ENTER or ? key to restore
the original screen.
VPL-CS2/CX1
The INPUT SETTING
Menu
The INPUT SETTING menu is used to
adjust the input signal.
Items that cannot be adjusted depending on
the input signal are not displayed in the
menu.
For details on the unadjustable items, see
page 40.
When the video signal is input
VIDEO
INPUT SETTING
ASPECT:
4 : 3
Memory
No.
Signal
type
When the RGB signal is input
INPUT-A
INPUT SETTING
DOT PHASE:
SIZE H
15
800
SHIFT H
H:200
V:30
SCAN CONV: ON
No. 13
640
480
Memory
No.
Signal
type
MENU Items
DOT PHASE
Adjusts the dot phase of the LCD panel and
the signal input from the INPUT A
connector.
Adjust the picture further for finer picture
after the picture is adjusted by pressing the
APA key.
Adjust the picture to where it looks clearest.
For details on the suitable value for the
preset signals, see page 41.
SHIFT
Adjusts the position of the picture input from
the INPUT A connector. H adjusts the
horizontal position of the picture.V adjusts
the vertical position of the picture. As the
setting for H increases, the picture moves to
the right, and as the setting decreases, the
picture moves to the left.
As the setting for V increases, the picture
moves up, and as the setting decreases, the
picture moves down. Use the ? or the /
key to adjust the horizontal position and the
> and . key for the vertical position.
SCAN CONV (Scan converter)
Converts the signal to display the picture
according to the screen size.
ON: Displays the picture according to the
screen size. The picture will lose some
clarity.
OFF: Displays the picture while matching
one pixel of input picture element to that
of the LCD. The picture will be clear but
the picture size will be smaller.
Note
This item will not be displayed in the following
case.
VPL-CS2: When SVGA, XGA or SXGA
signal is input
VPL-CX1: When XGA or SXGA signal is
input
ASPECT
Signal
Memory No. SIZE
Sets the aspect ratio of the picture. When
inputting 16:9 (squeezed) signal from
equipment such as a DVD player, set to
16:9.
4:3: When the picture with ratio 4:3 is input.
16:9: When the picture with ratio 16:9
(squeezed) is input.
Super Mac-2
23
1312
SGI-1
23
1320
Macintosh 19"
25
1328
Macintosh 21"
28
1456
About the Preset Memory No.
This projector has 37 types of preset data for
input signals for INPUT-A (the preset
memory). When a preset signal is input, the
projector automatically detects the signal
type and recalls the data for the signal from
the preset memory to adjust it to an optimum
picture. The memory number and signal type
of that signal are displayed in the INPUT
SETTING menu. You can also adjust the
preset data through the INPUT SETTING
menu.
This projector has 20 types of user memories
for INPUT-A into which you can save the
setting of the adjusted data for an unpreset
input signal.
When an unpreset signal is input for the first
time, a memory number is displayed as 00.
When you adjust the data of the signal in the
INPUT SETTING menu, it will be
registered to the projector. If more than 20
user memories are registered, the newest
memory always overwrites the oldest one.
Sony News
36
1708
PC-9821
1280 x 1024
36
1600
WS Sunmicro
37
1664
Note
When the aspect ratio of input signal is other
than 4:3, a part of the screen is displayed in
black.
See the chat on page 41 to find if the signal
is registered to the preset memory.
Since the data is recalled from the preset
memory about the following signals, you
can use these preset data by adjusting SIZE.
Make fine adjustment by adjusting SHIFT.
SIZE
Adjusts the horizontal size of picture input
from the INPUT A connector. The higher
1-15
GB
28
The INPUT SETTING Menu
The INPUT SETTING Menu
29 GB
Adjustments and Settings Using the Menu
No. 01
VIDEO/60
the setting, the larger the horizontal size of
the picture. The lower the setting, the
smaller the horizontal size of the picture.
Adjust the setting according to the dots of
the input signal.
1-16
” Maintenance
The SET SETTING
Menu
The SET SETTING menu is used for
changing the settings of the projector.
INPUT-A
SET SETTING
STATUS:
ON
INPUT-A:
RGB
KEYSTONE MEMORY: OFF
DIGITAL KEYSTONE:
OFF
LANGUAGE:
ENGLISH
POWER SAVING:
OFF
SIRCS RECEIVER: FRONT&REAR
LAMP TIMER:
00010h
DIGITAL KEYSTONE
Adjusts trapezoidal distortion of the picture
that may occur depending on the projection
angle.
When the upside of the trapezoid is longer
than the downside
: Sets to a plus
value.
LANGUAGE
Selects the language used in the menu and
on-screen displays. Available languages are:
English, French, German, Italian, Spanish,
Japanese and Chinese.
POWER SAVING
Menu Items
STATUS (on-screen display)
INPUT-A
Selects the RGB or component signal input
from the INPUT A connector.
SIRCS RECEIVER
Note
3
When it is time to replace the lamp, replace
the lamp promptly with a new LMP-C120
Projector Lamp.
When replacing the lamp after using
the projector
Turn off the projector, then unplug the
power cord.
Wait for at least an hour for the lamp to cool.
Loosen the screw on the lamp unit
with the Phillips screwdriver. Pull out
the lamp unit by the handle.
1
Handle
3
2
Caution
The lamp becomes a high temperature after
turning off the projector with the I / 1 key. If
you touch the lamp, you may scald your finger.
When you replace the lamp, wait for at least an
hour for the lamp to cool.
Selects the remote control detectors (SIRCS
receiver) on the front and rear of the
projector.
FRONT & REAR: Activates both the front
and rear detectors.
FRONT: Activates the front detector only.
REAR: Activates the rear detector only.
1
LAMP TIMER
2
Indicates the total number of hours for which
the lamp currently used has been operated.
If the setting is not correct, “Please check
INPUT-A setting.” appears on the screen and
the color of the picture becomes strange or the
picture is not displayed.
Replacing the Lamp
For safety sake, do not loosen any other
screws.
Place a protective sheet (cloth)
beneath the projector. Turn the
projector over so you can see its
underside.
4
Insert the new lamp all the way in until
it is securely in place. Tighten the
screw. Fold up the handle.
Note
2
Be sure that the projector is stable after
turning it over.
3 1
Open the lamp cover by loosening a
screw with the Phillips screwdriver
(supplied with the LMP-C120
Projector Lamp).
KEYSTONE MEMORY
Memorizes the data adjusted with DIGITAL
KEYSTONE.
Notes
. Be careful not to touch the glass surface
of the lamp.
. The power will not turn on if the lamp is
not secured properly.
5
VPL-CS2/CX1
GB
30
The SET SETTING Menu
Close the lamp cover and tighten the
screws.
Maintenance
31 GB
Maintenance
Sets up the on-screen display.
ON: Shows all of the on-screen displays.
OFF: Turns off the on-screen displays
except for the menus, a message when
turning off the power, and warning
messages.
When set to ON, the projector goes into
power saving mode if no signal is input for
10 minutes.
Note
Maintenance
VPL-CS2/CX1
6
Turn the projector back over.
7
Connect the power cord and turn the
projector to standby mode.
8
3
Remove the air filter cover.
If the projector appears to be operating erratically, try to diagnose and correct the problem
using the following instructions. If the problem persists, consult with qualified Sony personnel.
Press the following keys on the
control panel in the following order
for less than five seconds each:
RESET, <, ,, ENTER.
Power
Symptom
Notes
• Be sure to use the LMP-C120 Projector
Lamp for replacement. If you use lamps
other than LMP-C120, the projector may
cause a malfunction.
• Be sure to turn off the projector and unplug
the power cord before replacing the lamp.
• Do not put your hands into the lamp
replacement spot, or not fall any liquid or
object into it to avoid electrical shock or fire.
Cleaning the Air Filter
1
Turn off the power and unplug the
power cord.
2
Turn the projector over.
4
Remove the dust from the filter with a
vacuum cleaner.
5
Attach the air filter and replace the
cover.
Notes
• If the air filter is excessively dirty, wash it
with mild detergent solution and dry it in a
shaded place. If the dust cannot be removed,
replace the air filter with the supplied new
one.
• Be sure to attach the air filter cover firmly;
the power will not be turned on if it is not
closed securely.
• The air filter has a face and a reverse side.
Place the air filter so that it fits in a notch on
the air filter cover.
Cause and Remedy
The power is not turned on. • The power has been turned off and on with the I / 1 key at a short
interval.
c Wait for about 90 seconds before turning on the power
(see page 24).
• The lamp cover is detached.
c Close the lamp cover securely (see page 31).
• The air filter cover is detached.
c Close the air filter cover securely (see page 32).
Both the LAMP/COVER
• The electrical system breaks down.
and FAN/TEMP indicators
c Consult with qualified Sony personnel.
light up.
Symptom
Cause and Remedy
No picture.
• Cable is disconnected or the connections are wrong.
c Check that the proper connections have been made
(see page 16).
• The picture is cut off.
c Press the MUTING PIC key to release the muting function
(see page 23).
• Input selection is incorrect.
c Select the input source correctly using the INPUT key
(see page 22).
• The computer signal is not set to output to an external monitor.
c Set the computer signal to output to an external monitor
(see page 16).
• The computer signal is set to output to both the LCD of the
computer and external monitor.
c Set the computer signal to output only to the external monitor
(see page 16).
The picture is noisy.
• Noise may appear on the background depending on the
combination of the numbers of dot input from the connector and
numbers of pixel on the LCD panel.
c Change the desktop pattern on the connected computer.
The picture from INPUT A • Setting for INPUT-A in the SET SETTING menu is incorrect.
connector is colored
c Select RGB or COMPONENT for INPUT-A in the SET
strange.
SETTING menu according to the input signal (see page 30).
“Please check INPUT-A
• Setting for INPUT-A in the SET SETTING menu is incorrect.
setting.” appears in spite of
c Select RGB or COMPONENT for INPUT-A in the SET
inputting the correct signal
SETTING menu according to the input signal (see page 30).
from INPUT A.
1-17
GB
32
Maintenance
Troubleshooting
33 GB
Maintenance
The air filter should be cleaned every 300
hours. When it becomes difficult to remove
the dust from the filter, replace the filter with
a new one.
To clean the air filter, follow the steps
below:
Troubleshooting
1-18
Symptom
Cause and Remedy
On-screen display does not • STATUS in the SET SETTING menu has been set to OFF.
appear.
c Set STATUS in the SET SETTING menu to ON (see page 30).
Color balance is incorrect.
The picture is too dark.
• Picture has not been adjusted properly.
c Adjust the picture (see page 27).
• Projector is set to wrong color system.
c Set COLOR SYS in the PICTURE CTRL menu to match the
color system being input (see page 27).
• Contrast or brightness has not been adjusted properly.
c Adjust the contrast or brightness in the PICTURE CTRL menu
properly (see page 27).
• Picture is out of focus.
c Adjust the focus (see page 23).
• Condensation has occurred on the lens.
c Leave the projector for about two hours with the power on.
The picture appears too
small on the screen.
• SHIFT in the INPUT SETTING menu has not been adjusted
properly.
c Adjust SHIFT in the INPUT SETTING menu properly (see
page 28).
The picture flickers.
• DOT PHASE in the INPUT SETTING menu has not been adjusted
properly.
c Adjust DOT PHASE in the INPUT SETTING menu properly
(see page 28).
Sound
Symptom
Cause and Remedy
No sound.
• Cable is disconnected or the connections are wrong.
c Check that the proper connections have been made (see page
16).
When sound is input
• Monaural sound is being input through the AUDIO connector.
through AUDIO connector,
c Input stereo sound.
sound comes through one
channel only.
Remote Commander
Symptom
Cause and Remedy
The Remote Commander
does not work.
• The Remote Commander batteries are dead.
c Replace with new batteries (see page 14).
• The front/rear remote control detector is near the fluorescent lamp.
c Change the setting of SIRCS RECEIVER in the SET SETTING
menu (see page 30).
The joystick, R CLICK, or • The mouse port on the computer does not recognize the mouse
L CLICK key does not
cable.
function.
c Restart the computer.
VPL-CS2/CX1
GB
34
Troubleshooting
Symptom
Cause and Remedy
The LAMP/COVER
indicator flashes.
• The lamp cover or the air filter cover is detached.
c Attach the cover securely (see page 31).
The LAMP/COVER
indicator lights up.
• The lamp has reached the end of its life.
c Replace the lamp (see page 31).
• The lamp becomes a high temperature.
c Wait for 90 seconds to cool down the lamp and turn on the
power again (see page 31).
The FAN/TEMP indicator
flashes.
• The fan is broken.
c Consult with qualified Sony personnel.
The FAN/TEMP indicator
lights up.
• The internal temperature is unusually high.
c Check to see if nothing is blocking the ventilation holes.
Both the LAMP/COVER
• The electrical system breaks down.
and FAN/TEMP indicators
c Consult with qualified Sony personnel.
light up.
Warning Messages
Use the list below to check the meaning of the messages displayed on the screen.
Maintenance
The picture is not clear.
Others
Message
Meaning and Remedy
High temp.!
Lamp off in 1 min.
• Internal temperature is too high.
c Turn off the power.
c Check to see if nothing is blocking the ventilation holes.
Frequency is out of range!
• This input signal cannot be projected as the frequency is out of the
acceptable range of the projector.
c Input a signal that is within the range of the frequency.
• The resolution setting of the output signal of a computer is too
high.
c Set the setting of output to SVGA (VPL-CS2) or XGA (VPLCX1) (see page 16).
Please check INPUT-A
setting.
• You have input RGB signal from the computer when INPUT-A in
the SET SETTING menu is set to COMPONENT.
c Set INPUT-A correctly (see page 30).
Caution Messages
Use the list below to check the meaning of the messages displayed on the screen.
Message
Meaning and Remedy
NO INPUT
• No input signal
c Check connections (see page 16).
Not applicable!
• You have pressed the wrong key.
c Press the appropriate key.
Troubleshooting
35 GB
VPL-CS2/CX1
B Other
Notes on Installation
Unsuitable Installation
Do not install the projector in the following
situations. These installations may cause
malfunction or damage to the projector.
Very dusty
Unsuitable Conditions
Do not use the projector under the following
conditions.
• Avoid installing the unit in a location
where the temperature or humidity is very
high, or temperature is very low.
• To avoid moisture condensation, do not
install the unit in a location where the
temperature may rise rapidly.
1-19
GB
36
Notes on Installation
Tilting the unit out of the range of
the adjuster setting
Do not install the unit other than on the floor.
Avoid using when the unit is tilted out of the
range of the adjuster setting. Such
installation may cause malfunction.
Projection system
3 LCD panels, 1 lens, projection
system
LCD panel
VPL-CS2: 0.7-inch TFT LCD
panel, 1,440,000 pixels
(480,000 pixels × 3)
VPL-CX1: 0.7-inch TFT LCD
panel, 2,359,296 pixels
(786,432 pixels × 3)
Lens
1.3 times zoom lens
f 28.7 to 37.4 mm/F 1.7 to 2.1
Lamp
120 W UHP
Projection picture size
Range: 40 to 150 inches (diagonal
measure)
Light output VPL-CS2: ANSI lumen1) 600 lm
VPL-CX1: ANSI lumen1) 550 lm
Throwing distance
VPL-CS2 (When the SVGA signal
is input)
40-inch: 1580 to 2010 mm
(62 1/4 to 79 5/32 inches)
60-inch: 2390 to 3060 mm
(94 1/8 to 120 1/2 inches)
80-inch: 3210 to 4100 mm
(126 1/2 to 161 1/2 inches)
100-inch: 4030 to 5150 mm
(158 11/16 to 202 7/8 inches)
120-inch: 4850 to 6200 mm
(191 to 244 1/8 inches)
150-inch: 6080 to 7780 mm
(239 1/2 to 306 3/8 inches)
VPL-CX1 (When the XGA signal
is input)
40-inch: 1580 to 2020 mm
(62 1/4 to 79 9/16 inches)
60-inch: 2400 to 3070 mm
(94 1/2 to 121 inches)
80-inch: 3230 to 4120 mm
(127 1/4 to 162 1/4 inches)
100-inch: 4050 to 5180 mm
(159 1/2 to 204 inches)
120-inch: 4870 to 6230 mm
(191 7/8 to 245 3/8 inches)
150-inch: 6100 to 7810 mm
(240 1/4 to 307 5/8 inches)
1) ANSI lumen is a measuring method of
American National Standard IT 7.228.
Specifications
37 GB
Other
Highly heated and humid
Toppling the unit
Avoid using as the unit topples over on its
side. It may cause malfunction.
Specifications
Optical characteristics
Avoid using something to cover over the
ventilation holes (exhaust/intake);
otherwise, the internal heat may build up.
Poorly ventilated
• Allow adequate air circulation to prevent
internal heat build-up. Do not place the
unit on surfaces (rugs, blankets, etc.) or
near materials (curtains, draperies) that
may block the ventilation holes. When the
internal heat builds up due to the block-up,
the temperature sensor will function with
the message “High temp.! Lamp off in 1
min.” The power will be turned off
automatically after one minute.
• Leave space of more than 30 cm (11 7/8
inches) around the unit.
• Be careful that the ventilation holes may
inhale tininess such as a piece of paper.
Blocking the ventilation holes
Avoid installing the unit in a location where
there is a lot of dust; otherwise, the air filter
will be obstructed. The dust blocking the air
through the filter may cause raising the
internal heat of the projector. Clean it up
periodically.
1-20
Electrical characteristics
Color system NTSC3.58/PAL/SECAM/
NTSC4.43/PAL-M/PAL-N
system, switched automatically/
manually
Resolution
VPL-CS2: 600 horizontal TV lines
(Video input)
800 × 600 dots (RGB input)
VPL-CX1: 750 horizontal TV
lines (Video input)
1024 × 768 dots (RGB input)
Acceptable computer signals
fH: 15 to 91 kHz
fV: 43 to 85 Hz
Speaker
Stereo speakers system, 36 mm
(1 7/16 inches) diameter,
max. 0.5 W × 2
Input/Output
Video input
VPL-CS2/CX1
GB
38
Specifications
6-pin (female)
(For details, see “Input signals
and adjustable/setting items”
on page40.)
AUDIO
Stereo minijack
500 mVrms, impedance more
than 47 kilohms
USB hub
Up (B type: female) × 1
Down (A type: female) × 1
Safety regulations
UL1950, CSA No. 950, FCC Class
B, IC Class B
NEMKO EN60950, CE, C-Tick
General
277 × 70 × 214 mm (11 × 2 7/8 ×
8 1/2 inches) (w/h/d) (with the
front cover closed, without the
projection parts)
Mass
Approx. 2.9 kg (6 lb 6 oz)
Power requirements
AC 100 to 240 V, 1.9–0.8A,
50/60 Hz
Power consumption
Max. 190 W
(Standby mode: 4.2 W)
Heat dissipation
648.4 BTU
Operating temperature
0°C to 35°C (32°F to 95°F)
Operating humidity
35% to 85% (no condensation)
Storage temperature
–20°C to 60°C (–4°F to 140°F)
Storage humidity
10% to 90%
Supplied accessories
Remote Commander RM-PJM10
(1)
Size AA (R6) batteries (2)
HD D-sub 15 pin (2 m) (1)
(1-791-992-11)
PS/2 Mouse Cable (2 m) (1)
(1-792-424-11)
USB cable A type – B type (1)
(1-790-081-11)
Application software (1)
Carrying case (1)
AC power cord (1)
Air filter (for replacement) (1)
Operating Instructions (1)
Quick Reference Card (1)
Warranty Booklet (1)
MOUSE connector (6-pin, female)
Optional accessories
Projector Lamp LMP-C120 (for replacement)
Signal Cable SMF-402 (HD D-sub 15-pin
(male) y 3 × phono type
(male))
Monitor Cable SMF-410 (HD D-sub 15 pin
(male) y HD D-sub 15 pin
(male))
Signal Adapter
ADP-20 (Macintosh y HD Dsub 15-pin)
Screens
50-inch Portable Screen
VPS-50C1)
100-inch Flat Screen
VPS-100FH
6 5 4
3 2 1
1
DATA
2
N.C.
3
GND
4
+5V
5
CLK
6
N.C.
Dimensions
Some of the items may not be available in some
areas. For details, please consult your nearest
Sony office.
1) VPS-50C may not be available in some areas.
For details, please consult your nearest Sony
office.
Pin assignment
INPUT A connector (HD D-sub 15-pin,
female)
Other
INPUT A
VIDEO: phono type
Composite video: 1 Vp-p ±2 dB
sync negative (75 ohms
terminated)
S VIDEO: Y/C mini DIN 4-pin
type (male)
Y (luminance): 1 Vp-p ±2 dB
sync negative (75 ohms
terminated)
C (chrominance): burst
0.286 Vp-p ±2 dB (NTSC)
(75 ohms terminated),
burst 0.3 Vp-p ±2 dB (PAL)
(75 ohms terminated)
HD D-sub15-pin (female)
Analog RGB/component:
R/R-Y: 0.7 Vp-p ±2 dB
(75 ohms terminated)
G: 0.7 Vp-p ±2 dB
(75 ohms terminated)
G with sync/Y: 1 Vp-p ±2 dB
sync negative
(75 ohms terminated)
B/B-Y: 0.7 Vp-p ±2 dB
(75 ohms terminated)
SYNC/HD:
Composite sync input: 1-5 Vp-p
high impedance, positive/
negative
Horizontal sync input: 1-5 Vp-p
high impedance, positive/
negative
VD:
Vertical sync input: 1-5 Vp-p
high impedance, positive/
negative
MOUSE
1
R/R-Y
9
N.C.
2
G/Y
10
GND
3
B/B-Y
11
GND
4
GND
12
N.C.
5
GND
13
HD/C.Sync
6
GND (R)
14
VD
7
GND (G)
15
N.C.
8
GND (B)
Design and specifications are subject to change
without notice.
Specifications
39 GB
VPL-CS2/CX1
Preset signals
Input signals and adjustable/
setting items
Memory Preset signal
No.
PICTURE CTRL menu
Item
Input signal
Video
or S
video
(Y/C)
CONTRAST z
Com- RGB B&W
ponent
z
z
15.734
59.940
15.625
50.000
3
15k RGB/Component 60 Hz
15.734
59.940
S on G/Y or
Composite Sync
4
15k RGB/Component 50 Hz
15.625
50.000
S on G/Y or
Composite Sync
640 × 350
z
z
z
z
6
z
z
–
–
7
–
8
–
–
640 × 400
VGA mode 1
31.469
70.086
H-pos, V-neg
VGA VESA 85 Hz
37.861
85.080
H-pos, V-neg
832
PC-9801 Normal
24.823
56.416
H-neg, V-neg
848
800
800
9
VGA mode 2
31.469
70.086
H-neg, V-pos
10
VGA VESA 85 Hz
37.861
85.080
H-neg, V-pos
832
VGA mode 3
31.469
59.940
H-neg, V-neg
800
11
640 × 480
z
z
–
z
12
Macintosh 13"
35.000
66.667
H-neg, V-neg
864
D. PICTURE z
z
–
z
13
VGA VESA 72 Hz
37.861
72.809
H-neg, V-neg
832
GAMMA
MODE
–
–
z
–
COLOR
TEMP
z
SHARP
z
z
–
z
z
–
z : Adjustable/can be set
– : Not adjustable/cannot be set
Input signal
Video Comor S
ponent
video
(Y/C)
RGB
DOT
PHASE
–
–
z
SIZE
–
–
z
B&W
–
–
–
z
–
–
z
–
1-21
Specifications
H-neg V-neg
840
H-neg V-neg
832
16
800 × 600
SVGA VESA 56 Hz 35.156
56.250
H-pos, V-pos
1024
17
SVGA VESA 60 Hz 37.879
60.317
H-pos, V-pos
1056
18
SVGA VESA 72 Hz 48.077
72.188
H-pos, V-pos
1040
19
SVGA VESA 75 Hz 46.875
75.000
H-pos, V-pos
1056
21
832 × 624
22
1024 × 768
z
85.061
H-pos, V-pos
1048
49.724
74.550
H-neg, V-neg
1152
1264
XGA VESA 43 Hz
35.522
43.479
H-pos, V-pos
XGA VESA 60 Hz
48.363
60.004
H-neg V-neg
1344
24
XGA VESA 70 Hz
56.476
70.069
H-neg V-neg
1328
25
XGA VESA 75 Hz
60.023
75.029
H-pos, V-pos
1312
26
XGA VESA 85 Hz
68.677
84.997
H-pos, V-pos
1376
1152 × 864
29
30
–
SVGA VESA 85 Hz 53.674
Macintosh 16"
23
27
–
40
75.000
85.008
28
SHIFT
– : Not adjustable/cannot be set
37.500
43.269
–
SCAN
CONV
ASPECT z
z
z : Adjustable/can be set
VGA VESA 75 Hz
VGA VESA 85 Hz
20
INPUT SETTING menu
Item
14
15
1152 × 900
31
32
33
1280 × 960
SXGA VESA 70 Hz 63.995
70.016
H-pos, V-pos
1472
SXGA VESA 75 Hz 67.500
75.000
H-pos, V-pos
1600
SXGA VESA 85 Hz 77.487
85.057
H-pos, V-pos
1568
Sunmicro LO
61.795
65.960
H-neg, V-neg
1504
Sunmicro HI
71.713
76.047
H-neg, V-neg
1472
SXGA VESA 60 Hz 60.000
60.000
H-pos, V-pos
1800
SXGA VESA 75 Hz 75.000
75.000
H-pos, V-pos
1728
Specifications
Other
COLOR SYS z
GB
Video 60 Hz
Video 50 Hz
BRIGHT
z
SIZE
1
z
(NTSC
3.58/
4.43
only)
Sync
2
COLOR
HUE
fH (kHz) fV (Hz)
41 GB
1-22
Memory Preset signal
No.
1280 × 1024
34
fH (kHz) fV (Hz)
SXGA VESA 43 Hz 46.433
43.436
Sync
H-pos, V-pos
SIZE
Index
1696
35
SGI-5
53.316
50.062
S on G
1680
A
36
SXGA VESA 60 Hz 63.974
60.013
H-pos, V-pos
1696
37
SXGA VESA 75 Hz 79.976
75.025
H-pos, V-pos
1688
38
SXGA VESA 85 Hz 91.146
85.024
H-pos, V-pos
Adjuster ..........................10
Adjusting
memory of the settings 26
the picture .............23, 27
the picture size/shift ....28
Air filter ..........................32
ASPECT .........................29
1012
(VPL-CS2)
1296
(VPL-CX1)
Note
B
Whan a signal other than the preset signals shown above is input, the picture may not
appear properly.
Warning on power connection
Use a proper power cord for your local power supply.
Plug type
The United States,
Canada
Continental
Europe
UK, Ireland,
Australia,
Newzealand
Japan
VM0233
YP-12A
— 1)
VM1296
VM10505
290B
VM0089
386A
YC-13B
VM0310B
SJT
SJT
H05VV-F
N13237/CO-228 HVCTF
Rated Voltage & Current
10A/125V
10A/125V
10A/250V
10A/250V
13A/125V
Safety approval
UL/CSA
UL/CSA
VDE
VDE
DENTORI
Note
1) Use an appropriate rating plug which is applied to local regulations.
C
M
Menu
clearing the menu
display .................26
INPUT SETTING
menu ...................28
PICTURE CTRL
menu ...................27
SET SETTING menu .30
using the menu ...........26
Message
caution ........................35
warning .......................35
Mouse cable
connection ..................18
pin assignment ............39
Mouse connector ............12
pin assignment ............39
D
D. (Dynamic) PICTURE 27
DIGITAL KEYSTONE ..30
Digital Zoom Function ...25
DOT PHASE ..................28
GAMMA MODE ...........27
O
H
Optional accessories .......38
HUE ................................27
P
I
PICTURE CTRL menu ..27
Pin assignment ...............39
Power
turn on ........................22
POWER SAVING ....11, 30
Precautions .......................6
INPUT A connector .......12
pin assignment ............39
INPUT SETTING menu .28
INPUT-A ........................30
Installation examples ......15
notes ............................36
VPL-CS2/CX1
42
Specifications
L
Lamp replacement ..........31
LAMP TIMER ...............30
LANGUAGE .................30
selecting the menu
language ..............20
Location and function of
controls
connector panel ..........12
control panel ...............11
front/left/bottom side ....9
rear/right side ................9
Remote Commander ...13
Carrying handle ................9
COLOR ..........................27
COLOR SYS (System) ...27
COLOR TEMP ...............27
Connections
component equipment 18
computer .....................16
VCR ............................18
CONTRAST ...................27
G
GB
K
KEYSTONE MEMORY 30
R
Remote Commander ......13
battery installation ......14
location and function of
controls ...............13
Remote control detector
front ..............................9
rear ...............................9
setting .........................30
Reset
resetting the item ........26
resttable items .............26
S
SCAN CONV (Scan
converter) ................28
Screen size ...............15, 37
SET SETTING menu .....30
SHARP ...........................27
SHIFT ............................28
SIRCS RECEIVER ....9, 30
SIZE ...............................28
Specifications .................37
STATUS (on-screen
display) ...................30
Supplied accessories ......38
T
Troubleshooting .............33
U
USB connector .........12, 17
V
Ventilation holes
exhaust ..........................9
intake ......................9, 10
Index
43 GB
Other
Female end
Cord type
Battery
installation ..................14
notes ............................14
BRIGHT .........................27
unsuitable conditions ..36
VPL-CS2/CX1
Sony Corporation
Printed in Japan
1-23
1-24
4-079-835-01 (1)
/ Quick Reference Card / Carte de référence rapide /
Tarjeta de referencia rápida / Kurzreferenz / Scheda di riferimento
rapido
/ When you use a PS/2 mouse / Lorsque vous utilisez une souris
PS/2 / Si utiliza un ratón PS/2 / Wenn Sie eine PS/2-Maus verwenden / Quando si utilizza
un mouse PS/2
AUDIO
MOUSE
VIDEO
S VIDEO
INPUT A
VPL-CS2/VPL-CX1
MONITOR OUT
B
Sony Corporation © 2000 Printed in Japan
MOUSE
D
/ Connections / Connexions / Conexiones / Anschlüsse /
A*
Collegamenti
AUDIO OUT
A
/ Stereo audio connecting cable / Câble de connexion audio stéréo / Cable de
conexión de audio estéreo / Stereo-Audioverbindungskabel / Cavo di collegamento audio stereo
B
/ HD D-sub 15-pin cable / Câble HD D-sub à 15 broches / Cable HD D-sub 15 pines /
15poliges D-Sub-Kabel hoher Dichte / Cavo HD D-sub a 15 piedini
C
/ USB cable / Câble USB / Cable USB / USB-Kabel / Cavo USB
D
/ Mouse cable / Câble de souris / Cable de ratón / Mauskabel / Cavo del mouse
E
/ S-video cable / Câble S-vidéo / Cable de vídeo S / S-Videokabel / Cavo S-Video
F
/ Video cable / Câble vidéo / Cable de vídeo / Videokabel / Cavo video
G
/ Connect another USB equipment / Raccordez un autre appareil USB / Conexión de otro
equipo USB / Anschließen eines anderen USB-Geräts / Collegare un altro apparecchio USB
/ Connecting a VCR / Raccordement à un magnétoscope /
Conexión con una vídeograbadora / Anschließen an einen Videorecorder /
Collegamento a un videoregistratore
F*
E*
S VIDEO VIDEO OUT
OUT
AUDIO
/ Connecting a computer / Raccordement à un ordinateur /
Conexión con ordenador / Anschließen an einen Computer / Collegamento a un
computer
/ When you use a USB mouse and USB equipment
/ Lorsque vous utilisez une souris USB et un appareil USB / Si utiliza un ratón USB y un
equipo USB / Wenn Sie eine USB-Maus und ein USB-Gerät verwenden / Quando si utilizza
un mouse USB e un apparecchio USB
AUDIO
MOUSE
VIDEO
S VIDEO
*
MOUSE
VIDEO
S VIDEO
AUDIO
OUT
INPUT A
/ not supplied / non fourni / no suministrado / nicht mitgeliefert / non in dotazione
/ Projection Distances / Distances de projection /
Distancias de proyección / Projektionsentfernungen / Distanze di
proiezione
INPUT A
/ Screen size(inchies) / Taille de
l’écran (pouces) / Tamaño de la pantalla (pulgadas) / Projektionsschirmgröße (Zoll) / Dimensione schermo (pollici)
G
B
C
A*
MONITOR OUT
USB
AUDIO OUT
/ Distance (m (feet)) / Distance (m (pieds)) /
Distancia (m (pies)) / Abstand (m) / Distanza (m)
40
1.6–2.0 (5.2–6.6)
60
2.4–3.1 (7.8–10.0)
80
3.2–4.1 (10.5–13.5)
100
4.0–5.2 (13.2–16.9)
VPL-CS2/CX1
120
4.9–6.2 (15.9–20.3)
150
6.1–7.8 (20.0–25.5)
VPL-CS2/CX1
/ Basic Operation / Opération de base / Operación básica / Grundfunktion / Operazione di base
English
1
1
2
3
4
RESET
MENU
POWER
INPUT
ENTER
APA
VOLUME
2
APA
APA
3
To enlarge the image
Press the D ZOOM + key. Using an arrow key (M/m/
</,), move the highlight portion to the point you
want to enlarge. Press the D ZOOM + key again.
+
MENU
–
To adjust the picture of computer automatically
Press the APA (Auto Pixel Alignment) key.
To correct the trapezoid
Correct the trapezoid of the picture by changing the
DIGITAL KEYSTONE value in the SET SETTING
menu.
VOLUME
INPUT
APA
4
I/1
LAMP/COVER
MUTING
PIC
2
3
Open the front cover, plug the AC power cord into
the wall outlet, then connect all equipment.
Press the ? / 1 key to turn on the projector.
Turn on equipment connected to the projector.
Press the INPUT key to select “INPUT-A”,
“VIDEO” or “S-VIDEO”.
Turn the zoom ring to adjust the size of the
picture, and turn the focus ring to adjust the focus.
ENTER
FAN/TEMP
BY
POWER SAVING ON/STAND
Français
1
2
3
4
Ouvrez le volet frontal, branchez le câble
d’alimentation sur une prise murale et raccordez
ensuite tous les appareils.
Appuyez sur la touche ? / 1 pour mettre le
projecteur sous tension.
Mettez sous tension l’appareil raccordé au
projecteur. Appuyez sur la touche INPUT pour
sélectionner “ENT.A”, “VIDEO” ou “S-VIDEO”.
Tournez la bague de zoom pour ajuster la taille de
l’image et tournez la bague de mise au point pour
ajuster la mise au point.
Pour régler automatiquement l’image de
l’ordinateur
Appuyez sur la touche APA (alignement
automatique des pixels).
Pour corriger la distorsion trapézoïdale
Corrigez la distorsion trapézoïdale en changeant la
valeur TRAPEZE NUMER. dans le menu
REGLAGE. INSTAL.
Pour agrandir l’image
Appuyez sur la touche D ZOOM +. A l'aide d'une
touche fléchée (M/m/</,), déplacez la partie en
surbrillance vers le point que vous souhaitez
agrandir. Appuyez de nouveau sur la touche D
ZOOM +.
Español
1
2
3
4
Abra la tapa frontal, enchufe el cable de
alimentación de CA en la toma mural y, a
continuación, conecte todo el quipo.
Pulse la tecla ? / 1 para encender el proyector.
Encienda el equipo conectado al proyector. Pulse
la tecla INPUT para seleccionar “ENTRAD A”,
“VIDEO” o “S-VIDEO”.
Gire el anillo de zoom para ajustar el tamaño de la
imagen, y gire el anillo de enfoque para ajustar el
enfoque.
Para ajustar la imagen del ordenador
automáticamente
Pulse la tecla APA (Alineación automática de píxeles).
Italiano
1
2
3
4
Aprire il coperchio anteriore, inserire
l’alimentatore CA nella presa a muro, quindi
collegare tutti gli apparecchi.
Per accendere il proiettore, premere il tasto ? / 1.
Accendere l’apparecchiatura collegata al
proiettore. Premere il tasto INPUT per selezionare
“INGRE A”, “VIDEO” o “S-VIDEO”.
Per regolare le dimensioni dell’immagine, ruotare
il regolatore dello zoom, per regolare la messa a
fuoco, ruotare il regolatore della focalizzazione.
Per regolare automaticamente l’immagine del
computer
Premere il tasto APA (Allineamento automatico dei
pixel).
Para corregir la distorsión trapezoidal
Corrija la distorsión trapezoidal de la imagen
cambiando el valor de DIST TRAP DIGIT del menú
AJUSTE.
Per correggere la distorsione dell’immagine
Correggere l’immagine distorta modificando il valore
di KEYSTONE DIGIT. nel menu REGOLAZ.
Para ampliar la imagen
Pulse la tecla D ZOOM +. Mediante una tecla de
flecha (M/m/</,), desplace la parte resaltada al
punto que desee aumentar. Vuelva a pulsar la tecla
D ZOOM +.
Per ingrandire l’immagine
Premere il tasto D ZOOM +. Per spostare la parte
evidenziata sul punto che si desidera ingrandire,
utilizzare uno dei tasti direzionali (M/m/</,).
Premere di nuovo il tasto D ZOOM +.
Deutsch
1
2
3
4
Öffnen Sie die Abdeckung vorn, stecken Sie das
Netzkabel in die Steckdose, und schließen Sie alle
Geräte an.
Schalten Sie den Projektor mit der Taste ? / 1 ein.
Schalten Sie die an den Projektor angeschlossenen
Geräte ein. Wählen Sie mit der Taste INPUT
“EING.A”, “VIDEO” oder “S-VIDEO” aus.
Stellen Sie durch Drehen des Zoom-Rings die
Größe des Bildes und durch Drehen des
Fokussierrings den Fokus ein.
So lassen Sie das Bild des Computers
automatisch einstellen
Drücken Sie die Taste APA (automatische
Pixelausrichtung).
So korrigieren Sie die Trapezverzerrung
Korrigieren Sie die Trapezverzerrung des Bildes,
indem Sie den Wert für TRAPEZ DIGITAL im
Menü EINSTELLUNG ändern.
1-25
So vergrößern Sie das Bild
Drücken Sie die Taste D ZOOM +. Verschieben Sie
den hervorgehobenen Bildbereich mit den
Pfeiltasten (M/m/</,) an die Stelle, die
vergrößert werden soll. Drücken Sie die Taste D
ZOOM + erneut.
Section 2
Service Informations
2-1. Circuit Boards Location
B
NF
BA
C
QA
H
GA
GB
VPL-CS2/CX1
2-1
2-2. Disassembly and Extension Boards
2-2-1. Cover Removal
2 Top cover
CN001
3 Side cover
CN815
CN820
1 Six shafts
2-2-2. Front Panel Assy and NF Board Removal
5 Lamp power
CN803
7 Screw (+BVTP3 x 10)
8 NF board
CN071
1 Screw (+PS2 x 8)
4 Unhook the two snaps.
6 Front panel assy
2 Lock switch
3 Front cover
2-2
VPL-CS2/CX1
2-2-3. C Board Removal
1 Screw (+B3 x 6)
CN811 CN816
2 Earth spring(CT)
CN818
3 C board
CN804
CN801
CN405
CN403
2-2-4. Optics Unit Assy Removal
. Remove the C Board. (Refer to Section 2-2-3.)
6 Two screws (+PSW4 x 8)
7 Optics unit assy
5 Screw (+PSW4 x 8)
4 Lamp assy
3 Screw (M3)
2 Lamp door
1 Screw (M3)
VPL-CS2/CX1
2-3
2-2-5. GA and GB Boards Removal
. Remove the Optics unit assy. (Refer to Section 2-2-4.)
9 GB board
CN707
6 Two screws (+B 3 x 6)
CN605
CN674
3 Lamp house
8 GA board
CN606
2 Fan
4 Screw (+BVTP3 x 10)
1 Two fan screws
5 Screw (+PSW4 x 8)
7 Front chassis
2-2-6. B, BA and QA Boards Removal
. Remove the Optics unit assy. (Refer to Section 2-2-4.)
7 B board
4 Two screws
2 Two screws (+B3 x 6)
5 Two screws (+B2 x 6)
1 BA board
CN105
6 Plate (QA)
CN104
Video sleeve
CN101
3 QA board
CN102
2-4
CN103
Earth spring (VIDEO)
VPL-CS2/CX1
2-2-7. Lens Removal
2 Lens
1 Two screws (+PSW4 x 8)
2-2-8. Prism Block Assy and In-polarizer Panel Assy Removal
. Remove the Optics unit assy. (Refer to section 2-2-4.)
Note: Use extreme care not to touch the glass
section of prism, LCD, and conductive
section of the flexible cable in particular.
6 Prism block assy
9 Screw (+B2.5 x 6)
7 Screw (+B2.5 x 6)
8 In-polarizer panel
(R) assy
Hold with
fingers.
!/ In-polarizer panel
(G) assy
!- Screw (+B2.5 x 6)
!= In-polarizer panel
(B) assy
5 Two screws (+PS3 x 8)
4 Cushion (FAN)
3 Fan
2 Finger guard
1 Two fan screws
VPL-CS2/CX1
2-5
2-2-9. Extension Boards and Flexible Cables
24P (1-900-251-19)
XFB (1-680-467-11)
XB7 (1-680-386-11)
XB5 (1-680-385-11)
50P (1-900-251-17)
XFC (1-680-387-11)
XQ7 (1-680-384-11)
XQ5 (1-680-383-11)
XPS
(1-680-389-11)
XPX (1-680-388-11)
24P (1-900-251-19)
VPL-CS2 ONLY
2-6
32P (1-900-251-18)
VPL-CX1 ONLY
VPL-CS2/CX1
2-2-10. Extension Boards Connection
BA board
XB7
XQ7
Flexible Cable (24P)
Flexible Cable (50P)
XFB
XFC
C board
XQ5
XQ7
XB5
XB7
Flexible Cable (24P) [VPL-CS2]
Flexible Cable (32P) [VPL-CX1]
XPS [VPL-CS2]
XPX [VPL-CX1]
XB7
XFB
B board
Flexible Cable (24P)
Flexible Cable (50P)
XB5
XQ5
XQ7
XPS [VPL-CS2]
XPX [VPL-CX1]
Flexible Cable (24P) [VPL-CS2]
Flexible Cable (32P) [VPL-CX1]
VPL-CS2/CX1
XFC
C board
2-7
Section 3
Electrical Adjustments
3-1. Preparations
2) Polarizing Plate Adjustment
3-1-1. Equipment Required
1. Attach the extension cable and the extension flexible
cable to the C board, and input the RGB all black
(SVGA 0 IRE Flat Field) signal.
2. Move the red, green, and blue polarizing plates
gradually to adjust the black level.
3. Secure the fixing screws using the screwdriver.
. Oscilloscope
Tektronix 2465 or equivalent
(bandwidth: 350 MHz or more)
. NTSC, PAL, SECAM component signal generator
Tektronix TG2000 + AVG1 (optional module) + AWVG1
(optional module) or equivalent
. VG (Programmable video signal generator)
VG814 or equivalent
. Digital voltmeter
Advantest TR6845 or equivalent
. Luminance meter
Note: Perform the following adjustments at least 5 minutes
after turning on the power.
3-1-2. Optical Unit Adjustment
Note: When tightening the six fixing screws, be sure to push
the polarizing plate toward the radiating side.
3-1-3. Factory Mode Setting
1. Make sure that the STATUS in the menu is ON.
2. Exit the menu.
3. Press the keys in the following ORDER:
“ENTER” → “ENTER” → “LEFT” → “ENTER”
4. The message “Do you wish to enter into the
FACTORY MODE?” will be displayed.
5. Select YES.
Drive the cooling fan and turn on the lamp.
1) Mirror Adjustment
3-2. V-COM Adjustment
Set the screen size to 80-inch at the wide-end.
1. Set the unit in green-only.
2. Adjust the blanking sections at the top, bottom, left,
and right for minimum by moving the adjusting plate
of the G-channel mirror (OPT).
3. Tighten the adjusting plate fixing screws.
4. Set the unit in cyan.
5. Adjust the blanking sections at the top, bottom, left,
and right for minimum by moving the adjusting plate
of the B-channel mirror (OPT), and then maximize the
intensity of the blue.
6. Tighten the adjusting plate fixing screws.
7. Set the unit in all white.
8. Adjust the blanking sections at the top, bottom, left,
and right for minimum by moving the adjusting plate
of the R-channel’s first mirror (OPT), and then
maximize the intensity of the red.
9. Tighten the adjusting plate fixing screws.
10. Secure the six adjusting plate fixing screws using a
torque screwdriver.
Tightening torque: 8 kgf/cm
11. Make sure that the deviation of the lighting range is
within the specific range.
1. Input the green-only 50 IRE all white signal to
INPUT-A.
2. Set the CONTRAST to 50 and BRIGHT to 50.
3. Set the screen to G VCOM adjustment of “Device
Adjust.”
Adjust the G VCOM so that the vertical line on the
screen is minimum.
4. Input the red-only and blue-only 50 IRE all white
signal respectively and adjust R VCOM and B VCOM
respectively so that the vertical line becomes
minimum.
5. Save the value adjusted.
VPL-CS2/CX1
3-1
3-3. Adjustment Item Initialize Data
Memory Name
Menu Title
Item Name
Set
RGB
RGB
HIGH
LOW
HIGH
LOW
GAIN R
64
64
64
64
GAIN G
64
60
64
60
GAIN B
64
60
64
60
BIAS R
128
128
128
128
BIAS G
128
128
128
128
BIAS B
128
128
128
128
CONTRAST
80
80
80
BRIGHT
50
50
50
COLOR
50
50
50
HUE
50
50
50
50
50
50
D.PICTURE
OFF
OFF
OFF
COLOR TEMP
LOW
LOW
HIGH
COLOR SYS
AUTO
AUTO
-
-
-
GRAPHICS
50
50
50
GAMMA MODE
VOLUME
SET SETTING
ASPECT
Memory
4 : 3 (*)
SIZE H
*
SHIFT
*
SCAN CONV
ON (*)
DOT PHASE
15 (*)
STATUS
ON
INPUT-A
RGB
KEYSTONE MEMORY
DIGITAL KEYSTONE
LANGUAGE
POWER SAVING
SIRCS RECEIVER
INFORMATION
S VIDEO INPUT-A
W/B Memory
VIDEO
SHARP
INPUT SETTING
VIDEO
Status
VIDEO
Memory
PICTURE CTRL
CH Memory
ON
OFF
ENGLISH
OFF
FRONT&REAR
LAMP TIMER
INDICATION ONLY
fH
INDICATION ONLY
fV
INDICATION ONLY
ROM Ver
INDICATION ONLY
OPERATION TIMER
INDICATION ONLY
PREVIOUS LAMP TIMER INDICATION ONLY
W/B ADJUST
*
: “DOT PHASE, SIZE H, SHIFT H/V, SCAN CONV and ASPECT” in the “INPUT SETTING” menu have an initial
value respectively in accordance with the input signal (PRESET MEMORY No.).
Note : There are nonadjustable items in accordance with the input signal.
3-2
VPL-CS2/CX1
Memory Name
Device Name
Item Name
Set
Memory
RGB MTRX/
Chroma Memory
NT358,NT443
PAL,PALM/N
B&W60
SECAM,B&W50
YUV
Reso
Status
Memory
Memory
Remarks
CONTRAST
49
47
47
BRIGHT
35
35
35
SUB HUE
8
8
7
SUB BRT
7
7
7
R-Y/R
12
10
11
R-Y/B
12
12
13
G-Y/R
7
5
6
G-Y/B
6
5
5
VIDEO CON
5
7
7
VIDEO COL
6
7
7
YUV CON
7
7
7
YUV COL
7
7
7
SUB SHP
2
2
1
Fixed Value
SHP FO
3
3
1
Fixed Value
PRE OVER
0
0
2
Fixed Value
NR LVL
2
2
0
Fixed Value
CEC LVL
2
2
2
Fixed Value
Fixed Value
Fixed Value
DMIC PIC
2
Fixed Value
DCOM/
VENH
2
Fixed Value
CHROMA/
PAL DVD
Non Adjustable
Fixed Value
Y-OUT LVL
15
C-OUT LVL
29
Y-DL
*
Fixed Value
S B-Y ADJ
0
Fixed Value
S R-Y ADJ
3
Fixed Value
S-INHBT
0
Fixed Value
S-ID
0
Fixed Value
S GP
0
Fixed Value
S V-ID
0
Fixed Value
BELL f0
0
Fixed Value
BELL/HPF
0
Fixed Value
SHP GAIN
12
12
12
Fixed Value
SHIP EQ
0
0
0
Fixed Value
SHIP F0
2
2
2
Fixed Value
*
: It differs in accordance with the input signal.
Note : There are nonadjustable items in accordance with the input signal.
VPL-CS2/CX1
3-3
Memory Name
Device Menu
P. DRV/
SH/
V AMP/
EP/
TG/
Item Name
Set
Chroma Memory
Memory
NT358, NT443
PAL, PALM/N
VPL-CS2 VPL-CX1
B&W60
SECAM, B&W 50
VCOM G
143/143 *
VCOM R
182/182 *
VCOM B
187/187 *
SIG CEN
120
160
SID LVL
91
86
PRG LVL
125
128
INSTALLATION
Non Adjustable
SH 1
4
11
SH 2
88
90
105
140
CONT
SUB CONT R
128
SUB CONT G
128
SUG CONT B
128
YUV
Reso
Status
Memory
Memory
Remarks
Fixed Value
Fixed Value
BRT 1
Non Adjustable
BRT 2
174
VNRSH R
Non Adjustable
VNRSH G
Non Adjustable
137
VNRSH B
Non Adjustable
VNRSH R
Non Adjustable
VNRSH G
Non Adjustable
VNRSH B
Non Adjustable
DXOUT R
Non Adjustable
DXOUT G
Non Adjustable
DXOUT B
Non Adjustable
ENB R
Non Adjustable
ENB G
Non Adjustable
ENB B
Non Adjustable
ENB WIDTH
Non Adjustable
YOUT
Non Adjustable
DYOUT POS
Non Adjustable
SH WIDTH
Non Adjustable
CLP1 POS
Non Adjustable
CLP1 WIDTH
Non Adjustable
CLP2 POS
Non Adjustable
CLP2 WIDTH
Non Adjustable
Fixed Value
*
: It differs in accordance with the INSTALLATION setting (Floor/ceiling).
Note : There are nonadjustable items in accordance with the input signal.
3-4
VPL-CS2/CX1
Memory Name
Device Menu
Item Name
Set
Memory
TG/
SC/
NRG POS
Non Adjustable
NRG WIDTH
Non Adjustable
MSK H POS
Non Adjustable
MSK H WIDTH
Non Adjustable
MSK V POS
Non Adjustable
MSK V WIDTH
Non Adjustable
FREEZE
0 (Non memory)
HST
Chroma Memory
NT358, NT443
PAL, PALM/N
B&W60
SECAM, B&W 50
YUV
Reso
Status
Memory
Memory
0
UNSYNCHRO IFV
SHOGA
GAMMA ON
0 (*1)
0
VINIT EVEN
*2
Fixed Value
VINIT ODD
*2
Fixed Value
*2
Fixed Value
HT GAIN
32
HT BIAS
0
ZOOM AREA GAIN
32
EDSEED
PLL/
0
IIR
*2
EGCRLL
*2
EGCRUL
*2
EGEHCOE
*2
APA SH LVL
16
Fixed Value
SHIFT SH LVL
51
Fixed Value
VCO
CP
OTHER/
Fixed Value
1 (Non memory)
EDMOD
APA/
Remarks
0 (*1)
Fixed Value
*1
Fixed Value
TEMP LAMP
Non Adjustable
Fixed Value
TEMP PANEL
Non Adjustable
Fixed Value
ZOOM
0 (Non memory)
ZOOM H SHIFT
1 (Non memory)
ZOOM V SHIFT
2 (Non memory)
UNIFORMITY
1 (Non memory)
*1
: “DOT PHASE, SIZE H, SHIFT H/V, SCAN CONV and ASPECT” in the “INPUT SETTING” menu have an initial
value respectively in accordance with the input signal (PRESET MEMORY No.).
*2 : It differs in accordance with the resolution of the input signal.
Note : There are nonadjustable items in accordance with the input signal.
VPL-CS2/CX1
3-5
3-4. Service Kowhow
Cross Table of Board Replacement
Board Name
3-4-1. After Replacing the Prism Block
Device Name
Item Name
BA
C
P.DRV
VCOM (R)
*
O
VCOM (G)
*
O
VCOM (B)
*
O
CONT
*
95, 100 IRE
SUB CONT R
*
95,100 IRE
SUB CONT G
*
128 Fixed
SUB CONT B
*
95,100 IRE
BRT
*
2.8 V
GAIN R
*
No
GAIN G
*
No
GAIN B
*
No
1. Perform Section “3-1-2, item 2) Polarizing Plate
Adjustment.”
2. Perform Section “3-2. V-COM Adjustment.”
3. Perform Section “3-5. White Balance Adjustment on
Servicing.”
3-4-2. After Replacing the Board
. Refer to the cross table below.
. There are no need to perform the adjustment when the board
other than the BA board or C board had been replaced.
W/B ADJUST
INPUT A-HIGH
1) When Replacing the BA Board
When the data before replacement can be read properly
1. Make a not of the data before replacement. After
replacement, write the data into the new board with
service mode.
2. If the white balance is extremely deteriorated, perform
the white balance adjustment (Refer to Section 3-5.).
INPUT A-LOW
When the data before replacement cannot be read
1. Perform Section “3-2. V-COM Adjustment.”
2. Perform Section “3-5. White Balance Adjustment on
Servicing.”
VIDEO-HIGH
2) When Replacing the C Board
1. Perform Section “3-2. V-COM Adjustment.”
2. Perform Section “3-5. White Balance Adjustment on
Servicing.”
VIDEO-LOW
3) When Replacing the Other Board
There are no need to perform the adjustment.
BIAS R
*
No
BIAS G
*
No
BIAS B
*
No
GAIN R
*
O
GAIN G
*
O
GAIN B
*
O
BIAS R
*
O
BIAS G
*
O
BIAS B
*
O
GAIN R
*
No
GAIN G
*
No
GAIN B
*
No
BIAS R
*
No
BIAS G
*
No
BIAS B
*
No
GAIN R
*
O
GAIN G
*
O
GAIN B
*
O
BIAS R
*
O
BIAS G
*
O
BIAS B
*
O
*
: When down the data befor replacement, and then
write in the data after the board replacement.
O : Need adjustment
Value : See description.
3-6
VPL-CS2/CX1
3-5. White Balance Adjustment on
Servicing
3-5-1. Signal Level Adjustment
1. Input the 10 STEP signal to INPUT-A.
2. Warm up the unit at least 10 minutes. Enter the VAMP/BRT adjustment mode from the Service mode
as follows :
Service Mode → MENU → DEV. ADJ → P. DRV
→ VAMP/BRT.
3. Measure TP813, TP817, and TP821 on the C board
by osciloscope. Adujust V AMP/BRT so that the
minimum value in all black level is 2.8 V.
4. Input the 95 IRE and 100 IRE STEP signals.
5. Set the unit in G-only mode.
6. Enter the P.DRV on the MENU screen by the DEV.
ADJ.
7. Discriminate the 95 IRE and 100 IRE by the VAMP/CONT controls of the P.DRV.
8. Set the unit in R-only mode.
9. Discriminate the 95 IRE and 100 IRE by the VAMP/SUB CONT R controls of the P.DRV.
10. Set the unit in B-only mode.
11. Discriminate the 95 IRE and 100 IRE by the VAMP/SUB CONT B controls of the P.DRV.
2) LOW Mode of INPUT-A
1.
2.
3.
4.
5.
Input the 80 IRE FLAT FIELD signal to INPUT-A.
Set the GAIN G to 60 with the LOW mode of the W/B.
Measure the chromaticity (x, y).
Input the 25 IRE FLAT FIELD signal to INPUT-A.
Adjust the chromaticity (x, y) to the values measured in
step 3 by the BIAS G and B of the LOW mode of the W/B.
6. Repeat above steps 1 to 5 until the chromaticity become
the following values.
x ± 0.002, y ± 0.003 (The x and y are the values
measured in step 3.)
3) HIGH Mode of VIDEO
Switch the input to COMPONENT from INPUT-A by the
SET SETTING of the Menu screen.
Input the 15k COMPONENT 10 STEP signal to INPUT-A,
and observe the chromaticity of each luminance.
When varying the chromaticity of each luminance, perform
the following adjustments.
1.
2.
3.
4.
Input the 100 IRE FLAT FIELD signal to INPUT-A.
Measure the chromaticity (x, y).
Input the 50 IRE FLAT FIELD signal to INPUT-A.
Adjust the chromaticity (x, y) to the values measured in
step 2 by the VAMP/SUB CONT R and B of the P. DRV.
3-5-2. White Balance Adjustment
4) LOW Mode of VIDEO
1) HIGH Mode of INPUT-A
Input the 10 STEP signal to INPUT-A, and observe the
chromaticity of each luminance.
When varying the chromaticity of each luminance,
perform the following adjustments.
1.
2.
3.
4.
Input the 100 IRE FLAT FIELD signal to INPUT-A.
Measure the chromaticity (x, y).
Input the 50 IRE FLAT FIELD signal to INPUT-A.
Adjust the chromaticity (x, y) to the values measured
in step 2 by the VAMP/SUB CONT R and B of the
P. DRV.
VPL-CS2/CX1
1. Input the 80 IRE 15k COMPONENT FLAT FIELD
signal to INPUT-A.
2. Set the GAIN G to 60 with the LOW mode of the W/B.
3. Measure the chromaticity (x, y).
4. Input the 25 IRE FLAT FIELD signal to INPUT-A.
5. Adjust the chromaticity (x, y) to the values measured in
step 3 by the BIAS G and B of the LOW mode of the W/B.
6. Repeat above steps 1 to 5 until the chromaticity become
the following values.
x ± 0.002, y ± 0.003 (The x and y are the values
measured in step 3.)
3-7
3-6. Memory
Memory structure of VPL-CS2/CX1 series is based on the
VPL-CS1 and it is composed of the following eight
memory blocks.
1. Set memory
2. Status memory
3. Channel memory
4. Chroma memory
5. W/B memory
6. Reso memory
7. Gamma memory
8. Uniformity memory
written into the NVM (Nonvolatile Memory). When the
power is turned to on, required data for the current picture,
such as status memory data, etc., are selected, and they are
written into the internal RAM. At this time, the gamma
memory data and uniformity memory data which newly
provided in this series are not writing into the internal
RAM but they will be transferred to the register inside the
device directly.
When adjustment is carried out, adjustment data are
written into the NVM automatically (items on the user
mode) or by the trigger of memory operation (items on the
service mode and special service mode).
But, each values of gamma memory and uniformity
memory does not adjust from the OSD but can only adjust
by the RS232C communications.
Adjustable items (W/B and Device Adjust) of the service
mode and special service are memorized into the NVM by
the memory operation. At the same time, the factory preset
(adjusted) data are all eliminated from the memory.
CPU internal ROM : 256 kbyte Flash Memory
CPU internal ROM : 16 kbyte
External NVM memory : 8 kbyte EEPROM
(BA mounted IC202)
When the power plug is connected to the power line
(Standby status), all data inside the internal ROM are
Set Memory
Set Memory
No.01
Status
Memory
Set Memory
No.01
Status
Memory
No.02
INPUT-A Preset
INPUT-A Preset
No.03
...
...
No.50
No.03
...
...
No.50
INPUT-A
User
Video
Channel
Memory
Chroma NT358/443/BW60
Memory
PAL/PAL-M/N/
SECAM/BW50
15k Component
HIGH
Channel Memory
Chroma NT358/443/BW60
Memory PAL/PAL-M/N/
SECAM/BW50
15k Component
W/B
Memory
LOW
HIGH
LOW
Reso No. 0
...
...
No.90
S-Video
Input-A
Reso
Memory
Reso No.17
Computer Others
Reso
Memory
Computer Others
W/B
Memory
No.71
...
Video
Channel
Memory
S-Video
Input-A
Status Memory
No.02
HIGH
Chroma Memory
W/B
Memory
LOW
HIGH
LOW
HIGH
LOW
Reso No. 0
...
...
Reso Memory
Reso No.17
CPU ROM
External NVM
Initialize
CPU RAM
Memory
Active memory copy
Gamma
Memory
Graphics
Text
Uniformity Memory
3-8
Gamma
Memory
Graphics
Text
Output to device directly
Uniformity Memory
VPL-CS2/CX1
Section 4
Semiconductors
24LC21AT/SN
BA033FP-E2
IRMF-A0T-QTP
LMV358MMX
LT1374IS8#TR
LT1376IS#TR
M24C64
MC100ELT20DR2
NJM2073M(TE2)
TA75W393FU
TL431BCDR2
UPD16875G
BA05FP-E2
BA12FP-E2
FA5332M-TE1
TA78M09F(TE16L)
HN1B01FU-TE85R
DAP202K-T146
3
2
1
3
1
2
2 3
1
ISPLSI1016E-100LT44
UPD72012GB
192
2SA1162-YG-TE85L
2SA1213Y-TE12L
2SA1462
2SA1611T1-M5M6
2SC2712-YG-TE85L
DTA144EKA-T146
DTC114EUA-T106
DTC144EKA-T146
DAN202K-T-146
D1FL20U-TA
D1FS4A-TA
TOP222Y-BB
TOP223Y-BB
IP00C712
GND
NC7SZ86P5X
TC75S56F
TC7SH08FU-TE85R
TC7SZ04FU
129
193
128
(TOP VIEW)
2SC2873Y-TE12L
65
256
1
64
D10SC9M
VCC
N.C
OUT
M52749FP-TP
42
22
CXA1846BN
1
74VHC125MTCX
74VHC14MTCX
TC74LCX74FT(EL)
TC74VHCT04AFT(EL)
TC74VHC08FT(EL)
2SD2114S-TP-V
Letter Side
21
FCQ20A06
PQ05SZ1U
D
G
74VHC221AMTCX
CXA1875AM-T4
MAX4066CEE-TE2
CXA2112R-T6
S
2SK3013F-02
RD13ES-T1B2
RD20ES-T1B2
RS-140-T
ADV7123KST140
CXA1839Q-T6
CXD2064Q-T6
74VHC240MTCX
74VHC541MTCX
MB88346BPFV-EF
MB90098APF
MK1714-01RT
MA157-TX
RD24M-T1B2
RD8.2M-T1B1
3
2
1
3
2
1
VPL-CS2/CX1
4-1
SEC1801C
SEC1901C
SEC2422C
M52758FP
M52347FP-TE
36
20
19
AD9884AKS-140
102
11
65
64
103
128
1
39
10
1
18
1
38
TOP VIEW
TF861S
CXA2123AQ
38
CXD3503R
48
25
48
41
40
61
32
15
1
17
64
14
80
TOP VIEW
1SS355TE-17
D2FS6-TA
DTZ-TT11-5.1
RB501V-40TE-17
RD5.6SB-T1
RD9.1SB2-T1
UDZ-TE-17-3.9B
60
33
49
24
39
CDX9575TQ
21
16
1
TOP VIEW
PQ30RV11
1
20
TOP VIEW
PQ20VZ1V
HD64F2633TE
90
61
60
91
1
1
4
RCV4-A1T
3
5
2
4
1: FB
2:Vc
3: GND
4:Vsw
5:Vin
1
18
1
17
30
TOP VIEW
MB81F161622C
34
31
120
D6SB80
50
26
1
25
HN1D03FU
4
5
6
3
2
1
4
5
6
LM4041D1M3-1, 2(T&R)
3
2
NC7WZ04P6X
1
1
TL431CPK-E2
FMG-G2CS
FSF10A60
2
3
3
CATHODE
1
2
ANODE
P6K300AG23
P6KE200AG23
P6KE350AG23
RGP10G
RGP10J
S-80842ANNP
TK11900MTL
1
1
CATHODE
ANODE
4-2
VPL-CS2/CX1
Cover
Section 5
Exploded Views
NOTE :
• Items marked “ * ” are not stocked since they are seldom required
for routine service. Some delay should be anticipated when ordering these items.
The components identified marked ! are
critical for safety.
Replace only with the part number specified.
• Items with no part number and no description are not stocked because they are seldom required for routine service.
Les composants identifiés par la marque !
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
• The construction parts of an assembled part are indicated with a
collation number in the remarks column.
: 7-685-646-21
: 7-685-647-11
: 7-682-545-09
: 7-628-253-30
24
13
5-1. Cover
+BVTP 3 x 8
+BVTP 3 x 10
+B 3 x 4
+PS 2 x 8
18
25
21
19
20
23
26
17
29
16
28
30
22
8
14
2
6
27
34
31
4
5
15
3
1
9
32
8
7
13
11
10
33
12
Ref.No.
Part No.
Description
1
2
3
4
5
* 4-074-275-04 COVER,FRONT
* 4-075-585-01 GUIDE
* 4-074-627-01 COVER,BACK
4-074-251-02 SWITCH,LOCK
* 4-074-434-01 SPRING,EXTENSION
6
7
8
9
10
*
*
*
*
*
11
12
13
4-074-255-01
4-074-254-01
4-074-245-01
4-075-432-01
4-075-432-11
HOLDER (L),FRONT COVER
HOLDER (R),FRONTCOVER
HINGE (F)
CUSHION,HANDLE
CUSHION,HANDLE
14
15
4-080-008-01 CUSHION (CV)
* X-4037-487-2 HANDLE ASSY
* 4-079-876-01 EMBLEM (CS2)
4-080-297-01 EMBLEM (CX1)
* 4-075-442-01 CUSHION (FC)
* X-4037-720-2 COVER ASSY,FRONT
16
17
3-704-176-51 EMBLEM (NO.6),SONY
* X-4038-424-1 PANEL ASSY,FRONT
VPL-CS2/CX1
Remark
[VPL-CS2]
[VPL-CX1]
1-5
Ref.No.
Part No.
Description
18
19
20
* 4-074-442-02 CATCHER (FC)
* A-1390-984-A NF MOUNT
* 4-076-751-01 HOLDER (R),BS
21
22
23
24
25
* 4-076-752-01
A-1501-658-A
4-374-303-01
* 4-079-502-01
* 4-075-165-01
26
27
28
29
30
*
*
*
*
31
32
33
34
1-529-544-11
* 4-074-273-02
4-074-264-01
1-500-082-11
4-080-450-01
A-1375-195-A
4-074-248-01
4-075-166-01
4-074-244-01
Remark
HOLDER (L),BS
SUPPLY ASSY,LAMP POWER
RIVET, NYLON
COVER (AL),TOP
CUSHION (SP)
SPACER (C)
H COMPL
KEY TOP
CUSHION,BUTTON
GUIDE (LED),LIGHT
SPEAKER (3.6CM)
COVER,SIDE
SHAFT
CLAMP,SLEEVE FERRITE
16
5-1
Chassis
5-2. Chassis
: 7-682-547-04
: 7-621-772-38
: 7-685-646-21
: 7-685-903-21
: 7-685-545-14
+B 3 x 6
+B 2 x 6
+BVTP 3 x 8
+PTPWH 3 x 8
+BTP 3 x 6
55
60
61
54
73
74
58
52
63
51
62
56
57
67
64
59
72
53
66
65
79
75
76
78
71
77
68
69
70
Ref.No.
Part No.
Description
51
52
53
54
55
*
*
*
*
*
*
A-1275-186-C
A-1136-048-A
4-079-888-01
4-080-009-01
A-1136-136-A
A-1136-148-A
QA COMPL
BA COMPL
LEVER (S2),SWITCH
SPRING (BL2),EARTH
B COMPL
B COMPL
56
57
58
59
60
*
*
*
*
*
4-074-982-01
4-074-246-01
4-074-260-03
4-074-263-01
4-074-227-02
SPRING (VIDEO),EARTH
SLEEVE,VIDEO
PLATE (QA)
FILTER,REAR
DUCT (T)
61
62
63
64
65
* 4-074-226-01 DUCT (B)
* 4-079-892-01 HOUSE,LAMP
* 4-074-727-01 LOUVER (A)
1-763-172-11 FAN,DC
* 4-074-239-01 SCREW, FAN
5-2
Remark
[VPL-CS2]
[VPL-CX1]
Ref.No.
Part No.
Description
66
67
68
69
70
* 4-076-864-01 LOUVER,LAMP HOUSE
! 1-576-490-11 THERMOSTAT
4-066-202-01 SCREW,M3
* X-4038-422-1 DOOR ASSY,LAMP
4-066-202-01 SCREW,M3
71
74
75
A-1485-065-A
A-1485-068-A
4-066-309-01
* A-1335-133-A
* A-1335-134-A
* 4-074-983-02
1-900-222-47
76
77
78
79
* 4-075-424-02 SPACER (SRF)
* X-4038-325-1 NOZZLE (CS2) ASSY
* 4-079-364-01 NOZZLE (CS2)
4-080-451-01 SPACER (B)
72
73
Remark
70
OPTICS BLOCK ASSY
[VPL-CS2]
OPTICS BLOCK ASSY
[VPL-CX1]
SCREW,MACHINE,(+) P M4X8
C COMPL
[VPL-CS2]
C COMPL
[VPL-CX1]
SPRING (CT),EARTH
CONNECTOR ASSY, FUSE 2P
78
VPL-CS2/CX1
Base
5-3. Base
: 7-685-647-11
: 7-682-247-09
: 7-682-547-04
: 7-685-246-29
: 7-685-545-14
+BVTP 3 x 10
+K 3 x 6
+B 3 x 6
+KTP 3 x 8
+BTP 3 x 6
102
104
110
109
103
108
107
101
105
106
111
112
114
113
115
Ref.No.
Part No.
Description
Remark
Ref.No.
102-103
109
110
4-066-309-01 SCREW,MACHINE, (+) P M4X8
* 4-079-891-01 SHEET (GA)
111
112
113
114
115
*
*
*
*
101
102
103
104
105
* A-1316-546-A GA COMPL
* A-1311-887-A GB MOUNT
! 1-576-233-11 H.B.C FUSE (6.3A 250V)
1-500-082-11 CLAMP,SLEEVE FERRITE
* 4-079-887-01 BUTTON,ADJUSTER
106
107
108
* 4-079-886-01 LEVER,SLIDE
* 4-074-660-01 PLATE (AC)
! 1-251-382-12 INLET,AC 3P(WITH NOISE FILTER)
VPL-CS2/CX1
Part No.
4-079-890-01
X-4038-423-1
4-079-501-01
4-074-717-01
4-074-441-11
Description
ADJUSTER (S2)
BASE ASSY
BASE
FILTER
COVER,FILTER
Remark
113
5-3
Optics (1/2)
5-4. Optics (1/2)
: 7-682-547-04 +B 3 x 6
161
161
162
163
151
A
C
B
154
153
154
153
153
154
155
155
155
157
159
160
192
161
156
156
158
164
C
B
A
168
165
D
152
166
169
167
173
190
175
174
178
176
170
191
185
177
189
172
171
179
196
193
180
191
194
181
184
195
182
186
187
188
D
183
Ref.No.
Part No.
151
Description
A-1485-065-A OPTICS BLOCK ASSY
A-1485-068-A OPTICS BLOCK ASSY
152
153
154
155
A-1485-066-A
A-1485-069-A
4-074-425-01
4-074-474-01
4-066-174-01
PRISM BLOCK ASSY
PRISM BLOCK ASSY
TAPE (A),SEAL
+BSW M3X8
STOPPER (OPT),ROTATION
4-074-405-01
4-074-454-01
4-074-476-01
4-074-466-01
4-074-455-01
FASTENER (RB)
ADJUSTER,R-MIRROR
FASTNER (G)
ADJUSTER,G-MIRROR
ADJUSTER,B-MIRROR
Remark
[VPL-CS2]
152-196
[VPL-CX1]
152-196
[VPL-CS2]
[VPL-CX1]
156
157
158
159
160
*
*
*
*
*
161
162
165
3-696-947-11 SCREW (+B2.5)
* X-4038-416-1 ASSY,IN-POLARIZER (R)
[VPL-CS2]
X-4038-494-1 IN-POLARIZER (R) ASSY (TYPE2)
[VPL-CX1]
* X-4038-418-1 ASSY,IN-POLARIZER (G)
[VPL-CS2]
X-4038-495-1 IN-POLARIZER (G) ASSY (TYPE2)
[VPL-CX1]
* X-4038-421-1 ASSY,IN-POLARIZER (B)
[VPL-CS2]
X-4038-499-1 IN-POLARIZER (B) ASSY (TYPE2)
[VPL-CX1]
* 4-074-429-01 STOPPER,RELAY LENS-2
166
167
168
169
170
*
*
*
*
*
171
172
* 4-074-412-01 MIRROR,R-CHANNEL-2(OPT)
* 4-074-410-01 LENS (OPT),RELAY-3
163
164
5-4
4-074-433-01
4-074-432-01
4-074-475-01
4-074-430-01
4-074-428-01
STOPPER,RELAY LENS-1
STOPPER (GB),CH CONDENSER
STOPPER,FLY EYE
STOPPER,MAIN CONDENSER
STOPPER,P/S
Ref.No.
Part No.
Description
Remark
173
174
175
* 4-074-409-01 LENS (OPT),RELAY-2
* 4-074-413-01 MIRROR,R-CHANNEL -1(OPT)
* 4-074-408-01 LENS (OPT),RELAY-1
176
177
178
179
180
4-079-878-01
* 4-074-427-01
4-079-877-01
* 4-074-411-01
* 4-074-414-01
181
A-1485-067-A
A-1485-070-A
4-074-426-01
4-074-449-01
4-074-416-01
4-074-418-01
DICHROICMIRROR,G-REFRECT (OPT)
CUSHION (B-DM)
DICHROICMIRROR,B-REFRECT (OPT)
FILTER (OPT),UV CUT
LENS,MAIN CONDENSER (OPT)
P/S BLOCK ASSY
[VPL-CS2]
P/S BLOCK ASSY
[VPL-CX1]
CUSHION (FLY EYE)
FLY EYE LENS-1
LENS,CONDENSER-R-CH (OPT)
LENS,CONDENSER-G-CH (OPT)
[VPL-CS2]
4-080-307-01 LENS,CONDENSER-CH (OPT) TYPE2
[VPL-CX1]
182
183
184
185
*
*
*
*
186
187
188
189
190
* 4-074-417-01 LENS,CONDENSER-B-CH (OPT)
[VPL-CS2]
4-080-307-01 LENS,CONDENSER-CH (OPT) TYPE2
[VPL-CX1]
4-066-309-01 SCREW,MACHINE,(+) P M4X8
4-066-172-01 FASTENER (OPT),MIRROR
* 4-074-415-11 MIRROR,B-CHANNEL (OPT)
* 4-074-429-11 STOPPER,RELAY LENS-2
191
192
193
194
195
* 4-074-426-11 CUSHION (FLY EYE)
* 4-075-039-01 SPACER (C)(OPT)
1-763-172-21 FAN,DC
4-067-472-01 GUARD,FINGER
* 4-074-239-01 SCREW,FAN
196
* 4-080-010-01 CUSHION (FAN)
VPL-CS2/CX1
Optics (2/2)
5-5. Optics (2/2)
: 7-685-103-19 +P 2 x 5
: 7-682-648-09 +PS 3 x 8
: 7-627-554-38 +P 2 x 1.8
211
212
213
214
201
215
216
217
202
203
218
204
202
206
216
205
202
210
209
207
208
Ref.No.
Part No.
201
Description
A-1485-066-A PRISM BLOCK ASSY
A-1485-069-A PRISM BLOCK ASSY
202
203
204
205
Remark
[VPL-CS2]
202-208
[VPL-CX1]
202-208
4-074-473-01 +K M1.7X6
* X-4038-417-1 ASSY,OUT-POLARIZER (R) [VPL-CS2]
X-4038-496-1 OUT-POLARIZER (R) ASSY (TYPE2)
[VPL-CX1]
* X-4038-419-1 ASSY,OUT-POLARIZER (G) [VPL-CS2]
X-4038-498-1 OUT-POLARIZER (G) ASSY (TYPE2)
[VPL-CX1]
* X-4038-420-1 ASSY,OUT-POLARIZER (B) [VPL-CS2]
X-4038-497-1 OUT-POLARIZER (B) ASSY (TYPE2)
[VPL-CX1]
206
VPL-CS2/CX1
A-148-470-5A PRISM ASSY,4P
X-4038-500-1 PRISM ASSY,4P
[VPL-CS2]
[VPL-CX1]
Ref.No.
207
208
209
210
Part No.
A-1501-632-A
4-066-309-01
* 4-074-701-01
4-066-309-01
211
Description
LENS,PROJECTION
SCREW,MACHINE, (+) P M4X8
BRACKET,WINDOW
SCREW,MACHINE, (+) P M4X8
A-1485-067-A P/S BLOCK ASSY
A-1485-070-A P/S BLOCK ASSY
4-074-456-01
4-074-446-01
4-074-477-01
4-074-471-04
Remark
212
213
214
215
*
*
*
*
216
217
218
* 4-074-426-11 CUSHION (FLY EYE)
* 4-074-448-01 FLY EYE LENS-2
* 4-074-457-01 SPRING,FLY EYE
[VPL-CS2]
212-218
[VPL-CX1]
212-218
SPRING,P/S
CONVERTER,P/S (OPT)
SLIT,P/S
HOLDER,P/S
5-5
NF BA
Section 6
Electrical Parts List
NOTE :
• Items marked “ * ” are not stocked since they are seldom required
for routine service. Some delay should be anticipated when ordering
these items.
• Due to standardization, replacements in the parts list may be
different from the parts specified in the diagrams or the components
used on the set.
The components identified marked ! are
critical for safety.
Replace only with the part number specified.
Les composants identifiés par la marque !
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
Ref.No.
Part No.
RESISTORS
• All resistors are in ohms.
• F: nonflammable
• METAL: Metal-film resistor
• METAL OXIDE: Metal oxide-film resistor
• CAPACITORS UF : µF. PF : µµF
• COILS MMH : mH. UH : µH
Description
Remark
* A-1390-984-A NF MOUNT
**************
<CAPACITOR>
C071
1-113-985-11 TANTAL CHIP
10UF
20.00% 20V
<CONNECTOR>
CN071 * 1-580-056-21 PIN,CONNECTOR (SMD) 3P
Ref.No.
Part No.
Description
Remark
C240
C241
1-164-004-11 CERAMIC CHIP 0.1UF
1-164-004-11 CERAMIC CHIP 0.1UF
10.00% 25V
10.00% 25V
C242
C243
C244
C245
C246
1-164-004-11
1-163-037-11
1-163-009-11
1-164-004-11
1-164-004-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
0.022UF
0.001UF
0.1UF
0.1UF
10.00% 25V
10.00% 50V
10.00% 50V
10.00% 25V
10.00% 25V
C247
C274
C275
C276
C277
1-131-998-21
1-104-823-11
1-164-004-11
1-163-021-91
1-163-021-91
ELECT CHIP
TANTAL CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
82UF
47UF
0.1UF
0.01UF
0.01UF
20% 6.3V
20.00% 16V
10.00% 25V
10.00% 50V
10.00% 50V
C278
C279
C280
C281
C282
1-163-021-91
1-107-682-11
1-124-779-00
1-109-982-11
1-163-021-91
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
0.01UF
1UF
10UF
1UF
0.01UF
10.00% 50V
10.00% 16V
20.00% 16V
10.00% 10V
10.00% 50V
C283
C284
C285
C286
C287
1-163-021-91
1-163-021-91
1-163-021-91
1-163-021-91
1-163-021-91
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.01UF
0.01UF
0.01UF
0.01UF
0.01UF
10.00% 50V
10.00% 50V
10.00% 50V
10.00% 50V
10.00% 50V
C291
C292
C293
C294
C295
1-163-021-91
1-163-021-91
1-163-021-91
1-163-021-91
1-163-021-91
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.01UF
0.01UF
0.01UF
0.01UF
0.01UF
10.00% 50V
10.00% 50V
10.00% 50V
10.00% 50V
10.00% 50V
<IC>
IC071
8-749-012-17 IC RS-140-T
<RESISTOR>
R071
R072
1-216-017-91 RES-CHIP
1-216-025-11 RES-CHIP
47
100
5%
5%
1/10W
1/10W
************************************************************************************
* A-1136-048-A BA COMPL
**************
<CAPACITOR>
C201
C202
C221
C222
C224
1-164-004-11
1-126-204-11
1-117-681-11
1-164-004-11
1-113-985-11
CERAMIC CHIP
ELECT CHIP
ELECT CHIP
CERAMIC CHIP
TANTAL CHIP
0.1UF
47UF
100UF
0.1UF
10UF
10.00% 25V
20.00% 16V
20.00% 16V
10.00% 25V
20.00% 20V
C296
C297
C300
C301
C302
1-163-021-91
1-164-004-11
1-109-982-11
1-126-204-11
1-164-004-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
0.01UF
0.1UF
1UF
47UF
0.1UF
10.00% 50V
10.00% 25V
10.00% 10V
20.00% 16V
10.00% 25V
C225
C226
C227
C228
C230
1-104-852-11
1-163-021-91
1-117-681-11
1-164-004-11
1-164-004-11
TANTAL CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
22UF
0.01UF
100UF
0.1UF
0.1UF
20.00% 10V
10.00% 50V
20.00% 16V
10.00% 25V
10.00% 25V
C303
C304
C312
C313
C314
1-163-227-11
1-164-004-11
1-124-779-00
1-163-021-91
1-107-823-11
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
10PF
0.1UF
10UF
0.01UF
0.47UF
0.50PF 50V
10.00% 25V
20.00% 16V
10.00% 50V
10.00% 16V
C232
C233
C234
C235
C236
1-164-004-11
1-164-004-11
1-164-004-11
1-164-004-11
1-117-681-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
0.1UF
0.1UF
0.1UF
0.1UF
100UF
10.00% 25V
10.00% 25V
10.00% 25V
10.00% 25V
20.00% 16V
C315
C317
C318
C319
C320
1-163-021-91
1-163-021-91
1-126-603-11
1-164-004-11
1-164-004-11
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
0.01UF
0.01UF
4.7UF
0.1UF
0.1UF
10.00% 50V
10.00% 50V
20.00% 35V
10.00% 25V
10.00% 25V
C237
C238
C239
1-164-004-11 CERAMIC CHIP 0.1UF
1-164-004-11 CERAMIC CHIP 0.1UF
1-164-004-11 CERAMIC CHIP 0.1UF
10.00% 25V
10.00% 25V
10.00% 25V
C321
C322
C323
1-164-004-11 CERAMIC CHIP 0.1UF
1-164-004-11 CERAMIC CHIP 0.1UF
1-125-838-11 CERAMIC CHIP 2.2UF
VPL-CS2/CX1
10.00% 25V
10.00% 25V
10% 6.3V
6-1
BA
Ref.No.
Part No.
Description
Remark
C324
C325
1-163-037-11 CERAMIC CHIP 0.022UF 0.00% 50V
1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C326
C327
C328
C330
C331
1-109-982-11
1-164-004-11
1-109-982-11
1-163-021-91
1-126-204-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
1UF
0.1UF
1UF
0.01UF
47UF
10.00% 10V
10.00% 25V
10.00% 10V
10.00% 50V
20.00% 16V
C332
C333
C334
C337
C338
1-163-021-91
1-126-204-11
1-163-021-91
1-163-021-91
1-164-004-11
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.01UF
47UF
0.01UF
0.01UF
0.1UF
10.00% 50V
20.00% 16V
10.00% 50V
10.00% 50V
10.00% 25V
<CONNECTOR>
CN201 * 1-785-305-21 CONNECTOR,BOARD TO BOARD 70P
<FERRITE BEAD>
FB201
FB202
FB271
1-414-235-22 INDUCTOR
1-500-245-11 INDUCTOR
1-414-235-22 INDUCTOR
0UH
0UH
0UH
<FILTER>
FL221
FL222
FL223
FL301
FL302
1-239-397-11
1-239-397-11
1-239-397-11
1-239-899-21
1-239-899-21
FILTER,LOW PASS
FILTER,LOW PASS
FILTER,LOW PASS
FILTER,CHIP EMI
FILTER,CHIP EMI
FL303
1-239-899-21 FILTER,CHIP EMI
<IC>
IC201
IC202
IC221
IC271
IC301
IC302
8-752-072-94
* 8-759-684-72
8-752-390-37
8-752-070-54
8-752-094-47
IC CXA1875AM-T4
IC M24C64-WMN6T (A)
IC CXD2064Q-T6
IC CXA1839Q-T6
IC CXA2123AQ-T6
8-759-494-88 IC TC75S56F (TE85R)
<COIL>
L221
L222
L223
L224
L225
1-414-753-91
1-414-235-22
1-414-753-91
1-414-753-91
1-414-753-91
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
4.7UH
0UH
4.7UH
4.7UH
4.7UH
L226
L271
1-414-753-91 INDUCTOR
1-414-235-22 INDUCTOR
4.7UH
0UH
<TRANSISTOR>
Q221
Q222
Q226
Q227
Q228
8-729-230-49
8-729-216-22
8-729-216-22
8-729-230-49
8-729-216-22
TRANSISTOR 2SC2712-YG-TE85L
TRANSISTOR 2SA1162-YG-TE85L
TRANSISTOR 2SA1162-YG-TE85L
TRANSISTOR 2SC2712-YG-TE85L
TRANSISTOR 2SA1162-YG-TE85L
Q229
Q271
Q272
Q273
Q302
8-729-230-49
8-729-013-28
8-729-013-28
8-729-013-28
8-729-230-49
TRANSISTOR 2SC2712-YG-TE85L
TRANSISTOR HN1B01FU-TE85R
TRANSISTOR HN1B01FU-TE85R
TRANSISTOR HN1B01FU-TE85R
TRANSISTOR 2SC2712-YG-TE85L
Q303
8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L
6-2
Ref.No.
Part No.
Description
Remark
<RESISTOR>
R201
R202
R203
R204
R205
1-216-065-91
1-216-073-00
1-216-025-11
1-216-025-11
1-216-025-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
4.7K
10K
100
100
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R206
R207
R208
R209
R210
1-216-025-11
1-216-025-11
1-216-025-11
1-216-025-11
1-216-025-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
100
100
100
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R211
R212
R213
R214
R215
1-216-073-00
1-216-073-00
1-216-025-11
1-216-025-11
1-216-025-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
10K
100
100
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R216
R217
R218
R222
R223
1-216-073-00
1-216-073-00
1-216-073-00
1-216-081-00
1-216-065-91
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
10K
10K
22K
4.7K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R225
R227
R228
R230
R231
1-216-043-91
1-216-049-11
1-216-049-11
1-216-085-00
1-216-051-00
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
560
1K
1K
33K
1.2K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R234
R235
R237
R239
R242
1-216-067-00
1-216-043-91
1-216-049-11
1-216-049-11
1-216-067-00
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
5.6K
560
1K
1K
5.6K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R243
R244
R245
R247
R249
1-216-043-91
1-216-025-11
1-216-049-11
1-216-043-91
1-216-631-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
METAL CHIP
560
100
1K
560
150
5%
5%
5%
5%
0.5%
1/10W
1/10W
1/10W
1/10W
1/10W
R250
R251
R252
R253
R254
1-216-631-11
1-216-053-00
1-216-061-00
1-216-057-00
1-216-091-00
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
150
1.5K
3.3K
2.2K
56K
0.5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R255
R256
R258
R259
R271
1-216-043-91
1-216-295-11
1-216-295-11
1-216-295-11
1-216-025-11
RES-CHIP
SHORT
SHORT
SHORT
RES-CHIP
560
0
0
0
100
5%
1/10W
5%
1/10W
R272
R273
R274
R275
R276
1-216-635-11
1-216-655-11
1-216-083-00
1-216-295-11
1-216-081-00
METAL CHIP
METAL CHIP
RES-CHIP
SHORT
RES-CHIP
220
1.5K
27K
0
22K
0.5%
0.5%
5%
1/10W
1/10W
1/10W
5%
1/10W
R277
R278
R279
R280
R281
1-216-085-00
1-216-647-11
1-216-655-11
1-216-081-00
1-216-295-11
RES-CHIP
METAL CHIP
METAL CHIP
RES-CHIP
SHORT
33K
680
1.5K
22K
0
5%
0.5%
0.5%
5%
1/10W
1/10W
1/10W
1/10W
R282
R283
R284
R285
R286
1-216-085-00
1-216-073-00
1-216-025-11
1-216-025-11
1-216-651-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
METAL CHIP
33K
10K
100
100
1K
5%
5%
5%
5%
0.5%
1/10W
1/10W
1/10W
1/10W
1/10W
R287
R288
R289
R290
R291
1-216-651-11
1-216-025-11
1-216-025-11
1-216-025-11
1-216-081-00
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1K
100
100
100
22K
0.5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
VPL-CS2/CX1
BA B
Ref.No.
Part No.
Description
Remark
R292
R293
R294
R296
R298
1-216-085-00
1-216-295-11
1-216-049-11
1-216-033-00
1-216-025-11
RES-CHIP
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
33K
0
1K
220
100
R299
R300
R302
R303
R304
1-216-025-11
1-216-025-11
1-216-295-11
1-216-295-11
1-208-796-11
RES-CHIP
RES-CHIP
SHORT
SHORT
METAL CHIP
R305
R306
R309
R310
R311
1-216-025-11
1-216-037-00
1-216-663-11
1-216-685-11
1-216-667-11
R312
R313
R314
R315
R316
Ref.No.
Part No.
Description
Remark
C430
C431
C432
C433
C434
1-107-826-11
1-162-970-11
1-124-778-00
1-115-566-11
1-115-566-11
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
0.01UF
22UF
4.7UF
4.7UF
10.00% 16V
10.00% 25V
20.00% 6.3V
10.00% 10V
10.00% 10V
1-115-566-11
1-110-563-11
1-124-779-00
1-162-927-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
4.7UF
0.068UF
10UF
100PF
0.1UF
10.00% 10V
10.00% 16V
20.00% 16V
5.00% 50V
10.00% 16V
5%
1/10W
5%
5%
5%
1/10W
1/10W
1/10W
100
100
0
0
3.9K
5%
5%
1/10W
1/10W
0.5%
1/10W
C435
C436
C437
C438
C439
RES-CHIP
RES-CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
330
3.3K
27K
4.7K
5%
5%
0.5%
0.5%
0.5%
1/10W
1/10W
1/10W
1/10W
1/10W
C440
C442
C443
C444
C445
1-162-927-11
1-107-826-11
1-126-205-11
1-124-778-00
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
ELECT CHIP
CERAMIC CHIP
100PF
0.1UF
47UF
22UF
0.1UF
5.00% 50V
10.00% 16V
20.00% 6.3V
20.00% 6.3V
10.00% 16V
1-216-025-11
1-216-025-11
1-216-049-11
1-216-049-11
1-216-061-00
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
100
1K
1K
3.3K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
C446
C447
C448
C449
C450
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
0.1UF
0.1UF
0.1UF
0.1UF
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 16V
R317
R318
R319
R320
R321
1-216-069-00
1-216-017-91
1-216-017-91
1-216-017-91
1-216-025-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
6.8K
47
47
47
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
C451
C452
C453
C454
C455
1-107-826-11
1-110-563-11
1-162-970-11
1-107-826-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
0.068UF
0.01UF
0.1UF
0.1UF
10.00% 16V
10.00% 16V
10.00% 25V
10.00% 16V
10.00% 16V
R322
R324
1-216-295-11 SHORT
1-216-017-91 RES-CHIP
0
47
5%
1/10W
C456
C457
C458
C459
C460
1-110-563-11
1-162-970-11
1-107-826-11
1-107-826-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.068UF
0.01UF
0.1UF
0.1UF
0.1UF
10.00% 16V
10.00% 25V
10.00% 16V
10.00% 16V
10.00% 16V
C461
C462
C463
C464
C465
1-110-563-11
1-107-826-11
1-162-970-11
1-107-826-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.068UF
0.1UF
0.01UF
0.1UF
0.1UF
10.00% 16V
10.00% 16V
10.00% 25V
10.00% 16V
10.00% 16V
C467
C468
C469
C470
C471
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
1-162-970-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
0.1UF
0.1UF
0.1UF
0.01UF
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 25V
C472
C473
C474
C475
C476
1-107-826-11
1-107-826-11
1-107-826-11
1-115-467-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
0.1UF
0.1UF
0.22UF
0.1UF
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 10V
10.00% 16V
C477
C478
C479
C480
C481
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
0.1UF
0.1UF
0.1UF
0.1UF
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 16V
C482
C483
C484
C485
C486
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
0.1UF
0.1UF
0.1UF
0.1UF
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 16V
C487
C488
C489
C490
C491
1-126-205-11
1-162-964-11
1-107-826-11
1-107-826-11
1-107-826-11
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
47UF
0.001UF
0.1UF
0.1UF
0.1UF
20.00% 6.3V
10.00% 50V
10.00% 16V
10.00% 16V
10.00% 16V
C492
C495
C496
C497
C498
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
0.1UF
0.1UF
0.1UF
0.1UF
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 16V
C501
1-107-826-11 CERAMIC CHIP 0.1UF
10.00% 16V
<CRYSTAL>
X301
1-781-914-21 VIBRATOR,CRYSTAL
************************************************************************************
* A-1136-136-A B COMPL
************
* A-1136-148-A B COMPL
************
(For VPL-CS2)
(For VPL-CX1)
<CAPACITOR>
C401
C402
C403
C404
C405
1-107-826-11
1-162-927-11
1-107-826-11
1-162-970-11
1-126-204-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
0.1UF
100PF
0.1UF
0.01UF
47UF
10.00% 16V
5.00% 50V
10.00% 16V
10.00% 25V
20.00% 16V
C406
C407
C408
C409
C410
1-126-205-11
1-126-205-11
1-107-826-11
1-107-826-11
1-107-826-11
ELECT CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
47UF
47UF
0.1UF
0.1UF
0.1UF
20.00% 6.3V
20.00% 6.3V
10.00% 16V
10.00% 16V
10.00% 16V
C411
C412
C413
C414
C415
1-162-927-11
1-107-826-11
1-107-826-11
1-162-970-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
100PF
0.1UF
0.1UF
0.01UF
0.1UF
5.00% 50V
10.00% 16V
10.00% 16V
10.00% 25V
10.00% 16V
C416
C417
C420
C421
C422
1-162-967-11
1-126-204-11
1-107-826-11
1-107-826-11
1-162-970-11
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.0033UF 10.00% 50V
47UF
20.00% 16V
0.1UF
10.00% 16V
0.1UF
10.00% 16V
0.01UF 10.00% 25V
C424
C426
C427
C428
C429
1-126-204-11
1-107-826-11
1-115-566-11
1-164-816-11
1-115-566-11
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
47UF
0.1UF
4.7UF
220PF
4.7UF
VPL-CS2/CX1
20.00% 16V
10.00% 16V
10.00% 10V
2.00% 50V
10.00% 10V
6-3
B
Ref.No.
Part No.
Description
Remark
C503
C504
C505
C506
1-107-826-11
1-126-205-11
1-107-826-11
1-107-826-11
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
47UF
0.1UF
0.1UF
10.00% 16V
20.00% 6.3V
10.00% 16V
10.00% 16V
C507
C508
C509
C510
C511
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
0.1UF
0.1UF
0.1UF
0.1UF
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 16V
C512
C513
C514
C515
C516
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
0.1UF
0.1UF
0.1UF
0.1UF
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 16V
C517
C518
C519
C520
C521
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
0.1UF
0.1UF
0.1UF
0.1UF
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 16V
C522
C523
C524
C525
C526
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
0.1UF
0.1UF
0.1UF
0.1UF
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 16V
C527
C528
C529
C530
C531
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
0.1UF
0.1UF
0.1UF
0.1UF
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 16V
C532
C533
C534
C535
C537
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
1-162-970-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
0.1UF
0.1UF
0.1UF
0.01UF
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 25V
C538
C539
C540
C541
C543
1-115-156-11
1-107-826-11
1-115-156-11
1-107-826-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
1UF
0.1UF
1UF
0.1UF
0.1UF
10V
10.00% 16V
10V
10.00% 16V
10.00% 16V
C544
C545
C546
C547
C548
1-107-826-11
1-164-315-11
1-162-915-11
1-162-915-11
1-124-778-00
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
0.1UF
470PF
10PF
10PF
22UF
10.00% 16V
5.00% 50V
0.50PF 50V
0.50PF 50V
20.00% 6.3V
C549
C550
C551
C553
C554
1-107-826-11
1-124-778-00
1-107-826-11
1-107-826-11
1-162-927-11
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
22UF
0.1UF
0.1UF
100PF
10.00% 16V
20.00% 6.3V
10.00% 16V
10.00% 16V
5.00% 50V
C555
C556
C557
C558
C559
1-124-778-00
1-162-970-11
1-107-826-11
1-124-778-00
1-107-826-11
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
22UF
0.01UF
0.1UF
22UF
0.1UF
20.00% 6.3V
10.00% 25V
10.00% 16V
20.00% 6.3V
10.00% 16V
C561
C563
C564
C565
C566
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
0.1UF
0.1UF
0.1UF
0.1UF
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 16V
C567
C571
C572
C575
C576
1-107-826-11
1-107-826-11
1-107-826-11
1-162-916-11
1-162-916-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
0.1UF
0.1UF
12PF
12PF
10.00% 16V
10.00% 16V
10.00% 16V
5.00% 50V
5.00% 50V
C578
C582
1-107-826-11 CERAMIC CHIP 0.1UF
1-162-970-11 CERAMIC CHIP 0.01UF
Ref.No.
Part No.
Description
Remark
<CONNECTOR>
CN401
CN402
CN403
CN404
CN405
* 1-785-305-21
* 1-793-797-21
* 1-793-797-21
1-569-577-41
* 1-785-305-21
CONNECTOR,BOARD TO BOARD 70P
CONNECTOR,BOARD TO BOARD 50P
CONNECTOR,BOARD TO BOARD 50P
CONNECTOR,D-SUB 15P
CONNECTOR,BOARD TO BOARD 70P
CN406 * 1-691-591-11 PIN,CONNECTOR (1.5MM) (SMD) 8P
<DIODE>
D401
D402
D403
D404
D408
8-719-800-76
8-719-800-76
8-719-800-76
8-719-024-77
8-719-024-77
DIODE MA157-TX
DIODE MA157-TX
DIODE MA157-TX
DIODE HN1D03FU-TE85R
DIODE HN1D03FU-TE85R
D409
D410
D411
D412
D413
8-719-024-77
8-719-158-15
8-719-158-15
8-719-158-15
8-719-988-61
DIODE HN1D03FU-TE85R
DIODE RD5.6SB-T1
DIODE RD5.6SB-T1
DIODE RD5.6SB-T1
DIODE 1SS355TE-17
D414
D415
8-719-988-61 DIODE 1SS355TE-17
8-719-158-15 DIODE RD5.6SB-T1
<FERRITE BEAD>
FB401
FB402
FB403
FB404
FB405
1-414-921-11
1-414-234-22
1-414-234-22
1-414-234-22
1-414-234-22
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
0UH
0UH
0UH
0UH
0UH
FB406
FB407
FB409
FB410
FB411
1-414-234-22
1-414-234-22
1-414-234-22
1-414-921-11
1-414-921-11
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
0UH
0UH
0UH
0UH
0UH
FB413
1-414-921-11 INDUCTOR
0UH
<FILTER>
6-4
10.00% 16V
10.00% 25V
FL402
FL403
FL404
1-239-898-31 FILTER,EMI (SMD)
1-239-898-31 FILTER,EMI (SMD)
1-216-296-91 SHORT
0
<IC>
IC401
IC402
IC403
IC404
IC405
8-759-472-00
8-759-472-37
8-759-196-96
8-759-541-25
8-759-472-35
IC 74VHC14MTCX
IC 74VHC240MTCX
IC TC7SH08FU-TE85R
IC M52758FP
IC 74VHC221AMTCX
IC406
IC407
IC408
IC409
IC411
8-752-072-94
8-759-646-02
8-759-475-39
8-759-645-12
8-759-472-14
IC CXA1875AM-T4
IC M52347FP-TE
IC TC74LCX74FT(EL)
IC AD9884AKS-140
IC 74VHC125MTCX
IC412
IC413
IC414
IC415
IC416
8-759-676-30
8-759-683-96
8-759-665-38
8-759-665-38
8-759-665-38
IC CXD9575TQ
IC MK1714-01RT
IC MB81F161622C-80FN
IC MB81F161622C-80FN
IC MB81F161622C-80FN
IC417
IC418
IC419
IC420
IC421
8-759-687-69
8-759-472-59
8-759-582-91
8-759-544-01
8-759-686-69
IC IP00C712
IC 74VHC541MTCX
IC S-80842ANNP-ED6-T2
IC S-80828ANNP-EDR-T2
IC NC7WZ04P6X
VPL-CS2/CX1
B
Ref.No.
Part No.
Description
Remark
IC424
IC426
IC427
IC429
8-759-682-98
8-759-557-86
8-759-6488-759-661-55
IC MB90098APF-G-118-BND-ER
IC NC7SZ86P5X
IC HD64F2633TE
IC 24LC21AT/SN
<COIL>
L401
L404
1-412-057-21 INDUCTOR
1-500-451-11 FERRITE
6.8UH
0UH
<TRANSISTOR>
Q401
Q402
Q403
Q404
Q405
8-729-013-28
8-729-013-28
8-729-101-07
8-729-907-00
8-729-140-63
TRANSISTOR HN1B01FU-TE85R
TRANSISTOR HN1B01FU-TE85R
TRANSISTOR 2SA1213Y-TE12L
TRANSISTOR DTC114EUA-T106
TRANSISTOR 2SA1611T1-M5M6
<RESISTOR>
R401
R402
R403
R404
R405
1-216-805-11
1-216-809-11
1-216-821-11
1-218-660-91
1-218-660-91
RES-CHIP
RES-CHIP
RES-CHIP
METAL CHIP
METAL CHIP
47
100
1K
47
47
5%
5%
5%
0.5%
0.5%
R406
R407
R409
R410
1-218-660-91
1-216-805-11
1-216-625-11
1-218-660-91
METAL CHIP
RES-CHIP
METAL CHIP
METAL CHIP
47
47
82
47
R410
1-218-672-11 METAL CHIP
150
0.5% 1/16W
5%
1/16W
0.5% 1/10W
0.5% 1/16W
(For VPL-CS2)
0.5% 1/16W
(For VPL-CX1)
R411
1-218-668-11 METAL CHIP
100
R411
1-216-864-11 SHORT
0
R412
R413
1-218-716-11 METAL CHIP
1-218-686-11 METAL CHIP
10K
560
R413
1-218-688-11 METAL CHIP
680
R414
1-218-660-91 METAL CHIP
47
R414
1-218-672-11 METAL CHIP
150
R415
R416
R417
1-218-696-11 METAL CHIP
1-216-797-11 RES-CHIP
1-218-668-11 METAL CHIP
1.5K
10
100
R417
1-216-864-11 SHORT
0
R418
1-218-686-11 METAL CHIP
560
R418
1-218-688-11 METAL CHIP
680
R419
R420
1-216-625-11 METAL CHIP
1-218-668-11 METAL CHIP
82
100
R420
1-216-864-11 SHORT
0
R421
1-218-686-11 METAL CHIP
560
R421
1-218-688-11 METAL CHIP
680
R422
R423
1-216-833-11 RES-CHIP
1-216-809-11 RES-CHIP
10K
100
R424
R425
1-216-809-11 RES-CHIP
1-218-660-91 METAL CHIP
100
47
R425
1-218-672-11 METAL CHIP
150
VPL-CS2/CX1
1/16W
1/16W
1/16W
1/16W
1/16W
0.5% 1/16W
(For VPL-CS2)
(For VPL-CX1)
0.5% 1/16W
0.5% 1/16W
(For VPL-CS2)
0.5% 1/16W
(For VPL-CX1)
0.5% 1/16W
(For VPL-CS2)
0.5% 1/16W
(For VPL-CX1)
0.5% 1/16W
5%
1/16W
0.5% 1/16W
(For VPL-CS2)
(For VPL-CX1)
0.5% 1/16W
(For VPL-CS2)
0.5% 1/16W
(For VPL-CX1)
0.5% 1/10W
0.5% 1/16W
(For VPL-CS2)
(For VPL-CX1)
0.5% 1/16W
(For VPL-CS2)
0.5% 1/16W
(For VPL-CX1)
5%
1/16W
5%
1/16W
5%
1/16W
0.5% 1/16W
(For VPL-CS2)
0.5% 1/16W
(For VPL-CX1)
Ref.No.
Part No.
Description
Remark
R426
R427
1-216-625-11 METAL CHIP
1-216-833-11 RES-CHIP
82
10K
0.5%
5%
1/10W
1/16W
R428
R429
R430
R431
R432
1-216-817-11
1-216-817-11
1-216-817-11
1-216-833-11
1-216-805-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
470
470
470
10K
47
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R433
R434
R435
R436
R437
1-216-864-11
1-218-708-11
1-216-821-11
1-216-821-11
1-216-841-11
SHORT
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
0
4.7K
1K
1K
47K
0.5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
R438
R439
R440
R443
R444
1-216-864-11
1-216-805-11
1-216-821-11
1-216-827-11
1-216-805-11
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
0
47
1K
3.3K
47
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
R445
R446
R447
R448
R449
1-216-864-11
1-218-732-11
1-216-821-11
1-216-811-11
1-216-864-11
SHORT
METAL CHIP
RES-CHIP
RES-CHIP
SHORT
0
47K
1K
150
0
0.5%
5%
5%
1/16W
1/16W
1/16W
R450
R451
R452
R453
R454
1-216-864-11
1-216-821-11
1-216-821-11
1-216-810-11
1-216-805-11
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
0
1K
1K
120
47
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
R455
R456
R458
R459
R461
1-216-805-11
1-216-801-11
1-216-801-11
1-216-833-11
1-216-833-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
47
22
22
10K
10K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R462
R464
R465
R468
R469
1-216-801-11
1-216-864-11
1-216-864-11
1-216-801-11
1-216-801-11
RES-CHIP
SHORT
SHORT
RES-CHIP
RES-CHIP
22
0
0
22
22
5%
1/16W
5%
5%
1/16W
1/16W
R470
R471
R472
R473
R474
1-216-827-11
1-216-827-11
1-216-809-11
1-216-833-11
1-218-694-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
METAL CHIP
3.3K
3.3K
100
10K
1.2K
5%
5%
5%
5%
0.5%
1/16W
1/16W
1/16W
1/16W
1/16W
R475
R476
R477
R479
R480
1-216-801-11
1-216-801-11
1-216-801-11
1-216-833-11
1-216-839-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
22
22
22
10K
33K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R481
R483
R485
R487
R488
1-216-839-11
1-216-821-11
1-216-841-11
1-216-805-11
1-218-675-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
METAL CHIP
33K
1K
47K
47
200
5%
5%
5%
5%
0.5%
1/16W
1/16W
1/16W
1/16W
1/16W
R489
R490
R491
R494
R495
1-216-833-11
1-218-703-11
1-216-809-11
1-216-864-11
1-216-821-11
RES-CHIP
METAL CHIP
RES-CHIP
SHORT
RES-CHIP
10K
3K
100
0
1K
5%
0.5%
5%
1/16W
1/16W
1/16W
5%
1/16W
R497
R500
R501
R502
R503
1-216-805-11
1-216-864-11
1-216-809-11
1-216-809-11
1-216-825-11
RES-CHIP
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
47
0
100
100
2.2K
5%
1/16W
5%
5%
5%
1/16W
1/16W
1/16W
R504
R505
R506
R507
1-216-809-11
1-216-825-11
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
2.2K
100
100
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
6-5
B
Ref.No.
Part No.
Description
Remark
R508
1-216-809-11 RES-CHIP
100
5%
1/16W
R509
R510
R511
R512
R513
1-216-833-11
1-216-833-11
1-216-801-11
1-216-833-11
1-216-833-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
10K
22
10K
10K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R514
R515
R516
R517
R518
1-216-833-11
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
100
100
100
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R519
R520
R521
R522
R523
1-216-833-11
1-216-809-11
1-216-833-11
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
100
10K
100
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R524
R525
R526
R527
R528
1-216-825-11
1-216-825-11
1-216-809-11
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
2.2K
2.2K
100
100
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R529
R530
R531
R532
R533
1-216-833-11
1-216-833-11
1-216-833-11
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
10K
10K
100
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R534
R535
R536
R537
R538
1-216-811-11
1-216-811-11
1-216-809-11
1-216-833-11
1-216-833-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
150
150
100
10K
10K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R539
R540
R541
R542
R543
1-216-833-11
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
100
100
100
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R544
R545
R546
R547
R548
1-216-789-11
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
2.2
100
100
100
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R549
R550
R551
R553
R554
1-216-809-11
1-216-833-11
1-216-833-11
1-216-809-11
1-216-833-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
10K
10K
100
10K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R555
R556
R557
R558
R559
1-216-825-11
1-216-825-11
1-216-821-11
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
2.2K
2.2K
1K
100
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R560
R561
R562
R563
R564
1-216-833-11
1-216-833-11
1-216-809-11
1-216-833-11
1-216-833-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
10K
100
10K
10K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R565
R568
R569
R570
R571
1-216-833-11
1-216-821-11
1-216-821-11
1-216-821-11
1-216-821-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
1K
1K
1K
1K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R574
R575
R576
R577
R580
1-216-864-11
1-216-864-11
1-216-821-11
1-216-821-11
1-216-833-11
SHORT
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
0
0
1K
1K
10K
Ref.No.
Part No.
Description
R581
R582
R583
R584
R585
1-216-809-11
1-216-805-11
1-216-809-11
1-216-833-11
1-216-797-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
47
100
10K
10
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R586
R587
R588
R589
R590
1-216-805-11
1-216-835-11
1-216-835-11
1-216-841-11
1-216-845-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
47
15K
15K
47K
100K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R591
R592
R593
R594
R595
1-216-805-11
1-216-805-11
1-216-813-11
1-216-817-11
1-216-817-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
47
47
220
470
470
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R597
1-216-821-11 RES-CHIP
1K
5%
1/16W
<NETWORK>
RB401
RB402
RB403
RB404
RB405
1-233-576-11
1-233-576-11
1-233-576-11
1-233-576-11
1-233-576-11
RES,CHIP NETWORK
RES,CHIP NETWORK
RES,CHIP NETWORK
RES,CHIP NETWORK
RES,CHIP NETWORK
100
100
100
100
100
RB406
RB407
RB408
RB409
RB410
1-233-576-11
1-233-576-11
1-233-576-11
1-233-576-11
1-233-576-11
RES,CHIP NETWORK
RES,CHIP NETWORK
RES,CHIP NETWORK
RES,CHIP NETWORK
RES,CHIP NETWORK
100
100
100
100
100
RB411
RB412
RB413
RB414
RB415
1-233-576-11
1-233-576-11
1-239-409-11
1-239-409-11
1-239-409-11
RES,CHIP NETWORK
RES,CHIP NETWORK
RES,CHIP NETWORK
RES,CHIP NETWORK
RES,CHIP NETWORK
100
100
47 (3216)
47 (3216)
47 (3216)
RB416
RB417
RB418
RB419
RB520
1-239-409-11
1-239-409-11
1-239-409-11
1-239-409-11
1-233-576-11
RES,CHIP NETWORK
RES,CHIP NETWORK
RES,CHIP NETWORK
RES,CHIP NETWORK
RES,CHIP NETWORK
47 (3216)
47 (3216)
47 (3216)
47 (3216)
100
RB521
RB522
RB523
RB524
1-233-576-11
1-233-576-11
1-233-576-11
1-233-576-11
RES,CHIP NETWORK
RES,CHIP NETWORK
RES,CHIP NETWORK
RES,CHIP NETWORK
100
100
100
100
<THERMISTOR>
TH201
6-6
5%
5%
5%
1/16W
1/16W
1/16W
Remark
1-809-020-11 THERMISTOR
<TEST PIN>
TP401
TP402
TP403
TP404
TP405
1-535-757-11
1-535-757-11
1-535-757-11
1-535-757-11
1-535-757-11
CHIP,CHECKER
CHIP,CHECKER
CHIP,CHECKER
CHIP,CHECKER
CHIP,CHECKER
TP406
TP407
1-535-757-11 CHIP,CHECKER
1-535-757-11 CHIP,CHECKER
<CRYSTAL>
X402
X403
X404
1-795-011-21 OSCILLATOR,CRYSTAL
1-781-659-21 VIBRATOR,CRYSTAL
1-767-908-11 VIBRATOR,CRYSTAL
X404
1-781-535-21 VIBRATOR,CRYSTAL
13.08384MHZ
(For VPL-CS2)
17.26272MHZ
(For VPL-CX1)
VPL-CS2/CX1
QA
Ref.No.
Part No.
Description
Remark
************************************************************************************
* A-1275-186-C QA COMPL
**************
Ref.No.
Part No.
Description
C163
C164
C165
C166
C169
1-124-778-00
1-163-239-11
1-163-239-11
1-164-004-11
1-164-004-11
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
Remark
22UF
33PF
33PF
0.1UF
0.1UF
20.00% 6.3V
5.00% 50V
5.00% 50V
10.00% 25V
10.00% 25V
<CAPACITOR>
<CONNECTOR>
C101
C102
C103
C104
C105
1-124-779-00
1-126-204-11
1-126-204-11
1-113-985-11
1-113-985-11
ELECT CHIP
ELECT CHIP
ELECT CHIP
TANTAL CHIP
TANTAL CHIP
10UF
47UF
47UF
10UF
10UF
20.00% 16V
20.00% 16V
20.00% 16V
20.00% 20V
20.00% 20V
C106
C107
C108
C109
C110
1-126-395-11
1-126-395-11
1-126-205-11
1-126-205-11
1-126-397-11
ELECT CHIP
ELECT CHIP
ELECT CHIP
ELECT CHIP
ELECT CHIP
22UF
22UF
47UF
47UF
33UF
20.00% 16V
20.00% 16V
20.00% 6.3V
20.00% 6.3V
20.00% 25V
C111
C112
C113
C114
C115
1-126-204-11
1-126-395-11
1-131-998-21
1-164-182-11
1-164-004-11
ELECT CHIP
ELECT CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
47UF
20.00% 16V
22UF
20.00% 16V
82UF
20% 6.3V
0.0033UF 10.00% 50V
0.1UF
10.00% 25V
C116
C117
C118
C119
C120
1-126-395-11
1-126-205-11
1-119-667-11
1-113-500-11
1-109-982-11
ELECT CHIP
ELECT CHIP
CERAMIC
TANTAL CHIP
CERAMIC CHIP
22UF
47UF
CHIP
100UF
1UF
20.00% 16V
20.00% 6.3V
22UF 10V
20.00% 10V
10.00% 10V
C121
C122
C123
C124
C125
1-164-004-11
1-117-681-11
1-119-667-11
1-109-982-11
1-163-251-11
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
100UF
22UF
1UF
100PF
10.00% 25V
20.00% 16V
10V
10.00% 10V
5.00% 50V
C126
C127
C128
C129
C130
1-163-251-11
1-164-004-11
1-126-205-11
1-126-205-11
1-126-205-11
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
ELECT CHIP
ELECT CHIP
100PF
0.1UF
47UF
47UF
47UF
5.00% 50V
10.00% 25V
20.00% 6.3V
20.00% 6.3V
20.00% 6.3V
C131
C132
C133
C134
C135
1-126-205-11
1-126-205-11
1-163-251-11
1-126-205-11
1-109-982-11
ELECT CHIP
ELECT CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
47UF
47UF
100PF
47UF
1UF
20.00% 6.3V
20.00% 6.3V
5.00% 50V
20.00% 6.3V
10.00% 10V
C136
C137
C138
C139
C140
1-117-370-11
1-163-251-11
1-109-982-11
1-164-004-11
1-163-021-91
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
10UF
100PF
1UF
0.1UF
0.01UF
10V
5.00% 50V
10.00% 10V
10.00% 25V
10.00% 50V
C141
C142
C143
C144
C146
1-164-004-11
1-126-206-11
1-163-021-91
1-164-004-11
1-164-004-11
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
100UF
0.01UF
0.1UF
0.1UF
10.00% 25V
20.00% 6.3V
10.00% 50V
10.00% 25V
10.00% 25V
C148
C149
C150
C151
C152
1-164-004-11
1-163-227-11
1-163-227-11
1-164-004-11
1-164-004-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
10PF
10PF
0.1UF
0.1UF
10.00% 25V
0.50PF 50V
0.50PF 50V
10.00% 25V
10.00% 25V
C153
C154
C155
C156
C157
1-164-004-11
1-164-004-11
1-164-004-11
1-164-004-11
1-164-004-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
0.1UF
0.1UF
0.1UF
0.1UF
10.00% 25V
10.00% 25V
10.00% 25V
10.00% 25V
10.00% 25V
C158
C159
C160
C161
C162
1-163-021-91
1-163-239-11
1-163-239-11
1-164-004-11
1-124-778-00
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
0.01UF
33PF
33PF
0.1UF
22UF
10.00% 50V
5.00% 50V
5.00% 50V
10.00% 25V
20.00% 6.3V
VPL-CS2/CX1
CN101
CN102
CN103
CN104
CN105
* 1-580-057-11
* 1-760-388-11
* 1-785-306-21
* 1-785-306-21
* 1-793-798-21
PIN,CONNECTOR (SMD) 4P
CONNECTORPIN (SMD) 9P
CONNECTOR,BOARD TO BOARD 70P
CONNECTOR,BOARD TO BOARD 70P
CONNECTOR,BOARD TO BOARD 50P
CN106
1-784-292-11 CONNECTOR,MINIATURE DIN 4P
CN122
1-794-081-21 CONNECTOR,ROUND TYPE 6P
CN123 * 1-580-056-21 PIN,CONNECTOR (SMD) 3P
<DIODE>
D101
D102
D103
D104
D105
8-719-158-15
8-719-158-15
8-719-158-15
8-719-158-15
8-719-158-37
DIODE RD5.6SB-T1
DIODE RD5.6SB-T1
DIODE RD5.6SB-T1
DIODE RD5.6SB-T1
DIODE RD9.1SB2-T1
D106
D107
D108
D109
D121
8-719-158-37
8-719-055-30
8-719-055-30
8-719-988-61
8-719-058-24
DIODE RD9.1SB2-T1
DIODE D1FS4A-TA
DIODE D1FS4A-TA
DIODE 1SS355TE-17
DIODE RB501V-40TE-17
D122
D123
D124
D125
D126
8-719-158-15
8-719-058-24
8-719-422-12
8-719-422-12
8-719-158-15
DIODE RD5.6SB-T1
DIODE RB501V-40TE-17
DIODE UDZ-TE-17-3.9B
DIODE UDZ-TE-17-3.9B
DIODE RD5.6SB-T1
D127
D128
D129
D130
D131
8-719-158-15
8-719-158-15
8-719-422-12
8-719-422-12
8-719-914-43
DIODE RD5.6SB-T1
DIODE RD5.6SB-T1
DIODE UDZ-TE-17-3.9B
DIODE UDZ-TE-17-3.9B
DIODE DAN202K-T-146
D133
D135
8-719-058-24 DIODE RB501V-40TE-17
8-719-058-24 DIODE RB501V-40TE-17
<FERRITE BEAD>
FB121
FB122
FB123
FB124
FB125
1-414-234-22
1-469-185-11
1-414-234-22
1-414-234-22
1-469-185-11
INDUCTOR
FERRITE
INDUCTOR
INDUCTOR
FERRITE
0UH
0UH
0UH
0UH
0UH
FB126
FB127
FB128
FB129
FB130
1-216-295-11
1-469-185-11
1-414-234-22
1-414-234-22
1-414-234-22
SHORT
FERRITE
INDUCTOR
INDUCTOR
INDUCTOR
0
0UH
0UH
0UH
0UH
FB131
FB132
FB133
FB134
FB136
1-469-185-11
1-414-234-22
1-216-295-11
1-216-295-11
1-500-451-11
FERRITE
INDUCTOR
SHORT
SHORT
FERRITE
0UH
0UH
0
0
0UH
FB137
FB138
FB139
1-216-295-11 SHORT
1-216-295-11 SHORT
1-500-451-11 FERRITE
0
0
0UH
<FILTER>
FL101
FL102
1-239-899-21 FILTER,CHIP EMI
1-239-899-21 FILTER,CHIP EMI
6-7
QA
Ref.No.
Part No.
Description
Remark
FL103
FL104
FL105
1-239-899-21 FILTER,CHIP EMI
1-239-899-21 FILTER,CHIP EMI
1-239-899-21 FILTER,CHIP EMI
Ref.No.
Part No.
Description
Remark
R115
R116
R117
R118
R119
1-216-081-00
1-216-081-00
1-216-067-00
1-216-657-11
1-216-624-11
RES-CHIP
RES-CHIP
RES-CHIP
METAL CHIP
METAL CHIP
22K
22K
5.6K
1.8K
75
5%
5%
5%
0.5%
0.5%
1/10W
1/10W
1/10W
1/10W
1/10W
R120
R121
R122
R123
R124
1-216-091-00
1-216-063-91
1-216-067-00
1-216-067-00
1-216-077-91
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
56K
3.9K
5.6K
5.6K
15K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R125
R127
R128
R129
R130
1-216-077-91
1-216-121-11
1-216-025-11
1-216-049-11
1-216-017-91
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
15K
1M
100
1K
47
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R131
R133
R134
R135
R136
1-216-017-91
1-216-091-00
1-216-091-00
1-216-073-00
1-216-073-00
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
47
56K
56K
10K
10K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R137
R138
R139
R140
R141
1-216-025-11
1-216-089-11
1-216-025-11
1-216-025-11
1-216-089-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
47K
100
100
47K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R142
R143
R144
R145
R146
1-216-114-00
1-216-073-00
1-216-025-11
1-216-114-00
1-216-073-00
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
510K
10K
100
510K
10K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R147
R148
R149
R152
R153
1-216-065-91
1-216-077-91
1-216-077-91
1-216-053-00
1-216-121-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
4.7K
15K
15K
1.5K
1M
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R154
R155
R156
R157
R158
1-216-085-00
1-216-073-00
1-216-025-11
1-216-025-11
1-216-025-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
33K
10K
100
100
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R159
R160
R161
R162
R163
1-216-025-11
1-216-025-11
1-216-049-11
1-216-097-11
1-216-097-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
100
1K
100K
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R164
R165
R166
R167
R168
1-216-085-00
1-216-089-11
1-216-091-00
1-216-083-00
1-216-073-00
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
33K
47K
56K
27K
10K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R170
R171
R172
R173
R174
1-216-005-00
1-216-005-00
1-216-005-00
1-216-005-00
1-216-005-00
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
15
15
15
15
15
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R175
R176
R177
R178
R179
1-216-005-00
1-216-005-00
1-216-005-00
1-216-005-00
1-216-005-00
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
15
15
15
15
15
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R180
R181
R182
R183
R184
1-216-005-00
1-216-005-00
1-216-077-91
1-216-077-91
1-216-060-00
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
15
15
15K
15K
3K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R185
1-216-060-00 RES-CHIP
3K
5%
1/10W
<IC>
IC101
IC102
IC103
IC104
IC105
8-759-460-72
8-759-460-72
8-759-335-28
8-759-157-17
8-759-637-94
IC BA033FP-E2
IC BA033FP-E2
IC TA78M09F (TE16L)
IC PQ05SZ1U
IC LT1376IS#TR
IC106
IC107
IC108
IC121
IC122
8-759-157-17
8-759-066-55
8-759-066-55
8-719-066-43
8-759-697-26
IC PQ05SZ1U
IC TA75W393FU-TE12R
IC TA75W393FU-TE12R
DIODE GP1U28Y
IC RCV4-A1T-MASK-25
IC123
IC124
IC127
IC128
8-759-681-47
8-759-582-91
8-759-655-55
8-759-655-59
IC IRMF-A0T-QTP
IC S-80842ANNP-ED6-T2
IC UPD72012GB-003-3B4
IC UPD16875G-E2
<JACK>
J101
J102
J121
J122
1-794-014-11
1-566-822-21
1-793-994-21
1-779-677-11
PIN,JACK
JACK
CONNECTOR,USB (A)
CONNECTOR,USB (B)
<COIL>
L101
L102
L103
L104
L105
1-500-451-11
1-412-363-21
1-412-363-21
1-412-363-21
1-412-363-21
FERRITE
FERRITE
FERRITE
FERRITE
FERRITE
0UH
0UH
0UH
0UH
0UH
L106
L107
L108
L109
L131
1-412-363-21
1-412-363-21
1-409-529-41
1-414-753-91
1-216-295-11
FERRITE
FERRITE
INDUCTOR
INDUCTOR
SHORT
0UH
0UH
10UH
4.7UH
0
<TRANSISTOR>
Q102
Q103
Q104
Q105
Q106
8-729-230-49
8-729-230-49
8-729-230-49
1-801-806-11
1-801-806-11
TRANSISTOR 2SC2712-YG-TE85L
TRANSISTOR 2SC2712-YG-TE85L
TRANSISTOR 2SC2712-YG-TE85L
TRANSISTOR DTC144EKA-T146
TRANSISTOR DTC144EKA-T146
Q107
8-729-216-22 TRANSISTOR 2SA1162-YG-TE85L
<RESISTOR>
R100
R101
R102
R103
R104
1-216-667-11
1-216-025-11
1-216-624-11
1-216-624-11
1-216-624-11
METAL CHIP
RES-CHIP
METAL CHIP
METAL CHIP
METAL CHIP
4.7K
100
75
75
75
0.5%
5%
0.5%
0.5%
0.5%
1/10W
1/10W
1/10W
1/10W
1/10W
R105
R106
R107
R108
R109
1-216-113-00
1-216-113-00
1-216-295-11
1-216-049-11
1-216-049-11
RES-CHIP
RES-CHIP
SHORT
RES-CHIP
RES-CHIP
470K
470K
0
1K
1K
5%
5%
1/10W
1/10W
5%
5%
1/10W
1/10W
R110
R111
R112
R113
R114
1-216-049-11
1-216-081-00
1-216-081-00
1-216-081-00
1-216-081-00
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1K
22K
22K
22K
22K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
6-8
VPL-CS2/CX1
QA GA
Ref.No.
Part No.
Description
Remark
R186
R187
R189
R192
1-216-097-11
1-216-097-11
1-216-295-11
1-216-073-00
RES-CHIP
RES-CHIP
SHORT
RES-CHIP
100K
100K
0
10K
5%
5%
1/10W
1/10W
5%
1/10W
R193
R194
R195
R197
R198
1-216-053-00
1-216-025-11
1-216-057-00
1-216-073-00
1-216-053-00
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1.5K
100
2.2K
10K
1.5K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R199
1-216-073-00 RES-CHIP
10K
5%
1/10W
<SWITCH>
S101
S202
Ref.No.
Part No.
C673
C674
C676
1-115-339-11 CERAMIC CHIP 0.1UF
1-126-786-11 ELECT
47UF
1-126-382-11 ELECT
100UF
10.00% 50V
20.00% 16V
20.00% 16V
C677
C678
C679
C680
C681
1-115-339-11
1-115-339-11
1-126-796-11
1-115-339-11
1-115-784-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
ELECT
0.1UF
0.1UF
22UF
0.1UF
270UF
10.00% 50V
10.00% 50V
20.00% 35V
10.00% 50V
20.00% 25V
C682
C683
C684
C718
C719
1-115-339-11
1-115-339-11
1-124-589-11
1-115-339-11
1-126-789-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
ELECT
0.1UF
0.1UF
47UF
0.1UF
33UF
10.00% 50V
10.00% 50V
20.00% 16V
10.00% 50V
20.00% 25V
1-762-984-11 SWITCH,PUSH
1-771-897-11 SWITCH,MICRO
Remark
<CONNECTOR>
CN601
CN605
CN606
CN674
CN675
<CRYSTAL>
X101
X102
X103
Description
1-781-163-11 VIBRATOR,OSCILLATOR
1-767-340-11 VIBRATOR,CRYSTAL
1-781-163-11 VIBRATOR,OSCILLATOR
* 1-691-960-11
* 1-564-720-11
* 1-774-249-11
1-564-721-11
* 1-564-705-11
PIN,CONNECTOR (PC BOARD) 3P
PIN,CONNECTOR (SMALL TYPE) 4P
CONNECTOR,BOARD TO BOARD 10P
PIN,CONNECTOR (SMALL TYPE) 5P
PIN,CONNECTOR (SMALL TYPE) 3P
CN676 * 1-564-719-11 PIN,CONNECTOR (SMALL TYPE) 3P
************************************************************************************
<DIODE>
* A-1316-546-A GA COMPL
***************
* 4-074-436-01
* 4-074-437-01
* 4-374-846-01
4-382-854-01
INSULATION PLATE (B)
INSULATION PLATE (A)
COVER,CAPACITOR,CAP TYPE
SCREW (M3X8),P,SW (+)
<CAPACITOR>
C601
C602
C603
C604
C608
! 1-113-907-51
! 1-115-166-11
! 1-113-907-51
1-135-449-11
1-107-906-11
C609
C610
C611
C612
C615
CERAMIC
FILM
CERAMIC
ELECT
ELECT
0.0022UF 20.00% 250V
0.22UF 20.00% 275V
0.0022UF 20.00% 250V
220UF 20% 450V
10UF
20.00% 50V
1-107-792-11
1-129-720-00
1-115-785-91
1-107-889-11
1-115-339-11
CERAMIC
FILM
ELECT
ELECT
CERAMIC CHIP
100PF
0.033UF
470UF
220UF
0.1UF
5.00% 1KV
5.00% 630V
20.00% 25V
20.00% 25V
10.00% 50V
C617
C618
C619
C620
C621
1-107-888-11
1-115-339-11
1-130-202-00
1-115-742-11
1-115-339-11
ELECT
CERAMIC CHIP
FILM
ELECT
CERAMIC CHIP
47UF
0.1UF
0.022UF
0.0027F
0.1UF
20.00% 25V
10.00% 50V
5.00% 400V
20.00% 10V
10.00% 50V
C623
C624
C625
C626
C627
1-107-909-11
1-115-339-11
1-115-339-11
1-163-003-11
1-115-340-11
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
47UF
0.1UF
0.1UF
330PF
0.22UF
20.00% 16V
10.00% 50V
10.00% 50V
10.00% 50V
10.00% 25V
C628
C629
C631
C632
C633
1-165-319-11
1-107-888-11
1-163-113-00
1-164-492-11
1-163-133-00
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
47UF
68PF
0.15UF
470PF
50V
20.00% 25V
5.00% 50V
10.00% 16V
5.00% 50V
C634
C635
C636
C637
C638
1-163-009-11
1-163-021-91
1-126-795-11
! 1-113-511-11
1-117-228-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
FILM
MYLAR
0.001UF
0.01UF
10UF
0.47UF
2.2UF
10.00% 50V
10.00% 50V
20.00% 50V
20.00% 275V
10.00% 450V
C671
C672
VPL-CS2/CX1
1-163-021-91 CERAMIC CHIP 0.01UF
1-126-795-11 ELECT
10UF
10.00% 50V
20.00% 50V
D601
D602
D603
D604
D605
! 8-719-066-75
8-719-060-06
8-719-055-30
8-719-055-30
8-719-066-76
D606
D607
D608
D609
D610
8-719-110-53
8-719-059-23
8-719-961-04
8-719-510-41
8-719-300-33
DIODE RD20ES-T1B2
DIODE P6KE200AG23
DIODE RGP10J
DIODE D10SC9M
DIODE RGP10G
D611
D612
D613
D614
D615
8-719-071-97
8-719-106-31
8-719-071-97
8-719-073-37
8-719-053-50
DIODE P6KE350AG23
DIODE RD8.2M-T1B1
DIODE P6KE350AG23
DIODE P6KE300AG23
DIODE FCQ20A06
D616
D617
D618
D619
D620
8-719-051-96
8-719-053-50
8-719-071-97
8-719-106-31
8-719-071-97
DIODE FMG-G2CS
DIODE FCQ20A06
DIODE P6KE350AG23
DIODE RD8.2M-T1B1
DIODE P6KE350AG23
D621
D622
D672
D673
D674
8-719-055-33
8-719-157-76
8-719-914-43
8-719-055-30
8-719-055-30
DIODE D1FL20U-TA
DIODE RD24M-T1B
DIODE DAN202K-T-146
DIODE D1FS4A-TA
DIODE D1FS4A-TA
D675
8-719-055-30 DIODE D1FS4A-TA
DIODE D6SB80
DIODE FSF10A60
DIODE D1FS4A-TA
DIODE D1FS4A-TA
DIODE TF861S
<FUSE>
F601
! 1-576-233-11 FUSE (H.B.C.) 6.3A/250V
<FUSE HOLDER>
FH601 ! 1-533-399-11 HOLDER,FUSE
FH602 ! 1-533-399-11 HOLDER,FUSE
<IC>
IC602
IC603
IC604
8-759-388-23 IC TL431BCDR2
8-759-487-72 IC TOP222Y-BB
8-759-470-64 IC TOP223Y-BB
6-9
GA
Ref.No.
Part No.
Description
IC605
IC671
8-759-696-20 IC FA5332M-TE1
8-759-388-23 IC TL431BCDR2
IC672
IC673
IC704
8-759-533-85 IC BA05FP-E2
8-759-650-39 IC LT1374IS8#TR
8-759-098-24 IC PQ30RV11
Remark
<COIL>
L601
L602
L603
L604
L671
! 1-431-419-11
1-416-754-21
1-406-976-11
1-413-090-31
1-406-663-21
TRANSFORMER,LINE FILTER
INDUCTOR
0UH
INDUCTOR
68UH
INDUCTOR
110UH
INDUCTOR
47UH
Ref.No.
Part No.
Description
Remark
R636
R637
R638
R639
R640
1-216-085-00
1-216-101-00
1-216-073-00
1-216-667-11
1-216-659-11
RES-CHIP
RES-CHIP
RES-CHIP
METAL CHIP
METAL CHIP
33K
150K
10K
4.7K
2.2K
5%
5%
5%
0.5%
0.5%
1/10W
1/10W
1/10W
1/10W
1/10W
R641
R642
R643
R644
R645
1-216-655-11
1-220-333-11
1-220-335-11
1-220-336-11
1-220-335-11
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1.5K
120K
180K
220K
180K
0.5%
5%
5%
5%
5%
1/10W
1/2W
1/2W
1/2W
1/2W
R646
R647
R648
R649
R650
1-220-333-11
1-220-335-11
1-216-075-00
1-216-025-11
1-216-005-00
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
120K
180K
12K
100
15
5%
5%
5%
5%
5%
1/2W
1/2W
1/10W
1/10W
1/10W
R651
R652
R653
R654
R655
1-216-687-11
1-216-689-11
1-216-065-91
1-216-667-11
1-216-667-11
METAL CHIP
RES-CHIP
RES-CHIP
METAL CHIP
METAL CHIP
33K
39K
4.7K
4.7K
4.7K
0.5%
5%
5%
0.5%
0.5%
1/10W
1/10W
1/10W
1/10W
1/10W
R656
R657
R671
R672
R673
1-220-335-11
1-220-333-11
1-216-603-11
1-216-077-91
1-220-270-11
RES-CHIP
RES-CHIP
METAL CHIP
RES-CHIP
RES-CHIP
180K
120K
10
15K
390
5%
5%
0.5%
5%
5%
1/2W
1/2W
1/10W
1/10W
1/2W
R674
R675
R676
R677
R678
1-220-267-11
1-216-691-11
1-216-671-11
1-216-085-00
1-216-093-91
RES-CHIP
METAL CHIP
METAL CHIP
RES-CHIP
RES-CHIP
180
47K
6.8K
33K
68K
5%
0.5%
0.5%
5%
5%
1/2W
1/10W
1/10W
1/10W
1/10W
R679
R680
R681
R682
R683
1-216-667-11
1-216-049-11
1-216-025-11
1-216-073-00
1-216-025-11
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
4.7K
1K
100
10K
100
0.5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R686
R687
R688
R689
R694
1-216-089-11
1-216-075-00
1-216-073-00
1-216-081-00
1-216-081-00
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
47K
12K
10K
22K
22K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R696
R697
R698
R699
R700
1-216-675-91
1-216-697-91
1-216-677-11
1-216-695-11
1-216-659-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
10K
82K
12K
68K
2.2K
0.5%
0.5%
0.5%
0.5%
0.5%
1/10W
1/10W
1/10W
1/10W
1/10W
R701
R716
R717
R718
R719
1-216-667-11
1-216-683-11
1-216-675-91
1-216-665-11
1-216-665-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
4.7K
22K
10K
3.9K
3.9K
0.5%
0.5%
0.5%
0.5%
0.5%
1/10W
1/10W
1/10W
1/10W
1/10W
<PHOTO COUPLER>
PH601
PH602
PH603
8-749-010-64 PHOTO COUPLER PC123FY2
8-749-010-64 PHOTO COUPLER PC123FY2
8-749-010-64 PHOTO COUPLER PC123FY2
<IC LINK>
PS601 ! 1-576-124-21 LINK,IC (2A)
<TRANSISTOR>
Q601
Q602
Q603
Q604
Q671
8-729-043-15
8-729-922-39
8-729-230-49
8-729-230-49
8-729-230-49
TRANSISTOR 2SK3013F-02
TRANSISTOR 2SD2144S-TP-V
TRANSISTOR 2SC2712-YG-TE85L
TRANSISTOR 2SC2712-YG-TE85L
TRANSISTOR 2SC2712-YG-TE85L
Q672
Q673
8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L
8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L
<RESISTOR>
R601
R602
R603
R604
R605
! 1-202-882-91
1-216-003-11
1-216-077-91
1-219-363-11
1-217-156-00
R606
R607
R608
R609
R610
SOLID
RES-CHIP
RES-CHIP
FUSIBLE
RESISTOR
560K
12
15K
5.6
0.22
20%
5%
5%
5%
10%
1/2W
1/10W
1/10W
5W
5W
1-260-324-11
1-216-097-11
1-249-429-11
1-249-389-11
1-215-903-11
CARBON
RES-CHIP
CARBON
CARBON
METAL OXIDE
470
100K
10K
4.7
68K
5%
5%
5%
5%
5%
1/2W
1/10W
1/4W
1/4W
2W
R611
R613
R615
R617
R618
1-220-270-11
1-249-389-11
1-216-671-11
1-220-337-11
1-216-667-11
RES-CHIP
CARBON
METAL CHIP
RES-CHIP
METAL CHIP
390
4.7
6.8K
270K
4.7K
5%
5%
0.5%
5%
0.5%
1/2W
1/4W
1/10W
1/2W
1/10W
R620
R621
R622
R623
R625
1-216-033-00
1-216-311-00
1-220-267-11
1-216-049-11
1-220-337-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
220
6.8
180
1K
270K
5%
5%
5%
5%
5%
1/10W
1/10W
1/2W
1/10W
1/2W
R626
R627
R628
R629
R630
1-216-075-00
1-216-025-11
1-216-689-11
1-215-927-00
1-215-927-00
RES-CHIP
RES-CHIP
RES-CHIP
METAL OXIDE
METAL OXIDE
12K
100
39K
47K
47K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
3W
3W
R631
R632
R633
R634
R635
1-216-311-00
1-216-049-11
1-216-033-00
1-216-629-11
1-216-053-00
RES-CHIP
RES-CHIP
RES-CHIP
METAL CHIP
RES-CHIP
6.8
1K
220
120
1.5K
5%
5%
5%
0.5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
6-10
<TRANSFORMER>
T601
T602
! 1-435-199-11 TRANSFORMER,CONVERTER (SRT)
! 1-435-198-11 TRANSFORMER,CONVERTER (PIT)
<VARISTOR>
VD602 ! 1-801-073-41 VARISTOR ERZV14D471
VD604
1-803-136-11 VARISTOR ZP2600
VPL-CS2/CX1
GB C
Ref.No.
Part No.
Description
Remark
************************************************************************************
* A-1311-887-A GB MOUNT
***************
<CAPACITOR>
C701
C702
C740
C742
C772
1-115-339-11
1-126-789-11
1-117-354-91
1-117-316-91
1-163-011-11
CERAMIC CHIP
ELECT
ELECT
ELECT
CERAMIC CHIP
0.1UF
10.00% 50V
33UF
20.00% 25V
330UF 20.00% 35V
470UF 20.00% 25V
0.0015UF 10.00% 50V
C773
C776
C777
C778
1-163-011-11
1-126-786-11
1-124-589-11
1-107-882-91
CERAMIC CHIP
ELECT
ELECT
ELECT
0.0015UF 10.00% 50V
47UF
20.00% 16V
47UF
20.00% 16V
100UF 20.00% 16V
<CONNECTOR>
CN702 * 1-774-246-11 CONNECTOR,BOARD TO BOARD 10P
CN706 * 1-564-710-11 PIN,CONNECTOR (SMALL TYPE) 8P
CN707 * 1-564-711-11 PIN,CONNECTOR (SMALL TYPE) 9P
<DIODE>
D715
D727
D728
D736
8-719-510-41
8-719-073-52
8-719-073-52
8-719-110-36
DIODE D10SC9M
DIODE D2FS6-TA
DIODE D2FS6-TA
DIODE RD13ES-T1B2
Ref.No.
Part No.
Description
Remark
C808
C810
C813
C814
C816
1-162-970-11
1-126-205-11
1-124-779-00
1-107-826-11
1-126-205-11
CERAMIC CHIP
ELECT CHIP
ELECT CHIP
CERAMIC CHIP
ELECT CHIP
0.01UF
47UF
10UF
0.1UF
47UF
10.00% 25V
20.00% 6.3V
20.00% 16V
10.00% 16V
20.00% 6.3V
C819
C820
C821
C822
C824
1-124-779-00
1-124-779-00
1-115-340-11
1-162-970-11
1-115-340-11
ELECT CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
10UF
10UF
0.22UF
0.01UF
0.22UF
20.00% 16V
20.00% 16V
10.00% 25V
10.00% 25V
10.00% 25V
C826
C829
C830
C831
C832
1-126-205-11
1-124-779-00
1-162-970-11
1-162-970-11
1-126-391-11
ELECT CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
47UF
10UF
0.01UF
0.01UF
47UF
20.00% 6.3V
20.00% 16V
10.00% 25V
10.00% 25V
20.00% 6.3V
C833
C834
C839
C840
C841
1-125-837-91
1-162-970-11
1-126-205-11
1-162-970-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
1UF
0.01UF
47UF
0.01UF
0.1UF
10% 6.3V
10.00% 25V
20.00% 6.3V
10.00% 25V
10.00% 16V
C848
C849
C850
C851
C852
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
CERAMIC CHIP
CERAMICCHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
0.1UF
0.1UF
0.1UF
0.1UF
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 16V
C853
C854
C855
C856
C857
1-107-826-11
1-125-837-91
1-107-826-11
1-125-837-91
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
1UF
0.1UF
1UF
0.1UF
10.00% 16V
10% 6.3V
10.00% 16V
10% 6.3V
10.00% 16V
C858
C859
C860
C863
C864
1-126-205-11
1-125-837-91
1-107-826-11
1-125-837-91
1-125-837-91
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
47UF
1UF
0.1UF
1UF
1UF
20.00% 6.3V
10% 6.3V
10.00% 16V
10% 6.3V
10% 6.3V
C865
C866
C867
C868
C869
1-107-826-11
1-107-826-11
1-125-837-91
1-125-837-91
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
0.1UF
1UF
1UF
0.1UF
10.00% 16V
10.00% 16V
10% 6.3V
10% 6.3V
10.00% 16V
C870
C871
C872
C873
C874
1-107-826-11
1-107-826-11
1-125-837-91
1-126-205-11
1-164-004-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
0.1UF
0.1UF
1UF
47UF
0.1UF
10.00% 16V
10.00% 16V
10% 6.3V
20.00% 6.3V
10.00% 25V
<IC>
IC701
8-759-098-24 IC PQ30RV11
<COIL>
L702
L703
L707
1-406-977-61 INDUCTOR
1-416-208-11 INDUCTOR
1-412-525-31 INDUCTOR
100UH
150UH
10UH
<TRANSISTOR>
Q710
8-729-807-51 TRANSISTOR 2SC2873Y-TE12L
<RESISTOR>
R706
R707
R776
R777
R784
1-216-653-11
1-216-679-11
1-220-221-11
1-220-221-11
1-218-235-11
METAL CHIP
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1.2K
15K
100
100
82
0.5%
0.5%
5%
5%
5%
1/10W
1/10W
1/2W
1/2W
1/2W
C875
C876
C877
C879
C880
1-164-004-11
1-164-004-11
1-107-826-11
1-107-826-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
0.1UF
0.1UF
0.1UF
0.1UF
10.00% 25V
10.00% 25V
10.00% 16V
10.00% 16V
10.00% 16V
R785
R787
R788
R789
1-220-274-11
1-220-274-11
1-220-274-11
1-220-274-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1.2K
1.2K
1.2K
1.2K
5%
5%
5%
5%
1/2W
1/2W
1/2W
1/2W
C881
C882
C883
C885
C886
1-107-826-11
1-126-205-11
1-107-826-11
1-162-964-11
1-162-964-11
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
47UF
0.1UF
0.001UF
0.001UF
10.00% 16V
20.00% 6.3V
10.00% 16V
10.00% 50V
10.00% 50V
C887
C888
C889
C890
C893
1-126-205-11
1-107-826-11
1-107-826-11
1-117-370-11
1-164-004-11
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
47UF
0.1UF
0.1UF
10UF
0.1UF
20.00% 6.3V
10.00% 16V
10.00% 16V
10V
10.00% 25V
C894
C895
C896
C897
C900
1-162-964-11
1-128-400-11
1-162-919-11
1-107-826-11
1-164-004-11
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.001UF
47UF
22PF
0.1UF
0.1UF
10.00% 50V
20.00% 25V
5.00% 50V
10.00% 16V
10.00% 25V
C901
1-164-004-11 CERAMIC CHIP 0.1UF
************************************************************************************
* A-1335-133-A C COMPL
*************
(For VPL-CS2)
<CAPACITOR>
C801
C802
C803
C804
C805
VPL-CS2/CX1
1-117-681-11
1-128-400-11
1-128-400-11
1-128-400-11
1-135-346-21
ELECT CHIP
ELECT CHIP
ELECT CHIP
ELECT CHIP
ELECT
100UF
47UF
47UF
47UF
39UF
20.00% 16V
20.00% 25V
20.00% 25V
20.00% 25V
20% 16V
10.00% 25V
6-11
C
Ref.No.
Part No.
Description
Remark
C902
C903
C904
C906
1-128-400-11
1-164-004-11
1-117-681-11
1-164-004-11
ELECT CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
47UF
0.1UF
100UF
0.1UF
20.00% 25V
10.00% 25V
20.00% 16V
10.00% 25V
C908
C909
C951
C952
C953
1-164-004-11
1-164-005-11
1-113-985-11
1-113-985-11
1-126-394-11
CERAMIC CHIP
CERAMIC CHIP
TANTAL.CHIP
TANTAL.CHIP
ELECT CHIP
0.1UF
0.47UF
10UF
10UF
10UF
10.00% 25V
25V
20.00% 20V
20.00% 20V
20.00% 16V
C954
C955
C956
C957
C958
1-163-021-91
1-126-396-11
1-164-004-11
1-125-827-91
1-125-827-91
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.01UF
47UF
0.1UF
1UF
1UF
10.00% 50V
20.00% 16V
10.00% 25V
10.00% 25V
10.00% 25V
C959
C960
C961
C962
C963
1-162-970-11
1-162-970-11
1-104-915-11
1-104-915-11
1-104-760-11
CERAMIC CHIP
CERAMIC CHIP
TANTAL.CHIP
TANTAL.CHIP
CERAMIC CHIP
0.01UF
0.01UF
2.2UF
2.2UF
0.047UF
10.00% 25V
10.00% 25V
20.00% 20V
20.00% 20V
10.00% 50V
C964
C965
C966
C967
C968
1-104-760-11
1-126-394-11
1-128-394-11
1-164-004-11
1-128-394-11
CERAMIC CHIP
ELECT CHIP
ELECT CHIP
CERAMIC CHIP
ELECT CHIP
0.047UF
10UF
220UF
0.1UF
220UF
10.00% 50V
20.00% 16V
20.00% 10V
10.00% 25V
20.00% 10V
C969
C970
C971
C972
C975
1-115-340-11
1-115-340-11
1-117-681-11
1-164-004-11
1-126-205-11
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
ELECT CHIP
0.22UF
0.22UF
100UF
0.1UF
47UF
10.00% 25V
10.00% 25V
20.00% 16V
10.00% 25V
20.00% 6.3V
C976
C977
C978
C981
C982
1-107-826-11
1-107-826-11
1-117-370-11
1-164-004-11
1-162-964-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
0.1UF
10UF
0.1UF
0.001UF
10.00% 16V
10.00% 16V
10V
10.00% 25V
10.00% 50V
C983
C984
C985
C988
C989
1-128-400-11
1-162-919-11
1-107-826-11
1-164-004-11
1-164-004-11
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
47UF
22PF
0.1UF
0.1UF
0.1UF
20.00% 25V
5.00% 50V
10.00% 16V
10.00% 25V
10.00% 25V
C990
C991
C992
C993
C996
1-128-400-11
1-164-004-11
1-117-681-11
1-164-004-11
1-164-004-11
ELECT CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
47UF
0.1UF
100UF
0.1UF
0.1UF
20.00% 25V
10.00% 25V
20.00% 16V
10.00% 25V
10.00% 25V
C997
C1002
C1003
C1004
C1005
1-164-005-11
1-126-205-11
1-107-826-11
1-107-826-11
1-117-370-11
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.47UF
47UF
0.1UF
0.1UF
10UF
25V
20.00% 6.3V
10.00% 16V
10.00% 16V
10V
C1008
C1009
C1010
C1011
C1012
1-164-004-11
1-162-964-11
1-128-400-11
1-162-919-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
0.001UF
47UF
22PF
0.1UF
10.00% 25V
10.00% 50V
20.00% 25V
5.00% 50V
10.00% 16V
C1015
C1016
C1017
C1018
C1019
1-164-004-11
1-164-004-11
1-128-400-11
1-164-004-11
1-117-681-11
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
ELECT CHIP
0.1UF
0.1UF
47UF
0.1UF
100UF
10.00% 25V
10.00% 25V
20.00% 25V
10.00% 25V
20.00% 16V
C1020
C1023
C1024
C1028
C1029
1-164-004-11
1-164-004-11
1-164-005-11
1-109-982-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
0.1UF
0.47UF
1UF
0.1UF
10.00% 25V
10.00% 25V
25V
10.00% 10V
10.00% 16V
C1030
C1031
1-107-826-11 CERAMIC CHIP 0.1UF
1-107-826-11 CERAMIC CHIP 0.1UF
Ref.No.
Part No.
Description
Remark
C1032
C1039
C1041
1-107-826-11 CERAMIC CHIP 0.1UF
1-126-391-11 ELECT CHIP
47UF
1-125-889-91 CERAMIC CHIP 2.2UF
10.00% 16V
20.00% 6.3V
10% 10V
<CONNECTOR>
CN801
CN802
CN803
CN804
CN805
* 1-691-551-11
* 1-580-055-21
* 1-580-056-21
* 1-569-775-21
* 1-764-007-11
PIN,CONNECTOR (SMD) 8P
PIN,CONNECTOR (SMD) 2P
PIN,CONNECTOR (SMD) 3P
PIN,CONNECTOR (SMD) 5P
PIN,CONNECTOR (SMD) 12P
CN806
CN807
CN808
CN809
CN810
* 1-569-775-21
* 1-580-789-21
* 1-785-306-21
* 1-793-798-21
* 1-691-551-11
PIN,CONNECTOR (SMD) 5P
PIN,CONNECTOR (SMD) 6P
CONNECTOR,BOARD TO BOARD70P
CONNECTOR,BOARD TO BOARD 50P
PIN,CONNECTOR (SMD) 8P
CN811
1-779-730-11 CONNECTOR,FFC/FPC (ZIF) 24P
CN815 * 1-580-055-21 PIN,CONNECTOR (SMD) 2P
CN816
1-779-730-11 CONNECTOR,FFC/FPC (ZIF) 24P
CN818
1-779-730-11 CONNECTOR,FFC/FPC (ZIF) 24P
CN820 * 1-580-055-21 PIN,CONNECTOR (SMD) 2P
<DIODE>
D801
D802
D803
D804
D805
8-719-976-99
8-719-976-99
8-719-976-99
8-719-976-99
8-719-976-99
DIODE DTZ-TT11-5.1
DIODE DTZ-TT11-5.1
DIODE DTZ-TT11-5.1
DIODE DTZ-TT11-5.1
DIODE DTZ-TT11-5.1
D806
D807
D812
D813
D814
8-719-976-99
8-719-976-99
8-719-976-99
8-719-976-99
8-719-976-99
DIODE DTZ-TT11-5.1
DIODE DTZ-TT11-5.1
DIODE DTZ-TT11-5.1
DIODE DTZ-TT11-5.1
DIODE DTZ-TT11-5.1
D815
D816
8-719-988-61 DIODE 1SS355TE-17
8-719-988-61 DIODE 1SS355TE-17
<FERRITE BEAD>
FB801
FB802
FB803
FB804
FB805
1-414-234-22
1-414-234-22
1-414-234-22
1-414-234-22
1-414-234-22
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
0UH
0UH
0UH
0UH
0UH
FB807
FB809
FB810
FB811
FB812
1-414-234-22
1-414-950-21
1-414-950-21
1-414-234-22
1-414-234-22
INDUCTOR
FERRITE
FERRITE
INDUCTOR
INDUCTOR
0UH
0UH
0UH
0UH
0UH
FB813
FB814
FB815
FB816
FB817
1-414-234-22
1-414-234-22
1-414-234-22
1-414-234-22
1-414-234-22
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
0UH
0UH
0UH
0UH
0UH
FB818
FB819
FB832
FB833
FB837
1-414-234-22
1-414-234-22
1-414-234-22
1-414-234-22
1-414-234-22
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
0UH
0UH
0UH
0UH
0UH
FB841
FB842
FB846
FB850
1-414-234-22
1-414-234-22
1-414-234-22
1-414-921-11
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
0UH
0UH
0UH
0UH
<FILTER>
6-12
10.00% 16V
10.00% 16V
FL801
1-239-899-21 FILTER,CHIP EMI
VPL-CS2/CX1
C
Ref.No.
Part No.
Description
Remark
Ref.No.
Part No.
Description
Remark
<RESISTOR>
<IC>
IC801
IC802
IC803
IC804
IC806
8-759-388-31
8-759-460-81
8-759-584-86
8-759-523-81
8-759-645-13
IC PQ20VZ1U
IC BA12FP-E2
IC M52749FP-TP
IC TC74VHC08FT(EL)
IC ADV7123KST140
R801
R802
R803
R804
R805
1-216-833-11
1-218-723-11
1-218-714-11
1-216-809-11
1-216-864-11
RES-CHIP
METAL CHIP
METAL CHIP
RES-CHIP
SHORT
10K
20K
8.2K
100
5%
0.5%
0.5%
5%
0
1/16W
1/16W
1/16W
1/16W
IC807
IC808
IC811
IC812
IC813
8-759-571-03
8-759-592-44
8-759-491-46
8-759-658-73
8-759-491-46
IC LM4041DIM3-1.2(T&R)
IC TC7SZ04FU(TE85R)
IC TC74VHCT04AFT(EL)
IC ISPLSI1016E-80LT44-SX1697
IC TC74VHCT04AFT(EL)
R806
R807
R809
R810
R811
1-216-829-11
1-218-685-11
1-216-057-00
1-216-057-00
1-216-864-11
RES-CHIP
METAL CHIP
RES-CHIP
RES-CHIP
SHORT
4.7K
510
2.2K
2.2K
5%
0.5%
5%
5%
0
1/16W
1/16W
1/10W
1/10W
IC814
IC817
IC818
IC819
IC823
8-759-482-35
8-759-064-36
8-759-544-55
8-752-080-99
8-759-702-02
IC MC100ELT20DR2
IC MB88346BPFV-EF
IC MAX4066CEE-TE2
IC CXA2112R-T6
IC NJM2073M(TE2)
R812
R813
R814
R815
R816
1-216-829-11
1-216-817-11
1-216-817-11
1-216-295-11
1-216-829-11
RES-CHIP
RES-CHIP
RES-CHIP
SHORT
RES-CHIP
4.7K
470
470
5%
5%
5%
0
5%
1/16W
1/16W
1/16W
IC824
IC825
IC826
IC829
IC831
8-759-702-02
8-752-091-06
8-752-080-99
8-752-080-99
8-759-491-46
IC NJM2073M(TE2)
IC CXA1846BN-T4
IC CXA2112R-T6
IC CXA2112R-T6
IC TC74VHCT04AFT(EL)
R817
R818
R819
R821
R822
1-216-057-00
1-216-057-00
1-216-864-11
1-216-817-11
1-216-817-11
RES-CHIP
RES-CHIP
SHORT
RES-CHIP
RES-CHIP
2.2K
2.2K
5%
5%
0
5%
5%
1/10W
1/10W
IC833
IC834
IC835
8-752-400-93 IC CXD3503R-T6
8-759-574-34 IC LMV358MMX
8-759-183-53 IC TL431CPK-E2
R823
R824
R825
R826
R827
1-218-692-11
1-216-057-00
1-216-057-00
1-218-692-11
1-216-864-11
METAL CHIP
RES-CHIP
RES-CHIP
METAL CHIP
SHORT
1K
2.2K
2.2K
1K
0.5%
5%
5%
0.5%
0
1/16W
1/10W
1/10W
1/16W
R828
R829
R832
R833
R834
1-216-809-11
1-216-833-11
1-216-817-11
1-216-817-11
1-216-853-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
10K
470
470
470K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R835
R836
R837
R838
R843
1-218-702-11
1-216-809-11
1-216-841-11
1-216-829-11
1-216-829-11
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
2.7K
100
47K
4.7K
4.7K
0.5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R844
R846
R847
R848
R849
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
100
100
100
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R850
R851
R852
R853
R854
1-216-809-11
1-216-864-11
1-216-864-11
1-218-686-11
1-216-827-11
RES-CHIP
SHORT
SHORT
METAL CHIP
RES-CHIP
100
0
0
560
3.3K
5%
1/16W
0.5%
5%
1/16W
1/16W
R855
R856
R857
R858
R860
1-218-692-11
1-218-692-11
1-218-658-11
1-218-660-91
1-216-815-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
RES-CHIP
1K
1K
39
47
330
0.5%
0.5%
0.5%
0.5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R862
R863
R864
R865
R867
1-218-658-11
1-216-815-11
1-218-660-91
1-216-815-11
1-216-815-11
METAL CHIP
RES-CHIP
METAL CHIP
RES-CHIP
RES-CHIP
39
330
47
330
330
0.5%
5%
0.5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R869
R871
R875
R876
R877
1-218-658-11
1-218-660-91
1-216-809-11
1-216-809-11
1-216-809-11
METAL CHIP
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
39
47
100
100
100
0.5%
0.5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R878
R879
R880
R882
R884
1-216-864-11
1-216-809-11
1-216-809-11
1-216-864-11
1-218-692-11
SHORT
RES-CHIP
RES-CHIP
SHORT
METAL CHIP
0
100
100
0
1K
5%
5%
1/16W
1/16W
0.5%
1/16W
4.7K
470
470
1/16W
1/16W
1/16W
<COIL>
L803
L804
L805
L806
L807
1-410-381-11
1-410-393-11
1-469-524-91
1-410-369-11
1-410-369-11
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
10UH
100UH
4.7UH
1UH
1UH
L812
L813
L814
L815
L816
1-410-377-31
1-414-752-11
1-410-369-11
1-410-369-11
1-410-369-11
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
4.7UH
2.2UH
1UH
1UH
1UH
L817
L818
L819
L820
L821
1-410-369-11
1-410-369-11
1-414-170-41
1-414-170-41
1-414-170-41
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
1UH
1UH
100UH
100UH
100UH
<TRANSISTOR>
Q801
Q802
Q803
Q804
Q805
1-801-806-11
8-729-112-65
8-729-112-65
8-729-112-65
8-729-112-65
TRANSISTOR DTC144EKA-T146
TRANSISTOR 2SA1462-T1Y33Y34
TRANSISTOR 2SA1462-T1Y33Y34
TRANSISTOR 2SA1462-T1Y33Y34
TRANSISTOR 2SA1462-T1Y33Y34
Q806
Q807
Q808
Q809
Q810
8-729-216-22
8-729-216-22
8-729-013-28
8-729-013-28
8-729-013-28
TRANSISTOR 2SA1162-YG-TE85L
TRANSISTOR 2SA1162-YG-TE85L
TRANSISTOR HN1B01FU-TE85R
TRANSISTOR HN1B01FU-TE85R
TRANSISTOR HN1B01FU-TE85R
Q811
Q812
Q813
Q814
Q815
8-729-013-28
8-729-013-28
8-729-013-28
1-801-806-11
1-801-806-11
TRANSISTOR HN1B01FU-TE85R
TRANSISTOR HN1B01FU-TE85R
TRANSISTOR HN1B01FU-TE85R
TRANSISTOR DTC144EKA-T146
TRANSISTOR DTC144EKA-T146
Q816
Q817
Q818
8-729-216-22 TRANSISTOR 2SA1162-YG-TE85L
8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L
1-801-806-11 TRANSISTOR DTC144EKA-T146
VPL-CS2/CX1
6-13
C
Ref.No.
Part No.
Description
R885
R886
R887
R889
R891
1-216-864-11
1-218-692-11
1-216-809-11
1-216-805-11
1-216-805-11
SHORT
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
0
1K
100
47
47
0.5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
R892
R893
R894
R895
R896
1-216-805-11
1-216-805-11
1-216-809-11
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
47
47
100
100
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R897
R898
R899
R900
R901
1-216-864-11
1-216-864-11
1-216-801-11
1-216-805-11
1-216-805-11
SHORT
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
0
0
22
47
47
5%
5%
5%
1/16W
1/16W
1/16W
R902
R903
R904
R905
R906
1-216-805-11
1-216-805-11
1-216-805-11
1-216-805-11
1-216-815-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
47
47
47
47
330
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R907
R908
R911
R912
R913
1-216-815-11
1-216-809-11
1-216-864-11
1-216-817-11
1-216-809-11
RES-CHIP
RES-CHIP
SHORT
RES-CHIP
RES-CHIP
330
100
0
470
100
5%
5%
1/16W
1/16W
5%
5%
1/16W
1/16W
R914
R915
R916
R919
R920
R921
R924
R925
R926
R927
1-216-809-11
1-216-864-11
1-216-817-11
1-216-825-11
1-216-825-11
1-216-825-11
1-216-809-11
1-216-864-11
1-216-864-11
1-216-809-11
RES-CHIP
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
SHORT
SHORT
RES-CHIP
100
0
470
2.2K
2.2K
2.2K
100
0
0
100
5%
1/16W
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
5%
1/16W
R928
R929
R930
R931
R932
1-216-809-11
1-216-829-11
1-216-864-11
1-216-825-11
1-216-864-11
RES-CHIP
RES-CHIP
SHORT
RES-CHIP
SHORT
100
4.7K
0
2.2K
0
5%
5%
1/16W
1/16W
5%
1/16W
R933
R934
R935
R936
R937
1-216-825-11
1-216-864-11
1-216-825-11
1-216-809-11
1-216-809-11
RES-CHIP
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
2.2K
0
2.2K
100
100
5%
1/16W
5%
5%
5%
1/16W
1/16W
1/16W
R938
R939
R940
R941
R942
1-216-809-11
1-216-789-11
1-216-789-11
1-216-789-11
1-216-789-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
2.2
2.2
2.2
2.2
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R943
R944
R945
R946
R947
1-216-789-11
1-216-789-11
1-216-864-11
1-216-864-11
1-216-864-11
RES-CHIP
RES-CHIP
SHORT
SHORT
SHORT
2.2
2.2
0
0
0
5%
5%
1/16W
1/16W
R948
R949
R950
R951
R952
1-216-829-11
1-216-864-11
1-216-830-11
1-216-809-11
1-216-809-11
RES-CHIP
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
4.7K
0
5.6K
100
100
5%
1/16W
5%
5%
5%
1/16W
1/16W
1/16W
R953
R954
R955
R957
R958
1-216-833-11
1-216-809-11
1-216-864-11
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
SHORT
RES-CHIP
RES-CHIP
10K
100
0
100
100
5%
5%
1/16W
1/16W
5%
5%
1/16W
1/16W
R959
R960
1-216-809-11 RES-CHIP
1-216-805-11 RES-CHIP
100
47
5%
5%
1/16W
1/16W
6-14
Remark
Ref.No.
Part No.
Description
Remark
R961
R964
R965
1-216-805-11 RES-CHIP
1-218-703-11 METAL CHIP
1-218-690-11 METAL CHIP
47
3K
820
5%
0.5%
0.5%
1/16W
1/16W
1/16W
R967
R968
R975
R977
R979
1-216-805-11
1-216-864-11
1-216-864-11
1-218-726-11
1-216-864-11
RES-CHIP
SHORT
SHORT
METAL CHIP
SHORT
47
0
0
27K
0
5%
1/16W
0.5%
1/16W
R982
R983
R984
R985
R986
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
SHORT
SHORT
SHORT
SHORT
SHORT
0
0
0
0
0
R987
R994
R995
R999
R1000
1-216-864-11
1-216-864-11
1-216-833-11
1-216-864-11
1-216-805-11
SHORT
SHORT
RES-CHIP
SHORT
RES-CHIP
0
0
10K
0
47
5%
1/16W
5%
1/16W
R1002
R1003
R1004
R1008
R1023
1-216-805-11
1-216-801-11
1-216-864-11
1-216-809-11
1-216-864-11
RES-CHIP
RES-CHIP
SHORT
RES-CHIP
SHORT
47
22
0
100
0
5%
5%
1/16W
1/16W
5%
1/16W
R1024
R1027
R1028
R1029
R1030
1-216-864-11
1-216-864-11
1-216-864-11
1-216-809-11
1-216-809-11
SHORT
SHORT
SHORT
RES-CHIP
RES-CHIP
0
0
0
100
100
5%
5%
1/16W
1/16W
R1031
R1032
R1033
R1034
R1035
1-216-809-11
1-216-832-11
1-216-832-11
1-216-825-11
1-216-825-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
8.2K
8.2K
2.2K
2.2K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R1036
R1037
R1038
R1039
R1040
1-216-841-11
1-216-033-00
1-216-841-11
1-216-033-00
1-216-830-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
47K
220
47K
220
5.6K
5%
5%
5%
5%
5%
1/16W
1/10W
1/16W
1/10W
1/16W
R1041
R1042
R1043
R1044
R1045
1-216-845-11
1-216-830-11
1-216-823-11
1-216-827-11
1-217-671-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100K
5.6K
1.5K
3.3K
1
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/10W
R1046
R1047
R1053
R1054
R1055
1-217-671-11
1-216-833-11
1-216-829-11
1-218-703-11
1-218-690-11
RES-CHIP
RES-CHIP
RES-CHIP
METAL CHIP
METAL CHIP
1
10K
4.7K
3K
820
5%
5%
5%
0.5%
0.5%
1/10W
1/16W
1/16W
1/16W
1/16W
R1057
R1058
R1061
R1065
R1067
1-216-805-11
1-216-864-11
1-216-864-11
1-216-864-11
1-218-726-11
RES-CHIP
SHORT
SHORT
SHORT
METAL CHIP
47
0
0
0
27K
5%
1/16W
0.5%
1/16W
R1069
R1072
R1073
R1074
R1075
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
SHORT
SHORT
SHORT
SHORT
SHORT
0
0
0
0
0
R1076
R1077
R1084
R1085
R1087
1-216-864-11
1-216-864-11
1-216-864-11
1-216-833-11
1-216-833-11
SHORT
SHORT
SHORT
RES-CHIP
RES-CHIP
0
0
0
10K
10K
5%
5%
1/16W
1/16W
R1095
R1096
R1098
1-218-703-11 METAL CHIP
1-218-690-11 METAL CHIP
1-216-805-11 RES-CHIP
3K
820
47
0.5%
0.5%
5%
1/16W
1/16W
1/16W
VPL-CS2/CX1
C
Ref.No.
Part No.
Description
Remark
R1099
R1102
1-216-864-11 SHORT
1-216-864-11 SHORT
0
0
R1106
R1108
R1110
R1113
R1114
1-216-864-11
1-218-726-11
1-216-864-11
1-216-864-11
1-216-864-11
SHORT
METAL CHIP
SHORT
SHORT
SHORT
0
27K
0
0
0
R1115
R1116
R1117
R1118
R1125
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
SHORT
SHORT
SHORT
SHORT
SHORT
0
0
0
0
0
R1126
R1130
R1131
R1132
R1133
1-216-833-11
1-216-833-11
1-216-817-11
1-216-817-11
1-216-817-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
10K
470
470
470
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R1134
R1135
R1136
R1141
R1142
1-218-688-11
1-218-698-11
1-218-702-11
1-216-829-11
1-216-821-11
METAL CHIP
METAL CHIP
METAL CHIP
RES-CHIP
RES-CHIP
680
1.8K
2.7K
4.7K
1K
0.5%
0.5%
0.5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R1143
R1144
R1145
R1146
1-218-710-11
1-216-813-11
1-218-658-11
1-216-864-11
METAL CHIP
RES-CHIP
METAL CHIP
SHORT
5.6K
220
39
0
0.5%
5%
0.5%
1/16W
1/16W
1/16W
0.5%
1/16W
Ref.No.
Part No.
Description
Remark
C789
C801
C802
1-165-319-11 CERAMIC CHIP 0.1UF
1-117-681-11 ELECT CHIP
100UF
1-128-400-11 ELECT CHIP
47UF
50V
20.00% 16V
20.00% 25V
C803
C804
C805
C808
C810
1-128-400-11
1-128-400-11
1-135-346-21
1-162-970-11
1-126-205-11
ELECT CHIP
ELECT CHIP
ELECT
CERAMIC CHIP
ELECT CHIP
47UF
47UF
39UF
0.01UF
47UF
20.00% 25V
20.00% 25V
20% 16V
10.00% 25V
20.00% 6.3V
C813
C814
C816
C819
C820
1-124-779-00
1-107-826-11
1-126-205-11
1-124-779-00
1-124-779-00
ELECT CHIP
CERAMIC CHIP
ELECT CHIP
ELECT CHIP
ELECT CHIP
10UF
0.1UF
47UF
10UF
10UF
20.00% 16V
10.00% 16V
20.00% 6.3V
20.00% 16V
20.00% 16V
C821
C822
C824
C826
C829
1-115-340-11
1-162-970-11
1-115-340-11
1-126-205-11
1-124-779-00
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
ELECT CHIP
0.22UF
0.01UF
0.22UF
47UF
10UF
10.00% 25V
10.00% 25V
10.00% 25V
20.00% 6.3V
20.00% 16V
C830
C831
C832
C833
C834
1-162-970-11
1-162-970-11
1-126-391-11
1-125-837-91
1-162-970-11
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
0.01UF
0.01UF
47UF
1UF
0.01UF
10.00% 25V
10.00% 25V
20.00% 6.3V
10% 6.3V
10.00% 25V
C839
C840
C841
C848
C849
1-126-205-11
1-162-970-11
1-107-826-11
1-107-826-11
1-107-826-11
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
47UF
0.01UF
0.1UF
0.1UF
0.1UF
20.00% 6.3V
10.00% 25V
10.00% 16V
10.00% 16V
10.00% 16V
C850
C851
C852
C853
C854
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
1-125-837-91
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
0.1UF
0.1UF
0.1UF
1UF
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 16V
10% 6.3V
C855
C856
C857
C858
C859
1-107-826-11
1-125-837-91
1-107-826-11
1-126-205-11
1-125-837-91
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
0.1UF
1UF
0.1UF
47UF
1UF
10.00% 16V
10% 6.3V
10.00% 16V
20.00% 6.3V
10% 6.3V
C860
C863
C864
C865
C866
1-107-826-11
1-125-837-91
1-125-837-91
1-107-826-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
1UF
1UF
0.1UF
0.1UF
10.00% 16V
10% 6.3V
10% 6.3V
10.00% 16V
10.00% 16V
C867
C868
C869
C870
C871
1-125-837-91
1-125-837-91
1-107-826-11
1-107-826-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
1UF
1UF
0.1UF
0.1UF
0.1UF
10% 6.3V
10% 6.3V
10.00% 16V
10.00% 16V
10.00% 16V
C872
C873
C874
C875
C876
1-125-837-91
1-126-205-11
1-164-004-11
1-164-004-11
1-164-004-11
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
1UF
47UF
0.1UF
0.1UF
0.1UF
10% 6.3V
20.00% 6.3V
10.00% 25V
10.00% 25V
10.00% 25V
C877
C879
C880
C881
C882
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
1-126-205-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
0.1UF
0.1UF
0.1UF
0.1UF
47UF
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 16V
20.00% 6.3V
C883
C885
C886
C887
C888
1-107-826-11
1-162-964-11
1-162-964-11
1-126-205-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
0.1UF
0.001UF
0.001UF
47UF
0.1UF
10.00% 16V
10.00% 50V
10.00% 50V
20.00% 6.3V
10.00% 16V
C889
C890
C891
1-107-826-11 CERAMIC CHIP 0.1UF
1-117-370-11 CERAMIC CHIP 10UF
1-115-156-11 CERAMIC CHIP 1UF
<THERMISTOR>
TH801
TH802
1-808-656-11 THERMISTOR
1-808-656-11 THERMISTOR
<TEST PIN>
TP801
TP802
TP803
TP804
TP805
1-535-757-11
1-535-757-11
1-535-757-11
1-535-757-11
1-535-757-11
CHIP,CHECKER
CHIP,CHECKER
CHIP,CHECKER
CHIP,CHECKER
CHIP,CHECKER
TP806
TP807
TP808
TP809
TP810
1-535-757-11
1-535-757-11
1-535-757-11
1-535-757-11
1-535-757-11
CHIP,CHECKER
CHIP,CHECKER
CHIP,CHECKER
CHIP,CHECKER
CHIP,CHECKER
TP811
TP812
TP813
TP814
TP816
1-535-757-11
1-535-757-11
1-535-757-11
1-535-757-11
1-535-757-11
CHIP,CHECKER
CHIP,CHECKER
CHIP,CHECKER
CHIP,CHECKER
CHIP,CHECKER
TP817
TP818
TP820
TP821
TP822
1-535-757-11
1-535-757-11
1-535-757-11
1-535-757-11
1-535-757-11
CHIP,CHECKER
CHIP,CHECKER
CHIP,CHECKER
CHIP,CHECKER
CHIP,CHECKER
TP823
TP824
1-535-757-11 CHIP,CHECKER
1-535-757-11 CHIP,CHECKER
************************************************************************************
* A-1335-134-A C COMPL
************
(For VPL-CX1)
<CAPACITOR>
C763
C788
VPL-CS2/CX1
1-162-970-11 CERAMIC CHIP 0.01UF
1-164-004-11 CERAMIC CHIP 0.1UF
10.00% 25V
10.00% 25V
10.00% 16V
10V
10V
6-15
C
Ref.No.
Part No.
C892
C893
1-164-156-11 CERAMIC CHIP 0.1UF
1-164-004-11 CERAMIC CHIP 0.1UF
25V
10.00% 25V
C894
C895
C896
C897
C900
1-162-964-11
1-128-400-11
1-162-915-11
1-107-826-11
1-164-004-11
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.001UF
47UF
10PF
0.1UF
0.1UF
10.00% 50V
20.00% 25V
0.50PF 50V
10.00% 16V
10.00% 25V
C901
C902
C903
C904
C905
1-164-004-11
1-128-400-11
1-164-004-11
1-117-681-11
1-164-005-11
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
0.1UF
47UF
0.1UF
100UF
0.47UF
10.00% 25V
20.00% 25V
10.00% 25V
20.00% 16V
25V
C906
C907
C908
C909
C951
1-164-004-11
1-164-004-11
1-164-004-11
1-164-005-11
1-113-985-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
TANTAL. CHIP
0.1UF
0.1UF
0.1UF
0.47UF
10UF
10.00% 25V
10.00% 25V
10.00% 25V
25V
20.00% 20V
C952
C953
C954
C955
C956
1-113-985-11
1-126-394-11
1-163-021-91
1-126-396-11
1-164-004-11
TANTAL. CHIP
ELECT CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
10UF
10UF
0.01UF
47UF
0.1UF
20.00% 20V
20.00% 16V
10.00% 50V
20.00% 16V
10.00% 25V
C957
C958
C959
C960
C961
1-125-827-91
1-125-827-91
1-162-970-11
1-162-970-11
1-104-915-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
TANTAL CHIP
1UF
1UF
0.01UF
0.01UF
2.2UF
10.00% 25V
10.00% 25V
10.00% 25V
10.00% 25V
20.00% 20V
C962
C963
C964
C965
C966
1-104-915-11
1-104-760-11
1-104-760-11
1-126-394-11
1-128-394-11
TANTAL CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
ELECT CHIP
2.2UF
0.047UF
0.047UF
10UF
220UF
20.00% 20V
10.00% 50V
10.00% 50V
20.00% 16V
20.00% 10V
CN801
CN802
CN803
CN804
CN805
* 1-691-551-11
* 1-580-055-21
* 1-580-056-21
* 1-569-775-21
* 1-764-007-11
PIN,CONNECTOR (SMD) 8P
PIN,CONNECTOR (SMD) 2P
PIN,CONNECTOR (SMD) 3P
PIN,CONNECTOR (SMD) 5P
PIN,CONNECTOR (SMD) 12P
C967
C968
C969
C970
C971
1-164-004-11
1-128-394-11
1-115-340-11
1-115-340-11
1-117-681-11
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
0.1UF
220UF
0.22UF
0.22UF
100UF
10.00% 25V
20.00% 10V
10.00% 25V
10.00% 25V
20.00% 16V
CN806
CN808
CN809
CN810
CN812
* 1-569-775-21
* 1-785-306-21
* 1-793-798-21
* 1-691-551-11
1-794-823-21
PIN,CONNECTOR (SMD) 5P
CONNECTOR,BOARD TO BOARD70P
CONNECTOR,BOARD TO BOARD 50P
PIN,CONNECTOR (SMD) 8P
CONNECTOR (ZIF),FPC/FFC 32P
C972
C975
C976
C977
C978
1-164-004-11
1-126-205-11
1-107-826-11
1-107-826-11
1-117-370-11
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
47UF
0.1UF
0.1UF
10UF
10.00% 25V
20.00% 6.3V
10.00% 16V
10.00% 16V
10V
CN815 * 1-580-055-21 PIN,CONNECTOR (SMD) 2P
CN817
1-794-823-21 CONNECTOR (ZIF),FPC/FFC 32P
CN819
1-794-823-21 CONNECTOR (ZIF),FPC/FFC 32P
CN820 * 1-580-055-21 PIN,CONNECTOR (SMD) 2P
C979
C980
C981
C982
C983
1-115-156-11
1-164-156-11
1-164-004-11
1-162-964-11
1-128-400-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
1UF
10V
0.1UF
25V
0.1UF
10.00% 25V
0.001UF 10.00% 50V
47UF
20.00% 25V
C984
C985
C988
C989
C990
1-162-915-11
1-107-826-11
1-164-004-11
1-164-004-11
1-128-400-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
10PF
0.1UF
0.1UF
0.1UF
47UF
0.50PF 50V
10.00% 16V
10.00% 25V
10.00% 25V
20.00% 25V
C991
C992
C993
C994
C995
1-164-004-11
1-117-681-11
1-164-004-11
1-164-005-11
1-164-004-11
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
100UF
0.1UF
0.47UF
0.1UF
10.00% 25V
20.00% 16V
10.00% 25V
25V
10.00% 25V
C996
C997
C1002
C1003
C1004
1-164-004-11
1-164-005-11
1-126-205-11
1-107-826-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
0.47UF
47UF
0.1UF
0.1UF
10.00% 25V
25V
20.00% 6.3V
10.00% 16V
10.00% 16V
C1005
C1006
C1007
C1008
1-117-370-11
1-115-156-11
1-164-156-11
1-164-004-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
10UF
1UF
0.1UF
0.1UF
10V
10V
25V
10.00% 25V
6-16
Description
Remark
Ref.No.
Part No.
Description
Remark
C1009
1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C1010
C1011
C1012
C1015
C1016
1-128-400-11
1-162-915-11
1-107-826-11
1-164-004-11
1-164-004-11
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
47UF
10PF
0.1UF
0.1UF
0.1UF
20.00% 25V
0.50PF 50V
10.00% 16V
10.00% 25V
10.00% 25V
C1017
C1018
C1019
C1020
C1021
1-128-400-11
1-164-004-11
1-117-681-11
1-164-004-11
1-164-005-11
ELECT CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
47UF
0.1UF
100UF
0.1UF
0.47UF
20.00% 25V
10.00% 25V
20.00% 16V
10.00% 25V
25V
C1022
C1023
C1024
C1028
C1029
1-164-004-11
1-164-004-11
1-164-005-11
1-109-982-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
0.1UF
0.47UF
1UF
0.1UF
10.00% 25V
10.00% 25V
25V
10.00% 10V
10.00% 16V
C1030
C1031
C1032
C1036
C1037
1-107-826-11
1-107-826-11
1-107-826-11
1-164-004-11
1-164-004-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1UF
0.1UF
0.1UF
0.1UF
0.1UF
10.00% 16V
10.00% 16V
10.00% 16V
10.00% 25V
10.00% 25V
C1038
C1039
C1041
1-164-004-11 CERAMIC CHIP 0.1UF
1-126-391-11 ELECT CHIP
47UF
1-125-889-91 CERAMIC CHIP 2.2UF
10.00% 25V
20.00% 6.3V
10% 10V
<CONNECTOR>
<DIODE>
D801
D802
D803
D804
D805
8-719-976-99
8-719-976-99
8-719-976-99
8-719-976-99
8-719-976-99
DIODE DTZ-TT11-5.1
DIODE DTZ-TT11-5.1
DIODE DTZ-TT11-5.1
DIODE DTZ-TT11-5.1
DIODE DTZ-TT11-5.1
D806
D807
D812
D813
D814
8-719-976-99
8-719-976-99
8-719-976-99
8-719-976-99
8-719-976-99
DIODE DTZ-TT11-5.1
DIODE DTZ-TT11-5.1
DIODE DTZ-TT11-5.1
DIODE DTZ-TT11-5.1
DIODE DTZ-TT11-5.1
D815
D816
8-719-988-61 DIODE 1SS355TE-17
8-719-988-61 DIODE 1SS355TE-17
<FERRITE BEAD>
FB714
FB801
FB802
FB803
FB804
1-414-921-11
1-414-234-22
1-414-234-22
1-414-234-22
1-414-234-22
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
0UH
0UH
0UH
0UH
0UH
FB805
FB807
1-414-234-22 INDUCTOR
1-414-234-22 INDUCTOR
0UH
0UH
VPL-CS2/CX1
C
Ref.No.
Part No.
Description
Remark
FB809
FB810
FB811
1-414-950-21 FERRITE
1-414-950-21 FERRITE
1-414-234-22 INDUCTOR
0UH
0UH
0UH
FB812
FB813
FB814
FB815
FB816
1-414-234-22
1-414-234-22
1-414-234-22
1-414-234-22
1-414-234-22
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
0UH
0UH
0UH
0UH
0UH
FB817
FB818
FB832
FB833
FB841
1-414-234-22
1-414-234-22
1-414-234-22
1-414-234-22
1-414-234-22
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
0UH
0UH
0UH
0UH
0UH
FB842
FB850
1-414-234-22 INDUCTOR
1-414-921-11 INDUCTOR
0UH
0UH
<FILTER>
FL801
1-239-899-21 FILTER,CHIP EMI
<IC>
IC714
IC801
IC802
IC803
IC804
8-759-252-41
8-759-388-31
8-759-460-81
8-759-584-86
8-759-523-81
IC TK11900MTL
IC PQ20VZ1U
IC BA12FP-E2
IC M52749FP-TP
IC TC74VHC08FT (EL)
IC806
IC807
IC808
IC811
IC812
8-759-645-13
8-759-571-03
8-759-592-44
8-759-491-46
8-759-698-73
IC ADV7123KST140
IC LM4041DIM3-1.2 (T&R)
IC TC7SZ04FU(TE85R)
IC TC74VHCT04AFT (EL)
IC ISPLSI1016E-100LT44-SX1708
IC813
IC814
IC817
IC818
IC819
8-759-491-46
8-759-482-35
8-759-064-36
8-759-544-55
8-752-080-99
IC TC74VHCT04AFT (EL)
IC MC100ELT20DR2
IC MB88346BPFV-EF
IC MAX4066CEE-TE2
IC CXA2112R-T6
IC820
IC823
IC824
IC825
IC826
8-752-080-99
8-759-702-02
8-759-702-02
8-752-091-06
8-752-080-99
IC CXA2112R-T6
IC NJM2073M (TE2)
IC NJM2073M (TE2)
IC CXA1846BN-T4
IC CXA2112R-T6
IC827
IC829
IC830
IC831
IC833
8-752-080-99
8-752-080-99
8-752-080-99
8-759-491-46
8-752-400-93
IC CXA2112R-T6
IC CXA2112R-T6
IC CXA2112R-T6
IC TC74VHCT04AFT (EL)
IC CXD3503R-T6
IC834
IC835
8-759-574-34 IC LMV358MMX
8-759-183-53 IC TL431CPK-E2
Ref.No.
Part No.
Description
Remark
L821
1-414-170-41 INDUCTOR
100UH
L823
1-410-369-11 INDUCTOR
1UH
<TRANSISTOR>
Q801
Q802
Q803
Q804
Q805
1-801-806-11
8-729-112-65
8-729-112-65
8-729-112-65
8-729-112-65
TRANSISTOR DTC144EKA-T146
TRANSISTOR 2SA1462-T1Y33Y34
TRANSISTOR 2SA1462-T1Y33Y34
TRANSISTOR 2SA1462-T1Y33Y34
TRANSISTOR 2SA1462-T1Y33Y34
Q806
Q807
Q808
Q809
Q810
8-729-216-22
8-729-216-22
8-729-013-28
8-729-013-28
8-729-013-28
TRANSISTOR 2SA1162-YG-TE85L
TRANSISTOR 2SA1162-YG-TE85L
TRANSISTOR HN1B01FU-TE85R
TRANSISTOR HN1B01FU-TE85R
TRANSISTOR HN1B01FU-TE85R
Q811
Q812
Q813
Q814
Q815
8-729-013-28
8-729-013-28
8-729-013-28
1-801-806-11
1-801-806-11
TRANSISTOR HN1B01FU-TE85R
TRANSISTOR HN1B01FU-TE85R
TRANSISTOR HN1B01FU-TE85R
TRANSISTOR DTC144EKA-T146
TRANSISTOR DTC144EKA-T146
Q816
Q817
Q818
8-729-216-22 TRANSISTOR 2SA1162-YG-TE85L
8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L
1-801-806-11 TRANSISTOR DTC144EKA-T146
<RESISTOR>
R798
R799
R801
R802
R803
1-218-720-11
1-218-744-11
1-216-833-11
1-218-723-11
1-218-714-11
METAL CHIP
METAL CHIP
RES-CHIP
METAL CHIP
METAL CHIP
15K
150K
10K
20K
8.2K
0.5%
0.5%
5%
0.5%
0.5%
1/16W
1/16W
1/16W
1/16W
1/16W
R804
R806
R807
R809
R810
1-216-809-11
1-216-829-11
1-218-685-11
1-216-057-00
1-216-057-00
RES-CHIP
RES-CHIP
METAL CHIP
RES-CHIP
RES-CHIP
100
4.7K
510
2.2K
2.2K
5%
5%
0.5%
5%
5%
1/16W
1/16W
1/16W
1/10W
1/10W
R811
R812
R813
R814
R816
1-216-864-11
1-216-829-11
1-216-817-11
1-216-817-11
1-216-829-11
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
0
4.7K
470
470
4.7K
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
R817
R818
R819
R821
R822
1-216-057-00
1-216-057-00
1-216-864-11
1-216-817-11
1-216-817-11
RES-CHIP
RES-CHIP
SHORT
RES-CHIP
RES-CHIP
2.2K
2.2K
0
470
470
5%
5%
1/10W
1/10W
5%
5%
1/16W
1/16W
R823
R824
R825
R826
R827
1-218-692-11
1-216-057-00
1-216-057-00
1-218-692-11
1-216-864-11
METAL CHIP
RES-CHIP
RES-CHIP
METAL CHIP
SHORT
1K
2.2K
2.2K
1K
0
0.5%
5%
5%
0.5%
1/16W
1/10W
1/10W
1/16W
R828
R829
R832
R833
R834
1-216-809-11
1-216-833-11
1-216-817-11
1-216-817-11
1-216-853-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
10K
470
470
470K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R835
R836
R837
R838
R843
1-218-702-11
1-216-809-11
1-216-841-11
1-216-829-11
1-216-829-11
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
2.7K
100
47K
4.7K
4.7K
0.5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R844
R846
R847
R848
R849
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
100
100
100
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
<COIL>
L803
L804
L805
L806
L807
1-410-381-11
1-410-393-11
1-469-524-91
1-410-369-11
1-410-369-11
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
10UH
100UH
4.7UH
1UH
1UH
L812
L813
L814
L815
L816
1-410-377-31
1-414-752-11
1-410-369-11
1-410-369-11
1-410-369-11
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
4.7UH
2.2UH
1UH
1UH
1UH
L817
L818
L819
L820
1-410-369-11
1-410-369-11
1-414-170-41
1-414-170-41
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
1UH
1UH
100UH
100UH
VPL-CS2/CX1
6-17
C
Ref.No.
Part No.
Description
R850
R852
R853
R854
R855
1-216-809-11
1-216-864-11
1-218-686-11
1-216-827-11
1-218-692-11
RES-CHIP
SHORT
METAL CHIP
RES-CHIP
METAL CHIP
100
0
560
3.3K
1K
5%
1/16W
0.5%
5%
0.5%
1/16W
1/16W
1/16W
R856
R857
R858
R860
R862
1-218-692-11
1-218-658-11
1-218-660-91
1-216-815-11
1-218-658-11
METAL CHIP
METAL CHIP
METAL CHIP
RES-CHIP
METAL CHIP
1K
39
47
330
39
0.5%
0.5%
0.5%
5%
0.5%
1/16W
1/16W
1/16W
1/16W
1/16W
R863
R864
R865
R867
R869
1-216-815-11
1-218-660-91
1-216-815-11
1-216-815-11
1-218-658-11
RES-CHIP
METAL CHIP
RES-CHIP
RES-CHIP
METAL CHIP
330
47
330
330
39
5%
0.5%
5%
5%
0.5%
1/16W
1/16W
1/16W
1/16W
1/16W
R871
R875
R876
R877
R878
1-218-660-91
1-216-809-11
1-216-809-11
1-216-809-11
1-216-864-11
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
SHORT
47
100
100
100
0
0.5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
R879
R880
R885
R886
R887
1-216-809-11
1-216-809-11
1-216-864-11
1-218-692-11
1-216-809-11
RES-CHIP
RES-CHIP
SHORT
METAL CHIP
RES-CHIP
100
100
0
1K
100
5%
5%
1/16W
1/16W
0.5%
5%
1/16W
1/16W
R889
R891
R892
R893
R894
1-216-805-11
1-216-805-11
1-216-805-11
1-216-805-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
47
47
47
47
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R895
R896
R897
R898
R899
1-216-809-11
1-216-809-11
1-216-864-11
1-216-864-11
1-216-801-11
RES-CHIP
RES-CHIP
SHORT
SHORT
RES-CHIP
100
100
0
0
22
5%
5%
1/16W
1/16W
5%
1/16W
R900
R901
R902
R903
R904
1-216-805-11
1-216-805-11
1-216-805-11
1-216-805-11
1-216-805-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
47
47
47
47
47
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R905
R906
R907
R908
R911
1-216-805-11
1-216-815-11
1-216-815-11
1-216-809-11
1-216-864-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
SHORT
47
330
330
100
0
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
R912
R913
R914
R915
R916
1-216-817-11
1-216-809-11
1-216-809-11
1-216-864-11
1-216-817-11
RES-CHIP
RES-CHIP
RES-CHIP
SHORT
RES-CHIP
470
100
100
0
470
5%
5%
5%
1/16W
1/16W
1/16W
5%
1/16W
R919
R920
R921
R924
R925
1-216-825-11
1-216-825-11
1-216-825-11
1-216-809-11
1-216-864-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
SHORT
2.2K
2.2K
2.2K
100
0
5%
5%
5%
5%
R926
R927
R928
R929
R930
1-216-864-11
1-216-809-11
1-216-809-11
1-216-829-11
1-216-864-11
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
SHORT
0
100
100
4.7K
0
R931
R932
R933
R934
R935
1-216-825-11
1-216-864-11
1-216-825-11
1-216-864-11
1-216-825-11
RES-CHIP
SHORT
RES-CHIP
SHORT
RES-CHIP
R936
1-216-809-11 RES-CHIP
6-18
Remark
Ref.No.
Part No.
Description
Remark
R937
R938
R939
R940
1-216-809-11
1-216-809-11
1-216-789-11
1-216-789-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
100
2.2
2.2
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
R941
R942
R943
R944
R945
1-216-789-11
1-216-789-11
1-216-789-11
1-216-789-11
1-216-864-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
SHORT
2.2
2.2
2.2
2.2
0
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
R946
R947
R948
R949
R950
1-216-864-11
1-216-864-11
1-216-829-11
1-216-864-11
1-216-830-11
SHORT
SHORT
RES-CHIP
SHORT
RES-CHIP
0
0
4.7K
0
5.6K
5%
1/16W
5%
1/16W
R951
R952
R953
R954
R956
1-216-809-11
1-216-809-11
1-216-833-11
1-216-809-11
1-216-864-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
SHORT
100
100
10K
100
0
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
R957
R958
R959
R960
R961
1-216-809-11
1-216-809-11
1-216-809-11
1-216-805-11
1-216-805-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
100
100
47
47
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R964
R965
R966
R967
R969
1-218-703-11
1-218-690-11
1-216-845-11
1-216-805-11
1-216-864-11
METAL CHIP
METAL CHIP
RES-CHIP
RES-CHIP
SHORT
3K
820
100K
47
0
0.5%
0.5%
5%
5%
1/16W
1/16W
1/16W
1/16W
R970
R972
R973
R974
R976
1-216-864-11
1-216-864-11
1-216-833-11
1-216-864-11
1-216-845-11
SHORT
SHORT
RES-CHIP
SHORT
RES-CHIP
0
0
10K
0
100K
5%
1/16W
5%
1/16W
R977
R978
R979
R982
R983
1-218-726-11
1-218-726-11
1-216-864-11
1-216-864-11
1-216-864-11
METAL CHIP
METAL CHIP
SHORT
SHORT
SHORT
27K
27K
0
0
0
0.5%
0.5%
1/16W
1/16W
R984
R985
R986
R987
R988
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
SHORT
SHORT
SHORT
SHORT
SHORT
0
0
0
0
0
R989
R990
R991
R992
R993
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
SHORT
SHORT
SHORT
SHORT
SHORT
0
0
0
0
0
1/16W
1/16W
1/16W
1/16W
R994
R995
R996
R997
R998
1-216-864-11
1-216-833-11
1-216-833-11
1-216-833-11
1-216-833-11
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
0
10K
10K
10K
10K
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
5%
5%
5%
1/16W
1/16W
1/16W
R999
R1000
R1002
R1003
R1005
1-216-864-11
1-216-805-11
1-216-805-11
1-216-801-11
1-216-864-11
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
SHORT
0
47
47
22
0
5%
5%
5%
1/16W
1/16W
1/16W
2.2K
0
2.2K
0
2.2K
5%
1/16W
SHORT
RES-CHIP
SHORT
SHORT
SHORT
0
100
0
0
0
1/16W
1/16W
1-216-864-11
1-216-809-11
1-216-864-11
1-216-864-11
1-216-864-11
5%
5%
R1007
R1008
R1023
R1024
R1027
5%
1/16W
100
5%
1/16W
R1028
R1029
1-216-864-11 SHORT
1-216-809-11 RES-CHIP
0
100
5%
1/16W
VPL-CS2/CX1
C
Ref.No.
Part No.
R1030
R1031
R1032
1-216-809-11 RES-CHIP
1-216-809-11 RES-CHIP
1-216-832-11 RES-CHIP
100
100
8.2K
5%
5%
5%
1/16W
1/16W
1/16W
R1033
R1034
R1035
R1036
R1037
1-216-832-11
1-216-825-11
1-216-825-11
1-216-841-11
1-216-033-00
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
8.2K
2.2K
2.2K
47K
220
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/10W
R1038
R1039
R1040
R1041
R1042
1-216-841-11
1-216-033-00
1-216-830-11
1-216-845-11
1-216-830-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
47K
220
5.6K
100K
5.6K
5%
5%
5%
5%
5%
1/16W
1/10W
1/16W
1/16W
1/16W
R1043
R1044
R1045
R1046
R1047
1-216-823-11
1-216-827-11
1-217-671-11
1-217-671-11
1-216-833-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1.5K
3.3K
1
1
10K
5%
5%
5%
5%
5%
1/16W
1/16W
1/10W
1/10W
1/16W
R1052
R1054
R1055
R1056
R1057
1-216-829-11
1-218-703-11
1-218-690-11
1-216-845-11
1-216-805-11
RES-CHIP
METAL CHIP
METAL CHIP
RES-CHIP
RES-CHIP
4.7K
3K
820
100K
47
5%
0.5%
0.5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R1059
R1060
R1062
R1063
R1064
R1066
R1067
R1068
R1069
R1072
1-216-864-11
1-216-864-11
1-216-864-11
1-216-833-11
1-216-864-11
1-216-845-11
1-218-726-11
1-218-726-11
1-216-864-11
1-216-864-11
SHORT
SHORT
SHORT
RES-CHIP
SHORT
RES-CHIP
METAL CHIP
METAL CHIP
SHORT
SHORT
0
0
0
10K
0
100K
27K
27K
0
0
R1073
R1074
R1075
R1076
R1077
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
SHORT
SHORT
SHORT
SHORT
SHORT
0
0
0
0
0
R1078
R1079
R1080
R1081
R1082
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
SHORT
SHORT
SHORT
SHORT
SHORT
0
0
0
0
0
R1083
R1084
R1085
R1086
R1087
1-216-864-11
1-216-864-11
1-216-833-11
1-216-833-11
1-216-833-11
SHORT
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
0
0
10K
10K
10K
5%
5%
5%
1/16W
1/16W
1/16W
R1088
R1095
R1096
R1097
R1098
1-216-833-11
1-218-703-11
1-218-690-11
1-216-845-11
1-216-805-11
RES-CHIP
METAL CHIP
METAL CHIP
RES-CHIP
RES-CHIP
10K
3K
820
100K
47
5%
0.5%
0.5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R1100
R1101
R1103
R1104
R1105
1-216-864-11
1-216-864-11
1-216-864-11
1-216-833-11
1-216-864-11
SHORT
SHORT
SHORT
RES-CHIP
SHORT
0
0
0
10K
0
R1107
R1108
R1109
R1110
R1113
1-216-845-11
1-218-726-11
1-218-726-11
1-216-864-11
1-216-864-11
RES-CHIP
METAL CHIP
METAL CHIP
SHORT
SHORT
100K
27K
27K
0
0
R1114
R1115
R1116
R1117
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
SHORT
SHORT
SHORT
SHORT
0
0
0
0
VPL-CS2/CX1
Description
Remark
5%
1/16W
5%
0.5%
0.5%
1/16W
1/16W
1/16W
Ref.No.
Part No.
Description
Remark
R1118
1-216-864-11 SHORT
0
R1119
R1120
R1121
R1122
R1123
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
SHORT
SHORT
SHORT
SHORT
SHORT
0
0
0
0
0
R1124
R1125
R1126
R1127
R1128
1-216-864-11
1-216-864-11
1-216-833-11
1-216-833-11
1-216-833-11
SHORT
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
0
0
10K
10K
10K
5%
5%
5%
1/16W
1/16W
1/16W
R1129
R1130
R1131
R1132
R1133
1-216-833-11
1-216-833-11
1-216-817-11
1-216-817-11
1-216-817-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
10K
470
470
470
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R1134
R1135
R1136
R1138
R1139
1-218-688-11
1-218-698-11
1-218-702-11
1-216-864-11
1-216-864-11
METAL CHIP
METAL CHIP
METAL CHIP
SHORT
SHORT
680
1.8K
2.7K
0
0
0.5%
0.5%
0.5%
1/16W
1/16W
1/16W
R1140
R1141
R1142
R1143
R1144
1-216-864-11
1-216-829-11
1-216-821-11
1-218-710-11
1-216-813-11
SHORT
RES-CHIP
RES-CHIP
METAL CHIP
RES-CHIP
0
4.7K
1K
5.6K
220
5%
5%
0.5%
5%
1/16W
1/16W
1/16W
1/16W
R1145
R1146
1-218-658-11 METAL CHIP
1-216-864-11 SHORT
0.5%
1/16W
39
0
<THERMISTOR>
TH801
TH802
1-808-656-11 THERMISTOR
1-808-656-11 THERMISTOR
<TEST PIN>
5%
1/16W
5%
0.5%
0.5%
1/16W
1/16W
1/16W
TP801
TP802
TP803
TP804
TP805
1-535-757-11
1-535-757-11
1-535-757-11
1-535-757-11
1-535-757-11
CHIP,CHECKER
CHIP,CHECKER
CHIP,CHECKER
CHIP,CHECKER
CHIP,CHECKER
TP806
TP807
TP808
TP809
TP810
1-535-757-11
1-535-757-11
1-535-757-11
1-535-757-11
1-535-757-11
CHIP,CHECKER
CHIP,CHECKER
CHIP,CHECKER
CHIP,CHECKER
CHIP,CHECKER
TP811
TP812
TP813
TP814
TP816
1-535-757-11
1-535-757-11
1-535-757-11
1-535-757-11
1-535-757-11
CHIP,CHECKER
CHIP,CHECKER
CHIP,CHECKER
CHIP,CHECKER
CHIP,CHECKER
TP817
TP818
TP820
TP821
TP822
1-535-757-11
1-535-757-11
1-535-757-11
1-535-757-11
1-535-757-11
CHIP,CHECKER
CHIP,CHECKER
CHIP,CHECKER
CHIP,CHECKER
CHIP,CHECKER
TP823
TP824
1-535-757-11 CHIP,CHECKER
1-535-757-11 CHIP,CHECKER
6-19
H
Ref.No.
Part No.
Description
Remark
************************************************************************************
A-1375-195-A H COMPL
************
Part No.
Description
Remark
************************************************************************************
ACCESSORIES
***************
<CAPACITOR>
C001
Ref.No.
1-164-004-11 CERAMIC CHIP 0.1UF
10.00% 25V
CN001 * 1-764-007-11 PIN,CONNECTOR (SMD) 12P
<DIODE>
8-719-045-61
8-719-045-61
8-719-045-53
8-719-914-43
8-719-914-43
DIODE SEC1901C
DIODE SEC1901C
DIODE SEC1801C
DIODE DAN202K-T-146
DIODE DAN202K-T-146
D006
D007
D008
D009
D010
8-719-914-43
8-719-914-43
8-719-045-51
8-719-914-44
8-719-914-44
DIODE DAN202K-T-146
DIODE DAN202K-T-146
DIODE SEC2422C
DIODE DAP202K-T-146
DIODE DAP202K-T-146
D011
D012
8-719-914-44 DIODE DAP202K-T-146
8-719-914-44 DIODE DAP202K-T-146
REMOTE COMMANDER (RM-PJM10)
COVER,BATTERY(RM-PJM10)
CORD,POWER(13A/125V) (For JAPAN)
CORD,POWER(10A/125V) (For UC)
CORD,CONNECTION
! 1-777-649-11 CORD,POWER(10A/250V)
(For Continental Europe)
! 1-782-929-11 CORD,POWER SUPPLY(BS-3P)
(10A/250V)
(For UK,Ireland,Australia,Newzealand)
1-790-081-11 CABLE,USB
1-791-992-11 CABLE ASSY(15PDSUBCONNECTORX2)
1-792-424-11 CORD,CONNECTION
<CONNECTOR>
D001
D002
D003
D004
D005
1-476-215-11
9-885-005-85
! 1-777-359-11
! 1-534-827-14
1-757-350-11
* 4-074-717-01 FILTER
4-079-834-01 OPERATING,INSTRUCTIONS
(JAPANESE / CHINESE)
4-079-834-11 OPERATING,INSTRUCTIONS
(ENGLISH / FRENCH / SPANISH)
4-079-834-21 OPERATING,INSTRUCTIONS
(ITALIAN / GERMAN)
4-079-835-01 QUICK,REFERENCE CARD
(JAPANESE / ENGLISH / FRENCH /
SPANISH /ITALIAN / GERMAN / CHINESE)
<TRANSISTOR>
Q001
8-729-027-38 TRANSISTOR DTA144EKA-T146
<RESISTOR>
R001
R002
R003
R004
R005
1-216-073-00
1-216-073-00
1-216-049-11
1-216-083-00
1-216-075-00
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
10K
1K
27K
12K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R006
R007
R008
R009
R010
1-216-069-00
1-216-063-91
1-216-059-00
1-216-057-00
1-216-053-00
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
6.8K
3.9K
2.7K
2.2K
1.5K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R011
R012
R013
R014
R015
1-216-055-00
1-216-037-00
1-216-059-00
1-216-057-00
1-216-053-00
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1.8K
330
2.7K
2.2K
1.5K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R016
1-216-055-00 RES-CHIP
1.8K
5%
1/10W
<SWITCH>
S001
S002
S003
S004
S005
1-771-105-11
1-771-105-11
1-771-105-11
1-771-105-11
1-771-105-11
SWITCH,TACTILE
SWITCH,TACTILE
SWITCH,TACTILE
SWITCH,TACTILE
SWITCH,TACTILE
S006
S007
S008
S009
S010
1-771-105-11
1-771-105-11
1-771-105-11
1-771-105-11
1-771-105-11
SWITCH,TACTILE
SWITCH,TACTILE
SWITCH,TACTILE
SWITCH,TACTILE
SWITCH,TACTILE
S011
S012
1-771-105-11 SWITCH,TACTILE
1-771-105-11 SWITCH,TACTILE
6-20
VPL-CS2/CX1
Overall
Overall
Section 7
Block Diagrams
B
MAIN CPU,A/D CONVERTER,SCAN CONVERTER,SDRAM,
LVDS RECEIVER,RGB INPUT,SYNC SEP
LCD DRIVER,RGB AMP,AUDIO AMP,
12CH DAC,TIMING GENERATER
C
VPL-CS2
IC819
IC826
IC829
IC404
INPUT-A
R-Y,Y,B-Y
V-R,V-G,V-B
VIDEO
SW
IC409
R,G,B
A/D
CONV.
R,G,B
D/A
CONV.
IC427
MAIN CPU
IC803
R DA,G DA,B DA
D/A
CONV.
IC414
IC415
IC416
IC406
G SYNC
SEPA.
R,G,B
SCAN
CONV.
IC407
Y
IC806
IC417
R AD,G AD B,AD
TIMING
GEN.
PLD
RGB
AMP
R,G,B
LCD
PANEL
LCD
DRIVER
IC811
IC813
IC812
SDRAM
VPL-CX1
IC819 IC820
IC826 IC827
IC829 IC830
INV.
VPL-CS2
IC402
IC424
M.OUT
INV
SW
OSD
IC817
HSI,VSI
SDAT
12CH D/A
CONV.
FLASH
LAMP ON
LAMP
RXD
TXD
VISCA
H(KEY
INPUT,LED)
LED
KEY
IC825
IC823,824
VOLUME
AUDIO
AMP
A-L,A-R
KEY
MATRIX
L
CONTROL
SP
R
POWER CONT
FAN CONT
LAMPC,FANC,SIRES
U-DA,U-CL
R-Y,Y,B-Y
V-R,V-G,V-B
VIDEO INPUT,MOUSE CONNECTOR,
A/B USB CONNECTOR
QA
GA,GB
THERMOSTAT
DC-DC CONVERTER
FAN DRIVE
BA
CN106
SW REG.
&
DC-DC CONV.
4
IC301
3
C,Y,S
C,Y,S
1
POWER CONT
FAN CONT
COLOR DECODER,
RGB DECODER,D COMB
C,Y
COLOR
DECODER
2
IC201
J101
VIDEO
VIDEO
VIDEO
S
IC221
C,Y
AD
DIGITAL
COMB
FILTER
D/A
CONV.
FAN+B
IC605
AC IN
FAN1
IC271
POWER-FACTOR
REGULATING
CONTROL
R-Y,Y,B-Y
V-R,V-G,V-B
R-Y,Y,B-Y
V-R,V-G,V-B
A-L,A-R
FAN2
NF
SUB+5V
AUDIO+B
+16.5V
RGB
DECODER
A-R
A-L
FRONT SIRCS
RECEIVE
AUDIO IN
IC071
IC123
IR
RECEIVER
SIRCS-NF
IC121
SIRES
REMOTE
SW
SIRCS
RECEIVER
USB5V
IC127
USB HUB CTRL
IC122
CN122
DAT/R1
MOUSE
CONT.
DS2+,DS2-
J122
US+,US-
IC128
USB POWER
SUPP
J121
DS1+,DS1-
LAMPC
IC125
USB PJ
CTRL
IC124
DS3+,DS3FANC
RESET
Overall Block
VPL-CS2/CX1
7-1
7-1
NF, QA
QA(VIDEO
INPUT,MOUSE CONNECTOR,USB CONNECTOR,USB CONTROL)
S-VIDEO
CN104
C
Q102
C
BUFFER
S-C
Y
Q103
Y
BUFFER
S-Y
CN106
4
1
NF, QA
3
2
S
C
Y
S-IN
S SEL
VIDEO
Q104
CV
BUFFER
J101
VIDEO
F-DA
C-V
F-CL
CN101
IC101
3.3V REG
1
2
A
SUB +5V
I
IC102
3.3V REG
I
O
1
5
6
2
+16.5V
I
A +3.3V
F+5V
O
SDA
G
IC103
9V REG
CN102
TO GB BOARD
CN707
5V-3
G
TO GA BOARD
CN605
B
SUB +3.3V
SCL
A +9V
IC104
5V REG
O
G
+6V
AUDIO +B
I
IC106
5V REG
A +5V
O
I
G
V-VD
IC105
3.3V REG
D +5V
O
2 VIN
D +3.3V
V-HD
VSW 3
G
V-CLP
15K-CS
IC107
SUB+5V
PAL-V
5
6
7
2
3
1
B-Y
R-Y
Y
IC108
NF(FRONT
SIRCS RECEIVE)
CN071
IC071
IR-RX
VCC
OUT
SUB +5V
SIRCS-NF
1
2
3
2
1
5
6
7
V-G
V-B
IC123
REMOTE SW
SUB +5V
SIRCS-NF
CN103
SDA
2 IRIN1
3 IRIN2
5V
IC121
SIRCS RECEIVE
VCC OUT
SIRCS
SCL
IROUT 5
NF ON
NR ON
7 IREN1
6 IREN2
F+5V
F-DA
USB5V
CLK
MOUSE
F-CL
IC122
MOUSE CONTROLLER
CN122
10 PB7
IC127
USB HUB CONTROL
28 PA1
24 PA2
DAT/R1
DS2DS2+
USB- 32
USB+ 31
13
12
41
40
33
32
2 X2
USUS+
X101
24MHz
3 X1
TP102
US-
1
4
2
3
CTL2
CTL1
FLG2
FLG1
USB5V
S202
OUT2 8
OUT1 5
IC125
USB PJ CONTROL
7 PC0
3.3V-1
J122
8
7
IC128
USB POWER SUPP
USB REQ
DS1DS1+
US-
B TYPE
USB
I
TO BA BOARD
CN201
5V
CN123
1
2
V-R
A19
B19
A21
B21
A15
B15
A23
B23
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A16
B16
A17
B17
A25
B25
A27
B27
A29
B29
A31
B31
A33
B33
A35
B35
DS3DS3+
TP101
US+
10
9
U-DA
U-CL
28 PA1
24 PA2
Q105
15
14
42
SW
S101
PWR PROT
SIRES
NR ON
NF ON
U-DA
U-CL
LAMPC
FAN-C
A-L
A-GND
DS3USBDM 32
DS3+
USBDP 31
A-R
A22
B22
A23
B23
A24
B24
A25
B25
A26
B26
A31
B31
B28
B29
A28
A29
A27
B27
A33
B33
A34
B34
A35
B35
G
TO B BOARD
CN401
8 RESET
US+
26
X102
4MHz
25
1
30
DVDD
38
39
Q106,107
SW
2 OSCOUT
3.3V-1
X103
24MHz
3 OSCIN
CN105
USB REG
R-Y
Y
B-Y
J121
A TYPE
USB
V-R
1
2
3
4
DS1DS1+
V-G
IC124
RESET
5V
2 VDD
V-B
OUT 1
PAL-V
15K-CS
V-HD
J102
AUDIO IN
A-L
A-R
A-GND
V-VD
V-CLP
7-2
7-2
A25
A2
B2
A4
B4
A6
B6
A8
B8
A10
B10
A12
B12
A14
B14
A16
B16
A18
B18
A19
B19
A20
B20
H
TO B BOARD
CN402
NF Block
QA Block
VPL-CS2/CX1
BA
BA (COLOR
BA
DECODER,RGB DECODER,D COMB)
IC271
RGB DECODER
CN201
A25
B25
A27
B27
A29
B29
B-Y
Q271
B-Y
BUFFER
37 BY2-IN
R-Y
Q272
R-Y
BUFFER
38 RY2-IN
Y
Q273
Y
BUFFER
VY
VR-Y
VB-Y
39 Y2-IN
TP271
V-R
A31
B31
A33
B33
A35
B35
Y1-IN 35
RY1-IN 34
BY1-IN 33
TP272
V-G
TP273
V-B
V-R
44 R-OUT
V-G
45 G-OUT
V-B
46 B-OUT
SCL
SDA
YUV-SW 30
14 SCL
13 SDA
IC301
COLOR DECODER
A19
B19
A21
B21
A23
B23
A16
B16
A17
B17
C
S-C
43 C2
Y
S-Y
VIDEO
VIDEO
15K-CS
15K-CS
44 CVBS/Y2
CR OUT 23
CB OUT 22
Y OUT 21
VR-Y
VB-Y
VY
1 CVBS/Y1
CVBS OUT(2VPPP) 3
BUFFER
1
PAL-V
PALV
Q229
Y
BUFFER
41 CVBS/Y3
I
SCL
SDA
TO QA BOARD
CN104
BUFFER
2 ADIN
FL223
FILTER
1
Q228
Y
BUFFER
9 AYO
13 SCL
14 SDA
V-VD
INV
Q227
C
BUFFER
4 VS
COMB C/FORCED S 7
Q303
FL222
FILTER
6
1
Q226
C
BUFFER
7 ACO
V-HD
9 HS
INV
IC302
A14
B14
6
6
Q302
A13
B13
Q222
19 Y1
COMB Y 5
A12
B12
IC221
DIGITAL COMB FILTER
FL221
FILTER
Q221
V-CLP
4
SFC OUT 46
1
3
37 FIN
10 SCP
+5V
38 XTAL
X301
16.2MHz
IC201
D/A CONVERTER
INPUTA/VIDEO
A15
B15
A11
B11
A10
B10
A7
B7
A8
B8
INPUTA/VIDEO
10 SW3
9 SW2
1 SW1
S-IN
NTPL1
SCL
SCL
SDA
SDA
15 SCL
14 SDA
DAC 4 3
DAC 0 7
DAC 1 6
DAC 2 5
VEH 3
VEH 2
VEH 1
20 VEH 3
21 VEH 2
22 VEH 1
F-DA
26 NTPL1
F-CL
IC202
NVM
A9
B9
F+5V
8 VCC
SCL 6
SDA 5
BA Block
VPL-CS2/CX1
7-3
7-3
B
B
B(MAIN CPU,A/D CONVERTER,SCAN CONVERTER,SDRAM,RGB INPUT,SYNC SEP)
TP404
R
TP403
G
TP402
B
IC404
VIDEO SW
V-R
V-G
V-B
CN404
INPUT-A
11 IN2(R)
13 IN2(G)
16 IN2(B)
OUT(R) 35
OUT(G) 30
OUT(B) 27
2 IN1(R)
5 IN1(G)
7 IN1(B)
SW 19
R
G
B
7 R IN
15 G IN
22 B IN
DRA0
112
DRA7
DRB0
105
R OLD0-7
102
R NEW0-7
R-Y
Y
B-Y
PAL V
1
2
3
13
14
15
12
IC409
A/D CONVERTER
R
G
B
DRB7 95
DGA0 92
IC407
G SYNC SEPA
4 GREEN IN
G OLD0-7
IC406
D/A CONVERTER
V.POL 19
H.POL 18
1 SW1
2 SW0
6 C/H
8 V IN
SDA
SCL
DGA7 85
DGB0 82
G NEW0-7
IC403
DAC2 5
DAC3 4
1
2
14 SDA
15 SCL
9
TP401
VSI
B OLD0-7
8
11
2G 19
10
3
17
VD 13
4
5
DBA7 65
DBB0 62
6
B NEW0-7
3
IC401(1/6)
2
1
DBA0 72
12
1 1G
V-VD
DGB7 75
COAST
41 COAST
IC402
INV SW
IC401(4/6,5/6,6/6)
13
4
DBB7 55
IC401(2/6,3/6)
18
15K-CS
2
HD 15
11
9
CLAMP 17
4
16
15
5
13
7
6
14
12
8
VSI
V-HD
HSOUT
117
CLAMP
IC429
DDC
6 SCL
5 SDA
28 CLAMP
TP406
PICLK
4 1Q
1 1A
V-CLP
VCLK 7
DATACK/
DATACK
TP405
HSI
IC405
MONO MULTI
2A 9
2Q 12
HSI
HSI
SDA
SCL
VSI
116
115
40 HSYNC
29 SDA
30 SCL
VSI
IC424
OSD
1 X2
IC421
INV BUFF
CLK 10
3
4
1
6
HSI
10 HSYNC
OCLK
POCLK
IC413
SPECTRUM SPREAD
IC427
MAIN CPU
IC418(7/8,8/8)
POHS
POVS
9
11
8
11 VSYNC
SRX
POVS
SCTR
X404
OSD CS
SDAT(OSD)
SCLK(OSD)
OSD ON
RESN
TRE
VPL-CS2 : 13.08384MHZ
VPL-CX1 : 17.26272MHZ
PB4
TCLKC
PB6
TIOCB2
116 RXD3
30 IRQ0
84 PF6
VSI
12
5 DCLK1
2 X1
17
31
19
33
5
7
4
16
6
14
2
18
15
13
1
2
3
12
13
15
CS
SIN
SCLK
DISP
RESET
BISY
DA3
DA2
DA1
DA0
VOBA
OSDDT3
OSDDT2
OSDDT1
OSDDT0
25
26
27
28
24
2
4
OSDEN
1
IC418
(1/8-5/8)
IC426
10
FLASH
2
6
3
7
8
4
SDAT(OSD)
SCLK(OSD)
OSD CS
RESN
OSD ON
TRE
CN406
TXD
FWR
RXD
MD1
MD2
RES
22
24
43
111
112
113
PE1
PE2
PE3
PE4
AN0/P40
AN1/P41
AN2/P42
AN3/P43
35
36
37
38
93
94
95
96
SDA-IN
SDA-OUT
SCL
SCL1
SDA1
PB2
ZOOM
PB1
PC2
TXD2(FWR)
PC1
SCLK
PC0
PD0
PB0
P71
AN8/P90
P72
AN9/P91
P74
P73
8
6
4
57
55
15
14
3
2
1
12
74 FWE
23 RXD2(FWR)
119 MD1
120 MD2
71 RES
67 WDTOVF
PE5
PE6
PD4
PD5
PD6
PD7
RXD4
TXD4
AN4/P44
AN5/P45
DA0/AN6/P46
DA1/AN7/P47
SCK3
TXD3
D409
3.3V-1
Q403,404
IC420
RESET
CPU RES
2 VDD
5V-1
RES
SW
102
SDA
SCL
U-CL
U-DA
NR OFF
NF OFF
F-DA
F-CL
SIRCS
FILTER COVER
LAMP COVER
PWR PROT
114
39
40
48
49
50
51
60
61
97
98
99
100
115
LAMP ON
POWER ON
DAC CS
AUDIO CS
AUDIO MUTE
EXT SW
RXD
TXD
LAMP SENS
FAN PROT
FAN CONT1
FAN CONT2
SCLK
SDAT
117
F+5V
APA CS
PD3 47
SC CS
PD2 46
SC RST
P70 110
OUT 1
IC419
RESET
2 VDD
101
PSAVE LED
LAMP LED
TEMP LED
POWER LED
KEY0
KEY1
LAMP TEMP
PANEL TEMP
PD1 45
OUT 1
USB REQ
F+5V
7-4
7-4
VPL-CS2/CX1
B
B
R-Y
IC417
SCAN CONVERTER
190
R AD
PID0
MD0 7
PID7
PID8
10
12
14
197
198
21 A0
22
23
24
27
28
29
30
31
32
20 A10/AP
199
R NEW0-7
17
20
201
203
G AD
G OLD0-7
207
PID15
208
PID16
24
27
31
34
211
214
217
218
38
41
PID23
PID24
14
15
16
17
18
19
36
35
45
48
223
225
B OLD0-7
226
PID31
227
PID32
234
PID39
PID40
235
B NEW0-7
IC408
IC408
D-FF
51
53
55
58
61
IC414
SDRAM
DQ0 2
3
5
6
8
9
11
12
39
40
42
43
45
46
48
DQ15 49
MD0-47
B AD
G NEW0-7
Y
IC416
SDRAM
R OLD0-7
LDQM
WE
CAS
RAS
CS
BA
UDQA
CLK
IC415
SDRAM
B-Y
V-R
V-G
V-B
MD0-15
MD16-31
MD32-47
PAL V
15K-CS
(SAME AS IC416)
(SAME AS IC416)
V-HD
V-VD
V-CLP
USB REQ
B07
238
244
64
66
68
PID47
G07
B06
G06
2 1D
B05
12 2D
71
MD47 73
MA0 80
PIHS
1Q 6
PIVS
2Q 9
G05
B04
G04
83
86
PIVS
245
PIHS
PICLK
246
3 1CK
11 2CK
248
PIVS
PIHS
PICLK
CS
DAT
RST
CLK
253
254
100
252
OSD-SIG
OSDDT3
OSDDT2
OSDDT1
OSDDT0
OSDEN
112
111
110
107
106
B03
G03
B02
PICLK
SC
SC
SC
SC
MA0-10
SS
SI
RST
SCLK
MA10
CS
DQM0
DQM1
BA0
MWR
RAS
CAS
92
2
3
4
76
77
78
79
POD2
122
OSDDT3
OSDDT2
OSDDT1
OSDDT0
OSDEN
CS
LDQM
UDQM
BA
WE
RAS
CAS
G02
B01
G01
B00
3.3V-2
G00
X402
80MHZ XTAL
OUT
R07
R06
R05
R04
R03
R02
R01
R00
SCTR
VDD
125
127
129
POD9
131
POD12
136
R00-07
R00-07
VSO
HSO
138
140
G00-07
G00-07
OCLK
142
POD19
POD22
150
SCL
SDA
152
SRX
POVS
PANEL TEMP
B00-07
155
1
VSO
116
POHS
POCLK
VSO
HSO
B00-07
HSO
115
105
SO
POVS
POHS
POCLK
LAMP TEMP
POD29
159
IC412
APA
PIFLD
POFLD
KEY0
250
POFLD
PIHS
POFLD
117
PIVS
PICLK
54
44
45
70
ODD-EVEN-IN
HDXI
VDXI
COLOCK
KEY1
PSAVE LED
LAMP LED
B NEW7-0
G
SC DAT
SC CLK
CN401
F+5V
A24
B24
SDA
A22
B22
SCL
A23
B23
F-DA
A25
B25
F-CL
A26
B26
A27
LAMP COVER
B27
FILTER COVER
A28
U-DA
B28
NR OFF
A29
U-CL
B29
NF OFF
A31
PWR PROT
B31
SIRCS
A33
A-L
B33
A-G
A34
B34
A-R
A35
B35
145
TO
QA BOARD
CN103
B OLD7-0
IC411
BUFFER
62 DATA2-7
69 DATA2-0
TEMP LED
72 DATA1-7
POWER LED
CN402
A2
B2
A4
B4
A6
B6
A8
B8
A10
B10
A12
B12
A14
B14
A16
B16
A18
B18
A19
B19
A20
B20
A25
CN405
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A11
A12
A13
A14
A15
A16
A17
A18
B15
B17
B18
A20
B20
A22
B22
A27
B27
A28
B28
A24
B24
A25
B25
A30
B30
A31
B31
A32
B32
A33
B33
A34
B34
A35
B35
H
TO
QA BOARD
CN105
E
TO
C BOARD
CN808
79 DATA1-0
SDAT
APA CS
SCLK
SRX
2
4
9
12
6
1A
2
3A
4A
2Y
1Y
2A
3Y
4Y
3
5
8
11
57
56
59
58
SDI
SDO
SCS
SCLK
A-R
A-G
A-L
SDAT
SCTR/OCLK/HSO/VSO
SCLK
A-L/A-G/A-R
SCL/SDA
DAC CS
AUDIO CS
AUDIO MUTE
LAMP SENS
FAN PROT
FAN CONT1
FAN CONT2
LAMP ON
POWER ON
EXT SW
TXD
RXD
CN403
B25
A25
B24
A24
B23
A23
B21
A21
B19
A19
B17
A17
A16
B5
A5
B4
A4
B3
A3
B2
A2
B1
F
TO
C BOARD
CN809
B Block
VPL-CS2/CX1
7-5
7-5
C, H
C, H
For VPL-CS2
C(LCD DRIVE,RGB AMP,AUDIO AMP,12CH DAC,TIMING GENERATER)
B3
B5
A3
CN809
LAMP ON
LAMP SENS
POWER ON
CN802
L CONT OUT
1
2
L CONT IN
IC804(1/4)
5
6
10
9
8
LAMP
SCI
FLAG
IC804(3/4)
A5
B4
A4
TEMP
FUSE
CN803
1
3
1
3
CN804
1
POWER CONT
FAN PROT
2
FAN CONT1
3
FAN CONT2
4
FAN PROT
FAN CONT1
FAN CONT2
C
TO
GA BOARD
CN674
CN806
B1
A2
B2
F
2
3
5
RXD
TXD
EXT SW
RXD
TXD
EXT SW
TO
B BOARD
CN403
IC825
VOLUME
BALLAST
VISCA
IC823
AUDIO AMP
CN815
A23
B23
A25
B25
A17
A21
B21
A19
B19
B17
A16
A-L
A-L
A-R
A-R
AUDIO CS
SDAT
SDAT
SCLK
SCLK
A-L
20
15
6
5
A-R
1
APCE
SDAT
12
13
11
A-SCLK
IC824
AUDIO AMP
CN820
6
A-SCLK
DAC CS
AUDIO MUTE
SP-R
7
8
9
R
MUTE
IC801
MUTE
O
+15.5V
SWITCH
5
6
I
O
S009-012
IC803
RGB AMP
R DA
TP806
R
2 RIN
Q802
CN1001
CN805
KEY0
3
4
KEY1
7
PSAVE LED
LAMP LED
8
TEMP LED
9
POWER LED
10
KEY0
PSAVE LED
KEY-MATRIX
I
TH802
LCD
KEY1
KEY-MATRIX
D
TO
GB BOARD
CN706
IC802
+12V
TH801
LAMP
LED
3
4
7
8
9
10
D001-003
D008
POWER/STBY
Q001
SWITCH
LAMP LED
R
R OUT 41
BUFF
G DA
TP807
G
6 GIN
Q804
TEMP LED
G
G OUT 38
BUFF
B DA
POWER LED
TP808
B
11 BIN
Q808
SDA
B
23 SDA
B OUT 33
22 SCL
CLP 21
SCL
BUFF
CLP
HSO
IC814
PECL DRV
VSO
SCTR
HSO/VSO
IC808
OCLK
2
TTL
4
IC806
D/A CONVERTER
R2
R3
R4
R5
R6
R7
R8
R9
G2
B2
G3
B3
G4
B4
G5
B5
G6
B6
G7
B7
G8
B8
G9
B9
CN810
SCLK
MCDE
B9
B8
B7
B6
B5
B4
B3
B2
G9
G8
G7
G6
G5
G4
G3
G2
R9
R8
R7
R6
R5
R4
R3
R2
23
22
21
20
19
18
17
16
10
9
8
7
6
5
4
3
48
47
46
45
44
43
42
41
B9
B8
B7
B6
B5
B4
B3
B2
G9
G8
G7
G6
G5
G4
G3
G2
R9
R8
R7
R6
R5
R4
R3
R2
CLK
TO
B BOARD
CN405
PLD
+16.5V
+16.5V
+12V REG
LCD TEMP
7
1
3
5
6
7
1
2
S001-008
1
LAMP TEMP
E
A18
A17
A16
A15
A14
A13
A12
A11
B9
A9
B8
A8
B7
A7
B6
A6
B5
A5
B4
A4
B3
A3
B2
A2
AUDIO+B
AUDIO+B
+15V REG
3
Q801
H(KEY INPUT,LED)
CN801
Q816,817
CN808
A25
B25
A24
B24
A30
B30
A31
B31
A32
B32
A33
B33
A34
B34
A35
B35
A28
B28
A27
B27
A20
B20
B17
B18
B15
A22
B22
1
1
VS
2
Q814,815
D-SCLK
DALD
L
SPEAKER
APCE
7
SDAT
8
IC804(4/4)
1
SP-L
3
VS
2
TP805
R DA
Q
Q
MCLK
2
MCLK
3
R DA
IOR 34
IC833
UF ADJUST
TP809
G DA
IC812
TG
HSO
59 SDAT
58 SCLK
57 SCTR
G DA
HSYNC 60
VSO
63 CKL1
IOB 28
Y2/SCLK
IN2/MODE
ISPEN
SDI/IN0
SDO/IN1
Q818
CLK
CLOCK 24
VREF 36
1 I/O28
10 I/O1
27
30
7
8
18
B DA
DWN
3
TP824
VRL
2
33 I/O18
SWITCH
DWN 5
IC807
VOLTAGE REF
1
3
5
9
11
13
21 I/O10
HSO
IOG 32
TP810
B DA
IC811
INVERTER
TP823
VRH
RBDIR
HCK1
I/O21 36
HCK2
I/O20 35
1
3
5
9
11
13
1A
2A
3A
4A
5A
6A
1Y
2Y
3Y
4Y
5Y
6Y
VCK
ENB
VST
PRG
HST
PCG
2
4
6
8
10
12
2
11
10 PRG
FRP
GDIR
44 VRH
40 VRL
RGT 6
VIDEO RR
AOUT0 48
VIDEO RG
AOUT1 43
VIDEO RB
AOUT2 38
OUT 1
5 IN+
IN- 2
7-6
2
4
6
8
10
12
I/O25 42
IC835
SHUNT REG
3
1Y
2Y
3Y
4Y
5Y
6Y
IC831(5/6)
32 I/O17
IC831(1/6)
IC834
VOLTAGE REF
2
1A
2A
3A
4A
5A
6A
IC813
INVERTER
VCK
I/O24 41
ENB
I/O2 11
VST
I/O26 43
I/O16 31
HST
I/O19 34
PCG
I/O11 9
1
ISPEN
SDI
SDO
HCK1R
HCK1G
HCK1B
HCK2B
HCK2G
HCK2R
CLP
7-6
VPL-CS2/CX1
C, H
C, H
TP820
R INV
IC829
R LCD DRIVER
+15.5V
CN818
TP821
46 INV-OUT
45 SH-IN
47 VIDEO IN
R OUT
POS-CON1
POS-CON2
SCEN
SID-OUT
DLY-CON
INV-CON
ENB
FRP
PRG
VIDEO RR
MCLK
MCLK
1
2
35
39
49
52
POS-CNT1
POS-CNT2
SIG CEN
SID-IN
DLY-CNT
INV-CNT
12
44
62
48
50
51
ENB
FRP
PRG
OFFSET
MCLK
MCLK
SH-OUT4
SH-OUT3
SH-OUT5
SH-OUT2
SH-OUT6
SH-OUT1
VID4
VID3
VID5
VID2
VID6
VID1
21
27
19
29
17
31
DIR-CNT 13
VCOM OUT 33
Q809,812
R-SID IN
SID-OUT 38
R-SID
BUFF
R-SID OUT
R VCOM
SIG4
SIG3
SIG5
SIG2
SIG6
SIG1
8
23
2
3
4
5
6
7
XRGT
COM
HST
HCK2R
HCK1R
ENB
VCK
VST
PCG
PSIG
9
24
13
14
15
18
19
20
21
1
DWN
22
LCD PANEL
(R)
34 VCOM OFST
DWN
TP812
G INV
IC819
G LCD DRIVER
+15.5V
CN811
TP813
1
2
3
4
5
M OUT
R
G
B
HD
VD
SIG4
SIG3
SIG5
SIG2
SIG6
SIG1
8
23
2
3
4
5
6
7
G VCOM
XRGT
COM
HST
HCK2G
HCK1G
ENB
VCK
VST
PCG
PSIG
9
24
13
14
15
18
19
20
21
1
DWN
DWN
22
G OUT
VID4
VID3
VID5
VID2
VID6
VID1
POS-CON1
POS-CON2
SCEN
SID-OUT
DLY-CON
INV-CON
GDIR
(SAME AS R PROCESS)
TP803
VD
TP804
HD
ENB
FRP
PRG
VIDEO RG
MCLK
MCLK
Q808,811
G-SID IN
G-SID
BUFF
G-SID OUT
LCD PANEL
(G)
TP816
B INV
IC826
B LCD DRIVER
+15.5V
CN816
TP817
IC817
12CH D/A CONVERTER
B OUT
VID4
VID3
VID5
VID2
VID6
VID1
SID-OUT
A03 2
BUFF
IC818
SWITCH
1
Q806
PRG
15
A04 3
SDAT
D-SCLK
DALD
17 DI
16 CLK
15 LD
A08 7
A09 8
A010 9
A011
A012
SH2
A06
SCEN
A05
12
13
19
5
18
4
SIG4
SIG3
SIG5
SIG2
SIG6
SIG1
8
23
2
3
4
5
6
7
XRGT
COM
HST
HCK2B
HCK1B
ENB
VCK
VST
PCG
PSIG
9
24
13
14
15
18
19
20
21
1
DWN
22
Q807
BUFF
R VCOM
B VCOM
G VCOM
POS-CON1
POS-CON2
SCEN
DWN
DLY-CON
INV-CON
2
POS-CON1
POS-CON2
SCEN
SID-OUT
DLY-CON
INV-CON
VIDEO RB
ENB
FRP
PRG
(SAME AS R PROCESS)
Q810,813
B-SID IN
B-SID
BUFF
MCLK
MCLK
B-SID OUT
B VCOM
DWN
LCD PANEL
(B)
GDIR
A07 6
IC831(2/6)
3
RBDIR
4
C Block
H Block
GDIR
VPL-CS2/CX1
7-7
7-7
C, H
C, H
For VPL-CX1
C(LCD DRIVE,RGB AMP,AUDIO AMP,12CH DAC,TIMING GENERATER)
B3
B5
A3
CN809
LAMP ON
LAMP SENS
POWER ON
CN802
L CONT OUT
1
2
L CONT IN
IC804(1/4)
5
6
10
9
8
LAMP
SCI
FLAG
IC804(3/4)
A5
B4
A4
TEMP
FUSE
CN803
1
3
1
3
CN804
1
POWER CONT
FAN PROT
2
FAN CONT1
3
FAN CONT2
4
FAN PROT
FAN CONT1
FAN CONT2
C
TO
GA BOARD
CN674
CN806
B1
A2
B2
F
2
3
5
RXD
TXD
EXT SW
RXD
TXD
EXT SW
TO
B BOARD
CN403
IC825
VOLUME
BALLAST
VISCA
IC823
AUDIO AMP
CN815
A23
B23
A25
B25
A17
A21
B21
A19
B19
B17
A16
A-L
A-L
A-R
A-R
AUDIO CS
SDAT
SDAT
SCLK
SCLK
A-L
20
15
6
5
A-R
1
APCE
SDAT
12
13
11
A-SCLK
IC824
AUDIO AMP
CN820
6
A-SCLK
DAC CS
AUDIO MUTE
SP-R
7
8
9
R
MUTE
IC801
MUTE
O
+15.5V
SWITCH
+12V
TH801
LAMP
I
O
TP806
R
2 RIN
TP803
VD
Q802
TP804
HD
S009-012
CN1001
CN805
KEY0
3
4
KEY1
7
PSAVE LED
LAMP LED
8
TEMP LED
9
POWER LED
10
IC803
RGB AMP
R DA
PSAVE LED
KEY-MATRIX
I
KEY0
KEY1
KEY-MATRIX
D
TO
GB BOARD
CN706
TH802
LCD
LED
3
4
7
8
9
10
D001-003
D008
POWER/STBY
Q001
SWITCH
R
R OUT 41
BUFF
G DA
TP807
G
6 GIN
Q804
TEMP LED
G
G OUT 38
BUFF
B DA
POWER LED
TP808
B
11 BIN
Q808
SDA
B
23 SDA
B OUT 33
22 SCL
CLP 21
SCL
BUFF
CLP
HSO
IC814
PECL DRV
VSO
SCTR
IC808
OCLK
2
TTL
4
IC806
D/A CONVERTER
R2
R3
R4
R5
R6
R7
R8
R9
G2
B2
G3
B3
G4
B4
G5
B5
G6
B6
G7
B7
G8
B8
G9
B9
CN810
SCLK
MCDE
B9
B8
B7
B6
B5
B4
B3
B2
G9
G8
G7
G6
G5
G4
G3
G2
R9
R8
R7
R6
R5
R4
R3
R2
23
22
21
20
19
18
17
16
10
9
8
7
6
5
4
3
48
47
46
45
44
43
42
41
B9
B8
B7
B6
B5
B4
B3
B2
G9
G8
G7
G6
G5
G4
G3
G2
R9
R8
R7
R6
R5
R4
R3
R2
CLK
TO
B BOARD
CN405
PLD
5
6
IC802
7
1
3
5
6
7
+16.5V
+16.5V
+12V REG
LCD TEMP
E
A18
A17
A16
A15
A14
A13
A12
A11
B9
A9
B8
A8
B7
A7
B6
A6
B5
A5
B4
A4
B3
A3
B2
A2
1
2
S001-008
1
LAMP TEMP
LAMP LED
AUDIO+B
AUDIO+B
+15V REG
3
Q801
H(KEY INPUT,LED)
CN801
Q816,817
CN808
A25
B25
A24
B24
A30
B30
A31
B31
A32
B32
A33
B33
A34
B34
A35
B35
A28
B28
A27
B27
A20
B20
B17
B18
B15
A22
B22
1
1
VS
2
Q814,815
D-SCLK
DALD
L
SPEAKER
APCE
7
SDAT
8
IC804(4/4)
1
SP-L
3
VS
2
TP805
R DA
Q
Q
MCLK
2
MCLK
3
R DA
IOR 34
IC833
UF ADJUST
TP809
G DA
IC812
TG
HSO
59 SDAT
58 SCLK
57 SCTR
G DA
HSYNC 60
VSO
63 CKL1
IOB 28
Y2/SCLK
IN2/MODE
ISPEN
SDI/IN0
SDO/IN1
Q818
CLK
CLOCK 24
VREF 36
1 I/O28
10 I/O1
27
30
7
8
18
B DA
DWN
3
TP824
VRL
2
33 I/O18
SWITCH
DWN 5
IC807
VOLTAGE REF
1
3
5
9
11
13
21 I/O10
HSO
IOG 32
TP810
B DA
IC811
INVERTER
TP823
VRH
RBDIR
HCK1
I/O21 36
HCK2
I/O20 35
1
3
5
9
11
13
1A
2A
3A
4A
5A
6A
1Y
2Y
3Y
4Y
5Y
6Y
VCK
ENB
VST
PRG
HST
PCG
2
4
6
8
10
12
2
11
10 PRG
FRP
GDIR
44 VRH
40 VRL
RGT 6
VIDEO RR
AOUT0 48
VIDEO RG
AOUT1 43
VIDEO RB
AOUT2 38
OUT 1
5 IN+
IN- 2
7-8
2
4
6
8
10
12
I/O25 42
IC835
SHUNT REG
3
1Y
2Y
3Y
4Y
5Y
6Y
IC831(5/6)
32 I/O17
IC831(1/6)
IC834
VOLTAGE REF
2
1A
2A
3A
4A
5A
6A
IC813
INVERTER
VCK
I/O24 41
ENB
I/O2 11
VST
I/O26 43
I/O16 31
HST
I/O19 34
PCG
I/O11 9
1
ISPEN
SDI
SDO
HCK1R
HCK1G
HCK1B
HCK2B
HCK2G
HCK2R
CLP
7-8
VPL-CS2/CX1
C, H
C, H
TP820
R INV
IC714
13.5V REG
+15.5V
IC830
R LCD DRIVER
IC829
R LCD DRIVER
+15.5V
6 VIN
VO 4
SH-IN
TP821
45 SH-IN
R OUT
POS-CON1
POS-CON2
SCEN
SID-OUT
DLY-CON
INV-CON
VIDEO RB
ENB
FRP
PRG
46 INV-OUT
45 SH-IN
47 VIDEO IN
1
2
35
39
49
52
12
44
62
48
POS-CNT1
POS-CNT2
SIG-CEN
SID-IN
DLY-CNT
INV-CNT
ENB
FRP
PRG
OFF SET
SH-OUT1
SH-OUT2
SH-OUT3
SH-OUT4
SH-OUT5
SH-OUT6
VID1
VID2
VID3
VID4
VID5
VID6
31
29
27
21
19
17
POS-CON1
POS-CON2
SCEN
DLY-CON
INV-CON
ENB
R VCOM
PRG
DIR-CNT 13
VVM OUT 33
1
2
35
49
52
12
34
62
POS-CON1
POS-CON2
SIG CEN
DLY-CON
INV-CON
ENB
VCOM OFST
PRG
SH-OUT1
SH-OUT2
SH-OUT3
SH-OUT4
SH-OUT5
SH-OUT6
31
29
27
21
19
17
VID1
VID2
VID3
VID4
VID5
VID6
VID7
VID8
VID9
VID10
VID11
VID12
VID7
VID8
VID9
VID10
VID11
VID12
DIR-CNT 13
MCLK
MCLK
TP822
50 MCLK
51 MCLK
R-SID
RGT
COM
HST
HSK2R
HSK1R
ENB
VCK
RBDIR
50 MCLK
51 MCLK
R VCOM
34 VCIM OFST
DWN
Q809,812
R-SID IN
VST
PCG
R-SID
BUFF
R-SID OUT
DWN
TP812
G INV
IC820
G LCD DRIVER
IC819
G LCD DRIVER
VID1
VID2
VID3
VID4
VID5
VID6
POS-CON1
POS-CON2
SCEN
DLY-CON
INV-CON
ENB
SAME AS R (IC830)
PROCESS
TP814
VID1
VID2
VID3
VID4
VID5
VID6
VID7
VID8
VID9
VID10
VID11
VID12
VID7
VID8
VID9
VID10
VID11
VID12
G VCOM
PRG
GDIR
SAME AS R (IC829)
PROCESS
MCLK
MCLK
G VCOM
DWN
Q808,811
G-SID IN
G-SID
BUFF
G-SID OUT
DWN
TP816
B INV
IC827
B LCD DRIVER
IC826
B LCD DRIVER
BUFF
IC818
SWITCH
SDAT
D-SCLK
DALD
1
17 DI
16 CLK
15 LD
Q806
PRG
15
A04 3
A08 7
A09 8
A010 9
A011
A012
SH2
A06
SCEN
A05
12
13
19
5
18
4
VID1
VID2
VID3
VID4
VID5
VID6
B OUT
BUFF
R VCOM
B VCOM
G VCOM
POS-CON1
POS-CON2
SCEN
DWN
DLY-CON
INV-CON
GDIR
2
POS-CON1
POS-CON2
SCEN
SID-OUT
DLY-CON
INV-CON
VIDEO RB
ENB
FRP
PRG
POS-CON1
POS-CON2
SCEN
DLY-CON
INV-CON
ENB
SAME AS R (IC830)
PROCESS
VID1
VID2
VID3
VID4
VID5
VID6
VID7
VID8
VID9
VID10
VID11
VID12
VID7
VID8
VID9
VID10
VID11
VID12
B VCOM
PRG
SAME AS R (IC829)
PROCESS
MCLK
MCLK
CN812
VVDD
30
HVDD
15
VSIG1
3
VSIG2
4
VSIG3
5
VSIG4
6
VSIG5
7
VSIG6
8
VSIG7
9
VSIG8
10
VSIG9
11
VSIG10
12
VSIG11
13
VSIG12
14
LCD PANEL
(G)
VST
PCG
16
31
17
18
19
23
24
25
29
PS2G
1
DWN
26
TP818
CN817
VVDD
30
15
HVDD
VSIG1
3
4
VSIG2
5
VSIG3
VSIG4
6
VSIG5
7
VSIG6
8
VSIG7
9
VSIG8
10
VSIG9
11
VSIG10
12
VSIG11
13
VSIG12
14
LCD PANEL
(B)
B-SID
RGT
COM
HST
HSK2B
HSK1B
ENB
VCK
RBDIR
MCLK
MCLK
B VCOM
DWN
Q810,813
B-SID IN
B-SID
BUFF
B-SID OUT
VST
PCG
16
31
17
18
19
23
24
25
29
PS2G
1
DWN
26
IC831(2/6)
A07 6
DWN
3
4
RBDIR
C Block
H Block
GDIR
VPL-CS2/CX1
26
+15.5V
TP817
SH-IN
Q807
A03 2
1
DWN
RGT
COM
HST
HSK2G
HSK1G
ENB
VCK
RBDIR
MCLK
SID-OUT
PS2G
G-SID
MCLK
IC817
12CH D/A CONVERTER
16
31
17
18
19
23
24
25
29
+15.5V
TP813
SH-IN
G OUT
POS-CON1
POS-CON2
SCEN
SID-OUT
DLY-CON
INV-CON
VIDEO RB
ENB
FRP
PRG
LCD PANEL
(R)
SID-OUT 38
MCLK
MCLK
CN819
30
VVDD
15
HVDD
VSIG1
3
VSIG2
4
VSIG3
5
VSIG4
6
VSIG5
7
VSIG6
8
VSIG7
9
VSIG8
10
VSIG9
11
VSIG10
12
VSIG11
13
VSIG12
14
7-9
7-9
GA, GB
GA
POWER SUPPLY,DC-DC CONVERTER,
POWER-FACTOR REGULATING CONTROL
FAN DRIVE,DC-DC CONVERTER
CN601
AC
INLET
GA, GB
L601
LFT
3
AC(N)
1
2
1
AC(L)
4
3
D601
RECT
D602
RECT
F601
IC605
POWER-FACTOR
REGULATING CONTROL
Q601
SWITCHING
3 VDET
16 IDET
OUT
VFB
VIN
OVP
D610
RECT
10 VCC
9 VC
8
5
6
4
Q604
ACT
FIL
12 ON/OFF
T601
SRT
D607
NOISE
FILTER
IC672
+5V REG
D609
RECT
7
D608
NOISE
FILTER
1
I
O
G
6
3
5
CN605
1
2
3
4
SUB+5V
SUB+5V
GND2
GND2
A
TO QA BOARD
CN101
9
2
8
4
PH601
ISOLATOR
IC603
PWM CONTROL
D
C
CN604
4
1
3
2
IC602
SHUNT REG
1 K
S
REF 8
A 7
GB (+16.5V
PH602
ISOLATOR
Q603
POWER
ON
T602
SRT
C
D
S
IC604
PWM CONTROL
2
12
3
11
5
10
6
9
D728
RECT
4
1
3
2
CN606
T-OUT12
T-OUT12
T-OUT11
6V
6V
GND2
GND2
GND2
GND2
18V
CN702
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
PH603
ISOLATER
4
IC671
SHUNT REG
1
3
2
Q710
AUDIO
AMP
D615,617
+6V RECT
D621
RECT
REG,AUDIO +B REG)
1 K
REF 8
A 7
Q671
INV
T-OUT12
T-OUT12
T-OUT11
6V
6V
GND2
GND2
GND2
GND2
18V
D715
RECT
IC701
+16.5V REG
I
O
G
CN706
AUDIO+B
AUDIO+B
AUDIO GND
AUDIO GND
+16.5V
+16.5V
GND2
GND2
1
2
3
4
5
6
7
8
D
TO C BOARD
CN801
CN707
+16.5V
AUDIO+B
GND2
GND2
+6V
+6V
GND2
GND2
GND2
1
2
3
4
5
6
7
8
9
B
TO QA BOARD
CN102
CN674
IC673
DC-DC CONVERTER
3 FB
VSW 8
1 VIN
BST 2
IC704
REG
ADJ
I
O
G
D673
RECT
POWER CONT
1
FAN PROT
FAN CONT1
FAN CONT2
GND2
2
3
4
5
C
TO C BOARD
CN804
CN676
FAN 1
1
2
3
FAN +B
FAN PROT
GND2
D672
Q672,673
FAN PROT
SW
CN675
FAN 2
1
2
3
FAN +B
FAN PROT
GND2
GA Block
GB Block
7-10
7-10
VPL-CS2/CX1
Section 8
Diagrams
Note:
. Parts marked “ * ” differ according to the model/destination. Refer
to the mount table for each function.
. The parts marked “ # ” on schematic diagrams are not mounted.
. All capacitors are in µF unless otherwise noted. pF: µµF 50WV or
less are not indicated except for electrolytics.
. All electrolytics are in 50 V unless otherwise specified.
.
: fusible resistor
.
: nonflammable resistor
.
∆
: internal component
.
: panel designation and adjustment for repair
. Caution when replacing chip parts
New parts must be attached after removal of the chip.
Be careful not to heat the minus side of a tantalum capacitor, because it is easily damaged by the heat.
Reference information
RESISTOR
RN
RC
FPRD
FUSE
RS
RB
RW
: METAL FILM
: SOLID
: NONFLAMMABLE CARBON
: NONFLAMMABLE FUSIBLE
: NONFLAMMABLE METAL OXIDE
: NONFLAMMABLE CEMENT
: NONFLAMMABLE WIREWOUND
: ADJUSTMENT RESISTOR
COIL
LF-8L
: MICRO INDUCTOR
CAPACITOR
TA
PS
PP
PT
MPS
MPP
ALB
ALT
ALR
: TANTALUM
: STYROL
: POLYPROPYLENE
: MYLAR
: METALIZED POLYESTER
: METALIZED POLYPROPYLENE
: BIPOLAR
: HIGH TEMPERATURE
: HIGH RIPPLE
VPL-CS2/CX1
[Measuring conditions, voltage and waveform]
. A voltage value is the reference value between the measurement
point and the earth, when the NTSC color bar signal is received
from the color bar generator (digital multi-meter used: 10 M ohms/
V DC).
. A voltage value is the reference value between the measurement
point and the earth, when the NTSC color bar signal and RGB
color bar signal are received from the color bar generator (digital
multi-meter used: 10 M ohms/V DC).
. Unit of voltage is V (volt).
.
: B+line
.
: B– line
. Voltage variations may occur due to normal production tolerances.
. No mark : NTSC (3.58 MHz) color bar signal.
. (
) : PAL color bar signal is received.
. <
> : SECAM color bar signal is received.
. << >> : NTSC (4.43 MHz) color bar signal is received.
. [
] : RGB color bar signal is received.
.
: Measurement disabled.
• Circled numbers indicate the reference waveform.
•
: Signal path.
The components identified marked ! are
critical for safety.
Replace only with the part number specified.
Les composants identifiés par la marque !
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
NOTE:
The circuit indicated as shown on the left contains
high voltages of over 600 Vp-p. Take care to avoid
electric shock during inspection or repair work.
8-1
8-1
A
5
B
C
TO LCD PANEL(R)
(VPL-CX1)
8-2
D
E
CN675
3P
WHT
:S-MICRO
CN676
3P
BLK
:S-MICRO
F
CN674
4P
WHT
:S-MICRO
CN601
3P
:VH-B
BALLAST
T-OUT12
T-OUT12
T-OUT11
6V
6V
GND 2
GND 2
GND 2
GND 2
18V
16.5V
AUDIO+B
GND 2
GND 2
+6V
+6V
GND 2
GND 2
GND 2
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
FAN1
T-OUT12 1
T-OUT12 2
T-OUT11 3
4
6V
5
6V
6
GND 2
7
GND 2
8
GND 2
9
GND 2
10
18V
1
2
3
4
5
FAN2
POWER CONT
FAN PROT
FAN CONT1
FAN CONT2
GND 2
1
2
3
4
5
6
7
8
AUDIO+B
AUDIO+B
AUDIO GND
AUDIO GND
+16.5V
+16.5V
GND 2
GND 2
H
AUDIO +B
AUDIO +B
1
2
3
4
5
6
7
8
GA
CN001
12P
:SMD
CN706
8P
WHT
:S-MICRO
CN702
10P
LAMP
8-2
G
CN815
2P
WHT
:SMD
CN820
2P
WHT
:SMD
1
SP-L
2 AUDIO GND
CN802
2P
RED
:SMD
SP-R
AUDIO GND
1
2
L CONT OUT
L CONT IN
+16.5V
+16.5V
GND
GND
AUDIO GND
AUDIO GND
CN801
8P
WHT
:SMD
1
2
POWER CONT
FAN PROT
FAN CONT1
FAN CONT2
GND
1
2
3
4
5
PSAVE LED
CN804
4P
WHT
:SMD
SUB 5V
SUB 5V
GND
GND
M.OUT
(VPL-CS2)
CN803
3P
WHT
:SMD
LAMP LED
TEMP LED
POWER LED
D 5V
GND
CN805
12P
WHT
:SMD
TO AC INLET
AC(N)
N.C
AC(L)
TO LCD PANEL(R)
(VPL-CS2)
CN812
32P
FPC
FAN+B 1
FAN PROT 2
3
GND 2
CN817
32P
FPC
1
2
3
4
5
6
7
8
9
10
11
12
CN808
70P
WHT
1
2
3
4
3
2
1
PLD
CN807
6P
WHT
:SMD
FAN+B 1
FAN PROT 2
GND 2 3
CN816
24P
FPC
GND
N.C
KEY0
KEY1
SUB 5V
N.C.
2
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
B35
A35
B34
A34
B33
A33
B32
A32
B31
A31
B30
A30
B29
A29
B28
A28
B27
A27
B26
A26
B25
A25
B24
A24
B23
A23
B22
A22
B21
A21
B20
A20
B19
A19
B18
A18
B17
A17
B16
A16
B15
A15
B14
A14
B13
A13
B12
A12
B11
A11
B10
A10
B9
A9
B8
A8
B7
A7
B6
A6
B5
A5
B4
A4
B3
A3
B2
A2
B1
A1
POWER LED
POWER LED
TEMP LED
TEMP LED
LAMP LED
LAMP LED
PSAVE LED
PSAVE LED
KEY1
KEY1
KEY0
KEY0
GND
GND
SDA
SDA
SCL
SCL
GND
GND
LAMP TEMP
LAMP TEMP
LCD TEMP
LCD TEMP
GND
GND
OCLK
OCLK
GND
GND
HSOX
HSOX
GND
GND
VSOX
R2
VSOX
R3
GND
R4
UF CS
R5
GND
R6
GND
R7
GND
R8
GND
R9
GND
GND
G2
B2
G3
B3
G4
B4
G5
B5
G6
B6
G7
B7
G8
B8
G9
B9
GND
GND
B25
A25
B24
A24
B23
A23
A-R
B22
GND
A22
GND
B21
SDAT
A21
SDAT
B20
GND
A20
GND
B19
SCLK
A19
SCLK
B18
GND
A18
GND
B17
DAC CS
A17
AUDIO CS
B16
GND
AUDIO MUTE A16
B15
GND
A15
GND
B14
A+5V
A14
A+5V
B13
A+5V
A13
A+5V
B12
GND
A12
GND
B11
D+3.3V
A11
D+3.3V
B10
GND
A10
GND
B9
SUB+5V
A9
SUB+5V
B8
GND
A8
GND
B7
D+5V
A7
D+5V
B6
GND
A6
GND
LAMP SENS B5
A5
FAN PROT
FAN CONT1 B4
FAN CONT2 A4
B3
LAMP ON
A3
POWER ON
B2
EXT SW
A2
TXD
B1
RXD
A1
GND
A-L
A-L
A-G
A-G
A-R
GND
EXT SW
RXD
TXD
SUB 5V
TO B BOARD CN405
GND
SIRCS NR
KEY0
KEY1
SUB 5V
LIGHT
PSAVE-LED
LAMP-LED
TEMP-LED
POWER-LED
D.5V
GND
TO LCD PANEL(B)
(VPL-CS2)
SCI
GND
FLAG
TO LCD PANEL(G)
(VPL-CX1)
1
2
3
PS2G
VSSGR
VSIG1
VSIG2
VSIG3
VSIG4
VSIG5
VSIG6
VSIG7
VSIG8
VSIG9
VSIG10
VSIG11
VSIG12
HVDD
RGT
HST
HCK2
HCK1
VSS
VSSGL
BLK
ENB
VCK
VST
DWN
HB
VB
PCG
VVDD
COM
TEST
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
CN811
24P
FPC
1
2
3
6
5
4
3
2
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
PS2G
VSSGR
VSIG1
VSIG2
VSIG3
VSIG4
VSIG5
VSIG6
VSIG7
VSIG8
VSIG9
VSIG10
VSIG11
VSIG12
HVDD
RGT
HST
HCK2
HCK1
VSS
VSSGL
BLK
ENB
VCK
VST
DWN
HB
VB
PCG
VVDD
COM
TEST
TO LCD PANEL(G)
(VPL-CS2)
XRGT
MODE3
MODE2
MODE1
HST
HCK2
HCK1
VSS
BLK
ENB
VCK
VST
PCG
DWN
VVDD
COM
PSIG
SIG4
SIG3
SIG5
SIG2
SIG6
SIG1
HVDD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
CN806
5P
WHT
:SMD
SCI
GND
FLAG
SCLK
GND
MODE
PLUG
ISPEN
SDI
SDO
VCC
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
PSIG
SIG4
SIG3
SIG5
SIG2
SIG6
SIG1
HVDD
XRGT
MODE3
MODE2
MODE1
HST
HCK2
HCK1
VSS
BLK
ENB
VCK
VST
PCG
DWN
VVDD
COM
1
GND
VD
HD
B
G
R
CN810
8P
WHT
:SMD
PS2G
VSSGR
VSIG1
VSIG2
VSIG3
VSIG4
VSIG5
VSIG6
VSIG7
VSIG8
VSIG9
VSIG10
VSIG11
VSIG12
HVDD
RGT
HST
HCK2
HCK1
VSS
VSSGL
BLK
ENB
VCK
VST
DWN
HB
VB
PCG
VVDD
COM
TEST
4
CN819
32P
FPC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
CN818
24P
FPC
PSIG
SIG4
SIG3
SIG5
SIG2
SIG6
SIG1
HVDD
XRGT
MODE3
MODE2
MODE1
HST
HCK2
HCK1
VSS
BLK
ENB
VCK
VST
PCG
DWN
VVDD
COM
3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Frame (1/2)
Frame (1/2)
8-1. Frame Schematic Diagram
TO B BOARD CN403
VISCA
CN809
50P
WHT
TEMP FUSE
C
TO LCD PANEL(B)
(VPL-CX1)
GB
CN707
9P
WHT
:S-MICRO
TO QA BOARD
CN102
CN606
10P
CN605
4P
WHT
TO QA BOARD
CN101
VPL-CS2/CX1
H
A
B
CN071
3P
RED
:SMD
B35 B35
A35 A35
B34 B34
A34 A34
B33 B33
A33 A33
B32 B32
A32 A32
B31 B31
A31 A31
B30 B30
A30 A30
B29 B29
A29 A29
B28 B28
A28 A28
B27 B27
A27 A27
B26 B26
A26 A26
B25 B25
A25 A25
B24 B24
A24 A24
B23 B23
A23 A23
B22 B22
A22 A22
B21 B21
A21 A21
B20 B20
A20 A20
B19 B19
A19 A19
B18 B18
A18 A18
B17 B17
A17 A17
B16 B16
A16 A16
B15 B15
A15 A15
B14 B14
A14 A14
B13 B13
A13 A13
B12 B12
A12 A12
B11 B11
A11 A11
B10 B10
A10 A10
B9 B9
A9 A9
B8 B8
A8 A8
B7 B7
A7 A7
B6 B6
A6 A6
B5 B5
A5 A5
B4 B4
A4 A4
B3 B3
A3 A3
B2 B2
A2 A2
B1 B1
A1 A1
3
2
1
V-B
V-B
GND
GND
V-G
V-G
GND
GND
V-R
V-R
GND
GND
Y
Y
GND
GND
R-Y
R-Y
GND
GND
B-Y
B-Y
GND
GND
VIDEO
VIDEO
GND
GND
Y
Y
GND
GND
C
C
GND
GND
PAL-V
PAL-V
15K-CS
15K-CS
S-IN
S-IN
V-CLP
V-CLP
V-HD
V-HD
V-VD
V-VD
SCL
SCL
SDA
SDA
F+5V
F+5V
F-CL
F-CL
F-DA
F-DA
GND
GND
A5V
A5V
A5V
A5V
GND
GND
+9V
+9V
+9V
+9V
GND
SIRCS-NF
SUB+5V
CN101
4P
TO GA BOARD
CN605
V-B
V-B
GND
GND
V-G
V-G
GND
GND
V-R
V-R
GND
GND
Y
Y
GND
GND
R-Y
R-Y
GND
GND
B-Y
B-Y
GND
GND
VIDEO
VIDEO
GND
GND
Y
Y
GND
GND
C
C
GND
GND
PAL-V
PAL-V
15K-CS
15K-CS
S-IN
S-IN
V-CLP
V-CLP
V-HD
V-HD
V-VD
V-VD
SCL
SCL
SDA
SDA
F+5V
F+5V
F-CL
F-CL
F-DA
F-DA
GND
GND
A5V
A5V
A5V
A5V
GND
GND
+9V
+9V
+9V
+9V
3
2
1
GND
GND
SUB 5V
SUB 5V
4
3
2
1
CN102
9P
GND
SIRCS-NF
SUB+5V
GND
GND
GND
+6V
+6V
GND
GND
AUDIO+B
+16.5V
B25 B25
A25 A25
B24 B24
A24 A24
B23 B23
A23 A23
B22 B22
A22 A22
B21 B21
A21 A21
B20 B20
A20 A20
B19 B19
A19 A19
B18 B18
A18 A18
B17 B17
A17 A17
B16 B16
A16 A16
B15 B15
A15 A15
B14 B14
A14 A14
B13 B13
A13 A13
B12 B12
A12 A12
B11 B11
A11 A11
B10 B10
A10 A10
B9 B9
A9 A9
B8 B8
A8 A8
B7 B7
A7 A7
B6 B6
A6 A6
B5 B5
A5 A5
B4 B4
A4 A4
B3 B3
A3 A3
B2 B2
A2 A2
B1 B1
A1 A1
B35 B35
A35 A35
B34 B34
A34 A34
B33 B33
A33 A33
B32 B32
A32 A32
B31 B31
A31 A31
B30 B30
A30 A30
B29 B29
A29 A29
B28 B28
A28 A28
B27 B27
A27 A27
B26 B26
A26 A26
B25 B25
A25 A25
B24 B24
A24 A24
B23 B23
A23 A23
B22 B22
A22 A22
B21 B21
A21 A21
B20 B20
A20 A20
B19 B19
A19 A19
B18 B18
A18 A18
B17 B17
A17 A17
B16 B16
A16 A16
B15 B15
A15 A15
B14 B14
A14 A14
B13 B13
A13 A13
B12 B12
A12 A12
B11 B11
A11 A11
B10 B10
A10 A10
B9 B9
A9 A9
B8 B8
A8 A8
B7 B7
A7 A7
B6 B6
A6 A6
B5 B5
A5 A5
B4 B4
A4 A4
B3 B3
A3 A3
B2 B2
A2 A2
B1 B1
A1 A1
GND
USB REG
GND
GND
GND
GND
GND
GND
GND
GND
V-CLP
V-CLP
V-VD
V-VD
V-HD
V-HD
GND
GND
15-CS
15-CS
GND
GND
PALV
PALV
GND
GND
V-B
V-B
GND
GND
V-G
V-G
GND
GND
V-R
V-R
GND
GND
B-Y
B-Y
GND
GND
Y
Y
GND
GND
R-Y
R-Y
GND
GND
A-R
A-R
A-G
A-G
A-L
A-L
GND
GND
SIRCS
PWR PROT
GND
GND
NF OFF
U-CL
NR OFF
U-DA
FILC
LAMPC
F-CL
F-CL
F-DA
F-DA
F+5V
F+5V
SCL
SCL
SDA
SDA
GND
GND
SUB+3V
SUB+3V
SUB+3V
SUB+3V
GND
GND
GND
GND
SUB+5V
SUB+5V
SUB+5V
SUB+5V
GND
GND
GND
GND
D+3.3V
D+3.3V
D+3.3V
D+3.3V
GND
GND
GND
GND
D+5V
D+5V
D+5V
D+5V
GND
GND
A+3.3V
A+3.3V
GND
GND
GND
GND
A+5V
A+5V
A+5V
A+5V
C
A-R
A-R
A-G
A-G
A-L
A-L
GND
GND
SIRCS
PWR PROT
GND
GND
NF OFF
U-CL
NR OFF
U-DA
FILC
LAMPC
F-CL
F-CL
F-DA
F-DA
F+5V
F+5V
SCL
SCL
SDA
SDA
GND
GND
SUB+3V
SUB+3V
SUB+3V
SUB+3V
GND
GND
GND
GND
SUB+5V
SUB+5V
SUB+5V
SUB+5V
GND
GND
GND
GND
D+3.3V
D+3.3V
D+3.3V
D+3.3V
GND
GND
GND
GND
D+5V
D+5V
D+5V
D+5V
GND
GND
A+3.3V
A+3.3V
GND
GND
GND
GND
A+5V
A+5V
A+5V
A+5V
GND
USB REG
GND
GND
GND
GND
GND
GND
GND
GND
V-CLP
V-CLP
V-VD
V-VD
V-HD
V-HD
GND
GND
15-CS
15-CS
GND
GND
PALV
PALV
GND
GND
V-B
V-B
GND
GND
V-G
V-G
GND
GND
V-R
V-R
GND
GND
B-Y
B-Y
GND
GND
Y
Y
GND
GND
R-Y
R-Y
GND
GND
B
TO GB BOARD
CN707
9
8
7
6
5
4
3
2
1
B25
A25
B24
A24
B23
A23
B22
A22
B21
A21
B20
A20
B19
A19
B18
A18
B17
A17
B16
A16
B15
A15
B14
A14
B13
A13
B12
A12
B11
A11
B10
A10
B9
A9
B8
A8
B7
A7
B6
A6
B5
A5
B4
A4
B3
A3
B2
A2
B1
A1
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
A26
B26
A27
B27
A28
B28
A29
B29
A30
B30
A31
B31
A32
B32
A33
B33
A34
B34
A35
B35
8
7
6
5
4
3
2
1
A-L
A-L
A-G
A-G
A-R
A-R
GND
GND
SDAT
SDAT
GND
GND
SCLK
SCLK
GND
GND
DAC CS
AUDIO CS
GND
AUDIO MUTE
GND
GND
A+5V
A+5V
A+5V
A+5V
GND
GND
D+3.3V
D+3.3V
GND
GND
SUB+5V
SUB+5V
GND
GND
D+5V
D+5V
GND
GND
LAMP SENS
FAN PROT
FAN CONT1
FAN CONT2
LAMP ON
POWER ON
EXT SW
TXD
RXD
GND
GND
GND
B9
G9
B8
G8
B7
G7
B6
G6
B5
G5
B4
G4
B3
G3
B2
G2
GND
GND
R9
GND
R8
GND
R7
GND
R6
GND
R5
UF CS
R4
GND
R3
VSOX
R2
VSOX
GND
GND
HSOX
HSOX
GND
GND
OCLK
OCLK
GND
GND
LCD TEMP
LCD TEMP
LAMP TEMP
LAMP TEMP
GND
GND
SCL
SCL
SDA
SDA
GND
GND
KEY0
KEY0
KEY1
KEY1
PSAVE LED
PSAVE LED
LAMP LED
LAMP LED
TEMP LED
TEMP LED
POWER LED
POWER LED
MD2
MD1
FWR
VIN
RES
RXD
TXD
GND
Frame (2/2)
VPL-CS2/CX1
8-3
D
Frame (2/2)
TO C BOARD CN809
TO C BOARD CN808
CN403
50P
CN405
70P
CN402
50P
CN105
50P
CN123
3P
:SMD
E
F
G
1
FLASH
CN406
8P
WHT
:SMD
CN401
70P
2
CN103
70P
QA
3
CN104
70P
CN201
70P
4
NF
BA
B-SS1707<...>-KESSEN
5
8-3
H
NF, QA
NF, QA
8-2. Schematic Diagrams and Printed Wiring Boards
QA Board
TP102
JL118
JL108
C143
R181
R179
R183
R182
R149
R148
Q106
Q107
R140
Q103
R113
R111
Q102
R180
R178
R177
R176
R175
R174
C141
Q105
D131
R156
JL135 R157
C161
R189
R193
R144
R108
R112
JL132
JL133
JL144
R192
C158
R188
IC124
FB134
R158
JL131
R119
D121
R131
D122
C120
C127 C125
R115
R130 R121
R116
R128
R110
C126 R143
R122
R199
R102
D103
JL102
R133
JL137
Q104
R104
JL111
R120
L102
D123
D135
R134
R103
R101
L104
JL101
R123
C169
CN106
L105
JL116
D136
FB123 R124
D125
JL125
D124
R167
R162
JL114
R125
FB124
FB131
JL113
R135
R161
JL109
JL106
JL112
JL110
JL123
FB126
R163
JL124
R164
JL143
JL103
JL140
JL129
JL128
D126
JL134 JL107
JL122
FB121
R165
R166
FB122
J121
FB127
JL117
C124
C118
C115
D108
D107
C123
FL103
FB129
D127
D128
FB130
CN122
FB125
L108
R100
C114
IC108
IC105
R147
CN103
C106
C109
IC107
FB138
R118
FL105
L101
JL115
JL141
IC101
IC106
C119
FL102
C136
R146
C165
C164
R127
J101
C117
C116
JL130
J122
D130
D129
*:B Side mount
FB128
FB132
FB133
JL127
JL105
R106
L107
L103
D106
R126
C105
R107
R105
L106
J102
D105
JL121
IC121
C121
C104
NF Board
JL104
D-5
A-4
A-5
C103
D104
X101
C122
C107
C108
S202
X101
X102
X103
D133
R160
CN105
IC122
IC102
C166
R198
FB137
FL101
D109
R136
A-3
A-3
R109
R114
C146
IC104
C112
C113
FL104
TP101
TP102
D101
D102
FB139
C101
L109
R159
C135
C102
R138
C137
C163
R139
IC123
R117
IC103
JL142
R194
R196
R129
C157
R197
R195
C138 R154
C139 R155
C140
C160 C159
R153
C128
C149
C150
C148
C151
C152
C153
R184
R185
C154
C162
FB136
C129
R186
R187
C142
X102
C134
IC125
R168
IC128
X103
C110
* B-5
* B-6
* C-6
C-5
G-5
F-5
E-5
F-5
E-4
* D-4
* D-4
* C-4
* E-6
* E-6
* E-6
* E-5
* E-5
* F-6
* F-6
* A-5
* B-4
* C-4
C132
C111
D101
D102
D103
D104
D105
D106
D107
D108
D109
D121
D122
D123
D124
D125
D126
D127
D128
D129
D130
D131
D133
D135
C130
IC127
* B-5
* B-5
* C-6
* A-5
* B-4
* B-4
C131
CN102
Q102
Q103
Q104
Q105
Q106
Q107
CN104
CN101
D-5
D-5
C-4
C-5
E-5
D-4
E-4
E-4
G-5
C-5
B-5
* A-5
A-5
A-3
A-4
CN123
IC101
IC102
IC103
IC104
IC105
IC106
IC107
IC108
IC121
IC122
IC123
IC124
IC125
IC127
IC128
C155
C156
R142
R145
C144
R152
R173
R172
R171
R170
R169
TP101
R137
R141
L131
1-675-792-14
C133
QA Board
S101
IC071
R072
R071
CN071
C071
NF -A SIDE-
NF-B SIDE-
SUFFIX: -12
SUFFIX: -12
QA -A SIDE-
QA -B SIDE-
SUFFIX: -14
SUFFIX: -14
8-4
8-4
VPL-CS2/CX1
NF, QA (1/2)
NF, QA (1/2)
. Refer to page 8-4 for Printed Wiring Board
CN104
70P
TO BA BOARD CN201
+9V
+9V
+9V
+9V
GND
GND
A5V
A5V
A5V
A5V
GND
GND
F-DA
F-DA
F-CL
F-CL
R101
100
:CHIP
S SEL TO(1/2)
C101
10
16V
:AL-CP
L102
BLm21B03
Y
C
4
D101
RD5.6SB-T1
PROTECT
R102
75
:RN-CP
JL101
#
R111
22k
:CHIP
Q102
2SC2712
BUFF
S-C
R108
1k
:CHIP
3
2
1
S
L104
BLm21B03
JL102
#
CN106
4P
D103
RD5.6SB-T1
PROTECT
D102
RD5.6SB-T1
PROTECT
R115
22k
:CHIP
R116
22k
:CHIP
JL115
#
VIDEO
R104
75
:RN-CP
L105
BLm21B03
J101
C103
47
16V
:AL-CP
D104
RD5.6SB-T1
PROTECT
R113
22k
:CHIP
Q103
2SC2712 R159
100
BUFF :CHIP
R114
22k
:CHIP
Y
C102
47
16V
:AL-CP
R103
75
:RN-CP
R158
100
:CHIP
C
R112
22k
:CHIP
S-Y
R109
1k
:CHIP
C120
1
10V
B:CHIP
TO(1/2)
VIDEO
R160
100
:CHIP
Q104
2SC2712
BUFF
C-V
C104
10
20V
:TA-CP
F+5V
F+5V
SDA
SDA
L109
4.7µH
R110
1k
:CHIP
R
A-R
R105
470k
:CHIP
L106
BLm21B03
JL104
#
+5V
D105
RD9.1SB2-T1
PROTECT
SCL
SCL
V-VD
V-VD
V-HD
V-HD
AUDIO IN
L
J102
TO(1/2)
A-L
R106
L107
BLm21B03 470k
:CHIP
JL105
#
C105
10
20V
:TA-CP
D106
RD9.1SB2-T1
PROTECT
V-CLP
V-CLP
S-IN
S-IN
A-GND
R107
0
:CHIP
L103
BLm21B03
A +3.3V
3.3V-3
SUB
SUB
SUB +3.3V
3.3V
5V
IC101
BA033FP-E2
3.3V REG
FL101
NFM41P11C204
EMI
I
D +3.3V
3.3V-2
O
G
C117
47
6.3V
:AL-CP
1
JL112
#
L108
10µH
D108
D1FS4A-TA
+16.5V
+6V
C136
10
10V
F:CHIP
R146
10k
:CHIP
8
7
6
1
5
+6V
R163
100k
:CHIP
R162
100k
:CHIP
+16.5V
C119
C123
C118
100
22
22
10V
10V
10V
F:CHIP F:CHIP :TA-CP
4
JL113
#
R136
10k
:CHIP
8
I
C116
22
16V
:AL-CP
C114
0.0033
B:CHIP
D109
1SS355
7
EMI
IC106 5V-2 D +5V
PQ05SZ1U
5V REG
EMI
R100
4.7k
:RN-CP
B-Y
B-Y
GND
GND
R-Y
R-Y
GND
GND
R167
27k
:CHIP
R165
47k
:CHIP
6
FL105
NFM41P11C204
BOOST
Vc
VIN FB/SNS
VSW
GND
SHDN SYNC
VIDEO
VIDEO
GND
GND
R164
33k
:CHIP
5
D107
D1FS4A-TA
FL103
NFM41P11C204
IC105
LT1376
3.3V DDC
2
C115
0.1
25V
B:CHIP
3
JL110
#
4
JL111
#
+5V
1
C113
82
6.3V
:AL-CP
R161
1k
:CHIP
2
O
G
R147
4.7k
:CHIP
IC107
TA75W393FU
PROTECTOR
3
I
R135
10k
:CHIP
R118
1.8k
:RN-CP
FB138
0
8
A +5V
5V-3
7
C111
47
16V
:AL-CP
IC104
PQ05SZ1U
5V REG
C112
22
16V
:AL-CP
JL114
#
C
C
GND
GND
Y
Y
GND
GND
SUB 5V
JL108
#
O
G
EMI
1
2
3
4
5
6
7
8
9
C108
47
6.3V
:AL-CP
C107
22
16V
:AL-CP
6
I
C110
33
25V
:AL-CP
FL104
NFM41P11C204
JL109
#
O
G
C109
47
6.3V
:AL-CP
6V
TO GB BOARD CN707
+16.5V
AUDIO +B
GND
GND
+6V
+6V
GND
GND
GND
JL116
#
5
FL102
NFM41P11C204
CN102
9P
I
15K-CS
15K-CS
PAL-V
PAL-V
GND
GND
IC103
TA78M09F(TE16L) 9V A +9V
9V REG
16.5V
EMI
JL107
#
O
G
C106
22
16V
:AL-CP
JL106
#
2
1
2
3
4
3
TO GA BOARD CN605
SUB +5V
SUB +5V
GND
GND
IC102
BA033FP-E2
3.3V REG
4
CN101
4P
5V-3
AUDIO +B
R166
56k
:CHIP
IC108
TA75W393FU
PROTECTOR
Y
Y
GND
GND
V-R
V-R
GND
GND
+6V
SIRCS RECEIVE
(FRONT)
JL122
#
R120
56k
:CHIP
2
VDD
IRIN1
IREN1
IRIN2
IREN2
NR ≠≠
ON
≠
RES
IROUT
SIRCS
VSS
C169
0.1
25V
B:CHIP
≠
NF ≠≠
ON
R117
5.6k
:CHIP
C121
0.1
25V
B:CHIP
VCC
OUT
GND
IC121
GP1U28Y
SIRCS RECEIVE
R138
47k
:CHIP
R140
100
:CHIP
TO(1/2)
R139
100
:CHIP
JL121 #
4
5
17 16 15 14 13 12 11 10 9
8
+5V
R143
10k
:CHIP
R123
5.6k
:CHIP
8
C133
100p
CH:CHIP
R121
3.9k
:CHIP
C135
1
10V
B:CHIP
6
IC123
IRMF-SOT-QTP
REMOTE SW
7
R137
100
:CHIP
7
JL118
#
R072
100
1/10W
:CHIP
R122
5.6k
:CHIP
MOUSE
CN122
6P
BUS
C146
0.1
25V
B:CHIP
JL128
#
FB129
BK2125HM601
D127
RD5.6SB-T1
R130
47
:CHIP
CLK
VDD
X2
X1
VSS
PC2
PC1
PC0
RESET
N.C.
PB7
PB6
VPP
PB5
PB4
PB3
PB2
PB1
V-G
V-G
FROM(2/2)
DS2+
IC122
RCV4-A1T-MASK-25
RCV4
1
FB121
BK2125HM601
3
1
2
3
6
SUB+5V
SIRCS-NF
GND
D123
RB501V
5V
5
C071
10
20V
:TA-CP
SUB+5V
SIRCS-NF
GND
R141
47k
:CHIP
1
1
2
3
CN123
3P
:SMD
2
R071
47
1/10W
:CHIP
3
CN071
3P
WHT
:SMD
4
IC071
RS-140-T
IR-RX
VCC
OUT
GND
DS2-
C165
33p
CH:CHIP
R119 R127
75
1M
:RN-CP :CHIP
+5V/DTR
R198
1.5k
:CHIP
C164
33p
CH:CHIP
X101
24MHz
VDDA
USBVCC
USBUSB+
VSSA
PA0
PA1
N.C.
N.C.
N.C.
PA2
PA3
PA4
PA5
PA6
PA7
PB0
18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34
NF
C166
0.1
25V
B:CHIP
D121
RB501V
GND
GND
V-B
V-B
D135
RB501V
CN103
70P
9V
5V-3
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
A26
B26
A27
B27
A28
B28
A29
B29
A30
B30
A31
B31
A32
B32
A33
B33
A34
B34
A35
B35
L101
BLm41P750S
5V-3
L131
0
:CHIP
3.3V-3
5V-2
F-DA
F-CL
F+5V
3.3V-2
SDA
CN105
50P
SCL
TO B BOARD CN402
V-VD
V-HD
JL131
#
R-Y
V-CLP
C130
47
6.3V
:AL-CP
S SEL
TO(1/2)
15K-CS
C131
47
6.3V
:AL-CP
PAL-V
C132
47
6.3V
:AL-CP
C
S-C
TO(1/2)
V-R
C128
47
6.3V
:AL-CP
Y
S-Y
TO(1/2)
V-G
C129
47
6.3V
:AL-CP
VIDEO
C-V
TO(1/2)
V-B
C134
47
6.3V
:AL-CP
B-Y
PAL-V
R-Y
15K-CS
Y
V-HD
V-VD
RV-R
V-CLP
GV-G
BV-B
USB REG
TO (2/2)
USB5V
TO(1/2)
JL133
#
B-Y
C122
100
16V
:AL-CP
D122
RD5.6SB-T1
PPOTECT
JL132
#
Y
JL144 #
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
GND
GND
R-Y
R-Y
GND
GND
Y
Y
GND
GND
B-Y
B-Y
GND
GND
V-R
V-R
GND
GND
SUB
5V
SUB
3.3V
V-G
V-G
GND
GND
V-B
V-B
GND
GND
PALV
PALV
GND
GND
15-CS
15-CS
GND
GND
V-HD
V-HD
V-VD
V-VD
V-CLP
V-CLP
GND
GND
GND
GND
GND
GND
GND
GND
USB REG
GND
SDA
SCL
F+5V
F-DA
F-CL
S202
S101 JL140
#
JL134 #
TO(2/2)
U-DA
ON
≠
TO(1/2) NR ≠≠
TO(2/2)
U-CL
TO(1/2) NF ON
≠≠
≠
JL135 #
JL141 #
JL142 #
JL103
#
JL137
#
A-L
TO(1/2)
A-GND
A-R
JL143 #
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
A26
B26
A27
B27
A28
B28
A29
B29
A30
B30
A31
B31
A32
B32
A33
B33
A34
B34
A35
B35
TO B BOARD CN401
A+5V
A+5V
A+5V
A+5V
GND
GND
GND
GND
A+3.3V
A+3.3V
GND
GND
D+5V
D+5V
D+5V
D+5V
GND
GND
GND
GND
D+3.3V
D+3.3V
D+3.3V
D+3.3V
GND
GND
GND
GND
SUB+5V
SUB+5V
SUB+5V
SUB+5V
GND
GND
GND
GND
SUB+3V
SUB+3V
SUB+3V
SUB+3V
GND
GND
SDA
SDA
SCL
SCL
JL129
#
FB130
BK2125HM601
C125
100p
D128
RD5.6SB-T1 CH:CHIP
LAMPC
FAN-C
U-DA
NR ON
U-CL
NF ON
GND
GND
PWR PROT
SIRES
GND
GND
A-L
A-L
A-G
A-G
A-R
A-R
5
R128
100
:CHIP
0.1
25V
B:CHIP
QA (1/2)
R133 R134
56k
56k
:CHIP :CHIP
(VIDEO INPUT,MOUSE CONNECTOR)
B-SS1697<...>-QA.-P1
8-5
VPL-CS2/CX1
A
B
C
D
8-5
E
4
R199
10k
:CHIP
C127
C126
100p
CH:CHIP
3
SIRCS
TO(1/2)
DAT/RI
G
FB137
0
:CHIP
2
F+5V
F+5V
F-DA
F-DA
F-CL
F-CL
R131
47
:CHIP
C137
100p
CH:CHIP
1
F
G
H
QA (2/2)
QA (2/2)
. Refer to page 8-4 for Printed Wiring Board
1
3.3V -1
8
3.3V -1
IC125
ST72T631L4M1-102 R189
0
USB PJ CTRL :CHIP C161
0.1
25V
B:CHIP
C159
R153
33p
1M
CH:CHIP :CHIP
C162
22
6.3V
:AL-CP
R192
10k
:CHIP
X103
24MHz
6
7
8
C152 R184 3k :CHIP
0.1
25V
B:CHIP
C151
0.1
C150
25V
10p
B:CHIP CH:CHIP
X102
4MHz
R193
1.5k
:CHIP
DS3DS3+
R157
100
:CHIP
U-DA
TO(1/2)
U-CL
R156
100
:CHIP
C149
10p
CH:CHIP
5V
IC124
S-80842ANNP
RESET
1
TO(2/2) RESET
D131
DAN202K
C138
1
10V
B:CHIP
C140
0.01
B:CHIP
OUT
VDD
VSS
N.C.
4
R154 R155
10k
33k
:CHIP :CHIP
3
C148
0.1
25V
B:CHIP
R178 R179 R180 R181
15
15
15
15
:CHIP :CHIP :CHIP :CHIP
R148 15k :CHIP
5
4
R125
15k
:CHIP
R188
#
2
R124
15k
:CHIP
R197
10k
:CHIP
R144
C158
100
0.01
:CHIP B:CHIP
R185 3k :CHIP
D20
D21
D30
D31
DGND
DGND
D40
D41
D50
D51
GND
RESET
TO(2/2)
USB REG
TO(1/2)
12
13
14
R177 15 :CHIP
15
16
17
18
19
20
21
22
R168
10k
:CHIP
R169
#
R174 15 :CHIP
R173 15 :CHIP
11 10 9
R172 15 :CHIP
23 24 25 26 27 28 29 30 31 32 33
7
8
R171 15 :CHIP
CS2
CS1
DGND
DVDD
AVDD2
AGND2
AGND1
X1
CLK/X2
AVDD1
OSL
IC127
µPD72012
USB HUB CTRL
R176 15 :CHIP
C143
0.01
B:CHIP
R170 15 :CHIP
6
5
US+
US-
R175 15 :CHIP
TP101
DVDD
DGND
PS SEL
PV SEL
DGND
RESET
UD0
UD1
D10
D11
DGND
C160
33p
CH:CHIP
Q105
DTC144EKA
SW
R186 R187
100k 100k
:CHIP :CHIP
C153
0.1
25V
B:CHIP
17 16 15 14 13 12 11 10 9
C154
0.1
25V
B:CHIP
VDDA
VDD
OSCOUT USBVCC
OSCIN USBDM
USBDP
VSS
VSSA
PC2
PA0
PC1
PA1
PC0
N.C.
RESET
N.C.
N.C.
N.C.
PB7
PA2
PB6
PA3
VPP
PA4
PB5
PA5
PB4
PA6
PB3
PA7
PB2
PB0
PB1
18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34
C155
0.1
25V
B:CHIP
44
43
42
41
40
39
38
37
36
35
34
4
3
2
1
2
DS1+
DS1-
7
C141
0.1
25V
B:CHIP
PP5
PP4
PP3
PP2
PP1
DVDD
DVDD
CLKSEL
CS5
CS4
CS3
C144
0.1
25V
B:CHIP
US+
US-
C157
0.1
25V
B:CHIP
+5V
Q106
DTC144EKA
SW
R152
1.5k
:CHIP
TP102
FB136
BLMP750S
1
C156
0.1
25V
B:CHIP
OUT2
IN
GND
OUT1
2
VBUS
4
R142
510k
:CHIP
R145
510k
:CHIP
R129
1k
:CHIP
CTL2
FLG2
FLG1
CTL1
5V -1
USB5V
C142 TO(1/2)
100
6.3V
:AL-CP
6
1
2
3
R195
2.2k
:CHIP
R196
#
R194
100
:CHIP
IC128
µPD16875
USB POWER SUP
3
+3.3V
C163
22
6.3V
:AL-CP
Q107
2SA1162
SW
5
D133
RB501V
FB139
BLMP750S
C139
0.1
25V
B:CHIP
R149 15k :CHIP
3
DS2+
DS2-
US-
US+
VBUS
DS1-
DS1+
R183 15k :CHIP
DS2+
DS2DS3+
DS3-
R182 15k :CHIP
A TYPE USB
J121
FB123
BK2125HM601
FB122
FBMH3216HM501NT
DS2DS2+
1
JL123 #
2
3
4
TO(1/2)
FB127
FBMH3216HM501NT
JL124 #
JL125 #
FB124
BK2125HM601
D126
RD5.6SB-T1
JL117
#
JL127
#
FB128
BK2125HM601
FB126
0
:CHIP
FB125
D124
FBMH3216HM501NT UDZ-TE-17-3.9B
C124
1
10V
B:CHIP
D125
UDZ-TE-17-3.9B
D136
#
4
B TYPE USB
J122
D130
UDZ-TE-17-3.9B
JL130 FB132
# BK2125HM601
D129
UDZ-TE-17-3.9B
FB131
FBMH3216HM501NT
FB133
0
:CHIP
R126
#
FB134
0
:CHIP
QA (2/2)
(A/B USB CONNECTOR)
B-SS1697<...>-QA-P2
S-80842ANNP (IC124)
VOO
2
5
1
OUT
VREF
VSS
4
8-6
A
B
C
D
8-6
VPL-CS2/CX1
E
F
G
H
BA
BA
BA Board
BA Board
C303
C325
R312
JL228
R244
R207
R211
R212
JL223
R215
R214
R213
R210
SUFFIX: -14
OPEN COLLECTOR
LEVEL
CONVERTER
LATCH
ADIN 2
NTSC:1H
PAL :2H
A/D
NTSC:1H
PAL :2H
CLPO 1
+
-
+
-
D/A
9 AYO
APED-C
34
33
32
31
30
29
28
27
26
25
24 AP-MUTE
NR
Clamp
DPicture
VM Amp
Sharpness
R-Y
NC 40
D/A
21 CBLK
Y
7 ACO
1REF 41
R-Y
B-Y
Hue
Color
CEC
IREF
Axis
R-Y
G-Y
B-Y
Matrix
Clamp
Pulse
Interface
C-OFF 42
LATCH
LOGICAL OPERATION
GND 43
23 CLP1
22 BGP
B-Y
ADAPTIVE
FILTER OP
LATCH
Y
YUV-SW
Y2-IN 39
POWER
ON
RESET
LATCH
35
RY2-IN 38
CLAMP
I2C DECODER
LATCH
36
BY2-IN 37
DL
LEVEL
CONVERTER
CLP-C
SW2
LEVEL
CONVERTER
VM-OUT
SW3
VERTICAL
BORDER EMPHA
SP-MUTE
SAD0
9
VM-MUTE
SAD1
10
YUV-SW
SAD2
11
VCC1
SDA
12
GND1
SCL
13
CXA1839Q-T6 (IC271)
BY1-IN
VCC
14
C245
BA -B SIDE-
CXD2064Q-T6 (IC221)
15
JL222
R208
R209
SUFFIX: -14
16
R253
JL221
R202
C201
FB201
JL220
BA -A SIDE-
CXA1875AM-T4 (IC201)
C239
C241
R320
JL204
R256
R257
C304
R311
R273
JL229
Q302 JL215 JL216
R318
R314
R271
R216
R205
R206
JL303
JL209 JL211 JL210
JL219 R299
R289
C300
JL218
Q228
JL302
R319
R315
R323
R322
C297
R283
R217
CN201
C324
C313
C323
R297
JL227
JL202 JL201 JL203
IC202
*:B Side mount
LATCH
JL205
Q229
JL301
JL214
R201
C202
IC201
C247
R304
IC302 Q303
JL213
JL207
JL208
R203
R204
R279
R287
R218
JL206
R313
JL212
R277
C287
R282
C286
C230
C337
R306
C320
R316
R317
R305
JL224 R321
C327
R324
R309
R275
R276
C285
R281
R280
Q273
C275
C274
Q272
L224
Q271
JL226
C273
R296
C271
C291
R292
FL303
L226
FB271 C281
C333
C331
FL302
C332 C330
R300
JL225
R285
R284
R242
TP274
R274
R286
R278
R291
R293
C318
C334
R288 TP271
R298
TP272
R290 TP273
C321
C322
C296
C295
C294
R294
C293
C292
IC271
C279
C278
C277
C276
R272 C282
C283
C284
IC301
C326
R303
FL221
R225
R230
Q221
R231
R222
R302
C319 C317 C338 R310
C221
C302
L225
C236
L222
C244
C246
C301
C312
X301
R234
C228
R228
R223
R227 C222
C224
Q222
IC221
R261 R258
R260 R259
C225
FB202
R254 C242 C240
C243 R255
C232
C314
C315
RY1-IN
B-3
C233
L271
C280
Y1-IN
X301
R250
L221
FL301
GND
D-2
D-2
D-1
D-3
R235
R237
L223
TP271
TP272
TP273
TP274
Q227
FL222
FL223
B-2
A-1
A-2
B-2
* A-2
* A-2
C-1
D-1
D-1
* B-1
* B-1
Q226
R243
R245
R249
R252 C237
C238 R251
Q221
Q222
Q226
Q227
Q228
Q229
Q271
Q272
Q273
Q302
Q303
R239 C226
R247
C328
B-1
C-1
A-1
D-2
B-2
* C-1
C234
C235
IC201
IC202
IC221
IC271
IC301
IC302
C227
1-675-793-14
20 FFTIM
19 VS
ABL
Amp
18 VEQ
4fsc
DAC
GOUT 45
AMP
AMP
AMP
AMP
PHASE
COMPARATOR
VCO
SW
D-Color
Bright
1/4
SW1
SW0
DAC4
DAC3
DAC2
DAC1
DAC0
GND
37
38
CPO
VCV
PLSL
FIN
CKSL
1
2
3
4
5
6
VCC2
8
39
YM2
7
44
YS2
6
42
LB2-IN
5
16 VTIM
Amp
Clamp
LG2-IN
4
17 VBLK
YS1
YM1
Amp
Clamp
ABL-MUTE 48
LR2-IN
3
Clamp
15 SSCP
ABL-REQ 47
SW
2
YS2
YM2
BOUT 46
1/2
1
R
G
B
Bus
Dec
7
8
9
10
11
12
YM1
AMP
R G B
ROUT 44
REG
YS1
DAC
LB1-IN
DAC
LG1-IN
DAC
LR1-IN
DAC
VCC
GND2
–
+
14 SCL
13 SDA
BA Board Waveforms
1
2
1.6 Vp-p
TP271 [V-R]
VPL-CS2/CX1
8-7
8-7
3
1.6 Vp-p
TP272 [V-G]
1.6 Vp-p
TP273 [V-B]
BA
BA
CN201
70P
5V
FL301
NFM41P11C204
9V
V-HD
JL209 #
V-CLP
7
FL302
NFM41P11C204
VIDEO
INPUTA/VIDEO
≠≠≠≠≠
≠≠≠≠
B1
G1
R1
Y/C GND
COMB C/FORCED S
D-GND
HS
SDA
SYNC-Vcc
Y FOR SYNC
SCL
SCP
R313
100
:CHIP
IC302
TC75S56F
3
1
2
4.6
R324
47
:CHIP
0.8
V-HD
V-VD
R317
6.8k
:CHIP
R251
1.5k
:CHIP
VY
VR-Y
VB-Y
JL224 #
≠≠≠≠≠≠
INPUTA/VIDEO
≠≠≠≠≠
R296
220
:CHIP
R300
100
:CHIP
L271
Hm102
:CHIP
C275
0.1
25V
B:CHIP
C241
0.1
25V
B:CHIP
R297
#
C279
1
16V
B:CHIP
5.0
5.0
Q273
HN1B01FU-TE85R
BUFF
2.6
R299
100
:CHIP
2.0
R283
10k
:CHIP
1
R280
22k
:CHIP
R291
22k
:CHIP
C287
0.01
B:CHIP
2
3
R288 R298 R290
100
100
100
:CHIP :CHIP :CHIP
TP274
1
2
3
V-R
V-G
V-B
4
5
6
7
8
4
3
2
1
1.6
Q228
2SA1162
BUFF 0.9
9 10
12
R249
150
:RN-CP
C236
100
16V
:AL-CP
L222
BK2125Hm102
3
2
1
C240
48
CLPEN 47
CLVD 46
PLVD 45
VCV 44
PLVS 43
CPO 42
ADCK 41
MCKO 40
PLSL 39
CKSL 38
FIN 37
IRF
0.1
25V
B:CHIP
CLVS
VB
TEST
DVDD
IC221
CXD2064Q-T6
D.COMB
MOD2
DVSS
MOD1
VEH3
VEH2
VEH1
PNR
DTR
C242
0.1
25V
B:CHIP
R254
56k
:CHIP
R255
C243
560
0.022
:CHIP B:CHIP
C244
0.001
B:CHIP
25 26 27 28 29 30 31 32 33 34 35 36
5V
C246
0.1
25V
B:CHIP
NTPL1
+5V
R284
100
:CHIP
C245
0.1
25V
B:CHIP
R258
0
:CHIP
C247
82
6.3V
L223
4.7µH
R260
#
R259
0
:CHIP
R261
#
SCL
SDA
R285
100
:CHIP
9 10 11 12
C291
0.01
B:CHIP
+9V
G
5
R245
1k
:CHIP
GND
R294
C292 C293
1k
0.01 0.01
B:CHIP B:CHIP :CHIP
R
APED-C
NC
Y1-IN
RY1-IN
BY1-IN
GND1
VCC1
YUV-SW
VM-MUTE
SP-MUTE
VM-OUT
CLP-C
0.6
0
R276
22k
:CHIP
TP271 TP272 TP273
R218
10k
:CHIP
Y
R293
0
:CHIP
V-R V-G V-B
LG2-IN
LB2-IN
YS2
YM2
VCC2
GND2
LR1-IN
LG1-IN
LB1-IN
YS1
YM1
8
7
R289
100
:CHIP
6
VCC
WC
SCL
SDA
5
1
2
3
4
E0
E1
E2
GND
R292
33k
:CHIP
AP-MUTE
IC271
CXA1839Q-T6
RGB DECODER
LR2-IN
C286
0 0.01
B:CHIP
R274
27k
:CHIP
4
DVSS
2.0
10V
B:CHIP
R217
10k
:CHIP
5
TEST
R216
10k :CHIP
2.6
6
DVDD
R282
33k
:CHIP
C284
0.01
B:CHIP
7
TEST
R281
0
:CHIP
IC202
M24C64-WMN6T(A)
C300
NVM
1
1k
Q272
HN1B01FU-TE85R :RN-CP
BUFF
24
CLP1 23
BGP 22
CBLK 21
FFTIM 20
VS 19
VEQ 18
VBLK 17
V-TIM 16
SSCP 15
SCL 14
SDA 13
13
14
15
16
17
18
19
VEH3
20
VEH2 21
VEH1 22
23
24
8
TEST
C285
0 0.01
B:CHIP
R286
R278
680
:RN-CP
37 BY2-IN
38 RY2-IN
39 Y2-IN
40 NC
41 IREF
42 C-OFF
43 GND
44 R-OUT
45 G-OUT
46 B-OUT
47 ABL-REQ
48 ABL-MUTE
R250
150
:RN-CP
5V
C232
0.1
25V
B:CHIP
12 11 10 9
TRAP
2.0
R257
#
C239
0.1
25V
B:CHIP
APCN
2.6
B-Y
R-Y
Y
C282
0.01
B:CHIP
Q226
2SA1162
BUFF
+5V
DVSS
V-B
R287
1k
:RN-CP
R279
1.5k
:RN-CP
1.5
12
C238
0.1
25V
B:CHIP
TEST
B
R275
0
:CHIP
R256
0
:CHIP
C280
10
16V
:AL-CP
36 35 34 33 32 31 30 29 28 27 26 25
R273
1.5k
:RN-CP
R272
220
:RN-CP
C276
C277
C278
0.01
0.01
0.01
B:CHIP B:CHIP B:CHIP
C234
0.1
25V
B:CHIP
CLPO
9V
JL226 C274
#
47
R271 16V
100 :TA-CP
:CHIP
C233
0.1
25V
B:CHIP
DVDD
B-Y
JL208 #
R252
3.3k
:CHIP
ADIN
R253
2.2k
:CHIP
FB271
BK2125HM102
C283
0.01
B:CHIP
1
C235
0.1
25V
B:CHIP
R320
47
:CHIP
2.9
NTPL1
R277
33k
:CHIP
V-G
+5V
2
R315
1k
:CHIP
NTPL2
G
JL207 #
Q271
HN1B01FU-TE85R
BUFF
3
9 10
7
RB
V-R
4
R237
1k
:CHIP
FL223
R247
560
:CHIP
ADVS
R
6
ADVD
JL206 #
+9V
1.9
COMB Y
5V
C281
1
10V
B:CHIP
5
R243
560
:CHIP
R244
100
:CHIP
RT
C271
#
7
R242
5.6k
:CHIP
Q229
2SC2712
BUFF
1.3
0.3
Q222
2SA1162
BUFF
R223
4.7k
:CHIP
0.8
ACO
Y
10 9
7
R321
100
:CHIP
AYO
Y
JL202 #
R227
1k
:CHIP
FL222
DAVS
R-Y
6
R239
1k
:CHIP
C237
0.1
25V
B:CHIP
C273
#
6
1.8
B-Y
R-Y
5
R235
560
:CHIP
1.1
JL225
#
JL201 #
12
C226
0.01
B:CHIP
Q303
2SC2712
INV
0.3
4
R234
5.6k
:CHIP
DAVD
B-Y
Q227
2SC2712
BUFF
C228
0.1
25V
B:CHIP
C230
0.1
25V
B:CHIP
C304 R309
3.3k
0.1 :RN-CP
25V
B:CHIP
R311
4.7k
:RN-CP
VIDEO
C227
100
16V
:AL-CP
#
R314
1k
:CHIP
R319
47
:CHIP
3
FB202
BK2125HS102
R322
0
:CHIP
0.1 4.9
0.1
R323
2
FL221
COMB C
C330
0.01
C328 B:CHIP
1
10V
B:CHIP
1.6
1
R230 R231
1.2k
33k :CHIP
:CHIP
R305
100
:CHIP
S-Y
JL203 #
Y2
D-VDD
9 10 11 12 13 14
JL215 #
JL214 #
Cr2
COMB Y
8
L226
4.7µH
S-C
Cb2
B2
VS
7
Q302
2SC2712 R312
100
INV :CHIP
R318
47
:CHIP
Y/C Vcc
G2
R2
YS/YM
Xtal
BPH-Fil
6
EMI
PALV
JL216 #
5
C327
0.1
25V
B:CHIP
C332
0.01
B:CHIP
C331
47
16V
:AL-CP
C333
FL303
C334
47
NFM41P11C204 16V
0.01
:AL-CP B:CHIP
15K-CS
JL204 #
VIDEO
EMI
L225
4.7µH
R209
100
:CHIP
R213
100
:CHIP
CVBS OUT(2VPpp)
SW2
GND
8
R210
100
:CHIP
R208
100
:CHIP
JL221 R214 R207
100
#
100
:CHIP :CHIP
JL223 #
6
4
2.3
R225
560
:CHIP
2.8
2.2
C318
4.7 C320
35V
:AL-CP 0.1
25V
B:CHIP
C321
0.1 25V B:CHIP
C322
0.1 25V B:CHIP
Y/B-Y/R-Y
5
3
YS3
VR-Y
VB-Y
VY
C224
10
20V
:TA-CP
R228
1k
:CHIP
Q221
2SC2712
BUFF
4
4
2
SYNC-GND
5
3
1
C326
1
10V
B:CHIP
5V
Cr1
24
23
22
21
20
19
18
17
16
15
R222
22k
:CHIP
C225
22
10V
:TA-CP
V-CLP
2
R211
10k
:CHIP
R212
10k
:CHIP R215
100
:CHIP
JL211 #
JL205 #
1
C325 0.01 B:CHIP
Y1
Cb1
SCL
SDA
V-VD
C324 0.022 B:CHIP
Y OUT
APL FIL
SYNC IN
C323
2.2
6.3V
B:CHIP
IC201
CXA1875AM-T4
DAC
Cb out
IC301
CXA2123AQ-T6
COLOR DECODER
JL302 #
JL210 #
JL222 #
VCC
C202
47
16V
:AL-CP
JL303 #
R304 3.9k :CHIP
YS1
Cr out
CVBS/Y1
C319 0.1 25V B:CHIP
JL301 #
R303 0 :CHIP
16 15 14 13 12 11 10 9
R-Y
5
C
Y
JL229 #
SCL
C338 0.1 25V B:CHIP
C317 0.01 B:CHIP
C222
0.1
25V
B:CHIP
C221
100
16V
:AL-CP
VG
4
R206
100
:CHIP
JL228 #
C201
0.1
25V
B:CHIP
L224
4.7µH
R316
3.3k
:CHIP
VRF
VIDEO
VIDEO
GND
GND
B-Y
B-Y
GND
GND
R-Y
R-Y
GND
GND
Y
Y
GND
GND
V-R
V-R
GND
GND
V-G
V-G
GND
GND
V-B
V-B
R204
100
:CHIP
R302
0
:CHIP
S-C
S-Y
0.6
3
SDA
SCL
JL212 #
39 C3
40 APC-Fil
41 CVBS/Y3
42 ADD(8EH)
43 C2
44 CVBS/Y2
45 COMB SYS
46 SFC OUT
47 AFC.Fi
48 C1
C315
0.01
PALV B:CHIP
R202
10k
:CHIP
SDA
R310 C313
0.01
27k
:RN-CP B:CHIP
VEH2
VEH3
C
C
GND
GND
Y
Y
GND
GND
R205
100
:CHIP
JL227 #
JL213 #
R306
330
:CHIP
5V
38 37 36 35 34 33 32 31 30 29 28 27 26 25
C314
0.47
16V
B:CHIP
R203
100
:CHIP
C337
0.01
B:CHIP
C302
0.1
25V
B:CHIP
C301
47
16V
:AL-CP
C312
10
16V
X301
:AL-CP 16.2MHz
+5V
FB201
BK2125HM102
R201
4.7k
:CHIP
JL220 #
JL218 #
VEH1
V-CLP
V-CLP
S-IN
S-IN
15K-CS
15K-CS
PAL-V
PAL-V
GND
GND
5V
0
SCL
0 4.0
SDA
DAC4
0.4 3.9
SDA2
DAC3
0.4
SDA1
DAC2
0.4
SDA0
DAC1
4.6 2.4
SW3
DAC0
0.4 4.7
SCL
SCL
V-VD
V-VD
V-HD
V-HD
5V
SW0
2
EMI
L221
4.7µH C303
:CHIP 10p
CH:CHIP
JL219 #
SW1
F-DA
F-DA
F-CL
F-CL
F+5V
F+5V
SDA
SDA
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
A26
B26
A27
B27
A28
B28
A29
B29
A30
B30
A31
B31
A32
B32
A33
B33
A34
B34
A35
B35
0.6
TO QA BORAD CN104
+9V
+9V
+9V
+9V
GND
GND
A5V
A5V
A5V
A5V
GND
GND
NTPL1
1
15K-CS
. Refer to page 8-7 for Printed Wiring Board
. Refer to page 8-7 for Waveforms
. Refer to page 8-7 for IC Block Diagrams
BA
C296
0.01
B:CHIP
COLOR DECODER
R,G,B DECODER
D.COMB
C295
0.01
C297 B:CHIP
0.1
25V
B:CHIP
C294
0.01
B:CHIP
B
B-SS1697<...>-BA.
8-8
A
B
C
D
8-8
VPL-CS2/CX1
E
F
G
H
B
B
JL419
R591
R592
D412
FB409
FB408
R431
R422
TP404
TP403
TP402
C407
C572
R447
D404
C406
D413
R440
C430
C439
R452
D414
R437
C429
C415
FB402 FB403
C437
C488
Q402
R595
C405
C417
C424
C411 R412
R415 R407
D410 JL487JL494 JL493JL492JL491JL490
R590
R589
JL415 JL414 JL412
R588 R587
C567
R448 R453
TH201
R534
C447
JL423JL410
JL420
R436
C571
R432
IC405
C470
C515
C517
JL402
TP401
TP405
C416
R597
C492
D415
R593
Q401
IC402
R594 C433
C434
C476
C469
C474
JL407
C475 C473 C467 FB407
R533
C472 R473
R402
C560
C513
JL404JL405JL406
IC407
R427
IC401
R401
C442
IC406
C458
C465
IC416
C432
C453
JL489
C509
C443
C454
C444
C449
TP406
FB406
R456
C497
C446
C445
C451
C455
JL424C402 R403
IC412
R455
C477
R529
R472
C481
R461
C484
IC415
C510
R487
X402
X404
R459
C506
R554
R454
TP407
JL421
C486
C514
FB411C543
JL449 FL404 R462
L404
C489
C495
IC414
C496
FB413
R497
R515 JL450
R516
JL448
R507
C462
JL416
R423
L401
R457
R458
C448
JL425
C487
IC408
JL451
C554
C553
C575 C576
R495
JL452
C540
C541
Q403
JL426
C529
C528
C521
JL436
FL402 R469
FL403
IC418
C534
JL456
C564
R561
R560
R562
JL433
JL469
JL453
JL454
R468
R475
IC427
IC419
R480
JL466
C559
R582
R586
JL429
IC429
C522
C535
JL481 JL480
JL458
JL482JL479
JL457JL460
C558
JL477
JL413
JL411
JL409
JL408
JL403
JL401
IC422
D408
C483 C482
JL434JL435
FB405
IC411
JL478
JL476
C491
C485
C503
JL461
JL484
R543
R538
R500 RB520 RB521
JL463
R485 JL462
C539
C538
IC420 R510
R481
R479
JL455
JL485
R559 JL431
R558 JL430
R553 JL428
JL432
R502
R501
R513
R512
R578
R579
C548
X403
JL471
CN406
JL418JL417
JL422
JL472
R522
R520
D409
Q404
CN401
JL468
RB524 RB523
C550
C556
C555
R551
R509 R550
R465
R464
R505 R506
R503
R504
R565
R564
C557 R542
R557
C504
CN405
R537
JL459
R518
R517
IC421
R603
R583
R519
R521
R523
R526
R527
R528
R483
IC413
R571 R570 R569
R604
R568
R601 R577 FB410
RB419
R514
R584
JL470
JL473
JL475
JL474
C520
C531
C532
C527
C530
C523 C519
C518
C533 C508
C578
C582
R576 R602
C505
CN402
C524
C511
IC426
C566
C565
R541
R540
R490
R488 C545
C544 C547
R489
C551
C549 C546
R581
C537 R585
R580
IC424
C516
R555
R556
R491
JL427
JL483
JL465 JL467
JL464
CN403
R525
R524
IC417
C563
C490
C512
R508
R545
R546
R539
C561
R494
R552
R478
R476
R477
R511
C501
C507
RB522
RB418
C498
R548
R549
RB415
R547
RB414
RB417
RB413
RB416
R536
C478
C479
C480
RB401
C526
RB411
C435
R532
C427
C403
R596
R445 R416
R451
R474
C471
R435
R449 R433
IC403
C441
C422
R428
R419
R426
R450
C404
D402 R414
R410
R429 C414 R430
R409
D403 R425
C460
RB409 RB408 RB407 RB406 RB405 RB404 RB403
C463
C464
R470
C408
C410
C412
C418
C419
R406
R404
R405
C423
C425
D401
IC409
C459
R471
C401 FB401
IC404
R531
C457
RB412 RB410
C450
R530
RB402
C525
IC410
R544
C426
C413 C420 C421
R563
C461
C456
C452
C436
R438
C409 C499
R411
R417
C500
R420
C502
R413
R598 R599 R600 R442 R441 R439
C468
R567
C466 R424 R574 R566
R535 R575
FB404
R443
C431
C428
R434
R418
R421
R446 C438
R444 C440
B Board
Q405
CN404
D411 JL488JL486
B -B SIDE-
B -A SIDE-
SUFFIX: -11
SUFFIX: -11
B Board
1-675-793-14
Q401
Q402
Q403
Q404
Q405
* A-2
* A-2
* G-1
* G-1
* B-1
*:B Side mount
2A4
1Y2
2A3
1Y3
2A3
1Y4
2A4
19
18
17
16
15
14
13
12
11
1.2 Vp-p
TP403 [G]
R IN
7
CLAMP
6
7
8
9
10
G IN
ND
5
2Y1
4
1A4
3
2Y2
2
1A3
1
112
95
CLAMP
A/D
8
92
8
85
82
8
72
8
65
63
8
B IN 22
A/D
CLAMP
55
4.2 Vp-p
TP401 [VSI]
ROUTA
ROUTB
GOUTA
GOUTB
75
6
5
8
8
15
4.2 Vp-p
TP405 [HSI]
1.2 Vp-p
TP402 [B]
105
102
HSYNC 40
COAST 41
CLAMP 28
CKINV 27
CKEXT 44
S-80842ANNP (IC419)
S-80828ANNP (IC420)
6.4 Vp-p
TP406 [PICLK]
45
FILT
VREF
VSS
8-9
4
8-9
OUT
BOUTB
115 DATACK
117 HSOUT
REF
2
1
BOUTA
2
CLOCK
GENERATOR
CONTROL
VOO
VPL-CS2/CX1
A/D
4
3
8
8
2Y3
* E-1
* G-2
* E-1
1.2 Vp-p
TP404 [R]
20
1A2
X402
X403
X404
AD9884
2
1Y1
* C-1
* A-2
* A-2
* A-3
* B-1
* C-2
* E-2
1
74VHC240MTCX (IC402)
2Y4
TP401
TP402
TP403
TP404
TP405
TP406
TP407
B Board Waveforms
2G
A-1
A-1
A-1
* A-2
* G-1
G-1
* B-1
* B-1
* B-1
* A-2
* A-2
* C-1
Vcc
D401
D402
D403
D404
D408
D409
D410
D411
D412
D413
D414
D415
1G
* B-2
* B-2
B-1
A-2
* B-2
* B-2
* A-2
* D-2
C-2
* C-3
* C-2
E-1
* E-2
* E-1
* C-1
D-1
* E-2
* G-1
* G-1
E-1
E-2
F-2
* G-2
* C-1
1A1
IC401
IC402
IC403
IC404
IC405
IC406
IC407
IC408
IC409
IC411
IC412
IC413
IC414
IC415
IC416
IC417
IC418
IC419
IC420
IC421
IC424
IC426
IC427
IC429
29
30
31
SDA SCL A0
32
125
A1 PWRON
126
REFOUT
127 REFIN
B (1/4)
B (1/4)
. Refer to page 8-9 for Printed Wiring Board
. Refer to page 8-9 for Waveforms
. Refer to page 8-9 for IC Block Diagrams
IC401(6/6)
74VHC14MTCX
INV
*
C424
47
16V
:AL-CP
3
C423
#
C425
#
OUT(B)
GND
IN2(R)
GND
GND
OUT(SONG)
IN2(G)
VCC
N.C.
N.C.
GND
OUT(H)
IN2(B)
OUT(V)
IN2(H)
GND
IN2(V)
SW
R600 #
R422
10k
1/16W
:CHIP
*
R420
SW1
SW0
DAC4
DAC3
DAC2
DAC1
DAC0
SW3
GND
SW2
OTHER/15K
≠≠≠
≠≠
OTHER/RGB
R425
R429
470
1/16W
:CHIP
R428
470
1/16W
:CHIP
4.0
SDA
0.4 3.9
SDA2
4.6
R594
470
1/16W
:CHIP
R450
0
:CHIP
R449
0
:CHIP
R451
1k
1/16W
:CHIP
C572
0.1
16V
B:CHIP
D414
1SS355TE-17
2.7
C439
0.1
16V
B:CHIP
1
H.STATE
V.STATE
3
2
R438
0
:CHIP
2.8
2.3
2.5
2.3
C434
4.7
10V
B:CHIP
2.5
C436
0.068
16V
B:CHIP
2.7
2.4
4
GREENIN
5
CLAMPSW
GND
6
4.9
2.8
C433
4.7
10V
B:CHIP
C430
0.1
16V
B:CHIP
R447
1k
1/16W
:CHIP
R452
1k
1/16W
:CHIP
R437
47k
1/16W
:CHIP
2.4
SDA1
SDA0
C/H
H.POL
CLAMP
VCC
HD
C/H DET
V IN
HD
VD
V DET
VS/S OUT
VTIMING
VS/S IN
GATESW
2.9
0.1
0.1
0.2
R434
4.7k
1/16W
:RN-CP
4.9
0.2
0.2
SCL
SDA
JL410
#
FROM(4/4)
R427
10k
1/16W
:CHIP
C426
0.1
16V
R431 B:CHIP
10k
1/16W
:CHIP
A-L
FROM(1/4)
A-G
SDAT
R446
47k
1/16W
:RN-CP
C432
22
C431 6.3V
0.01 :AL-CP
25V
B:CHIP
C438
100p
CH:CHIP
TH201
SCLK
FROM(4/4)
DAC CS
AUDIO CS
R444
47
1/16W
:CHIP
R448
150
1/16W
:CHIP
R453
120
1/16W
:CHIP
AUDIO MUTE
C440
100p
CH:CHIP
5V-3
C488
1000p B:CHIP
IC429
24LC21AT/SN
DDC
3
2
4
NC1
NC2
NC3
GND
VCC
VCLK
SCL
SDA
R591
47
1/16W
:CHIP
JL488 #
3.3V-2
Q405
R587 2SA1611T1-M5M6
15k
1/16W 4.7 POWER SW
:CHIP
5V-3
5V -1
JL417
#
8
1
TO(1/4)
D415
RD5.6SB-T1
JL416
#
R593
220 1/16W :CHIP
7
PAL V
R595
470
1/16W
:CHIP
6
R596
#
R588
15k
1/16W
:CHIP
FB408
#
4.5
R590
100k
1/16W
:CHIP
5
C441
#
C567
0.1
16V
B:CHIP
5V -1
FB409
BK2125HM601T
JL418
#
5V-2
R589
47k
1/16W
:CHIP
JL486 #
5
JL422
#
JL487 #
R592
47
1/16W
:CHIP
D410
RD5.6SB-T1
TO(2/4),(4/4)
R424
100
1/16W
:CHIP
R443
3.3k
1/16W
:CHIP
D412
D411
RD5.6SB-T1 RD5.6SB-T1
7
8
11
LED
TO(4/4)
FAN ON
FROM(4/4)
LAMP SENS
FAN PROT
FAN CONT1
FAN CONT2
LAMP ON
POWER ON
EXT SW
TXD
RXD
B25
A25
B24
A24
B23
A23
B22
A22
B21
A21
B20
A20
B19
A19
B18
A18
B17
A17
B16
A16
B15
A15
B14
A14
B13
A13
B12
A12
B11
A11
B10
A10
B9
A9
B8
A8
B7
A7
B6
A6
B5
A5
B4
A4
B3
A3
B2
A2
B1
A1
TO C BOARD CN809
A-L
A-L
A-G
A-G
A-R
A-R
GND
GND
SDAT
SDAT
GND
GND
SCLK
SCLK
GND
GND
DAC CS
AUDIO CS
GND
AUDIO MUTE
GND
GND
A+5V
A+5V
A+5V
A+5V
GND
GND
D+3.3V
D+3.3V
GND
GND
SUB+5V
SUB+5V
GND
GND
D+5V
D+5V
TO(1/4)
JL401
#
CN405
70P
9
V-VD
TO(1/4)
0.1
3.2
0
POWER LED
B35
A35
C415
TEMP LED
0.1
B34
16V
JL428 #
B:CHIP
A34
LAMP LED
B33
C560
JL430 #
#
C403
A33
0.1
PSAVE LED
16V
B32
JL431 #
B:CHIP
A32
B31
KEY1
A31
COAST TO(2/4)
B30
KEY0
A30
B29
A29
SDA
B28
A28
TO(4/4)
SCL
B27
A27
CN402
B26
50P
A26
TO QA BOARD CN105
B25
A1 GND
LAMP TEMP
A25
B1 GND
B24
A2 R-Y
R-Y
PANEL TEMP
A24
B2 R-Y
R-Y
B23
A3 GND
A23
B3 GND
B22
A4 Y
Y
JL432 #
A22
TO(4/4) OCLK
B4 Y
Y
B21
A5 GND
A21
B5 GND
B20
A6 B-Y
B-Y
JL434 #
A20
B6 B-Y
B-Y
≠≠
HSO
≠≠≠
B19
A7 GND
TO(3/4)
A19
B7 GND
JL435 #
JL412
B18
A8 V-R
R #
≠≠
VSO
≠≠≠
R00
A18
B8 V-R
V-R
B17
A9 GND
R01
A17
B9 GND
JL414
B16
A10 V-G
G
#
R02
A16
B10 V-G
V-G
JL436 #
B15
A11 GND
SCTR
R03
A15
TO(4/4)
B11 GND
JL415
B14
A12 V-B
B #
R04
V-B
A14
B12
V-B
B13
A13 GND
R05
A13
B13 GND
B12
A14 PALV
R06
PAL V
A12
B14 PALV
B11
A15 GND
R07
A11
B15 GND
B10
A16 15-CS
A10
B16 15-CS
15K-CS
G00
B9
A17 GND
B00
A9
B17 GND
JL419
G01
B8
A18 V-HD
#
B01
A8
B18 V-HD
V-HD
JL420
G02
B7
V-VD
A19
#
B02
V-VD
A7
B19 V-VD
JL423
G03
B6
A20 V-CLP
#
B03
V-CLP
A6
B20
V-CLP
G04
B5
A21 GND
B04
A5
B21 GND
G05
B4
A22 GND
B05
A4
B22 GND
G06
B3
A23 GND
B06
A3
B23 GND
G07
B2
A24 GND
B07
JL489
B24 GND
A2
#
USB REG
B1
A25 USB REG
FROM(4/4)
B25 GND
A1
DA DAT
TO(3/4)
4
HSI
R416
10
1/16W
:CHIP
R439
47
1/16W
:CHIP
R441 #
R442
#
0.3
IC407
M52347FP-TE
SYNC SEP
C437
10
16V
:AL-CP
Q402
HN1B01FU-TE85R
LIMITER
V.POL
0.1
IC401(4/6)
74VHC14MTCX
INV
5
1
5
6
7
9 10 11 12 13 14 15 16
1
2
4
3
2A
TP405
C428
220p
CH:CHIP
11 12 13 14 15 16 17 18 19 20
4
R440
1k
1/16W
:CHIP
CLAMP
TIMING
7
2.7
2.4
D413
1SS355TE-17
C435
4.7
10V
B:CHIP
Q401
HN1B01FU-TE85R
LIMITER
C571
0.1
16V
B:CHIP
R436
1k
1/16W
:CHIP
GND
HSI
4
C411
100p
CH:CHIP
A-R
8
R435
1k
1/16W
:CHIP
VCC
4.7
1R/C
3.3 3.2
1C
0
1Q
1Q
3.2
2Q
2Q
3.0
2C
2CLR
0
2R/C
2B
3.0
R423
100
1/16W
:CHIP
FB404
BK2125HM102T
10 9
D404
HN1D03FU-TE85R
PROTECT
1CLR
3.3
5V-3
+5V
C427
4.7
10V
B:CHIP
1B
CN403
50P
C429
4.7
10V
B:CHIP
R432
47
1/16W
:CHIP
R445
0
:CHIP
SCL
5.0
R430
470
1/16W
:CHIP
R433
0
:CHIP
VCC
0.1
B-Y
R-Y
Y
1A
R412
10k
1/16W
:RN-CP
5V-2
IC406
CXA1875AM-T4
DAC
0.1
C421
0.1
16V
B:CHIP
R426
82
:RN-CP
JL407
#
CLAMP
TO P2
3.0
*
R421
C502
#
3
3
4
6
7
8
10 9
* R417
R533
100
1/16W
:CHIP
8
1
2
GND
V-HD
9 10 11 12 13 14 15 16
C422
0.01
25V
B:CHIP
IN1(V) VCC2(B)
1
D403
MA157-TX
PROTECT
IN1(H)
C420
0.1
16V
B:CHIP
2
JL493 #
JL494 #
15 10 5
OUT(G)
G
3
C419
#
13 8 3
14 9 4
IN1(B)
N.C.
+3.3V
R415
1.5k
1/16W
:RN-CP
C416
3300p
B:CHIP
4
C417
47
16V
:AL-CP
R419
82
:RN-CP
B-Y
CN404
HD15P
VCC1(B) VCC2(G)
N.C.
IC403
TC7SH08FU-TE85R
AND
R532
100 1/16W :CHIP
V-CLP
TO(1/4)
5
INPUT-A
IN1(G)
10
3.2
R597
1k
1/16W
14
3.2 :CHIP
JL427 #
IC405
74VHC221AMTCX
MONO MULTI
R531
10k
1/16W
:CHIP
* R411
R599
#
C413
0.1
16V
C500
*
B:CHIP R418
#
6
5
C402
100p
CH:CHIP
C401
0.1
16V
B:CHIP
IC401(1/6)
74VHC14MTCX
INV
R
0.1
0.1
KEY-TH
TO(4/4)
3.3
JL402
#
R407
47
1/16W
:CHIP
6
12 7 2
N.C.
C418 #
1
JL491
#
JL492
#
GND
8
11
Y
VCC1(G)
19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36
R414
JL490
#
OUT(R)
4
C412
0.1
16V
B:CHIP
*
IN1(R)
4
3
R402
100
1/16W
:CHIP
5V-3
IC401(5/6)
74VHC14MTCX
INV
TP401
IC401(3/6)
74VHC14MTCX
INV
2
1
C409
0.1
*
R598 16V
# B:CHIP R413
C499
#
VCC1(R) VCC2(R)
3
C408
0.1
16V
B:CHIP
C410
0.1
16V
B:CHIP
D402
MA157-TX
PROTECT
C414
0.01
25V
B:CHIP
IC404
M52758FP
VIDEO SW
5
*
R410
C407
47
6.3V
:AL-CP
FB403
BK2125HM102T
IC401(2/6)
74VHC14MTCX
INV
0
B
FB402
BK2125HM102T
6
+5V
0.4
3.2
0.1
3.0
0.2
0.1
3.2
0
0
4.9
7
R409
82
:RN-CP
3
5V-3
C406
47
6.3V
:AL-CP
2
JL404
#
JL405
#
JL406
#
1
R404
47
1/16W
:CHIP
5
TP404
R405
47
1/16W
:CHIP
TO(2/4)
TP403
R
18 17 16 15 14 13 12 11 10 9
R-Y
G
B
TP402
3.3
0.2
3.2
0
3.0
0
0.1
0.2
3.2
2
B
G
11 12 13 14 15 16 17 18 19 20
TO(1/4)
2
D401
MA157-TX
PROTECT
R403
1k
1/16W
:CHIP
3.1
1
R
VSI
5
IC402
74VHC240MTCX
INV SW
12
R406
47
1/16W
:CHIP
C404
0.01
25V
B:CHIP
C405
47
16V
:AL-CP
VSI TO(2/4),(4/4)
2
13
3.3V-3
FB401
BK1608TS601
7
VPL-CX1
150 1/16W:RN-CP
0 :CHIP
680 1/16W:RN-CP
150 1/16W:RN-CP
0 :CHIP
680 1/16W:RN-CP
0 :CHIP
680 1/16W:RN-CP
150 1/16W:RN-CP
TO(1/4)
8
1/16W:RN-CP
1/16W:RN-CP
1/16W:RN-CP
1/16W:RN-CP
1/16W:RN-CP
1/16W:RN-CP
1/16W:RN-CP
1/16W:RN-CP
1/16W:RN-CP
0.4
47
100
560
47
100
560
100
560
47
3.3
MODEL VPL-CS2
R410
R411
R413
R414
R417
R418
R420
R421
R425
TO(1/4)
REF.NO
15K-CS
V-B
V-G
V-R
1
CN401
70P
R401
47 1/16W :CHIP
NOTE:*
TO C BOARD CN808
POWER LED
POWER LED
TEMP LED
TEMP LED
LAMP LED
LAMP LED
PSAVE LED
PSAVE LED
KEY1
KEY1
KEY0
KEY0
GND
GND
SDA
SDA
SCL
SCL
GND
GND
LAMP TEMP
LAMP TEMP
LCD TEMP
LCD TEMP
GND
GND
OCLK
OCLK
GND
GND
HSOX
HSOX
GND
GND
VSOX
R2
VSOX
R3
GND
R4
UF CS
R5
FROM(4/4)
GND
R6
GND
R7
GND
R8
GND
R9
GND
GND
G2
TO(4/4)
B2
G3
B3
G4
B4
G5
TO(1/4)
B5
G6
B6
G7
B7
G8
B8
G9
B9
GND
GND
3.3V-3
JL403
#
5V-2
JL408
#
3.3V-2
JL409
#
5V -1
JL411
#
3.3V -1
JL413
#
SDA
SCL
F+5V
F-DA
F-CL
LAMP COVER
FILTER COVER
U-DA
NR OFF
U-CL
NF OFF
PWR PROT
SIRCS
JL421
#
A-L
A-G
A-R
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
A26
B26
A27
B27
A28
B28
A29
B29
A30
B30
A31
B31
A32
B32
A33
B33
A34
B34
A35
B35
TO QA BOARD CN103
A+5V
A+5V
A+5V
A+5V
GND
GND
GND
GND
A+3.3V
A+3.3V
GND
GND
D+5V
D+5V
D+5V
D+5V
GND
GND
GND
GND
D+3.3V
D+3.3V
D+3.3V
D+3.3V
GND
GND
GND
GND
SUB+5V
SUB+5V
SUB+5V
SUB+5V
GND
GND
GND
GND
SUB+3V
SUB+3V
SUB+3V
SUB+3V
GND
GND
SDA
SDA
SCL
SCL
F+5V
F+5V
F-DA
F-DA
F-CL
F-CL
LAMPC
FILC
U-DA
NR OFF
U-CL
NF OFF
GND
GND
PWR PROT
SIRCS
GND
GND
A-L
A-L
A-G
A-G
A-R
A-R
GND
GND
LAMP SENS
FAN PROT
FAN CONT1
FAN CONT2
LAMP ON
POWER ON
B(1/4)
EXT SW
TXD
RXD
GND
(R,G,B INPUT,SYNC SEP)
B-SS1707<...>-B..-P1
8-10
A
B
C
D
8-10
VPL-CS2/CX1
E
F
G
H
B (2/4)
B (2/4)
. Refer to page 8-9 for Printed Wiring Board
. Refer to page 8-9 for Waveforms
. Refer to page 8-9 for IC Block Diagrams
1
+3.3V
PICLK
IC408
TC74LCX74FT(EL)
D-FF
6
C449
0.1
16V
B:CHIP
B
B
B
B
B
B
B
B
OLD0
OLD1
OLD2
OLD3
OLD4
OLD5
OLD6
OLD7
C469
0.1
16V
B:CHIP
9 10 11 12 13 14
SDAT
R472
100
1/16W
:CHIP
RB410
100*4
C470
0.1
16V
B:CHIP
SRX
1 OE
VCC
1A
4 OE
1Y
1.6 5.0
4A
3.2 3.2
2
4Y
5.0
2A
3 OE
3.1 5.0
2Y
3A
0 3.2
GND
3Y
C492
0.1
16V
B:CHIP
R529
10k
1/16W
:CHIP
9 10 11 12 13 14 15 16 17 18 19 20
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
IC411
74VHC125MTCX
BUF
G AD
TO(3/4)
1
2
3
4
5
6
7
8
3
C458
+3.3V
0.1
16V
B:CHIP
4
B AD
TO(3/4)
APA CS
SCLK
C468
0.1
16V
B:CHIP
NEW7
NEW6
NEW5
NEW4
NEW3
NEW2
NEW1
NEW0
RB412
100*4
B
B
B
B
B
B
B
B
R473
10k
1/16W
:CHIP
RB411
C474 100*4
C475 C473
C472 C471
0.1
0.22
0.01
0.1
0.1
16V
10V
25V
16V
16V
B:CHIP B:CHIP B:CHIP B:CHIP B:CHIP
SC DAT
SC CLK
VDD
DATA3-0
DATA3-1
DATA3-2
DATA3-3
DATA3-4
DATA3-5
DATA3-6
DATA3-7
RESET
GND
DATA4-0
DATA4-1
DATA4-2
DATA4-3
DATA4-4
DATA4-5
DATA4-6
DATA4-7
VDD
VD
REFIN
REFOUT
PWRDNB
VD
GND
GND
GND
VDD
GND
NC
HSOUT
DATACK/
DATACK
VDD
GND
DRA0
DRA1
DRA2
DRA3
DRA4
DRA5
DRA6
DRA7
VDD
GND
R474
1.2k
1/16W
:RN-CP
+3.3V
8
1
128
127
126
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
109
108
107
106
105
104
103
RB408
100*4
C465
0.1 16V B:CHIP RB409
100*4
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
C467
0.1
16V
B:CHIP
R554
10k 1/16W :CHIP
POFLD
FROM(3/4)
IC412
CXD9575TQ
APA
GND
SCK
AMC
OPORT-00/SOT
MODE-0/SIN
SMC
OPORT-01
OPORT-02
OPORT-03
GND
OPORT-04
OPORT-05
OPORT-06
OPORT-07
VDD
OPORT-08
OPORT-09
OPORT-10
OPORT-11
GND
OLD7
OLD6
OLD5
OLD4
OLD3
OLD2
OLD1
OLD0
SCL FROM(4/4)
+3.3V
NEW0
NEW1
NEW2
NEW3
NEW4
NEW5
NEW6
NEW7
GND
SELECT-1
SELECT-0
HDXI
VDXI
GND
HDXO
VDXO-3
VDXO-2
VDXO-1
VDXO-0
ODD-EVEN-OUT
VDD
ODD-EVEN-IN
MODE-1
SDO
SDI
SCLK
SCS
GND
B
B
B
B
B
B
B
B
C466
#
R471
3.3k
1/16W
:CHIP
R461
10k
1/16W
:CHIP
61 VDD
62 DATA2-7
63 DATA2-6
64 DATA2-5
65 DATA2-4
66 DATA2-3
67 DATA2-2
68 DATA2-1
69 DATA2-0
70 COLOCK
71 GND
72 DATA1-7
73 DATA1-6
74 DATA1-5
75 DATA1-4
76 DATA1-3
77 DATA1-2
78 DATA1-1
79 DATA1-0
80 VDD
R470
3.3k
1/16W
:CHIP
OLD0 R AD
TO(3/4)
OLD1
OLD2
OLD3
OLD4
OLD5
OLD6
OLD7
RB406
100*4
C460
0.1 16V B:CHIP RB407
100*4
G
G
G
G
G
G
G
G
C476
0.1 16V B:CHIP
R459
10k
1/16W
:CHIP
NEW7
NEW6
NEW5
NEW4
NEW3
NEW2
NEW1
NEW0
FB407
BK2125HM601T
R535
150
1/16W
:CHIP
RB404
100*4
C454
0.1 16V B:CHIP RB405
100*4
G
G
G
G
G
G
G
G
+3.3V
C462
0.1 16V B:CHIP
B
B
B
B
B
B
B
B
8
R534 FROM(1/4)
150
1/16W
CLAMP
:CHIP
R575
0
:CHIP
IC410
#
C464
0.1
16V
B:CHIP
7
2 EO
2B
2A
6
1A
1B
GND
VCC
5
1
2
3
4
SDA
FROM(4/4)
1 OE
R567
#
FB406
BK2125HM601T
60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41
R566
#
R574
0
:CHIP
3.3V-2
NEW0
NEW1
NEW2
NEW3
NEW4
NEW5
NEW6
NEW7
9 10 11 12 13 14
C463
0.01
25V
B:CHIP
3.3V-2
5V-2
IC409
AD9884AKS-140
AD CONVERTER
R
R
R
R
R
R
R
R
8
B
DRB0
DRB1
DRB2
DRB3
DRB4
DRB5
DRB6
DRB7
VDD
GND
DGA0
DGA1
DGA2
DGA3
DGA4
DGA5
DGA6
DGA7
VDD
GND
DGB0
DGB1
DGB2
DGB3
DGB4
DGB5
DGB6
DGB7
VDD
GND
DBA0
DBA1
DBA2
DBA3
DBA4
DBA5
DBA6
DBA7
1
B
C457
0.01
25V
B:CHIP
C459
0.1
16V
B:CHIP
C461
0.068
16V
B:CHIP
≠≠≠ TO(3/4)
PIHS
≠≠≠≠
JL426
#
RB403
100*4
7
G
2
R455
47
1/16W
:CHIP
TO(3/4)
R
G
C456
0.068
16V
B:CHIP
38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9
C455
0.1
16V
B:CHIP
R
FROM(1/4)
8
C453
0.01
25V
B:CHIP
2
PICLK TO(3/4)
FROM(4/4)
7
6
5
C452
0.068
16V
B:CHIP
TO(3/4)
R454
47
1/16W
:CHIP
C444
22
6.3V
:AL-CP
65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102
4
3
2
C451
0.1
16V
B:CHIP
NC
NC
NC
VD
GND
GND
R IN
VD
GND
VD
VD
GND
GND
GND
G IN
VD
GND
VD
VD
GND
GND
B IN
VD
GND
VD
GND
CKINV
CLAMP
SDA
SCL
A0
A1
PVD
PVD
GND
NC
NC
NC
FROM(1/4)
≠≠≠
PIVS
≠≠≠≠
C442
0.1
16V
B:CHIP
FB405
BK2125HM601T
GND
HSYNC
COAST
GND
PVD
CKEXT
FILT
NC
GND
PVD
GND
PVD
GND
GND
GND
VDD
DBB7
DBB6
DBB5
DBB4
DBB3
DBB2
DBB1
DBB0
GND
VDD
1
+3.3V
VSI
+3.3V
RB402
100*4
2
RB401
100*4
R458
22
1/16W
:CHIP
C448
0.1
16V
B:CHIP
+3.3V
C450
0.1
16V
B:CHIP
2 Q
2PR
3.2
3.2
1.8
3.2
3.1
3
C447
0.1
16V
B:CHIP
2Q
GND
4
C445 R530 C446
0.1
10k
0.1
16V 1/16W 16V
B:CHIP :CHIP B:CHIP
C443
47
6.3V
:AL-CP
1Q
5
L401
6.8µH
1Q
2D
2CK
R
R
R
R
R
R
R
R
R457
#
R456
22
1/16W
:CHIP
1PR
VCC
2CLR
6
R544
2.2
1/16W
:CHIP
3
OLD0
OLD1
OLD2
OLD3
OLD4
OLD5
OLD6
OLD7
3.3V-3
1CK
4
3.3V-2
JL425 #
1CLR
1D
5
3.2
0.3
1.8
3.2
2.9
6
JL424 #
7
TP406
FROM(1/4)
HSI
COAST
5
B (2/4)
B AD
TO(3/4)
(A/D CONVERTER,APA)
B-SS1707<...>-B..-P2
8-11
VPL-CS2/CX1
A
B
C
D
8-11
E
F
G
H
B (3/4)
B (3/4)
. Refer to page 8-9 for Printed Wiring Board
. Refer to page 8-9 for Waveforms
. Refer to page 8-9 for IC Block Diagrams
1
R07
R06
R05
R04
G03
G02
G01
G00
G07
G06
G05
G04
RB416
47*4
IC414
MB81F161622C
SDRAM
C485
0.1
16V
B:CHIP
3.3V-2
205 PID13
206 PID14
207 PID15
208 PID16
209 PID17
210 PID18
211 PID19
212 GND
213 VDD
214 PID20
215 PID21
216 PID22
217 PID23
218 PID24
219 PID25
220 PID26
221 PID27
222 PID28
223 PID29
224 GND
G NEW6
G NEW7
B OLD0
B
B
B
B
OLD1
OLD2
OLD3
OLD4
B
B
B
B
OLD5
OLD6
OLD7
NEW0
C513
0.1
16V
B:CHIP
B NEW1
B NEW2
B
B
B
B
4
NEW3
NEW4
NEW5
NEW6
B NEW7
≠≠≠
PIVS
≠≠≠≠
≠≠≠
≠≠≠≠
PIHS
C519
0.1
16V
B:CHIP
IC417
IP00C712
SCAN CONVERTER
225 PID30
226 PID31
227 PID32
228 PID33
229 PID34
230 PID35
231 PID36
232 PID37
233 PID38
234 PID39
235 PID40
236 GND
237 VDD
238 PID41
239 PID42
240 PID43
241 PID44
242 PID45
243 PID46
244 PID47
245 PIVS
246 PIHS
247 GND
248 PICLK
PICLK
249 VDD
TO(2/4)
250 PIFLD
POFLD
251 PIVSGO
FROM(2/4)SC CLK
FROM(4/4) SC CS
FROM(2/4) SC DAT
252 SCLK
253 SS
254 SI
255 GND
256 VDD
1
G AD
FROM(2/4)
B AD
FROM(2/4)
5
2
3
4
5
6
7
8
C543
0.1
16V
B:CHIP
MD25
MD24
C496
0.1
16V
B:CHIP
MA9
MA8
MA7
MA6
MA5
MA4
5
6
8
C503
0.1
16V
B:CHIP
+3.3V
OSD-SIG
FROM(4/4)
SC RST
C504
47
6.3V
:AL-CP
C505
0.1
16V
B:CHIP
IC415
MB81F161622C
SDRAM
IC416
MB81F161622C
SDRAM
C515
0.1
16V
B:CHIP
MD32
MD33
MD0
MD1
C517
0.1
16V
B:CHIP
MD2
MD3
MD4
MD5
C521
0.1
16V
B:CHIP
MA10
MA0
MA1
MA2
MA3
C524
0.1
16V
B:CHIP
SO
CS
DQMO
DQM1
GND
VDD
MD0
MD1
MD2
MD3
GND
MD4
VDD
MD5
MD6
MD7
MD8
GND
VDD
MD9
MD10
MD11
MD12
MD13
GND
VDD
MD14
MD15
MD16
MD17
MD18
GND
VDD
MD19
MD20
MD21
MD22
MD23
GND
VDD
MD24
MD25
MD26
MD27
MD28
GND
VDD
MD29
MD30
MD31
MD32
GND
MD33
VDD
MD34
MD35
MD36
MD37
GND
VDD
MD38
MD39
MD40
MD41
C523
0.1
16V
B:CHIP
MA10
MA0
MA1
MA2
MA3
MD27
MD26
R487
47
1/16W
:CHIP
VDD
OUT
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64
SRX
TO(2/4),(4/4)
C525
0.1
16V
B:CHIP
+3.3V
MD6
MD7
VSS
VDD
DQ15
DQ0
DQ14
DQ1
VSSQ VSSQ
DQ13
DQ2
DQ12
DQ3
VDDQ VDDQ
DQ11
DQ4
DQ10
DQ5
VSSQ VSSQ
DQ9
DQ6
DQ8
DQ7
VDDQ VDDQ
LDQM
N.C/RFU
UDQM
WE
CLK
CAS
CKE
RAS
CS
N.C
BA
A9
A10/AP A8
A0
A7
A1
A6
A2
A5
A3
A4
VDD
VSS
C508
0.1
16V
B:CHIP
MD15
MD14
MD13
MD12
MD34
MD35
MD36
MD37
C518
0.1
16V
B:CHIP
MD11
MD10
C510
0.1
16V
B:CHIP
MD38
MD39
MD9
MD8
C522
0.1
16V
B:CHIP
MA10
MA0
+3.3V
MA9
MA8
MA7
MA6
MA5
MA4
MA1
MA2
MA3
C514
0.1
16V
B:CHIP
VSS
VDD
DQ15
DQ0
DQ14
DQ1
VSSQ VSSQ
DQ13
DQ2
DQ12
DQ3
VDDQ VDDQ
DQ11
DQ4
DQ10
DQ5
VSSQ VSSQ
DQ9
DQ6
DQ8
DQ7
VDDQ VDDQ
LDQM
N.C/RFU
UDQM
WE
CLK
CAS
CKE
RAS
CS
N.C
BA
A9
A10/AP A8
A0
A7
A1
A6
A2
A5
A3
A4
VDD
VSS
26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
204 PID12
CONT
VCC
1
203 PID11
X402
SG-8002JCPCC
80MHz
XTAL
C490
0.1
16V
B:CHIP
2
202 VDD
MD29
MD28
7
201 PID10
FB411
BK1608TS601
MD31
MD30
26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
200 GND
25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9
199 PID9
C495
0.1
16V
B:CHIP
1
OLD4
OLD5
OLD6
OLD7
NEW0
NEW1
NEW2
NEW3
NEW4
NEW5
198 PID8
2
G
G
G
G
G
G
G
G
G
G
197 PID7
3
C506
0.1
16V
B:CHIP
196 PID6
MD22
MD23
4
3
NEW2
NEW3
NEW4
NEW5
NEW6
NEW7
G OLD0
G OLD1
G OLD2
G OLD3
195 PID5
MD20
MD21
5
FROM(2/4)
R AD
R
R
R
R
R
R
VDD 128
C491
RB418
0.1
47*4
POD6 127
16V
B:CHIP
GND 126
R03
POD5 125
R02
POD4 124
R01
POD3 123
R00
POD2 122
POFLD TO(2/4),(3/4)
VDD 121
TO(4/4)
≠≠≠
≠≠≠≠
POVS
C498
POD1120
0.1 16V B:CHIP
TO(1/4)
GND119
≠≠≠
VSO
≠≠
R476
22
POD0118 R478 # 1/16W
TO(4/4)
≠≠≠
≠≠≠≠
POHS
:CHIP
POFLD117
JL448
#
TO(1/4)
POVS116
≠≠≠
HSO
≠≠
R582
POHS115
47
1/16W
C501
GND114 JL450
0.1 R586 :CHIP
#
47
16V
VDD113
1/16W
OSDDT3 B:CHIP :CHIP
OSDDT3112
R477
OSDDT2
22
OSDDT2111
1/16W
OSDDT1
:CHIP
OSDDT1110
109
AVDD
C507
0.1
16V
AGND108
B:CHIP
OSDDT0
OSDDT0107
OSDEN
OSDEN106
POCLK
FROM(4/4)
POCLK105
PODMD104
TESTH103
TEST1102
TEST0101
RST100
MCLKSEL 99
VDD 98
MCLK 97
C512
GND 96
0.1
16V
GND 95
B:CHIP
VDD 94
MA11 93
MA10
MA10 92
MA9
MA9 91
MA8
MA8 90
MA7
MA7 89
MA6
MA6 88
MA5
MA5 87
MA4
MA4 86
VDD 85
C516
0.1
GND 84
16V
B:CHIP MA3
MA3 83
MA2
MA2 82
MA1
MA1 81
MA0
MA0 80
CAS 79
RAS 78
MWR 77
BA0 76
BA1 75
+3.3V
VDD 74
MD47
MD47 73
C520
0.1
GND 72
16V
MD46
B:CHIP
71
MD46
MD45
MD45 70
MD44
MD44 69
MD43
MD43 68
VDD 67
MD42
MD42 66
GND 65
194 PID4
6
C497
0.1
16V
B:CHIP
193 PID3
MD18
MD19
7
2
OLD3
OLD4
OLD5
OLD6
OLD7
NEW0
NEW1
PID2
PID1
PID0
POEXT
VDD
GND
POACT
POD47
POD46
POD45
VDD
POD44
GND
POD43
POD42
POD41
POD40
VDD
GND
POD39
POD38
POD37
POD36
POD35
VDD
GND
POD34
POD33
POD32
POD31
POD30
VDD
GND
POD29
POD28
POD27
POD26
POD25
VDD
GND
POD24
POD23
POD22
POD21
POD20
VDD
GND
POD19
POD18
POD17
POD16
VDD
POD15
GND
POD14
POD13
POD12
POD11
VDD
GND
POD10
POD9
POD8
POD7
R
R
R
R
R
R
R
C489
0.1
16V
B:CHIP
7
192 191 190 189 188 187 186 185 184 183 182 181 180 179 178 177 176 175 174 173 172 171 170 169 168 167 166 165 164 163 162 161 160 159 158 157 156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129
26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
4
3
2
MD16
MD17
8
+3.3V
VSS
VDD
DQ15
DQ0
DQ14
DQ1
VSSQ VSSQ
DQ13
DQ2
DQ12
DQ3
VDDQ VDDQ
DQ11
DQ4
DQ10
DQ5
VSSQ VSSQ
DQ9
DQ6
DQ8
DQ7
VDDQ VDDQ
LDQM
N.C/RFU
UDQM
WE
CLK
CAS
CKE
RAS
CS
N.C
BA
A9
A10/AP A8
A0
A7
A1
A6
A2
A5
A3
A4
VDD
VSS
25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9
RB417
47*4
C486
0.1
16V
B:CHIP
1
3.3V
+3.3V
C487
47
6.3V
:AL-CP
3
C484
0.1
16V
B:CHIP
4
RB415
47*4
C483
0.1
16V
B:CHIP
5
C481
0.1
16V
B:CHIP
6
C480
0.1
16V
B:CHIP
C479
0.1
16V
B:CHIP
B03
B02
B01
B00
B07
B06
B05
B04
C478
0.1
16V
B:CHIP
FROM(3/4)
8
L404
BLm41P750S
RB413
47*4
R536 C477
0.1
100
16V
1/16W B:CHIP
:CHIP
RB414
47*4
C482
0.1
16V
B:CHIP
25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9
3.3V-2
R OLD2
R OLD1
R OLD0
DA DAT
JL429
#
MD47
MD46
MD45
MD44
C509
0.1
16V
B:CHIP
MD43
MD42
MD41
MD40
C511
0.1
16V
B:CHIP
MA9
MA8
MA7
MA6
MA5
MA4
+3.3V
C526
0.1
16V
B:CHIP
C527
0.1
16V
B:CHIP
C528
0.1
16V
B:CHIP
C529
0.1
16V
B:CHIP
C530
0.1
16V
B:CHIP
C531
0.1
16V
B:CHIP
C532
0.1
16V
B:CHIP
MD38
MD39
MD40
MD41
MD34
MD35
MD36
MD37
MD33
MD29
MD30
MD31
MD32
MD24
MD25
MD26
MD27
MD28
MD19
MD20
MD21
MD22
MD23
MD14
MD15
MD16
MD17
MD18
MD9
MD10
MD11
MD12
MD13
MD5
MD6
MD7
MD8
MD4
MD0
MD1
MD2
MD3
+3.3V
C533
0.1
16V
B:CHIP
B (3/4)
(SCAN CONVERTER,SDRAM)
B-SS1707<...>-B..-P3
8-12
A
B
C
D
8-12
VPL-CS2/CX1
E
F
G
H
B (4/4)
B (4/4)
. Refer to page 8-9 for Printed Wiring Board
. Refer to page 8-9 for Waveforms
. Refer to page 8-9 for IC Block Diagrams
5V -1
3.3V -1
+5V
NOTE:*
R480
33k
1/16W
:CHIP
*
8
GND
10 9
S2
3.2
LEE
3.2
3.2
1.4
CLK
XSEL
TO(4/4)
R571
1k
1/16W
:CHIP
2
3
4
18
IC418(1/8)
74VHC541MTCX
BUFF
R514
10k
1/16W
:CHIP
1
2
3
4
5
6
7
8
R503 R537
2.2k 10k
1/16W 1/16W
:CHIP :CHIP
R504
100
1/16W
:CHIP
R538
10k
1/16W
:CHIP
R539
10k
1/16W
:CHIP
U-CL
R505
R506 U-CL
2.2k
100
JL483 #
1/16W 1/16W
:CHIP :CHIP
C557
R540
0.1
100
JL484
#
16V
1/16W
B:CHIP
:CHIP
R541 100 1/16W :CHIP
TO(1/4),(2/4)
U-DA
3
RXD
R542 100 1/16W :CHIP
R543 100 1/16W :CHIP
JL464 #
TXD
EXT SW
TO(1/4)
AUDIO MUTE
AUDIO CS
DAC CS
APA CS
TO(2/4)
SC CS
TO(3/4)
RB524
100*4
C561
0.1
16V
B:CHIP
JL468
#
RB523
100*4
LED
JL465 #
USB REQ
POWER ON
LAMP ON
JL467 #
POWER
TEMP
LAMP
PSAVE
LED
LED
LED
LED
JL461
#
RB522
100*4
R564
10k
1/16W
:CHIP
TO(1/4)
TO(1/4)
4
R565
10k
1/16W
:CHIP
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
+3.3V
+5V
TP407
GND
C565
0.1
16V
B:CHIP
5V -1
CN406
8P
WHT
:SMD
R519
10k
1/16W
:CHIP
JL470 #
R517
100
1/16W
:CHIP
R559
100
1/16W
:CHIP
R558
100
1/16W
:CHIP
SIRCS
FROM(1/4)
R522
R520
100
100
1/16W
1/16W :CHIP
:CHIP
R491 C566
100
0.1
1/16W 16V
:CHIP B:CHIP
R518
100
1/16W
:CHIP
R553
100
1/16W
:CHIP
5V -1
JL452 JL451 #
#
JL485 #
R508
100
1/16W
:CHIP
NR OFF
NF OFF
TO(1/4)
JL471 #
JL472 #
R521
10k
1/16W
:CHIP
JL473 #
R524
2.2k
1/16W
:CHIP
≠≠≠≠≠≠
≠≠≠≠≠≠≠
CPU_RES
R523
100
1/16W
:CHIP
FROM(4/4)
R525
2.2k
1/16W
:CHIP
R507
100
1/16W
:CHIP
JL462 #
F-DA
F-CL
FWE
JL474 #
TO(1/4)
OSD CS
2
IC427
HD64F2633TE
MAIN CPU
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
FROM(1/4)
6
RXD4
SCL0
SDA0
SCL1
VSS
SDA1
PVCC2
RXD0
TXD0
PD7
PD6
PD5
PD4
PD3
PD2
PD1
PVCC1
PD0
VSS
PE7
PE6
PE5
PE4
PE3
PE2
PE1
PE0
TIOCB2
P16
TCLKC
JL453 #
1/16W
:CHIP
5V -1
5V -1
HSI
VSI
4
5
6
7
8
3.2
5.0
IC418(2/8)
74VHC541MTCX
BUFF
+3.3V
90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61
≠≠≠
≠≠≠≠
FROM(3/4) POVS
3
14
7
C550
22
6.3V
:AL-CP
R500
0
:CHIP
SCLK(OSD)
0
17
13
5
C555
22
6.3V
:AL-CP
C556
RB520 0.01
100*4 25V
B:CHIP
TRE
IC418(6/8)
74VHC541MTCX
BUFF
15
OSD CS
SDAT(OSD)
SCLK(OSD) 5.0
OSD ON
5.0
RESN
IC418(3/8)
74VHC541MTCX
BUFF
+3.3V
5.0
IC418(4/8)
74VHC541MTCX
BUFF
C553
0.1
16V
B:CHIP
3.2
3.2
4
OSDDT0
OSDDT1
OSDDT2
OSDDT3
R516
100
1/16W
:CHIP
10
IC418(5/8)
74VHC541MTCX
BUFF
DA0
DA1
DA2
DA3
VOBA
VSS
DCLK0
VDD
DB0
DB1
DB2
DB3
VOBB
BISY
R550
10k
1/16W
:CHIP
R560
10k
1/16W
:CHIP
C544
0.1
16V
B:CHIP
SDAT(OSD)
16
CS
SIN
SCLK
VSS
DCLK1
VSS
VDD
TCLK1
VDD
HSYNC
VSYNC
DISP
RESET
TEST
+5V
R561
10k
1/16W
:CHIP
91 AVCC
92 VREF
93 AN0/P40
KEY0
JL454 #
94 AN1/P41
KEY1
JL455 #
95 AN2/P42
JL456 #
96 AN3/P43
JL457 #
97 AN4/P44
LAMP SENS
JL458 #
98 AN5/P45
FAN PROT
FROM(1/4)
JL459 #
FAN CONT1
99 DA0/AN6/P46
JL460 #
100
DA1/AN7/P47
FAN CONT2
RB521
100*4
FILTER COVER
FROM(1/4)
101
AN8/P90
JL482 #
JL481 #
LAMP COVER
102 AN9/P91
5V-2
103 AN10/P92
R549 R548
R557
100
R509
100
104 AN11/P93
1k
10k
1/16W 1/16W 1/16W
1/16W
:CHIP :CHIP :CHIP
105 AN12/P94
:CHIP
106 AN13/P95
R552
JL479 #
#
107 AN14/P96
JL480 #
108 AN15/P97
109 AVSS
R562 100 1/16W :CHIP
TO(3/4) SC RST
110 P70
RESN
111 P71
OSD ON
112 P72
JL433
TRE
#
113 P73
R584
TO(1/4) PWR PROT
R583 100 1/16W :CHIP
10k
114 P74
1/16W
R547 100 1/16W :CHIP
JL476 #
:CHIP
115 SCK3
SCLK
R546 100 1/16W :CHIP
JL477 #
116 RXD3
TO(2/4),(3/4)
SRX
R545 100 1/16W :CHIP
JL478 #
117 TXD3
SDAT
R512
10k
R563
118 MD0
1/16W
10k
:CHIP
1/16W
119 MD1
:CHIP
R513
120 MD2
10k
KEY0
KEY1
LAMP TEMP
PANEL TEMP
RB419
47*4
15 16 17 18 19 20 21 22 23 24 25 26 27 28
1
2
3
R495
1k
1/16W
:CHIP
OSDEN
TO(1/4)
KEY-TH
IC424
MB90098
OSD
14 13 12 11 10 9
12
3.2
R551
10k
1/16W
:CHIP
R468
22
1/16W
:CHIP
3.2
8
3.2
1/16W
:CHIP
20
3.2
5.0
3.2
≠≠≠
≠≠≠≠
POVS
C564
0.1
16V
B:CHIP
TO(3/4)
R578
C548
22
6.3V
:AL-CP
PVCC1
OSC2
OSC1
VSS
EXTAL
VCC
XTAL
FWE
STBY
NMI
RES
PLLVSS
PLLCAP
PLLVCC
WDTOVF
PG4
PG3
PG2
PG1
PG0
TXD4
OCLK
R515
100
1/16W
:CHIP
R489
10k
1/16W
X403
:CHIP
XTAL12.288MHz
C546
C547
C545
C549 C551
10p
10p
470p
0.1
0.1 CH:CHIP CH:CHIP CH:CHIP
16V
R490
16V
B:CHIP B:CHIP
3k
1/16W
:RN-CP
2
R488
200
1/16W
:RN-CP
PC0
PC1
PC2
SCL
VSS
SDA-OUT
VCC
SDA-IN
PC6
ZOOM
VSS
PB0
PVCC1
PB1
PB2
PB3
PB4
PB5
PB6
PB7
PA0
TXD2(FWR)
RXD2(FWR)
SCLK
VSS
P10
P11
P12
P13
IRQ0
EMI
FL402
MEM2012T101R
IC418(8/8)3.3V-2
74VHC541MTCX
3.2 R497
BUFF
47
0
C554 C563
0.1
100p
CH:CHIP 16V
B:CHIP
FLASH
5
C537
0.01
25V
B:CHIP
R580
10k
1/16W R581
100
:CHIP 1/16W
:CHIP
R579
5V-1
3.3V-1
5V -1 3.3V -1
R511
22
1/16W
:CHIP
R469
22
1/16W
:CHIP
R494
0
:CHIP
1
2
3
4
5
6
7
8
1
Q404
DTC114EUA-T106
RES SW
PF0
PF1
PF2
PF3
PF4
PF5
PF6
VSS
PF7/
POCLK TO(3/4)
R465
0
3.2 :CHIP
FROM(3/4) ≠≠≠≠
≠≠≠
POHS
GND
TXD
RXD
RES
VIN
FWR
MD1
MD2
C541
0.1
16V
B:CHIP
OSD-SIG
TO(3/4)
3.3V-2
5
1
4
EMI
C558
22
6.3V
:AL-CP
C559
0.1
16V
B:CHIP
11
2.1
1.3
2
R475
22
1/16W
:CHIP
3
FL403
MEM2012T101R
6
5
3
2
1.4
VCC
1.4
1
1.3
GND
1.3
IC426
NC7SZ86P5X
EX OR
FB413
BK1608TS601
19
NC
6
R585
10
1/16W
:CHIP
3.3V-2
3.2
C540
1
10V
F:CHIP
VDD
7
IC422
#
≠≠≠≠≠≠
≠≠≠≠≠≠≠
CPU_RES
+3.3V
IC421
NC7WZ04P6X
INV BUF
1
IC419
S-80842ANNP
RESET
4
C534
0.1
16V
B:CHIP
9
NC
8
C535
0.1
16V
B:CHIP
TO(1/4)
TO(4/4) FWE
R464
0
:CHIP
FROM(3/4)
VSS
TO(1/4) SCTR
JL449
#
IC418(7/8)
74VHC541MTCX
BUFF
VDD
C539
C538
0.1
1
16V
10V
F:CHIP B:CHIP
EMI
FL404
0
:CHIP
NC
0
OUT
F-CL
F-DA
4.4
R483
1k
1/16W
:CHIP
3
S1
GND
S0
VSS
1
7
GND
3.2
GND
0
OUT
D409
HN1D03FU-TE85R
R485
47k
1/16W
:CHIP
3.2
R569
1k
1/16W
:CHIP
R604
#
R570
1k
1/16W
:CHIP
2
6
S3
3.2
0
IC420
S-80828ANNP
RESET
4
5
S4
PD
Q403
2SA1213Y-TE12L
RES SW
+3.3V
3
4
VDD
3.2
R577
1k 1/16W :CHIP
C575
R601 #
12p
C582
R576
CH:CHIP
0.01
1k
25V
B:CHIP 1/16W
:CHIP
R602
C576
C578
#
12p
0.1
CH:CHIP 16V
B:CHIP
R603
#
R568
1k
1/16W
:CHIP
R462
22
1/16W
:CHIP
5.0
1
3
VDD
OE
R510
10k
1/16W
:CHIP
R481
33k
1/16W
:CHIP
2
2
X1
11 12 13 14 15 16 17 18 19 20
1
REF
3.2
D408
HN1D03FU-TE85R
R479
10k
1/16W
:CHIP
X404
X2
1
5.0
F+5V
VPL-CX1
17.26272MHz
VCC
WC
SCL
SDA
13.08384MHz
X404
IC413
MK1714-01
SPECTRUM SPREAD
FB410
BK1608TS601
MODEL VPL-CS2
E0
E1
E2
GND
REF.NO
4
3.3V-2
5
JL463 #
JL475 #
R528
100
1/16W
:CHIP
R527
100
1/16W
:CHIP
R501
100
1/16W
:CHIP
R526
100
1/16W
:CHIP
R502
100
1/16W
:CHIP
R555
2.2k
1/16W
:CHIP
5V-2
R556
2.2k
1/16W
:CHIP
JL466 #
SDA
SCL
B (4/4)
TO(1/4),(2/4)
(MAIN CPU)
JL469 #
B-SS1707<...>-B..-P4
8-13
VPL-CS2/CX1
A
B
C
D
8-13
E
F
G
H
C
C
C Board
JL831
JL835
JL837
R817 R810
R818 R809
C817
FB841
L817
R1105
R1112
L816
C1017
C1010
JL899
R1125
C1024
FB842
Q812
C875
Q809
R941
C1002
R1092
R1095C1009
C1012R1096
R1098C1003 C1004
R914
L823
JL862
R1127
R1128
R1129
R968
R969
C887
R976
C894
R843 R849
D806
R846
R972 C892 C888
D807
C895
D802
R850 D804
R848
D805
C834
C902
C903
IC819
C904
R939
R930
L819
TH802
FB803
R836
C911
C878
C882
R922
R917
R909
R926
R925
R947
C997
R1088 C994
R1087
R1086
R1085
R946
R948
FB813
FB816
R874
R954
R953
R950
R905
R904
R903
R1077 R908
R1076
R1075
C991
L820
JL887
L814
C999
JL891
C998
C990
C992
JL822
JL803
C980
JL890
L815
C953
C968
C979
C975
R1066 R1056
R1062
FB832
C987
R1068
R1139
R1074
R1072R1073
JL815
JL801
JL802
JL804
FB802 C830
JL896
C996
JL818
JL819
C983
JL805
JL814
JL820
JL888
JL823
JL816
JL865
R1138
R966
C891
C889
JL895
C995
JL892
R1059
R1058R1060
R1051
C803
JL863
JL894
JL867 FB817
C873
JL886
C802
R973
R988
R989
R990
C1036
R991
R992
R993
C965
C874
C966
R942
JL864
C804
JL871
C822JL821
TH801
R823
C906
JL856
R870
C801
JL905
C1026
JL861
FB818
C1019
C1022
R873
R1008
C910
FB819
JL904
JL860
C869
C867
L821
C879
R929 C877
C832
JL900
C1025
JL855
JL859
JL853
JL854
C1013
R1108
FB846
FB812
C871
C872
C955
R1102
C1011
JL850JL849 JL847
R884
R885
C971
R1107
R1097
R1103
C1018
C1016
FB811
C863
C865
R811
R830 R832
R819
C810
C816
C826
C829
R1002
JL857JL858
R956
R997
R996
R998
R995
C819
R1004
C905
JL897
R1104
C1021
R820
R822
R814
C805
R834 R837
L805
R852
R854
C848 C841
IC807 C849
JL907JL906
C1031
R1132
R1007
JL841
JL842
JL843
JL844
C1028
JL912
JL839
Q818
R1005
JL909
JL910
R887
R1003
FB850
C1030
D815
R1130
C907
C813
JL830
JL882
FB804
C909
JL868 JL870
JL873
JL883
R867
R865
R863
R860
R856
R855
JL911
JL872
C908
C852
R1142
L813
R806
R801 R802 R807
R803
JL901
JL908
C1029
R1133
FL801
C982 TP816
C984
R1054
CN801
L812
IC802
IC801
R1111
R1106
JL828JL829
C1040
CN802
C969
R1045
D801
JL903
JL824
L803
C857
JL840
R902
R901
R900
C870
C868
R1110
R1124
R1123
R1121
R1122
C1006 R1119
R1120
C1007
R1140
R960
R1109
C1015
C885
C1014
R963
JL825
C886 R962
R961
JL826
FL802
R1037
C967
C972
R1101
R1100
JL827
R804
L804
FL804
R893
R892
R891
C806
JL833
JL836 JL834
JL838JL813JL812
JL809 JL811
JL806JL807 JL808 JL810
FL803
C839
C859
C860
C864 FB807
C866
C820
Q805
JL884
C815
R821
R999 R880
JL845JL846 R879
R1000
C827
Q804
JL832
JL817
R825
R824
Q802
C963 C961
IC823 R1040
R1147
C970
R1046
C1037
R1078
R1079
R1080
R1081
R1082
R1083
C977
C988
R1084 C989
C993
R978
C899
TP821
CN819
CN818
TP822
R1067 C981 R1057 FB837
C986
FB833
C978 R1055
C985
C811
CN809
C957
C958
R1032
C964 R1039R1042
C962
IC827
IC826
IC824
Q817
R1047
C960
R1034
C976
C1023
R1126
CN803
CN804
R1065R1063
R1064R1061
R1035
C959
R1036 R1038
R1033
Q810
CN816
CN817
R1070
R934
R1071
C876
R1069
R921
R935
C831
R835
D803 R838
IC820
R1041
R1044
R1043
Q816
R896
R895
R894
R944
R943
TP817
TP818
C893
L806
IC813
Q813
JL885
C858
CN808
C956
R897 R898
IC817
TP811
R931
TP812
FB810
FL805
FB809
FL806
R951
R952
R919
R994
R913 Q811
C1039
C951
C855
C856
R899
R882
R906 R907
FB815
C883 C880 R924 R923
R928 R918
R927 R910
R938
R937
R936
R912
R916
R940 Q808
R945
R971
R974
C896
R977
C898
R964 R967
C900
C897 C890
C901 R965
R979
R1030
C954
IC811
R889
R959
R958
R957
FB814 C881
IC818
R911
R915
R949
C884
R982
R983
R984
R985
R986
R987
R981
C1020
R980 R975
R970
R875 C833 R1029
Q814 Q815
R1027
D814
D813
R812
TP802
R876
IC804 R828
D812
Q801 TP801
R877
C854
C853
IC812
R1052
IC831
Q807 Q806
L807
R920
R933
R932
R1113
R1114
R1115
R1116
R1117
R1118
C1008
C918 FB714
C788 R799 R798
IC829
IC714
C763
FB805
IC814
R888
R881 R883
R1099
C789
R1141 R1053
R886
CN812
R955
TP814
IC809
IC825
R1031
R831
R1026
C825
R826 R816
C952
C814
IC808R878
TP813
C828
C812
C818
C1005
R1131
L818
IC833
R1145
C1041
CN811
IC830
C1038
R1144
C1032
R1143 TP824 TP823
C851
D816
R853
TP807
TP806
IC835
R1135R1134
C850R1146
R1136
IC834
C840
TP804
IC803
CN806
R1028
R1025
CN810
IC806
R833
C823
R869
R871
R862
R864
R857
R858
R872 R868 R861
TP810 TP809 TP805
C808
R847 R844
R829
C821
TP808
R827
TP820
R839
R841
C807
TP803
CN805
Q803
C824
R1024
R808
R813
CN815
C809
CN807
R840
R842
R845
R1023
CN820
FB801
C -A SIDE-
C -B SIDE-
SUFFIX: -11
SUFFIX: -11
C Board
1-679-384-11
IC714
IC801
IC802
IC803
IC804
IC806
IC807
IC808
IC811
IC812
IC813
IC814
IC817
IC818
IC819
IC820
IC823
IC824
IC825
IC826
IC827
IC829
IC830
IC831
IC833
IC834
IC835
B-2
G-1
G-2
B-3
G-4
D-4
* C-3
F-4
E-3
E-4
E-3
F-3
D-3
D-3
* B-2
C-1
G-2
G-2
G-4
E-2
F-1
A-2
A-3
D-3
E-4
D-3
D-4
Q801
Q802
Q803
Q804
Q805
Q806
Q807
Q808
Q809
Q810
Q811
Q812
Q813
Q814
Q815
Q816
Q817
Q818
G-3
* B-4
B-4
* B-4
* A-4
D-2
C-2
C-2
* B-2
E-2
D-2
* B-2
E-2
G-3
G-3
G-2
G-2
* E-3
D801
D802
D803
D804
D805
D806
D807
D812
G-1
* D-1
C-1
* C-1
* C-1
* C-1
* C-1
F-4
D813
D814
D815
D816
TP801
TP802
TP803
TP804
TP805
TP806
TP807
TP808
TP809
TP810
TP811
TP812
TP813
TP814
TP816
TP817
TP818
TP820
TP821
TP822
TP823
TP824
F-4
F-4
* D-3
D-4
G-3
G-3
A-3
B-3
C-4
A-3
B-3
B-4
C-4
C-4
D-2
C-2
B-3
B-3
F-1
D-2
D-2
A-3
A-1
A-1
D-3
D-4
*:B Side mount
8-14
8-14
VPL-CS2/CX1
C (1/5)
C (1/5)
. Refer to page 8-14 for Printed Wiring Board
. Refer to page 8-20 for Waveforms
. Refer to page 8-20 for IC Block Diagrams
For VPL-CS2
1
SCI
GND
FLAG
1
2
3
BALLAST
D802
DTZ-TT11-5.1
JL801 #
JL804 #
D803
DTZ-TT11-5.1
POWER CONT
FAN PROT
FAN CONT1
FAN CONT2
GND
0
R838
1/16W
:CHIP
5V-1 4.7k
C832
47
6.3V
:AL-CP
R846
100
1/16W
:CHIP
JL805
#
1
2
3
4
5
6
IC804(2/4)3
TC74VHC08FT(EL)
AND
C830
0.01
25V
B:CHIP
CN804
5P
WHT
:SMD
LAMP ON
LAMP TEMP
5.0
C822
0.01
25V
B:CHIP
C825
#
R831
#
SUB+5V
TP802
C834
JL817 0.01
#
25V
B:CHIP
14
8
4.3
R848
100
1/16W
:CHIP
JL802 #
JL814
#
D807
D805
DTZ-TT11-5.1 DTZ-TT11-5.1
D804
DTZ-TT11-5.1
D806
DTZ-TT11-5.1
C828
#
C829
10
16V
:AL-CP
LCD TEMP
C831
0.01
25V
B:CHIP
C833
1
6.3V
B:CHIP
GND
10
9
7
POWER ON
5V-2
R840
#
R839
#
TH802
LCD
R842
#
R841
#
JL820
#
R845
#
5.0
5.0
CLP
FROM(2/5)
IC804(3/4)
TC74VHC08FT(EL)
AND FAN CONT2
JL815
#
1
2
3
VCC1(R)
4
OSD R
2.6
11.9
R OUT
3.5
NC
GND2
5
GND1(R)
6
G IN
G OUT
NC
SOG IN
VCC1(G) CONT REF
OSD G
GND
4.4
3.0
MAIN BRT
3.5
GND1(G)
B OUT
2.6
GND
B IN
4.5
VCC1(B) CONT DAC
BLK
OSD B
3.7
GND(B)
D/A 1
NC
D/A 2
GND1(B)
D/A 3
ABL IN
D/A 4
NC
D/A 5
GND
VCC 5V
3.9
SDA
3.9
SOG OUT
0.5
CLP
SCL
R809 R810
C806 C807 2.2k 2.2k
#
# :CHIP :CHIP
C809
Q802
#
R808
#
R813
470
1/16W
:CHIP
R817 R818
2.2k 2.2k
:CHIP :CHIP
G
R824 R825
2.2k 2.2k
Q804 :CHIP :CHIP
2SA1462
BUFF
R829
10k
1/16W
:CHIP
R832 R833
470
470
1/16W 1/16W
:CHIP :CHIP
R837
47k
1/16W
:CHIP
Q803
2SA1462
BUFF
R844
100
1/16W
:CHIP
2
G OUT
TO(3/5)
C823
#
R830
#
POWER LED
1
R OUT
TO(4/5)
R819 JL826 TP807
0
:CHIP #
C817
#
R821 R822
470
470
1/16W 1/16W
:CHIP :CHIP
R811 JL825 R
0
TP806
:CHIP #
2SA1462
BUFF
C811
#
R814
470
C815 1/16W
:CHIP
#
R820
#
CN808
70P
WHT
+12V
R827 JL827
0
:CHIP #
TP808
LAMP LED
PSAVE LED
KEY1
3
B OUT
TO(4/5)
C824
0.22
25V
B:CHIP
C821
0.22
25V
B:CHIP
TEMP LED
B
C820
Q805
10
2SA1462
16V
:CHIP C827 BUFF
#
R834
470k
1/16W
:CHIP
KEY0
LAMP TEMP
LCD TEMP
R847
100 1/16W :CHIP
TO(2/5)
OCLK
VD
HD
FAN PROT
RIN
VCC2
2.6
TH801
LAMP
JL819
#
OSDBLK
3.4
C819
10
16V
C826 :AL-CP
47
6.3V
:AL-CP
M.OUT
JL822
#
R835
2.7k
1/16W
:RN-CP
R836
100
1/16W
:CHIP
C813
10
16V
:AL-CP
C818
#
JL821
#
1
2
TP801
R843
4.7k
1/16W
:CHIP
R823
1k
1/16W
:RN-CP
C805
39
16V
:OS
7
CN807
6P
WHT
:SMD
5V -1
R826
1k
1/16W
:RN-CP
LAMP SENS
FB803
BK2125HM601T
TO GA BOARD CN674
R802 R807
20k
510
1/16W 1/16W
:RN-CP :RN-CP
5V-2
4
FB802
BK2125HM601T
CN803
3P
WHT
:SMD
C814
0.1
16V
B:CHIP
:CHIP
C810
47
6.3V
:AL-CP
C812
#
C816
47
6.3V
:AL-CP
IC803
M52749FP-TP L804
RGB AMP 100µH :CHIP
22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42
R1147 #
C808
0.01
25V
B:CHIP
C804
47
25V
:AL-CP
8
1
2
5
+5V
G
C803
47
25V
:AL-CP
Q801
DTC144EKA-T146
SW
IC804(1/4)
R828
TC74VHC08FT(EL)
100
5.0
AND 5
1/16W 4.7
JL803
#
G
O
21 20 19 18 17 16 15 14 13 12 11 10 9
L CONT OUT
L CONT IN
TEMP
FUSE
R812
4.7k
1/16W
:CHIP
R816
4.7k
1/16W
:CHIP
D801
DTZ-TT11-5.1
R806
4.7k
1/16W
:CHIP
I
R804
100
1/16W
:CHIP
12V
L803
10µH
:CHIP
JL823
#
B
G
+16.5V
CN802
2P
RED
:SMD
C802
47
25V
:AL-CP
JL816
#
O
JL818
#
R
AUDIO GND
3
4
5
6
7
8
EMI
12V
VD
HD
+16.5V
+16.5V
GND
GND
ON/OFF ADJ
1 I
R803
8.2k
1/16W
3 :RN-CP
+12V
IC802
BA12FP-E2
12V REG
GND
AUDIO GND
AUDIO GND
AUDIO +B
2 4
16.7
AUDIO +B 1
AUDIO +B 2
R801
10k
1/16W
:CHIP
FL801
NFM41P11C204
15.5V
+15.5V
IC801
PQ20VZ1U 1.2
15V REG
4.7
6
5
4
3
2
1
C801
100
16V
:AL-CP
TO GB BOARD CN706
TO(5/5)
CN801
8P
WHT
:SMD
TP804 TP803
R849
100
1/16W
:CHIP
R850
100
1/16W
:CHIP
4
FAN CONT1
JL911 #
5
JL912 #
≠≠
TO(2/5) ≠≠≠
HSO
≠≠
TO(2/5) ≠≠≠
VSO
C854
C853
1
0.1
6.3V
16V
B:CHIP B:CHIP
R2
3.3V-2
R3
R9
R8
R7
R6
R5
R4
R3
R2
R852
0
:CHIP
R865 330 1/16W :CHIP
4
CN806
5P
WHT
:SMD
1
2
3
4
5
R875
100
JL812 1/16W
:CHIP
#
RXD
TXD
VREF
COMP
IOR
IOR
IOG
IOG
VAA
VAA
IOB
IOB
GND
GND
5
5
1
4
R880
100
1/16W
:CHIP
IC809
#
C856
C855
1
0.1
6.3V
16V
B:CHIP B:CHIP
C848
0.1
16V
B:CHIP
R999
0
:CHIP
CLK
TO(2/5)
R6
R7
R8
R9
C849
0.1
R854
16V
3.3k
1/16W B:CHIP
:CHIP
R857
39
1/16W
:RN-CP
FL802 R862
39
#
1/16W
R861 #
:RN-CP
R868
FL804
#
#
EMI
G2
B2
G3
B3
G4
B4
G5
B5
G6
B6
G7
B7
G8
B8
G9
B9
R DA
TP805
JL824
#
3
EMI
R872
#
R5
2
3
IC808
TC7SZ04FU(TE85R)
INVERTER
G DA
TP809
EMI
R869
39 1/16W :RN-CP
FL803
#
JL828
#
B DA
JL829
#
R858
47
1/16W
:RN-CP
R864
47
1/16W
:RN-CP
IC807
LM4041DIM3-1.2
VOLTAGE REF
1
2
TP810
R871
47
1/16W
:RN-CP
+5V
R876
JL813 100 1/16W :CHIP
#
D813
DTZ-TT11-5.1
D814
D812
DTZ-TT11-5.1 DTZ-TT11-5.1
C (1/5)[VPL-CS2]
(D/A CONVERTER,RGB AMP)
B-SS1707<...>-C..-P1
8-15
VPL-CS2/CX1
B
3
4
5
EXT SW
R877
100
1/16W
:CHIP
A
2
B2
B3
B4
B5
B6
B7
B8
B9
VISCA
SUB 5V
RXD
TXD
GND
EXT SW
IC806
ADV7123KST140
D/A
13 VAA
14 B0
15 B1
16 B2
17 B3
18 B4
19 B5
20 B6
21 B7
22 B8
23 B9
24 CLOCK
R867 330 1/16W :CHIP
5
R863 330 1/16W :CHIP
G2
G3
G4
G5
G6
G7
G8
G9
G0
G1
G2
G3
G4
G5
G6
G7
G8
G9
BLANK
SYNC
25 26 27 28 29 30 31 32 33 34 35 36
5V-2
FB804
BK2125HM601T
R860 330 1/16W :CHIP
6
LED
LED
LED
LED
3
2
KEY1
PSAVE
LAMP
TEMP
POWER
#
JL809
#
JL810
#
JL811
#
1
KEY0
7
FB801
BK2125HM601T R855
1k
1/16W
JL806
:RN-CP
#
JL807
#
R856
1k
1/16W
:RN-CP
JL808
8
1
2
3
4
5
6
PSAVE LED 7
LAMP LED 8
TEMP LED 9
POWER LED 10
11
D 5V
12
GND
12 11 10 9
GND
N.C
KEY0
KEY1
SUB 5V
N.C.
R9
R8
R7
R6
R5
R4
R3
R2
R1
R0
PSAVE
RSET
5V-1
TO H BOARD CN001
C839
47
6.3V
:AL-CP
R853
560
1/16W
:RN-CP
48
47
46
45
44
43
42
41
40
39
38
37
CN805
12P
WHT
:SMD
L805
4.7µH
R4
R879
100
1/16W
:CHIP
3
C840 C841
0.1
0.01
16V
25V
B:CHIP B:CHIP
R878
0
:CHIP
4
5V-3
TO(2/5)
SCTR
1.9
2
1
FB805
BK2125HM601T
1.6
B35
A35
B34
A34
B33
A33
B32
A32
B31
A31
B30
A30
B29
A29
B28
A28
B27
A27
B26
A26
B25
A25
B24
A24
B23
A23
B22
A22
B21
A21
B20
A20
B19
A19
B18
A18
B17
A17
B16
A16
B15
A15
B14
A14
B13
A13
B12
A12
B11
A11
B10
A10
B9
A9
B8
A8
B7
A7
B6
A6
B5
A5
B4
A4
B3
A3
B2
A2
B1
A1
CN809
50P
WHT
TO B BOARD CN405
TO B BOARD CN403
POWER LED
A1 GND
POWER LED
RXD
B1 RXD
TEMP LED
TXD
A2 TXD
TEMP LED
EXT SW
B2 EXT SW
LAMP LED
POWER ON
A3 POWER ON
LAMP LED
LAMP ON
B3 LAMP ON
PSAVE LED
FAN CONT2
A4 FAN CONT2
PSAVE LED
FAN CONT1
JL838 B4 FAN CONT1
KEY1
FAN PROT
# A5 FAN PROT
KEY1
LAMP SENS
B5 LAMP SENS
KEY0
JL837
A6 GND
#
D+5V
KEY0
JL830
B6 GND
#
GND
5V-2
A7 D+5V
GND
B7 D+5V
SDA
A8 GND
SUB+5V
SDA
B8 GND
5V-1 JL831
#
SCL
A9 SUB+5V
SCL
B9 SUB+5V
GND
A10 GND
GND
D+3.3V JL832
B10 GND
#
LAMP TEMP
3.3V-2
A11 D+3.3V
LAMP TEMP
B11 D+3.3V
LCD TEMP
A+5V
A12 GND
LCD TEMP
5V-3 JL835
B12 GND
#
GND
A13 A+5V
GND
B13 A+5V
OCLK
A14 A+5V
OCLK
B14 A+5V
GND
A15 GND
GND
B15 GND
HSOX
A16 AUDIO MUTE
TO(5/5)
AUDIO-MUTE
HSOX
B16 GND
JL836
GND
#
A17 AUDIO CS
TO(5/5)
APCE
GND
B17 DAC CS
TO(3/5)
DALD
VSOX
A18 GND
TO(2/5),(3/5) D-SCLK
R2
B18 GND
JL833
VSOX
#
13
A19 SCLK
0
R3
A-SCLK 11
12
B19 SCLK
TO(5/5) 0
0
GND
IC804(4/4)
A20 GND
TC74VHC08FT(EL)
R4
B20 GND
JL834
AND
UF CS
#
A21 SDAT
SDAT
R5
B21 SDAT
TO(2/5),(3/5),(5/5)
GND
A22 GND
R6
B22 GND
GND
A23 A-R
R7
B23 A-R
A-R
GND
A24 A-G
R8
TO(5/5) AUDIO GND
B24 A-G
GND
A25 A-L
R9
B25 A-L
A-L
GND
GND
G2
B2
G3
B3
G4
B4
G5
B5
G6
B6
G7
B7
G8
B8
G9
B9
GND
GND
C
D
8-15
E
F
G
H
C (2/5)
C (2/5)
. Refer to page 8-14 for Printed Wiring Board
. Refer to page 8-20 for Waveforms
. Refer to page 8-20 for IC Block Diagrams
HCK1
≠≠≠≠
≠≠≠
≠≠≠≠
HCK2
≠≠≠
≠≠≠
HST
≠≠
≠≠≠
VCK
≠≠
≠≠≠
VST
≠≠
1
5V-2
IC831(1/6)
TC74VHCT04AFT
INVERTER
5V-2
FB811
BK2125HM601T
+5V
14
FRP
I/014
9 10 11 12 13 14
1
3
4
≠≠≠
VCK
≠≠
≠≠≠
ENB
≠≠
1A
1Y
3
JL856
#
ENB
R895
100
1/16W
:CHIP
≠≠≠
VST
≠≠
VST
R1005
#
R896
100
1/16W
:CHIP
HCK2B
R902 JL859
47
1/16W #
:CHIP
VCC
2.0
6A
2.5 3.8
2A
6Y
0.5 0.4
2Y
5A
4.4 4.1
3A
5Y
0 0.1
3Y
4A
5.0 3.8
GND
4Y
0.4
≠≠≠
PCG
≠≠
PCG
10
4.6
TO(3/5)
≠≠
PRG
≠≠≠
R887
100
1/16W
:CHIP
FL806
#
R1130
10k
1/16W
:CHIP
D815
1SS355
TO(3/5),(4/5)
R898
0
:CHIP
1
FB810
BLM21B750S
R906
330
1/16W
:CHIP
EMI
FB850
BK1608TS601
NC
Q
Q
VCC
TTL
NC
1.6
NC
GND
C873
47
6.3V
:AL-CP
C872
C871
1
0.1
6.3V
16V
B:CHIP B:CHIP
R907
330
1/16W
:CHIP
C1030
0.1
16V
B:CHIP
R899
22
1/16W
:CHIP
C1041
2.2
10V
B:CHIP
L818
1µH
:CHIP
IC831(3/6)
TC74VHCT04AFT
INVERTER
5
6
IC831(4/6)
TC74VHCT04AFT
INVERTER
9
8
5.0
5.0
IC831(6/6)
TC74VHCT04AFT
INVERTER
13
12
5.0
TO(4/5)
+5V
C1029
0.1
16V
B:CHIP
VRH
TP823
VIDEO RG
JL907
#
TO(3/5)
C1032 R1132
0.1
470
16V 1/16W
B:CHIP :CHIP
VRL
JL906
#
D816
1SS355
R1135
1.8k
1/16W
:RN-CP
3
1
2
C1039
47
6.3V
:AL-CP
IC835
TL431CPK
SHUNT REG
R1136
2.7k
1/16W
:RN-CP
R1145
39
1/16W
:RN-CP
OUT
V+
8
R1134
680
1/16W
:RN-CH
IN-
OUT
7
R1143
5.6k
1/16W
:RN-CP
IN+
IN-
6
R1133
470
1/16W
:CHIP
GND
IN+
5
C1031
0.1
16V
B:CHIP
R1144
220
1/16W
:CHIP
1
VIDEO RB TO(4/5)
R1146
0
:CHIP
2
C1040
#
TP824
3
8
VIDEO RR
C852
0.1
16V
B:CHIP
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
5
AOUT0
BFIN0
DACO0
AVDD
VRH
AOUT1
BFIN1
DACO1
VRL
AVSS
AOUT2
BFIN2
DACO2
DVSS1
DVDD1
OLIM
4
Q818
DTC144EKA-T146
SW
IC833
CXD3503R
UF ADJUST
R1131
470
1/16W
:CHIP
33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
FROM(3/5) DWN
16 15 14 13 12 11 10 9
R1142
1k
1/16W
:CHIP
7
6
TO(3/5) GDIR
NC
NC
VST
HST
DWN
RGT
CTRL
TEST0
TEST1
TEST2
DOUT00
DOUT01
DOUT02
DOUT03
DOUT04
DDOUT05
DVSS0
DOUT10
DOUT11
DOUT12
DOUT13
DOUT14
DOUT15
DVDD0
DOUT20
DOUT21
DOUT22
DOUT23
DOUT24
DOUT25
DACK0
DACK1
4
5
R1141
4.7k
1/16W
:CHIP
3
2
1
SLCK
CKL1
DVSS3
XCLR
HSYNC
SDAT
SCLK
SCTR
DVDD2
NC
NC
NC
NC
NC
NC
DVSS2
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
4
FB812
BK2125HM601T
FROM(1/5) CLK
5V-3
R1053
4.7k
1/16W
:CHIP
2
3.7
3.7
FL805
#
FROM(1/5) OCLK
R1052
#
FB809
BLM21B750S
5V-2
C1028
1
10V
B:CHIP
R1004
0
:CHIP
R897
0
:CHIP
MCLK
≠≠≠
≠≠≠≠
MCLK
3
TO(1/5)
4
JL843 #
JL844
#
5V-2
IC814
MC100ELT20DR2
PECL DRV
EMI
JL842 #
8
11
0.4
7
R1007
#
+5V
PRG
6
C857
0.1
16V
B:CHIP
JL841 #
HST
5
JL909
#
JL840
#
C869
0.1
16V
B:CHIP
C867
1
6.3V
B:CHIP
IC831(5/6)
TC74VHCT04AFT
INVERTER
R1008
100
1/16W
:CHIP
TO(1/5) CLP
PLD
R1003
22 1/16W :CHIP
SCTR
3
JL839
#
1
2
3
4
5
6
7
8
SDAT
SCLK
GND
MODE
PLUG
ISPEN
SDI
SDO
VCC
JL860
#
R903
47
1/16W
:CHIP
R904
47
1/16W
:CHIP
R905
47
1/16W
:CHIP
≠≠≠
HST
≠≠
TP TO(3/5),(4/5)
JL910 #
D-SCLK
CN810
8P
WHT
:SMD
C870
0.1
16V
B:CHIP
C868
1
6.3V
B:CHIP
I/011
0.5
I/010
3.6
I/09
I/08
SDO/IN1
GND
3.6
I/07
I/06
I/05
I/012
≠≠≠≠
HCK2
≠≠≠
12
13
14
15
16
17
18
19
20
21
22
I/03
I/013
≠≠≠≠
HCK2
≠≠≠
9 10 11 12 13 14
3.6
I/015
0
R900
47
1/16W
:CHIP
HCK2R
R901 JL857
47
1/16W #
:CHIP
HCK2G
JL858
#
≠≠≠≠
HCK2
≠≠≠
8
3.6
3.6
I/11
3.8
I/01
3.2
I/02
0.5
VCC
2.2
6A
2.9 2.3
2A
6Y
2.2 2.9
2Y
5A
2.9 2.3
3A
5Y
2.2 2.9
3Y
4A
2.9 2.3
GND
4Y
2.9
IC813
TC74VHCT04AFT
INVERTER
R894
100
1/16W
:CHIP
4
Y2/SCLK
SDI/INO
VCC
≠≠≠≠
HCK1
≠≠≠
VCK
C864
1
6.3V
B:CHIP
1Y
5
6
7
1.6
3.7
1A
6
Y1/ RESET
IC812
ISPLSI1016E-100L
TG
DWN
≠≠≠≠≠
RB
≠≠≠≠≠≠
DIR
FROM(3/5),(4/5)
I/026
IN2/MODE
ISPEN
11 10 9
≠≠≠
ENB
≠≠
R1002
47
1/16W
:CHIP
0
5.0
I/016
3.8
I/017
VCC
≠≠≠
PCG
≠≠
TO(1/5) ≠≠≠
VSO
≠≠
I/018
3.1
0
I/030
0.1
I/031
0
Y0
3.7
8
JL846 C859
1
#
6.3V
B:CHIP
23 24 25 26 27 28 29 30 31 32 33
I/029
C866
0.1
16V
B:CHIP
44
43
0
I/025 42
0
I/024 41
2.0
GOE/IN3 40
5.0
GND 39
I/023 38
I/022 37
I/021 36
2.2
I/020 35
0
I/019 34
4.1
1
I/028
3
R884
JL845
1k
#
1/16W
R885:RN-CP
0
:CHIP
2
R882
0 :CHIP
5
R1000
47
1/16W
:CHIP
I/027
C860
0.1
16V
B:CHIP
≠≠≠
≠≠
TO(1/5) HSO
4
2
I/04
C858
47
6.3V
:AL-CP
≠≠≠≠
HCK1
≠≠≠
8
HCK1B
FB807
BK2125HM601T
≠≠≠≠
HCK1
≠≠≠
5
HCK1G
5V-1
R891
47
1/16W
:CHIP
JL853 R892
47
#
1/16W
:CHIP
R893
JL854 47
#
1/16W
:CHIP
JL855
#
6
HCK1R
7
C865
0.1
16V
B:CHIP
R886
1k
1/16W
:RN-CP
2
IC811
TC74VHCT04AFT
INVERTER
R889
47
1/16W
:CHIP
1
2.5
2
7
7
JL847
#
1
2
2.0
C863
1
6.3V
B:CHIP
JL850
JL849 #
#
C850
C851
0.1
0.1
16V
16V
B:CHIP B:CHIP
JL908
#
IC834
LMV358MMX
VOLTAGE REF
C (2/5)[VPL-CS2]
+5V
TIMING GENERATOR,
UF ADJUST
B-SS1707<...>-C..-P2
8-16
A
B
C
D
8-16
VPL-CS2/CX1
E
F
G
H
C (3/5)
C (3/5)
. Refer to page 8-14 for Printed Wiring Board
. Refer to page 8-20 for Waveforms
. Refer to page 8-20 for IC Block Diagrams
1
5V-3
15.5V-2
R930
0
:CHIP
15.5V
FB816
BK2125HM601T
FROM(1/5) G OUT
R965
820
1/16W
:RN-CP
C890
10
10V
F:CHIP
1
9 10 11 12 13 14 15 16
Q807 R915
0
2SA1162 :CHIP
BUFF
2
2.4
R916
470
1/16W
:CHIP
2.4
4
2.4
3
2.4
0
6
7
2.4
5
C877
0.1
16V
B:CHIP
8
R911
0
:CHIP
FB814
BK2125HM601T
JL864
#
SID-OUT
C884
#
NC
7.0
3.5
VCOM OUT
6.2
SIG CEN
VCOM OFST
NC
SID-IN
2.4
6.9
ISET
1.3
6.9
IC819
CXA2112R-T6
LCD DRIVER
(G)
CLK-OUT
3.4
NC
PVCC
NC
NC
NC
DGND
PGND
CLK-IN
NC
3.4
SH-OUT4
6.9
NC
CLK-IN
3.4
0
PRG
SH-OUT5
6.9
NC
NC
NC
1
2
3
4
5
6
SH-OUT6
8
9 10 11 12 13 14 15 16
R969
#
R980
#
R974
#
FB819
BL2125HM601T
C911
#
5V-2
GREEN
R982
0 :CHIP
CN811
24P
FPC
TO LCD PANEL(G)
VID2
7
R983
0 :CHIP
VID3
R984
0 :CHIP
R985
0 :CHIP
VID4
VID3
VID5
VID2
VID6
VID1
1
2
3
4
5
6
7
8
9
10
JL872 #
11
12
13
14
15
16
17
18
19
20
21
22
23
24
TP813
JL868 #
VID4
R986
0 :CHIP
VID5
15.5V
R979
0
:CHIP
C908
0.1
25V
B:CHIP
R987
0 :CHIP
VID6
HST
HCK2G
HCK1G
ENB
VCK
VST
PCG
R981
#
R973
#
IC714
4
0
5.0
C909
0.47
25V
F:CHIP
≠≠≠≠≠
≠≠≠≠≠≠
RB
DIR
TO(2/5),
(4/5)
2
GREEN
R995
10k
1/16W
:CHIP
VID1
IC831(2/6)
TC74VHCT04AFT
INVERTER
R970
#
PSIG
SIG4
SIG3
SIG5
SIG2
SIG6
SIG1
HVDD
XRGT
MODE3
MODE2
MODE1
HST
HCK2
HCK1
VSS
BLK
ENB
VCK
VST
PCG
DWN
VVDD
COM
3
#
L823
#
1
BP
VIN
6
2
SD
GND
5
FB
VO
4
C763
#
3
FB813
BK2125HM601T
R929
4.7k
1/16W
:CHIP
C906
0.1
25V
B:CHIP
G-SID OUT
R945
0 JL861
:CHIP #
GND
TP811
3
:CHIP
C904
100
16V
:AL-CP
+5V
C879
0.1
16V
B:CHIP
C878
#
C910
#
JL871
#
R975
0
:CHIP
1.7
Q806
2SA1162 0.6 R912
470
BUFF
1/16W
R994
0
:CHIP
6.9
7
R971
#
R956
#
SID-OUT
NC
VCC
3.3
SH-OUT3
≠≠
PRG
≠≠≠
FROM(2/5)
4.9
SID-OFST
CLK-OUT
R968
0
:CHIP
R955
0
:CHIP
C902
47
25V
:AL-CP
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
FB818
BK2125HM601T
NC
C881
0.1 16V B:CHIP
R949
0
:CHIP
NC
NC
IC818
MAX4066CEE-TE2
SW
R948
4.7k
1/16W
:CHIP
PRG
FRP
5V-3
6.9
4.4
5.0
GDIR
FR0M(2/5)
SH-OUT2
VDD
NC
C889
0.1
B:CHIP
NC
3.7
4.9
INV-CNT
DIR-CNT
3.4
C887
47
6.3V
:AL-CP
MCLK
ENB
G VCOM
6.9
5.0
C888
0.1
16V
B:CHIP
GND2
R940
Q808
2.2
HN1B01FU-TE85R 1/16W
BUFF
:CHIP
+15.5V
C903
0.1
25V
B:CHIP
SH-OUT1
NC
DWN
4.4
MCLK
S-12-CNT
R937
100
1/16W
:CHIP
DLY-CNT
NC
3.7
INV-CON
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
NC
+5V
NC
FB817
BK2125HM601T
L807
1µH
:CHIP
C901
0.1
25V
B:CHIP
48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33
GND
5V-2
3.3
2.5
6.9
SH-IN
6.9
FRP
2.5
R952
100
1/16W
:CHIP
C900
0.1
25V
B:CHIP
C898
#
R977
27k
1/16W
:RN-CP
F/R-CNT
FB815
BK2125HM601T
C897
0.1
16V
B:CHIP
JL865 #
OFFSET
VCC
6
GINV
POS-CON2
POS-CON1
R967
47
1/16W C896
22p
:CHIP CH:CHIP
R964
3k
1/16W
:RN-CP
INV-OUT
R938
100
1/16W
:CHIP
A011
VDD
R951
100
1/16W
:CHIP
TP812
VIDEO IN
R936
100
1/16W
:CHIP
R923
#
A010
R959
100
1/16W
:CHIP
R939
2.2
1/16W
:CHIP
R919
2.2k
1/16W
:CHIP
C874
0.1
25V
B:CHIP
2.1
2.1
4.1
NEXT-IN
4.1
R924 C880
100
1/16W 0.1
16V
:CHIP B:CHIP
D0
2.1
A012
2.1
L819
100µH
TO(2/5) VIDEO RG
Q811
HN1B01FU-TE85R
BUFF
JL867
#
C894
0.001
B:CHIP
NEXT-OUT
7
8
R910
#
10 9
R928 100 1/16W :CHIP
R918
#
LD
SCEN
DLY-CON
R913
100
1/16W
:CHIP
C895
47
25V
:AL-CP
POS-CNT2
4
5
R927
100
1/16W
:CHIP
R922
#
6
R909
#
R VCOM
B VCOM
R926
0
:CHIP
GND
2.3
SH2
4.4
SCEN
1.7
DI
5.0
CLK
0
2.4
1.7
A04
4.9
A05
0
A06
0
A07
3.1
A08
4.0
A09
3.5
C893
0.1
25V
B:CHIP
POS-CNT1
2
A03
R931
2.2k
1/16W
:CHIP
15.5V-2
L806
1µH
:CHIP
TO(4/5)
DAC
R953
10k
1/16W
:CHIP
R954 R957 R958
100 100
100
1/16W 1/16W 1/16W
:CHIP :CHIP :CHIP
R950
5.6k
1/16W
:CHIP
11 12 13 14 15 16 17 18 19 20
1
VSS
3
R925
0
:CHIP
TO(4/5)
15.5V
IC817
MB88346BPFV-EF
12CH DAC
15.5V
R917
#
C883
0.1
16V
B:CHIP
SDAT
D-SCLK
DALD
C882
47
6.3V
:AL-CP
TO(1/5)
CN812
#
C789
#
JL873
#
R799
#
R972
#
C788
#
R798
#
C892
#
R976
#
R966
#
R978
#
C918
#
FB714
#
OFFSET
R962
#
R963
#
MCLK
FROM(2/5)
≠≠≠
MCLK
≠≠≠≠
C885
0.001
B:CHIP
C886
0.001
B:CHIP
C891
#
R961
47
1/16W
:CHIP
49 DLY-CNT
50 MCLK
51 MCLK
52 INV-CNT
53 VDD
54 CLK-OUT
55 CLK-OUT
56 NC
57 NC
58 DGND
59 CLK-IN
60
61 CLK-IN
62 PRG
63 NC
64 NC
IC820
#
GND2
SH-OUT1
NC
SH-OUT2
NC
SH-OUT3
PVCC
NC
NC
PGND
NC
SH-OUT4
NC
SH-OUT5
NC
SH-OUT6
POS-CNT1
POS-CNT2
NEXT-OUT
NEXT-IN
F/R-CNT
GND
NC
NC
NC
S-12-CNT
NC
ENB
DIR-CNT
NC
NC
NC
R960
47
1/16W
:CHIP
C899
#
48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33
VCOM OUT
R1138
#
VIDEO IN
INV-OUT
SH-IN
FRP
VCC
SID-OFST
NC
NC
SID-IN
SID-OUT
ISET
NC
SIG CEN
VCOM OFST
5V-2
TO(4/5) HVDD
1
C (3/5)[VPL-CS2]
2
3
4
5
6
7
8
C907
#
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
VID1
VID2
VID3
VID4
VID5
VID6
VID7
VID8
VID9
VID10
VID11
VID12
TP814
JL870 #
HST
HCK2G
HCK1G
VID7
R988
#
VID8
R989
#
VID9
R990
#
ENB
VCK
VST
C1036
#
R991
#
VID10
R992
#
PCG
VID11
R993
#
VID12
C905
#
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
PS2G
VSSGR
VSIG1
VSIG2
VSIG3
VSIG4
VSIG5
VSIG6
VSIG7
VSIG8
VSIG9
VSIG10
VSIG11
VSIG12
HVDD
RGT
HST
HCK2
HCK1
VSS
VSSGL
BLK
ENB
VCK
VST
DWN
HB
VB
PCG
VVDD
COM
TEST
4
5
5V-2
9 10 11 12 13 14 15 16
R996 R997
#
#
R998
#
ENB
LCD DRIVER(G)
12CH DAC
FROM(2/5),(4/5)
DWN TO(2/5)
TP
B-SS1707<...>-C..-P3
8-17
VPL-CS2/CX1
A
B
C
D
8-17
E
F
G
H
C (4/5)
C (4/5)
. Refer to page 8-14 for Printed Wiring Board
. Refer to page 8-20 for Waveforms
. Refer to page 8-20 for IC Block Diagrams
R934
0
:CHIP
7.0
NC
SH-OUT5
7.0
NC
1
4
7
8
9 10 11 12 13 14 15 16
4.4
5.0
VID4
R1075
0 :CHIP
R1076
0 :CHIP
JL895
#
VID6
HST
HCK2B
HCK1B
R1077
0 :CHIP
7.0
NC
C996
0.1
25V
B:CHIP
VID5
NC
DIR-CNT
6
ENB
5
5.0
3
NC
2
S-12-CNT
NC
SH-OUT6
NC
NC
JL892 #
R1065
0
:CHIP
R1061
0
:CHIP
R1059
#
R1070
#
R1064
#
ENB
VCK
VST
PCG
R1071
#
DWN
R1060
#
≠≠≠≠≠
≠≠≠≠≠≠
RB
DIR
FROM(3/5)
R1069
0
:CHIP
R1063
#
C997
0.47
25V
F:CHIP
R883
#
1/16W
:RN-CP
C1003
0.1
16V
B:CHIP
C1002
47
6.3V
:AL-CP
3.4
C1004
#
R1092
#
≠≠
PRG
≠≠≠
FROM(2/5)
NC
7.0
VCOM OFST
3.1
VCOM OUT
6.3
SIG CEN
NC
2.4
SID-OUT
6.9
ISET
1.3
NC
SID-IN
VCC
SID-OFST
6.9
NC
VDD
SH-OUT3
6.9
IC829
CXA2112R-T6
LCD DRIVER
(R)
CLK-OUT
3.4
NC
PVCC
NC
NC
NC
PGND
DGND
CLK-IN
NC
3.4
SH-OUT4
6.9
CLK-IN
NC
3.4
0.4
SH-OUT5
PRG
6.9
NC
NC
R1099
0
:CHIP
POS-CON1
NC
SH-OUT2
CLK-OUT
NC
1
2
3
4
5
6
SH-OUT6
6.9
7
8
9 10 11 12 13 14 15 16
R1100
#
R1111
#
R1105
#
R946
0
:CHIP
JL862
#
FB846
BK2125HM601T
C1026
#
C1020
0.1
25V
B:CHIP
5V-2
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
R1113
0 :CHIP
TO LCD PANEL(R)
VID2
R1114
0 :CHIP
VID3
R1115
0 :CHIP
11
VID4
VID3
VID5
VID2
VID6
VID1
1
2
3
4
5
6
7
8
9
10
JL904 #
11
12
13
14
15
16
17
18
19
20
21
22
23
24
TP821
JL901 #
VID4
R1116
0 :CHIP
C1023
0.1
25V
B:CHIP
VID5
R1117
0 :CHIP
VID6
HST
HCK2R
HCK1R
R1118
0 :CHIP
ENB
VCK
VST
PCG
R1112
#
R1101
#
BLUE
R1104
#
C1024
0.47
25V
F:CHIP
≠≠≠≠≠
≠≠≠≠≠≠
RB
DIR
TO(3/5)
R1110
0
:CHIP
CN818
24P
FPC
R1126
10k
1/16W
:CHIP
VID1
DWN
CN816
24P
FPC
PSIG
SIG4
SIG3
SIG5
SIG2
SIG6
SIG1
HVDD
XRGT
MODE3
MODE2
MODE1
HST
HCK2
HCK1
VSS
BLK
ENB
VCK
VST
PCG
DWN
VVDD
COM
HVDD
TO(3/5)
TO LCD PANEL(B)
HVDD
TO(3/5)
JL900
#
R1106
0
:CHIP
R1102
0
:CHIP
POS-CON2
C1025
#
NC
SH-OUT4
3.4
PRG
0.4
TP817
PSIG
SIG4
SIG3
SIG5
SIG2
SIG6
SIG1
HVDD
XRGT
MODE3
MODE2
MODE1
HST
HCK2
HCK1
VSS
BLK
ENB
VCK
VST
PCG
DWN
VVDD
COM
6.9
3.7
4.9
FB842
BK2125HM601T
R942
2.2
1/16W
:CHIP
RED
GND2
MCLK
INV-CNT
R1125
0
:CHIP
C1018 C1019
0.1
100
25V
16V
B:CHIP :AL-CP
SH-OUT1
MCLK
NC
3.4
CLK-IN
INV-CON
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
4.4
4.4
5.0
NC
CLK-IN
VID4
VID3
VID5
VID2
VID6
VID1
3.7
DLY-CNT
NC
PGND
DGND
10
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
ENB
NC
R1074
0 :CHIP
R888
#
1/16W
:RN-CP
Q809
HN1B01FU-TE85R
BUFF
+15.5V
C1017
47
25V
:AL-CP
Q812
HN1B01FU-TE85R
BUFF R941
2.2
1/16W R-SID OUT
:CHIP
R920
2.2k
1/16W
:CHIP
L817
1µH
:CHIP
C1016
0.1
25V
B:CHIP
48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33
NC
NC
VID2
5V-2
5.0
NC
R1085
10k
1/16W
:CHIP
VID1
VID3
R881
#
1/16W
:RN-CP FB841
DLY-CON
BK2125HM601T
5V-3
BLUE
5V-2
S-12-CNT
PVCC
C993
0.1
25V
B:CHIP
R1096
820
1/16W
:RN-CP
C1005
10
10V
F:CHIP
NC
3.4
NC
R OUT
FROM(1/5)
C1015
0.1
25V
B:CHIP
C1013
#
R1108
27k
1/16W
:RN-CP
JL897 #
R1072
0 :CHIP
R1073
0 :CHIP
RINV
C1012
0.1
16V
B:CHIP
NC
7.0
IC826
CXA2112R-T6
LCD DRIVER
(B)
CLK-OUT
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
R1098
47
1/16W C1011
22p
:CHIP CH:CHIP
R1095
3k
1/16W
:RN-CP
9
NC
NC
7.0
4.0
VCOM OUT
6.1
SIG CEN
VCOM OFST
NC
2.4
6.9
ISET
1.3
SID-IN
NC
SH-OUT3
CLK-OUT
POS-CON2
3
SID-OUT
NC
VCC
3.3
SID-OFST
3.3
2.5
7.0
SH-IN
7.0
FRP
2.5
INV-OUT
7.0
VDD
R1058
0
:CHIP
POS-CON1
SH-OUT2
NC
PRG
FRP
≠≠
≠≠≠
PRG
FROM(2/5)
NC
NC
R1051
#
7.0
GND
3.4
C977
0.1
B:CHIP
SH-OUT1
3.7
INV-CNT
4.9
F/R-CNT
C975
47
6.3V
:AL-CP
VIDEO IN
OFFSET
C976
0.1
16V
B:CHIP
GND2
MCLK
2.1
2.1
4.1
NEXT-IN
4.1
INV-CON
4.4
MCLK
NEXT-OUT
3.7
POS-CNT2
R873
#
1/16W
:RN-CP
2
DLY-CNT
C998
#
JL891
#
C991
C992
0.1
100
25V
16V
B:CHIP :AL-CP
48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
R1084
0
:CHIP
TP820
GND
R1055
820
1/16W
:RN-CP
C978
10
10V
F:CHIP
POS-CNT1
DLY-CON
#
1/16W
:RN-CP
FB832
BK2125HM601T
C990
47
25V
:AL-CP
R1067
27k
1/16W
:RN-CP
FB837
BK2125HM601T
C999
#
F/R-CNT
C986
#
BINV
C988
0.1
25V
B:CHIP
3.3
2.5
6.9
SH-IN
6.9
FRP
2.5
C985
0.1
16V
B:CHIP
JL888 #
FROM(1/5) B OUT
5V-3
R870
5V-2
L821
100µH
FB833
BK2125HM601T
+15.5V
L815
1µH
:CHIP
OFFSET
R1054
3k
1/16W
:RN-CP
C1009
0.001
B:CHIP
TO(2/5) VIDEO RR
C989
0.1
25V
B:CHIP
C875
0.1
25V
B:CHIP
JL899
#
TO(3/5) R VCOM
PRG
FRP
R1057
47
C984
1/16W
22p
:CHIP CH:CHIP
NC
8
R947
0 JL863
:CHIP #
C982
0.001
B:CHIP
L820
100µH
TO(2/5) VIDEO RB
TP816
HN1B01FU-TE85R
BUFF
R921
2.2k
1/16W
:CHIP
SCEN
SID-OUT
INV-OUT
C876
0.1
25V
B:CHIP
TO(3/5) B VCOM
B-SID OUT
C1010
47
25V
:AL-CP
VIDEO IN
Q810
SID-OUT
R944
2.2
1/16W
:CHIP
R914
100
1/16W
:CHIP
DIR-CNT
JL890
#
C1008
0.1
25V
B:CHIP
2.1
2.1
4.1
NEXT-IN
4.1
C983
47
25V
:AL-CP
R943
2.2
1/16W
:CHIP
R933
2.2k
1/16W
:CHIP
15.5V-4
L816
1µH
:CHIP
Q813
HN1B01FU-TE85R
BUFF
NEXT-OUT
R908
100
1/16W
:CHIP
R932
0
:CHIP
POS-CNT2
C981
0.1
25V
B:CHIP
SCEN
R935
2.2k
1/16W
:CHIP
15.5V-3
15.5V-4
15.5V
POS-CNT1
15.5V
L814
1µH
:CHIP
R874
#
1/16W
:RN-CP
TO(3/5)
DAC
15.5V-3
TO(3/5)
DAC
1
CN819
#
CN817
#
C987
#
MCLK
FROM(2/5)
≠≠≠
MCLK
≠≠≠≠
IC827
#
GND2
SH-OUT1
NC
SH-OUT2
NC
SH-OUT3
PVCC
NC
NC
PGND
NC
SH-OUT4
NC
SH-OUT5
NC
SH-OUT6
POS-CNT1
POS-CNT2
NEXT-OUT
NEXT-IN
F/R-CNT
GND
NC
NC
NC
S-12-CNT
NC
ENB
DIR-CNT
NC
NC
NC
C979
#
49 DLY-CNT
50 MCLK
51 MCLK
52 INV-CNT
53 VDD
54 CLK-OUT
55 CLK-OUT
56 NC
57 NC
58 DGND
59 CLK-IN
60
61 CLK-IN
62 PRG
63 NC
64 NC
VCOM OUT
OFFSET
48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33
VIDEO IN
INV-OUT
SH-IN
FRP
VCC
SID-OFST
NC
NC
SID-IN
SID-OUT
ISET
NC
SIG CEN
VCOM OFST
R1139
#
5
1
2
3
4
5
6
7
8
C995 #
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
VID7
HST
HCK2B
HCK1B
R1078
#
VID8
R1079
#
VID9
R1080
#
ENB
VCK
VST
C1037
#
VID10
R1081
#
VID11
PCG
R1082
#
VID12
R1083
#
C994
#
R1140
#
MCLK
≠≠≠
MCLK
≠≠≠≠
C1006
#
R1109
#
C1014
#
48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33
49 DLY-CNT
50 MCLK
51 MCLK
52 INV-CNT
53 VDD
54 CLK-OUT
55 CLK-OUT
56 NC
57 NC
58 DGND
59 CLK-IN
60
61 CLK-IN
62 PRG
63 NC
64 NC
1
9 10 11 12 13 14 15 16
R1107
#
IC830
#
VCOM OUT
4
TP818
JL894 #
OFFSET
R1068
#
R1097
#
VIDEO IN
INV-OUT
SH-IN
FRP
VCC
SID-OFST
NC
NC
SID-IN
SID-OUT
ISET
NC
SIG CEN
VCOM OFST
R1066
#
R1056
#
C980
#
VID1
VID2
VID3
VID4
VID5
VID6
VID7
VID8
VID9
VID10
VID11
VID12
R1103
#
C1007
#
GND2
SH-OUT1
NC
SH-OUT2
NC
SH-OUT3
PVCC
NC
NC
PGND
NC
SH-OUT4
NC
SH-OUT5
NC
SH-OUT6
POS-CNT1
POS-CNT2
NEXT-OUT
NEXT-IN
F/R-CNT
GND
NC
NC
NC
S-12-CNT
NC
ENB
DIR-CNT
NC
NC
NC
R1062
#
PS2G
VSSGR
VSIG1
VSIG2
VSIG3
VSIG4
VSIG5
VSIG6
VSIG7
VSIG8
VSIG9
VSIG10
VSIG11
VSIG12
HVDD
RGT
HST
HCK2
HCK1
VSS
VSSGL
BLK
ENB
VCK
VST
DWN
HB
VB
PCG
VVDD
COM
TEST
FROM(2/5)
VID1
VID2
VID3
VID4
VID5
VID6
VID7
VID8
VID9
VID10
VID11
VID12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
JL896
#
2
3
4
5
6
7
8
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
JL905
#
TP822
JL903 #
C1022
#
VID7
R1119
#
VID8
HST
HCK2R
HCK1R
R1120
#
VID9
R1121
#
ENB
VCK
VST
C1038
#
VID10
R1122
#
VID11
PCG
R1123
#
VID12
R1124
#
C1021
#
9 10 11 12 13 14 15 16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
PS2G
VSSGR
VSIG1
VSIG2
VSIG3
VSIG4
VSIG5
VSIG6
VSIG7
VSIG8
VSIG9
VSIG10
VSIG11
VSIG12
HVDD
RGT
HST
HCK2
HCK1
VSS
VSSGL
BLK
ENB
VCK
VST
DWN
HB
VB
PCG
VVDD
COM
TEST
5V-2
5V-2
R1087
10k
1/16W
:CHIP
R1127
#
R1088
#
R1128
#
R1129
#
ENB
ENB
R1086
#
TO(2/5),(3/5) TP
TO(2/5),(3/5)TP
C (4/5)[VPL-CS2]
(LCD DRIVER(B),(R))
B-SS1707<...>-C..-P4
8-18
A
B
C
D
8-18
VPL-CS2/CX1
E
F
G
H
C (5/5)
C (5/5)
. Refer to page 8-14 for Printed Wiring Board
. Refer to page 8-20 for Waveforms
. Refer to page 8-20 for IC Block Diagrams
1
1
2
CN815
2P
WHT
:SMD
1
SP-L
2 AUDIO GND
SP-R
AUDIO GND
SPEAKER
R
L
CN820
2P
WHT
:SMD
IC823
NJM2073M(TE2)
AUDIO AMP
JL882 R1023
0
#
:CHIP
FROM(1/5)
6
3
7
2
1
AUDIO +B
2
JL886
#
5
LF.B.
IN-L L-OUT
3
IN-R
2
AUDIO-MUTE
FROM(1/5)
6
0
0.22
25V
B:CHIP
C967
0.1
25V
B:CHIP
7
RF.B.R-OUT
GND
JL884
#
L813
2.2µH
6.0
6.0
6.0
6.0
6.0
6.0
6.0
2
R1026
#
R1027
0
:CHIP
3
4
5
6
7
8
C955
47
16V
:AL-CP
R1033
8.2k
1/16W
:CHIP
C956
0.1
25V
B:CHIP
C959
0.01
25V
B:CHIP
9 10
C954
0.01
B:CHIP
C952
10
20V
:TA-CP
R1029
100
1/16W
:CHIP
R1038
47k
1/16W
:CHIP
R1035
2.2k
1/16W
:CHIP
JL887
#
0.5
C962
2.2
20V
:TA-CP
6.3
C968
220
10V
:AL-CP
IC824
NJM2073M(TE2)
AUDIO AMP
R1039
220
:CHIP
C964
0.047
B:CHIP
0.5
R1030 R1031
100
100
1/16W 1/16W
:CHIP :CHIP
VS
1
C958
1
25V
B:CHIP
20 19 18 17 16 15 14 13 12 11
1
A-R
C969
Q815
DTC144EKA-T146
SW
0
R1045
1
:CHIP
0
6.0
6.0
6.0
6.0
6.0
6.0
0
1.7
0
2.5
FROM(1/5)
RF.B. R-OUT
R1040
5.6k
1/16W
:CHIP
A-L
IC825
CXA1846BN-T4
VOLUME
VS
8
C963
0.047
B:CHIP
R1025
#
JL883 R1024
0
#
:CHIP
IN-R
R1037
220
:CHIP
Q814
DTC144EKA-T146
SW
0
C953
10
16V
:AL-CP
C951
10
20V
:TA-CP
L-OUT
8
R1028
0
:CHIP
IN-L
4
C960
0.01
25V
B:CHIP
0
L812
4.7µH
:CHIP
C966
220
10V
6.3 :AL-CP
JL885
#
C961
2.2
20V
:TA-CP
R1034
2.2k
1/16W
:CHIP
GND
0
R1036
47k
1/16W
:CHIP
12V
LF.B.
4
5
R1032
8.2k
1/16W
:CHIP
AUDIO GND
0.5
C957
1
25V
B:CHIP
C971
R1043
1.5k
100
16V
:AL-CP
R1041
100k
1/16W
:CHIP
R1044
3.3k
1/16W
:CHIP
12.9
APCE
SDAT
A-SCLK
C965
10
16V
:AL-CP
C972
0.1
25V
B:CHIP
0.22
25V
B:CHIP
12.9 1/16W
:CHIP
12.7
3
C970
R1042
5.6k
1/16W
:CHIP
Q816
2SA1162
MUTE
R1046
1
:CHIP
Q817
2SC2712
MUTE
R1047
10k
1/16W
:CHIP
AUDIO-MUTE
0
C (5/5)[VPL-CS2]
(AUDIO AMP)
FROM(1/5)
APCE
APCE
A-SCLK
A-SCLK
SDAT
SDAT
4
B-SS1707<...>-C..-P5
5
8-19
VPL-CS2/CX1
A
B
C
D
8-19
E
F
G
H
C
C
1
7
VCOMOUT
35
34
33
Vcc
15
–
+
8
8dB STEP
VOLUME
LATCH
CONTROL
LATCH
INVERT
AMP
CLOCK
DELAY
S/H
S/H
CLK OUT/ 55
S/H
29
SH OUT2
28
NC
BUFFER
27
SH OUT3
PVcc
D.P
D.P
PGND
NC
BUFFER
26
25
24
23
22
21
20
NC
BUFFER
OFFSET CANCEL
D.P 56
S/H
S/H
D.P 57
S/H
OFFSET CANCEL
DGND 58
10.2 Vp-p
TP820 [RINV]
10.2 Vp-p
TP817 [B-VID|OUT]
S/H
PULSES
10.2 Vp-p
TP821 [R-VID|OUT]
S/H
CLK IN 59
S/H
TIMING
GENERATOR
S/H
PRG 62
S/H
OFFSET CANCEL
NC 60
CLK IN/ 61
S/H
S/H
BUFFER
OFFSET CANCEL
OFFSET CANCEL
MODE TIMING
NC 63
NC 64
S/H
S/H
S/H
BUFFER
SHIFT
REGISTER
8dB STEP
VOLUME
+
–
1dB STEP
VOLUME
1
2
3
4
5
6
7
8
DATA
NC
CE
SH OUT1
30
VCT
BUFFER
ZC
DET
OUT 2
!-
GND2
31
1dB STEP
VOLUME
VRIN 2
0
32
OFFSET CANCEL
D
CLK OUT 54
VCOM
BUFFER
11
VCT 2
9
10.2 Vp-p
TP816 [BINV]
10.2 Vp-p
TP813 [G-VID|OUT]
BIAS
S/H
12
INAO 2
2
10.2 Vp-p
TP812 [GINV]
S/H
13
INP 2
4.4 Vp-p
TP804 [HD]
S/H
14
INN 2
SID
DLY CNT 49
MCLK 50
MCLK/ 51
INV CNT 52
VDD 53
VCT
VCOMOFST
36
16
VCC
SIGCEN
37
17
N.C.
NC
38
18
GND
ISET
39
OUT 1
SID OUT
40
VRIN 1
SID IN
41
VCT 1
D.P
45 44 43 42
19
INAO 1
D.P
46
INP 1
SID OFST
48 47
20
9
10
INIT
6
4.4 Vp-p
TP803 [VD]
CXA1846BN (IC825)
CLK
5
2.4 Vp-p
TP808 [B]
FRP
2.4 Vp-p
TP807 [G]
SH IN
2.4 Vp-p
TP806 [R]
CXA2112R-T6 (IC819, 826, 829 : VPL-CS2)
(IC819, 820, 826, 827, 829, 830 : VPL-CX1)
4
INV OUT
3
VIDEO IN
2
OFFSET
1
INN 1
C Board Waveforms
SH OUT4
19
SH OUT5
18
NC
17
SH OUT6
14
15
16
NC
NC
NC
NC
ENB
DIR CNT
POS CNT2
NEXT OUT
NEXT IN
D.P
D.P
S/12 CNT
2 3 4 5 6 7 8 9 10 11 12 13
F/R CNT
GND
NC
1
POS CNT1
OFFSET CANCEL
3
MB88346BPFV-EF (IC817)
M52749FP-TP (IC803)
12 BIT SHIFT REGISTER
D0
D1 D2
D3 D4
D5 D6
D7 D8
D9 D10 D11
20
VSS 1
GND
R OSD IN
ADDRESS
DECODER
A03 2
8
12
4
1 2 3 4
19
18
D0
A06
A07
1
D0
D7
8 BIT
LATCH
17
DI
R VCC 12V
3
GND
5
G OSD IN
9
G INPUT 6
G VCC 12V
16
5
6
A01
D7
8 BIT
LATCH
8 BIT
R-2R
D/A CONVERTER
R INPUT 2
12
A04 3
A05 4
A02
VCC=12V
Main Brightness
Retrace Blanking
42
34
30
4
CLAMP
SUB
CONTRAST
MAIN
CONTRAST
OSD MIX
RETRACE
BLANKING
41 R OUTPUT
RETRACE
BLANKING
38 G OUTPUT
RETRACE
BLANKING
33 R OUTPUT
CLAMP
F/B
CLAMP
SUB
CONTRAST
MAIN
CONTRAST
OSD MIX
AMP
8
CLAMP
F/B
GND 10
CLK
AMP
B OSD IN 13
8 BIT
R-2R
D/A CONVERTER
15
B INPUT 11
LD
CLAMP
SUB
CONTRAST
MAIN
CONTRAST
OSD MIX
AMP
B VCC 12V 12
35 Contrast ref.
CLAMP
F/B
GND 16
A08 7
14
DO
Contrast(ABL) IN 17
SOG INPUT 7
13
A09 8
5
A12
Main
CONTRAST
8bit
Sync On
Green
Sep
31 Contrast cont.
OSD
LEVEL
4bit
B SUB CONT 8bit
G SUB CONT 8bit
R SUB CONT 8bit
SOG Sep OUT 20
19
DAC
VCC 5V
(DIGITAL)
23 SDA
BUS
I/F
22 SCL
24 GND
A10 9
VDD 10
A01
12
A11
11
VCC
B
14
1
25 26 27 28 29
32
Clamp Pulse IN
GND
OSD Blanking
DAC output
for cut-off Adj
GND
36
GND
39
GND
A12
8-20
A
21
C
D
8-20
VPL-CS2/CX1
E
F
G
H
C (1/5)
C (1/5)
. Refer to page 8-14 for Printed Wiring Board
. Refer to page 8-20 for IC Block Diagrams
For VPL-CX1
1
1
2
3
JL801 #
JL804 #
C830
0.01
25V
B:CHIP
CN804
5P
WHT
:SMD
POWER CONT
FAN PROT
FAN CONT1
FAN CONT2
GND
1
2
3
4
5
C822
0.01
25V
B:CHIP
C825
#
R831
#
R836
100
1/16W
:CHIP
SUB+5V
R838
5V-1 4.7k
1/16W
:CHIP
C832
47
6.3V
:AL-CP
TP802
R843 JL817 C834
0.01
4.7k
#
25V
1/16W
B:CHIP
:CHIP
R848
100
1/16W
:CHIP
D807
D805
DTZ-TT11-5.1 DTZ-TT11-5.1
D804
DTZ-TT11-5.1
D806
DTZ-TT11-5.1
JL819
#
14
10
9
8
JL814 #
C831
0.01
25V
B:CHIP
POWER ON
R840
#
R839
#
TH802
LCD
R842
#
R841
#
JL820
#
R845
#
CLP
FROM(2/5)
7
VCC2
2
OSDBLK
RIN
3
1
5V-2
VCC1(R)
R OUT
4
OSD R
5
GND1(R)
6
NC
G IN
SOG IN
VCC1(G) CONT REF
GND2
G OUT
NC
OSD G
GND
MAIN BRT
B OUT
GND1(G)
GND
B IN
VCC1(B) CONT DAC
BLK
OSD B
GND(B)
D/A 1
NC
D/A 2
GND1(B)
D/A 3
ABL IN
D/A 4
NC
D/A 5
VCC 5V
GND
SOG OUT
SDA
CLP
SCL
R813
470
1/16W
:CHIP
CN808
70P
WHT
+12V
R OUT
TO(4/5)
R817 R818
2.2k 2.2k
:CHIP :CHIP
R819 JL826 TP807
0
:CHIP #
C823
#
R830
#
TP804
LAMP LED
G OUT
TO(3/5)
R824 R825
Q804 2.2k 2.2k
2SA1462 :CHIP :CHIP
BUFF
C817
#
R821 R822
470
470
1/16W 1/16W
:CHIP :CHIP
R829
10k
1/16W
:CHIP
R837
47k
1/16W
:CHIP
Q803
2SA1462
BUFF
C821
0.22
25V
B:CHIP
C820
10
16V
:AL-CP
PSAVE LED
B
R827 JL827 TP808
0
TO(4/5)
:CHIP #
B OUT
R832 R833
470
470
1/16W 1/16W
:CHIP :CHIP
TEMP LED
G
R814
470
C815 1/16W
:CHIP
#
R820
#
POWER LED
R
R811 JL825
0
TP806
:CHIP #
2SA1462
BUFF
C811
#
C824
0.22
25V
B:CHIP
KEY1
KEY0
R834
470k
1/16W
:CHIP
Q805
2SA1462
BUFF
C827
#
R844
100
1/16W
:CHIP
LAMP TEMP
LCD TEMP
R847
100
1/16W
:CHIP
VD
HD
FAN PROT
R850
100
1/16W
:CHIP
R808
#
IC803
M52749FP-TP L804
100µH
RGB AMP
IC804(3/4)
TC74VHC08FT(EL)
FAN CONT2
AND
JL815
#
R849
100
1/16W
:CHIP
C829
C828 10
# 16V
:AL-CP
LCD TEMP
C833
1
6.3V
B:CHIP
TP801
GND
JL802 #
C819
10
16V
C826 :AL-CP
47
6.3V
:AL-CP
TH801
LAMP
JL822
#
R835
2.7k
1/16W
:RN-CP
C813
10
16V
:AL-CP
C818
#
M.OUT
JL821
#
1
2
IC804(2/4) 3
TC74VHC08FT(EL)
AND
R846
100
1/16W
:CHIP
JL805
#
TO GA BOARD CN674
LAMP TEMP
LAMP ON
CN807
#
R823
1k
1/16W
:RN-CP
C805
39
16V
:OS
7
R826
1k
1/16W
:RN-CP
5
4
BALLAST
D803
DTZ-TT11-5.1
C812
#
C816
47
6.3V
:AL-CP
5V -1
5V-2
LAMP SENS
FB803
BK2125HM601T
C808
0.01
25V
C810 B:CHIP
47
6.3V
:AL-CP
C804
47
25V
:AL-CP
R809 R810
C806 C807 2.2k 2.2k
#
# :CHIP :CHIP
C809
Q802
#
R804
100 1/16W :CHIP
L803
10µH
22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42
SCI
GND
FLAG
G
C803
47
25V
:AL-CP
12V
JL823
#
Q801
DTC144EKA-T146
SW
6
D802
DTZ-TT11-5.1
O
R807
510
1/16W
:RN-CP
+5V
IC804(1/4)
TC74VHC08FT(EL)
AND
R828
100
1/16W
:CHIP
I
8
R1147 JL803
#
#
1
2
JL818
#
R802
20k
1/16W
:RN-CP
5
R812
4.7k
1/16W
:CHIP
C814
0.1
16V
B:CHIP
D801
DTZ-TT11-5.1
FB802
BK2125HM601T
CN803
3P
WHT
:SMD
R816
4.7k
1/16W
:CHIP
R806
4.7k
1/16W
:CHIP
12V
21 20 19 18 17 16 15 14 13 12 11 10 9
L CONT OUT
L CONT IN
+16.5V
O
G
C802
47
25V
:AL-CP
JL816
#
AUDIO GND
3
4
5
6
7
8
CN802
2P
RED
:SMD
TEMP
FUSE
EMI
ON/OFF ADJ
1 I
+12V
IC802
BA12FP-E2
12V REG
B
G
+16.5V
+16.5V
GND
GND
TO(5/5)
R803
8.2k
1/16W
3 :RN-CP
R
AUDIO GND
AUDIO GND
FL801
NFM41P11C204
AUDIO +B
2 4
VD
HD
AUDIO +B 1
AUDIO +B 2
R801
10k
1/16W
:CHIP
GND
TO GB BOARD CN706
15.5V
+15.5V
IC801
PQ20VZ1U
15V REG
C801
100
16V
:AL-CP
6
5
4
3
2
1
CN801
8P
WHT
:SMD
TO(2/5) OCLK
TP803
JL911
#
FAN CONT1
JL912
#
≠≠
TO(2/5) ≠≠≠
HSO
C853
0.1
16V
B:CHIP
≠≠
TO(2/5) ≠≠≠
VSO
C854
1
6.3V
B:CHIP
R2
3.3V-2
R3
R9
R8
R7
R6
R5
R4
R3
R2
JL811 #
5V-2
FB804
BK2125HM601T
R875
100
JL812 1/16W
:CHIP
#
R865 330 1/16W :CHIP
R867 330 1/16W :CHIP
3
4
5
R863 330 1/16W :CHIP
G0
G1
G2
G3
G4
G5
G6
G7
G8
G9
BLANK
SYNC
IC806
ADV7123KST140
D/A
VREF
COMP
IOR
IOR
IOG
IOG
VAA
VAA
IOB
IOB
GND
GND
RXD
TXD
5
1
R5
C856
1
6.3V
B:CHIP
4
2
3
4
SCTR
TO(2/5)
IC809
#
R999
0
:CHIP
CLK
TO(2/5)
R6
R7
R8
1
R9
C849
R854 0.1
3.3k 16V
1/16W B:CHIP
:CHIP
R857
39
1/16W
:RN-CP
25 26 27 28 29 30 31 32 33 34 35 36
JL810 #
R860 330 1/16W :CHIP
6
JL809 #
LED
LED
LED
LED
7
PSAVE
LAMP
TEMP
POWER
G2
G3
G4
G5
G6
G7
G8
G9
R880
100
1/16W
:CHIP
C855
0.1
16V
B:CHIP
C848
0.1
16V
B:CHIP
R9
R8
R7
R6
R5
R4
R3
R2
R1
R0
PSAVE
RSET
1
2
KEY1
R856
1k
1/16W
:RN-CP
JL808 #
C839
47
6.3V
:AL-CP
R853
560
1/16W
:RN-CP
R879
100
1/16W
:CHIP
TP805
JL824
#
3
EMI
R862
FL802 39
#
1/16W
:RN-CP
R861 #
R868
FL804
#
#
EMI
G DA
TP809
EMI
R869
39 1/16W :RN-CP
FL803
#
R872
#
G2
B2
G3
B3
G4
B4
G5
B5
G6
B6
G7
B7
G8
B8
G9
B9
R DA
JL828
#
B DA
JL829
#
R858
47
1/16W
:RN-CP
R864
47
1/16W
:RN-CP
IC807
LM4041DIM3-1.2
VOLTAGE REF
1
2
TP810
R871
47
1/16W
:RN-CP
+5V
B2
B3
B4
B5
B6
B7
B8
B9
VISCA
1
2
3
4
5
KEY0
JL807 #
IC808
TC7SZ04FU(TE85R)
INVERTER
13 VAA
14 B0
15 B1
16 B2
17 B3
18 B4
19 B5
20 B6
21 B7
22 B8
23 B9
24 CLOCK
CN806
5P
WHT
:SMD
FB801
BK2125HM601T R855
1k
1/16W
:RN-CP
JL806 #
8
1
2
3
4
5
6
PSAVE LED 7
LAMP LED 8
TEMP LED 9
POWER LED 10
11
D 5V
12
GND
12 11 10 9
GND
N.C
KEY0
KEY1
SUB 5V
N.C.
SUB 5V
RXD
TXD
GND
EXT SW
R852
0
:CHIP
5V-1
TO H BOARD CN001
L805
4.7µH
48
47
46
45
44
43
42
41
40
39
38
37
CN805
12P
WHT
:SMD
R4
2
3
5V-3
C840 C841
0.1
0.01
16V
25V
B:CHIP B:CHIP
5
FB805
BK2125HM601T
R878
0
:CHIP
B35
A35
B34
A34
B33
A33
B32
A32
B31
A31
B30
A30
B29
A29
B28
A28
B27
A27
B26
A26
B25
A25
B24
A24
B23
A23
B22
A22
B21
A21
B20
A20
B19
A19
B18
A18
B17
A17
B16
A16
B15
A15
B14
A14
B13
A13
B12
A12
B11
A11
B10
A10
B9
A9
B8
A8
B7
A7
B6
A6
B5
A5
B4
A4
B3
A3
B2
A2
B1
A1
CN809
50P
WHT
TO B BOARD CN405
TO B BOARD CN403
POWER LED
A1 GND
POWER LED
RXD
B1 RXD
TEMP LED
TXD
A2 TXD
TEMP LED
EXT SW
B2 EXT SW
LAMP LED
POWER ON
A3 POWER ON
LAMP LED
LAMP ON
B3 LAMP ON
PSAVE LED
FAN CONT2
A4 FAN CONT2
PSAVE LED
FAN CONT1
JL838 B4 FAN CONT1
KEY1
FAN PROT
# A5 FAN PROT
KEY1
LAMP SENS
B5 LAMP SENS
KEY0
JL837
A6 GND
#
D+5V
KEY0
JL830
B6 GND
#
GND
5V-2
A7 D+5V
GND
B7 D+5V
SDA
A8 GND
SUB+5V
SDA
JL831
B8 GND
-1
5V
#
SCL
A9 SUB+5V
SCL
B9 SUB+5V
GND
A10 GND
GND
D+3.3V JL832
B10 GND
#
LAMP TEMP
3.3V-2
A11 D+3.3V
LAMP TEMP
B11 D+3.3V
LCD TEMP
A+5V
A12 GND
LCD TEMP
5V-3 JL835
B12 GND
#
GND
A13 A+5V
GND
B13 A+5V
OCLK
A14 A+5V
OCLK
B14 A+5V
GND
A15 GND
GND
B15 GND
HSOX
A16 AUDIO MUTE
TO(5/5) AUDIO-MUTE
HSOX
B16 GND
JL836
GND
#
A17 AUDIO CS
TO(5/5) APCE
GND
B17 DAC CS
TO(3/5) DALD
VSOX
A18 GND
TO(2/5,3/5) D-SCLK
R2
B18 GND
JL833
VSOX
#
13
A19 SCLK
R3
A-SCLK 11
12
B19 SCLK
GND
TO(5/5) IC804(4/4)
A20 GND
TC74VHC08FT(EL)
R4
B20 GND
AND
JL834
UF CS
#
A21 SDAT
TO(2/5,3/5,5/5) SDAT
R5
B21 SDAT
GND
A22 GND
R6
B22 GND
GND
A23 A-R
R7
B23 A-R
A-R
GND
A24 A-G
R8
B24 A-G
TO(5/5)
AUDIO GND
GND
A25 A-L
R9
B25 A-L
A-L
GND
GND
G2
B2
G3
B3
G4
B4
G5
B5
G6
B6
G7
B7
G8
B8
G9
B9
GND
GND
R876
100
1/16W
:CHIP EXT SW
R877
100 1/16W :CHIP
C (1/5)[VPL-CX1]
D/A CONVERTER
RGB AMP
B-SS1708<...>-C..-P1
8-21
VPL-CS2/CX1
B
C
3
4
5
JL813
#
D813
DTZ-TT11-5.1
D814
D812
DTZ-TT11-5.1 DTZ-TT11-5.1
A
2
D
8-21
E
F
G
H
C (2/5)
C (2/5)
. Refer to page 8-14 for Printed Wiring Board
. Refer to page 8-20 for IC Block Diagrams
HCK1
≠≠≠≠
≠≠≠
≠≠≠≠
HCK2
≠≠≠
≠≠≠
HST
≠≠
≠≠≠
VCK
≠≠
≠≠≠
VST
≠≠
1
5V-2
IC831(1/6)
TC74VHCT04AFT
INVERTER
5V-2
FB811
BK2125HM601T
+5V
14
FRP
≠≠≠
ENB
≠≠
R1002
47
1/16W
:CHIP
R900
47
1/16W
:CHIP
HCK2R
R901 JL857
47
1/16W #
:CHIP
HCK2G
JL858
#
≠≠≠≠
HCK2
≠≠≠
≠≠≠≠
HCK2
≠≠≠
≠≠≠≠
HCK2
≠≠≠
C870
C868
1
6.3V
B:CHIP
0.1
16V
B:CHIP
HCK2B
8
1
2
3
4
5
R902 JL859
47
1/16W #
:CHIP
≠≠≠
ENB
≠≠
≠≠≠
VST
≠≠
VST
R1005
0
:CHIP
R896
100
1/16W
:CHIP
1A
1Y
2A
2Y
3A
3Y
GND
VCC
6A
6Y
5A
5Y
4A
4Y
9 10 11 12 13 14
2
ENB
R895
100
1/16W
:CHIP
≠≠≠
PCG
≠≠
JL860
#
PCG
R903
47
1/16W
:CHIP
R904
47
1/16W
:CHIP
R905
47
1/16W
:CHIP
≠≠≠
HST
≠≠
8
1
≠≠≠
VCK
≠≠
VCK
JL856
#
C864
1
6.3V
B:CHIP
VCC
6A
6Y
5A
5Y
4A
4Y
IC813
TC74VHCT04AFT
INVERTER
R894
100
1/16W
:CHIP
3
FROM(3/5,4/5)
I/027
I/026
I/025
I/024
GOE/IN3
GND
I/023
I/022
I/021
I/020
I/019
JL839
#
C867
1
6.3V
B:CHIP
C869
0.1
16V
B:CHIP
HST
PRG
TO(3/5,4/5)
TP
IC831(5/6)
TC74VHCT04AFT
INVERTER
R1008
100
1/16W
:CHIP
JL909
#
11
10
≠≠
PRG
≠≠≠
TO(3/5)
R1003 22 1/16W :CHIP
FL806
#
5V-2
TO(3/5,4/5)
FB809
BLM21B750S
R898
0
:CHIP
FB810
BLM21B750S
FL805
#
FB850
BK1608TS601
C1028
1
10V
B:CHIP
FROM(1/5)
FROM(1/5) OCLK
C1041
2.2
10V
B:CHIP
:CHIP
VCC
D
NC
GND
C873
47
6.3V
:AL-CP
C872
C871
1
0.1
6.3V
16V
B:CHIP B:CHIP
R907
330
1/16W
:CHIP
R899
22
1/16W
:CHIP
IC831(3/6)
TC74VHCT04AFT
INVERTER
L818
1µH
:CHIP
5
6
IC831(4/6)
TC74VHCT04AFT
INVERTER
9
8
IC831(6/6)
TC74VHCT04AFT
INVERTER
13
12
+5V
VRH
TP823
JL907
#
VIDEO RG TO(4/5)
R1132
470
1/16W
:CHIP
VRL
JL906
#
3
R1145
39
1/16W
:RN-CP
1
C1039
47
6.3V
:AL-CP
R1135
D816
1.8k
1SS355 1/16W
2
:RN-CP
IC835
TL431CPK
SHUNT REG
R1136
2.7k
1/16W
:RN-CP
C850
C851
0.1
0.1
16V
16V
B:CHIP B:CHIP
OUT
V+
8
R1134
680
1/16W
:RN-CH
IN-
OUT
7
5.6k
1/16W
:RN-CP
IN+
IN-
6
VIDEO RB
TO(4/5) R1143
R1133
470
1/16W
:CHIP
GND
IN+
5
C1031
0.1
16V
B:CHIP
R1146
0
:CHIP
R1144
220
1/16W
:CHIP
1
C1040
#
TP824
2
C1032
0.1
16V
B:CHIP
3
8
VIDEO RR TO(4/5)
C852
0.1
16V
B:CHIP
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
5
AOUT0
BFIN0
DACO0
AVDD
VRH
AOUT1
BFIN1
DACO1
VRL
AVSS
AOUT2
BFIN2
DACO2
DVSS1
DVDD1
OLIM
4
Q818
DTC144EKA-T146
SW
IC833
CXD3503R
UF ADJUST
R1131
470
1/16W
:CHIP
33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
FROM(3/5) DWN
16 15 14 13 12 11 10 9
R1142
1k
1/16W
:CHIP
7
6
TO(3/5) GDIR
NC
NC
VST
HST
DWN
RGT
CTRL
TEST0
TEST1
TEST2
DOUT00
DOUT01
DOUT02
DOUT03
DOUT04
DDOUT05
DVSS0
DOUT10
DOUT11
DOUT12
DOUT13
DOUT14
DOUT15
DVDD0
DOUT20
DOUT21
DOUT22
DOUT23
DOUT24
DOUT25
DACK0
DACK1
4
5
R1141
4.7k
1/16W
:CHIP
3
2
1
SLCK
CKL1
DVSS3
XCLR
HSYNC
SDAT
SCLK
SCTR
DVDD2
NC
NC
NC
NC
NC
NC
DVSS2
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
4
Q
Q
NC
CLK
5V-3
C1030
0.1
16V
B:CHIP
R1052 R1053
#
4.7k
1/16W
R906
330
1/16W
:CHIP
EMI
D815
1SS355
R1004
#
NC
7
SDAT
R1130
10k
1/16W
:CHIP
R897
0
:CHIP
MCLK
≠≠≠
≠≠≠≠
MCLK
6
TO(1/5)
3
JL843 #
JL844
#
5V-2
FB812
BK2125HM601T
8
IC814
MC100ELT20DR2
PECL DRV
EMI
JL842 #
5
R887
100
1/16W
:CHIP
1
R1007
0
:CHIP
+5V
2
C857
0.1
16V
B:CHIP
JL841 #
JL840
#
TO(1/5) CLP
1
2
3
4
5
6
7
8
SCTR
PLD
IC812
ISPLSI1016E-100L
TG
DWN
≠≠≠≠≠
RB
≠≠≠≠≠≠
DIR
JL910
#
D-SCLK
3
SCLK
GND
MODE
PLUG
ISPEN
SDI
SDO
VCC
I/018
I/017
I/016
IN2/MODE
Y1/RESET
VCC
Y2/SCLK
I/015
I/014
I/013
I/012
1A
1Y
2A
2Y
3A
3Y
GND
4
CN810
8P
WHT
:SMD
11 10 9
≠≠≠
PCG
≠≠
TO(1/5) ≠≠≠
VSO
≠≠
I/028
I/029
I/030
I/031
Y0
VCC
ISPEN
SDI/INO
I/11
I/01
I/02
23 24 25 26 27 28 29 30 31 32 33
7
6
5
4
3
R884
#
R885
0
:CHIP
C859
1
6.3V
B:CHIP
8
JL846
#
2
R882
#
JL845
#
C866
0.1
16V
B:CHIP
44
43
42
41
40
39
38
37
36
35
34
C860
0.1
16V
B:CHIP
12 I/03
13 I/04
14 I/05
15 I/06
16 I/07
17 GND
18 SDO/IN1
19 I/08
20 I/09
21 I/010
22 I/011
R1000
47
1/16W
:CHIP
TO(1/5) HSO
≠≠≠
≠≠
HCK1B
+5V
1
2
C858
47
6.3V
:AL-CP
≠≠≠≠
HCK1
≠≠≠
6
FB807
BK2125HM601T
≠≠≠≠
HCK1
≠≠≠
6
HCK1G
5V-1
≠≠≠≠
HCK1
≠≠≠
7
HCK1R
4
C865
0.1
16V
B:CHIP
R886
1k
1/16W
:CHIP
R891
47
1/16W
:CHIP
JL853 R892
47
#
1/16W
:CHIP
JL854 R893
47
#
1/16W
:CHIP
JL855
#
9 10 11 12 13 14
IC811
TC74VHCT04AFT
INVERTER
R889
47
1/16W
:CHIP
7
JL847
#
2
7
5
1
C863
1
6.3V
B:CHIP
JL850
JL849 #
#
JL908
#
IC834
LMV358MMX
VOLTAGE REF
C (2/5)[VPL-CX1]
TIMING GENERATOR,
UF ADJUST
C1029
0.1
16V
B:CHIP
B-SS1708<...>-C..-P2
8-22
A
B
C
D
8-22
VPL-CS2/CX1
E
F
G
H
C (3/5)
C (3/5)
. Refer to page 8-14 for Printed Wiring Board
. Refer to page 8-20 for IC Block Diagrams
5V-3
15.5V-2
15.5V
FB816
BK2125HM601T
C893
0.1
25V
B:CHIP
DAC TO(4/5)
4
5
8
7
R VCOM
B VCOM
R928 100 1/16W :CHIP
R918
#
R910
#
10 9
TO(4/5)
R927
100
1/16W
:CHIP
R922
#
R924 C880
100
1/16W 0.1
16V
:CHIP B:CHIP
R936
100
1/16W
:CHIP
R923
#
R938
100
1/16W
:CHIP
GND
SH2
SCEN
DI
CLK
LD
D0
A012
A011
VCC
R950
5.6k
1/16W
:CHIP
SCEN
DLY-CON
L819
100µH
R959
100
1/16W
:CHIP
R951
100
1/16W
:CHIP
FROM(1/5) G OUT
R952
100
1/16W
:CHIP
R965
820
1/16W
:RN-CP
C890
10
10V
F:CHIP
5V-2
+5V
DWN
C888
0.1
16V
B:CHIP
G VCOM
C887
47
6.3V
:AL-CP
C889
0.1
16V
B:CHIP
GDIR
FROM(2/5)
9 10 11 12 13 14 15 16
1
2
7
6
5
4
3
R916
470
1/16W
:CHIP
C877
0.1
16V
B:CHIP
SID-OUT
C884
#
R955
#
1
R968
#
FROM(2/5)
2
3
4
5
6
IC818
MAX4066CEE-TE2
SW
8
L807
1µH
C901
0.1
25V
B:CHIP
R980
#
R974
0
:CHIP
TP811
IC714
TK11900MTL
13.5V REG
C911
#
5V-2
GREEN
R995
10k
1/16W
:CHIP
VID1
R982
0 :CHIP
R983
0 :CHIP
VID3
R984
0 :CHIP
VID4
VID3
VID5
VID2
VID6
VID1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
TP813
R985
0 :CHIP
JL868 #
VID4
R986
0 :CHIP
VID5
C908
0.1
25V
B:CHIP
R987
0 :CHIP
JL872
#
VID6
HST
HCK2G
HCK1G
ENB
VCK
VST
PCG
R981
#
4
IC831(2/6)
TC74VHCT04AFT
INVERTER
0.47
25V
F:CHIP
≠≠≠≠≠
RB
≠≠≠≠≠≠
DIR
TO(2/5,4/5)
VIN
SD
GND
5
FB
VO
4
3
CN812
32P
FPC
TO LCD PANEL(G)
C789
0.1
F:CHIP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
JL873
#
+5V
R799
150k 1/16W :RN-CP
R972
0
:CHIP
C788
0.1
25V
B:CHIP
R798
15k
1/16W
:RN-CP
PSIG
SIG4
SIG3
SIG5
SIG2
SIG6
SIG1
HVDD
XRGT
MODE3
MODE2
MODE1
HST
HCK2
HCK1
VSS
BLK
ENB
VCK
VST
PCG
DWN
VVDD
COM
GREEN
6
BP
2
CN811
#
VID2
L823
1µH
1
C763
0.01
25V
B:CHIP
2
R929
4.7k
1/16W
:CHIP
C906
0.1
25V
B:CHIP
JL861
#
C909
R979
0
:CHIP
R973
10k
1/16W
:CHIP
+5V
FB813
BK2125HM601T
C904
100
16V
:AL-CP
R945
0
:CHIP
FB819
#
C910
#
JL871
#
R970
0
:CHIP
15.5V
C879
0.1
16V
B:CHIP
C878
#
R994
0
:CHIP
R975
#
3
R912
470
1/16W
:CHIP
C902
47
25V
:AL-CP
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
FB818
BK2125HM601T
+15.5V
C903
0.1
25V
B:CHIP
GND2
SH-OUT1
NC
SH-OUT2
NC
SH-OUT3
PVCC
NC
NC
PGND
NC
SH-OUT4
NC
SH-OUT5
NC
SH-OUT6
R940
Q808
2.2
HN1B01FU-TE85R 1/16W
BUFF
:CHIP
9 10 11 12 13 14 15 16
R969
0
:CHIP
R956
0
:CHIP
GND
7
R971
#
≠≠
PRG
≠≠≠
3
Q806
2SA1162
BUFF
8
R911
0
:CHIP
FB814
BK2125HM601T
JL864
#
PRG
FRP
C881
0.1 16V B:CHIP
Q807 R915
0
2SA1162 :CHIP
BUFF
R949
0
:CHIP
IC819
CXA2112R-T6
LCD DRIVER
(G)
POS-CNT1
POS-CNT2
NEXT-OUT
NEXT-IN
F/R-CNT
GND
NC
NC
NC
+5V
5V-3
R948
4.7k
1/16W
:CHIP
C898
#
R977
27k
1/16W
:RN-CP
C900
0.1
25V
B:CHIP
48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33
49 DLY-CNT
50 MCLK
51 MCLK
52 INV-CNT
53 VDD
54 CLK-OUT
55 CLK-OUT
56 NC
57 NC
58 DGND
59 CLK-IN
60
61 CLK-IN
62 PRG
63 NC
64 NC
INV-CON
R937
100
1/16W
:CHIP
C897
0.1
16V
B:CHIP
JL865 #
POS-CON2
POS-CON1
FB817
BK2125HM601T
FB815
BK2125HM601T
R967
47
1/16W C896
10p
:CHIP CH:CHIP
R964
3k
1/16W
:RN-CP
TP812
GINV
R939
2.2
1/16W G-SID OUT
:CHIP
R919
2.2k
1/16W
:CHIP
C874
0.1
25V
B:CHIP
C894
0.001
B:CHIP
TO(2/5) VIDEO RG
1
Q811
HN1B01FU-TE85R
BUFF
JL867
#
VCOM OUT
R909
#
R926
0
:CHIP
6
R917
#
VSS
A03
A04
A05
A06
A07
A08
A09
A010
VDD
C895
47
25V
:AL-CP
OFFSET
3
2
1
R925
0
:CHIP
11 12 13 14 15 16 17 18 19 20
15.5V
R953
10k
1/16W
:CHIP
R954 R957 R958
100 100
100
1/16W 1/16W 1/16W
:CHIP :CHIP :CHIP
R913
100
1/16W
:CHIP
S-12-CNT
NC
ENB
DIR-CNT
NC
NC
NC
15.5V
IC817
MB88346BPFV-EF
12CH DAC
R931
2.2k
1/16W
:CHIP
15.5V-2
L806
1µH
VIDEO IN
INV-OUT
SH-IN
FRP
VCC
SID-OFST
NC
NC
SID-IN
SID-OUT
ISET
NC
SIG CEN
VCOM OFST
C883
0.1
16V
B:CHIP
SDAT
D-SCLK
DALD
C882
47
6.3V
:AL-CP
R930
0
:CHIP
TO(1/5)
C892
0.1
25V
F:CHIP
R976
100k
1/16W
:CHIP
R966
100k
1/16W
:CHIP
R978
27k
1/16W
:RN-CP
C918
#
FB714
BK1608TS601
OFFSET
TO(3/5,4/5) HVDD
R962
#
R963
#
MCLK
FROM(2/5)
≠≠≠
MCLK
≠≠≠≠
C886
0.001
B:CHIP
C885
0.001
B:CHIP
C891
1
10V
F:CHIP
R961
47
1/16W
:CHIP
49 DLY-CNT
50 MCLK
51 MCLK
52 INV-CNT
53 VDD
54 CLK-OUT
55 CLK-OUT
56 NC
57 NC
58 DGND
59 CLK-IN
60
61 CLK-IN
62 PRG
63 NC
64 NC
IC820
CXA2112R
LCD DRIVER
(G)
C907
0.1
25V
B:CHIP
GND2
SH-OUT1
NC
SH-OUT2
NC
SH-OUT3
PVCC
NC
NC
PGND
NC
SH-OUT4
NC
SH-OUT5
NC
SH-OUT6
POS-CNT1
POS-CNT2
NEXT-OUT
NEXT-IN
F/R-CNT
GND
NC
NC
NC
S-12-CNT
NC
ENB
DIR-CNT
NC
NC
NC
R960
47
1/16W
:CHIP
C899
#
48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33
VCOM OUT
R1138
0
:CHIP
VIDEO IN
INV-OUT
SH-IN
FRP
VCC
SID-OFST
NC
NC
SID-IN
SID-OUT
ISET
NC
SIG CEN
VCOM OFST
5V-2
C (3/5)[VPL-CX1]
1
2
3
4
5
6
7
8
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
VID1
VID2
VID3
VID4
VID5
VID6
VID7
VID8
VID9
VID10
VID11
VID12
HST
HCK2G
HCK1G
VID7
R988
0
:CHIP
VID8
R989
0
:CHIP
VID9
TP814
JL870 #
R990
0
:CHIP
C1036
0.1
25V
B:CHIP
ENB
VCK
VST
R991
0
:CHIP
VID10
R992
0
:CHIP
VID11
R993
0
:CHIP
VID12
PCG
C905
0.47
25V
F:CHIP
9 10 11 12 13 14 15 16
PS2G
VSSGR
VSIG1
VSIG2
VSIG3
VSIG4
VSIG5
VSIG6
VSIG7
VSIG8
VSIG9
VSIG10
VSIG11
VSIG12
HVDD
RGT
HST
HCK2
HCK1
VSS
VSSGL
BLK
ENB
VCK
VST
DWN
HB
VB
PCG
VVDD
COM
TEST
4
5
5V-2
R996
10k
1/16W
:CHIP
R997
10k
1/16W
:CHIP
R998
10k
1/16W
:CHP
ENB
LCD DRIVER(G)
12CH DAC
FROM(2/5,4/5) TP
DWN TO(2/5)
B-SS1708<...>-C..-P3
8-23
VPL-CS2/CX1
A
B
C
D
8-23
E
F
G
H
C (4/5)
C (4/5)
. Refer to page 8-14 for Printed Wiring Board
. Refer to page 8-20 for IC Block Diagrams
15.5V-3
C982
0.001
B:CHIP
C986
#
R1067
27k
1/16W
:RN-CP
JL888 #
5V-2
R1055
820
1/16W
:RN-CP
C978
10
10V
F:CHIP
49 DLY-CNT
50 MCLK
51 MCLK
52 INV-CNT
53 VDD
54 CLK-OUT
55 CLK-OUT
56 NC
57 NC
58 DGND
59 CLK-IN
60
61 CLK-IN
62 PRG
63 NC
64 NC
DLY-CON
R873
#
1/16W
:RN-CP
2
INV-CON
C976
0.1
16V
B:CHIP
C975
47
6.3V
:AL-CP
C977
0.1
16V
B:CHIP
R1051
#
PRG
FRP
POS-CNT1
POS-CNT2
NEXT-OUT
NEXT-IN
F/R-CNT
GND
NC
NC
NC
≠≠
≠≠≠
PRG
FROM(2/5)
IC826
CXA2112R-T6
LCD DRIVER
(B)
R1058
#
POS-CON1
1
2
3
4
5
6
7
8
R1084
0
:CHIP
C991
C992
0.1
100
25V
16V
B:CHIP :AL-CP
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
C998
#
JL891
#
FB837
#
C999
#
VID1
BLUE
5V-2
R888
#
1/16W
:RN-CP
R1085
10k
1/16W
:CHIP
DLY-CON
VID3
R1074
0 :CHIP
R1059
0
:CHIP
R1070
#
R1064
0
:CHIP
TP817
JL892 #
VID4
R1075
0 :CHIP
C996
0.1
25V
B:CHIP
VID5
R1076
0 :CHIP
JL895
#
VID6
HST
HCK2B
HCK1B
R1077
0 :CHIP
ENB
VCK
VST
PCG
R1071
#
R1060
0
:CHIP
C997
0.47
25V
F:CHIP
≠≠≠≠≠
≠≠≠≠≠≠
RB
DIR
FROM(3/5)
R1069
0
:CHIP
PSIG
SIG4
SIG3
SIG5
SIG2
SIG6
SIG1
HVDD
XRGT
MODE3
MODE2
MODE1
HST
HCK2
HCK1
VSS
BLK
ENB
VCK
VST
PCG
DWN
VVDD
COM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
DWN
R1063
10k
1/16W
:CHIP
49 DLY-CNT
50 MCLK
51 MCLK
52 INV-CNT
53 VDD
54 CLK-OUT
55 CLK-OUT
56 NC
57 NC
58 DGND
59 CLK-IN
60
61 CLK-IN
62 PRG
63 NC
64 NC
C1003
0.1
16V
B:CHIP
C1002
47
6.3V
:AL-CP
C1004
0.1
16V
B:CHIP
R1092
#
≠≠
PRG
≠≠≠
FROM(2/5)
IC829
CXA2112R-T6
LCD DRIVER
(R)
R1099
#
POS-CON1
1
2
3
4
5
6
7
8
GND2
SH-OUT1
NC
SH-OUT2
NC
SH-OUT3
PVCC
NC
NC
PGND
NC
SH-OUT4
NC
SH-OUT5
NC
SH-OUT6
HN1B01FU-TE85R
BUFF
+15.5V
R1125
0
:CHIP
C1025
#
JL900
#
C1018 C1019
0.1
100
25V
16V
B:CHIP :AL-CP
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
FB842
BK2125HM601T
C1020
0.1
25V
B:CHIP
R942
2.2
1/16W
:CHIP
R946
0
:CHIP
JL862
#
FB846
#
C1026
#
RED
5V-2
R1126
10k
1/16W
:CHIP
VID1
R1113
0 :CHIP
CN818
#
VID2
R1114
0 :CHIP
VID3
R1115
0 :CHIP
VID4
VID3
VID5
VID2
VID6
VID1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
TP821
JL901 #
VID4
R1116
0 :CHIP
C1023
0.1
25V
B:CHIP
VID5
R1117
0 :CHIP
JL904
#
VID6
HST
HCK2R
HCK1R
R1118
0 :CHIP
9 10 11 12 13 14 15 16
R1106
#
POS-CON2
R1102
#
R1100
0
:CHIP
R1111
#
R1105
0
:CHIP
ENB
VCK
VST
PCG
R1112
#
DWN
R1101
0
:CHIP
C1024
0.47
25V
F:CHIP
≠≠≠≠≠
≠≠≠≠≠≠
RB
DIR
TO(3/5)
R1110
0
:CHIP
R1104
10k
1/16W
:CHIP
HVDD
TO(3/5)
BLUE
HVDD
TO(3/5)
Q809
R920
2.2k
1/16W
:CHIP
C1017
47
25V
:AL-CP
Q812
HN1B01FU-TE85R
BUFF R941
2.2
1/16W R-SID OUT
:CHIP
L817
1µH
C1015
0.1
25V
B:CHIP
48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33
INV-CON
VID4
VID3
VID5
VID2
VID6
VID1
R1065
#
R1061
#
R881
#
1/16W
:RN-CP FB841
BK2125HM601T
R883
#
1/16W
:RN-CP
CN816
#
VID2
R1073
0 :CHIP
C1012
0.1
16V
B:CHIP
R1108
27k
1/16W
:RN-CP
R1096
820
1/16W
:RN-CP
C1005
10
10V
F:CHIP
5V-2
5V-3
R1072
0 :CHIP
R1098
47
1/16W C1011
10p
:CHIP B:CHIP
JL897 #
FROM(1/5) R OUT
C993
0.1
25V
B:CHIP
R1095
3k
1/16W
:RN-CP
TP820
RINV
9 10 11 12 13 14 15 16
POS-CON2
3
GND2
SH-OUT1
NC
SH-OUT2
NC
SH-OUT3
PVCC
NC
NC
PGND
NC
SH-OUT4
NC
SH-OUT5
NC
SH-OUT6
C1013
#
C875
0.1
25V
B:CHIP
C1009
0.001
B:CHIP
L821
100µH
FB833
BK2125HM601T
+15.5V
C990
47
25V
:AL-CP
48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33
S-12-CNT
NC
ENB
DIR-CNT
NC
NC
NC
R870
#
1/16W
:RN-CP
FB832
BK2125HM601T
OFFSET
5V-3
R874
#
1/16W
:RN-CP
VIDEO IN
INV-OUT
SH-IN
FRP
VCC
SID-OFST
NC
NC
SID-IN
SID-OUT
ISET
NC
SIG CEN
VCOM OFST
FROM(1/5) B OUT
C988
0.1
25V
B:CHIP
L815
1µH
C1016
0.1
25V
B:CHIP
TO(3/5) R VCOM
TO(2/5) VIDEO RR
C989
0.1
25V
B:CHIP
VCOM OUT
BINV
C985
0.1
16V
B:CHIP
C984
10p
:CHIP
SCEN
SID-OUT
R947
0 JL863
:CHIP #
OFFSET
R1054
3k
1/16W
:RN-CP
TP816
R1057
47
1/16W
:CHIP
Q810
HN1B01FU-TE85R
BUFF
R921
2.2k
1/16W
:CHIP
B-SID OUT
JL899
#
C1010
47
25V
:AL-CP
VCOM OUT
C876
0.1
25V
B:CHIP
R944
2.2
1/16W
:CHIP
C1008
0.1
25V
B:CHIP
R914
100
1/16W
:CHIP
S-12-CNT
NC
ENB
DIR-CNT
NC
NC
NC
JL890
#
TO(3/5) B VCOM
L820
100µH
R943
2.2
1/16W
:CHIP
R933
2.2k
1/16W
:CHIP
15.5V-4
L816
1µH
Q813
HN1B01FU-TE85R
BUFF
POS-CNT1
POS-CNT2
NEXT-OUT
NEXT-IN
F/R-CNT
GND
NC
NC
NC
C983
47
25V
:AL-CP
SID-OUT
TO((2/5) VIDEO RB
R935
2.2k
1/16W
:CHIP
R908
100
1/16W
:CHIP
PRG
FRP
C981
0.1
25V
B:CHIP
SCEN
R932
0
:CHIP
DAC TO(3/5)
15.5V-3
L814
1µH
15.5V-4
15.5V
R934
0
:CHIP
DAC TO(3/5)
VIDEO IN
INV-OUT
SH-IN
FRP
VCC
SID-OFST
NC
NC
SID-IN
SID-OUT
ISET
NC
SIG CEN
VCOM OFST
15.5V
1
PSIG
SIG4
SIG3
SIG5
SIG2
SIG6
SIG1
HVDD
XRGT
MODE3
MODE2
MODE1
HST
HCK2
HCK1
VSS
BLK
ENB
VCK
VST
PCG
DWN
VVDD
COM
RED
CN819
32P
FPC
CN817
32P
FPC
TOLCD PANEL(R)
TO LCD PANEL(B)
R1068
27k
1/16W
:RN-CP
4
C987
#
FROM(2/5)
≠≠≠
MCLK
≠≠≠≠
IC827
CXA2112R
LCD DRIVER
(B)
GND2
SH-OUT1
NC
SH-OUT2
NC
SH-OUT3
PVCC
NC
NC
PGND
NC
SH-OUT4
NC
SH-OUT5
NC
SH-OUT6
POS-CNT1
POS-CNT2
NEXT-OUT
NEXT-IN
F/R-CNT
GND
NC
NC
NC
S-12-CNT
NC
ENB
DIR-CNT
NC
NC
NC
C979
1
10V
F:CHIP
49 DLY-CNT
50 MCLK
51 MCLK
52 INV-CNT
53 VDD
54 CLK-OUT
55 CLK-OUT
56 NC
57 NC
58 DGND
59 CLK-IN
60
61 CLK-IN
62 PRG
63 NC
64 NC
VCOM OUT
OFFSET
MCLK
VIDEO IN
INV-OUT
SH-IN
FRP
VCC
SID-OFST
NC
NC
SID-IN
SID-OUT
ISET
NC
SIG CEN
VCOM OFST
48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33
5
1
2
3
4
5
6
7
8
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
VID7
R1078
0
:CHIPVID8
C995
0.1
25V
B:CHIP
HST
HCK2B
HCK1B
R1079
0
:CHIP VID9
R1080
0
:CHIP
C1037
0.1
25V
B:CHIP
ENB
VCK
VST
VID10
R1081
0
:CHIP
VID11
R1082
0
:CHIPVID12
R1083
0
:CHIP
PCG
C994
0.47
25V
F:CHIP
R1140
0
:CHIP
MCLK
FROM(2/5)
≠≠≠
MCLK
≠≠≠≠
C1006
1
10V
F:CHIP
R1109
27k
1/16W
:RN-CP
C1014
#
48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33
49 DLY-CNT
50 MCLK
51 MCLK
52 INV-CNT
53 VDD
54 CLK-OUT
55 CLK-OUT
56 NC
57 NC
58 DGND
59 CLK-IN
60
61 CLK-IN
62 PRG
63 NC
64 NC
1
9 10 11 12 13 14 15 16
R1107
100k
1/16W
:CHIP
IC830
CXA2112R
LCD DRIVER
(R)
GND2
SH-OUT1
NC
SH-OUT2
NC
SH-OUT3
PVCC
NC
NC
PGND
NC
SH-OUT4
NC
SH-OUT5
NC
SH-OUT6
2
3
4
5
6
7
8
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
VID7
R1119
0
:CHIP VID8
R1120
0
:CHIP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
JL905
#
TP822
JL903 #
C1022
0.1
25V
B:CHIP
HST
HCK2R
HCK1R
VID9
R1121
0
:CHIP
ENB
VCK
VST
C1038
0.1
25V
B:CHIP
VID10
R1122
0
:CHIPVID11
R1123
0
:CHIPVID12
R1124
0
:CHIP
PCG
C1021
0.47
25V
F:CHIP
9 10 11 12 13 14 15 16
PS2G
VSSGR
VSIG1
VSIG2
VSIG3
VSIG4
VSIG5
VSIG6
VSIG7
VSIG8
VSIG9
VSIG10
VSIG11
VSIG12
HVDD
RGT
HST
HCK2
HCK1
VSS
VSSGL
BLK
ENB
VCK
VST
DWN
HB
VB
PCG
VVDD
COM
TEST
5V-2
5V-2
R1087
10k
1/16W
:CHIP
ENB
R1086
10k
1/16W
:CHIP
R1127
10k
1/16W
:CHIP
R1088
10k
1/16W
:CHIP
R1128
10k
1/16W
:CHIP
R1129
10k
1/16W
:CHIP
ENB
R1139
0
:CHIP
TP818
JL894 #
R1097
100k
1/16W
:CHIP
VCOM OUT
R1066
100k
1/16W
:CHIP
R1056
100k
1/16W
:CHIP
R1103
0
:CHIP
C1007
0.1
25V
F:CHIP
OFFSET
C980
0.1
25V
F:CHIP
VID1
VID2
VID3
VID4
VID5
VID6
VID7
VID8
VID9
VID10
VID11
VID12
+5V
VIDEO IN
INV-OUT
SH-IN
FRP
VCC
SID-OFST
NC
NC
SID-IN
SID-OUT
ISET
NC
SIG CEN
VCOM OFST
R1062
0
:CHIP
JL896
#
PS2G
VSSGR
VSIG1
VSIG2
VSIG3
VSIG4
VSIG5
VSIG6
VSIG7
VSIG8
VSIG9
VSIG10
VSIG11
VSIG12
HVDD
RGT
HST
HCK2
HCK1
VSS
VSSGL
BLK
ENB
VCK
VST
DWN
HB
VB
PCG
VVDD
COM
TEST
POS-CNT1
POS-CNT2
NEXT-OUT
NEXT-IN
F/R-CNT
GND
NC
NC
NC
S-12-CNT
NC
ENB
DIR-CNT
NC
NC
NC
VID1
VID2
VID3
VID4
VID5
VID6
VID7
VID8
VID9
VID10
VID11
VID12
+5V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
TO(2/5,3/5) TP
TO(2/5,3/5) TP
C (4/5)[VPL-CX1]
(LCD DRIVER(B),(R))
B-SS1708<...>-C..-P4
8-24
A
B
C
D
8-24
VPL-CS2/CX1
E
F
G
H
C (5/5)
C (5/5)
. Refer to page 8-14 for Printed Wiring Board
. Refer to page 8-20 for IC Block Diagrams
1
2
CN815
2P
WHT
:SMD
1
SP-L
2 AUDIO GND
SP-R
AUDIO GND
1
CN820
2P
WHT
:SMD
IC825
CXA1846BN-T4
VOLUME
C955
47
16V
:AL-CP
1
A-R
R1026
#
R1027
0
:CHIP
3
4
5
6
7
8
C962
2.2
20V
:TA-CP
C956
0.1
25V
B:CHIP
9 10
C959
0.01
25V
B:CHIP
C954
0.01
B:CHIP
C952
10
20V
:TA-CP
R1029
100
1/16W
:CHIP
R1035
2.2k
1/16W
:CHIP
R1039
220
:CHIP
FROM(1/5)
4
3
2
1
IN-L
L-OUT
IN-R
VS
2
RF.B. R-OUT
1
GND
JL884
#
4
LF.B.
L813
2.2µH
JL887
#
C968
220
10V
:AL-CP
IC824
NJM2073M(TE2)
AUDIO AMP
C964
0.047
B:CHIP
R1046
1
:CHIP
Q816
2SA1162
MUTE
C965
10
16V
:AL-CP
R1041
100k
1/16W
:CHIP
3
C972
0.1
25V
B:CHIP
C970
0.22
25V
B:CHIP
R1042
5.6k
1/16W
:CHIP
C971
R1043
1.5k
1/16W
:CHIP
R1030 R1031
100
100
1/16W 1/16W
:CHIP :CHIP
2
JL886
#
C967
0.1
25V
B:CHIP
3
5
R1038
47k
1/16W
:CHIP
APCE
SDAT
A-SCLK
JL882 R1023
0
#
:CHIP
2
C969
0.22
25V
B:CHIP
6
R1033
8.2k
1/16W
:CHIP
R1045
1
:CHIP
R1040
5.6k 1/16W :CHIP
7
C958
1
25V
B:CHIP
FROM(1/5)
C963
0.047
B:CHIP
8
Q814
DTC144EKA-T146
SW
A-L
20 19 18 17 16 15 14 13 12 11
RF.B. R-OUT
AUDIO-MUTE
FROM(1/5)
R1025
#
JL883 R1024
0
#
:CHIP
VS
AUDIO GND
R1037
220
:CHIP
C953
10
16V
:AL-CP
C951
10
20V
:TA-CP
IN-R
Q815
DTC144EKA-T146
SW
L812
4.7µH
R1028
0
:CHIP
L-OUT
C966
220
10V
:AL-CP
AUDIO +B
12V
5
C961
2.2
20V
:TA-CP
C960
0.01
25V
B:CHIP
IN-L
GND
JL885
#
R1036
47k
1/16W
:CHIP
R1034
2.2k
1/16W
:CHIP
LF.B.
6
R1032
8.2k
1/16W
:CHIP
7
C957
1
25V
B:CHIP
8
IC823
NJM2073M(TE2)
AUDIO AMP
100
16V
:AL-CP
R1044
3.3k
1/16W
:CHIP
R1047
10k
1/16W
:CHIP
AUDIO-MUTE
Q817
2SC2712
MUTE
C (5/5)[VPL-CX1]
(AUDIO AMP)
FROM(1/5)
APCE
APCE
A-SCLK
A-SCLK
SDAT
SDAT
4
B-SS1708<...>-C..-P5
5
8-25
VPL-CS2/CX1
A
B
C
D
8-25
E
F
G
H
H
H
1
H Board
S008
R008
S006
S012
R011
R012
D010
D006
D011
R015
D009
D005
R009
R010
D004
S004
R007
R003
Q001
R016
R006
S007
S002
R005
R004
S001
2
S009
C001
JL001 JL003 JL004 JL006
JL007
JL002 JL005
JL010
D007
D012
R002 R001
S003
S005
JL008 JL009
R014
R013
CN001
S011
S010
D008
D003
D002
D001
3
H -A SIDE-
H -B SIDE-
SUFFIX: -12
SUFFIX: -12
D001
SEC1901C
LAMP-LED
4
R002
10k
:CHIP
Q001
D003
D004
D002
DTA144EKA SEC1801C
SEC1901C
SW
POWER-SAVE DAN202K
PROTECT
TEMP-LED
D005
DAN202K
PROTECT
D006
DAN202K
PROTECT
D007
DAN202K
PROTECT
CN001
12P
:SMD
R001
10k
:CHIP
R003
1k
:CHIP
TO C BOARD CN805
JL001 #
S001
S002
S003
LEFT
RIGHT
DOWN
R004
27k
:CHIP
R005
12k
:CHIP
S004
UP
S007
S008
ENTER
S005
MENU
S006
INPUT
POWER
R008
2.7k
:CHIP
R009
2.2k
:CHIP
R010
1.5k
:CHIP
4.9
JL002 #
0.1
JL003 #
JL004 #
R006
6.8k
:CHIP
R007
3.9k
:CHIP
R011
1.8k
:CHIP
JL005 #
R012
330
:CHIP
JL006 #
JL007 #
JL008 #
JL009 #
S009
APA
R013
2.7k
:CHIP
5
H (CONTROL
S010
S011
VOL+
VOL-
R014
2.2k
:CHIP
R015
1.5k
:CHIP
D009
DAP202K
PROTECT
S012
RESET
D010
DAP202K
PROTECT
D011
DAP202K
PROTECT
JL010 #
GND
D.5V
POWER-LED
TEMP-LED
LAMP-LED
PSAVE-LED
LIGHT
SUB 5V
KEY1
KEY0
SIRCS NR
GND
C001
0.1
25V
B:CHIP
D008
SEC2422C
POWER/STBY
R016
1.8k
:CHIP
D012
DAP202K
PROTECT
12
11
10
9
8
7
6
5
4
3
2
1
PANEL)
B-SS1697<...>-H..
8-26
A
B
C
D
8-26
VPL-CS2/CX1
E
F
G
H
GA
GA
GA Board
GA Board
1-679-397
C672
CN606
C620
L603
PH603
D615
C679
FH602
CN601
D617
IC704
CN674
L671
F601
2
VD60
C719
C684
CN676
CN675
C681
C623
PH602
C609
C622
IC604
R608
D606
Q602
FH601
PH601
R601
R606
D620
R610
D618
D607
C676
CN605
C636
C637
T602
D608
C611
C674
D616
C616
R629
C601
R630
C638
D609
C603
T601
IC603
CN602
L601
C619
D613
D614
D610
C612
D611
C617
L602
R613
C610
CN608
R605
R609
C602
R604
C608
CN607
Q601
C606
C604
L604
D602
D601
D605
VD604
GA -A SIDE-
C629
D604
R602
R636
R646
R657
R643
R642
R656
R644
R645
R621
R647
D622
R689
R701
C671
C675
R673
R674
R632
R678
R676
R679
D673
R675
C680
IC671
R686
R687
Q671
R671
R718
C677
D672
R694
Q672
R680
R681
R696
IC673
C678
R615
R717
R719
Q673
R677
D675
R607
C683
C618
C682
R697
R688
R700
R698
R682
R625
R716
Q603
R617
R626
R699
R627
R628
D619
R631
C621
R649
R633
IC602
D674
C718
R672
D621
R623
C635
R683
R654
R618
IC672
R622
PS601
R611
C673
R620
D612
C615
C624
GA -B SIDESUFFIX: -11
VPL-CS2/CX1
* B-6
B-5
A-3
* C-2
* A-6
* B-6
* A-6
A-5
Q601
Q602
Q604
Q671
Q672
Q673
C-3
A-2
* C-2
* A-7
* A-7
* B-7
D601
D602
D603
D604
D605
D606
D607
D608
D609
D610
D611
D612
D613
D614
D615
D616
D617
D618
D619
D620
D621
D622
D672
D673
D674
D675
C-1
C-3
* C-3
* C-3
C-2
A-2
B-4
B-5
B-6
B-5
B-4
* B-5
B-5
B-4
A-3
B-4
A-4
B-4
* A-4
A-4
* B-3
* C-5
* A-7
* A-6
* B-6
*A-6
VD602
VD604
A-1
D-1
PH603
* A-2
*:B Side mount
R634
R603
R641
Q604
D603
R652
R648
C632
R637
IC605
C627
C628
R635
R653
C633
R638
C631
C625
C626
R651
R660
R650
C634
R640
R655
R639
SUFFIX: -11
IC602
IC603
IC604
IC605
IC671
IC672
IC673
IC704
8-27
8-27
GA
GA
. Refer to page 8-27 for Printed Wiring Board
1
D601
D6SB80
800V,6A
2
1
2
C638
2.2
450V
R673
390
1/2W
:CHIP
R654
4.7k
:CHIP
C635
0.01
:CHIP
R611
390
1/2W
:CHIP
C674
47
16V
C671
0.01 :CHIP
R674
180
1/2W
:CHIP
4
4
8
D611
P6KE350A
D613
P6KE350A
3
2
R623
1k
:CHIP
PH601
PC123FY2
R626
12k
:CHIP
R627
100
:CHIP
4
1
3
2
A
A
8
A
A
A
A
A
A
4
R680
1k
:CHIP
C677 R686
R689 R694 0.1 47k
22k
22k B:CHIP :CHIP
:CHIP :CHIP
+18V
C676
100
16V
R618
4.7k
:RN-CP
Q673
2SC2712
FAN PROTECT
CN674
5P
WHT
R681
100
:CHIP
Q672
2SC2712
FAN PROTECT
R679
4.7k
:RN-CP
R682
10k
:CHIP
R683
100
:CHIP
TO C BOARD CN804
1
2
3
4
5
POWER CONT
FAN PROT
FAN CONT1
FAN CONT2
GND 2
R688
10k
:CHIP
R687
12k
:CHIP
D672
DAN202K-T-146
R622 C636
180
10
1/2W
:CHIP
CN676
3P
BLK
R696
10k
:RN-CP
C678
0.1
B:CHIP
VIN VSW
8
BST
D615
FCQ20A06
SRT
L603 68µH
1
2
3
FAN+B
FAN PROT
GND 2
1
2
3
FAN+B
FAN PROT
GND 2
IC604
TOP223Y-BB
C621 PWM CONTROL
2
C
D
S
D619
RD8.2M-T1B1
3
10
4
9
5
8
6
7
C620
2700
10V
R699
D674
68k
D1FS4A-TA :RN-CP
7
C683
0.1
B:CHIP
C684
47
16V
D675
D1FS4A-TA
CN675
3P
WHT
FAN1
R698
12k
:RN-CP
R700
2.2k
:RN-CP
O
G
C682
0.1
B:CHIP
C718
0.1
B:CHIP
C719
33
25V
R701
4.7k
:RN-CP
R716
22k R717
:RN-CP 10k
:RN-CP
R718
3.9k
:RN-CP
R719
3.9k
:RN-CP
D617
FCQ20A06
D621
D1FL20U-TA
D620
P6KE350A
R697
82k
:RN-CP
11
D618
P6KE350A
C622
#
47µH
IC673
LT1374IS8#TR
DC-DC CONVERTER
0.1
B:CHIP
R631
6.8
:CHIP
GND BIAS
IC704
PQ30RV11
FAN +B2 REG
C681
270
25V
I
12
D616
FMG-G2CS
1000V,3A
VC
C680
0.1
B:CHIP
5
T602
4
R629
47k
3W
:RS
FB
C679
22
35V
D673
D1FS4A-TA
L671
6
1
C618
0.1
B:CHIP
2
PH602
PC123FY2
D614
P6KE300A
3
Q603
2SC2712
MAIN CONV ON/OFF
C623
47
16V
R677
33k
:CHIP
R678
68k
:CHIP
FAN2
R630
47k C619
3W 0.022
:RS 400V
R628
39k
:CHIP
3
1
Q671
2SC2712
INVERTER
R676
6.8k
:RN-CP
REF
3
C615
0.1
B:CHIP
REF
7
9
S
R621
6.8
:CHIP
C617
47
25V
K
R672
15k
:CHIP
IC671
TL431BCDR2
SHUNT REGULATOR
R615
6.8k
:RN-CP
6
D
2
C672
10
R671
10
:RN-CP
5
C
R625
270k
1/2W
:CHIP
3
5
1
R620
220
:CHIP
6
2
IC603
TOP222Y-BB
PWM CONTROL
D612
C616
RD8.2M-T1B1
#
IC602
TL431BCDR2
SHUNT REGULATOR
3
R613
4.7
:FPRD
C611
470
25V
R675
47k :CHIP
K
1
4
R617
270k
1/2W
:CHIP
D610
RGP10G
C612
220
25V
1
2
3
4
TO QA BOARD CN101
SUB+5
SUB+5
GND2
GND2
C675 #
PS601
2A
7
O
G
C673
0.1
B:CHIP
8
T601
SRT
DC W
GND 1 B
CN605
4P
WHT
+5V
D609
D10SC9M
D608
RGP10J600V,1A
C609
100p
1kV
I
D604
D1FS4A-TA
R608
10k
:FPRD
D607
P6KE200A
R610
68k
2W
R603
15k
:CHIP
1
2
IC672
BA05FP-E2
+5V REG
S
D606
RD20ES-T1B2
:CHIP
C610
0.033
630V
R602
12
:CHIP
R606
470
1/2W
:FPRD
Q602
2SD2144S-TP-V R607
INVERTER
100k
R609
4.7
:FPRD
R605
0.22
5W
:RW
7
D605
TF861S
C608 10
D622
RD24M-T1B
C604
220
450V
6
R604
5.6
5W
CN602
#
2
CN607
#
C606
#
C603
2200p
250V
:E
1
D602
FSF10A60
600V,10A
5
4
4
Q601
2SK3013F
600V 16A
SW
1
VD604
ZP2600
600V
3
3
3
FH602 F601 FH601 R601
560k
6.3A
1/2W
250V
GND
L602
D603
800µH 5A
D1FS4A-TA
L604
Sn10-500m
3
2
1
4
AC(N)
N.C
AC(L)
1
CN601
3P
:VH-B
CN608
#
C602 C601
0.22 0.0022
275V 250V
:E
:MPS
L601
SS28V-25045
3A
2
C637
0.47
275V
:MPS
VD602
ERZV14D471
AC IN
100V-120V
220V-240V
50/60Hz
C624
0.1
B:CHIP
4
1
3
2
R633
220
:CHIP
R632
1k
:CHIP
PH603
PC123FY2
R649
100
:CHIP
CN606
10P
TO GB BOARD CN702
R652
39k
:CHIP
4
3
2
1
GND
VIN
VFB
OVP
VDET
IIN
IFB
IC605
FA5332M
PFC
C629
47
25V
R650
15
:CHIP
9
10
11
12
13
C627
0.15
16V
B:CHIP
C626
330p
B:CHIP
R653
4.7k
:CHIP
14
15
16
R651
33k
:RN-CP
R655
4.7k
:RN-CP
R660
#
R644
220k
1/2W
:CHIP
R647
180k
1/2W
:CHIP
C625
0.1
B:CHIP
Q604
2SC2712
ACT FILT ON/OFF
T-OUT12 1
T-OUT12 2
T-OUT11 3
4
6V
5
6V
GND 2 6
GND 2 7
GND 2 8
GND 2 9
10
18V
5
IDET
5
REF
R657
120k
1/2W
:CHIP
6
ON/OFF
R656
180k
1/2W
:CHIP
7
CS
C628
0.1
R646 F:CHIP
120k
1/2W
:CHIP
8
VCC
R645
180k
1/2W
:CHIP
C631
68p
CH:CHIP
OUT
R642
120k
1/2W
:CHIP
R638
10k
:CHIP
C632
0.15
16V
B:CHIP
VC
R643
180k
1/2W
:CHIP
R648
12k
:CHIP
R636
33k
:CHIP
R641
1.5k
:RN-CP
R639
4.7k
:RN-CP
C633
470p
CH:CHIP
CT
R634
120
:RN-CP
R635
1.5k
:CHIP
C634
1000p
B:CHIP
R637
150k
:CHIP
R640
2.2k
:RN-CP
SYNC
4
GA
+6V
ACTIVE FILTER,CONTROL ACTIVE FILTER
MAIN CONVERTER,SUB CONVERTER
FAN DRIVE,DC-DC CONVERTER
+18V
B-SS1707<...>-GA.
8-28
A
B
C
D
8-28
VPL-CS2/CX1
E
F
G
H
GB
GB
1
GB Board
C776
L707
C702
C777
R785
R789
C701
R775
R706
D727
R776
R777
R708
R707
C772
D728
C773
CN702
R784
IC701
Q710
C769
D736
L703
D715
2
R788
CN707
R787
CN706
L702
C778
C740
C742
GB -A SIDE-
GB -B SIDE-
SUFFIX: -11
SUFFIX: -11
3
CN706
8P
WHT
TO C BOARD CN801
R784
82
1/2W
:CHIP
R785 R787
1.2k 1.2k
1/2W 1/2W
:CHIP :CHIP
R788
1.2k
1/2W
:CHIP
C778
100
16V
Q710
2SC2873Y
SOFT START
C777
47
16V
D736
RD13ES-T1TB2
R789
1.2k
1/2W
:CHIP
R708
#
IC701
PQ30RV11
16.5V REG
CN702
10P
I
R707
15k
:RN-CP
TO GA BOARD CN606
T-OUT12
T-OUT12
T-OUT11
6V
6V
GND 2
GND 2
GND 2
GND 2
18V
1
2
3
4
5
6
7
8
9
10
C742
470
25V
C701
0.1
B:CHIP
L702
100µH
D728
D2FS6-TA D727
D2FS6-TA
D715
D10SC9M
R775
#
C702
33
25V
R706
1.2k
:RN-CP
L707
10µH
R776
100
1/2W
:CHIP
AUDIO+B
AUDIO+B
AUDIO GND
AUDIO GND
+16.5V
+16.5V
GND 2
GND 2
1
2
3
4
5
6
7
8
9
16.5V
AUDIO+B
GND 2
GND 2
+6V
+6V
GND 2
GND 2
GND 2
O
G
L703 150µH
1
2
3
4
5
6
7
8
C740
330
35V
C776
47
16V
CN707
9P
WHT
TO QA BOARD CN102
R777
C772
C773
100
1500p
1/2W 1500p B:CHIP
:CHIP B:CHIP
C769
#
GB (DC/DC
4
CONVERTER)
B-SS1707<...>-GB.
5
8-29
VPL-CS2/CX1
A
B
C
D
8-29
E
F
G
H
SAFETY CHECK-OUT
After correcting the original service problem,
perform the following safety checks before
releasing the set to the customer :
Check the metal trim, “metallized” knobs,
screws, and all other exposed metal parts for AC
leakage. Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to
earth ground and from all exposed metal parts to
any exposed metal part having a return to
chassis, must not exceed 0.5 mA. Leakage
current can be measured by any one of three
methods.
1. A commercial leakage tester, such as the
Simpson 229 or RCA WT-540A. Follow the
manufacturers’ instructions to use these
instruments.
2. A battery-operated AC milliammeter. The
Data Precision 245 digital multimeter is
suitable for this job.
3. Measuring the voltage drop across a resistor
by means of a VOM or battery-operated AC
voltmeter. The “limit” indication is 0.75 V, so
analog meters must have an accurate lowvoltage scale. The Simpson 250 and Sanwa
SH-63Trd are examples of a passive VOM
that is suitable. Nearly all battery operated
digital multimeters that have a 2 V AC range
are suitable. (See Fig. A)
To Exposed Metal
Parts on Set
0.15 µF
1.5 kZ
AC
voltmeter
(0.75V)
Earth Ground
Fig A. Using an AC voltmeter to check AC leakage.
English
Sony Corporation
9-929-686-01
Communication System Solutions Network Company
00IZ26-1
Printed in Japan
©2000.9
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
