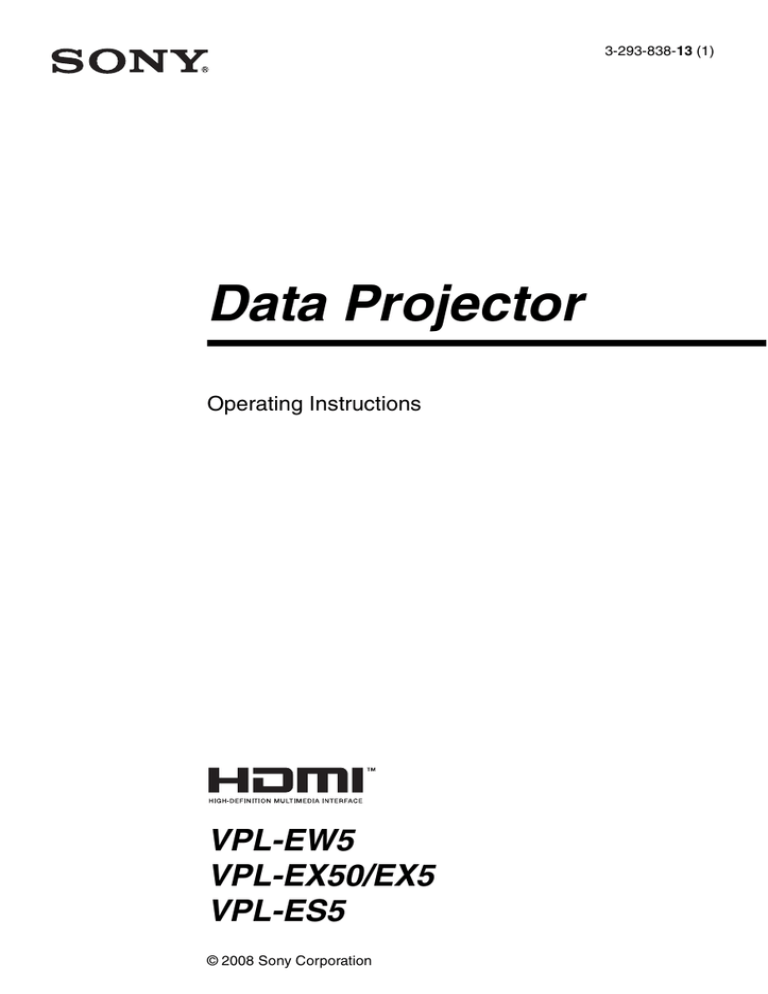

3-293-838-13 (1)
Data Projector
Operating Instructions
VPL-EW5
VPL-EX50/EX5
VPL-ES5
© 2008 Sony Corporation
WARNING
To reduce the risk of fire or electric
shock, do not expose this apparatus
to rain or moisture.
To avoid electrical shock, do not open
the cabinet. Refer servicing to
qualified personnel only.
WARNING
THIS APPARATUS MUST BE
EARTHED.
IMPORTANT
The nameplate is located on the bottom.
WARNING
When installing the unit, incorporate a
readily accessible disconnect device in the
fixed wiring, or connect the power plug to an
easily accessible socket-outlet near the unit.
If a fault should occur during operation of
the unit, operate the disconnect device to
switch the power supply off, or disconnect
the power plug.
CAUTION
Danger of explosion if battery is incorrectly
replaced. Replace only with the same or
equivalent type recommended by the
manufacturer.
Dispose of used batteries according to the
manufacturer’s instructions.
For the customers in the U.S.A.
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be
2
WARNING
determined by turning the equipment off and
on, the user is encouraged to try to correct
the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/
TV technician for help.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
All interface cables used to connect
peripherals must be shielded in order to
comply with the limits for a digital device
pursuant to Subpart B of Part 15 of FCC
Rules.
If you have any questions about this product,
you may call:
Sony Customer Information Service Center
1-800-222-7669 or http://www.sony.com/
Declaration of Conformity
Trade Name: SONY
Model: VPL-EW5, VPL-EX50,VPLEX5, VPL-ES5
Responsible Party: Sony Electronics Inc.
Address: 16530 Via Esprillo,
San Diego, CA 92127 U.S.A.
Telephone Number: 858-942-2230
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
WARNING: THIS WARNING IS
APPLICABLE FOR USA ONLY.
If used in USA, use the UL LISTED power
cord specified below.
DO NOT USE ANY OTHER POWER
CORD.
Plug Cap Parallel blade with ground pin
(NEMA 5-15P Configuration)
Cord
Type SJT, three 16 or 18 AWG
wires
Length Minimum 1.5m (4 ft .11in.), Less
than 4.5 m (14 ft .9 5/8 in.)
Rating Minimum 10A, 125V
Lamp in this product contains mercury.
Disposal of these materials may be regulated
due to environmental considerations. For
disposal or recycling information, please
contact your local authorities or the
Electronic Industries Alliance
(www.eiae.org).
Using this unit at a voltage other than 120V
may require the use of a different line cord or
attachment plug, or both.
To reduce the risk of fire or electric shock,
refer servicing to qualified service
personnel.
Disposal of Old Electrical &
Electronic Equipment (Applicable in
the European Union and other
European countries with separate
collection systems)
WARNING: THIS WARNING IS
APPLICABLE FOR OTHER
COUNTRIES.
1. Use the approved Power Cord (3-core
mains lead) / Appliance Connector / Plug
with earthing-contacts that conforms to
the safety regulations of each country if
applicable.
2. Use the Power Cord (3-core mains lead) /
Appliance Connector / Plug conforming
to the proper ratings (Voltage, Ampere).
If you have questions on the use of the above
Power Cord /Appliance Connector /Plug,
please consult a qualified service personnel.
For the customers in Europe
The manufacturer of this product is Sony
Corporation, 1-7-1 Konan, Minato-ku,
Tokyo, Japan.
The Authorized Representative for EMC
and product safety is Sony Deutschland
GmbH, Hedelfinger Strasse 61, 70327
Stuttgart, Germany. For any service or
guarantee matters please refer to the
addresses given in separate service or
guarantee documents.
This symbol on the product or
on its packaging indicates that
this product shall not be treated
as household waste. Instead it
shall be handed over to the
applicable collection point for
the recycling of electrical and
electronic equipment. By ensuring this
product is disposed of correctly, you will
help prevent potential negative
consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling of
this product. The recycling of materials will
help to conserve natural resources. For more
detailed information about recycling of this
product, please contact your local city office,
your household waste disposal service or the
shop where you purchased the product.
For the customers in Taiwan only
For the State of California, USA only
Perchlorate Material - special handling may
apply, See
www.dtsc. ca.gov/hazardouswaste/
perchlorate
Perchlorate Material: Lithium battery
contains perchlorate.
Disposal of the used lamp
For the customers in the USA
WARNING
3
Table of Contents
Precautions ......................................... 5
Notes on Installation and Usage ........ 6
Overview
Features .............................................. 9
Location and Function of Controls .. 10
Top/Right Side/Front .................. 10
Rear/Bottom ............................... 10
Control Panel .............................. 12
Connector Panel ......................... 14
Remote Commander ................... 15
About the Preset Memory No. ....34
The SET SETTING Menu ................35
The MENU SETTING Menu ...........37
The INSTALL SETTING Menu .......38
The INFORMATION Menu .............40
Maintenance
Replacing the Lamp ..........................42
Cleaning the Air Filter ......................44
Others
Projecting the Picture
Installing the Projector ..................... 17
Connecting the Projector ................. 19
Connecting a Computer .............. 19
Connecting a VCR ..................... 21
Projecting ......................................... 22
Turning Off the Power ..................... 24
Convenient Functions
Selecting the Menu Language .......... 25
Security Lock ................................... 26
Other Functions ................................ 27
Direct Power On/Off Function ... 27
Off & Go Function ..................... 27
Effective Tools for Your
Presentation ............................. 27
Adjustments and Settings
Using a Menu
Using a MENU ................................ 29
The PICTURE SETTING Menu ...... 31
The INPUT SETTING Menu .......... 33
4
Table of Contents
Troubleshooting ................................45
Messages List ..............................47
Specifications ...................................49
Installation Diagram .........................54
Floor Installation (Front Projection)
..................................................54
Ceiling Installation (Front
Projection) ...............................56
Dimensions .......................................58
Index .................................................60
Precautions
Safety
• Check that the operating voltage of your
unit is identical with the voltage of your
local power supply. If voltage adaptation is
required, consult with qualified Sony
personnel.
• Should any liquid or solid object fall into
the cabinet, unplug the unit and have it
checked by qualified personnel before
operating it further.
• Unplug the unit from the wall outlet if it is
not to be used for several days.
• To disconnect the cord, pull it out by the
plug. Never pull the cord itself.
• The wall outlet should be near the unit and
easily accessible.
• The unit is not disconnected to the AC
power source (mains) as long as it is
connected to the wall outlet, even if the
unit itself has been turned off.
• Do not look into the lens while the lamp is
on.
• Do not place your hand or objects near the
ventilation holes. The air coming out is
hot.
• Be careful not to get your fingers caught in
the adjuster.
• Do not spread a cloth or paper under the
unit.
Illumination
• To obtain the best picture, the front of the
screen should not be exposed to direct
lighting or sunlight.
• Ceiling-mounted spot lighting is
recommended. Use a cover over
fluorescent lamps to avoid lowering the
contrast ratio.
• Cover any windows that face the screen
with opaque draperies.
• It is desirable to install the unit in a room
where floor and walls are not of lightreflecting material. If the floor and walls
are of reflecting material, it is
recommended that the carpet and wall
paper be changed to a dark color.
Preventing internal heat build-up
The unit is equipped with ventilation holes
(intake) and ventilation holes (exhaust). Do
not block or place anything near these holes,
or internal heat build-up may occur, causing
picture degradation or damage to the
projector.
Cleaning
Before cleaning
Be sure to disconnect the AC power cord
from the AC outlet.
Cleaning the air filter
• Clean the air filter whenever you replace
the lamp.
• Refer to the “Cleaning the Air Filter” on
page 44 for the air filter cleaning.
Cleaning the lens
The lens surface is especially treated to
reduce reflection of light.
As incorrect maintenance may impair the
performance of the projector, take care with
respect to the following:
• Avoid touching the lens. To remove dust
on the lens, use a soft dry cloth. Do not use
a damp cloth, detergent solution, or
thinner.
• Wipe the lens gently with a soft cloth such
as a cleaning cloth or glass cleaning cloth.
• Stubborn stains may be removed with a
soft cloth such as a cleaning cloth or glass
cleaning cloth lightly dampened with
water.
• Never use solvent such as alcohol, benzene
or thinner, or acid, alkaline or abrasive
detergent, or chemical cleaning cloth, as
they will damage the lens surface.
Cleaning the cabinet
• Clean the cabinet gently with a soft dry
cloth. Stubborn stains may be removed
with a cloth lightly dampened with mild
detergent solution, followed by wiping
with a soft dry cloth.
• Use of alcohol, benzene, thinner or
insecticide may damage the finish of the
cabinet or remove the indications on the
cabinet. Do not use these chemicals.
Precautions
5
• If you rub on the cabinet with a stained
cloth, the cabinet may be scratched.
• If the cabinet is in contact with a rubber or
vinyl resin product for a long period of
time, the finish of the cabinet may
deteriorate or the coating may come off.
Notes on Installation
and Usage
Unsuitable Installation
LCD data projector
• This LCD data projector is manufactured
using high-precision technology. You may,
however, see tiny black points and/or
bright points (red, blue, or green) that
appear continuously on the LCD data
projector. This is a normal result of the
manufacturing process and does not
indicate a malfunction.
When the images are projected onto the
screens from multiple LCD data
projectors, they may generate color
distinctions because each projector has its
own color balance even if the projectors
are the same models.
Do not install the projector in the following
situations. Installation is these situations
or locations may cause a malfunction or
damage to the unit.
Poorly ventilated locations
• Allow adequate air circulation to prevent
internal heat build-up. Do not place the
unit on surfaces (rugs, blankets, etc.) or
near materials (curtains, draperies) that
may block the ventilation holes. When
internal heat builds up due to blockage of
ventilation holes, the temperature sensor
will function, and the power will be turned
off automatically.
• Leave space of more than 30 cm (11 7/8
inches) around the unit.
• Be careful not to allow the ventilation
holes to inhale tiny objects such as pieces
of paper or clumps of dust.
6
Notes on Installation and Usage
Hot and humid
Very dusty, extremely smoky
locations
• Avoid installing the unit in a location
where the temperature or humidity is very
high, or the temperature is very low.
• To avoid moisture condensation, do not
install the unit in a location where the
temperature may rise rapidly.
Avoid installing the unit in a very dusty or
extremely smoky environment. Otherwise,
the air filter will become obstructed, and this
may cause a malfunction of the unit or
damage it. Dust preventing the air passing
through the filter may cause a rise in the
internal temperature of the unit. Clean the
air filter whenever you replace the lamp.
Locations subject to direct cool or
warm air from an air-conditioner
Unsuitable Conditions
Do not use the projector under the following
conditions.
Installing the projector in such a location
may cause a malfunction of the unit due to
moisture condensation or a rise in
temperature.
Do not stand the unit upright on
one side
Avoid using the unit standing upright on its
side. It may cause malfunction.
Near a heat or smoke sensor
Malfunction of the sensor may occur.
Do not tilt the unit to the right or left
Avoid tilting the unit to an angle of 15°, and
avoid installing the unit in any way other
than placing it on a level surface or
suspending from the ceiling. Such an
installation may cause color shading or
shorten the lamp life excessively.
Notes on Installation and Usage
7
Do not block the ventilation holes
Usage at High Altitude
When using the projector at an altitude of
1,500 m or higher, turn on “High
Altitude Mode” in the INSTALL SETTING
menu. Failing to set this mode when using
the projector at high altitudes could have
adverse effects, such as reducing
the reliability of certain components.
Avoid using a thick-piled carpet or anything
that covers the ventilation holes (exhaust/
intake); otherwise, internal heat may build
up.
Do not place a blocking object just
in front of the lens
Do not place any object just in front of the
lens that may block the light during
projection. Heat from the light may damage
the object. Use the PIC MUTING key to cut
off the picture.
Do not use the Security bar for
transporting or installation
Use the Security bar at the rear of the
projector for a purpose of preventing theft,
by attaching a commercially available theft
prevention cable for example. If you lift the
projector by holding the Security bar, or
hang the projector by using this bar, it may
cause the projector to fall or be damaged.
8
Notes on Installation and Usage
Notes on Use
Note on carrying the projector
The unit is manufactured using highprecision technology. When transporting the
unit stored in the carrying case, do not drop
the unit or subject it to shock, as this may
cause damage. When storing the unit in the
carrying case, disconnect the AC power cord
and all other connecting cables or cards, and
store the supplied accessories in a pocket of
the carrying case.
Note on the screen
When using a screen with an uneven surface,
a striped pattern may rarely appear on the
screen depending on the distance between
the screen and the projector or the zooming
magnification settings used. This is not a
malfunction of the projector.
B Overview
Features
High brightness · High picture
performance
High picture performance
VPL-EW5: Three super-high-aperture
0.59-inch WXGA panels with
approximately 1,020,000 effective pixels
produce a resolution of 1280 × 800 dots
(horizontal/vertical) for RGB input, and
750 horizontal TV lines for video input.
VPL-EX50/EX5:Three super-high-aperture
0.63-inch XGA panels with
approximately 790,000 effective pixels
produce a resolution of 1024 × 768 dots
(horizontal/vertical) for RGB input, and
750 horizontal TV lines for video input.
VPL-ES5:Three super-high-aperture 0.63inch SVGA panels with approximately
480,000 effective pixels produce a
resolution of 800 × 600 dots (horizontal/
vertical) for RGB input, and 500
horizontal TV lines for video input.
Direct Power On/Power Off function
The AC power for the entire system can be
turned on and off by means of a breaker or
other switch without going through a
standby mode.
Simple maintenance
Even when the projector is mounted on the
ceiling, you can clean the air filter easily
because it is located at the side.
Clean the filter at the same time as you
replace the lamp.
Short focal lens
The projection distance is very short,
approximately 2.4 m (7.9 feet), when
projecting an 80-inch image, which allows
projection on a larger screen even in a
limited space.
Security lock
This function makes it possible to prevent
projection of a picture on the screen unless
the required password is entered when the
projector is turned on.
Overview
High brightness
Sony’s unique optical system allows high
efficiency.
Security Functions
Panel key lock
This function locks all the keys on the
control panel of the projector, allowing use
of the keys on the Remote Commander. This
prevents the projector from operating
incorrectly.
Other Convenient Functions
•
•
•
•
On-screen menu in 17 languages
Picture muting
Freeze
Lamp mode switching function (VPLEX50/EW5 only)
• Low power consumption in standby
• Security bar
About Trademarks
• Adobe Acrobat is a trademark of Adobe
Systems Incorporated.
• Windows is a registered trademark of
Microsoft Corporation in the United States
and/or other countries.
• Kensington is a registered trademark of
Kensington Technology Group.
• Macintosh is a registered trademark of
Apple, Inc.
• VESA is a registered trademark of the
Video Electronics Standards Association.
• Display Data Channel is a trademark of the
Video Electronics Standards Association.
• HDMI, HDMI logo and High-Definition
Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing
LLC.
• All other trademarks and registered
trademarks are trademarks or registered
trademarks of their respective holders. In
this manual, ™ and ® marks are not
specified.
Features
9
Location and Function of Controls
Top/Right Side/Front
4
1
2
5
3
6
Rear/Bottom
qa
7
10
8
Location and Function of Controls
qs
qd
9
0
qf qg qh
a Ventilation holes (exhaust)
b Lens
Remove the lens cover before
projection.
d Control panel
For details, see “Control Panel” on
page 12.
e Zoom ring
Adjusts the picture size.
f Focus ring
Adjusts the picture focus.
g Ventilation holes (intake)/Air
filter cover
h Adjusters (fore pad)
i Lamp cover
Security bar
Overview
c Front remote control detector
p Security lock
Connects to an optional security cable
(from Kensington).
Web page address:
http://www.kensington.com/
Note
To maintain optimal performance, clean the
air filter whenever you replace the lamp.
For details, see “Cleaning the Air Filter” on
page 44.
j Adjuster
k Connector Panel
For details, see “Connector Panel” on
page 14.
l AC IN socket
Connects the supplied AC power cord.
m Adjuster adjustment button
For details, see “Using the adjuster” on
page 23.
n Speaker
o Security bar
An anti-theft chain or wire
(commercially available) can be
connected to it.
If it is difficult to pull out, pull out the
Security bar using a screwdriver.
Location and Function of Controls
11
Control Panel
1
2 3
a ?/1 (On/Standby) key
Turns on the projector when the
projector is in standby mode. To turn off
the power, press the ?/1 key twice
according to the message or hold the ?/1
key for about one second.
Lights up or flashes under the following
conditions:
– Lights in red when the AC power cord
is plugged into a wall outlet. Once the
projector is in standby mode, you can
turn it on with the ?/1 key.
– Flashes in red when the temperature
becomes high inside the projector, or
when the projector fails to operate.
– Lights in green when the power is
turned on, and when it is ready to
operate.
– Flashes in green from the projector is
turned on until the projector is ready to
operate. Also, flashes in green while
the cooling fan is running after the
power is turned off with the ?/1 key.
12
Location and Function of Controls
4 5
6
The fan runs for about 90 seconds after
the power is turned off.
– Lights in orange when the power
saving mode is on.
For detail, see page 24.
b INPUT key
Selects an input signal. The input signal
will change whenever you press the key.
c ENTER/V/v/B/b (Arrow) keys
Used to enter the settings of items in the
menu system, select a menu, or make
various adjustments.
d LAMP/COVER indicators
Flashes in orange under the following
conditions:
• A reception rate of 2 flashes when the
lamp cover or air filter cover is not
secured firmly.
• A reception rate of 3 flashes when the
lamp has reached the end of its life or
reaches a high temperature.
e MENU key
Displays the on-screen menu. Press
again to clear the menu.
f PIC MUTING key
Overview
Cuts off the picture. Press again to
restore the picture.
Location and Function of Controls
13
Connector Panel
VPL-EW5
1
VPL-EX50
1
VPL-EX5
1
VPL-ES5
2
6
5
7
4 2
5 8
6
7
3 2
8
6
7
1
2
a VIDEO IN connector
• S VIDEO (mini DIN 4-pin):
Connects to the S video output of
video equipment.
• VIDEO (phone type):
Connects to the video output of video
equipment.
• AUDIO (stereo minijack) (VPLEW5/EX50 only):
To listen to sound output from video
equipment, connect via this jack to the
audio output of the video equipment.
14
Location and Function of Controls
8
38
6
b INPUT A connector
• RGB (HD D-sub 15-pin, female):
Inputs a computer signal, video GBR
signal, component signal, or DTV
signal depending on the connected
equipment.
Connects to the output connector of
equipment using the supplied cable or
an optional cable.
• AUDIO (stereo minijack) (VPLEW5 only):
To listen to sound output from
computer, connect via this jack to the
audio output of the computer.
For details, see “Connecting a
Computer” on page 19 and
“Connecting a VCR” on page 21.
c INPUT A/VIDEO IN AUDIO
connector (VPL-EX5/ES5 only)
Inputs audio signal attached to the image
from INPUT A or VIDEO.
d INPUT A/ B AUDIO (VPL-EX50
only)
Inputs audio signal attached to the image
from INPUT A or INPUT B.
e INPUT B connector
• Digital RGB/Component connector
(for HDMI and HDCP) (VPL-EW5
only):
Connects to the video output
connector of the video equipment or
the computer equipped with HDMI/
DVI output connector (digital).
• RGB connector (HD D-sub 15-pin,
female) (VPL-EX50 only):
Inputs a computer signal.
Connects to the output connector of
equipment using the supplied cable or
an optional cable.
f OUTPUT connector
• MONITOR (HD D-sub 15-pin
female):
Connects to the input connector of the
monitor. Only the computer signal on
the current channel is output from
among the signals connected to
INPUT A or INPUT B (VPL-EX50
only).
• AUDIO (stereo minijack):
Connects to the active speaker. Adjust
the volume with VOLUME +/- on the
remote commander.
In VPL-EX50:
When INPUT A or INPUT B is
selected, the output audio is the signal
input to AUDIO (INPUT A/B
AUDIO) that is common to INPUT A
and B. When VIDEO or S VIDEO is
selected, the output audio is the signal
input to AUDIO of VIDEO IN.
Overview
In VPL-EW5/EX5/ES5:
When INPUT A is selected, the output
audio is the signal input to AUDIO of
INPUT A. When INPUT B (VPLEW5 only) is selected, the output
audio is the signal input to HDMI
connector of INPUT B. When VIDEO
or S VIDEO is selected, the output
audio is the signal input to AUDIO of
VIDEO IN.
g REMOTE RS-232C connector (Dsub 9-pin female) (VPL-EX5/
EX50/EW5 only)
Connects to the connector of the
computer when you operate the
projector from the computer.
h Rear remote control detector
Remote Commander
The keys that have the same names as those
on the control panel function identically.
8
1
2
3
APA
9
0
INPUT
KEY
STONE
ENTER
4
5
6
7
RESET
MENU
D ZOOM
VOLUME
PIC
MUTING
qa
qs
qd
FREEZE
a INPUT key
b APA (Auto Pixel Alignment) key
Automatically adjusts a picture to its
clearest while a signal is input from a
computer.
For details, see “Smart APA” in “The
SET SETTING Menu” on page 35.
c KEYSTONE (Trapezoidal
distortion correction) key
Adjusts the vertical trapezoidal
distortion of the image. Pressing this
key, the adjustment menu are displayed.
Location and Function of Controls
15
Use the arrow keys (v/V/b/B) for
adjustment.
d RESET key
Resets the value of an item to its factory
preset value or returns the enlarged
image to its original size. This key
functions when the menu or a setting
item is displayed on the screen.
e PIC MUTING key
Cuts off the picture. Press again to
restore the picture.
f FREEZE key
2
Install the lithium battery.
Freezes the projected picture. To cancel
the frozen picture, press the key again.
g D ZOOM (Digital Zoom) +/– key
Enlarges the image at a desired location
on the screen.
h Infrared transmitter
Face the +
side up.
i ?/1 (On/Standby) key
j v/V/b/B (Arrow) keys
k ENTER key
l MENU key
m VOLUME +/– keys
Before using the Remote
Commander
Pull out the clear film from the lithium
battery holder.
To replace a battery
1
16
Release the lock of the lithium battery
holder by picking it, and pull out the
holder from the Remote Commander.
Location and Function of Controls
3
Put the lithium battery holder back
into the Remote Commander.
Notes on the lithium battery
• A button type lithium battery (CR2025) is
used in the Remote Commander. Do not
use batteries other than CR2025.
• Keep the lithium battery out of the reach of
children.
• Should the battery be swallowed,
immediately consult a doctor.
Notes on Remote Commander
operation
• Make sure that nothing obstructs the
infrared beam between the Remote
Commander and the remote control
detector on the projector. Direct the
Remote Commander toward the remote
control detector.
• The operation range is limited. The shorter
the distance between the Remote
Commander and the remote control
detector is, the wider the angle within
which the commander can control the
projector becomes.
B Projecting the Picture
Installing the Projector
The distance between the lens and the screen varies depending on the size of the screen. Use
the following table as a guide.
Screen
Projecting the Picture
Distance between the screen and
the center of the lens
* Adjuster not stretched, and the V Keystone function has been done.
VPL-EX50/EX5/ES5
Unit: m (feet)
40
80
100
150
200
250
300
Minimum Distance
1.1
(3.6)
2.3
(7.5)
2.9
(9.5)
4.4
(14.4)
5.8
(19.0)
7.3
(24.0)
8.8
(28.9)
Maximum
Distance
1.4
(4.6)
2.8
(9.2)
3.5
(11.5)
5.2
(17.1)
7.0
(23.0)
8.8
(28.9)
10.5
(34.5)
Projected image
size (diagonal)
(inches)
There may be a slight difference between the actual value and the design value shown in the table
above.
Installing the Projector
17
VPL-EW5
(When “Aspect” on the Signal menu is set to “Full 2”
Unit: m (feet)
40
80
100
150
200
250
300
Minimum Distance
1.2
(3.9)
2.5
(8.2)
3.1
(10.2)
4.6
(15.1)
6.2
(20.3)
7.7
(25.3)
9.3
(30.5)
Maximum
Distance
1.5
(4.9)
2.9
(9.5)
3.7
(12.1)
5.6
(18.4)
7.4
(24.3)
9.3
(30.5)
11.1
(36.4)
Projected image
size (diagonal)
(inches)
There may be a slight difference between the actual value and the design value shown in the table
above.
Notes for VPL-EW5 only
• When “Aspect” on the Signal menu is set to other than “Full 2”, black bands may appear at the top
and bottom or right and left of the screen.
• When “Aspect” in the Signal menu is set to “4:3”, the projected image size (diagonal) will be
approximately 88 % of “Full 2” size.
• When “Aspect” in the Signal menu is set to “16:9”, the projected image size (diagonal) will be
approximately 97 % of “Full 2” size.
For details on installation, see “Installation Diagram” on page 54.
18
Installing the Projector
Connecting the
Projector
To connect a computer
Rear side
VPL-EX50
When you connect the projector,
make sure to:
Projecting the Picture
• Turn off all equipment before making any
connections.
• Use the proper cables for each connection.
• Insert the cable plugs firmly; loose
connections may increase noise and
reduce performance of picture signals.
When pulling out a cable, be sure to pull it
out by the plug, not the cable itself.
Connecting a Computer
This section describes how to connect the
projector to a computer.
For more information, refer to the
computer’s instruction manual.
to monitor output
Computer
to audio output
1 HD D-sub 15-pin cable (supplied)
2 Stereo audio connecting cable (not supplied)
(Use a no-resistance cable.)
Notes
• For stereo audio connection, connect the
stereo audio connecting cable to following
connectors:
VPL-EX5/ES5: INPUT A/VIDEO IN
AUDIO connector
VPL-EW5: INPUT A AUDIO connector
VPL-EX50: INPUT A/B AUDIO connector
• The projector accepts VGA, SVGA, XGA,
SXGA, SXGA+, WXGA signals. However,
we recommend that you set the output mode
of your computer to SVGA (VPL-ES5),
XGA (VPL-EX5/EX50) or WXGA (VPLEW5) mode for the external monitor.
Connecting the Projector
19
• If you set your computer, such as a notebook
computer, to output the signal to both your
computer’s display and the external monitor,
the picture of the external monitor may not
appear properly. Set your computer to output
the signal to only the external monitor.
For details, refer to the operating
instructions supplied with your computer.
To connect a computer (Digital) or
video equipment (Digital) (VPL-EW5
only)
Front (the connector panel on the right
of the lens)
VPL-EW5
Note
To connect a Macintosh computer equipped
with a video output connector of a type having
two rows of pins, use a commercially available
plug adaptor.
to DVI-D output
connector
Computer
to HDMI connector
DVD player
1 HDMI-DVI-D cable (not supplied)
2 HDMI cable (not supplied)
Notes
• Be sure to use the HDMI cable with an
HDMI logo.
• The HDMI connector of this projector is not
compatible with DSD (Direct Stream
Digital) Signal or CEC (Consumer
Electronics control) Signal.
20
Connecting the Projector
To connect to a video GBR/
Component output connector
Connecting a VCR
This section describes how to connect the
projector to a VCR.
For more information, refer to the
instruction manuals of the equipment you
are connecting.
Rear side
VPL-EX50
To connect to a video or S video
output connector
Rear side
Projecting the Picture
VPL-EX50
to
audio
output
(L)
to
audio
output
(R)
to video
GBR/
component
output
VCR
to S
video
output
to audio
output (L)
to video
output
to audio
output (R)
VCR
1 Stereo audio connecting cable (not supplied)
(Use a no-resistance cable.)
2 Video cable (not supplied) or S-Video cable
(not supplied)
1 Signal Cable (not supplied)
HD D-sub 15-pin (male) ↔ 3 × phono jack
2 Stereo audio connecting cable (not supplied)
(Use a no-resistance cable.)
Notes
• For stereo audio connection, connect the
stereo audio connecting cable to following
connectors:
VPL-EX5/ES5: INPUT A/VIDEO IN
AUDIO connector
VPL-EW5: INPUT A AUDIO connector
VPL-EX50: INPUT A/B AUDIO connector
• Set the aspect ratio using “Aspect” on the
INPUT SETTING menu according to the
input signal.
• When you connect the projector to a video
GBR output connector, select “Video GBR”
or when you connect the projector to a
component output connector, select
“Component” with the “Input-A Signal Sel.”
setting on the SET SETTING menu.
Connecting the Projector
21
4
Projecting
Press the INPUT key to select the
input source.
Each time you press the key, the input
signal switches as follows:
1,2
Input-A t Input-B t Video t S-Video
(VPL-EW5/EX50 only)
To input from
Press INPUT
to display
Input-A
Computer/Component
connected to the INPUT
A connector
Computer connected to
the INPUT B connector
(VPL-EX50 only)
Input-B
Computer/VCR, etc.
connected to INPUT B
(Digital) connector
(VPL-EW5 only)
Rear remote
control detector
Video
Video equipment
connected to the VIDEO
input connector
APA
Video equipment
connected to the
S VIDEO input
connector
INPUT
KEY
STONE
Smart APA (Auto Pixel Alignment)
adjusts the picture of the connected
equipment so that it is projected clearly.
ENTER
RESET
MENU
D ZOOM
VOLUME
PIC
MUTING
Notes
FREEZE
1
• If “Auto Input Search” is set to “On,” the
projector searches for the signals from
the connected equipment and displays
the input channel where the input signals
are found.
Plug the AC power cord into a wall
outlet, and connect all equipment, then
remove the lens cover.
For details, see “Auto Input Search”
on page 35.
The ?/1 key lights in red and the
projector goes into standby mode.
2
3
22
• The Smart APA feature is effective for
the input analog signal from a computer
only.
Press the ?/1 key.
The ?/1 key lights after flashing in
green. (The projector cannot be used
while the ?/1 key is flashing.)
Turn on the equipment connected to
the projector.
Projecting
S-Video
5
Switch the equipment connected to
output to the projector.
Depending on the type of your
computer, for example a notebook, or an
all-in-one LCD type, you may have to
switch the computer to output to the
projector by pressing certain keys (e.g.,
For VPL-EW5/EX50/EX5
LCD / VGA ,
/ , etc.), or by changing
your computer’s settings.
F7
or
Fx
and
Fn
Note
The key used for switching the computer to
output to the projector varies depending on
the type of computer.
6
Adjust the upper or lower position of
the picture.
Use the adjuster to adjust the picture
position.
Using the adjuster
Lift the projector while pressing the
adjuster adjustment button, and adjust
the tilt of the projector, then release the
button to lock the adjuster.
8
Adjust the size of the picture and the
focus.
Projecting the Picture
• When you adjust the tilt of the projector
with the adjuster, the V keystone
adjustment is performed at the same
time. If you do not want to perform the
automatic keystone adjustment, set the
“V Keystone” to “Manual.” (See
page 38.)
• If you set the “V Keystone” to “Auto,”
the “V Keystone” correction is
automatically adjusted. However, it may
not be perfectly adjusted depending on
the room temperature or the screen
angle. In this case, adjust it manually.
Press the KEYSTONE key to “V
Keystone” displays on the screen, and
adjust the value with the v/V/b/B keys.
Adjust the picture size using the Zoom
ring and adjust the picture focus using
the Focus ring.
Adjuster adjustment button
Notes
• Be careful not to let the projector down
on your fingers.
• Do not push hard on the top of the
projector or do not drag it hard with the
adjuster out. It may be occurred
malfunction.
7
Adjust the trapezoidal distortion
(
) of the picture. (VPL-ES5
only)
Press the KEYSTONE key on the
Remote Commander to display the
adjustment menu and adjust the tilt using
the v/V/b/B keys.
Projecting
23
Turning Off the
Power
1
Press the ?/1 key.
“POWER OFF? Please press ?/1 key
again.” appears to confirm that you want
to turn off the power.
Note
The message disappears if you press any
key other than the ?/1 key, or if you do not
press any key for five seconds.
2
Press the ?/1 key again.
The ?/1 key flashes in green and the fan
continues to run to reduce the internal
heat. Also, the ?/1 key flashes quickly
for the first 60 seconds. During this time,
you will not be able to light up the ?/1
key again with the ?/1 key.
3
24
Unplug the AC power cord from the
wall outlet after the fan stops running
and the ?/1 key lights in red. (Except
when using the Direct Power On/Off
function or the Off & Go function.)
Turning Off the Power
B Convenient Functions
The menu currently selected is shown as
a yellow button.
Selecting the Menu
Language
You can select one of seventeen languages
for displaying the menu and other on-screen
displays. The factory setting is English.
To change the menu language, proceed as
follows:
1,2
4
Press the v or V key to select the
MENU SETTING menu, then press
the B or ENTER key.
The selected menu appears.
Convenient Functions
Rear remote
control detector
1
2
3
Plug the AC power cord into a wall
outlet.
Press the ?/1 key to turn on the
projector.
Press the MENU key.
The menu appears.
5
Press the v or V key to select
“Language,” then press the B or
ENTER key.
6
Press the v, B, b or V key to select a
language, then press the ENTER key.
The menu changes to the selected
language.
To clear the menu
Press the MENU key.
The menu disappears automatically if a key
is not pressed for one minute.
Selecting the Menu Language
25
Enter the password on this screen.
Security Lock
Enter new password key.
The projector is equipped with a security
lock function. When you turn the power of
the projector on, you are required to input
the previously set password. If you do not
input the correct password, you will not be
able to project the picture.
Notes
• You will not be able to use the projector if
you forget your password and the password
administrator is not available. Be please
aware that using the security lock can prevent
valid usage in such cases.
• When you set the security lock being active,
the password will be necessary only when
the power is turned on after plugging the
power cord.
Power-on cannot be performed
without the password.
Use:
3
2
Be sure to remember this password.
Use:
Cancel: Other key
When the following message is
displayed, the setting for security lock is
completed.
Press the MENU key and then, on the
INSTALL SETTING menu, turn on
the “Security Lock” setting.
If “Invalid Password!” is displayed on
the screen, perform this procedure again
from step 1.
Enter the password.
Use the MENU, v/V/b/B, and ENTER
keys to enter the four-digit password.
(The default initial password setting is
“ENTER, ENTER, ENTER, ENTER.”
After this is entered you can put in your
own password. Therefore, when you use
this function for the first time, please
input “ENTER” four times.)
Enter the password again to confirm.
Re-enter new password key.
To use the security lock
1
Cancel: Other key
4
Turn the main power off and
disconnect the AC power cord.
The security lock is set to on, then it
becomes effective. The screen used for
entering the password is displayed when
the power is turned on the next time.
Enter password key.
Security certification
Password required for power-on.
Use:
Cancel: Other key
Next, the screen for entering the new
password is displayed. (Enter the
password on this screen even if you want
to keep the current password.)
26
Security Lock
When the password screen is displayed,
enter the password that was set. If you fail to
enter the correct password after three tries,
the projector cannot be used. In this case,
press the ?/1 key to turn off the power.
To cancel the security lock
1
Press the MENU key, then turn off the
“Security Lock” setting on the
INSTALL SETTING menu.
2
Enter the password.
Enter the password that was set.
Other Functions
Note
If you call the customer service center because
you have forgotten the password, you will need
to be able to verify the projector’s serial
number and your identity. (This process may
differ in other countries/regions.) Once your
identity has been confirmed, we will provide
you with the password.
Direct Power On/Off Function
If you will be using a circuit breaker to turn
the power for the entire system on and off,
set the direct power on function to “On.” You
can turn the power on/off without pressing
the power key on the projector.
Off & Go Function
If you are leaving the conference room
immediately, turn the projector off, and then,
you can unplug the AC power cord.
To enlarge the image (Digital Zoom
function)
You can select a section of the image to
enlarge. This function works when a signal
from a computer is input.
This function does not work when a video
signal is input.
1
Convenient Functions
Effective Tools for Your
Presentation
Project a normal image, and press the
D ZOOM + key on the Remote
Commander.
The digital zoom icon appears in the
center of the image.
Digital zoom icon
2
Move the icon to the point on the
image you want to enlarge. Use the
arrow key (v/V/b/B) to move the
icon.
3
Press the D ZOOM + key again.
The portion of the image where the icon
is located is enlarged. The enlargement
Other Functions
27
ratio is displayed on the screen for a few
seconds.
By pressing the + key repeatedly, the
image size (ratio of enlargement: max. 4
times) increases.
Use the arrow key (v/V/b/B) to scroll
the enlarged image.
To return the image to its original size
Press the D ZOOM – key.
Just pressing the RESET key returns the
image back to its original size immediately.
To freeze the image projected
(Freeze function)
Press the FREEZE key. “Freeze” appears
when the key is pressed. This function works
when a signal from a computer is input.
To restore the original screen, press the
FREEZE key again.
28
Other Functions
B Adjustments and Settings Using a Menu
2
Using a MENU
Use the v or V key to select a menu,
then press the B or ENTER key.
The selected menu appears.
The projector is equipped with an on-screen
menu for making various adjustments and
settings.
3
Select an item.
Use the v or V key to select the item,
then press the B or ENTER key.
The setting items are displayed in a popup menu or in a sub menu.
Display items
Input signal indicator
Pop-up menu
Setting
items
Menu
Input signal setting indicator
MENU SETTING
Input A
Status:
L a n g u ag e :
M e nu Po s i t i o n :
S t a r t U p I m ag e
Picture adjustment menu
On
English
To p l e f t
Bottom Left
Center
To p R i g h t
Bottom Right
A
Sub menu
Menu
Input signal setting indicator
For Input-A: Shows “Auto” or “Input-A
Signal Sel.” setting on the SET
SETTING menu.
For Video/S-Video input: Shows “Auto” or
the “Color System” setting on the SET
SETTING menu.
Setting items
PICTURE SETTING
ADJUST PICTURE
Contrast:
Brightness:
Gamma Mode:
C o l o r Te m p . :
Input A
S t a n d a rd
80
50
Graphics
High
Press the MENU key.
The menu appears.
The menu presently selected is shown as
a yellow button in the column on the left.
SET SETTING
S m a r t A PA :
Auto Input Search:
Input-A Signal Sel.:
Color System:
Pow e r S av i n g :
IR Receiver:
Pa n e l Key L o ck :
Lamp Timer Reset
Input-A
On
Off
Component
Au t o
Off
F ro n t & R e a r
Off
4
Make the setting or adjustment of an
item.
Adjustments and Settings Using a Menu
Input signal indicator
Shows the selected input channel. x
is
displayed when no signal is input. You can
hide this indicator using “Status” on the
MENU SETTING menu.
1
Selected input
signal
• When changing the adjustment
level:
To increase the number, press the v or
B key.
To decrease the number, press the V or
b key.
Press the ENTER key to restore the
previous screen.
• When changing the setting:
Press the v or V key to change the
setting.
Press the ENTER or b key to restore
the previous screen.
Using a MENU
29
To clear the menu
Press the MENU key.
The menu disappears automatically if a key
is not pressed for one minute.
To reset items that have been
adjusted
Select the item that you want to reset, and
then press the RESET key on the Remote
Commander.
“Complete!” appears on the screen and the
setting of the item that you have selected is
reset to its factory preset value.
Items that can be reset are:
• “Contrast,” “Brightness,” “Color,” “Hue”
and “Sharpness” on the “Adjust Picture...”
menu of the PICTURE SETTING menu
• “Dot Phase,” “H Size,” and “Shift” on the
“Adjust Signal...” menu of the INPUT
SETTING menu
Storage of the settings
The settings are automatically stored in the
projector memory when the ENTER key is
pressed.
If no signal is input
If there is no input signal, “Cannot adjust
this item.” appears on the screen.
Unadjustable items
Items that cannot be adjusted, depending on
the input signal, are not displayed on the
menu.
For details, see page 41.
30
Using a MENU
The PICTURE SETTING Menu
The PICTURE SETTING menu is used for adjusting the picture or volume.
Items that can be adjusted or set depend on the kind of input signals.
For details, see “Input signals and adjustable/setting items” on page 41.
PICTURE SETTING
Input A
Picture Mode
Adjust Picture...
S t a n d a rd
Vo l u m e :
30
PICTURE SETTING
ADJUST PICTURE
Contrast:
Brightness:
Gamma Mode:
C o l o r Te m p . :
Input-A
S t a n d a rd
80
50
Graphics
High
Functions
Picture Mode
Selects the picture mode.
Set according to
• Dynamic: Emphasizes the contrast to produce a
the input signal
“dynamic” picture.
• Standard: Selects for the standard picture.
• Game: Select for viewing game picture.
• Living: Select for viewing sports, music, digital
video camera picture.
• Cinema: Select for viewing film-like picture.
• Presentation: Makes the picture suitably bright for a
presentation when the signal is input from a
computer.
Initial setting
Adjust Picture...
The unit can store the setting values of the following sub menu items for
each picture mode separately.
Contrast
Adjusts the picture contrast.
80
Brightness
Adjusts the picture brightness.
50
Color
Adjusts color intensity.
50
Hue
Adjusts color tones. The higher the setting, the more
greenish the picture becomes. The lower the setting,
the more purplish.
50
Sharpness
30
Adjusts the picture sharpness. The higher the setting,
the sharper the picture becomes. The lower the setting,
the softer the picture becomes.
Gamma Mode
Selects a gamma correction curve.
Graphics
• Graphics: Improves the reproduction of halftones.
Photos can be reproduced in natural tones.
• Text: Contrasts black and white. Suitable for images
that contain lots of text.
Color Temp.
Adjusts the color temperature.
• High: Makes white colors bluish.
• Middle: Makes white part of the picture natural
white.
• Low: Makes white colors reddish.
Adjustments and Settings Using a Menu
Setting items
Set according to
the input signal
The PICTURE SETTING Menu
31
Setting items
Functions
Initial setting
DDE (Dynamic Selects the mode to play the input video signal
Film
according to the material.
Detail
• Off: Plays back the interlace format without
Enhancer)
conversion.
• Progressive: Plays back the video picture of the
interlace format converting to progressive.
• Film: Plays back a smooth picture in a softwear of 22, 2-3 pull-down type like a movie. When other than
the softwear of 2-2, 2-3 pull-down type is played
back, it is automatically switched to "Progressive".
Volume
32
Adjusts the volume.
The PICTURE SETTING Menu
30
The INPUT SETTING Menu
The INPUT SETTING menu is used to adjust the input signal.
When the signal is input from a computer
Setting items
Functions
Initial setting
Dot Phase
Adjusts the dot phase of the LCD panel and the signal
output from a computer.
Adjust the picture further for finer picture after the
picture is adjusted by pressing the APA key.
Set according to
the input signal
H Size
Adjusts the horizontal size of a picture output from a
computer. Adjust the setting according to the dots of
the input signal.
For details, see page 52.
Set according to
the input signal
Shift
Adjusts the position of the picture. H adjusts the
Set according to
horizontal position of the picture.V adjusts the vertical the input signal
position of the picture. As the setting for H increases,
the picture moves to the right, and as the setting
decreases, the picture moves to the left.
As the setting for V increases, the picture moves up,
and as the setting decreases, the picture moves down.
Use the b or the B key to adjust the horizontal
position and the v and V key for the vertical position.
Adjust Signal...
You can set the aspect ratio of the picture to be
displayed for the current input signal. This item is
enabled only when an video signal (preset memory
numbers 1 to 11) is input.
• Normal*1: Select to view a picture with normal 4:3
aspect ratio.
• 4:3*2: Makes the aspect ratio 4:3.
• 16:9*2: Select to view a picture squeezed.
• Full*1: Select to view a picture of 16:9 or of 4:3
squeezed.
• Zoom: Select to enlarge the original picture without
distorting the aspect ratio.
• Wide Zoom*1: Select to enlarge a picture with
minimum distortion.
Set according to
the input signal
The INPUT SETTING Menu
Adjustments and Settings Using a Menu
Aspect (When the
video signal is
input)
33
Setting items
Functions
Aspect (When the
PC signal is input)
You can set the aspect ratio of the picture to be
Set according to
displayed for the current input signal. This item is
the input signal
enabled only when an PC signal (preset memory
numbers 21 to 63) is input.
• Full 1: Displays a picture vertically or horizontally to
fill the screen without changing the aspect ratio of the
original picture.
• Full 2: The original image is projected fully in the
window.
• Normal: Displays the picture while matching one
pixel of input picture element to that of the LCD. The
picture will be clear but the picture size will be
smaller.
• Zoom*1: Select to enlarge the original picture
without distorting the aspect ratio.
Initial setting
*1: VPL-EW5 only
*2: VPL-EX5/EX50/ES5 only
Notes
• For Aspect, some of the “Aspect” setting items are not displayed on the screen according to the
input signal.
• Note that if the projector is used for profit or for public viewing, modifying the original picture by
switching to the wide mode may constitute an infringement of the rights of authors or producers,
which are legally protected.
About the Preset Memory No.
This projector has 45 types of preset data for
input signals (the preset memory). When a
preset signal is input, the projector
automatically detects the signal type and
recalls the data for the signal from the preset
memory to adjust it to an optimum picture.
The memory number and signal type of that
signal are displayed on the INFORMATION
menu (See page 40). You can also adjust the
preset data through the INPUT SETTING
menu.
See the chart on page 52 to find if the signal
is registered in the preset memory.
Note
When the aspect ratio of input signal is other
than “Full 2”, a part of the screen may be
displayed in black.
34
The INPUT SETTING Menu
The SET SETTING Menu
The SET SETTING menu is used for changing the settings of the projector.
SET SETTING
S m a r t A PA :
Auto Input Search:
Input-A Signal Sel.:
Color System:
Pow e r S av i n g :
IR Receiver:
Pa n e l Key L o ck :
Lamp Timer Reset
Input-A
On
Off
Au t o
Au t o
Off
F ro n t & R e a r
Off
Functions
Initial setting
Smart APA
The APA (Auto Pixel Alignment) automatically
On
adjusts “Dot Phase,” “H Size” and “Shift” on the
INPUT SETTING menu for the input signal from a
computer.
• On: When a signal is input from a computer, the
APA functions automatically so that the picture can
be seen clearly. Once the specified input signal has
been adjusted by the “Smart APA,” it will not be
readjusted even when the cable is disconnected and
connected again or the input channel is changed. You
can adjust the picture by pressing the APA key on the
Remote Commander even if “Smart APA” set to
“On.”
• Off: The APA functions when you press the APA key
on the Remote Commander.
Auto Input Search
When set to “On,” the projector detects input signals in Off
the following order: Input-A/Input-B (VPL-EW5/
EX50 only)/Video/S-Video. It indicates the input
channel when the power is turned on or the INPUT key
is pressed.
Input-A Signal Sel. Selects the type of signal input from the equipment
connected to the INPUT A connector.
Selects the type of signal input from the equipment by
selecting “Input-A” with the INPUT key.
• Auto: Selects the input signal type automatically.
• Computer: Inputs the signal from a computer.
• Component: Inputs the component signal from a
DVD player/recorder, Blu-ray Disc player, digital
tuner, etc.
• Video GBR: Inputs the signal from a TV game or
HDTV broadcast.
Color System
Auto
Adjustments and Settings Using a Menu
Setting items
Auto
Selects the color system of the input signal.
If you select “Auto,” the projector detects the color
system of the input signal automatically. If the picture
is distorted or colorless, select the color system
according to the input signal.
The SET SETTING Menu
35
Setting items
Functions
Power Saving
Selects the Power Saving mode.
Off
• Lamp off: The lamp goes off if no signal is input for
10 minutes. The lamp lights again when a signal is
input or any key is pressed.
• Standby: The projector goes into Standby mode if
no signal is input for 10 minutes. To use it, turn on
the power again.
• Off: The projector does not go into Power Saving
mode.
Initial setting
IR Receiver
Selects the remote control detectors (IR Receiver) on
the front and rear of the projector.
• Front & Rear: Activates both the front and rear
detectors.
• Front: Activates the front detector only.
• Rear: Activates the rear detector only.
Panel Key Lock
Locks all the control panel keys on the top panel of the Off
projector so that the projector can be operated only
with the Remote Commander.
To lock the control panel keys, set to “On.”
When it is set to “On,” keeping the ?/1 key on the
control panel pressed for 10 seconds turns the projector
on when it is in standby mode, and turns the projector
to standby mode when the power is on. If you press
and hold the MENU key for about 10 seconds when
the power is on, the lock will be released and “Panel
Key Lock” is automatically set to “Off.”
Lamp Timer Reset
When replacing the lamps, reset the lamp timer.
Front & Rear
–
Notes
• Press the APA key when the full image is displayed on the screen. If the projected image includes
a black portion around it, the APA function will not work properly and some parts of the image
may not be displayed on the screen.
- You can cancel the adjustment by pressing the APA key again while “Adjusting” appears on the
screen.
- The picture may not be adjusted properly depending on the type of input signal.
- Adjust the “Dot Phase,” “H Size,” and “Shift” items on the INPUT SETTING menu when you
adjust the picture manually.
• If the input signal is not displayed correctly when the input A signal classifying is set to "Auto",
set it to conform the input signal.
36
The SET SETTING Menu
The MENU SETTING Menu
The MENU SETTING menu is used for changing the menu displays.
Functions
Initial setting
Status (on-screen
display)
Sets up the on-screen display.
When set to “Off,” turns off the on-screen displays
except for the menus, a message when the power is
turned off, and warning messages.
On
Language
Selects the language used in the menu and on-screen
displays. The languages available are: English,
Nederlands, Français, Italiano, Deutsch, Español,
Português,
, Svenska, Norsk,
,
,
,
,
,
and
.
English
Menu Position
Selects the display position of the menu from “Top
Left,” “Bottom Left,” “Center,” “Top Right,” and
“Bottom Right.”
Center
Start Up Image
• On: Displays the Start Up Image in the window after On
turning on the power.
• Off: Does not displays the Start Up Image in the
window after turning on the power.
The MENU SETTING Menu
Adjustments and Settings Using a Menu
Setting items
37
The INSTALL SETTING Menu
The INSTALL SETTING menu is used for changing the settings of the projector.
INSTALL SETTING
Input-A
V Key s t o n e :
Au t o
I m ag e F l i p :
Off
B a ck g ro u n d :
Blue
Lamp Mode:
S t a n d a rd
High Altitude Mode: O f f
S e c u r i t y L o ck :
Off
D i r e c t Pow e r O n : O f f
Setting items
Functions
V Keystone
(VPL-EX50/
EX5/EW5 only)
Corrects the trapezoidal distortion caused by the projection Auto
angle. Select “Auto” for automatic correction, or “Manual”
for manual correction using the v/V/b/B keys.
When the bottom of the trapezoid is longer than the top
: Sets a lower value.
When the top of the trapezoid is longer than the bottom
: Sets a higher value.
Initial setting
V Keystone
(VPL-ES5 only)
Corrects the trapezoidal distortion caused by the projection 0
angle using the v/V/b/B keys on the Remote Commander.
When the bottom of the trapezoid is longer than the top
: Sets a lower value.
When the top of the trapezoid is longer than the bottom
: Sets a higher value.
Image Flip
Flips the image on the screen horizontally and/or vertically. Off
• HV: Flips the image horizontally and vertically.
• H: Flips the image horizontally.
• V: Flips the image vertically.
• Off: The image does not flip.
Background
Selects the background color of the screen when no signal
is input to the projector. Select “Black” or “Blue.”
Normally, set to “Blue.”
Blue
Lamp Mode
(VPL-EW5/
EX50 only)
Sets the lamp brightness used during the projection.
• High: Illuminates the projected image brightly.
• Standard: Reduces fan noise and power consumption.
The brightness of the projected image will be lower
compared with the “High” setting.
Standard
High Altitude
Mode
Set to “On” when the projector is used at an altitude of
1,500 m or higher.
Off
Security Lock
Turns on the projector’s security lock function.
When set to “On,” turns on the security lock function,
which locks the projector once a password has been set.
For details, see “Security Lock” on page 26.
Off
Off
Direct Power On Set to “On” if you are using a circuit breaker to turn the
power on/off the entire system. You can turn the power on/
off without pressing the power key on the projector.
38
The INSTALL SETTING Menu
Notes
• The picture quality may deteriorate when the V Keystone function is used, because it is an
electrical correction.
• If you set “High Altitude Mode” to “On” at an altitude of under 1,500 m, the reliability of the lamp
may be reduced.
Notes on VPL-EX50/EX5/EW5
• The auto V Keystone adjustment may not correct the trapezoidal distortion perfectly, depending
on the room temperature or the screen angle.
• If you need fine adjustment when V Keystone is set to “Auto”, press the KEYSTONE key on the
control panel or the remote commander, and change the value. The setting mode will be
temporarily changed to “Manual” from “Auto”.
If you want restore the “Auto” setting, first switch the V Keystone setting to “Manual”, then return
it to “Auto”.
• When you want to apply the fine adjustment value the next time, change the V Keystone setting to
“Manual” from “Auto”.
Adjustments and Settings Using a Menu
The INSTALL SETTING Menu
39
The INFORMATION Menu
The INFORMATION menu displays the model name, serial number, the horizontal and vertical
frequencies of the input signal and the cumulated hours of usage of the lamp.
Model name
INFORMATION
VPL-EX50
fH:
fV:
Lamp Timer:
Input A
Serial No. 3 3 3 3 3 3 3
48,47kHz
60,00Hz
No.23
1024x768
2
H
Serial number
Memory number of an input signal
Signal type
Setting items
Functions
fH
Displays the horizontal frequency of the input signal.
The displayed value is approximate.
fV
Displays the vertical frequency of the input signal.
The displayed value is approximate.
Lamp Timer
Indicates how long the lamp has been turned on.
Note
These are only displayed on the screen. You cannot alter the display, and these is no setting to be
altered.
40
The INFORMATION Menu
Input signals and adjustable/setting items
Some of the items in the menus cannot be adjusted depending on the input signal as indicated
in the following tables. The items that cannot be adjusted are not displayed in the menu.
Adjust Picture... menu
Item
Input signal
Video or S-Video
(Y/C)
Component
Video GBR
Computer
B&W
z
z
z
z
z
Contrast
z
z
z
z
z
Brightness
z
z
z
z
z
Color
z
z
z
–
–
z
z
–
–
z
z
–
z
Picture Mode
Adjust Picture...
Hue
z
(NTSC 3.58/4.43
only)
z
Sharpness
–
–
–
z
–
Color Temp.
z
z
z
z*2
z
DDE
z
–
z
z
z
z
z
(Interlace format
only)*1
(Interlace
format only)*1
z
z
z
Volume
z : Adjustable/can be set
– : Not adjustable/cannot be set
*1
: Except for preset memory No. 7, 8
*2: Cannot be set in the Presentation mode
INPUT SETTING menu
Item
Input signal
Video/S-Video (Y/C)
Component
Video GBR
Computer
z
z
z
z*3
Dot Phase
–
–
–
z
H size
–
–
–
z
Shift
–
z
z
z
Aspect
Adjust Signal
Adjustments and Settings Using a Menu
Gamma Mode
z : Adjustable/can be set
– : Not adjustable/cannot be set
*3: Can be set except preset memory number 49.
The INFORMATION Menu
41
B Maintenance
Replacing the Lamp
The lamp used as a light source is
consumable product. Thus replace the lamp
with a new one in the following cases.
• When the lamp has burnt out or dims
• “Please replace the Lamp.” appears on the
screen
• The LAMP/COVER indicator lights up
(repeats flashing three times)
The lamp life varies depending on
conditions of use.
Use an LMP-E190 Projector Lamp as the
replacement lamp.
Use of any other lamps than the LMP-E190
may cause damage to the projector.
Notes
• If the lamp breaks, ask qualified Sony
personnel to replace the lamp and to check
inside.
• Pull out the lamp by holding the handle.
• When removing the lamp, make sure it
remains horizontal, then pull straight up. Do
not tilt the lamp. If you pull out the lamp
while it is tilted and if the lamp breaks.
1
Turn off the projector, and disconnect
the AC power cord from the AC outlet.
Note
When replacing the lamp after using the
projector, wait for at least an hour for the
lamp to cool.
2
Place a protective sheet (cloth)
beneath the projector. Turn the
projector over so you can see its
underside.
Note
Be sure that the projector is stable after
turning it over.
3
42
Open the lamp cover by loosening the
screw with a Phillips screwdriver.
Replacing the Lamp
Note
For safety reasons, do not loosen any other
screws.
4
Loosen the two screws on the lamp
unit with the Phillips screwdriver (a).
Fold out the handle (b), then pull out
the lamp unit by the handle (c).
Handle
5
Insert the new lamp all the way in until
it is securely in place (a). Tighten the
two screws (b). Fold down the
handle to replace it (c).
11Select “Lamp Timer Reset”, and then
press the ENTER key.
SET SETTING
Input-A
S m a r t A PA :
Auto Input Search:
Input-A Signal Sel.:
Color System:
Pow e r S av i n g :
IR Receiver:
Pa n e l Key L o ck :
Lamp Timer Reset
On
Off
Au t o
Au t o
Off
F ro n t & R e a r
Off
12Select “Execute” with the V key, and
then press the ENTER key.
The Lamp Timer is initialized to 0, and
“Change the Lamp and clean the Filter?”
is displayed in the menu screen.
Change the Lamp and clean the Filter?
Notes
• Be careful not to touch the glass surface
of the lamp.
• The power will not turn on if the lamp is
not secured properly.
• Do not allow any liquid or other objects
into the slot to avoid electrical shock or
fire.
Close the lamp cover and tighten the
screw.
Note
Be sure to attach the lamp cover securely
as it was. If not, the projector cannot be
turned on.
7
Turn the projector back over.
8
Connect the power cord.
No:
Refer to page 44 for “Cleaning the Air
Filter”.
13Select “Yes” with the v key.
“Lamp Timer Reset Complete!” is
displayed in the menu screen.
Disposal of the used lamp
For the customers in the USA
Lamp in this product contains mercury.
Disposal of these materials may be regulated
due to environmental considerations. For
disposal or recycling information, please
contact your local authorities or the
Electronic Industries Alliance
(www.eiae.org).
Maintenance
6
Yes:
The ?/1 key lights in red.
9
Press the ?/1 key to turn the projector
on.
10Press the MENU key, and then select
the Setup menu.
Replacing the Lamp
43
5
Cleaning the Air
Filter
Attach the air filter so that it fits into
the each claws on the air filter cover
and replace the cover.
Notes
The air filter should be cleaned whenever
you replace the lamp.
Remove the air filter, and then remove the
dust with a vacuum cleaner.
The time needed to clean the air filter will
vary depending on the environment or how
the projector is used.
When it becomes difficult to remove the dust
from the filter with a vacuum cleaner,
remove the air filter and wash it.
1
Turn the power off and unplug the
power cord.
2
Draw out the air filter cover and
remove it.
Air filter
3
Remove the air filter.
Claws
4
44
Wash the air filter with a mild
detergent solution and dry it in a
shaded place.
Cleaning the Air Filter
• If you neglect to clean the air filter, dust
may accumulate, clogging it. As a result,
the temperature may rise inside the unit,
leading to a possible malfunction or fire.
• Be sure to attach the air filter cover firmly;
the power can not be turned on if it is not
closed securely.
• The air filter has a face and a reverse side.
Place the air filter so that it fits in a notch on
the air filter cover.
B Others
Troubleshooting
If the projector appears to be operating erratically, try to diagnose and correct the problem using
the following instructions. If the problem persists, consult with qualified Sony personnel.
Power
Symptom
Cause and Remedy
The power is not turned on. • The power has been turned off and on with the ?/1 key at a short
interval.
c Wait for about 90 seconds before turning on the power
(see page 24).
• The lamp cover is not secured.
c Close the lamp cover securely (see page 43).
• The air filter cover is detached.
c Attach the air filter cover securely (see page 44).
Cause and Remedy
No picture.
• A cable is disconnected or the connections are wrong.
c Check that the proper connections have been made (see
page 19).
• The connections are wrong.
c This projector is compatible with DDC2B (Digital Data
Channel 2B). If your computer is compatible with DDC, turn
the projector on according to the following procedures.
1 Connect the projector to the computer.
2 Turn the projector on.
3 Start the computer.
• Input selection is incorrect.
c Select the input source correctly (see page 22).
• The picture is muted.
c Press the PIC MUTING key to release the picture muting (see
page 16).
• The computer signal is not set to output to an external monitor or
set to output both to an external monitor and a LCD monitor of a
computer.
c Set the computer signal to output only to an external monitor
(see page 19).
The picture is noisy.
Noise may appear on the background depending on the combination
of the number of dots input from the computer and the numbers of
pixels on the LCD panel.
c Change the desktop pattern on the connected computer.
The picture from the
INPUT A connector is
colored strangely.
The input signal cannot be received at “Auto” of “Input-A Signal
Sel” on the SET SETTING menu, or the setting of “Input-A Signal
Sel” is incorrect.
c Selects “Computer”, “Video GBR” or “Component” correctly
according to the input signal (see page 35).
Troubleshooting
Others
Symptom
45
Symptom
Cause and Remedy
On-screen display does not “Status” on the MENU SETTING menu has been set to “Off.”
c Set “Status” on the MENU SETTING menu to “On” (see
appear.
page 37).
Color balance is incorrect.
• The picture has not been adjusted properly.
c Adjust the picture (see page 31).
• The projector is set to the wrong color system.
c Set “Color System” on the SET SETTING menu to match the
color system being input (see page 35).
The picture is too dark.
• Contrast or brightness has not been adjusted properly.
c Adjust the contrast or brightness on the “Adjust Picture...” menu
properly (see page 31).
• The lamp has burnt out or is dim.
c Replace the lamp with a new one (see page 42).
The picture is not clear.
• The picture is out of focus.
c Adjust the focus (see page 23).
• Condensation has accumulated on the lens.
c Leave the projector for about two hours with the power on.
The image extends beyond • The APA key has been pressed even though there are black edges
the screen.
around the image.
c Display the full image on the screen and press the APA key.
c Adjust “Shift” on the INPUT SETTING menu properly (see
page 33).
• This input signal cannot be projected as the frequency is out of the
acceptable range of the projector.
c Input a signal that is within the range of the frequency.
• The resolution setting of the output signal of the computer is too
high.
c Set the output setting to SVGA (VPL-ES5), XGA (VPL-EX50/
EX5) or WXGA (VPL-EW5) (see page 19).
The picture flickers.
“Dot Phase” on the INPUT SETTING menu has not been adjusted
properly.
c Adjust “Dot Phase” on the INPUT SETTING menu properly (see
page 33).
Sound
46
Symptom
Cause and Remedy
No sound.
• A cable is disconnected or the connections are wrong.
c Check that the proper connections have been made (see
page 19).
• The audio connecting cable used is incorrect.
c Use a no-resistance stereo audio cable (see page 19).
• The sound is not adjusted properly.
c Adjust the sound with the VOLUME +/– key on the Remote
Commander or adjust “Volume” on the PICTURE SETTING
menu (see page 32).
Troubleshooting
Remote Commander
Symptom
Cause and Remedy
The Remote Commander
does not work.
The Remote Commander battery are dead.
c Replace them with new battery (see page 16).
Others
Symptom
Cause and Remedy
The control panel keys do
not function.
The control panel keys are locked.
c Unlock the control panel keys (see page 36).
Indicators
Symptom
Cause and Remedy
• The lamp cover or the air filter cover is detached.
The LAMP/COVER
indicator flashes in orange.
c Attach the cover securely (see pages 43 and 44).
(Repetition rate of 2
flashes)
• The lamp has reached the end of its life.
The LAMP/COVER
indicator flashes in orange.
c Replace the lamp (see page 42).
(Repetition rate of 3
• The lamp has reached a high temperature.
flashes)
c Wait for 60 seconds to cool the lamp and then turn on the power
again.
• The internal temperature is unusually high.
c Check to see that nothing is blocking the ventilation holes.
• The projector is being used at a high altitude.
c Ensure that “High Altitude Mode” in the Setup menu is set to
“On.”
:/1 key flashes in red.
(Repetition rate of 4
flashes)
The fan is broken.
c Consult with qualified Sony personnel.
:/1 key flashes in red.
(Repetition rate of 6
flashes)
Unplug the AC power cord from the wall outlet after the :/1 key
stops flashing, plug the power cord to the wall outlet, and then turn
the projector on again. If the ON/STANDBY flashes in red and the
problem persists, the electrical system has failed.
c Consult with qualified Sony personnel.
Others
:/1 key flashes in red.
(Repetition rate of 2
flashes)
Messages List
Warning Messages
Use the list below to check the meaning of the messages displayed on the screen.
Message
Meaning and Remedy
Please replace the Lamp
and clean the Filter.
• It is time to replace the lamp and clean the air filter.
c Replace the lamp (see page 42) and clean the filter (see
page 44).
• When this message appears even after replacing the lamp, the task
has not been completed.
c Perform the operation of steps 10 to 13 on page 43
Troubleshooting
47
Caution Messages
Use the list below to check the meaning of the messages displayed on the screen.
Message
Meaning and Remedy
Not applicable!
You have pressed the wrong key.
c Press the appropriate key.
The panel keys are locked! “Panel Key Lock” on the SET SETTING menu is set to “On.”
c All the keys on the control panel of the projector are locked.
Operate the projector with the keys on the Remote Commander
(see page 36).
48
Troubleshooting
200-inch: 6.2 to 7.4 m
(20.3 to 24.3 feet)
250-inch: 7.7 to 9.3 m
(25.3 to 30.5 feet)
300-inch: 9.3 to 11.1 m
(30.5 to 36.4 feet)
Specifications
Optical characteristics
Projection system
3 LCD panels, 1 lens, projection
system
LCD panel
VPL-ES5: 0.63-inch SVGA panel,
about 1,440,000 pixels (800 ×
600 × 3)
VPL-EX50/EX5: 0.63-inch XGA
panel, about 2,360,000 pixels
(1024 × 768 × 3)
VPL-EW5: 0.59-inchvWXGA
panel, about 3,070,000 pixels
(1280 × 800 × 3)
Lens
1.2 times zoom lens
f 18.53 to 22.18 mm/F1.65 to 1.93
Lamp
190 W Ultra high pressure lamp
Projected picture size
40 to 300 inches (measured
diagonally)
Light output VPL-EX501): 2500 lm
VPL-EW51)/EX5/ES5: 2000 lm
1)
When the Lamp Mode is set to “High.”
VPL-EW5:
(When “Aspect” on the Signal
menu is set to “Full 2”)
40-inch: 1.2 to 1.5 m
(3.9 to 4.9 feet)
80-inch: 2.5 to 2.9 m
(8.2 to 9.5 feet)
100-inch: 3.1 to 3.7 m
(10.2 to 12.1 feet)
150-inch: 4.6 to 5.6 m
(15.1 to 18.4 feet)
Electrical characteristics
Color system NTSC3.58/PAL/SECAM/
NTSC4.43/PAL-M/PAL-N/
PAL60 system, switched
automatically/manually
(NTSC4.43 is the color system used
when playing back a video
recorded in NTSC on a
NTSC4.43 system VCR.)
Resolution
VPL-ES5: 500 horizontal TV lines
(Video input)
800 × 600 dots (RGB input)
VPL-EX5/EX50: 750 horizontal
TV lines (Video input)
1024 × 768 dots (RGB input)
VPL-EW5: 750 horizontal TV
lines (video input)
1280 × 800 dots (RGB input)
Acceptable computer signals2)
fH: 19 to 92 kHz
fV: 48 to 92 Hz
(Maximum input signal resolution:
SXGA+ 1400 × 1050
fV: 60 Hz)
2) Set the resolution and the frequency of the
signal of the connected computer within the
range of acceptable preset signals of the
projector.
Applicable video signals
15 k RGB/component 50/60 Hz,
Progressive component 50/60
Hz, DTV (480/60i, 575/50i,
480/60p, 575/50p, 720/60p,
720/50p, 1080/60i, 1080/50i),
Composite video, Y/C video
Speaker
Monaural speaker system, 40 ×
28.5 mm (1 5/8 × 1 1/8 inches)
Speaker output
1 W (max.)
Others
Throwing distance (When placed on the floor./
Adjuster not stretched, and the V Keystone
function has been done. )
VPL-EX50/EX5/ES5:
40-inch: 1.1 to 1.4 m
(3.6 to 4.6 feet)
80-inch: 2.3 to 2.8 m
(7.5 to 9.2 feet)
100-inch: 2.9 to 3.5 m
(9.5 to 11.5 feet)
150-inch: 4.4 to 5.2 m
(14.4 to 17.1 feet)
200-inch: 5.8 to 7.0 m
(19.0 to 23.0 feet)
250-inch: 7.3 to 8.8 m
(24.0 to 28.9 feet)
300-inch: 8.8 to 10.5 m
(28.9 to 34.5 feet)
There may be a slight difference between the
actual value and the design value shown above.
Input/Output
VIDEO IN
VIDEO: phono type
Composite video: 1 Vp-p ±2 dB
sync negative (75 ohms
terminated)
S VIDEO: Y/C mini DIN 4pintype
Specifications
49
Y (luminance): 1 Vp-p ±2 dB
sync negative (75 ohms
terminated)
C (chrominance): burst 0.286
Vp-p ±2 dB (NTSC) (75 ohms
terminated), burst 0.3 Vp-p ±2
dB (PAL) (75 ohms terminated)
AUDIO (VPL-EW5/EX50 only):
Stereo minijack, 500 mVrms,
input impedance 47 Kilohms or
more
INPUT A
RGB: HD D-sub15-pin (female)
Analog RGB/component:
R/R-Y: 0.7 Vp-p ±2 dB (75
ohms terminated)
G: 0.7 Vp-p ±2 dB (75 ohms
terminated)
G with sync/Y: 1 Vp-p ±2 dB
sync negative (75 ohms
terminated)
B/B-Y: 0.7 Vp-p ±2 dB (75
ohms terminated)
HD: Horizontal sync input: TTL
level, positive/negative
VD: Vertical sync input: TTL
level, positive/negative
AUDIO (VPL-EW5/EX50 only):
Stereo minijack, 500 mVrms,
input impedance 47 Kilohms or
more
INPUT B
HDMI (VPL-EW5 only): Digital
RGB/Y CB (PB) CR (PR): HDMI
RGB (VPL-EX50 only): HD Dsub15-pin (female) Analog
RGB:
R: 0.7 Vp-p ±2 dB (75 ohms
terminated)
G: 0.7 Vp-p ±2 dB (75 ohms
terminated)
B: 0.7 Vp-p ±2 dB (75 ohms
terminated)
HD: Horizontal sync input: TTL
level, Positive/negative
VD: Vertical sync input: TTL
level, positive/negative
AUDIO INPUT A/VIDEO IN (VPL-EX5/ES5
only)/AUDIO INPUT A/B
(VPL-EX50 only)
AUDIO: Stereo minijack, 500
mVrms, input impedance 47
Kilohms or more
OUTPUT
MONITOR OUT: HD D-sub15pin (female)
R, G, B: Gain Unity: 75 ohms
HD, VD: 4 Vp-p (open), 1 Vp-p
(75 ohms)
AUDIO OUT (variable out):
Stereo minijack
50
Specifications
1 Vrms (When the volume is
maximum and an input signal is
500 mVrms), output impedance
5 kilohms or less
REMOTE (VPL-EW5/EX50/EX5 only)
RS-232C: D-sub 9 pin
General
314 × 109 × 269 mm (12 3/8 ×
4 3/8 × 10 5/8 inches) (w/h/d)
(without projecting parts)
Mass
VPL-EX50/EW5:
Approx. 3.0 kg (6 lb 10 oz)
VPL-EX5/ES5:
Approx. 2.9 kg (6 lb 6 oz)
Power requirements
VPL-EX50/EW5: AC 100 to 240
V, 2.6 to 1.1 A, 50/60 Hz
VPL-EX5/ES5: AC 100 to 240 V.
2.2 to 1.0 A, 50/60 Hz
Power consumption
VPL-EX50/EW5: Max.260 W (in
standby: 3 W)
VPL-EX5/ES5: Max.225 W (in
standby: 3 W)
Heat dissipation
884 BTU (VPL-EX50/EW5)
765 BTU (VPL-EX5/ES5)
Operating temperature
0°C to 35°C (32°F to 95°F)
Operating humidity
35% to 85% (no condensation)
Storage temperature
–20°C to +60°C (–4°F to +140°F)
Storage humidity
10% to 90%
Supplied accessories
Remote Commander (1)
Lithium battery CR2025 (1)
HD D-sub 15 pin cable (1.8 m) (1)
(1-832-428-11, SONY)
Carrying case (1)
AC power cord (1)
Lens cap (1)
Operating Instructions (CD-ROM)
(1)
Quick Reference Manual (1)
Safety Regulations (1)
Security Label (1)
Dimensions
Design and specifications are subject to change
without notice.
Note
Always verify that the unit is operating properly
before use. SONY WILL NOT BE LIABLE FOR
DAMAGES OF ANY KIND INCLUDING, BUT
NOT LIMITED TO, COMPENSATION OR
REIMBURSEMENT ON ACCOUNT OF THE
LOSS OF PRESENT OR PROSPECTIVE
PROFITS DUE TO FAILURE OF THIS UNIT,
EITHER DURING THE WARRANTY PERIOD
OR AFTER EXPIRATION OF THE
WARRANTY, OR FOR ANY OTHER REASON
WHATSOEVER.
Optional accessories
Projector Lamp
LMP-E190(for replacement)
Some of the items may not be available in
some areas. For details, please consult your
nearest Sony dealer.
Pin assignment
INPUT A connector (HD D-sub 15-pin,
female)
R/R-Y
9
2
3
4
5
6
7
8
G/Y
B/B-Y
RESERVE
GND
GND (R)
GND (G)
GND (B)
10
11
12
13
14
15
Power
supply input
for DDC
GND
GND
DDC/SDA
HD
VD
DDC/SCL
1
R
9
2
3
4
5
6
7
8
G
B
RESERVE
GND
GND (R)
GND (G)
GND (B)
10
11
12
13
14
15
Power
supply input
for DDC
GND
GND
DDC/SDA
HD
VD
DDC/SCL
RS-232C connector (D-sub 9 pin,
female) (VPL-EW5/EX50/EX5 only)
1
2
3
4
5
NC
RXDA
TXDA
DTR
GND
6
7
8
9
NC
RTS
CTS
NC
Others
1
INPUT B connector (HD D-sub 15-pin,
female) (VPL-EX50 only)
Specifications
51
Preset signals
Memory Preset signal
No.
15.734
59.940
Sync
Video 60 Hz
2
Video 50 Hz
50 Hz
15.625
50.000
–
3
480/60i
480/60i
15.734
59.940
S on G/Y
4
575/50i
575/50i
15.625
50.000
S on G/Y
5
480/60p
480/60p (Progressive
component NTSC)
31.470
60.000
S on G/Y
6
575/50p
575/50p (Progressive
component PAL)
31.250
50.000
S on G/Y
7
1080/60i
1035/60i, 1080/60i
33.750
60.000
S on G/Y
8
1080/50i
1080/50i
28.130
50.000
S on G/Y
10
720/60p
720/60p
45.000
60.000
S on G/Y
11
720/50p
720/50p
37.500
50.000
S on G/Y
21
640 × 350
VGA mode 1
31.469
70.086
H-pos, V-neg
VGA VESA 85 Hz
37.861
85.080
H-pos, V-neg
PC-9801 Normal
24.823
56.416
H-neg, V-neg
VGA mode 2
31.469
70.086
H-neg, V-pos
23
640 × 400
24
25
26
640 × 480
–
VGA VESA 85 Hz
37.861
85.080
H-neg, V-pos
VGA mode 3
31.469
59.940
H-neg, V-neg
27
Macintosh 13"
35.000
66.667
H-neg, V-neg
28
VGA VESA 72 Hz
37.861
72.809
H-neg, V-neg
29
VGA VESA 75 Hz
37.500
75.000
H-neg V-neg
30
VGA VESA 85 Hz
43.269
85.008
H-neg V-neg
31
800 × 600
SVGA VESA 56 Hz
35.156
56.250
H-pos, V-pos
32
SVGA VESA 60 Hz
37.879
60.317
H-pos, V-pos
33
SVGA VESA 72 Hz
48.077
72.188
H-pos, V-pos
34
SVGA VESA 75 Hz
46.875
75.000
H-pos, V-pos
35
SVGA VESA 85 Hz
53.674
85.061
H-pos, V-pos
36
832 × 624
Macintosh 16"
49.724
74.550
H-neg, V-neg
37
1024 × 768
XGA VESA 60 Hz
48.363
60.004
H-neg, V-neg
38
XGA VESA 70 Hz
56.476
70.069
H-neg, V-neg
39
XGA VESA 75 Hz
60.023
75.029
H-pos, V-pos
40
XGA VESA 85 Hz
68.677
84.997
H-pos, V-pos
41
1152 × 864
42
43
44
52
fV (Hz)
1
22
60 Hz
fH (kHz)
1152 × 900
Specifications
SXGA VESA 70 Hz
63.995
70.019
H-pos, V-pos
SXGA VESA 75 Hz
67.500
75.000
H-pos, V-pos
SXGA VESA 85 Hz
77.487
85.057
H-pos, V-pos
Sunmicro LO
61.795
65.960
H-neg, V-neg
Memory Preset signal
No.
45
1280 × 960
46
47
1280 × 1024
48
49
50
1400 × 1050
fH (kHz)
fV (Hz)
Sync
SXGA VESA 60 Hz
60.000
60.000
H-pos, V-pos
SXGA VESA 75 Hz
75.000
75.000
H-pos, V-pos
SXGA VESA 60 Hz
63.974
60.013
H-pos, V-pos
SXGA VESA 75 Hz
79.976
75.025
H-pos, V-pos
SXGA VESA 85 Hz
91.146
85.024
H-pos, V-pos
SXGA+ 60 Hz
65.317
59.978
H-neg, V-pos
55
1280 × 768
WXGA 60Hz
47.776
59.870
H-neg, V-pos
56
1280 × 720
WXGA 60Hz
44.772
59.885
H-neg, V-pos
60
1360 × 768
1360 × 768/60
44.720
59.799
H-neg, V-pos
61
1440 × 900
1440 × 900/60
55.935
59.887
H-neg, V-pos
63
1280 × 800
1280 × 800/60
49.702
59.810
H-neg, V-pos
Notes
• The receivable digital signals are preset signals of Memory No. 3 to 11, 26, 32, 37, 45, 50, 55 and
56 (VPL-EW5 only).
• When a signal other than the preset signals shown above is input, the picture may not be displayed
properly.
• When an SXGA+ signal is input, the image may extend beyond the edges of the screen. In this
case, input a signal with no black edges around the image, and disconnect and reconnect the cable
or select the input signal by pressing the INPUT key.
• If the resolution of the input signal is different from the panel resolution, the input signal is not
displayed in its own resolution, and letters or lines may be uneven.
Others
Specifications
53
Installation Diagram
Floor Installation (Front Projection)
Distance between the front of the cabinet and
the center of the lens
Foremost part
of the cabinet
Wall
Front of the lens
14.6 (19/32)
Center of the lens
Center of the
screen
Floor
Unit: mm (inches)
* Adjuster not stretched, and the V Keystone function has been done.
This section describes the examples of installing the projector on a desk, etc.
See the chart on page 55 concerning the installation measurements.
The alphabetical letters in the illustration indicate the distances below.
a: distance between the screen and the center of the lens
b: distance between the floor and the center of the lens
c: distance between the floor and the bottom of the adjusters of the projector
x: distance between the floor and the center of the screen (free)
54
Installation Diagram
VPL-EX50/EX5/ES5
Unit: mm (inches)
PS
a
40
60
N
1180
1780
(46 1/2) (70 1/8)
2020
M 1330
(52 3/8) (79 5/8)
80
100
120
150
2390
(94 1/8)
2990
(117 3/4)
3600
(141 3/4)
2700
(106 3/8)
3380
(133 1/8)
4070
(160 3/8)
180
200
250
300
4510
5410
(177 5/8) (213 1/8)
6020
(237 1/8)
7530
(296 1/2)
9050
(356 3/8)
5090
(200 1/2)
6800
(267 3/4)
8500
(334 3/4)
10210
(402 1/8)
6110
(240 5/8)
b
Based on the calculation formula given below.
c
Based on the calculation formula given below.
a (N) = {(PS × 29.376) × 1.03} – 31.7
a (M) = {(PS × 35.202) × 0.97} – 31.7
b = x – {PS × 5.055 + (a + 31.7) × 0.1405 – 4.5}
c = x – {PS × 5.055+ (a + 31.7) × 0.1405 – 4.5 + 90.5}
VPL-EW5
(When “Aspect” on the Signal menu is set to “Full 2”)
Unit: mm (inches)
PS
a
40
60
80
100
120
150
180
200
250
300
1250
(49 1/4)
1890
(74 1/2)
2530
(99 5/8)
3170
(124 7/8)
3810
(150 1/8)
4770
(187 7/8)
5730
(225 5/8)
6370
(250 7/8)
7970
(313 7/8)
9570
(376 7/8)
M 1410
(55 5/8)
2140
(84 3/8)
2860
(112 5/8)
3580
(141)
4300
(169 3/8)
5390
(212 1/4)
6470
(254 7/8)
7200
(283 1/2)
9000
(354 3/8)
10810
(425 3/4)
N
b
Based on the calculation formula given below.
c
Based on the calculation formula given below.
a (N) = {(PS × 31.076) × 1.03} – 31.7
a (M) = {(PS × 37.252) × 0.97} – 31.7
b = x – {PS × 4.465 + (a + 31.7) × 0.1405 – 4.5}
c = x – {PS × 4.465 + (a + 31.7) × 0.1405 – 4.5 + 90.5}
Notes for VPL-EW5
Others
• The projected image size is the one when “Aspect” on the Signal menu is set to “Full 2”. When
“Aspect” on the Signal menu is set to other than “Full 2”, black bands may appear at the top and
bottom or right and left of the screen.
• When “Aspect” in the Signal menu is set to “4:3”, the projected image size (diagonal) will be
approximately 88 % of “Full 2” size.
• When “Aspect” in the Signal menu is set to “16:9”, the projected image size (diagonal) will be
approximately 97 % of “Full 2” size.
The alphabetical letters in the charts and calculation methods indicate the following.
PS: projected image size measured diagonally (inches)
a: distance between the screen and the center of the lens
b: distance between the floor and the center of the lens
c: distance between the floor and the adjusters of the projector
x: free
N: minimum
M: maximum
Installation Diagram
55
Ceiling Installation (Front Projection)
69.5 (2 3/4)
104.5 (4 1/8)
42.2 (1 5/8)
The unit is set so that the bottom is parallel to the ceiling. The V Keystone function has been done.
Center of the screen
Center of the lens
Center of the Projector
Holes for mounting a
projector suspension support
Ceiling
Center of the lens
Center of the screen
Foremost part of
the cabinet
Hole for mounting a
projector suspension
support (front)
72.5
(2 7/8)
10.4 (3/8)
26.7 (1)
Center of the lens
Center of the lens
Distance between the front of the cabinet and the hole
for mounting a projector suspension support (front)
Unit: mm (inches)
This section describes the examples for installing the projector on the ceiling.
When installing the projector on the ceiling, use a Projector Suspension Support recommended
by Sony.
For ceiling installation, ask for qualified Sony personnel.
See the chart on page 57 concerning the installation measurements.
The alphabetical letters in the illustrations indicate the distances below.
a’: distance between the hole (front) for mounting a projector suspension support on bottom
surface of this projector and the center of the screen
b: distance between the hole (front) for mounting a projector suspension support on bottom
surface of this projector and the ceiling
x: distance between the ceiling and the center of the screen
56
Installation Diagram
VPL-EX50/EX5/ES5
Unit: mm (inches)
PS
40
60
80
100
120
150
180
200
250
300
a’ N
1200
(47 1/4)
1800
(70 7/8)
2410
(95)
3010
(118 5/8)
3620
(142 5/8)
4530
(178 3/8)
5440
(214 1/4)
6040
(237 7/8)
7560
(297 3/4)
9070
(357 1/4)
2040
(80 3/8)
2720
(107 1/8)
3410
(134 3/8)
4090
(161 1/8)
5120
(201 5/8)
6140
(241 7/8)
6830
(269)
8540
(336 3/8)
10250
(403 5/8)
M 1350
(53 1/4)
x
Based on the calculation formula given below.
b
Free
a’(N) = {(PS × 29.415) × 1.03} - 32.0 + 16.4
a’(M) = {(PS × 35.283) × 0.97} - 32.0 + 16.4
x = b + {PS × 5.073 + (a’+ 32.0 - 16.4) × 0.07344 - 2.3 + 72.5}
VPL-EW5
(When “Aspect” on the Signal menu is set to “Full 2”)
Unit: mm (inches)
PS
40
60
80
a’ N
1270
(50)
1910
(75 1/4)
2160
(85 1/8)
M 1430
(56 3/8)
100
120
150
180
200
250
300
2550
3190
(100 1/2) (125 5/8)
3830
(150 7/8)
4800
(189)
5760
(226 7/8)
6400
(252)
8000
(315)
9610
(378 1/2)
3610
2880
(113 1/2) (142 1/4)
4330
(170 1/2)
5420
(213)
6510
(256 3/8)
7230
(284 3/4)
9050
(356 3/8)
10860
(427 5/8)
x
Based on the calculation formula given below.
b
Free
a’(N) = {(PS × 31.147) × 1.03} – 32.0 + 16.4
a’(M) = {(PS × 37.367) × 0.97} – 32.0 + 16.4
x = b + {PS × 4.481 + (a’+ 32.0 – 16.4) × 0.07344 – 2.3 + 72.5}
Notes for VPL-EW5
Others
• The projected image size is the one when “Aspect” on the Signal menu is set to “Full 2”. When
“Aspect” on the Signal menu is set to other than “Full 2”, black bands may appear at the top and
bottom or right and left of the screen.
• When “Aspect” in the Signal menu is set to “4:3”, the projected image size (diagonal) will be
approximately 88 % of “Full 2” size.
• When “Aspect” in the Signal menu is set to “16:9”, the projected image size (diagonal) will be
approximately 97 % of “Full 2” size.
The alphabetical letters in the charts and calculation methods indicate the following.
PS: projected image size measured diagonally (inches)
a’: distance between the hole (front) for mounting a projector suspension support on bottom
surface of this projector and the center of the screen
b: distance between the projector suspension support mounting surface on bottom of this
projector and the ceiling
x: distance between the center of the screen and the ceiling
N: minimum
M: maximum
Installation Diagram
57
Dimensions
Front
314 (12 3/8)
109 (4 3/8)
72.2 (2 7/8)
69.5 (2 5/8)
Center of the projector
Unit: mm (inches)
Side
109 (4 3/8)
269 (10 5/8)
Unit: mm (inches)
58
Dimensions
269 (10 5/8)
Top
314 (12 3/8)
Unit: mm (inches)
Others
Dimensions
59
Index
A
Adjust Picture .......................................... 31
Air filter ................................................... 44
Aspect ............................................... 33, 34
Auto Input Search ................................... 35
B
Background ............................................. 38
Batteries .................................................. 16
Brightness ............................................... 31
C
Color ....................................................... 31
Color System ........................................... 35
Color Temp. ............................................ 31
Connecting a computer ........................... 19
Connecting a VCR .................................. 21
Contrast ................................................... 31
D
DDE ........................................................ 32
Digital Zoom function ............................. 27
Direct Power On ...................................... 38
Direct power On/Off function ................. 27
Dot Phase ................................................ 33
F
fH (Horizontal Frequency) ...................... 40
fV (Vertical Frequency) .......................... 40
G
L
Lamp Mode .............................................38
Lamp replacement ...................................42
Lamp Timer .............................................40
Lamp Timer Reset ...................................36
Language .................................................37
selecting the menu language ................25
Lens .........................................................11
Location and function of controls
connector panel ....................................14
control panel ........................................12
rear/bottom ...........................................10
Remote Commander ............................15
top/right side/front ...............................10
M
Menu
clearing the menu display ....................30
INFORMATION Menu .......................40
INPUT SETTING menu ......................33
INSTALL SETTING menu .................38
MENU SETTING menu ......................37
PICTURE SETTING menu .................31
SET SETTING menu ...........................35
using a menu ........................................29
Menu Position ..........................................37
Message List
caution ..................................................48
warning ................................................47
O
Optional accessories ................................51
P
Gamma Mode .......................................... 31
H
H Size ...................................................... 33
High Altitude Mode ................................ 38
Hue .......................................................... 31
I
Image Flip ............................................... 38
Input-A Signal Sel. .................................. 35
Installation ............................................... 17
notes ...................................................... 6
unsuitable conditions ............................. 7
unsuitable installation ............................ 6
60
IR Receiver ..............................................36
Index
Panel Key Lock ........................................36
Picture Mode ...........................................31
Pin assignment .........................................51
Power
turn on ..................................................22
Power Saving ...........................................36
Presentation .............................................27
Preset Memory No. ..................................34
Projecting .................................................22
R
Remote Commander ................................15
front remote control detector .........10, 36
location and function of controls .........15
rear remote control detector .................36
Reset
resetting an item ..................................30
RS-232C connector .................................51
S
Screen size .........................................17, 18
Security bar .............................................11
Security Lock ....................................26, 38
Security lock ............................................11
Sharpness .................................................31
Shift .........................................................33
Smart APA ...............................................35
Specifications ..........................................49
Start Up Image ........................................37
Status .......................................................37
Supplied accessories ................................50
T
Troubleshooting .......................................45
V
V Keystone ..............................................38
Volume ....................................................32
Others
Index
61
Sony Corporation
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
