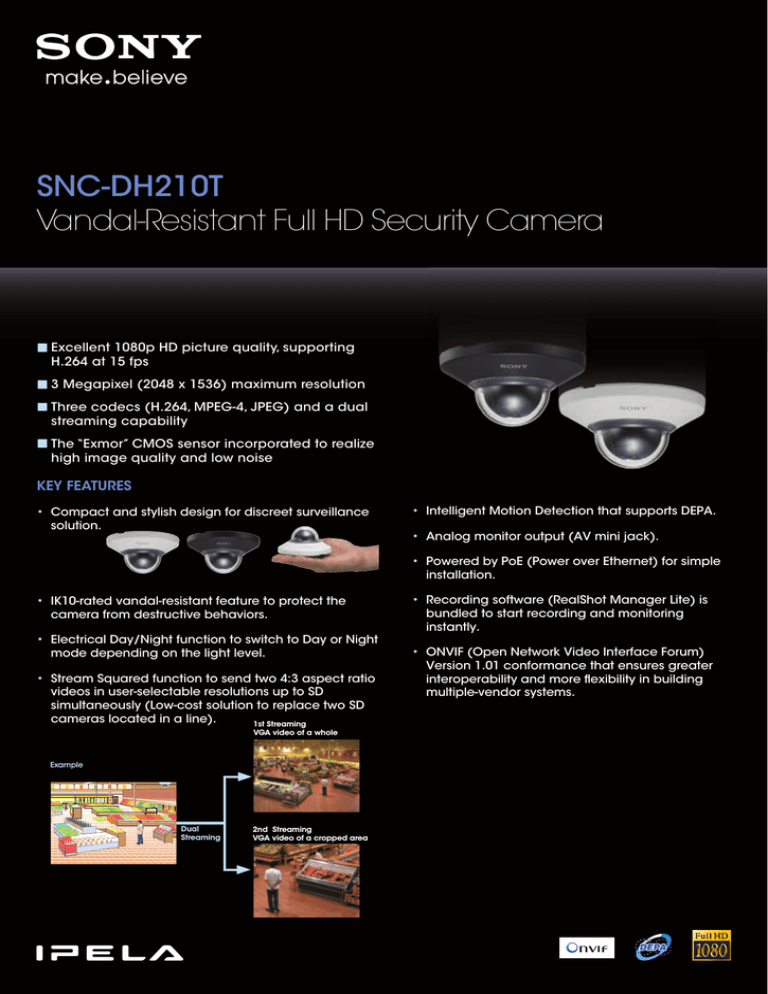

SNC-DH210T
Vandal-Resistant Full HD Security Camera
Excellent 1080p HD picture quality, supporting
H.264 at 15 fps
3 Megapixel (2048 x 1536) maximum resolution
Three codecs (H.264, MPEG-4, JPEG) and a dual
streaming capability
The “Exmor” CMOS sensor incorporated to realize
high image quality and low noise
KEY FEATURES
• Compact and stylish design for discreet surveillance
solution.
• Intelligent Motion Detection that supports DEPA.
• Analog monitor output (AV mini jack).
• Powered by PoE (Power over Ethernet) for simple
installation.
• IK10-rated vandal-resistant feature to protect the
camera from destructive behaviors.
• Electrical Day/Night function to switch to Day or Night
mode depending on the light level.
• Stream Squared function to send two 4:3 aspect ratio
videos in user-selectable resolutions up to SD
simultaneously (Low-cost solution to replace two SD
cameras located in a line).
1st Streaming
VGA video of a whole
Example
Dual
Streaming
2nd Streaming
VGA video of a cropped area
• Recording software (RealShot Manager Lite) is
bundled to start recording and monitoring
instantly.
• ONVIF (Open Network Video Interface Forum)
Version 1.01 conformance that ensures greater
interoperability and more flexibility in building
multiple-vendor systems.
SPECIFICATIONS
SYSTEM CONFIGURATION
SNC-DH210T
HD monitor
1/2.8 type progressive scan “Exmor” CMOS sensor
2.3 lx / AGC(38db)/ 50IRE(IP)
3Megapixel
(2096×1561)
1s to 1/10000 s
Auto
Auto, EV Compensation, Auto Slow Shutter
Auto(ATW, ATW-PRO), Preset, One-push WB, Manual
fixed
86 degrees
f=3.3
F2.8
500 mm
Approx. 340°
0°to 60°
Network Surveillance
Recorder
NSR-S10
SNC-DH210T
Network
Recording Software
RealShot Manager Lite
SNC-DH210T
PC
Yes (electrical D/N)
Yes
DIMENSIONS
1/4
)
Unit: mm (inches)
6 (4
* The SNC-DH210T includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/).
©2011 Sony Electronics Asia Pacific Pte. Ltd. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
The values for weight and dimension are approximate.
SONY and “make.believe” are registered trademarks of Sony Corporation.
IPELA and “Exmor” are trademarks of Sony Corporation.
Windows, XP, and Vista are trademarks of Microsoft Corporation.
Core is a trademark of Intel Corporation.
All other trademarks are the property of their respective owners.
Distributed by
BP000477-122001-A-V1
Printed in Singapore
56.5 (2 1/4)
25 (1)
2 (3/32)
2048×1536 (Jpeg Only), 1920x1080, 1600x1200, 1680x1056, 1440x912, 1280x1024, 1280x960,
1376x768, 1280x800, 1280x720, 1024x768, 1024x576, 768x576, 720x576, 704x576, 800x480,
720x480, 640x480, 640x368, 384x288, 352x288, 320x240, 320x192, 176x144
Video compression format H.264, MPEG-4, JPEG
Codec streaming capability Dual streaming
Maximum frame rate
JPEG:12fps (2048×1536) /15fps(1920×1080) /30fps (1280×720)
MPEG-4 / H.264: 15fps (1920×1080) /30fps (1280×720)
Scene Analytics
Intelligent motion detection Yes
Network
Protocols
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP,
SNMP (MIB-2)
ONVIF conformance
Yes (Version 1.01)
Number of clients
5
Authentication
IEEE802.1X
Analog Video Output
Signal system
NTSC / PAL
Interface
Ethernet
10BASE-T / 100BASE-TX (RJ-45)
Analog monitor output
AV Mini Jack
Sensor input
x1
General
Mass
170 g (6 oz)
Dimensions
ø 106 x 56.5 mm (ø 4 1/4 x 2 1/4 inches)
Power requirements
PoE
Power consumption
2.4W
Working temperature
0 °C to 50 °C (32°F to 122°F)
Storage temperature
-20 °C to +60 °C (-4°F to +140°F)
Vandal resistant
IK10
Safety regulation
UL2044, FCC 15B Class A, IC Class A, IEC60950-1, EN55022(A)+EN55024+EN50130-4,
VCCI Class A, C-Tick Class A
System Requirements
Operating system
WindowsXP, WindowsVista (32bit), Windows7 (32bit)
Processor
Intel Core2 Duo 2 GHz or higher
Memory
1 GB or more
Web browser
Microsoft Internet Explorer Ver6.0, 7.0, or 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
Supplied Accessories
CD-ROM (User’s Guide, SNC Toolbox, RSM-Lite), Installation manual, B&P Warranty Booklet, Sensor
input cable, Template
ø10
Camera
Image device
Minimum illumination
Number of effective pixels
(H x V)
Electronic shutter speed
Gain control
Exposure control
White balance mode
Lens type
Horizontal viewing angle
Focal length
F-number
Minimum objects distance
Pan angle
Tilt angle
Camera Features
Day/Night
Noise reduction
Codec image size (H x V)
