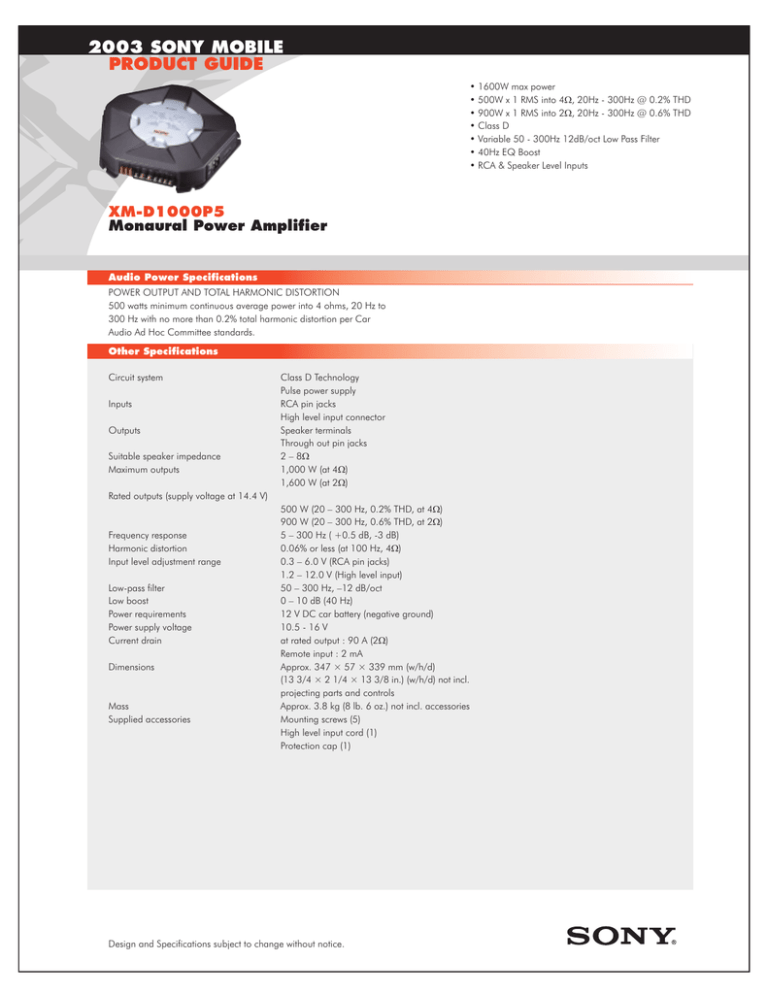

2003 SONY MOBILE
PRODUCT GUIDE
• 1600W max power
• 500W x 1 RMS into 4W, 20Hz - 300Hz @ 0.2% THD
• 900W x 1 RMS into 2W, 20Hz - 300Hz @ 0.6% THD
• Class D
• Variable 50 - 300Hz 12dB/oct Low Pass Filter
• 40Hz EQ Boost
• RCA & Speaker Level Inputs
XM-D1000P5
Monaural Power Amplifier
Audio Power Specifications
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
500 watts minimum continuous average power into 4 ohms, 20 Hz to
300 Hz with no more than 0.2% total harmonic distortion per Car
Audio Ad Hoc Committee standards.
Other Specifications
Circuit system
Inputs
Outputs
Suitable speaker impedance
Maximum outputs
Class D Technology
Pulse power supply
RCA pin jacks
High level input connector
Speaker terminals
Through out pin jacks
2 – 8W
1,000 W (at 4W)
1,600 W (at 2W)
Rated outputs (supply voltage at 14.4 V)
Frequency response
Harmonic distortion
Input level adjustment range
Low-pass filter
Low boost
Power requirements
Power supply voltage
Current drain
Dimensions
Mass
Supplied accessories
500 W (20 – 300 Hz, 0.2% THD, at 4W)
900 W (20 – 300 Hz, 0.6% THD, at 2W)
5 – 300 Hz ( +0.5 dB, -3 dB)
0.06% or less (at 100 Hz, 4W)
0.3 – 6.0 V (RCA pin jacks)
1.2 – 12.0 V (High level input)
50 – 300 Hz, –12 dB/oct
0 – 10 dB (40 Hz)
12 V DC car battery (negative ground)
10.5 - 16 V
at rated output : 90 A (2W)
Remote input : 2 mA
Approx. 347 × 57 × 339 mm (w/h/d)
(13 3/4 × 2 1/4 × 13 3/8 in.) (w/h/d) not incl.
projecting parts and controls
Approx. 3.8 kg (8 lb. 6 oz.) not incl. accessories
Mounting screws (5)
High level input cord (1)
Protection cap (1)
Design and Specifications subject to change without notice.
2003 SONY MOBILE
PRODUCT GUIDE
XM-D1000P5
Monaural Power Amplifier
Connections
Remote Output
12V Car Battery
Ground
3 - 40A fuses
Subwoofer OUT
High Level Input Connection
Through Output
Line Input
Dimensions
Unit: mm (in.)
327 (12 7 / 8 )
57 (2 1 / 4 )
311 (12 1 / 4 )
339 (13 3 / 8 )
119
(4 3 / 4 )
6 ( 1/ 4)
202 (8)
347 (13 3/4 )
Design and Specifications subject to change without notice.
