> ON Y: DODO TUT)

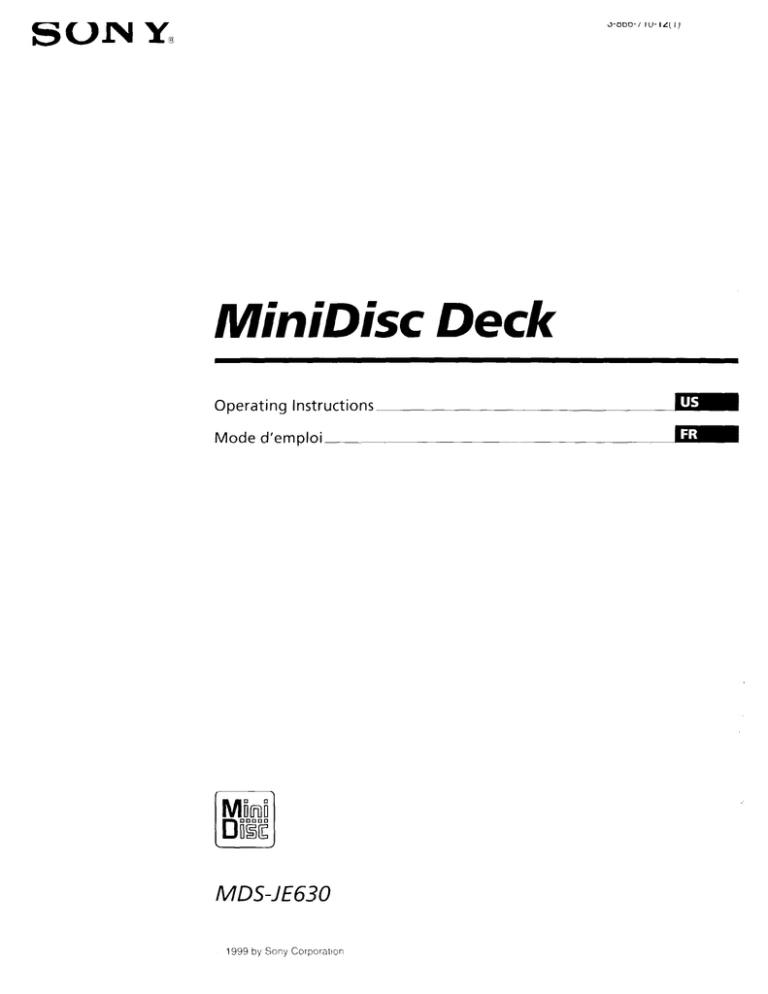

MiniDisc Deck
Operating Instructions.
Mode d'emploi _
ooconn
MDS-JE630
- 1999 by Sony Corporation
EEE EEE, ТОНН
WARNING
To prevent fire or shock
hazard, do not expose the
unit to rain or moisture.
| IN NO EVENT SHALL SELLER BE
LIABLE FOR ANY DIRECT,
INCIDENTAL OR CONSEQUENTIAL
DAMAGES OF ANY NATURE, OR
[LOSSES OR EXPENSES RESULTING
FROM ANY DEFECTIVE PRODUCT OR
THE USE OF ANY PRODUCT.
For the customers in the U.S.A.
CAUTION
Bole a E FC SA
LE GT OPEN
This symbol is intended to alert the user to
the presence of uninsulated “dangerous
voltage” within the product's enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock to
persons,
A
This symbol is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION
You are cautioned that any changes or
modification not expressly approved in
this manual could void vour authority to
opera te this Equ 1 pmen Е
7
INFORMATION
This equipment has been tested and found
to comply with the mits for a Class B
digital device. pursuant to Part 15 of the
FCC Rules. These mits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment generates,
uses, and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, May
cause harmtul interterence to radio
communications. However, there 1s no
guarantee that mterterence Will not occur
In à particular installation. It this
equipment does cause harmtul
interterence to radio or television
reception, which can be determined by
tuning the equipment off and on, the user
is encouraged to try to correct the
interference bv one or more of the
following measures:
Reorient or relocate the receiving
antenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet on
a circuit different from that to which the
recon er is connected.
Consult the dealer or an experienced
radio/ TV technician tor help.
Owner's Record
The model! and serial numbers are located
on the rear of the unit. Record the serial
number in the space provided below.
Reter to them whenever vou call upon
vour Sony dealer regarding this product.
Model No. MDS-JE63U
Serial No.
For the customers in Canada
CAUTION
TO PREVENT ELECTRIC SHOCK, DO
NOT USE THIS POLARIZED AC PLUG
WITH AN EXTENSION CORD,
RECEPTACLE OROTHER OUTLET
UNLESS THE BLADES CAN BETULLY
INSERTED TO PREVENT BLADE
EXPOSURE.
Lg TREE]
Welcome!
Thank vou for purchasing the Sony
MiniDisc Deck. Before operating the
deck, please read this manual
thoroughly and retain it for future
reference.
About This
Manual
The instructions in this manual are for
the MDS-JE630 MimiDisc Deck.
Conventions
e Controls in these instructions are
those on the deck; these may,
however, be substituted by controls
on the supplied remote that are
similarly named, or, when different,
appear in the instructions within
parentheses.
Example: Turn AMS clockwise (or
press BP repeatedly).
The tollowing icons are used 1n this
manual:
t Indicates a procedure that
requires use of the remote.
Y Indicates hints and tips for
making the task easier.
TABLE OF CONTENTS
Getting Started 4 Editing Recorded MDs 30
Before You Start the Hookup 4 Erasing Tracks 31
Hooking Up the Audio Components 5 Dividing Tracks 33
N Combining Tracks 34
Location and Function of Parts 8 Moving Tracks 55
Naming a Track or MD 35
Front Panel Parts Descriptions 8
Undoing the Last Edit 39
Remote Parts Descriptions 10
Using the Display 11
Other Functions 40
Recording on MDs 14 Changing the Pitch (Pitch Control Function) 40
Fade In and Fade Out 41
Notes on Recording 14
ralling Asleep to Music (Sleep Timer) 42
Recording on an MD 15
e Using a Timer 43
Adjusting the Recording Level 17
Recording Tips 17 В | Cn o
Marking Track Numbers While Recording Operating the MD Deck Using a
(Track Marking) 19 Keyboard 45
Starting Recording With Six Seconds of Prestored
Audio Data (Time Machine Recording) 20
Setting the Kevboard +15
Synchro-recording With the Audio Component af Naming a Track or MD Using the Keyboard 46
Your Choice (Music Synchro-recording) 21 Operating the Deck Through the Keyboard 47
Synchro-recording With a Sony CD Plaver Assigning Characters to Kevboard Keys 48
(CD Synchro-recording) 21
Additional Information 49
Precautions 49
Playing MDs 23
Playing an MD 23 Handling MDs 50
Playing a Specific Track 24 System Limitations 50
Locating a Particular Point in a Track 25 Troubleshooting 31
Playing Tracks Repeatedly 26 Specifications 52
Playing Tracks in Random Order (Shuffle Play) 27 Display Messages 53
Creating Your Own Program (Program Play) 27 Edit Menu Table 54
Tips for Recording From MDs to Tape 29 Setup Menu Table 54
Selt-Diagnosis Function 55
Index 56
355
Getting
Started
This chapter provides information on
the supplied accessories, things you
should keep in mind while hooking
up the system, and how to connect
various audio components to the MD
deck. Be sure to read this chapter
thoroughly before you actually
connect anything to the deck.
us
E
Before You Start the
Hookup
Checking the supplied accessories
This MD deck comes with the following items:
* Audio connecting cords (2)
* Optical cable (1)
+ Remote commander (remote) RM-D15M (1)
« R6 (size-À À) batteries (2)
Inserting batteries into the remote
Insert two R6 (size-AA) batteries with the + and —
properly oriented to the markings into the battery
compartment. When using the remote, point it at the
remote sensor [Bl on the deck.
Y When to replace the batteries
Under normal conditions, the batteries should last for about six
months. When the remote no longer operates the deck, replace
both batteries with new ones.
Notes
* Do not leave the remote in an extremely hot or humid place.
* Do not drop any toreign object into the remote casing,
particularly when replacing the batteries.
* Do not use a new battery with an old one.
e Do not expose the remote sensor to direct sunlight or lighting
apparatus. Doing so may cause a malfunction.
e If vou don't use the remote for an extended period of time,
remove the batteries to avoid possible damage from battery
leakage and corrosion.
eee
Hooking Up the Audio Components
CONTROL A1n AC power cord
{ANALOG)
IN OUT IN
OPT OPT? OUT
©
Amplifier, CD player, DBS Digital amplifier, DAT deck,
etc. tuner, etc. * MD deck, etc.* *
* Digital equipment with a DIGITAL OUT connector only
Digital equipment with both DIGITAL IN and OUT connectors
Required cords Things you should keep in mind while
| | | hooking up the system
Audio connecting cords (2) (supplied)
When connecting an audio connecting cord, be sure to match the * Turn off the power to all components before making
color-coded pins to the appropriate Jacks: white (lett) to white anv connections.
and red (right) to red. * Do not connect anv AC power cord until all the
connections are completed.
; — ина НН ! :
White (1) = White (L) * Be sure the connections are firm to prevent hum and
noise.
Red (R) m EU > Red (R)
Optical cables (3) (only one supplied) Jacks (connectors) for connecting audio
* When connecting an optical cable, take the caps otf the components
connectors and insert the cable plugs straight in until thev click
into place. Connect To the
* Do not bend or tie the optical cables. 7 _
Amplitiers LINE (ANALOG) IN/OUT jacks
Od стр В} CD plavers or DBS tuners DIGITAL IN connector
Digital amplifiers, DAT decks, DIGITAL IN/OUT connectors
or another MD deck
bus
payes Sunza9
payezs Buniad
Hooking Up the Audio Components
Connecting the AC power cord
Connect the AC power cord of the deck to a wall outlet.
Note
H vou use a timer, connect the AC power cord to the outlet of the
timer.
About the CONTROL A11 Control System
This MD deck is compatible with the CONTROL A1ll
Control System.
The CONTROL ATI Control System was designed to
simplify the operation of audio systems composed of
separate Sony components. CONTROL All connections
provide a path for the transmission of control signals
which enable automatic operation and control features
usually associated with integrated systems.
Currently, CONTROL ATII connections between a Sony
MD deck, CD player, amplifier (receiver), and cassette
deck provide automatic function selection and
synchronized recording.
In the future the CONTROL A1ll connection will work as
a multifunction bus allowing you to control various
functions for each component.
Note
The CONTROL A1H Control System is designed to maintain
upward compatibility as the Control System is upgraded to
handle new functions. In this case, however, older components
will not be compatible with the new functions.
6
CONTROL A1l and CONTROL A1 compatibility
The CONTROL Al control system has been updated
to the CONTROL Al which is the standard system
in the SONY 300 disc CD changer and other recent
Sonv components. Components with CONTROL AT
jacks are compatible with components with
CONTROL A1ll, and can be connected to each other.
Basically, the majority of the functions available with
the CONTROL AI control system will be available
with the CONTROL AI control system.
However, when making connections between
components with CONTROL AT jacks and
components with CONTROL A jacks, the number
of functions that can be controlled mav be limited
depending on the component. For detailed
information, refer to the operating instructions
supplied with the component(s).
Connecting the CONTROL A1I Control System
Connect monaural (2P) mini-plug cables in series to the
CONTROL Alll'jacks on the back of each component. You
can connect up to ten CONTROL AT compatible
components in any order. However, you can connect only
one of each type of component (i.e., 1 CD player, 1 MD
deck, 1 tape deck and 1 receiver).
(You may be able to connect more than one CD player or
MD deck, depending on the model. Refer to the operating
instructions supplied with the respective component for
details.)
Example
—
Amplifier CD player MD deck Tape deck Other
(Receiver) component
|
UF
F
ä
n the CONTROL Al control system, the control signals
low both ways, so there 15 no distinction of IN and OUT
acks. If a component has more than one CONTROL ATH
ack, you can use either one, or connect different
components to cach jack.
acks and connection examples
CONTROL CONTROL
ALIS CD player
MD deck
—{{ _}—
On CONTROL A1 jacks and connections
tis possible to make connections between CONTROL AI
ind CONTROL. Alll jacks. For details regarding
articular connections or setup options, refer to the
yperating instructions supplied with component(s).
About the connecting cable
some CONTROL AIN compatible components are
supplied with a connecting cable as an accessory. In this
‘ase, use the connecting cable for your connection.
Nhen using a commercially available cable, use a
nonaural (2P) mini-piug cable less than 2 meters long,
with no resistance (like the Sony RK-G69HG).
Basic Functions of the CONTROL A1I
Control System
Automatic function selection
When vou connect CONTROL A1ll compatible Sony
components using CONTROL ATI cables (not supplied),
the function selector on the amplifier (or receiver)
poyezs Бицзео
automatically switches to the correct input when you
press the play button on one of the connected
components.
(If vou press = (play button) on the MD deck while the
CD 1s plaving, the tunction selector on the amplifier
switches from CD to MD.)
Notes
* This function only works when the components are connected
to the amplitier (or receiver) inputs according to the names on
the function buttons. Certain receivers allow you to switch the
names of the function buttons. In this case, refer to the
operating instructions supplied with the receiver.
* When recording, do not play any components other than the
recording source. It will cause the automatic function selection
to operate.
Synchronized recording
This function lets vou conduct synchronized recording
between the MD deck and selected source component.
1 Set the source selector on the amplifier (or
receiver) to the source component.
2 Set the source component to pause mode (make
sure both the => and Il indicators light together).
Ww
Set the deck to recording pause mode.
4 Press HI on the deck.
The source component is released from the pause
mode, and recording begins shortly thereafter.
When playback ends from the source component,
recording stops.
Notes
e Do not set more than one component to the pause mode.
* This MD deck is equipped with a special synchronized
recording function that uses the CONTROL A1H Control
System (see “Making a CD Svnchro-recording from a Sony CD
plaver connected with a control AUI cable” on page 22).
Jus
Location and Front Panel Parts
Fu nctio n of Descriptions
Parts
This chapter tells you about the
location and function of the various
buttons and controls on the front
panel and the supplied remote.
Further details are provided on the
pages indicated in the parentheses.
It also tells you about the information
that appears in the display window.
1. 1/0 (power) switch (15, 23)
Press to turn the deck on. When you turn the deck on,
the STANDBY indicator turns off. When you press the
switch again, the deck turns off and the indicator
hghts up.
2] PITCH CONTROL button (13, 40, 41)
Press to set the MD playback speed (pitch). When
vou ve set the pitch to a value other than “0” (factory
setting), the button lights amber during play.
3 SCROLL button (13)
Press to scroll the name of a track or MD.
4; LEVEL/DISPLAY/CHAR button (11-13, 17, 28, 36)
* Press during recording pause to adjust the recording
level.
* Press when the deck is stopped to display disc
information or the contents of a program.
* Press during recording to display information on the
track being recorded.
e Press during plav to display information on the
current track.
* Press while editing an MD to select the type of
characters to be input.
|
Display window (11-13, 17, 36, 40)
Shows various information.
gus
KEYBOARD
[6] MD insertion slot (15, 23)
Insert the MD as illustrated below.
With the labeled side up
With the arrow pointing towards the deck
2 EJECT button (16, 17, 23)
Press to eject the MD.
MENU/NO button (18, 19, 27, 29-39, 42, 45, 48, 54)
Press to display “Edit Menu” or “Setup Menu.”
[9] YES button (18, 19, 27-39, 42, 45, 48)
Press to carry out the selected operation.
«<< />>- buttons (25, 27, 28, 30, 32, 33, 36)
Press to lacate a portion within a track, change the
contents of a program, or change the input character.
REC MODE selector (15)
Use to set the REC MODE to STEREO or MONO.
INPUT selector (14, 15, 17, 18)
Use to select the input Jack (or connector) of the
program source to be recorded.
113 REC @ button (16, 17, 19, 22, 39)
Press to record on the MD, monitor the input signal, or
mark track numbers.
114] E button (16, 23, 43)
Press to stop play or recording, or cancel the selected
operation.
PUSH ENTER
yl
15 H button (7, 16, 22, 23)
Press to pause play or recording. Press again to
resume play or recording.
16 >> button (7, 16, 22-24, 27, 28, 43)
Press to start plav.
17| AMS control (16-20, 23, 24, 27-42, 45, 48)
Turn to locate tracks, adjust the recording level, select
the input characters, or select a menu item and a
setting value.
=
CLEAR button (27, 28, 36, 48, 55)
Press to cancel the selection.
|
©
Remote sensor (4)
Point the remote towards this sensor (A) for remote
operations.
20
TIME button (11-13, 17, 22)
Press to display the remaining time.
21 REPEAT button (26)
Press to play tracks repeatedly.
22 PLAY MODE button (27, 28, 43)
Press to select Shuffle Play or Program Play.
23 KEYBOARD jack (45)
Connect a kevboard to this jack.
24 PHONE LEVEL control (23)
Use to adjust the volume of the headphones.
25 PHONES jack (23)
Connect headphones to this jack.
26 TIMER selector (43)
|
Use to set the timer for recording (REC) or plaving
(PLAY Set to OFF to turn the timer off,
Qus
sjied JO uolldun4 pue UO1EI07
Sed JO Uolijdung pue uolneson
Remote Parts Descriptions
5 8 SIN
EJECT S
=>
_ (ES "NO =) ©
ES JE TIME
=
E
CONTINUE SHUFFLE -
si
co]
REPEAT Ae SPACE Ces SCAN
es) JCS
J
WHITE CLEAR
—
o
SJ.
>
== Io
(eq (>>) Ce
T.REC MUSIC SNC
(<<) >>) CC)
STOP START STANDBY
a = =
CD PLAYER
=
1 (us
(GD 9 €»
all ko] I] [ala]
5
Е
1
bl
a
|
d
с
1/0 (power) switch (15, 23)
Press to turn the deck on. When vou turn the deck on,
the STANDBY indicator on the deck turns off. When
vou press the switch again, the deck turns off and the
indicator lights up.
TIME button (11-13, 17, 22)
ress to display the remaining time.
- Letter/number buttons (25, 27, 28, 37)
Press to input letters or numbers.
M.SCAN button (24)
Press to scan a track within a range of 6 to 20 seconds.
A.SPACE button (29)
Press to insert a three-second blank space between
tracks or to pause play after each track.
- CLEAR button (27, 28, 36-38, 48, 55)
Press to cancel the selection.
E button (16, 23, 43)
Press to stop play or recording, or cancel the selected
operation,
IN button (16, 23)
Press to pause play or recording. Press again to
resume play or recording.
@ button (16, 17, 19, 39)
Press to record on the MD, monitor the input signal, or
mark track numbers.
MUSIC SYNC button (21, 39)
Press to start Music Synchro-recording.
T.REC button (20)
Press to start Ti me Machine Recording.
LEVEL +/- buttons (17, 24)
Press to adjust the recording level.
FADER button (41, 42)
Press to perform Fade-in Play / Recording or Fade-out
Plav/ Recording.
. CD PLAYER II button (21, 22)
Press to pause the CD play. Press again to resume CD
play.
CD PLAYER +6 />>!1 buttons (22)
Press to locate tracks on the CD.
CD-SYNC STOP button (22)
Press to stop CD Svynchro-recording.
CD-SYNC START button (21, 22)
Press to start CD Synchro-recording.
CD-SYNC STANDBY button (21, 22)
Press to enter standby for CD Svynchro-recording.
16) <</>”> buttons (25-28, 32, 33, 36, 37)
Press to locate a portion within a track, change the
contents of a program, or shift the cursor to the right.
17) HE /D>D! buttons (16-19, 23, 24, 27-29, 31-35, 37-
39, 42, 45, 48)
Press to locate tracks, adjust the recording level, or
select a menu item and a setting value.
= button (16, 23, 24, 27, 28)
Press to start play.
NAME button (37, 38)
Press to add the name or change the name of a track or
MD.
CHAR button (37)
Press to select the tvpe of characters to be input.
NUM button (37)
Press to input numbers.
REPEAT button (26)
Press to play tracks repeatedly.
A—B button (26)
Press to select Repeat A-B Play.
PLAY MODE button (27, 28, 43)
Press to select Shuffle Play or Program Play,
DISPLAY button (11-13, 17, 28)
Press to select the information to be displaved in the
window.
SCROLL button (13)
Press to scroll the name of a track or MD.
23) MENU/NO button (18, 19, 27, 29, 31-39, 42, 45, 48,
54)
Press to display “Edit Menu” or “Setup Menu.”
YES button (18, 19, 27-39, 42, 45, 48)
Press to carry out the selected operation.
EJECT A button (16, 17, 23)
Press to eject the MD.
Using the Display
The display window shows information about the MD or
track. This section describes the information that appears
tor each deck status.
SCROLL LEVEL/DISPLAY/CHAR
PITCH CONTROL TIME
Note
The display format that vou've selected in each of the deck
>statuses (plav, recordine, etc.) will appear whenever the deck
enters that status and vou press LEVEL, DISPLAY/CHAR (or
DISPLAY or TIME until vou change the format to another (see
the following sections for details). If vou disconnect the AC
power cord, however, all the displavs will revert to their default
te, the tactory set display) the next time vou turn on the deck.
When you insert an MD
The following displav appears.
Disc name* Music calendar * *
e |
SET mi
DISC ER Es 122345
ent me tee? 6 7 8 910
| T1 12 13 14 15
5 Ti 1, = E ra hi fo = “0 - зо 30 18 12 AO 4 2 QOYER
om TWEE =
1 |
Total number Total recorded
of tracks time
= The track ane appears stead of the disc mame during play. When
e MD or tte track has no name, No Name” appears.
=>4 music cdlendar shois all Hire track numbers within a grid if the
MD 153 rremastered disc, or without a grid if the MD is a recordable
disc. défie total minniber of tracks excceds 15, W appears to He right
onceber 5m the masi calendar.
1 1 LS
sed Jo uoNQDUNy pue uo1njejo]
SHEd JO UON2UNJ pue Uoneso
E NN
Using the Display
While the deck is stopped
Press LEVEL/DISPLAY/CHAR (or DISPLAY) repeatedly to
change the display.
Each press of the button changes the display as follows:
Total number of tracks and total recorded
time (default display)
The contents of a program (only when
“PROGRAM” lights up)
[TI u 7 —h oF - PROGAAM 1 4
. cr Or. 7
; — Bo 46 ок E "1 4 4 2 a EA
—
Press
Q You can check the remaining recordable time on the MD
Press TIME. Each press of the button changes the display as
follows:
Total number of tracks and total recorded
time (default dispiay)
оо = HE
Ч Press
Total number of tracks and remaining recordable
time on the MD (recordable MDs only)*
NED
3 4
e 9
13 14
naw
; 1
-_ 6
Tn
7 '
4 z 1
А
Poma
г Ги
of =I 40 M ‘@ 12
L
я
+ Not shown for Hhe premastered discs.
12“
<
Press
While the deck is recording
Press LEVEL/DISPLAY/CHAR (or DISPLAY) repeatedly to
change the display.
Each press of the button changes the display as follows:
Track number and recorded time of the
current track (default display)
Tor ma TT Emir | 12345
dof bet iT ha Tan CE Te A LSYNC 6 7 B 9 10
| ME RECTO 11 1213 14 15»
ae TO EU pd + dB —> 40 30 18 12 8 4 2 00ER
HA Е о e! El de RD.
Sampling frequency indication
ES dd ke 12345
| Doe TT. iia Lsc 6 7 8 9 10
>> 03 oc 11 1213 415»
YE e Tres
i E i r i N ; i { = В. | =... =." 17 * 2 O OVER
—
Press
“FS -- kHz" appears while the analog signal is input.
€ You can check the remaining recordable time on the MD
Press TIME. Each press of the button changes the display as
tollows:
Track number and recorded time of the
current track (default display)
Rio A 12345
".." reed — Lsyne 6 7 B 9 10
e Co т 12 13 14 15 »
da CET mls nm e
y Press
Track number and remaining recordable
time on the MD
Pr O 12345
nt 11 Y von Lire 6 7 8 9 10
= | A roc 11 12 13 $4 15 »
TRACK TE Td га + 4B Ze... " 28 4 UE
=
Press
Y The Peak Hold Function freezes the peak level meters at the
highest level reached by the input signal
1 While the deck is stopped or plaving, press MENU NO twice
“Setup Menu” appears in the display.
2 Turn AMS (or press HE repeatedlv) until “P.HOOld Of”
(factory setting) appears, then press AMS or YES.
3 Turn AMS (or press He PH repeatediv) to select
“P.Hold On”, then press AMS or YES,
4 Press MENU/NO.
To turn off the Peak Hold Function, select “P. Hold Ott” in step 3
above.
While the deck is playing
Press LEVEL/DISPLAY/CHAR (or DISPLAY) repeatedly to
change the display.
Each press of the button changes the displav as follows:
Track number and elapsed time of the
current track (default display)
TIRAR
(TRÄCK] Tr mr
The contents of a program (only when
“PROGRAM” lights up)
!
, Se er
- d + 1 +, PROGRAM 1
7 N 7
ZEN >
TRACK ot Е Бело Раф що esp fo 3 NA 8 4 O cows
— Ea Wii РОСТО RO nn |
Disc name and track name
|
ose bls i „2345
| 11 12 13 14 15 +
“TRACK; | 1 E Е LA в Da 18 12 B 4 2 DOVER
Ч, Press
Level of the output signal
I
= do Lo . „я
Cute Теме} „23485
в 11 12 13 14 15» |
ANlao- 715 Cde Tus e e es
: Press
©" You can check the remaining time
Press TIME. Each press ot the button changes the display as
follows:
Track number and elapsed time of the
current track (default display)
Ti Tr do
: Pb Rd ert 3 4
| a PENA 6 8 Y 10
| 11 12 13 14 15 =
| TRAŸE CS т Ti nn Pal 46 40 MO CA zw 4 2 QuE
Ro = 11 PET tet tet
1
Track number and remaining time of the
current track
—
| — “о
1
ve
TRACK Dl ree r
| = dr
Le
Remaining time of all recorded tracks
TS то, 1
17 E 2345
Libia 678310
14 15
+ —
Press
ands
|
= mi
€ You can check the track name at any time while playing
Press SCROLL.
The track name appears and scrolls. While the track name is
scrolling, press the button again to pause scrolling, and again to
continue scrolling.
Checking the pitch control value
Press PITCH CONTROL repeatedly.
Each press of the button changes the display as follows:
Track number and elapsed time of the
current track (default display during play)
| чтоп. с
|
=
=
LES
se
1
Er
т
!
ELA
Н
> Y
om
Ñ
or
=
= 3
- N
—
‚ =
=
da
=
5 Dé
Tx
*
Pitch value in steps
Cm fei nr 2345
PE il 878910
| 11 12 13 14 15 +
| т 1 2 i oem OB 05 40 4 ‘ # 4 2 OO
cor al El PEZ NOTE.
y Press
Fine control value*
ein = wm. - A 2 3 45
i Pon fan - A 6 7 8 910
> 11 12 13 14 15» | |
” +, Ju ги. и, = TO M6 NOME ESO C8 C1 060$ 07 COR
LA] a TEE emt Tal et ы == _ Press
= lon ant to Chore the pit see "Charon the Pitch on pages
41] 7 +]
13
sed Jo uoNPuNg pue uo1nejo]
"py
Recording on
MDs
This chapter explains the various
ways to record to an MD, as well as
how to mark track numbers and
perform synchro-recording with other
components.
14
Notes on Recording
About indications which appear while
recording
When “Protected” and “C11” alternate in the
display
The record-protect slot is open and the MD ts record-
protected. To record on the MD, slide the tab to close the
stot. For details, see “To prevent accidental erasure of the
recorded material” on page 16.
When “Din Unlock” and “C71” alternate in the
display
* The digital component selected with the INPUT selector
Is not connected correctly. Check the connection.
* [he selected digital component is not turned on. Turn
on the component.
When “Cannot Copy” appears in the display
The MD deck uses the Serial Copy Management System.
MDs recorded through the digital input connector can't be
copied to other MDs or DAT tapes through the digital
output connector. For details, see “Guide to the Serial
Copy Management System” on page 15.
When “TRACK” flashes in the display
The MD deck is recording over existing track(s) (see
“Recording on an MD” on page 15). The indication stops
tlashing when the deck reaches the end of the recorded
portion.
About indications which appear after
recording
When “TOC” lights up in the display
Recording has finished but the TOC (Table of Contents)
on the MD has not been updated to reflect the recording
results. The recording will be lost if you disconnect the
AC power cord while the indication is on. The TOC will
be updated only when vou eject the MD or turn off the
MD deck.
When “TOC Writing” flashes in the display
The deck 1s updating the TOC. Do not disconnect the AC
power cord or move the deck while the indication tlashes.
Automatic conversion of digital sampling
rates during recording
A built-in sampling rate converter automatically converts
the sampling frequency of various digital sources to the
44.1 kHz sampling rate of the MD deck. This allows vou
to monitor and record sources such as 32- or 45-kHz DAT
tape or satellite broadcasts, as well as the CDs and MDs.
Guide to the Serial Copy Management
System
Digital audio components, such as CDs, MDs, and DATs
make it easy to produce high-quality copies of music by
processing music as a digital signal.
To protect copyrighted music sources, this deck uses the
Serial Copy Management System which allows vou to
make only a single copy of a digitally recorded source
through digital-to-digital connections.
You can make only a first-generation copy *
through a digital-to-digital connection.
Examples are given as follows:
* You can make a copy of a commercially available digital
sound program (for example, a CD or MD), but vou
can't make a second copy from the first-generation
copy.
* You can make a copy of a digital signal from a digitally
recorded analog sound program (for example, an
analog record or a music cassette tape) or from a digital
satellite broadcast program, but vou can't make a
second copy from the first-generation copy.
+ À first-generation copy means the first recording of a digital atadio
source through the decks digital input connecter. For example, if vet
record front a CD player connected to the DIGITAL OPTI or OPT 2
connector, that copy is a first-generation copy.
Note
The restrictions of the Serial Copy Management Svstem don't
apply when vou make a recording through the analog-to-analog
connections.
Recording on an MD
The operations tor normal recording are explained below.
[t the MD has recorded material on it, the deck will
automatically start recording trom the end of the recorded
portion.
1 ES EJECT EN REC MODE INPUT
AMS > №® RECO
1 Turn on the amplifier and program source, and
select the source on the amplifier.
2 Press 1/0 to turn on the deck.
The STANDBY indicator turns off.
3 Insert a recordable MD.
4 Set INPUT to the position that corresponds to the
input jacks (connector) connected to the program
source.
If the source is connected to the Set INPUT to
DIGITAL IN connector OPT! or OPT?
LINE (ANALOGY IN jacks ANALOG
5 Set REC MODE to the recording mode you want to
record in.
To record in Set REC MODE to
Stereo STEREO
Monaural MONO
15%
SAIAl Uo Buip1023y
SAW чо BuIp1053H
Recording on an MD
6 if necessary, locate the point on the MD to start
recording from.
If vou want to record on a new MD or start recording
from the end of the recorded portion, go to step 7.
To record over from the beginning of an existing MD
track
Turn AMS (or press HE / ropeatediv) until the
number of the track to be recorded over appears.
To record over from the middle of an MD track
Turn AMS (or press He / PD repeatediv) until the
number of the track to be recorded over appears, then
press E= to start plavback. Press IN at the point vou
want to start recording from.
7 Press RECO.
The deck changes to recording pause.
8 If necessary, adjust the recording level.
For details, see “Adjusting the Recording Level” on
page 17.
9 Press >> or II.
Recording starts.
10 Start playing the program source.
Operations you may want to do during recording
To Press
Stop recording Hn
Pause recording Il
Resume recording after pausing = or I
Eject the MD S EJECT after stopping
recording
When you pause recording
The track number increases by one. For example, 1f vou
paused recording while recording track +, the track
number will be 5 when vou resume recording.
1 6”
To prevent accidental erasure of the recorded
material
To make it impossible to record on an MD, slide the
record-protect tab in the direction Of the arrow (see
illustration below) to open the slot. To enable recording,
close the slot.
Bottom side of the MD
Record-protect tab
Slide in the direction
of arrow
No
© To play the tracks you just recorded
Press B= immediately atter stopping recording,
The deck starts to plav from the first track of the material just
recorded.
Y To play from the first track of the MD after recording
1 Press IM again after stopping recording.
2 Press >.
The deck starts to plav from the first track of the MD.
Notes
e If vou switch REC MODE during recording or recording pause,
recording stops.
e Monaural mode allows vou to record about twice as much
material as stereo.
Even if vou set REC MODE to MONO, the monitor signal
during recording does not become monaural.
You can't record over existing material when Shuttle Play (page
27) or Program Play (page 27) has been selected. “Impossible”
appears in the display at this time.
Adjusting the Recording
Level
You can adjust the recording level tor both analog and
digital recording,
LEVEL/DISPLAY/CHAR
1 Do steps 1 to 7 of “Recording on an MD” on pages
15 and 16.
2 Play the portion of the program source with the
strongest output.
3 Press LEVEL/DISPLAY/CHAR (or DISPLAY) repeatedly
until the level of the input signal appears.
4 While monitoring the sound, turn AMS (or press
HH /P>D>] repeatedly) to raise the recording level to
its highest level without turning on the two
rightmost indicators on the peak level meters.
Imo TL 1
mol gM, I
Hil SU OE 4 ei
1
Avoid turning on these indicators
1234 |
|
5 Stop playing the program source.
6 To start recording, continue from step 9 of
“Recording on an MD” on page 16.
Q You can adjust the recording level using the remote ;
During recording or recording pause, press LEVEL +/-
repeatedly.
Y You can use Setup Menu to adjust the recording level
During recording or recording pause, select “Ain,” “Opti or
“Opt2” in Setup Menu.
You can adjust the recording level regardless of the source
selected in the INPUT selector.
Note
The volume can only be increased up to +12.0 dB (for analog
recording) or +18.0 dB (for digital recording). Theretore, it the
output level of the connected component is low, it may not be
possible to set the recording level to maximum.
Recording Tips
£ EJECT MENU/NO YES INPUT
RECO
Checking the remaining recordable time
on the MD
Press TIME repeatedly.
While the deck 1s The following information appears
Total recorded time «> Remaining
recordable time on the MD
Stopped
Recorded time of the current track «—
Remaining recordable time on the MD
Recording
For details, see page 12.
Monitoring the input signal
(Input Monitor)
You can monitor the selected input signal even when
vou're not recording it.
1 Press 2 EJECT to eject the MD.
2 Set INPUT to the position that corresponds to the
jacks (connector) where the signal you want to
monitor is being input.
3 Press RECO.
When INPUT is set to ANALOG
The analog signal input from the LINE (ANALOG) IN
jacks 1s output to the DIGITAL OUT connector after
AD conversion, and then to the LINE (ANALOG)
OUT jacks after D/A conversion. “AD - DA” appears
in the display during this time.
17%
SAW uo buipioday .
——
SAIN uo buipioday
E A —_— " " _ " _ _—_—"—— "1";
Recording Tips
When INPUT is set to OPT1 or OPT2
The digital signal input from the DIGITAL IN (OPT!
or OPT2) connector is output to the DIGITAL OUT
connector atter passing through the sampling rate
converter, and then to the LINE (ANALOG) OUT jacks
and PHONES jack after D/A conversion. “- DA”
appears in the display during this time.
Erasing blank portions automatically
(Smart Space/Auto Cut)
The deck can be set to automatically erase anv blanks that
are produced when the signal is interrupted during
recording. The function which activates (Smart Space or
Auto Cut) depends on the length of the interruption, as
described below.
Smart Space
If the signal is interrupted for less than 30 seconds, Smart
Space replaces the blank portion with a blank space of
about three seconds, then continues the recording. “Smart
’
Space” appears in the display during this time.
Auto Cut
If the signal is interrupted for about 30 seconds, Auto Cut
replaces the blank portion with a blank space of about
three seconds, then pauses the recording. “Auto Cut”
appears in the displav during this time.
Do the procedure below to turn Smart Space and Auto
Cut on or oft.
1 while the deck is stopped, press MENU/NO twice.
“Setup Menu” appears in the displav.
2 Turn AMS (or press He /P>>1 repeatedly) until
“S Space On” appears, then press AMS or YES.
185
3 Turn AMS (or press 14</>D repeatedly) to select
the setting, then press AMS or YES.
To Select
lurnon Smart Space and Auto Cut 5.5pace On ttactory
setting)
burn off Smart Space and Auto Cut S.5pace Ort
4 Press MENU/NO.
Notes
.
tt vou start recording with no signal input, Smart Space and
Auto Cut will not operate regardless of the setting.
Smart Space does not affect the order of the track numbers
being recorded, even it the blank space occurs in the middie of
à track.
Auto Cut 1s automatically turned on or off in tandem with
Smart Space,
It vou turn off the deck or disconnect the AC power cord, the
deck will store the last setting (“S.5pace On” or “S.Space Off”)
and recall it the next time vou turn on the deck.
If the deck continues recording pause for about 10 minutes
after the Auto Cut activated, recording stops automatically.
SAN
Marking Track Numbers
While Recording (Track Marking)
You can mark track numbers either manually or
automatically while recording. Bv marking track
numbers at specific points, vou can quickly locate the
points later or edit the MD easily.
MENU/NO YES
—
чо
RECO
e CE
AMS
Marking track numbers manually
(Manual Track Marking)
Press REC @ at the point where you want to add a
track number while recording.
Marking track numbers automatically
(Automatic Track Marking)
When recording from a CD plaver or MD deck connected
to the DIGITAL IN connector, the deck marks track
numbers in the same sequence as the source. When
recording from other sources connected to the DIGITAL
IN connector or a source connected to the LINE
(ANALOG) IN jacks, do the procedure below to mark
track numbers automatically.
1 While the deck is stopped, press MENU/NO twice.
“Setup Menu” appears in the display.
2 Turn AMS (or press HE /P>>1 repeatedly) until
“T.Mark Lsyn” appears, then press AMS or YES.
3 Turn AMS (or press </p> repeatedly) to select
the setting, then press AMS or YES.
To Select
Turn on Automatic Track Marking T.Mark Lsvn (factory
setting)
Turn off Automatic Track Marking T.Mark Oft
4 Press MENU/NO.
The deck marks a track number whenever the input
signal level drops to —50 dB (the trigger level tor
Automatic Track Marking) or below tor at least 1.5
SEecon ds.
To change the trigger level for Automatic Track
Marking
Do the procedure below to change the signal level that
triggers Automatic Track Marking.
1 While the deck is stopped, press MENU/NO twice.
“Setup Menu” appears m the display.
2 Turn AMS (or press He />> repeatedly) until
“LS(T)” appears, then press AMS or YES.
3 Turn AMS (or press +4 /D>D] repeatediy) to select
the level, then press AMS or YES.
You can set the level at anv value between —72 dB and
(1dB, in 2 dB steps.
4 Press MENU/NO.
19us
SOIN чо buipioday
SAIN Uo GBuip1023y |
|]
Marking Track Numbers While Recording
(Track Marking)
Y Additional information on Automatic Track Marking
* When recording trom a CD plaver or MD deck connected to the
DIGITAL IN connector, the entire material may be recorded as
a single track in the following cases:
— When vou consecutively record the same track two or more
times using single-track repeat play.
— When vou consecutively record two or more tracks with the
same track number but from different CDs or MDs.
— When vou record tracks from certain CD or multi-disc
players.
Also, it the source 15 an MD, a track number mav not be
marked for tracks less than four seconds long.
When recording from a component connected to the LINE
(ANALOG) EN jacks with “T.Mark Ott” selected or when
recording from a DAT deck or DBS tuner connected to the
DIGITAL IN connector, the entire material max be recorded as
a single track.
When recording from a DAT deck or DBS tuner connected to
the DIGITAL IN connector, the deck will mark a track number
whenever the sampling frequency of the input signal changes,
regardless of the track marking parameter setting (“T. Mark
Lsyn” or “T.Mark Off”).
e You can mark track numbers even after recording has
finished
See “Dividing Tracks” on page 33.
Note
If you turn off the deck or disconnect the AC power cord, the
deck will store the last settings (“T.Mark Lsvn” or “T.Mark Oft”
and the trigger level) and recall them the next time vou turn on
the deck.
20“
Starting Recording With Six
Seconds of Prestored Audio
Data (Time Machine Recording)
Whenever the deck is in recording pause, the deck's
butter memory continuously stores the latest six seconds
worth of audio data. When vou press AMS (or TREO),
the recording then starts with the data in the buffer
memorv. Time Machine Recording thus allows you to
avoid missing the beginning of material recorded live
from an FM or satellite broadcast.
1 Do steps 1 to 7 of “Recording on an MD" on pages
15 and 16.
The deck changes to recording pause.
N
Start playing the program source.
Ww
Press AMS (or T.REC) at the point where you want
to start recording.
Recording starts with the six seconds of prestored data
in the butfer memory, then continues recording via the
butfer memory thereafter.
To stop Time Machine Recording
Press lL
Note
The storage of data in the bufter memory starts from the moment
the deck changes to recording pause. Thus, if you start recording
less than six seconds atter changing to recording pause, less than
six seconds worth of data will be recorded from the buffer
memory. The same is true it the program source had been
plaving for less than six seconds at the time you start recording.
Synchro-recording With the
Audio Component of Your
Choice (Music Synchro-recording)
m=
+
$
!
nn
The Music Synchro-recording allows you to automatically
synchronize recording on the MD deck with the plaving
of the selected program source. The Track Marking
function, however, will differ according to the program
source. For details, see “Marking Track Numbers While
Recording” on page 19.
MUSIC SYNC
1 Do steps 1 to 6 of “Recording on an MD” on pages
15 and 16.
2 Press MUSIC SYNC.
The deck changes to recording pause.
3 start playing the program source.
Recording starts automatically.
To stop Music Synchro-recording
Press M.
Note
During Music Synchro-recording, Smart Space and Auto Cut will
operate regardless of their setting (“S.Space On” or “5S. Space
Off).
Synchro-recording With a
Sony CD Player ss
(CD Synchro-recording) î |
When the deck Is connected to a Sony CD player or Hi-Fi
component svstem, vou can easily copy the contents of
CDs to the MD using the deck's remote. Ás the same
remote operates both the MD deck and the CD plaver or
CD plaver section of the component system, make sure to
place the MD deck and the CD plaver as close together as
possible.
+— TIME
CD-SYNC START — * — CD-SYNC STANDBY
CD-SYNC STOP —+
CD PLAYER 11 —
CD PLAYER He</>>1 —-
1 Turn on the amplifier and the CD player, and select
CD on the amplifier.
2 Do steps 2 to 6 of “Recording on an MD“ on pages
15 and 16.
3 Insert a CD into the CD player and select the
playback mode (Shuffle Play, Program Play, etc.) on
the CD player.
4 Press CD-SYNC STANDBY.
The CD plaver changes to play standby and the MD
deck changes to recording standby.
5 Press CD-SYNC START.
The deck starts recording and the CD player starts to
play.
The track number and elapsed recording time of the
track appear in the display.
If the CD player doesn't start playing
Some CD plavers may not respond when vou press
CD-SYNC START. Press Hron the CD players remote
instead to start play on the CD plaver.
PARE
SOI чо ÁBUIp.o y |
SAIN uo buipaoday |
Synchro-recording With a Sony CD Player (cp
Synchro-recording)
Operations you may want to do during CD
Synchro-recording
To Press
CD-SYNC STOP
Stop recording
CD-SYNC STANDBY or CD
PLAYER fl
Pause recording
Locate the next track to be CD PLAYER HE >>
recorded during recording
pause
CD-SYNC START or CD
PLAYER UB
Resume recording after
pausing
Check the remaining
recordable time on the MD
TIME (page 12)
Y You can use the remote of the CD player during CD Synchro-
recording
Press To change the deck to And change the CD player to
> Recording Play
= Recording pause Stop
tl Recording pause Pause
q During CD Synchro-recording, track numbers are marked in
the following ways:
* When the CD player is connected to the DIGITAL IN connector,
track numbers are automatically marked as they appear on the
CD.
* When the CD plaver is connected to the LINE (ANALOG) IN
Jacks, track numbers are automatically marked when “1. Mark
Lsyn” has been selected (page 19).
* When you resume recording after recording pause, a new track
number is automatically marked, regardless of the track
marking parameter setting (“T.Mark Lsyn” or “T.Mark Ott").
e You can change CDs during CD Synchro-recording
1 Press M on the CD plaver's remote.
2 Change the CD.
3 Press E> on the CD plaver's remote.
Recording resumes.
27"
Ÿ You can also perform synchro-recording with a Sony video
CD player
by reprogramming the MD's remote, vou can use the procedure
above to perform svnchro-recording with a Sony video CD
plaver.
Press number button 2 while pressing down 1/0 on the MD
decks remote. You can now operate the MD deck and the video
CD plaver with the remote. To control the CD player again, press
number button 2 while pressing down 1/0) on the MD deck's
remote.
Q During CD Synchro-recording, the deck copies CD text
information (CD text and disc memos) as it is to the MD (Disc
Memo Copy Function)
The Disc Memo Copy function operates when vou make a CD
Svnchro-recording from a Sony CD player connected with a
control ALÍ cable (not supplied) to the MD deck.
Notes
* When performing CD Synchro-recording with a CD player
with a mode selector, be sure to set the selector to CDT.
* When vou record tracks from certain CD or multi-disc plavers,
the entire material may be recorded as a single track.
* The Disc Memo Copy Function may not operate for extremely
short CD tracks.
* Text information may not be copied tor some CDs.
Making a CD Synchro-recording from a
Sony CD player connected with a control
A11 cable (not supplied)
1 Do steps 1 to 3 of “Synchro-recording With a Sony
CD player” on page 21.
2 Set the CD player to playback pause mode.
3 Press REC @ on the deck.
The MD deck changes to recording pause.
4 Press = or Il on the deck.
The deck starts recording and the CD player starts to
plav. When CD plav finishes, recording stops.
Playing MDs
This chapter explains the various
ways to play MDs.
Ce 777"
Playing an MD
The operations tor normal play are explained below.
[y ! AMS 2 EJECT > uE
= ооо
© © 000
1 Turn on the amplifier and select MD on the
amplifier.
2 Press 1/7 to turn on the deck.
The STANDBY indicator turns oft.
Ww
Insert an MD.
4 if necessary, turn AMS (or press 94 repeatedly) to
locate the track you want to start playing from.
If vou want to play from the first track, go to step 5.
saw Buifeld
5 Press >.
The deck starts to plav.
6 Adjust the volume on the amplifier.
Operations you may want to do during play
To Press or turn
Stop play m
Pause plav il
Resume play atter pausing I or il
Locate a succeeding track AMS clockwise (or press >>
repeatedly)
Locate the beginning of the AMS counterclockwise (or press
current track or a preceding 4 repeatedly)
track
Eject the MD 2 EJECT after stopping play
SQ To use headphones
Connect them to PHONES jack. Use PHONE LEVEL to adjust
the volume.
2305
saw GuiAejd |
DL
Playing an MD
'Q You can adjust the analog signal level output to the LINE
(ANALOG) OUT jacks and the PHONES jack
1 While the deck is plaving, press LEVEL DISPLAY ¿CHAR (or
DISPLAY) repeatedly until the line output adjustment display
appears,
2 Turn AMS (or press LEVEL +/-— repeatedly) to adjust the
output signal level.
© You can use Setup Menu to adjust the analog output level
While the deck is plaving, select “Aout” in Setup Menu.
Note
When vou eject the MD or turn ott the deck, the output level is
reset to the factory setting (0.0 dB).
24
Playing a Specific Track
While the deck 1s plaving or stopped, use the procedure
below to quickly play any track.
Number —+
buttons
>25 ——æ DO O
M.SCAN = |
[=> = jj)
lt / PP —H = DS
Locating a track with AMS*
To go to
Do the following:
The next or a succeeding
track during play
Turn AMS clockwise (or press
> repeatedly).
A preceding track during
play
Turn AMS counterclockwise (or
press Hd repeatedly).
The beginning of the current
track during plav
Turn AMS counterclockwise (or
press 4€ once).
À specific track while the
deck 1s stopped
Turn AMS (or press + / >>
repeatedly) until the track
number you want to go to flashes
in the display, then press AMS or
>.
A specific track by scanning
each track for six to twenty
seconds (Music Sean) 1
Press M.SCAN before vou start
plaving. When you find the
track vou want, press E= to start
plaving.
* Automatic Music Sensor
Q To locate the last track of the MD quickly
While the deck is stopped, turn AMS counterclockwise (or press
Idd once).
© you locate a track while the deck is stopped or paused
The deck will still be stopped or paused at the beginning of the
located track.
Y You can extend the playing time during music scan
1 While the deck is stopped, press MENU /NO twice.
“Setup Menu” appears in the display.
2 Turn AMS (or press HE / > repeatedly) until M.Scan”
appears, then press AMS or YES.
3 Turn AMS (or press Ht/D>M repeatedly) to select the plaving
time within a range of six to twenty seconds (in one second
steps), then press AMS or YES.
4 Press MENU/NO.
Playing a track by entering the track
number 1
Press the number button(s) to enter the track number
of the track you want to play.
To enter a track number over 25
1 Press >25.
2 Enter the corresponding digits.
To enter D, press 10 instead.
Examples:
* To play track number 30, press >25, then 3 and 10.
* To play track number 108, press >25 twice, then 1, 10, and
8.
eu you enter a track number while the deck is stopped or
paused
The deck will still be stopped or paused at the beginning of the
track.
Locating a Particular Point
In a Track
You can locate a particular point in a track during plav or
plav pause.
<d/ >
Locating a point while monitoring the
sound
Press down <</ >> during play.
You will hear intermittent playback as the disc goes
forward or in reverse. When vou reach the point, release
the button.
Notes
lf the disc reaches the end while vou're pressing MP, the deck
stops.
* Tracks that are only a few seconds long may be too short for
monitoring. For such tracks, play the MD at normal speed.
Locating a point by observing the time
indication
Press down <</ >» during play pause.
The elapsed plaving time of the track appears in the
displav. When vou reach the point, release the button.
No sound is output during this time.
E When “- Over -" appears in the display
The disc has reached the end while voure pressing »»>. Turn
AMS counterclockwise (or press He) or press <4 to go back.
2 5 US
Sal Bulñeld
saw buiheld
Playing Tracks Repeatedly
You can play an entire MD repeatedly. This function can
be used with Shuffle Play to repeat all the tracks in
random order (page 27), or with Program Play to repeat
all the tracks in the program (page 27). You can also
repeat a specific track or portion within a track.
OOOOO
OOOOO
OOOOO
OOOOO
— A+«—B
0
0
Е
E)
REPEAT REPEAT
Note
If you turn off the deck or disconnect the AC power cord, the
deck will store the last setting of the repeat play (“Repeat All” or
“Repeat 17) and recall it the next time vou turn on the deck.
Repeating all the tracks on the MD
(Repeat All Play)
Press REPEAT repeatedly until “Repeat All” appears in
the display.
When you play an MD, the deck repeats the tracks as
follows:
When the play mode is The deck repeats
Normal play (page 23) All the tracks in sequence
Shuffle Plav (page 27) All the tracks in random order
Program Play (page 27) All the tracks in the program in
sequence
To stop Repeat All Play
Press №.
TO resume normal play
Press REPEAT repeatediv until) “Repeat Off appears in
the display.
726"
Repeating the current track
(Repeat 1 Play)
While the track you want to repeat is being played,
press REPEAT repeatedly until “Repeat 1” appears in
the display.
Repeat 1 Plav starts.
To stop Repeat 1 Play
Press IK.
To resume normal play
Press REPEAT repeatedly until “Repeat Ott” appears in
the display.
Repeating a specific portion within a
track (Repeat A-B Play) 1}
You can specify one portion within a track to be played
repeatedly. Note that the portion that you specify must be
within the boundaries ot a single track.
1 While the deck is playing, press A+—B at the
starting point (point A) of the portion to be played
repeatedly.
"REPEAT A-" lights up and “B” flashes in the display.
2 Continue playing the track or press B® to locate
the ending point (point B), then press A<—B.
“REPEAT A-B” lights up and Repeat A-B Play starts.
To stop Repeat A-B Play and resume normal play
Press REPEAT or CLEAR.
Y You can set a new starting point and ending point during
Repeat A-B Play
You can change the current ending point to a new starting point,
then specify a new ending point to repeat a portion right after the
current portion.
1 During Repeat A-B Play, press A«—B.
The current ending point changes to the new starting point
(point A).
“REPEAT A-" lights up and “B” flashes in the display,
2 Locate the new ending point (point B) and press A+«—B.
“REPEAT A-B” lights up and the deck starts to repeat the
newly specified portion.
Playing Tracks in Random
Order (Shuffle Play)
When vou select Shuffle Plav, the deck plavs all the tracks
on the MD in random order.
`
— р Е=====
о Фе +оо | | ) Oro
Le] Ге
PLAY MODE [==
1 While the deck is stopped, press PLAY MODE
repeatedly (or SHUFFLE once) until “SHUFFLE”
lights up in the display.
2 Press >.
Shuffle Play starts.
T3 appears while the deck is “shuttling” the tracks.
To resume normal play
While the deck is stopped, press PLAY MODE repeatedly
(or CONTINUE once) until “SHUFFLE” turns off.
Y You can locate tracks during Shuffle Play
Turn AMS (or press HE / > repeatedly).
* To locate the next track or a later track to be played, turn AMS
clockwise (or press B® repeatedly).
* To locate the beginning of the current track, turn AMS
counterclockwise (or press He). Note that vou can't locate
and plav the tracks that have alreadv been plaved once.
Creating Your Own
Program (Program Play)
You can pick out the tracks that vou like and specity the
plavback order in a program containing up to 25 tracks.
LEVEL/DISPLAY/CHAR MENU/NO YES <<4/>>
«= coe | ,
e DE poo |
|]
PLAY MODE AMS CLEAR [>
3— MENU/NO
© ha 9 ves
DISPLAY —-æ SD O a
coodso PROGRAM
OOOOO
OOOOO
3838897 Number
56009 buttons
>25 —ODOOO
¡DOS CLEAR
> —4 mE
ltd / >>] — == CR]
««/»» — (E ]o o
Programming the tracks
1 While the deck is stopped, press MENU/NO twice.
“Setup Menu” appears in the display.
2 Turn AMS (or press i /»P repeatedly) until
“Program ?” appears, then press AMS or YES.
3 Turn AMS (or press HE />>1 repeatedly) until the
track number you want to add to the program
appears, then press AMS or >» (or use the number
button(s) to enter the track directly).
If you entered the wrong track number
Press << / PP repeatedly until the wrong track
number tlashes, then do step 3 above again or press
CLEAR to erase the track number. If “0” tlashes, press
<<.
27"
SOIN BuiAejd
A a a
san buifeld
JE
Creating Your Own Program (Program Play)
To enter a track number over 25 |
Use >25. For details, see page 25.
To check the total playing time of the program
Press LEVEL /DISPLAY/CHAR (or DISPLAY).
Changing the contents of the program
While the deck is stopped and “PROGRAM” lights up, do
steps 1 and 2 of “Programming the tracks” on page 27,
tollowed by one of the procedures below:
4 Repeat step 3 to enter other tracks.
The entered track 15 added to the location where the
To
Do the following:
“0” flashes Frase a track
Each time vou enter a track, the total program time
[ress <A / PP repeatedly until the
number of the unwanted track flashes,
then press CLEAR.
appears in the displav.
Erase all tracks
Press CLEAR repeatedly until all the track
numbers disappear.
Add a track at the
beginning of the
program
5 Press YES.
17
“Complete!” appears and the program is completed.
6 Press PLAY MODE repeatedly (or PROGRAM once)
until “PROGRAM” lights up in the display.
Press 4 repeatedly until “0” tlashes
before the first track number, then do steps
3 to 5 of “Programming the tracks” on
pages 27 and 28.
7 Press >.
Program Play starts.
Add a track in the
middle of the
program
To stop Program Play
Press Mi.
Press << / >> repcatedly until the track
number which will precede the new track
flashes. Press AMS to display flashing
“0, ” then do steps 3 to 5 of “Programming
the tracks” on pages 27 and 28.
Add a track to the
To resume normal play end of the program
Press PLAY MODE repeatedly (or CONTINUE once) until
Press PP repeatedly until “0” flashes
after the last track number, then do steps
3 to 5 of “Programming the tracks” on
pages 27 and 28.
“PROGRAM” turns off.
ee Replace a track
Y The program remains even after Program Play ends or is
stopped
Press << / D>> repeatedly until the
number of the track to be changed flashes,
then do steps 3 to 5 of “Programming the
tracks” on pages 27 and 28.
Press = to play the program again.
Notes
If vou turn off the deck or disconnect the AC power cord, the
program will be lost.
* The display shows “---m--s” when the tota! plaving time of
the program exceeds 199 minutes.
* “Programbull?” appears when vou try to program 26th track.
Checking the contents of the program
While the deck is stopped and “PROGRAM” lights up,
press LEVEL/DISPLAY/CHAR (or DISPLAY) repeatedly.
The first several tracks in the program appear in the
display. To see the rest of the program, turn AMS (or
press He / >D repeatedly).
28°
Tips for Recording From
MDs to Tape
MENU/NO AMS YES
oa!
a € 000!
|
Inserting blanks between tracks during
play (Auto Space)
The MD deck can be set to automatically insert a three-
second blank between tracks during play. This function 15
useful when vou're recording from an MD to an analog
tape since the three-second blank enables vou to use the
Multi-AMS function later to locate the beginning of tracks
on the tape.
1 While the deck is stopped, press MENU/NO twice.
“Setup Menu” appears in the display.
2 Turn AMS (or press HE /»>>1 repeatedly) until
“Auto Off” appears, then press AMS or YES.
3 Turn AMS (or press HE />>i repeatediy) to select
the setting, then press AMS or YES.
To Select
Turn on Auto Space
Auto Space
Turn off Auto Space Auto Off (factory setting)
4 Press MENU/NO.
@ You can use the remote to turn on or off Auto Space à
While the deck is stopped, press A.SPACE repeatedlv until “Auto
Space” or “Auto Off” appears in the display.
Notes
e [f you select “Auto Space” and record a selection containing
multiple track numbers (for example, a medley or symphony),
blank spaces will be created on the tape in between the various
sections.
+ If you turn ott the deck or disconnect the AC power cord, the
deck will store the last setting (“Auto Space” or “Auto Off)
and recall it the next time vou turn on the deck.
Pausing after each track (Auto Pause)
You can set the MD deck so that it pauses after each track
to give vou time to locate the next track to be recorded.
1 While the deck is stopped, press MENU/NO twice.
“Setup Menu” appears in the display.
2 Turn AMS (or press € />>I repeatedly) until
“Auto Off” appears, then press AMS or YES.
3 Turn AMS (or press </>» repeatedly) to select
the setting, then press AMS or YES.
To Select
Turn on Auto Pause Auto Pause
Turn ott Auto Pause Auto Off (factory setting)
4 Press MENU/NO.
To resume play after pausing
Press >.
Y You can use the remote to turn on or off Auto Pause
While the deck is stopped, press A.SPACE repeatedly until “Auto
Pause” or “Auto Off” appears in the display.
Note
It vou turn oft the deck or disconnect the AC power cord, the
deck will store the last setting (“Auto Pause” or “Auto Off”) and
recall it the next time vou turn on the deck.
7 Qus
SAN Bulkeld :
Editing
Recorded MDs
This chapter explains how to edit the
tracks that have been recorded on an
MD.
3s
MENU/NO YES <«</»>>
AMS
Brief descriptions of buttons and control
used to edit MDs
The buttons and the control below are used to erase,
divide, move, or combine tracks on the MD.
Note
The operation of these buttons and the control is different when
naming a track or MD. For details, see “Naming a Track or MD”
On page 35,
MENU/NO button: While the deck is stopped, plaving,
or paused, press to edit tracks. While editing, press to
cancel editing.
AMS control: Turn to select an editing operation or track
number, then press to enter your selection. You can also
use the control to specify points in a track for erasure or
track division.
YES button: Press this button instead of the AMS control
to enter a selection.
««/»» buttons: Press to specify the unit (minute,
second, or frame) by which the MD is advanced when the
AMS control 1s turned. You can also use these buttons to
locate the end point of the portion to be erased.
For further details on the function of each button and
control, see the sections on editing operations.
About indication which appears while
editing
When “Protected” appears in the display
The record-protect slot is open. To edit the MD, slide the
tab to close the slot. For details, see “To prevent
accidental erasure of the recorded material” on page 16.
About indications which appear after
editing
When “TOC” lights up in the display
Editing has finished but the TOC (Table of Contents) on
the MD has not been updated to reflect the editing results.
The editing will be Tost if you disconnect the AC power
cord while the indication is on. The TOC will be updated
only when vou eject the MD or turn off the MD deck.
When “TOC Writing” flashes in the display
The deck is updating the TOC. Do not disconnect the AC
power cord or move the deck while the indication flashes.
Erasing Tracks
You can erase a track or part ot a track simply by
specifving the number of the track or the portion within a
track to be erased. You can also erase all the tracks on an
MD at one time.
Erasing a track
Specify the number of the track vou want to erase.
Example: Erasing the second track
7] AAA BBB CCC
DDD
TT] AAA [2] CCC [3] DDD
When vou erase a track, all the tracks after the one erased
are automatically renumbered. For example, if you erase
track number 2, the previous track number 3 becomes
track number 2 and the previous track number 4 becomes
track number 3, and so on.
1 While the deck is stopped, playing, or paused,
press MENU/NO.
“Edit Menu” appears in the display.
2 Turn AMS (or press H€-< / >>! repeatedly) until “Tr
Erase ?” appears, then press AMS or YES.
The deck starts to play the track indicated by the
number in the display.
3 Turn AMS (or press HE />1 repeatediy) until the
track number you want to erase appears.
4 Press AMS or YES.
“Complete!!” appears tor a few seconds and the track
is erased. The track following the erased track starts
to plav. If the erased track is the last one on the MD,
the track preceding the erased track starts to play.
To cancel the operation
Press MENU /NO or Ш.
31
SAINI papa0>ay Bunnipa
SAIN pap1023y Бира
Erasing Tracks
Q If "Erase 777" appears in step 4 above
The track has been record-protected on another MD deck. It vou
still want to erase the track, press AMS or YES again while the
indication appears.
e To avoid confusion when erasing more than one track
Start erasing from the highest numbered track. This wav vou'll
avoid renumbering the tracks that vou plan to erase.
Q You can undo the erasure
For details, see “Undoing the Last Edit” on page 39.
Erasing all the tracks on an MD
Do the procedure below to erase all the tracks, track
names, and disc name at once.
1 While the deck is stopped, playing, or paused,
press MENU/NO.
“Edit Menu” appears in the display.
2 Turn AMS (or press HE</ >> repeatedly) until “All
Erase 7” appears, then press AMS or YES.
“All Erase??” appears in the displav.
3 Press AMS or YES.
“Complete!!” appears for a few seconds and all the
tracks, track names, and disc name are erased.
To cancel the operation
Press MENU/NO or M.
Q You can undo the erasure
For details, see “Undoing the Last Edit” on page 39.
32“
Erasing a portion of a track
You can easily erase a portion of a track by specitving the
starting and ending points ot the erasure.
This is usetul for erasing the unnecessary portions of a
track recorded from a satellite or FM broadcast.
Example: Erasing portion “B2” of the second
track
MA Bo — [ccc
T -
3] ccc
AAA BEB
~~ 81 B3
1 while the deck is stopped, playing, or paused,
press MENU/NO.
“Edit Menu” appears in the display.
2 Turn AMS (or press Ht< / >> repeatedly) until “A-B
Erase ?” appears, then press AMS or YES.
3 Turn AMS (or press HE />>! repeatedly) until the
number of the track containing the portion to be
erased appears, then press AMS or YES.
“-Rehearsal-” and “Point A ok?” alternate in the
display and the deck plavs the first several seconds of
the track repeatedly.
4 While monitoring the sound, turn AMS (or press
H4< />>I repeatedly) to locate the starting point
of the portion to be erased (point A).
The time indication (“m (minute),” “s (second),” and
“f (frame = 1/86 second)”) of the current point is
displaved and several seconds of the track from that
point play back repeatedly.
To find a point quickly
Specify a unit (minute, second, or frame) by which the
MD 15 advanced when vou turn AMS (or press He<U/
PP repeatedly).
To do this, press <Q >> in step 4 repeatedly to select
“ms, or “t.7 The selected unit flashes in the
display.
5 Repeat step 4 until you've located point A.
6 Press AMS or YES to enter point A.
“Point B set” appears and several seconds of the track
from point A play back repeatedly.
7 Continue playing the track or press »>» to locate
the ending point of the portion to be erased (point
B), then press AMS or YES.
“A-B Ers” and “Point Bok?” alternate in the displav
anda few seconds of the track before point A and after
point B plav back repeatedly.
8 Repeat step 4 until you've located point B.
9 Press AMS or YES to enter point B.
“Complete!” appears for a few seconds and the
portion between point A and В 15 erased.
To cancel the operation
Press MENU /NO or Ш.
Ç You can undo the erasure
For details, see “Undoing the Last Edit” on page 39.
Note
In the following cases, “Impossible” appears and vou can't erase
a portion of a track:
* The point B you entered comes before point A.
* After repeated editing of a track, it may become impossible to
erase a portion of the track any further. This is a technical
limitation of the MD svstem and is not a mechanical error.
Dividing Tracks
You can divide a recorded track at any point simply by
adding a track mark at that point. This is especially useful
when vou want to divide recorded material which
contains multiple tracks but only one track number (see
page 20), or when vou want to locate a certain point in the
track.
Example: Dividing the second track
AAA BBB
B1 B2
CCC
Gjesb | [3
Bi B2
AAA [A] CCC
When vou divide a track, the total number of tracks
increases by one and all tracks following the divided track
are automatically renumbered.
Dividing a track after selecting the track
1 while the deck is stopped, playing, or paused,
press MENU/NO.
“Edit Menu” appears in the display.
2 Turn AMS (or press He />Bi repeatediy) until
“Divide ?” appears, then press AMS or YES.
3 Turn AMS (or press € />>I repeatedly) until the
number of the track you want to divide appears,
then press AMS or YES.
“-Rehearsal-” appears and the track starts to play.
4 While monitoring the sound, turn AMS (or press
HE />>l repeatediy) to locate the dividing point.
The time indication (“m,” “s ,” and “t Jof the current
point 1s displaved and several seconds of the track
trom that point play back repeatedly.
To find a point quickly
Specify a unit (minute, second, or frame) by which the
MD is advanced when vou turn AMS (or press 44 /
D>Di repeatediv).
To do this, press <+Q/ >> in step 4 repeatedly to select
“m, “sor £.” The selected unit flashes in the
display.
335
|
|
SAIN рэрло2эн Бира
|
[
L
SaIN pap1023y BuIp3
Dividing Tracks
5 Repeat step 4 until you've located the dividing
point.
6 Press AMS or YES.
“Complete! appears tor a few seconds and the track
is divided. The deck starts to plav the newly created
track. Note that new track has no name.
To cancel the operation
Press MENU /NO or BL
Q You can undo the track division
For details, see “Undoing the Last Edit” on page 39.
& You can divide tracks while recording
For details, see “Marking Track Numbers While Recording” on
page 19.
Dividing a track after selecting the
dividing point
1 While the deck is playing, press AMS at the point
you want to divide the track.
“- Divide -” and “-Rehearsal-" alternate in the display
and the deck starts to play from the selected point.
2 If necessary, do step 4 of “Dividing a track after
selecting the track” on page 33 to finely adjust the
dividing point.
3 Press YES.
“Complete!!” appears for a few seconds and the track
is divided. The deck starts to plav the newly created
track. Note that new track has no name.
To cancel the operation
Press MENU /NO or RL.
Q You can undo the track division
For details, see “Undoing the Last Edit” on page 39.
© You can divide tracks while recording
For details, see “Marking Track Numbers While Recording” on
page 19.
34“
Combining Tracks
This function allows you to combine any two tracks into a
single track. The two tracks need not to be consecutive
nor chronological. You can combine several tracks into a
single medley, or several independently recorded portions
into a single track. When vou combine two tracks, the
total number of tracks decreases by one and all tracks
tollowing the combined track are renumbered.
Example: Combining the second track and the
fourth track
Г] ААА
DDD
AAA T [3] ccc
If both of the combined tracks have a track name, the
name of the second track is erased.
1 While the deck is stopped, playing, or paused,
press MENU/NO.
“Edit Menu” appears in the display.
2 Turn AMS (or press </>» repeatedly) until
“Combine ?” appears, then press AMS or YES.
3 Turn AMS (or press 4 />> repeatedly) until the
number of the first track of the two to be
combined appears, then press AMS or YES.
The display tor selecting a second track appears and
the deck plavs the portion where joining will occur
(the end of the first track and the beginning, ot the
track following it) repeatedly.
4 Turn AMS (or press HE</>>1 repeatediy) until the
number of the second track of the two to be
combined appears, then press AMS or YES.
“Complete!” appears for a few seconds and the tracks
are combined. The deck starts to play the combined
track.
To cancel the operation
Press MENU/NO or ll.
& You can undo the combination
For details, see "Undoing the Last Edit” on page 39.
Note
IF “Impossible” appears in the display, the tracks can't be
combined because repeated editing has been done to the track(s).
This is à technical limitation of the MD system and is nota
mechanical error.
Moving Tracks Naming a Track or MD
This function lets you change the order of any track. You can enter a name for a recorded MD as well as for
individual tracks. Names can consist of uppercase and
Example: Moving the second track after the lowercase letters, numbers, and symbols. A total number
third track of 1.700 characters can be stored for all the names on the
AAA BBB | [3]CCC (20D0 MD.
Is LEVEL/DISPLAY/CHAR — MENU/NO YES <</>>
AAA ccc. 13) 888 DDD
After you move a track, the tracks are renumbered
automatically.
1 While the deck is stopped. playing, or paused,
press MENU/NO.
“Edit Menu” appears in the display.
2 Turn AMS (or press Ht</>>1 repeatedly) until
“Move ?” appears, then press AMS or YES.
3 Turn AMS (or press HE />P repeatedly) until the ООО
number of the track to be moved appears, then 00000
ess AMS or YES. OOO Ob Letter/number
press SSB buttons
4 Turn AMS (or press HE />P repeatedly) until the 9999 9
new track position appears, then press AMS or МАМЕ — 5 æ—+ CLEAR
YES. CHAR a NUM
“Complete!!” appears for a few seconds and the track <</>> — mt a /
is moved, The deck starts to plav the moved track.
To cancel the operation
Press MENU/NO or ll.
Y You can undo the track move
For details, see “Undoing the Last Edit” on page 39. Note
If vou name a track while it is being recorded, be sure to finish
the naming operation before the track ends. If the track ends
before vou finish, the entered character data will be discarded
and the track will remain unnamed. Also, vou can’t name tracks
while the deck is recording over existing material.
35
SAIN pap4oday Бытия |
|
SAN pap40d3y bunipy |
Naming a Track or MD
Naming a track or MD using the controls
on the deck
1 Press MENU/NO while the deck is in one of the
operating statuses listed below, depending on
what you want to name:
To name Press while the deck is
A track or the MD Stopped, plaving, or paused
The track being recorded Recording the track
“Edit Menu” appears in the display.
2 Turn AMS until “Name ?” appears, then press AMS
or YES.
While the deck is recording, a flashing cursor appears
in the display and you can enter a name for the track
being recorded. In this case, go to step 6.
3 Turn AMS until “Nm In ?” appears, then press AMS
or YES.
4 Turn AMS until the track number (when naming a
track) or “Disc” (when naming the MD) flashes,
then press AMS or YES.
D> Press AMS or YES again.
A flashing cursor appears.
че He
a АА > coco 678
me AT mis TEL. >
6 Press LEVEL/DISPLAY/CHAR repeatedly to select the
character type.
To select
Press repeatedly until
Uppercase letters
“A” appears in the display
[Lowercase letters
is #7
а
appears in the displav
Numbers
“O7 appears in the display
Symbols
“appears in the display
To enter a space
Press DD» while the cursor
36%
is Hashine.
7 Turn AMS to select the character.
The selected character flashes.
TRACK wh Tr
To change a selected character
Repeat steps 6 and 7.
8 Press AMS.
The selected character is entered and lights
continuously. The cursor shifts to the right, flashes,
and waits for the input of the next character.
TT
| o: — 45
Dn Na 678
7 No ¿TOC EDIT
. gd oo 40 К 18 17 в + 2 O vea
" L = =
—" A —_—
9 Repeat steps 6 to 8 to enter the rest of the name.
To change a character
Press <</D>> repeatedly until the character to be
changed flashes, then repeat steps 6 to 8.
To erase a character
Press <Q/D>> repeatedly until the character to be
erased tlashes, then press CLEAR.
10 Press YES.
The whole name appears in the display.
To cancel the operation
Press MENU/NO or M.
© You can undo the naming of a track or MD
For details, see “Undoing the Last Edit” on page 39.
1 Press NAME while the deck is in one of the
operating statuses listed below, depending on
what you want to name:
To name Press while the deck is
A track Plaving, paused, recording, or stopped with
the track number displaved
The MD Stopped with no track number displaved
A flashing cursor appears in the display.
2 Select the character type as follows.
To select Press
Uppercase letters CHAR repeatedly until “Selected
AB” appears in the display
Lowercase letters CHAR repeatedlv until “Selected
ab” appears in the display
Numbers NUM repeatedly until “Selected
12” appears in the display
3 Enter a character.
If you've selected uppercase or lowercase letters
1 Press the corresponding letter /number button
repeatedly until the character to be entered flashes.
Or, press the button once and press <q / >»!
repeatedly.
To select symbols, press repeatedly while “A”
is flashing.
2 Press pp.
The flashing character is entered and lights
continuously and the cursor shifts to the right.
If you've selected numbers
Press the corresponding number button.
The number is entered and the cursor shifts to the
right.
4 Repeat steps 2 and 3 to enter the rest of the name.
To change a character
Press UP repeatedly until the character to be
changed Hashes, press CLEAR to erase the character,
then repeat steps 2 and 3.
5 Press NAME.
The whole name appears in the display.
To cancel the operation
Press MENC NO or dl
"Ÿ You can undo the naming of a track or MD
For details, see "Undoing the Last Edit” on page 39.
Copying a track or disc name
You can copy an existing track or disc name and use it to
name another track on the same disc or the disc itself.
1 While the deck is stopped, playing, or paused,
press MENU/NO.
“Edit Menu” appears in the display.
|
SAIN pap102ay Bulipa
2 Turn AMS (or press He />>1 repeatedly) until
“Name ?” appears, then press AMS or YES.
3 Turn AMS (or press He />>1 repeatedly) until “Nm
Copy ?” appears, then press AMS or YES.
4 Turn AMS (or press << / PI repeatedly) until the
number of the track (when copying the track
name) or “Disc” (when copying the disc name)
flashes, then press AMS or YES to copy the selected
name.
When “No Name” appears in the display
The selected track or disc has no name.
5 Turn AMS (or press He />>1 repeatedly) until the
number of the track (when naming a track) or
“Disc” (when naming a disc) flashes, then press
AMS or YES to enter the copied name.
“Complete!” appears for a few seconds and the name
1S copied.
To cancel the operation
Press MENU NO or ll
37“
|
|
SAIN pap1023y Bunipa
yg ОНОНООООНННЕООННИ
Naming a Track or MD
Q When “Overwrite 77" appears in step 5 above
The track or the disc selected in step 3 already has a name. If vou
wish to replace the name, press AMS or YES again while the
indication appears in the display.
% You can undo the copying of a track or disc name
For details, see “Undoing the Last Edit” on page 39.
Renaming a track or MD 7
1 Press NAME while the deck is in one of the
operating statuses listed below, depending on
what you want to rename:
To rename Press while the deck is
A track Plaving, paused, recording, or stopped
with the track number displaved
The MD Stopped with no track number displaved
A track or disc name appears in the display.
2 Press down CLEAR until the selected name is
erased completely.
3 Do steps 6 to 9 of “Naming a track or MD using the
controls on the deck” on page 36 or steps 2 to 4 of
“Naming a track or MD using the remote” on page
37.
4 Press NAME.
Erasing a track or disc name
Use this function to erase the name of a track or disc.
1 While the deck is stopped, playing, recording, or
paused, press MENU/NO.
“Edit Menu” appears in the display.
2 Turn AMS (or press 44/1 repeatedly) until
“Name ?” appears, then press AMS or YES.
3 Turn AMS (or press 44/1 repeatedly) until “Nm
Erase ?” appears, then press AMS or YES.
38%
4 Turn AMS (or press 1-4 /»>>i repeatediy) until the
number of the track (when erasing the track name)
or “Disc” (when erasing the disc name) flashes,
then press AMS or YES.
“Complete!!” appears tor a few seconds and the name
1S erased.
To cancel the operation
Press MENU/NO or M.
% You can undo the erasing of a track or disc name
For details, see “Undoing the Last Edit” on page 39.
Erasing all the names on the MD
You can erase all the track names and the disc name on an
MD in a single operation.
1 While the deck is stopped, playing, or paused,
press MENU/NO.
“Edit Menu” appears in the display.
2 Turn AMS (or press H< / > repeatedly) until
“Name ?“ appears, then press AMS or YES.
3 Turn AMS (or press Hed / >> repeatedly) until “Nm
AHErs ?” appears, then press AMS or YES,
“Nm AllErs??” appears in the display.
4 Press AMS or YES.
“Complete!” appears for a few seconds and all the
names on the MD are erased.
To cancel the operation
Press MENU /NO or M.
'Q You can undo the erasing of all the names on the MD
For details, see “Undoing the Last Edit” on page 39.
Q You can erase all the recorded tracks and names on the MD
For details, see “Erasing all the tracks on an MD” on page 32.
DAN
Undoing the Last Edit
You can undo the last edit operation and restore the
contents of the MD ta the condition that existed befare the
operation. Note, however, that vou can’t undo an edit
operation if you perform any of the following operations
after the edit:
* Press REC O on the deck.
e Press @ or MUSIC SYNC on the remote.
e Turn off the deck or eject the MD.
e Disconnect the AC power cord.
MENU/NO AMS YES
1 While the deck is stopped and no track number
appears in the display, press MENU/NO.
“Edit Menu” appears in the display.
2 Turn AMS (or press HE / >>! repeatedly) until
“Undo ?” appears.
“Undo ?” doesn't appear if no editing has been done.
3 Press AMS or YES.
One of the following messages appears depending on
the last edit operation.
Last edit operation Message
Erasing a track
Erasing all the tracks on an MD Erase Undo?
Erasing a portion of a track
Dividing a track Divide Undo?
Combining tracks Combinel ndo?
Moving a track Move Undo?
Naming a track or MD
Copving a track or disc name
Renaming a track or MD Name Undo?
Erasing a track or disc name
Erasing all the names on the MD
4 Press AMS or YES.
“Complete!” appears for a few seconds and the MD is
restored to the condition that existed betore the edit
operation.
To cancel the operation
Press MENL /NO or 8.
39°
SAN Pap1023y bunip3
|
Other
Functions
This chapter explains other useful
functions that are available on the MD
deck.
40%
Changing the Pitch (Pitch
Control Function)
You can change the MD plavback speed (pitch). The tone
rises at higher pitches, and falls at lower pitches. When
vou've set the pitch to a value other than the factory
setting, the button lights amber during play.
PITCH CONTROL
> о =
© 00
= SL
Setting the pitch automatically in steps
(Auto Step Control Function)
You can increase the pitch by up to 2 steps” or lower the
pitch by up to 48 steps.
* One octave vquals 12 steps.
1 While the deck is playing, press PITCH CONTROL
repeatedly until “Pitch” appears in the display.
2 Turn AMS until the desired step value appears.
To recall the factory setting
Press CLEAR.
Notes
* When vou change the step value, the playback sound drops ou
momentarily.
+ The step value returns to “07 (factory setting) when vou turn
off the deck or eject the MD.
* When a dot (.) appears to the right of the step value in the pitet
displav, this indicates that you have performed fine adjustmen
(see the next page) and the pitch value is between steps. (The
step and fine control values are linked.)
Finely controlling the pitch (Fine Control
Function)
You can fine control the plavback speed in 0.19
increments from -98.5"o to +12.5”0.
1 While the deck is playing, press PITCH CONTROL
repeatedly until “Pfine” appears in the display.
2 Turn AMS until the desired value appears.
To recall the factory setting
Press CLEAR.
Notes
* The playback sound drops out momentarily when vou change
the fine control value.
* The fine control value reverts to “0°” (factory setting) when
you turn off the deck or eject the MD.
* The step and fine control values are linked; changing one value
also changes the other.
Y You can use Setup Menu to change the pitch
During play, select “Pitch” to set the pitch automatically in steps
or “Pfine” to finely control the pitch.
Fade In and Fade Out 1
You can use Fade-in Plav to gradually increase the signal
level to the LINE (ANALOG) OUT jacks and the PHONES
jack at the start of plavback. Fade-out Play gradually
decreases the signal level at the end of playback.
Fade-in Recording gradually increases the signal level at
the start of recording. Fade-out Recording gradually
decreases the signal level at the end ot recording.
— FADER
|
|
|
Note
The level of the signal output from the DIGITAL OUT connector
does not change during Fade-in Play nor Fade-out Play.
Fade-in Play and Fade-in Recording
SUOIJ3UN4 413430
During play pause (for Fade-in Play) or recording
pause (for Fade-in Recording), press FADER.
« flashes in the display and the deck performs Fade-in
Plav or Fade-in Recording for five seconds (factory
setting) until the counter reaches “0.08.”
41%
|
suon»ung 413430
Fade In and Fade Out
Fade-out Play and Fade-out Recording
During play (for Fade-out Play) or recording (for Fade-
out Recording), press FADER.
» flashes in the display and the deck performs Fade-out
Play or Fade-out Recording for five seconds (factory
setting) until the counter reaches "0.05, 7 then pauses.
E You can change the duration of Fade-in and Fade-out
Play/Recording
1 While the deck is stopped, press MENU NO twice.
“Setup Menu” appears in the display.
2 Turn AMS (or press HE / > repeatediv) to select the setting.
then press AMS or YES.
To change the duration of Select
Fade-in Plav/ Recording, Fan
Fade-out Play / Recording F.out
3 Turn AMS (or press tQ / > repeatedly) to select the
duration, then press AMS or YES.
Both the Fade-in and Fade-out durations can be set in 0.1
second steps.
4 Press MENU /NQO.
42%
Falling Asleep to Music
(SIeep Timer)
You can set the deck so that it turns off automatically after
specitied minutes.
MENU/NO AMS YES
1 While the deck is stopped, press MENU/NO twice.
“Setup Menu” appears in the display.
2 Turn AMS (or press H€</P>»I repeatedly) until
“Sleep Off” appears in the display, then press AMS
or YES.
3 Turn AMS (or press HE />D1 repeatedly) to select
the setting, then press AMS or YES.
To Select
Turn on Sleep Timer Sleep On
Turn off Sleep Timer Steep Off (factory setting)
4 Turn AMS (or press 14< />>! repeatedly) until
“Sleep 60min” appears in the display, then press
AMS or YES.
5 Turn AMS (or press 44 /l>I repeatedly) to select
the time to be turned off (“30min,” “60min”
(factory setting), “90min,” or “120min”), then press
AMS or YES.
6 Press MENU/NO.
To turn off Sleep Timer
Repeat the procedure above, selecting “Sleep Off” in step
ha
ar
Using a Timer
By connecting a timer (not supplied) to the deck, vou can
start and stop playback/recording operations at specified
times. For further information on connecting the timer or
setting the starting and ending times, refer to the
instructions that came with the timer.
TIMER PLAY MODE > a
Playing an MD using a timer
1 Dosteps 1 to 3 of “Playing an MD” on page 23.
2 Press PLAY MODE repeatedly to select the play
mode you want.
To play only specific tracks, create a program (see page
27).
To specify the time for the end of plavback, press [=
to start playing, then go to step 3.
Ww
Set TIMER on the deck to PLAY.
4 Set the timer as required.
* When you have set the time for the start of
playback, the deck turns off. When the specified
time arrives, the deck turns on and starts plaving.
.
When you have set the time for the end of plavback,
playback continues. When the specified time
arrives, the deck stops playing and turns off.
* When you have set the time for both the start and
end of playback, the deck turns off. When the
starting time arrives, the deck turns on and starts
playing. When the ending time arrives, the deck
stops plaving and turns off.
5 After you have finished using the timer, set TIMER
on the deck to OFF.
Recording on an MD using a timer
1 Do the following steps of “Recording on an MD”
on pages 15 and 16 as requested.
To specify the time for Do
The start of recording Steps 1 to 7, then press al
The end of recording Steps 1 to 10
Both start and end of recording Steps 1 to 7, then press ll
Set TIMER on the deck to REC.
Set the timer as required.
* When vou have set the time for the start of
recording, the deck turns off. When the specified
time arrives, the deck turns on and starts recording.
* When vou have set the time for the end ot recording,
recording continues. When the specified time
arrives, the deck stops recording and turns off.
When vou have set the time for both the start and
end of recording, the deck turns off. When the
starting time arrives, the deck turns on and starts
recording. When the ending time arrives, the deck
|
|
stops recording and turns off.
After you have finished using the timer, set TIMER
on the deck to OFF. Then change the deck to
standby status by plugging the AC power cord of
the deck into a wall outlet or set the timer to
continuous operation.
e If TIMER is left at REC, the deck will automatically
start recording the next time you turn the deck on.
suoljdund 13410
* [f vou do not change the deck to standby status for
more than a week after timer recording has finished,
the recorded contents mav disappear.
435
Jung 13430 |
Suor
E
Using a Timer
Make sure to change the deck to standby status
within a week after timer recording is
completed.
The TOC on the MD is updated and recorded contents are
written to the MD when vou turn the deck on. Tf the
recorded contents have disappeared, “Initialize” tlashes
when vou turn the deck on.
Notes
* It may take about 30 seconds after the deck is turned on until
recording starts. When recording at a specified time using the
timer, be sure to take this time into account when setting the
recording start time.
* During timer recording, new material is recorded trom the end
of the recorded portion on the MD.
* Material recorded during timer recording will be saved to the
disc the next time vou turn the deck on. "TOC Writing” will
flash in the display at that time. Do not disconnect the AC
power cord or move the deck while the indication tlashes.
* Timer recording will stop if the disc becomes full.
44%
Operating the
MD Deck Using
a Keyboard
This chapter explains simple ways to
name a track or MD using an optional
keyboard, as well as how to operate
the MD deck directly through the
keyboard.
a EEE VEN
Setting the Keyboard
You can use anv IBM-compatible keyboard with a PS/2
intertace. You can select a kevboard with either an
English or Japanese kevboard lavout. When vou use a
hevboard with a different lavout, you need to assign
characters to the keys. For details, sce “Assigning
Characters to Kevboard Kevs” on page 43.
KEYBOARD MENU/NO AMS YES
Connecting a keyboard to the MD deck
Connect the keyboard connector to the KEYBOARD
jack on the front panel of the deck.
You can connect or disconnect the keyboard at any time
regardless ot whether the deck is turned on or off.
Selecting keyboard type
The first time vou connect a kevboard, vou need to select
the kevhoard type.
1 While the deck is stopped, press MENU/NO twice.
“Setup Menu” appears in the display.
2 Turn AMS (or press </>» repeatedly) until
“Keyboard ?” appears, then press AMS or YES.
3 Turn AMS (or press HE / >>! repeatedly) until
“Type” appears, then press AMS or YES.
4 Turn AMS (or press He / > repeatedly) to select
the setting, then press AMS or YES.
To use the keyboard with Select
English kevboard lavout US (factory setting”)
lapanese kevboard lavout HP
+ You can alse recall the factory setting by pressing CLEAR,
5 Press MENU/NO.
45%
parvogAay e GBuisn »>2g di 4) Auneissdo
pagogAa y e Buisn 4220 GIA 24) Punesado
CA a
Naming a Track or MD
Using the Keyboard
If vou use a keyboard, you can quickly enter or edit
names. While editing a name, vou can move the cursor in
jumps or scroll the name.
Short cut to the naming procedure
1 Press [Num Lock] while the deck is in one of the
operating statuses listed below, depending on
what you want to name:
To name Press while the deck is
Á track Plaving, paused, recording, or stopped
With the track number displaved
The MD Stopped with no track number displaved
A flashing cursor appears in the display.
2 Enter a name.
Besides letter keys, you can also use the kevs shown in
the following table.
3 Press [Enter] or [Num Lock].
The whole name appears in the displav.
Operations you may want to do while naming a
track or MD
To Press
Cancel the operation [Esc]
Switch between uppercase and
lowercase letters
[Caps Lack] or [Shift]
Move the cursor [«—] or {—]
Jump the cursor to the top of the name [Home]
Jump the cursor to the end of the name [End]
Scroll the name [Page UpJor
[Page Down]
Erase the character at the cursor [Delete]
position
Erase the character preceding the
cursor
[Back Space]
* If you have assigned characters to keys using [Shift] (sec page 181.
the characters you assigned have priority.
46
e You can undo the naming of a track or MD
1 Press [F11].
“Name Undo?” appears.
2 Press [Enter].
Press [Esc] to cancel the operation.
Using the Edit Menu
1 Press [Esc] while the deck is in one of the operating
statuses listed below, depending on what you
want to name:
To name Press while the deck is
A track or the MD Stopped, playing, or paused
The track being recorded Recording the track
“Edit Menu” appears in the display.
2 Press [{V[|] or [Tab]/[Shift]+[Tab] repeatedly until
“Name ?” appears, then press [Enter].
While the deck is recording, a flashing cursor appears
in the display and you can enter a name for the track
being recorded. In this case, go to step 5.
3 Press [1]/[]] or [Tab]/[Shift]+[Tab] repeatedly until
“Nm In ?” appears, then press [Enter].
4 Press [1]/[])] or [Tab]/[Shift]+[Tab] repeatedly until
the track number (when naming a track) or “Disc”
(when naming the MD) flashes, then press [Enter].
A tlashing cursor appears.
5 Enter a name.
6 Press [Enter] or [Num Lock].
The whole name appears in the display.
Operating the Deck
Through the Keyboard
You can operate the MD deck by using the keyboard kevs.
This allows vou to edit MDs and control the deck without
using buttons and control on the deck and on the remote.
Operations using the keyboard
For details about cach function, see “Front Panel Parts
Descriptions” on pages 8 and 9 or “Remote Parts
Descriptions” on pages 10 and 11.
As the keyboard substitutes for — Press
the following functions
MENU /NO [Esc]
AMS or >| [1] or [Tab]
AMS or He [1] or [Shift]+[Tab]
> /I or YES [Enter]*
RECO [Shift]+[Enter]
MUSIC SYNC [Ctrl] +[ Enter]
| [Space]
<< [+]
>> |->]
PITCH CONTROL [F1]
TIME [F3]
PLAY MODE [FS]
SCROLL [F6]
DISPLAY/CHAR [F7]
Selecting the track number over 11** [F9]
To Press
Plav track number | [1]
Plav track number 2 [2]
Play track number 3 [3]
Play track number + [4]
Plav track number 5 [5]
Play track number 9 [6]
Play track number 7 [7]
Play track number 8 [5]
Play track number 9 [9]
Play track number 10 [0]
Operations using ten-keys
While a track is selected, vou can edit the track directly
with the following ten-kevs. You can also start playing by
entering the track number using ten-keys.
To Press
Name the track or MD [Num Lock] (see page 46)
FADER [F10]
Undoing the last edit (see page 39) [F11]
2 EJECT [F12]
REPEAT [Print Screen]
A—B {Scroll Lock]
M.SCAN [Pause]
CLEAR [Delete]
+ In Edit Menu and Setup Menu, [Enter] operates as YES button, in
other cases as > / WI buttons,
**For example, press 179}, Hien [2] and [O] for track пас ЗО ог
press [FI] twice, then [17 10), and [31 for track number 103.
Divide the track [/]
Move the track [*]
Erase the track [-]
Combine tracks [+]
Play track number | [1]
Play track number 2 |2]
Plav track number 3 [3]
Play track number + [4]
Plav track number 5 [5]
Plav track number 6 [6]
Play track number 7 [7]
Play track number 8 [8]
Play track number 9 [9]
Plav track number 10 [0]
Note
IEvou press 1]. 1], EL or [+] when no tracks selected, “Cannot
Edit appears.
47%
p+seogAoy e Buisn Y22a GIA 94) Bunesado
pieoqAa)y e Buisn 23g Ain 94y) Bunsesado |
A
Assigning Characters to
Keyboard Keys
Assigning a character
If vour keyboard lavout doesn't match the svstem
settings, the display may show the wrong characters or no
characters at all when vou press the keys. In this case,
vou need to assign characters to the kevs.
1 While the deck is stopped, press [Esc] twice.
“Setup Menu” appears in the display.
2 Press [*]/[;] or [Tab]/[Shift]+[Tab] repeatedly until
“Keyboard ?” appears, then press [Enter].
3 Press [11/[{] or [Tab]/[Shift]+[Tab] repeatedly until
“Assign ?"” appears, then press [Enter].
4 Press [+]/[)] or [Tab]/[Shift]+[Tab] repeatedly until
the character you want to assign appears.
If the character has already been assigned, “User”
appears. If it has not been assigned, “Detault”
appears.
5 Press [Enter].
“<Set Key>" flashes in the display.
6 Press the key to be assigned to on the keyboard.
“Key Change” appears, and the selected character 1s
assigned to the kev.
If “Same Key” appears
The same character is already assigned to the kev.
If “Remove old assign?” appears
A different character is already assigned to the kev.
Press [Enter] to clear the current assignment and
assign the new character. Press [Esc] to cancel.
Notes
* You can assign a character with [Shift] only for symbol and
number keys.
* You can't assign a character to the following kevs:
[Esc], [FT] = [F12], [Back Space], [Tab], [Caps Lock], [Enter],
[Shift], [Ctrl], [AIL], [Windows], [Space]. [Application]. [Print
Screen), [Scroll Lock], [Pause], [Insert], [Delete], [Home], [End],
[Page Up], [Page Down], [Num Lock] [—]. [>]. 11]. 14]. and
[/], 1], [+L [+] (of the ten-kevs)
* “Key Change” doesn’t appear in step 6 if vou try to assign a
character to one of the kevs listed above.
48°
Clearing key assignments
You can clear kev assignments one at a time or all at once.
To clear a key assignment
1 Do steps 1 to 3 of “Assigning a character” on this
page.
2 Press [1]/[]] or [Tab)/[Shift]+[Tab] repeatedly until
the character you want to clear appears, then press
[Enter].
“<Set Kkev>" flashes in the display.
3 Press [Delete].
“Kev Clear” appears and the key assignment is
cleared.
To clear all key assignments
1 Do steps 1 to 3 of “Assigning a character” on this
page.
2 Press [Ctrl], [Alt], and [Delete] simultaneously.
“All Reset 7” appears in the display.
3 Press [Enter].
“Complete!!” appears, and all assignments are cleared.
To cancel the operation
Press [Esc].
Additional
Information
This chapter provides additional
information that will help you
understand and maintain your MD
deck system.
Precautions
On safety
* Should anv solid object or liquid tall into the cabinet,
unplug the deck and have it checked by qualitied
personnel before operating it anv further.
* The use of optical instruments with this product will
Increase eve hazard.
On power sources
e Before operating the deck, check that the operating
voltage of the deck is identical with vour local power
supply. The operating voltage is indicated on the
nameplate at the rear ot the deck.
The unit is not disconnected from the AC power source
(mains) as long as it is connected to the wall outlet, even
if the unit itself has been turned off.
If vou are not going to use the deck for a long time, be
sure to disconnect the deck from the wall outlet. To
disconnect the AC power cord, grasp the plug itself;
never pull the cord.
* AC power cord must be changed only at the qualified
service shop.
On condensation in the deck
If the deck is brought directly from a cold to a warm
location, or is placed in a very damp room, moisture may
condense on the lenses inside the deck. Should this occur,
the deck mav not operate properly. In this case, remove
the MD and leave the deck turned on for several hours
until the moisture evaporates.
On the MiniDisc cartridge
* Do not open the shutter to expose the MD.
* Do not place the cartridge where it will be subject to
extremes of sunlight, temperature, moisture or dust.
On cleaning
Clean the cabinet, panel and controls with a soft cloth
slightly moistened with a mild detergent solution. Do not
use anv type of abrasive pad, scouring powder or solvent
such as alcohol or benzine.
If vou have any questions or problems concerning your
deck, please consult vour nearest Sony dealer.
uonewnoju| ¡PuONIppy
49"
UOIJEULIO;UI JEUOILIPPV
Handling MDs
The MD is enclosed in a cartridge to protect the disc from
debris or tingerprints and to make it casv to handle.
However, the presence of debris or a warped cartridge
may inhibit the disc from operating properly. To assure
that you can alwavs listen to the highest quality music,
follow the precautions below:
* Do not touch the internal disc directly. Forcing the
shutter open mav damage the internal disc.
* Be sure to stick the labels supplied with the MD to the
appropriate positions. The shape ot the labels mav vary
depending on the MD brand.
Proper location Shutter
of the labels
Where to keep the MDs
Do not place the cartridge where 1t mav be exposed to
direct sunlight or extremely high heat and humidity.
Regular maintenance
Wipe dust and debris from the surtace of the cartridge
with a dry cloth.
System Limitations
The recording system in vour deck is radicallv different
from those used in cassette and DAT decks and is
characterized by the limitations described below. Note,
however, that these limitations are due to the inherent
nature of the MD recording svstem itself and not to
mechanical causes.
“Disc Full” appears in the display even before
the MD has reached the maximum recording time
When 255 tracks have been recorded on the MD,
“Disc Full” appears regardless of the total recorded time.
More than 255 tracks can’t be recorded on the MD. To
continue recording, erase unnecessary tracks or use
another recordable MD.
50v
“Disc Full” appears before the maximum number
of tracks is reached
Fluctuations in emphasis within tracks are sometimes
interpreted as track intervals, incrementing the track
count and causing “Disc Full” to appear.
The remaining recording time does not increase
even after erasing numerous short tracks
Tracks under 12 seconds in length are not counted and so
erasing them mav not lead to an increase in the recording
time.
The total recorded time and the remaining
recordable time on the MD may not total the
maximum recording time
Recording is done in minimum units of 2 seconds cach, no
matter how short the material. The contents recorded
mav thus be shorter than the maximum recording
capacitv. Disc space may also be further reduced by
scratches.
Limitations when recording over an existing
track
e [he correct remaining recordable time may not be
displaved.
You may find it impossible to record over a track if that
track has been recorded over several times already. If
this happens, erase the track (see page 31).
The remaining recordable time may be shortened out of
proportion to the total recorded time.
Recording over a track to eliminate noise is not
recommended since this may shorten the duration of
the track.
* You may find it impossible to name a track while
recording over an existing track.
Tracks created through editing may exhibit
sound dropout as you're searching for a point
while monitoring the sound.
Some tracks can't be combined with others
Tracks may not be combined if they have been edited.
Track numbers are not marked correctly
Incorrect assignment or marking of track numbers may
result when CD tracks are divided into several smaller
tracks during digital recording. Also, when the
Automatic Track Marking is activated during recording,
track numbers may not be marked as in the original,
depending on the program source.
“TOC Reading” appears for a long time
If the inserted recordable MD is brand new, “TOC
Reading” appears in the display longer than for MDs that
have already been used.
The correct recorded/playing time may not be
displayed during playback of MDs recorded in
monaural mode.
Troubleshooting
If you experience any of the following difficulties while
using the deck, use this troubleshooting guide to help vou
remedy the problem. Should any problem persist, consult
your nearest Sony dealer.
The deck does not operate or operates poorly.
=p» The MD may be dirty or damaged. Replace the
MD.
The deck does not play.
=p» Moisture has formed inside the deck. Take the MD
out and leave the deck in a warm place for several
hours until the moisture evaporates.
=» The deck is not on. Press 1/() to turn the deck on.
=p The deck may not be connected to the amplitier
correctly. Check the connection.
=p The MD 1s inserted in the wrong direction. Slide
the MD into the disc slot with the label side up and
the arrow pointing towards the slot.
=p The MD may not be recorded. Replace the disc
with one that has been recorded.
The sound has a lot of static.
=p Strong magnetism from a television or a similar
device is interfering with operations. Move the
deck away from the source of strong magnetism.
The deck does not record.
=> The MD is record-protected. Slide the record-
protect tab and close the slot.
=> The deck is not connected properly to the program
source. Check the connection.
=» Select the correct program source using INPUT.
=» The recording level is not adjusted properly.
Adjust the recording level.
=» A premastered MD is inserted. Replace it with a
recordable MD.
=p There 1s not enough time left on the MD. Replace
it with another recordable MD with fewer recorded
tracks, or erase unnecessary tracks.
=p There has been a power failure or the AC power
cord has been disconnected during recording,
Data recorded to that point may be lost. Repeat
the recording procedure.
The deck does not perform Synchro-recording
with a CD player or video CD player.
=> The remote supplied with the MD deck is not set
correctlv. Reset the remote.
A message and a three-digit alphanumeric code
alternate in the display.
=» The Self-Diagnosis Function is on. See the table on
page 55.
The keyboard does not operate.
=p Disconnect the kevboard, then re-connect it.
uoljewioju] jeuolIppy
5 1"
|
|
зешлоуч JEUOIHPPV
uol
Specifications
System
Disc
Laser
Laser output
Laser diode
Revolutions (CLV)
Error correction
Sampling frequency
Coding
Modulation system
Number of channels
Frequency response
Signal-to-noise ratio
Wow and flutter
inputs
LINE (ANALOG) IN
DIGITAL IN
ous
MiniDisc digital audio system
Mim Disc
Semiconductor laser (A = 780 nm)
Emission duration: continuous
Less than 44.6 ply
+ This output is the value measured
at a distance of 200 mm from the
objective lens surtace on the Optical
Pick-up Block with 7 mm aperture.
Material: GaAlAs
400 rpm to 900 rpm
ACIRC (Advanced Cross Interieave
Reed Solomon Code)
11.1 kHz
ATRAC (Adaptive TRanstorm
Acoustic Coding)
EFM (Eight-to-Fourteen Modulation)
2 stereo channels
5 to 20,000 Hz +0.3 dB
Over 98 dB during playback
Below measurable limit
Jack tvpe: phono
Impedance: 47 kilohms
Rated input: 500 mVrms
Minimum input: 125 mVrms
Connector type: square optical
Impedance: 660 nm (optical wave
length)
Outputs
PHONES
LINE (ANALOG) OUT
DIGITAL OUT
General
Power requirements
Power consumption
Dimensions (approx.)
Mass (approx.)
Supplied accessories
See page 4.
Jack type: stereo phone
Rated output: 28 mW
Load impedance: 32 ohms
lack type: phono
Rated output: 2 Vrms (at 50 kilohms)
Load impedance: over 10 kilohms
Connector type: square optical
Rated output: -18 dBm
Load impedance: 660 nm (optical
wave length)
120 V AC, 60 Hz
17 W
430 x 95 x 280 mm (17 x 3 ‘/a x 11 ‘is
in.) (w/h/d) incl. projecting parts
and controls
3.5 kg (7 lbs 11 07)
US and foreign patents licensed from Dolby Laboratories
Licensing Corporation.
Design and specifications are subject to change without notice.
Display Messages
The following table explains the various messages that
appear in the display. Messages are also displayed by the
deck's Self-Diagnosis function (see page 55).
Message
Meaning
Auto Cut
The Auto Cut function is on (page IS}
Blank Disc
A new (blank) or erased MD has been
inserted.
Cannot Copy
An attempt was made to make a second
copy from a digitally dubbed MD (page
15).
Cannot Edit
An attempt was made to edit the MD
during Program or Shuffle Play. Or the
MD is record-protected.
Disc Full
The MD is full (page 50).
Impossible
The deck cannot do the specified
operation (pages 16 and 33).
Initialize (flashing)
The Setup Menu settings have been lost.
Or the contents recorded by timer have
disappeared over time and are not be
available for saving to disc, or Program
Play could not be activated since the
program has disappeared over time.
(The message flashes for about tour
seconds when vou turn on the deck by
pressing 10)
Name Full The naming capacity of the MD has
reached its limit (about 1,700 characters).
No Disc There 1s no MD in the deck.
No Name The track or disc has no name.
No Program"!
You tried to start Program Play when no
program exists.
Premastered An attempt was made to record on a
premastered MD.
ProgramFull! The program contains the maximum
number of tracks. You cannot add anv
more tracks.
REMOTE The MD is being controlled by an
external device connected to the deck *
Smart Space
The Smart Space function is on (page 18).
TOC Reading
The deck 15 checking the TOC (Table Of
Contents) on the MD.
* If "REMOTE" appears under other circumstances, turin off the deck,
then turn it on again.
53°
UOIJEUIO$U] [EUOIHIPPV
чоцешлоуи ечотирру/
TN —————
Edit Menu Table
The following table provides a quick guide to the various editing functions that vou can perform using the Edit Menu.
To access the Edit Menu
Press MENU /NO to display “Edit Menu.”
Note
The available menu items may varv according to the current status of the deck.
Menu item Sub-item Function Reference page(s)
Name? Nm in? Names a track or an MD. 36
Nm Erase ? Erases à name. 38
Nm AllErs ? Erases all the names on an MD. 38
Nm Copy? Copies a name to a track or an MD. 37
Tr Erase? — Erases a track 3]
Move ? — Moves a track. 35
Combine ? — Combines tracks. 34
Divide ? — Divides a track. 33
A-B Erase ? — Erases a portion of a track. 32
All Erase ? — Erases all the tracks on an MD. 32
Undo ? — Lndoes the last edit operation. 39
Setup ? — Enters Setup Menu (below) directly. —
Setup Menu Table
The tollowing table provides an overview of the various Setup Menu items, including their parameters, factory settings,
and reference page(s) in the manual.
To access the Setup Menu
While the deck is stopped, press MENU /NQO twice to display “Setup Menu.”
Menu item Sub-item Function Parameters Factory Reference
setting page(s)
Program ? — Creates a program. — — 27
T.Mark — Turns Automatic Track Marking on or otf. Lsvn/Ott Lsvn 19
LS(T) — Changes the trigger level for Automatic Track Marking. —72 to 0dB* ~-50dB 19
Auto — Turns Auto Space and Auto Pause on or oft. Ott /Space/ Pause Off 29
5.5pace — Turns Smart Space and Auto Cut on or oft. On/Off On 18
P.Hold — Turns Peak Hold on or oft. On, Off Off 13
M.Scan — Sets the plaving time during music scan, 6 to 20s 6s 25
Fan — Sets the duration ot Fade-in Play and Recording. 1.0 to 15.05 5.05 42
Fout — Sets the duration of Fade-out Plav and Recording. LO to 15.05 5.05 42
* Adjustable in 208 steps,
54%
Menu item Sub-item Function Parameters Factory Reference
setting page(s)
Pitch — Changes the plavback speed by auto steps, HS to -2 0 41
Pfine — Fine controls the playback speed. 98.5 to 12.57 0.0% 41
Ain — Adjusts the analog signal level input through -< to -12.0dB 0.0dB 17
the LINE (ANALOG) IN jacks.
Optl — Adjusts the digital signal level input through coc to = IS 0AB 0.0dB 17
the DIGITAL OPT? connector
Opt? — Adjusts the digital signal level input through > to -15.0db 0.0dB 17
the DIGITAL OPT? connector.
Aout — Adjusts the analog signal level output to 20.2 о ООВ 0.0dB 24
the LINE (ANALOG) OUT and PHONES jacks.
Sleep — Sets the duration of Sleep Timer. 30.60 -90-120min 6OmMmin 42
Sleep — Turns Sleep Timer on or ott. On Off Off 42
Keyboard ? Type Selects the type of the keyboard connected to the deck. SIP LS 45
Assign ? Assigns a character to the hevboard connected to the deck. — 00H 18
To recall a factory setting
Press CLEAR while selecting the parameter.
Self-Diagnosis Function
The deck’s self-diagnosis function automatically checks the condition of the MD deck when an error occurs, then issues a
three-digit code and an error message on the displav. If the code and message alternate, find them in the following table
and perform the indicated countermeasure. Should the problem persist, consult vour nearest Sonv dealer.
Three-digit code/Message
Cause/Remedy
C11/ Protected
The inserted MD is record-protected.
=p Take out the MD and close the record-protect siot (page 16).
C13/REC Error
The recording was not made properlx.
“> Set the deck in a stable surface, and repeat the recording procedure.
The inserted MD is dirty (with smudges, fingerprints, etc.), seratched, or substandard in quality.
=p Replace the disc and repeat the recording procedure.
C13/ Read Error
The deck could not read the TOC on the MD properly.
wp Take out the MD and insert it again.
C14/Toc Error
The deck could not read the TOC on the MD properly.
=p Insert another disc.
= If possible, erase all the tracks on the MD (page 32).
C71/Din Unlock
The sporadic appearance of this message is caused by the digital signal being recorded. This will not affect
the recording.
While recording from a digital component connected through the DIGITAL IN connector, the digital
connecting cable was unplugged or the digital component turned off.
=> Connect the cable or turn the digital component back on.
555
чоцешлоуи |ечотрру
UOIZEULIOJUI JEUOIIPPY
TAE a ОЛА
Index
A
AMS 23
Audio connecting cord 4, 5
Auto Cut 18
Auto Pause 29
Auto Space 29
Automatic Track Marking
additional information 20
how to 19
trigger level 19
B
Battery 4
Blank
erasing during recording. See
Smart Space and Auto Cut
inserting during play. Sce Auto
Space
C
CD Synchro-recording 21
Combining 34
Control ATI Control System 6,7
D
Displaying
disc name 11
pitch 13
remaining recordable time 12
total number of tracks 11, 12
total recorded time 11,12
track name 11,13
Dividing
after selecting the point 34
after selecting the track 33
56“
E
Erasing,
a name 38
à portion of a track 32
à track 31
all names 38
all tracks 32
F, G, H
Fade-1n
Play 41
Recording +4]
Fade-out
Play +
Recording 42
1, J
Input Monitor 17
K
Kevboard
assigning characters 48
naming a track or MD 46
operating the deck 47
setting 45
Level
input signal 12
output signal 15,24
recording 17
Locating
particular pomt 25
tracks 24
M
Manual Track Marking 19
MD (MiniDisc)
ejecting 16, 17, 25
premastered 12
recordable 12, 15
record-prefect tab le
Monitoring Input signal See Inpuit
Monitor
Moving 55
Music Scan 24
Music Svnchro-recording 21
N
Naming
copying 37
how to 35,36
renaming 38
O
Optical cable 4,5
P,Q
Pausing
after each track. Sec Auto Pause
play 29
recording 16
Peak Hold Function 13
Peak level meters 17
Pitch Control
Display 13
Function 40
Playing
entering the number 25
from the first track 23
specific track. See Locating
Program Play
changing the contents 28
checking the contents 28
. ; V7
programming 27
R
Recording
how to 15
mode 15
over existing tracks 16
Remote 4
Repeat A-B Play 26
Repeat All Play 26
Repeat 1 Play 26
Repeating
a portion. See Repeat A-B Play
all tracks. See Repeat All Play
current track. See Repeat 1 Play
S
Sampling rate converter 15
SCMS. See Serial Copy Management
System
Scrolling the name 13
Serial Copy Management System 15
Shuffle Play 27
Sleep Timer 42
Smart Space 18
Supphed accessories +
T
Table of contents. See TOC
Time Machine Recording 20
Timer
playing 43
recording 43
TOC 14,31
U, V, W, X, Y, Z
Undoing 39
57
uonewsoyuj ¡euonippy |
богу) пе http://www.world.sony.com/
Sony Corporation Printed in Japan Printed on recycied paper
(1) LI-SL6-122-7 uedef ul palulld 6661 9 LONeJOdiOJ ÁLOS
19103 + [421 - DNAS DISNIN
193UF + YIYS : @ DIN
(OL J4aquinu y5e1; aux
Red 03 0) 55944)
Aejd 03 1aqunu yes << bi >> SAO /<] п 921 +3145: pela
10 Ls
1e1u3 A
1 WUS DY wus {1
€ |
1 >| 4907 sde”
soe + Bt 4d YVID
auIquoj —re +-——+ +
| 8 at | dA aBed pul | marea a qe)
JU 9SE1F —,; —- ” В 4 WON ny эшон pesul aoedsyoeg +
e a 7
»e) ey) SAO | QIN 10 Ye | asma | pos 605
ayy wen | “e | "| gua
Y 221) 343 3PIAIG | |
NYVIS IISNN 1v3id3i¥d 1213 OANN Y30Wi UVHI/AVTdSIG ЗИ. TOHLNOD HOlId
(1noñe7 pieoghay ysi[6u3) preoqAa) ayy ybnoayj xd>aq 34) Bunesado
1Vv3d34 d+ Y
OL 1940 Jaquinu
Y2e1) ay) Bunajas
(Ajuo 0E6Ar-SAW)
a9quinu yea) — 31114 IV1IIDIO ON/NNIW
0£93r/0e6dar-SaAiN
ANOS
LL-LES-Z98-E
ueder ui pejuvd 6661 © uoneiodio) Auog
uomisodal ap J0pEINWUOD/UONESIEIUIDI 3D 1nadn1e3U/43IMS 1359
21а ‘оуелёдод ип ориегции Joudisod
[эчед тэ ua uonisodar ap JOpEINWUOD
[> auoIsasd “aysisIod evrajqoid [3 15
‘UOTDEJUAWINTE
ap ajquo 19 JEJNYDU3 € LAJINA
A spnypuasap oSanı ‘eunjerd ef andede
'Sepeotpur sauoPRnjos sef opruaui
19gey ap sandsap une ajuaurepalOS
euopunj ou euerd er 15
EJON
DR ‘O1
-oJ£]s un 224k ale neauued 3] INS
onyIs UonesIpenIurz ap Inaydnuequi |
ms zeÆndde ‘ajsisiad aurajqo1d a 15
ueno эр estid
el e e[-zayyuesgas smd “ej-zaudraja
'snossap-I) sapaual say 9Aessa
zaße snoa anb sa1de juauraj3al109
sed auuonpuoy au auned ef 1g
anbiewoy
Sp IE
239 uad uiodrreg
e Suisn jourd 1eal 34) UO YIJIMS 395941
aux ssoid ‘sys1s1ad ]y17s wapqo1d ay J]
ano
19mOd 9y3 ojur nid ay) Hosur-a1 USU)
"sap au yO LIN] “sarpaura1 poqumsaid
247 payduranje aa noÁ 1a1je USAS
Aj1ado1d ayerado jou saop yop ay1 J]
330N
ANOS
WA ea“ * TT e VEN
= x
mary
г 1
a Na
OS
AE
TA
Eo S ON Y: General Stereo/Hifi Components/Tape Decks
7 7e = . . , .
= CD Piayers/Mini Disc Players/Audio Systems
oT y
a
LIMITED WARRANTY
! MEA
oe
e ed
J
fe
Sa
а A4
М,
A
NT
Ne Sony Electronics Inc. (“Sony”) warrants this Product (including any accessories) against defects in matertal or
EHS workmanship as follows:
wi
se . DU .
Ко 1. LABOR: For a period of one (1) year from the date of purchase, if this Product is determined to be defective,
SHE Sony will repair or replace the Product, at its option, at no charge, or pay the labor charges to any Sony autho-
== rized service facility. After the Warranty Period, you must pay for all labor charges.
on ; :
SR 2. PARTS: In addition, Sony will supply. at no charge, new or rebuilt replacements in exchange for defective
я: > parts for a period of one (1) year. After the warranty period, you must pay for all parts costs.
= |
EA 3. ACCESSORIES: Parts and labor for all accessories are for one (1) year.
To obtain warranty service, you must take the Product, or deliver the Product freight prepaid, in either its original
packaging or packaging affording an equa! degree of protection, to any authorized Sony service facility.
This warranty does not cover customer instruction, installation, set up adjustments or signal reception prob-
lems.
This warranty does not cover cosmetic damage or damage due to acts of God, accident, misuse, abuse, negli-
gence, commercial use, or modification of, or to any part of the Product, including the antenna. This warranty ed
does not cover damage due to improper operation or maintenance, connection to improper voltage supply, or x x
attempted repair by anyone other than a facility authorized by Sony to service the Product. This warranty does E
not cover Products sold AS IS or WITH ALL FAULTS, or consumables (such as fuses or batteries). This warranty 2
is valid only in the United States. X
SE Proof of purchase in the form of a bill of sale or receipted invoice which is evidence that the unit is within the Se
2 Warranty period must be presented to obtain warranty service. A
EX This warranty is invalid if the factory applied serial number has been altered or removed from the Product. sa
A К
ЖК REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE mo
pe CONSUMER. SONY SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR NA
> : BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIB- ZZ
ue ITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICU- Xe
a LAR PURPOSE ON THIS PRODUCT 1S LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. e
30% = :
a Some states do not allow the exclusion or limitation of incidental or consequential damages, or aliow limitations De
Des on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. In addition,
ue if you enter into a service contract with the Sony Partnership within 90 days of the date of sale, the limitation on Sue
o how long an implied warranty lasts does not apply to you. This warranty gives you specific legal rights, and you АК
ea may have other rights which vary from state to state. e
a or your convenience, Sony Electronics Inc. has established telephone numbers for frequently asked questions: se
a To locate the servicer or dealer nearest you, or for service assistance or resolution of a service problem, or for se
a product information or operation, call:
ZZ DE
2 Sony Direct Response Center E
ce 1-(800)-222-7669 >
a or write to: as
me Sony Direct Response Center $B
EX 12451 Gateway Bivd. >
> Fort Myers, FL 33913 os
a и
2 For an accessory or part not available from your authorized dealer, call: SS
o ZO
e 1-(800)-488-SONY (7669) E
SR Xo
>“ CX or SIX KH sme KIO eK OF ADO 00 : к) OX om HK XI A E
Printed in Japan
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
