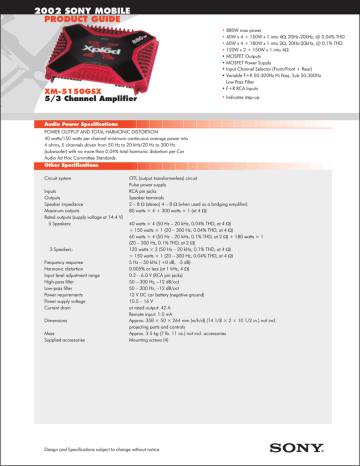

2002 SONY MOBILE
PRODUCT GUIDE
XM-5150GSX
5/3 Channel Amplifier
• 880W max power
• 40W x 4 + 150W x 1 into 4W, 20Hz-20kHz, @ 0.04% THD
• 60W x 4 + 180W x 1 into 2W, 20Hz-20kHz, @ 0.1% THD
• 120W x 2 + 150W x 1 into 4W
• MOSFET Outputs
• MOSFET Power Supply
• Input Channel Selector (Front/Front + Rear)
• Variable F+R 50-300Hz Hi Pass, Sub 50-300Hz
Low Pass Filter
• F+R RCA Inputs
• Indicates step-up
Audio Power Specifications
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
40 watts/150 watts per channel minimum continuous average power into
4 ohms, 5 channels driven from 50 Hz to 20 kHz/20 Hz to 300 Hz
(subwoofer) with no more than 0.04% total harmonic distortion per Car
Audio Ad Hoc Committee Standards.
Other Specifications
Circuit system
Inputs
Outputs
Speaker impedance
Maximum outputs
Rated outputs (supply voltage at 14.4 V)
5 Speakers:
3 Speakers:
Frequency response
Harmonic distortion
Input level adjustment range
High-pass filter
Low-pass filter
Power requirements
Power supply voltage
Current drain
Dimensions
Mass
Supplied accessories
OTL (output transformerless) circuit
Pulse power supply
RCA pin jacks
Speaker terminals
2 – 8 W (stereo) 4 – 8 W (when used as a bridging amplifier)
80 watts × 4 + 300 watts × 1 (at 4 W)
40 watts × 4 (50 Hz – 20 kHz, 0.04% THD, at 4 W)
+ 150 watts × 1 (20 – 300 Hz, 0.04% THD, at 4 W)
60 watts × 4 (50 Hz – 20 kHz, 0.1% THD, at 2 W) + 180 watts × 1
(20 – 300 Hz, 0.1% THD, at 2 W)
120 watts × 2 (50 Hz – 20 kHz, 0.1% THD, at 4 W)
+ 150 watts × 1 (20 – 300 Hz, 0.04% THD, at 4 W)
5 Hz – 50 kHz ( +0 dB, -3 dB)
0.005% or less (at 1 kHz, 4 W)
0.2 – 6.0 V (RCA pin jacks)
50 – 300 Hz, –12 dB/oct
50 – 300 Hz, –12 dB/oct
12 V DC car battery (negative ground)
10.5 – 16 V
at rated output: 42 A
Remote input: 1.0 mA
Approx. 358 × 50 × 264 mm (w/h/d) (14 1/8 × 2 × 10 1/2 in.) not incl.
projecting parts and controls
Approx. 3.5 kg (7 lb. 11 oz.) not incl. accessories
Mounting screws (4)
Design and Specifications subject to change without notice.
2002 SONY MOBILE
PRODUCT GUIDE
XM-5150GSX
5/3 Channel Amplifier
Connections
Test Tone
Front Speaker OUT
Hi-Pass Filter Controls
Subwoofer Controls
Rear Speaker OUT
40A Fuse
Subwoofer IN
Front Line IN
Subwoofer OUT
Rear Line IN
Dimensions
Unit: mm (in.)
14 1/8 (358)
12 1/4 (310)
9 1/4 (234)
10 1/2 (264)
2 (50)
ø 1/4 (6)
Design and Specifications subject to change without notice.
