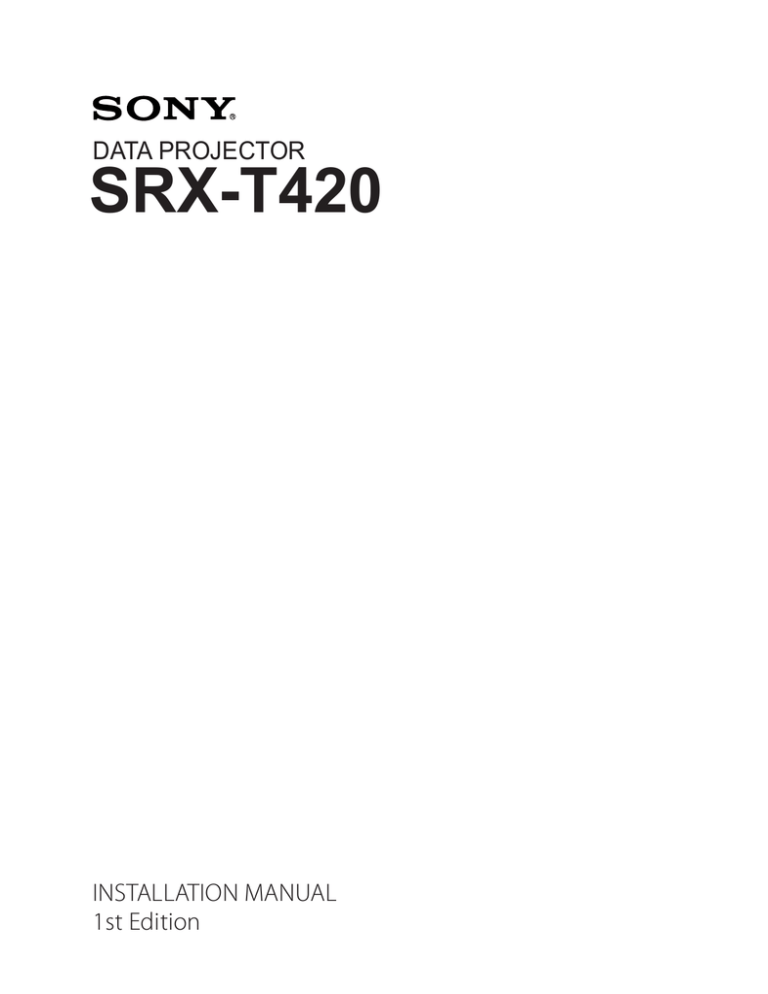

DATA PROJECTOR
SRX-T420
INSTALLATION MANUAL
1st Edition
! 警告
このマニュアルは,サービス専用です。
お客様が,このマニュアルに記載された設置や保守,点検,修理などを行うと感電や火災,
人身事故につながることがあります。
危険をさけるため,サービストレーニングを受けた技術者のみご使用ください。
! WARNING
This manual is intended for qualified service personnel only.
To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so. Refer all servicing to
qualified service personnel.
! WARNUNG
Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.
Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die
Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei
Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben
Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung
dazu besitzen.
! AVERTISSEMENT
Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin
de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les
réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.
Pour toute réparation faire appel à une personne compétente uniquement.
安全のために,周辺機器を接続する際は,過大電圧を持
つ可能性があるコネクターを以下のポートに接続しない
でください。
: NETWORK コネクター
上記のポートについては本書の指示に従ってください。
For kundene i Norge
Dette utstyret kan kobles til et IT-strømfordelingssystem.
For safety, do not connect the connector for peripheral device wiring that might have excessive voltage to the following port.
: NETWORK connector
Follow the instructions for the above port.
SRX-T420
Table of Contents
Manual Structure
2. Adjustment
Purpose of this manual .................................................................. 3
2-1. Installation of SRX Controller ........................................ 2-2
2-1-1.
Startup .................................................................... 2-2
2-1-2.
Function Memory .................................................. 2-4
2-1-3.
Log Function .......................................................... 2-4
Related manuals ............................................................................ 3
Trademarks.................................................................................... 3
1. Installation
Outline........................................................................................ 1-1
1-1. Removing/Installing the Cabinet Panel ........................... 1-1
1-1-1.
Name of Cabinet Panel .......................................... 1-1
1-1-2.
Panel (U7) Block Assembly................................... 1-2
1-1-3.
Panel (U2) Block Assembly................................... 1-2
1-1-4.
Panel (U3) .............................................................. 1-3
1-1-5.
Panel (U6) .............................................................. 1-3
1-1-6.
Panel (U5) .............................................................. 1-4
1-1-7.
Panel (U1B) ........................................................... 1-4
1-1-8.
Panel (U1) .............................................................. 1-5
1-2.
Tilt Angle Adjustment ..................................................... 1-5
1-3.
Installing the Duct ........................................................... 1-7
1-4.
Installing the Projection Lens.......................................... 1-8
1-5.
Installing the Lens Cover ................................................ 1-9
1-6.
Installing the Lamp Bulb ............................................... 1-10
1-7.
Installing the Optional Board to INPUT A, INPUT B,
INPUT C and INPUT D ................................................ 1-16
1-8.
Interlock Terminal ......................................................... 1-22
1-9.
Connecting and Wiring of External Device .................. 1-23
1-10. Connecting the Power Cord .......................................... 1-24
2-2. Setting of Projector.......................................................... 2-4
2-2-1.
Owner Information ................................................ 2-5
2-2-2.
Date & Time .......................................................... 2-6
2-2-3.
Network ................................................................. 2-7
2-2-4.
Mail Report ............................................................ 2-8
2-2-5.
PC Communication ................................................ 2-9
2-2-6.
SNMP................................................................... 2-10
2-2-7.
Profile ................................................................... 2-11
2-3.
Optical Axis Adjustment of Lamp Bulb ........................ 2-12
2-4.
Lens Adjustment (H Shift, V Shift, Zoom, and
Focus) ............................................................................ 2-15
2-5.
Illumination Area Adjustment and
Registration Adjustment ................................................ 2-17
2-5-1.
Illumination Area Adjustment.............................. 2-17
2-5-2.
Registration Adjustment ...................................... 2-19
2-6. Color Space Conversion (CSC Adjustment) ................. 2-20
2-6-1.
Correcting the Color Space “sRGB (709)” or
“Adobe RGB” ...................................................... 2-20
2-6-2.
Correcting the Color Space “DCDM” ................. 2-21
2-7. Functions of Each Window ........................................... 2-22
2-7-1.
Common Items..................................................... 2-22
2-7-2.
INSTALLATION Window................................... 2-24
2-7-3.
SERVICE Window .............................................. 2-26
2-7-4.
SETTING Window .............................................. 2-28
1-11. About the Optional Accessories .................................... 1-26
1-12. Projection Distance Charts ............................................ 1-27
1-13. Dimensions ................................................................... 1-32
SRX-T420
3. Error Message
1
Manual Structure
Purpose of this manual
This manual is the installation manual of Data Projector SRX-T420.
This manual is intended for use by trained system and service engineers, and describes the information for installation of the unit.
The DIF-188 board mounted on this unit as standard equipment is equivalent of
LKRI-005.
For the service information on the DIF-188 board, refer to the LKRI-005 service
manual.
Related manuals
The following manuals are prepared for this unit.
. Operating Instructions (supplied with this unit)
This manual describes the information required for the actual management and operation of this unit.
. Service Manual (available on request)
This manual describes the information for periodic maintenance and detailed service.
Trademarks
Trademarks and registered trademarks used in this manual are follows.
. Windows, Windows XP, and Windows Vista are registered trademarks of Microsoft Corporation in the United States and other countries.
. Intel and Pentium are registered trademarks of Intel Corporation or its subsidiaries
in the United States and other countries.
. Ethernet is a registered trademark of Xerox Corporation.
Other system names, product names, and company names appearing in this manual
are trademarks or registered trademarks of their respective holders.
SRX-T420
3
Section 1
Installation
Outline
The light source lamp bulb and projection lens are optionally available. You can incorporate them in the
system as required. For selecting the light source lamp and projection lens, contact your local Sony Sales
Office/Service Center.
Before turning on the power of the main unit, perform the following procedure as required. (For details,
refer to the description of each section.)
For the removal of the cabinet panel required for each procedure, refer to Section 1-1.
m
. It is not required to perform steps 1 to 8 sequentially. However, do not perform the connection of power
cord in step 9 before completing steps 1 to 8.
. Be sure to remove the lamp bulb when moving this unit.
1.
2.
3.
4.
5.
6.
7.
8.
9.
Adjust the tilt angle. (Refer to Section 1-2.)
Install the duct. (Refer to Section 1-3.)
Install the projection lens. (Refer to Section 1-4.)
Install the lens cover. (Refer to Section 1-5.)
Install the lamp bulb. (Refer to Section 1-6.)
Install the optional board to INPUT A and INPUT B slot. (Refer to Section 1-7.)
Connect the interlock connector. (Refer to Section 1-8.)
Connect and wire the external device. (Refer to Section 1-9.)
Connect the power cord. (Refer to Section 1-10.)
1-1. Removing/Installing the Cabinet Panel
n
The four (each two) keys of the panel (U7) block assembly and panel (U4) block assembly (420) described
in this section are supplied with this unit.
1-1-1. Name of Cabinet Panel
Panel (U8)
Panel (U7) block assembly
Panel (U4) block assembly (420)
Panel (U1)
Panel (U3)
Panel (U6)
Panel (U1B)
Panel (U2) block assembly
Panel (U4B) (420)
Panel (U5)
Rear side
Front side
Fig. 1-1-1
SRX-T420
1-1
1-1-2. Panel (U7) Block Assembly
1. Release the lock on the panel (U7) block assembly.
2. Remove the panel (U7) block assembly in the direction
of the arrow with attention to the three hooks.
Panel (U7) block assembly
Hooks
Lock
3. To install, reverse the removal procedure.
Fig. 1-1-2
1-1-3. Panel (U2) Block Assembly
1. Remove the panel (U7) block assembly.
(Refer to Section 1-1-2.)
2. Loosen the two screws (with drop-safe), then remove
the two grilles.
3. Remove the five screws, then raise the panel (U2)
block assembly in the direction of arrow  with attention to the eight hooks.
4. Remove the panel (U2) block assembly in the direction
of arrow .
Screws
Hooks
Screws
(with
drop-safe)
5. To install, reverse the removal procedure.
Hooks

Hooks
Grilles

Panel (U2) block assembly
Fig. 1-1-3
1-2
SRX-T420
1-1-4. Panel (U3)
1. Remove the panel (U7) block assembly. (Refer to Section 1-1-2.)
2. Remove the panel (U2) block assembly. (Refer to Section 1-1-3.)
3. Remove the three screws, then remove the panel (U3)
in the direction of the arrow.
4. To install, reverse the removal procedure.
Panel (U3)
Screws
Fig. 1-1-4
1-1-5. Panel (U6)
1. Remove the panel (U7) block assembly. (Refer to Section 1-1-2.)
2. Remove the five screws, then raise the panel (U6) in
the direction of arrow  with attention to the seven
hooks.
3. Remove the panel (U6) in the direction of arrow .
Screws
4. To install, reverse the removal procedure.
Hooks

Hooks

Panel (U6)
Hooks
Fig. 1-1-5
SRX-T420
1-3
1-1-6. Panel (U5)
1. Remove the panel (U7) block assembly. (Refer to Section 1-1-2.)
2. Remove the panel (U6). (Refer to Section 1-1-5.)
3. Remove the three screws, then remove the panel (U5)
in the direction of arrow.
4. To install, reverse the removal procedure.
Panel (U5)
Screws
Fig. 1-1-6
1-1-7. Panel (U1B)
1. Remove the panel (U7) block assembly. (Refer to Section 1-1-2.)
2. Remove the panel (U2) block assembly. (Refer to Section 1-1-3.)
3. Remove the panel (U6). (Refer to Section 1-1-5.)
4. Remove the four screws, then remove the panel (U1B)
in the direction of arrow.
5. To install, reverse the removal procedure.
Screws
Hooks
Panel (U1B)
Screws
Fig. 1-1-7
1-4
SRX-T420
1-1-8. Panel (U1)
1.
2.
3.
4.
Remove the panel (U7) block assembly. (Refer to Section 1-1-2.)
Remove the panel (U2) block assembly. (Refer to Section 1-1-3.)
Remove the panel (U6). (Refer to Section 1-1-5.)
Remove the panel (U1B). (Refer to Section 1-1-7.)
5. Remove the eight screws, then remove the panel (U1).
6. To install, reverse the removal procedure.
Screws
Screws
Panel (U1)
Screws
Screws
Fig. 1-1-8
1-2. Tilt Angle Adjustment
n
For further adjustment, “2-6. Field Angle Adjustment” is required.
In the case of tilt angle under 5 degrees:
Adjust the tilt angle using the adjuster in the lower portion of this unit.
1. Loosen the nut.
2. Adjust the tilt angle by rotating the adjuster in the
lower portion of this unit.
3. Secure the adjuster by tightening the nut to the adjuster
pipe side.
Adjuster pipe
Nut
Adjuster
Fig. 1-2a
SRX-T420
1-5
In the case of tilt angle from 5 to 10 degrees:
1. Remove the panel (U7) block assembly. (Refer to Section 1-1-2.)
2. Remove the panel (U2) block assembly. (Refer to Section 1-1-3.)
3. Remove the panel (U3). (Refer to Section 1-1-4.)
4. Remove the panel (U6). (Refer to Section 1-1-5.)
5. Remove the panel (U5). (Refer to Section 1-1-6.)
6. Set the tools such as jack at both sides of frame, then
raise the rear portion of the main unit.
7. Remove the four M8 bolts.
8. Move the adjuster pipe assembly downward and insert
the four M8 bolts into the four holes to secure it.
9. Lower the jack and attach the panel (U5), panel (U6),
panel (U3), panel (U2) block assembly and panel (U7)
block assembly.
n
When setting the jack, pay attention to
the holes on the bottom of flame.
Frame
Jack
Jack
M8
bolts
Jack
Holes
Adjuster pipe
assembly
M8 bolts
Adjuster pipe
assembly
Fig. 1-2b
1-6
SRX-T420
In the case of fixing this unit:
This unit can be fixed to the floor using the anchor BKT.
When fixing this unit, attach the anchor BKT to the adjuster as shown in the illustration.
Part name
Anchor BKT (optionally available): 3-294-224-01
Adjuster
Anchor BKT
Fig. 1-2c
1-3. Installing the Duct
Attach the commercially available 8-inch duct to the duct
connection of the panel (U8) of this unit.
n
When attaching the duct, be careful not to bend it so that
the exhaust air flows smoothly.
External fan (exhaust air) air volume specification
The following exhaust air volume is required for the 8-inch
duct.
Exhaust air volume: 450 to 550 ft3/min
(12.7 to 15.6 m3/min)
8-inch duct
Duct connection
Fig. 1-3
SRX-T420
1-7
1-4. Installing the Projection Lens
1. Attach the projection lens.
2. Align the notch of lens bracket with the line of projection lens and tighten the supplied four bolts in the order
from  to .
3. Connect the three cables (focus, zoom and POTENTIO).
n
Do not attach the lens cover before completing the lens
adjustment. (Refer to Section 2-3.)
Tighten the bolts in the order from  to .
Notch

Line

Lens bracket
Projection
lens


Pins
Projection lens
Bolts
POTENTIO cable
Zoom cable
Focus cable
Fig. 1-4
1-8
SRX-T420
1-5. Installing the Lens Cover
1. Attach the lens cover in the direction of arrow with
attention to the three hooks.
n
The lens covers are same parts, so they can be attached
both upper and lower.
Hook
Hook
Hook
Lens cover
Fig. 1-5a
2. Attach the lens cover in the direction of arrow with
attention to the three hooks.
n
When attaching the lens cover, align the four convex
portions with the four holes.
Hook
Lens cover
Hook
Hook
Lens cover
Convex portions
Holes
Hole
Convex
portions
Hole
Lens cover
Fig. 1-5b
SRX-T420
1-9
1-6. Installing the Lamp Bulb
w
. Be sure to turn off the power of this unit before installing the lump bulb.
. Be sure that only the qualified service personnel can install the lamp bulb. For the qualification, please
contact your local Sony Sales Office/Service Center.
. When installing the lamp bulb, be sure to wear the protection suit kit (J-7120-330-A (M size), J-7120340-A (L size), or J-7120-460-A (XL size)). Also, wear the shoes that cover the instep of the foot completely.
. Be extremely careful when handling the xenon lamp bulb because a high voltage is applied to it.
. Do not touch the lamp bulb with bear hands. Otherwise, it may break the lamp bulb.
Wearing of protection suit kit
1. Wear the jacket and trousers.
2. Wear the arm cover on both hands so that the wrists are
completely covered.
3. Wear the hood and attach the face shield.
4. Adjust the face shield to the head size using the adjuster on the back of the face shield.
5. Wear the glove on both hands.
Face shield
Adjuster
Hood
Face shield
Protection suit
Arm cover
Arm cover
Glove
Glove
Fig. 1-6a
1-10
SRX-T420
Procedure
m
. Keep the serial code label affixed on the Operating Instructions of the lamp bulb which is required for
installation.
. Keep the materials such as packaging box, case, protection sheet because they are used when disposing
of the used lamp bulb.
1. Loosen the screw and bend portion A of the anode
harness.
Screw
Portion A
Anode harness
Fig. 1-6b
2. Attach the anode harness to the anode side of the lamp
bulb, then tighten the screw.
(Tightening torque: 1.2 N.m)
Lamp bulb
Anode side
Anode harness
Screw
Fig. 1-6c
SRX-T420
1-11
3. Release the lock, then open the panel (U4) block
assembly (420).
4. Loosen the screw (with drop-safe), then rotate the cold
mirror assembly in the direction of the arrow.
5. Loosen the five screws (with drop-safe), then remove
the maintenance cover.
Panel (U4) block
assembly (420)
Lock
Panel (U4) block
assembly
Cold mirror assembly
Screw
(with
drop-safe)
Maintenance cover
Screws (with drop-safe)
Screw
(with drop-safe)
Cold mirror assembly
Fig. 1-6d
1-12
SRX-T420
6. Remove the bolt from the anode terminal.
7. Loosen the hexagon socket set screw of the cathode
terminal.
Cathode terminal
Hexagon socket
set screw
Anode terminal
Bolt
Fig. 1-6e
8. Remove the plastic cover from the lamp bulb.
Lamp bulb
Plastic cover
Fig. 1-6f
SRX-T420
1-13
9. Remove the protection sheet from the lamp bulb.
Lamp bulb
Protection sheet
Fig. 1-6g
10. Loosen the knob, then move the anode holder in the
direction of the arrow.
11. Insert portion A of the lamp into the cathode terminal.
n
When attaching the lamp bulb, be careful not to damage the reflector portion. Also, be careful not to damage the glass of lamp bulb. Otherwise, it may break the
lamp bulb.
12. Hold the cathode side of the lamp bulb firmly and raise
the anode side. Then, return the anode holder to the
original position and tighten the knob.
Reflector portion
Cathode terminal
Anode
holder
Knob
Portion A
Lamp bulb
Fig. 1-6h
1-14
SRX-T420
13. Place the anode side of the lamp bulb on the anode
holder.
14. Attach the anode harness to the anode terminal, then
tighten the bolt. (Tightening torque: 1.5 N.m).
n
After installing the anode harness separated lamp bulb,
if there is a clearance in portion A of the anode holder,
adjust it by bending the anode harness so that there is
no clearance between the anode holder and the lamp
bulb.
15. Tighten the hexagon socket set screw of the cathode
terminal.
(Tightening torque: 1.2 N.m)
n
Be sure that there is no clearance between the end face
of the cathode terminal and the surface C of the lamp
bulb.
16. Attach the panel (U4) block assembly (420) in the
reverse order of steps 3 to 5.
In the case of anode harness integrated lamp bulb
Lamp bulb
Anode
holder
Anode
harness
In the case of anode harness separated lamp bulb
Lamp bulb
No clearance
Anode
holder
Portion A
Anode
harness
Adjust by bending
this portion.
Cathode terminal
Hexagon socket
set screw
Anode holder
Knob
Anode harness
Bolt
Anode terminal
End face
Lamp bulb
Cathode terminal
Surface C
Fig. 1-6i
SRX-T420
1-15
1-7. Installing the Optional Board to INPUT A, INPUT B, INPUT C and
INPUT D
For any slots, the optional board, LKRI-003 or LKRI-005 can be installed.
The installing procedure for each slot is same.
n
For INPUT A slot, LKRI-005 is installed before shipment. Replace it as necessary.
Parts information
. Fixed Plate (HIF) 320: 4-159-161-01 (For LKRI-003)
. Fixed Plate (DIF) 320: 4-159-162-01 (For LKRI-005)
. Handle:
3-172-089-01 (Using 2 pcs)
Procedure (LKRI-003)
1. Remove the six screws, then remove the panel (HIF-44)
and finger holder (HIF).
LKRI-003
Finger holder (HIF)
B3 x 8
Panel (HIF-44)
Fig. 1-7a
2. Attach the fixed plate (HIF) 320 using the six screws
removed in step 1.
3. Attach the two handles to the fixed plate (HIF) 320.
LKRI-003
Handle
B3 x 8
Fixed plate (HIF) 320
Handle
Fig. 1-7b
1-16
SRX-T420
4. Remove the six screws, then remove the all blank
panels.
n
Store the removed blank panel.
5. Remove the six screws, then remove the panel cover
(IF) 420.
Panel cover (IF) 420
Blank panel
PSW4 x 10
PSW4 x 10
Fig. 1-7c
When attaching the LKRI-003 to INPUT B slot
6. Insert the LKRI-003 board into INPUT B slot, and
connect it securely.
7. Attach the panel cover (IF) 420 using the twelve
screws.
n
Attach the blank panel to empty slot.
INPUT B
LKRI-003
Panel cover (IF) 420
PSW4 x 10
Fig. 1-7d
SRX-T420
1-17
Procedure (LKRI-005)
1. Remove the two screws, then remove the panel
(DIF-188) and finger holder (DIF).
LKRI-005
Finger holder (DIF)
B3 x 8
Panel (DIF-188)
Fig. 1-7e
2. Attach the fixed plate (DIF) 320 using the two screws
removed in step 1.
3. Attach the two handles to the fixed plate (DIF) 320.
LKRI-005
Handle
B3 x 8
Fixed plate (DIF) 320
Handle
Fig. 1-7f
4. Remove the six screws, then remove the all blank
panels.
n
Store the removed blank panel.
5. Remove the six screws, then remove the panel cover
(IF) 420.
Panel cover (IF) 420
Blank panel
PSW4 x 10
PSW4 x 10
1-18
Fig. 1-7g
SRX-T420
When attaching the LKRI-005 to INPUT B slot
6. Insert the LKRI-005 board into INPUT B slot, and
connect it securely.
7. Attach the panel cover (IF) using the twelve screws.
n
Attach the blank panel to empty slot.
INPUT B
LKRI-005
Panel cover (IF) 420
PSW4 x 10
Fig. 1-7h
SRX-T420
1-19
Connection with each equipment
m
. Connect each equipment with the power turned off state.
. Use the connecting cables applicable to each terminal.
. Insert the plug securely. Incomplete connection may cause an image trouble.
When disconnecting the plug, be sure to hold the plug with your hand.
. Refer to the Operating Instructions of the equipment to be connected.
In case of LKRI-003
Input
BNC type (2)
HD-SDI:
LKRI-003
Serial digital (1.485 Gbps)
Compliant to SMPTE-292M/ITU-R,
BT709/BTA-S004
Dual-link HD-SDI: Serial digital (1.485 Gbps)
Compliant to SMPTE-372M
DC-SDI:
Serial digital (1.485 Gbps)
Compliant to 23.98 PsF, 24 PsF, 24P
Output
BNC type (2)
Loop-through output
Quantization characteristics
10 bits/sampling
To IN terminal
HD-SDI connecting cable
(optionally available)
To HD-SDI output terminal
SRW-5000
HD DIGITAL VIDEO CASSETTE RECORDER
HDCAM recorder/player, etc.
Fig. 1-7i
1-20
SRX-T420
In case of LKRI-005
m
. For INPUT A slot, LKRI-005 is installed by default. However, LKRI-003 can be installed.
. When using a long cable, the image may not be displayed properly due to the signal attenuation.
. When the 10 bit single mode is selected, the DVI cable applicable to Dual-link is required.
1. Connect the commercially available DVI cable to the
terminal according to the input signal.
Input signal
Used terminal
During normal operation
DVI1.0 compliant
Signal level: Full Range
DVI-D terminal
10 bit signal of its own specification
During input (10 bit twin mode)
Signal level: Full Range
DVI-D terminal
and AUX terminal
10 bit signal of its own specification
During input (10 bit single mode)
Signal level: Full Range
DVI-D terminal
Used during signal input of DTV standard
DVI1.0 compliant
Signal level: Limited Range
DVI-D terminal
10 bit signal of its own specification
During input (10 bit twin mode)
Signal level: Limited Range
DVI-D terminal
and AUX terminal
10 bit signal of its own specification
During input (10 bit single mode)
Signal level: Limited Range
DVI-D terminal
LKRI-005
To DVI-D terminal
To AUX terminal
DVI-D cable
(optionally available)
To DVI output terminal
Personal computer
Fig. 1-7j
Pin location
1
2
3
4
5
6
7
8
9 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
DVI-D terminal, AUX terminal
Pin No.
Signal name
Pin No.
Signal name
1
DATA2_
13
DATA3+
2
DATA2+
14
+5 V
3
GND
15
DDC_GND
4
DATA4_
16
HOTPLUG_DET
5
DATA4+
17
DATA0_
6
DDC_SCL
18
DATA0+
7
DDC_SDA
19
GND
8
NC
20
DATA5_
9
DATA1_
21
DATA5+
10
DATA1+
22
GND
11
GND
23
CLK+
12
DATA3_
24
CLK_
SRX-T420
1-21
1-8. Interlock Terminal
Shield case assembly (1)
Interlock
terminal
Pin location
8
7
6
5
4
3
2
1
15 14 13 12 11 10 9
Interlock terminal
1. Interlock Function
The SRX-T420 interlock function is enabled by making the two pins of the interlock terminal open or
short. The following two patterns can be used for the interlock function in the applicable serial.
Pattern 1
Normal: Open
Interlock: Short
15 14 13 12 11 10 9
8
7
6
5
4
3
2
1
Open/short between pin 4 and pin 5
1-22
SRX-T420
Pattern 2
Normal: Short
Interlock: Open
2
3
4
5
6
7
8
15 14 13 12 11 10 9
1
Open/short between pin 5 and pin 6 with the pin 3 and pin 4 shorted state
1-9. Connecting and Wiring of External Device
w
Do not plug the power cord into the power supply when performing the following wiring operations.
Signal cable wiring
When connecting to external device to this unit, connect by
routing the cable through the hole of the front side.
Hole
External device
Front side
Fig. 1-9
SRX-T420
1-23
1-10. Connecting the Power Cord
Use the 3-core power cord that satisfy AWG 8, 250 V rated and 40 A rated.
Connect the power cord to the AC IN terminal block on the rear side of this unit, referring the following
procedure.
w
. Connection of the main power and the electric wiring work should be done by qualified electricians
only.
. Do not plug the power cord into the power supply before completing all of the following connecting operations.
1. Remove the two screws.
2. Remove the terminal block cover with attention to the
two hooks.
Hooks
Terminal block cover
Screws
Fig. 1-10a
3. Remove the screw, then remove the cable clamp.
4. Remove the screw, then remove the ground terminal.
Ground terminal
Screw
Cable clamp
Screw
Fig. 1-10b
1-24
SRX-T420
5. Pack by soldering the end of the ground wire.
6. Attach the ground terminal removed in step 4 to the
ground wire, then fix it with the screw.
Screw
Pack by soldering
Ground terminal
Ground wire
Fig. 1-10c
7. Route the cable through the lower hole of the terminal
block, then fix each terminal by screw.
8. Fix the cable with the cable clamp and screw.
9. Attach the terminal block cover.
Ground terminal
Screws
Cable clamp
Screw
Fig. 1-10d
SRX-T420
1-25
1-11. About the Optional Accessories
The projection lamps of this projector are provided as optional accessories. Install the lamp houses to the
projector according to your model.
For versatile use of the projector, the optional accessories mentioned below can be used with the projector. Select to use them according to your system requirements.
. For details on optional accessories, refer to the relevant Operating Instructions.
Lamp
LKRX-2042A
Projection lens
. LKRL-Z111C (with memory function)
. LKRL-Z114C (with memory function)
. LKRL-Z116C (with memory function)
. LKRL-Z117 (with memory function)
. LKRL-Z119 (with memory function)
. LKRL-Z122 (with memory function)
. LKRL-Z115
. LKRL-Z140
. LKRL-90 (fixed focus lens)
Input board
. LKRI-003 HD-SDI/DC-SDI (4:4:4) input board
. LKRI-005 HDCP DVI board
1-26
SRX-T420
1-12. Projection Distance Charts
Screen
Center of screen
Center of lens
L (Suitable distance)
The alphabetical characters in this section indicate the following measurements:
W:
Screen width (unit: mm)
D:
Screen diagonal length (unit: inch)
L (min): Minimum distance between the center of lens and screen
L (max): Maximum distance between the center of lens and screen
H:
Screen height (different from the aspect ratio of the projected image)
The distance between the lens and the screen varies depending on the attached lens, type of the input
signal or size of the projected image. Choose the most suitable distance (L) depending on the screen size
(W or D).
The formula for calculating the projection distance from the screen width (W, unit: mm) is as follows:
Type of lens
Projection distance
calculation formula when
inputting a 4K x 2K signal
Projection distance
calculation formula when
inputting a 16:9 signal
Projection distance
calculation formula when
inputting a 4:3 signal
L (min)
L (max)
L (min)
L (max)
L (min)
L (max)
LKRL-Z115
1.48 x W
1.8 x W
1.58 x W
1.92 x W
2.1 x W
2.56 x W
LKRL-Z117
1.69 x W
2.38 x W
1.8 x W
2.53 x W
2.41 x W
3.38 x W
LKRL-Z119
1.78 x W
2.93 x W
1.89 x W
3.13 x W
2.53 x W
4.16 x W
LKRL-Z122
2.19 x W
3.99 x W
2.33 x W
4.26 x W
3.12 x W
5.68 x W
LKRL-Z140
3.75 x W
7.07 x W
4xW
7.54 x W
5.34 x W
10 x W
LKRL-Z111C
1.07 x W
1.71 x W
1.14 x W
1.82 x W
1.52 x W
2.43 x W
LKRL-Z114C
1.35 x W
1.98 x W
1.44 x W
2.12 x W
1.93 x W
2.82 x W
LKRL-Z116C
1.51 x W
2.3 x W
1.61 x W
2.45 x W
2.15 x W
3.27 x W
LKRL-90
0.897 x W
SRX-T420
0.957 x W
1.28 x W
1-27
The formula for calculating the projection distance from the screen diagonal length (D, unit: inch) is as
follows:
Type of lens
Projection distance
calculation formula when
inputting a 4K x 2K signal
Projection distance
calculation formula when
inputting a 16:9 signal
Projection distance
calculation formula when
inputting a 4:3 signal
L (min)
L (min)
L (min)
L (max)
L (max)
L (max)
LKRL-Z115
1.31 x D
1.59 x D
1.37 x D
1.67 x D
1.68 x D
2.05 x D
LKRL-Z117
1.49 x D
2.1 x D
1.57 x D
2.21 x D
1.93 x D
2.7 x D
LKRL-Z119
1.57 x D
2.59 x D
1.65 x D
2.72 x D
2.03 x D
3.33 x D
LKRL-Z122
1.94 x D
3.53 x D
2.03 x D
3.71 x D
2.5 x D
4.54 x D
LKRL-Z140
3.31 x D
6.25 x D
3.48 x D
6.57 x D
4.27 x D
8.03 x D
LKRL-Z111C
0.942 x D
1.51 x D
0.99 x D
1.59 x D
1.22 x D
1.94 x D
LKRL-Z114C
1.2 x D
1.75 x D
1.26 x D
1.84 x D
1.54 x D
2.26 x D
LKRL-Z116C
1.34 x D
2.03 x D
1.41 x D
2.14 x D
1.72 x D
2.62 x D
LKRL-90
0.793 x D
0.834 x D
1.02 x D
The projection distance (L) that is decided by the screen width (W) is as shown below.
For the projection distance charts of the optional lenses not mentioned below, refer to the mounting
instructions supplied with each lens.
Using the LKRL-Z115 projection lens
When projecting a 4096-pixel (4K x 2K) image at the maximum horizontal picture element
Unit: mm (inches)
W
4500
5000
6000
7000
8000
(177 1/5) (196 6/7) (236 2/9) (275 3/5) (315)
L (min) 6554
(258)
7295
8778
10261
(287 2/9) (345 3/5) (404)
L (max) 8056
8964
(317 1/6) (353)
10780
12596
(424 2/5) (496)
11743
13226
14709
(462 1/3) (520 5/7) (579)
17674
20639
23605
(695 5/6) (812 4/7) (929 1/3)
14412
16228
18044
21676
25308
28940
(567 2/5) (638 8/9) (710 2/5) (853 2/5) (996 3/8) (1139 3/8)
H1 a)
2373
(93 3/7)
2637
3164
3691
4219
(103 4/5) (124 4/7) (145 1/3) (166)
H2 b)
1883
(74 1/8)
2092
(82 3/8)
2510
(98 5/6)
9000
10000
12000
14000
16000
(354 1/3) (393 5/7) (472 4/9) (551 1/6) (630)
4746
5273
6328
7383
8438
(186 6/7) (207 5/8) (249 1/7) (290 2/3) (332 1/5)
2929
3347
3766
4184
5021
5858
6695
(115 1/3) (131 7/9) (148 1/4) (164 3/4) (197 2/3) (230 5/8) (263 4/7)
mm:
L (min) = (W _ 79.675) / 0.67446
L (max) = (W _ 63.762) / 0.55067
H1 = W x 0.52730
H2 = W x 0.41840
inch:
L (min) = (W _ 3.1368) / 0.67446
L (max) = (W _ 2.5103) / 0.55067
H1 = W x 0.52730
H2 = W x 0.41840
a) Screen height when projecting a 4096 x 2160-pixel (4K single screen) image on the screen.
b) Screen height when projecting a 4096 x 1714-pixel (aspect ratio 2.39:1) image on the screen.
1-28
SRX-T420
When projecting a 3840-pixel (aspect ratio 16:9) image at the maximum horizontal picture element
Unit: mm (inches)
W
4500
5000
6000
7000
8000
(177 1/6) (196 6/7) (236 2/9) (275 3/5) (315)
9000
10000
12000
14000
16000
(354 1/3) (393 5/7) (472 4/9) (551 1/6) (630)
L (min) 7001
7791
9373
(275 5/8) (306 3/4) (369)
10955
12537
14118
15700
18863
22027
25190
(431 2/7) (493 4/7) (555 5/6) (618 1/9) (742 2/3) (867 1/5) (991 3/4)
L (max) 8600
9568
11505
(338 4/7) (376 5/7) (453)
13442
15379
17316
19253
(529 2/9) (605 1/2) (681 3/4) (758)
23127
27000
(910 1/2) (1063)
30874
(1215 1/2)
H1 a)
2531
(99 2/3)
2813
3375
3938
(110 3/4) (132 7/8) (155)
4500
5063
5625
6750
7875
(177 1/6) (199 1/3) (221 1/2) (265 3/4) (310)
9000
(354 1/3)
H2 b)
2432
(95 3/4)
2703
3243
3784
(106 2/5) (127 2/3) (149)
4324
4865
5405
6486
7568
(170 1/4) (191 1/2) (212 4/5) (255 3/8) (298)
8649
(340 1/2)
mm:
L (min) = (W _ 73.944) / 0.63223
L (max) = (W _ 59.873) / 0.51629
H1 = W x 0.56250
H2 = W x 0.54050
inch:
L (min) = (W _ 2.9112) / 0.63223
L (max) = (W _ 2.3572) / 0.51629
H1 = W x 0.56250
H2 = W
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
