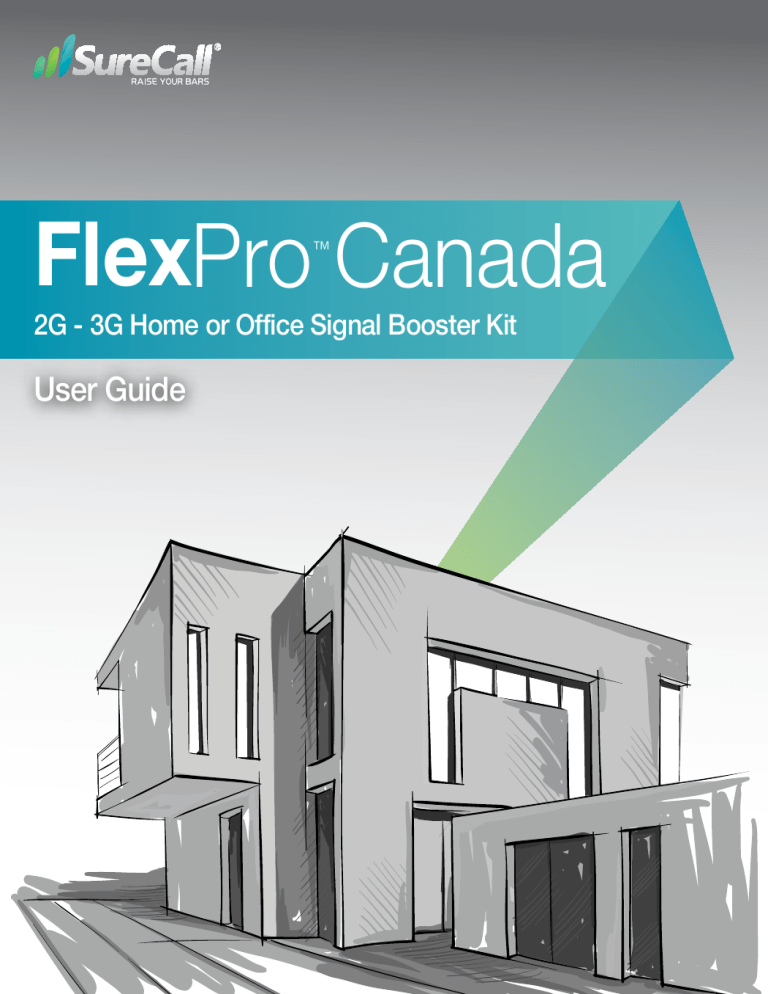

FlexPro Canada

2G - 3G Home or Office Signal Booster Kit

User Guide

Thank you for your purchase of SureCall’s FlexPro Canada cellular signal booster kit.

FlexPro Canada was specifically designed to eliminate frustrations over dropped calls, limited range and slow data rates by amplifying incoming and outgoing cellular signals in homes and offices up to 6,000 square feet. FlexPro Canada enhances 2G and 3G voice and reception data for all major Canadian carriers.

If you need any assistance while installing this product please contact tech support at

1-888-365-6283 or email us at: [email protected]

Table of Contents

How It Works Pg. 4

Package Contents Pg. 5-6

Installing Your Hardware Pg. 7

Installation Overview Pg. 7

Finding the Strongest Signal Pg. 8

Installing the Outside Anntenna Pg. 9-10

Installing the Insides Anntenna Pg. 11-12

Installing Signal Booster Pg. 13-14

Configure Gain Setting Pg. 14

Troubleshooting Pg. 15

Specification Pg. 17

Warranty Pg. 18-19

Safety Information Pg. 19

2

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected]

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected]

3

How It Works

SureCall’s FlexPro Canada is a high-quality bidirectional signal booster that enhances cellular signals to areas that are prone to weak cellular coverage.

FlexPro Canada works with two antennas:

• An inside antenna that communicates with your cell phone.

• An outside antenna that communicates with the cell tower.

Signals sent from a cell tower are received by the outside antenna, amplified by the booster and then broadcast to your phone via the inside antenna. When your phone transmits, the signal is sent to the inside antenna, amplified and then sent to the cell tower via the outside antenna.

Inside Antenna

Signal Booster

Coaxial Cable

Outside Antenna

4

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected]

Package Contents

1. Unpack all package contents. For missing or damaged items, contact your reseller.

2. Turn over the signal booster and record the model and serial number for reference:

Serial #:

Purchase Date:

3. Keep the carton and packing material to store the product in case you need to return it.

Your FlexPro Canada signal booster package includes the following items:

• One SureCall FlexPro Canada signal booster

• One outside antenna

• Cable for connecting the outside antenna to the signal booster

• One inside antenna

• Cable for connecting the inside antenna to the signal booster

• One power supply

FlexPro Canada Signal Booster

SC-400 Cables (2pcs)

Outside Antenna (Option) Inside Antenna (Option)

Omni Yagi Dome Panel

Warning

:

Unauthorized antennas, cables, and/or coupling devices are prohibited by FCC new rules. Please contact FCC for details: 1-888-CALL-FCC.

Changes or modifications not expressly approved by SureCall could void the user’s authority to operate the equipment.

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected]

5

Package Contents

Note: FlexPro Canada is available in four kits that are customized to your particular needs. Please determine which kit you have from the following list:

Model

SC-DUALH/O-72-OD-Kit

SC-DUALH/O-72-YD-Kit

Package Options

1 Outdoor Omni antenna, 1 interior dome antenna, 30’ and 75’ SC coax cables

1 Outdoor Yagi antenna with 1 interior dome antenna, 30’ and 75’ SC coax cables

SC-DUALH/O-72-OP-Kit 1 Outdoor Omni antenna with 1 interior panel antenna, 30’ and 75’ SC coax cables

SC-DUALH/O-72-YP-Kit

1 Outdoor Yagi antenna with 1 interior panel antenna, 30’ and 75’ SC coax cables

For a detailed description, see Kitting Information on page 17

Antenna Type

Model No.

Omni Outdoor Antenna

SC-288W

Usage Coverage

Omni Antennas are ideal for topographies with minimal obstacles. They offer 360˚ hemispherical coverage

Yagi Outdoor Antenna

SC-230W-S

Dome Antenna

SC-222W

Yagi antennas are for targeted areas and capable of reaching cell towers up to 30 miles away

Dome antennas are for a central location with 360˚ coverage

6

Panel Antenna

SC-248W

Panel Antennas allow optimum reception to targeted areas

Note:

Due to the recent change of our company name from Cellphone-Mate (CM) to SureCall (SC) we have changed the prefix on all of our antennas, cables and accessories from CM to SC-.

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected]

Before You Install

Step 1. Make sure you have positioned the booster close enough to an existing electrical outlet.

Step 2. Make sure you have sufficient cable length between proposed outside antenna location and booster connector.

Step 3. Make sure you have sufficient cable length between proposed inside antenna location and booster connector.

Installation Overview

Step 1. Find the outside area that has the strongest signal.

(See page 8 for instruction)

Step 2. Install the outside antenna in the area identified in step 1.

(See page 9-11 for instruction)

Step 3. Install the inside antenna.

(See page 11-12 for instruction)

Step 4. Mount the signal booster, connect the outside and inside antenna cables to the signal booster, and connect the booster to an AC power source. (

See page 13-14 for instruction)

Step 5. Configure gain settings on the signal booster if needed.

(See page 14 for instruction)

Outside Antenna

Inside Antenna

Signal Booster

Coaxial Cable

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected]

7

Installing Your Hardware

Step 1. Find the area with the Strongest Signal

The signal booster requires a minimum cellular signal of low –100 dBm to high –90 dBm.

If your FlexPro Canada Kit includes an outside omni antenna and you can only achieve reception of one bar or less, you may need a FlexPro Canada yagi antenna which is capable of targeting carrier antenna towers that are up to 30 miles away. Call or email SureCall for assistance.

Signal readings usually appear as a negative number (for example, -85). The stronger the signal, the closer it gets to zero. Aim for a signal close to -50 dB. Signals stronger than

-50 dB may cause the booster to shut down (see the graph below). Before installing the outside antenna, find the area with the strongest cellular signal source from your service provider by following the directions below. You can also go to www.antennasearch.com to find the general location of your carrier’s towers.

Measure the strength of the existing cellular signal in various locations

• Apple iPhones: Dial*3001# 12345#* and press Call. In the top-left corner, a number appears instead of bars.

• Android devices: download apps such as “Network Signal Info” in the Google Play store to measure signal strength. Search check real signal strength to find other cell signal measurement apps.

• Internet: go to www.speedtest.net

Signal Strength

Poor Good Excellent

Cell

Tower

Outside

Antenna

8

2. Select a location away from buildings, walls, trees, hills, and other terrain features that can block or reflect wireless signals (12-inch clear radius is recommended).

Note:

Where you install your outside antenna in relation to the carrier’s cell phone tower also determines signal strength. Although cell phone

carriers try to place towers for maximum coverage, local ordinances and terrain features can restrict tower locations, which can limit signal strength at your location.

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected]

Installing Your Hardware

Step 2. Install the Outside Antenna

1. Outside Omni antennas receive and send signals in a 360º radius. Yagi, or directional antennas work best when pointed in the direction of your cell phone carrier’s cell tower.

Mount the outside antenna as high as possible. If you are installing a Yagi antenna set it up facing the cell tower in the area where you located the best signal source (see step

1 on the previous page).

2. Make sure that the mounting area has least a 12-inch radius clear of obstructions and other radiating elements.

3. If the mounting area is prone to weak cellular signals or if the density of the roof and ceiling partially block the signal, the booster will operate at its default setting of 65 dB gain, be sure to place the outside antenna in a straight line at least 75 feet from the inside antenna for best performace.

4. Do not colocate antennas or operate the outside antenna with any other antenna or signal boosters.

5. Run the SC-400 cable from the outside antenna to the signal booster. Do not connect the cable to the booster at this time.

Note

: See next page for outside antenna installation details.

Optional 2 - Outside Yagi

Optional 1- Outside Omni

FlexPro

Note:

Due to the recent change of our company name from Cellphone-Mate (CM) to SureCall (SC) we have changed the prefix on all of our antennas, cables and accessories from CM to SC-.

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected]

9

Installing Your Hardware

FlexPro Canada omni antenna comes with equipment for mounting on a vertical wall. For best results the antenna should be mounted in an upright position.

Step 1: Unscrew antenna from L-mounting bracket on antenna base with hands, or wrench, if needed.

Step 2: Using vertical plate of bracket, mark position of desired placement with pencil or marker.

Step 3: Unscrew nut on end of stucco screw and remove it along with lock washer and regular washer.

Step 4: Place vertical plate into desired location and tap the screws, head first, along with sleeve, into stucco 1⁄2” to 5/8” deep into place.

Step 5: In this order, place washer, lock washer and nut on each screw and tighten until secure. When tightening screw, sleeve will expand to secure plate. Screw antenna securely back onto horizontal plate.

10

Note:

If desired surface for installation plate is wood or concrete, wood or masonry screws for L-plate will have to be purchased separately.

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected]

Installing Your Hardware

Step 3. Install the Inside Antenna

Inside antennas come in omni-directional (dome) and flat panel versions.

Table 3 1. Antenna Separation Table

Required Between

Outside and Inside Antenna antenna separation

3000 - 6000 square feet 65 (default setting) 60 - 80 feet

2000 – 4000 square feet 60 50 – 75 feet

1500 – 2000 square feet 55 40 - 60 feet

1000- 1500 square feet

1000 square feet and below

50

45 or below

35 – 50 feet

30 - 35 feet

Note:

As you can see from the table above, acquiring the recommended inside and outside antenna separation optimizes coverage significantly.

Any reduced antenna separation reduces the booster’s coverage.

1. If your indoor antenna is a dome type, mount it on the ceiling in a central location.

2. If your indoor antenna is a flat panel, install it against a wall or surface projecting the area where you want reception. Point the antenna away from the outside antenna.

To avoid interference stay a minimum distance of 3 feet from the panel antenna.

Note:

see next page for outside antenna installation details.

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected]

11

Installing Your Hardware

The SC-222W multi-band plastic antenna is an omni-directional interior antenna that gathers signals from all sides. Range of antenna is dependent on three factors:

1) physical obstructions, 2) power generated by booster and 3) reception from outside signal received and distributed by outside antenna.

Besides the antenna itself, parts include mounting equipment for either a flat horizontal surface or a wall. It should be mounted in an upright position for best results.

Step 1: Drill a 35mm diameter hole in the ceiling. The ceiling thickness should be 20mm, maximum.

Step 2: Unscrew fixing nut from antenna. Place antenna cable through hole. Screw the fixing nut back onto antenna and cable on crawl space side of ceiling and fasten.

Step 3: Attach the N-Female connection from the interior antenna to the cable leading to the connector labeled INSIDE, on your booster.

Step 4: Tighten fixing nut to secure antenna (do not over-tighten).

• Storage and transportation: Store and place in non-extreme room-temperature and dry environment

• Attention: This antenna should not be used near open fire or flame

Installing Your Hardware

Step 4. Install the Signal Booster

1. Select a location close to a working AC outlet. Do not expose the signal booster to excessive heat, direct sunlight, moisture, and airtight enclosures. In areas where there are higher temperatures, install the booster vertically, so air can move between the metal channels on the faceplate.

2. If you’d like to mount the booster to a wall, mark location of screw tabs on the wall in the desired location.

3. Use supplied screws or appropriate screws for surface of mounting location and drill through screw tabs holes on boosters.

4. Connect the outside antenna cable to the signal booster connector marked OUTSIDE

(see page 14). Hand-tighten the connection.

5. Connect the inside antenna cable to the signal booster connector marked INSIDE (see page 14). Hand-tighten the connection.

6. Connect the AC power cord to the signal booster (see page 14).

7. Connect the plug on the other end of the 110V AC power outlet.

8. Turn the booster’s power switch on.

• The signal booster turns on automatically.

• The Power LED lights up to show that the signal booster is ready for use see page 14.

• The Alert LED flash up to 15 seconds on each band to show the band is activated see page 14.

Note

:

If the Power LED does not turn ON or the Alert LEDs continue to flash, see Troubleshooting page 15.

This booster is rated for 5-15V input voltage. DO NOT use the booster with a higher voltage power supply. This can damage the booster, cause personal injury, and void your warranty.

12

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected]

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected]

13

Installing your Hardware

Booster Hardware

The following image shows the key hardware components on the cellullar booster.

Refer to this image as you install your FlexPro Canada kit components.

FME connector to outside antenna

Alert LED

Cellular - 800 Dial

Alert LED

PCS - 1900 Dial

Programmer

Power Jack

FME connector to inside antenna

Power Switch

Lighting type

Green light

Yellow light

Yellow light blinking

Red light blinking

Red light yellow light alternately blinking

Indication

ON: Power up.

OFF: No power.

ON: Uplink inactivity in that band.

OFF: Working properly.

Blinking: AGC operating.

OFF: Working properly.

Red light blinking: Shut down due to oscillation.

OFF: Working properly.

Red light and yellow light blinking: Self-oscillating.

OFF: Working properly.

Step 5. Configure Gain Settings

1. Find the PCS and Cellular on the top of the signal booster (See above ).

2. Set the dials according to the coverage area and the distance between the indoor and outdoor antennas (See next page).

14

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected]

Troubleshooting

Table 3 1. Gain Settings Table

3000 - 6000 square feet

2000 – 4000 square feet

1500 – 2000 square feet

1000- 1500 square feet

1000 square feet and below

65 (default setting) 60 - 80 feet

60

55

50

45 or below

50 – 75 feet

40 - 60 feet

35 – 50 feet

30 - 35 feet

Note: As you can see from the table above, acquiring the recommended indoor and outdoor antenna separation optimizes coverage significantly. Any reduced antenna separation reduces the booster’s cellular signal capabilities.

If you Want to Improve Coverage

• Find a location that receives a stronger signal and relocate the outside antenna to that location.

• Increase the distance between the outside and inside antennas.

• Be sure your signal booster’s dB gain is turned up to maximum gain on each dial (see page 14).

Warning: Do not adjust the uplink and downlink dB attenuation settings more than 20dB, this could cause the booster to shut down.

Troubleshooting

In the event you encounter a problem, follow the suggestions below to resolve the issue.

Table 2-1. Troubleshooting Table

Problem

Signal booster has no power

Resolution

Verify that the booster switch is turned on.

Connect the power supply to an alternate power source. Be sure the AC outlet is working and is not controlled by a wall switch that can cut power to the outlet. If the green POWER LED on the signal booster is OFF, return the power supply to SureCall. Contact tech support at 1-888-365-6283 or [email protected], or go to www.surecall.com and log on to online support to receive a Return

Merchandise Authorization. (RMA)

After installing your signal booster system, you have no signal or reception.

Check the strength of the outside signal as close as you can to the outside antenna. (see instructions on page 14)

Double-check all signal booster and antenna cable connections.

Be sure your signal booster’s dB gain is turned up to full power on each dial. (see page 8)

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected]

15

Troubleshooting

16

Problem

LED flashing yellow

Red Flashing LED

Resolution

This means that the Automatic Gain Control (AGC) is adjusting which is part of the boosters normal operation

Signal coming into booster from cellular tower is too strong causing the booster to automatically shut down. There are two possible solutions:

1. Add an inline attenuator to the cable coming into the booster

2. Relocate the outdoor antenna to a location where the signal is weaker.

Your signal booster restarted and shut down for 15 minutes, and is now shut down permanently.

The red LED goes ON.

The Power LED does not turn ON.

Yellow/Red Flashing LED

The Alert LEDs continue to flash.

Your signal booster has no power.

Each SureCall signal booster is equipped with Auto Shutdown to prevent cell tower interference. The outside antenna may be close to a cell tower. Move the outside antenna to a location that provides sufficient distance from the cell tower to prevent the signal booster from automatically enabling Auto Shutdown. Once away from the original location. (see page 8)

More antenna separation is needed. If you cannot provide more antenna separation and the Alert LEDs flash after the initial activation period, lower the dial above the blinking LED by 5dB (for example, from 50 to 45) and monitor the bars on your cell phone to see whether reception improves.

Be sure the AC outlet is working and is not controlled by a wall switch that can cut power to the outlet.

Oscillation is detected. First try increasing the separation between

the indoor and outdoor antennas. If this doesn’t eliminate oscillation,

lower the dB gain in 5dB increments.

The signal booster shuts down automatically, and then restarts after

60 seconds. Turn down the PCS or Cellular dial that is oscillating to prevent the signal booster from shutting down automatically.

This may indicate that additional antenna separation is needed.

Verify that the switch on the power supply is turned on and Green

LED is ON.

Connect the power supply to an alternate power source. return the power supply to SureCall. Contact tech support at 1-888log on to online support to receive an RMA.

The Manufacturer’s rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are present, the rating would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can cause interference to adjacent band users. This power reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the device.

porteuse unique. Pour des appareils avec porteuses multiples, on doit réduire la valeur nominale de 3,5 dB, surtout si le signal de sortie est retransmis et qu’il peut causer du brouillage aux utilisateurs de bandes adjacentes. Une telle réduction doit porter sur la puissance d’entrée ou sur le gain, et ne doit pas se faire au moyen d’un atténuateur raccordé à la sortie du dispositif.

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected]

Specification

Specification

Uplink Frequency Range (MHz):

Downlink Frequency Range (MHz):

Supported Standards:

Input/Output Impedance:

Maximum Gain:

Noise Figure:

VSWR:

AC Input:

Maximum Output Power:

Cable:

RF Connectors:

Power Consumption:

Dimensions:

Weight:

IC (Canada):

FlexPro Canda

824-849 / 1850-1910

869-894 / 1930-1990

CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all cellular standards

50 ohm

65dB-Cellular / 72dB- PCS

7dB

≤2.0

5-15V

3 Watt EIRP

SC-400/CM-400

N Female (both ends )

<10W

8” x 1.25” x 5”

1 lbs 8 oz

7784A-FLEXPRO

Kitting Information

Component

Outside Antennas*

Outside Cable

Inside Antenna*

Inside Cable

Product Number

SC-288W

SC-230W-S

SC-230W (option)

SC-400-75NN (75 Feet)

SC-248W

SC-222W

SC-400-30NN (30 Feet)

Gain / Loss

Cellular 800 MHz

3 dBi

7.5 dBi

10 dBi

–4.41dB

7 dBi

3 dBi

–1.97 dB

PCS1900 MHz

4 dBi

8 dBi

11 dBi

–6.17dB

10 dBi

6 dBi

–2.67 dB

*All equivalent antennas and cables are suitable for use with the FlexPro Canada booster.

Note: Due to the recent change of our company name from Cellphone-Mate (CM) to SureCall (SC) we have changed the prefix on all of our antennas, cables and accessories from CM to SC-.

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected]

17

Warranty

Three-Year Product Warranty

SureCall warrants its products for three years from the date of purchase against defects in workmanship and/or materials.

Specifications are subject to change. The three-year warranty only applies to products meeting the latest FCC Certification

Guidelines stated on 2/20/2013 and going into effect April 30, 2014. A two-year warranty applies to any products manufactured before May 1, 2014.

Products returned by customers must be in their original, un-modified condition, shipped in the original or protective packaging with proof-of-purchase documentation enclosed, and a Return Merchandise Authorization (RMA) number printed clearly on the outside of the shipping container.

Buyers may obtain an RMA number for warranty returns by calling the SureCall Return Department toll-free at 1-888-365-

6283. Any returns received by SureCall without an RMA number clearly printed on the outside of the shipping container will be returned to sender. In order to receive full credit for signal boosters, all accessories originally included in the signal booster box must be returned with the signal booster. (The Buyer does not need to include accessories sold in addition to the signal booster, such as antennas or cables.)

This warranty does not apply to any product determined by SureCall to have been subjected to misuse, abuse, neglect, or mishandling that alters or damages the product’s physical or electronic properties.

SureCall warrants to the Buyer that each of its products, when shipped, will be free from defects in material and workmanship, and will perform in full accordance with applicable specifications. The limit of liability under this warranty is, at SureCall’s option, to repair or replace any product or part thereof which was purchased up to THREE YEARS after May 1, 2014 or TWO

YEARS for products purchased before May 1, 2014, as determined by examination by SureCall, prove defective in material and/or workmanship. Warranty returns must first be authorized in writing by SureCall. Disassembly of any SureCall product by anyone other than an authorized representative of SureCall voids this warranty in its entirety. SureCall reserves the right to make changes in any of its products without incurring any obligation to make the same changes on previously delivered products.

As a condition to the warranties provided for herein, the Buyer will prepay the shipping charges for all products returned to

SureCall for repair, and SureCall will pay the return shipping with the exception of products returned from outside the United

States, in which case the Buyer will pay the shipping charges.

The Buyer will pay the cost of inspecting and testing any goods returned under the warranty or otherwise, which are found to meet the applicable specifications or which are not defective or not covered by this warranty.

Products sold by SureCall shall not be considered defective or non-conforming to the Buyer’s order if they satisfactorily fulfill the performance requirements that were published in the product specification literature, or in accordance with samples provided by SureCall. This warranty shall not apply to any products or parts thereof which have been subject to accident, negligence, alteration, abuse, or misuse. SureCall makes no warranty whatsoever in respect to accessories or parts not supplied by it.

Warranty

Limitations of Warranty, Damages and Liability:

EXCEPT AS EXPRESSLY SET FORTH HEREIN, THERE ARE NO WARRANTIES, CONDITIONS, GUARANTEES, OR REPRE-

SENTATIONS AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR OTHER WARRANTIES, CONDITIONS,

GUARANTEES, OR REPRESENTATIONS, WHETHER EXPRESSED OR IMPLIED, IN LAW OR IN FACT, ORAL OR IN WRITING.

SURECALL AGGREGATE LIABILITY IN DAMAGES OR OTHERWISE SHALL NOT EXCEED THE PAYMENT, IF ANY, RECEIVED

BY CELLPHONE-MATE, INC. FOR THE UNIT OF PRODUCT OR SERVICE FURNISHED OR TO BE FURNISHED, AS THE CASE

MAY BE, WHICH IS THE SUBJECT OF CLAIM OR DISPUTE. IN NO EVENT SHALL SURECALL BE LIABLE FOR INCIDENTAL,

CONSEQUENTIAL, OR SPECIAL DAMAGES, HOWSOEVER CAUSED.

All matters regarding this warranty shall be interpreted in accordance with the laws of the State of California, and any controversy that cannot be settled directly shall be settled by arbitration in California in accordance with the rules then prevailing of the American Arbitration Association, and judgment upon the award rendered may be entered in any court having jurisdiction thereof. If one or more provisions provided herein are held to be invalid or unenforceable under applicable law, then such provision shall be ineffective and excluded to the extent of such invalidity or unenforceability without affecting in any way the remaining provisions hereof.

SAFETY INFORMATION

This is a CONSUMER device.

BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas

MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the

FCC or a licensed wireless service provider.

WARNING: E911 location information may not be provided or may be inaccurate for calls served BY USING THIS DEVICE.

48346 Milmont Drive

Fremont, California 94538

USA

888.365.6283

Fax: 510.996.7250

www.surecall.com

SureCall has made a good faith effort to ensure the accuracy of the information in this document and disclaims the implied warranties of merchantability and fitness for a particular purpose and makes no express warranties, except as may be stated in its written agreement with and for its customers.SureCall shall not be held liable to anyone for any indirect, special or consequential damages due to omissions or errors. The information and specifications in this document are subject to change without notice. © 2014. All Rights Reserved. All trademarks and registered trademarks are the property of their respective owners.

18

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected]

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected]

19

This is a CONSUMER device.

BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider.

You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the

FCC or a licensed wireless service provider.

WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
