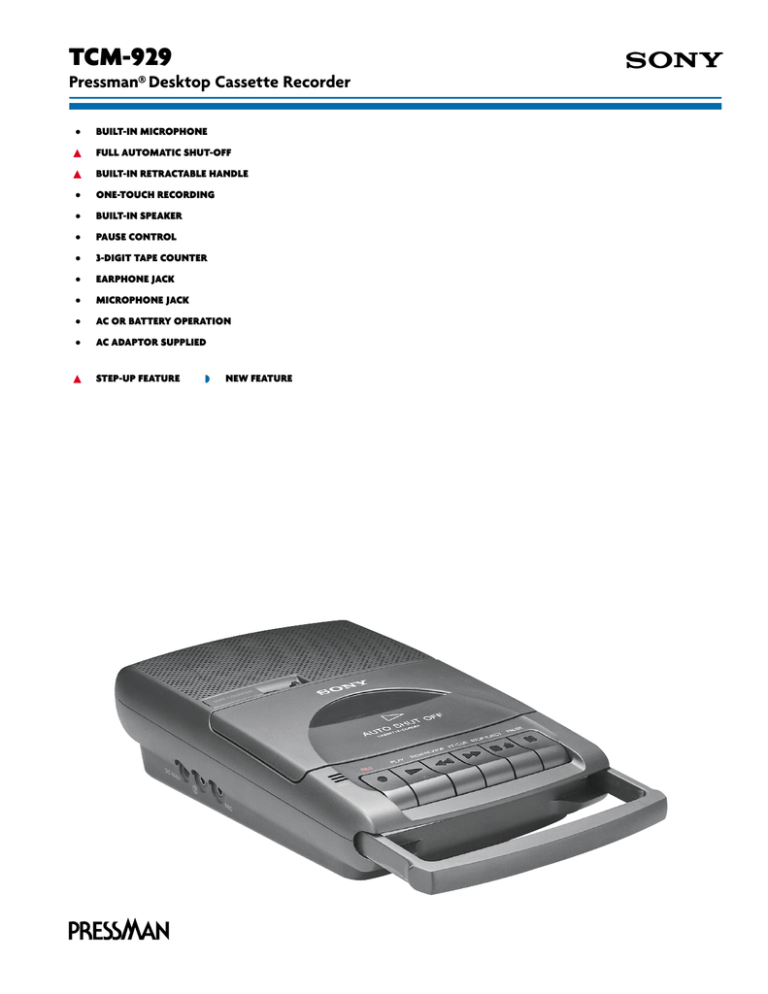

TCM-929
Pressman® Desktop Cassette Recorder
•
BUILT-IN MICROPHONE
▲
FULL AUTOMATIC SHUT-OFF
▲
BUILT-IN RETRACTABLE HANDLE
•
ONE-TOUCH RECORDING
•
BUILT-IN SPEAKER
•
PAUSE CONTROL
•
3-DIGIT TAPE COUNTER
•
EARPHONE JACK
•
MICROPHONE JACK
•
AC OR BATTERY OPERATION
•
AC ADAPTOR SUPPLIED
▲
STEP-UP FEATURE
◗
NEW FEATURE
TCM-929
features
specifications
• BUILT-IN MICROPHONE provides convenient recording versatility in
TAPE SYSTEM: 2 Track, 1 Channel Monaural Standard Cassette
FREQUENCY RESPONSE: 150-8000kHz, +/-3dB
MICROPHONE: Built-In Electret Condenser
INPUTS: DC In, 6V; External Microphone
OUTPUTS: Earphone Minijack
SPEAKER: Mono: 2 5⁄8" (66mm) dia x 1
POWER OUTPUT: 810mW (at 10% THD)
POWER REQUIREMENTS: DC 6V with “AA” x 4 Batteries
various situations
▲ FULL AUTOMATIC SHUT-OFF releases the buttons in Play, Record, Fast
Forward and Rewind modes to reduce mechanical wear and conserve
battery power
▲ BUILT-IN RETRACTABLE HANDLE makes for easy portability when
desired,and self-stores easily when not in use
• ONE-TOUCH RECORDING for simplified, quick play/record operation
• BUILT-IN SPEAKER has excellent sound quality to monitor tape playback
• PAUSE CONTROL allows for instant on-the-spot editing
• 3-DIGIT TAPE COUNTER makes it easy to find a specific location on the
tape for rapid access and editing
• EARPHONE JACK for private listening with optional earphone
AC 120V 60Hz
BATTERY LIFE: Approx 8.5 hrs with Sony Alkaline Batteries (not incl.)
DIMENSIONS (WHD): 5 5⁄8" x 2 1⁄4" x 8 3⁄8" (144 x 58 x 215mm)
WEIGHT: 1 lb. 5 oz (670g) with batteries
SUPPLIED ACCESSORIES: AC Adaptor
©2002 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited. All rights reserved.
Sony and Pressman are trademarks of Sony.
Features and specifications are subject to change without notice. Non-metric weights and measures
are approximate.
• MICROPHONE JACK lets you connect an external microphone if desired
• AC OR BATTERY OPERATION lets you use conventional batteries for
hours of operation, or standard household current for virtually unlimited
recording and playback time
• AC ADAPTOR SUPPLIED conserves batteries and provides virtually
unlimited recording and playback time when an AC power source is
available
• MODERN DESKTOP DESIGN makes an attractive appearance in home or
office
Sony Electronics Inc • 1 Sony Drive, Park Ridge, New Jersey 07656 • www.sony.com
Printed in USA 2/2002
