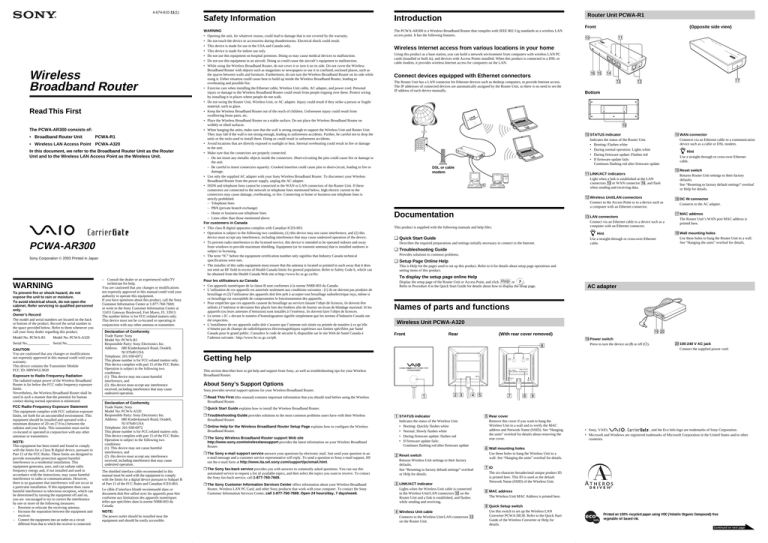

Router Unit PCWA-R1
Safety Information
Introduction
WARNING
• Opening the unit, for whatever reason, could lead to damage that is not covered by the warranty.
• Do not touch the device or accessories during thunderstorms. Electrical shock could result.
• This device is made for use in the USA and Canada only.
• This device is made for indoor use only.
• Do not use this equipment on hospital premises. Doing so may cause medical devices to malfunction.
• Do not use this equipment in an aircraft. Doing so could cause the aircraft’s equipment to malfunction.
• While using the Wireless Broadband Router, do not cover it or turn it on its side. Do not cover the Wireless
Broadband Router with objects such as magazines or newspapers or use it in confined, enclosed places, such as
the spaces between walls and furniture. Furthermore, do not turn the Wireless Broadband Router on its side while
using it. Either situation could cause heat to build up inside the Wireless Broadband Router, leading to
overheating and possible fire.
• Exercise care when installing the Ethernet cable, Wireless Unit cable, AC adapter, and power cord. Personal
injury or damage to the Wireless Broadband Router could result from people tripping over these. Protect wiring
by installing it in places where people do not walk.
• Do not swing the Router Unit, Wireless Unit, or AC adapter. Injury could result if they strike a person or fragile
material, such as glass.
• Keep the Wireless Broadband Router out of the reach of children. Unforeseen injury could result from
swallowing loose parts, etc.
• Place the Wireless Broadband Router on a stable surface. Do not place the Wireless Broadband Router on
wobbly or tilted surfaces.
• When hanging the units, make sure that the wall is strong enough to support the Wireless Unit and Router Unit.
They may fall if the wall is not strong enough, leading to unforeesen accidents. Further, be careful not to drop the
units or the tools used to install them. Doing so could result in unforeseen accidents.
• Avoid locations that are directly exposed to sunlight or heat. Internal overheating could result in fire or damage
to the unit.
• Make sure that the connectors are properly connected.
– Do not insert any metallic objects inside the connectors. Short-circuiting the pins could cause fire or damage to
the unit.
– Be careful to insert connectors squarely. Crooked insertion could cause pins to short-circuit, leading to fire or
damage.
• Use only the supplied AC adapter with your Sony Wireless Broadband Router. To disconnect your Wireless
Broadband Router from the power supply, unplug the AC adapter.
• ISDN and telephone lines cannot be connected to the WAN or LAN connectors of the Router Unit. If these
connectors are connected to the network or telephone lines mentioned below, high electric current to the
connectors may cause damage, overheating, or fire. Connecting to home or business-use telephone lines is
strictly prohibited.
– Telephone lines
– PBX (private branch exchange)
– Home or business-use telephone lines
– Lines other than those mentioned above
For customers in Canada
• This class B digital apparatus complies with Canadian ICES-003.
• Operation is subject to the following two conditions; (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation of the device.
• To prevent radio interference to the licensed service, this device is intended to be operated indoors and away
from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is
subject to licensing.
• The term “IC” before the equipment certification number only signifies that Industry Canada technical
specifications were met.
• The installer of this radio equipment must ensure that the antenna is located or pointed in such away that it does
not emit an RF field in excess of Health Canada limits for general population. Refer to Safety Code 6, which can
be obtained from the Health Canada Web site at http://www.hc-sc.gc.ca/rbc.
The PCWA-AR300 is a Wireless Broadband Router that compiles with IEEE 802.11g standards as a wireless LAN
access point. It has the following features.
Front
Wireless
Broadband Router
Read This First
The PCWA-AR300 consists of:
• Broadband Router Unit
PCWA-R1
• Wireless LAN Access Point PCWA-A320
In this document, we refer to the Broadband Router Unit as the Router
Unit and to the Wireless LAN Access Point as the Wireless Unit.
PCWA-AR300
Sony Corporation  2003 Printed in Japan
