Sony VGC-LS32E Specification

Sony VGC-LS32E Specification

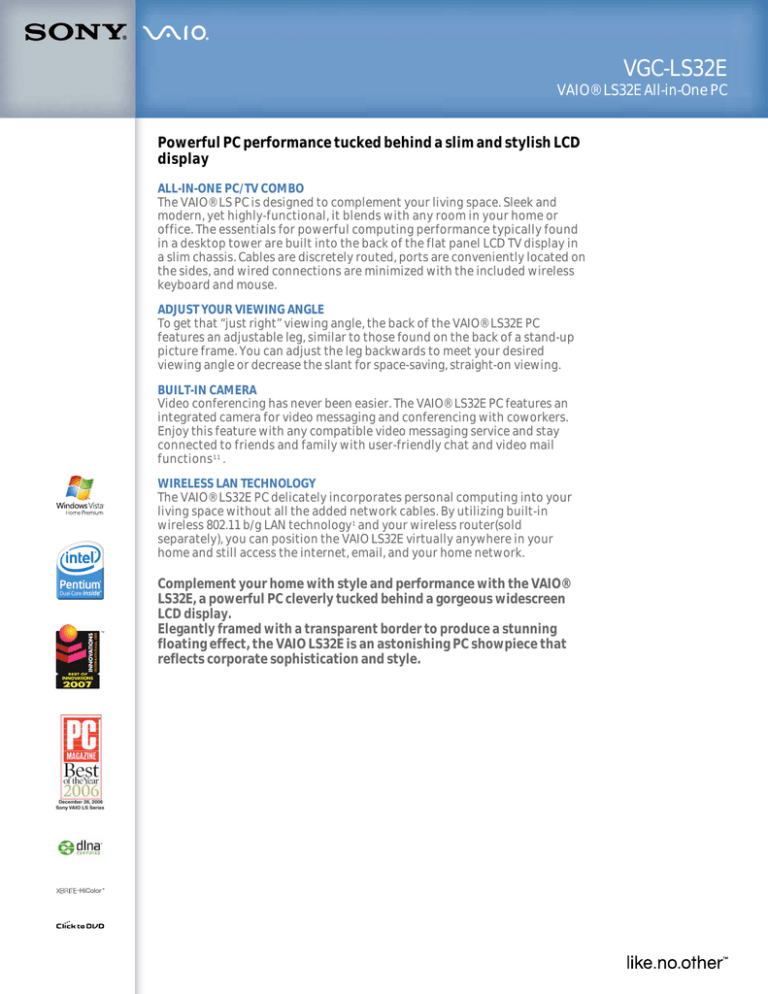

VGC-LS32E
VAIO® LS32E All-in-One PC
Powerful PC performance tucked behind a slim and stylish LCD
display
ALL-IN-ONE PC/TV COMBO
The VAIO® LS PC is designed to complement your living space. Sleek and
modern, yet highly-functional, it blends with any room in your home or
office. The essentials for powerful computing performance typically found
in a desktop tower are built into the back of the flat panel LCD TV display in
a slim chassis. Cables are discretely routed, ports are conveniently located on
the sides, and wired connections are minimized with the included wireless
keyboard and mouse.
ADJUST YOUR VIEWING ANGLE
To get that “ just right” viewing angle, the back of the VAIO® LS32E PC
features an adjustable leg, similar to those found on the back of a stand-up
picture frame. You can adjust the leg backwards to meet your desired
viewing angle or decrease the slant for space-saving, straight-on viewing.
BUILT-IN CAMERA
Video conferencing has never been easier. The VAIO® LS32E PC features an
integrated camera for video messaging and conferencing with coworkers.
Enjoy this feature with any compatible video messaging service and stay
connected to friends and family with user-friendly chat and video mail
functions11 .
WIRELESS LAN TECHNOLOGY
The VAIO® LS32E PC delicately incorporates personal computing into your
living space without all the added network cables. By utilizing built-in
wireless 802.11 b/g LAN technology1 and your wireless router(sold
separately), you can position the VAIO LS32E virtually anywhere in your
home and still access the internet, email, and your home network.
Complement your home with style and performance with the VAIO®
LS32E, a powerful PC cleverly tucked behind a gorgeous widescreen
LCD display.
Elegantly framed with a transparent border to produce a stunning
floating effect, the VAIO LS32E is an astonishing PC showpiece that
reflects corporate sophistication and style.
-HiColor
VGC-LS32E
VAIO® LS32E All-in-One PC
Specifications
Graphics
Computer Type: Desktop
Type of Use: All-in-one
Processor: Intel® Graphics Media Accelerator
950
Video RAM: 256MB Total Available Graphics
Memory3
Hardware
Inputs and Outputs
Action Buttons: Standby, S1, S2, S3, Volume,
Muting, Wireless On/Off
Camera: Built-in camera and microphone
Audio In: 1 (Line In)
Composite Audio/Video Input(s): 1
Ethernet Port: 1
Headphone Jack: 1
i.LINK® Interface: 1 4-pin interface10
Memory Stick® Media Slot: 1 (Supports
optional Memory Stick® and Memory Stick
DUO™ media with MagicGate® functionality)
Modem Jack: 1
Secure Digital Slot: 1
Microphone Input: 1
USB Port(s): 4 (2.0 compliant)
DC-In: 1
General
Processor
Type: Intel® Pentium® dual-core processor
T2080
Speed: 1.73GHz8
Front Side Bus Speed: 533MHz
L2 Cache: 1MB
Memory
Type: DDR2
Installed: 2GB (1GBx2) PC2-4200
Maximum: 2GB
Speed: 533MHz
Hard Drive
Capacity: 250GB 4
Speed: 7200rpm
Interface: Serial ATA
Optical Drive #1
DVD+R DL Write: 4x max.
DVD+R Write: 8x max.
DVD+RW Write: 6x max.
DVD-R Write: 8x max.
DVD-RW Write: 4x max.
CD-R Write: 24x max.
CD-RW Write: 16x max.
DVD±RW: Yes2 (DVD±R DL/DVD±RW/DVD-RAM)
CD Read: 24x max.
DVD Read: 8x max.
DVD-RAM Write: 5x max.
DVD-R DL Write: 4x max.
DVD-RAM Read: 5x max.
Expansion Slots
Multimedia Card Reader: One PCMCIA - Type
II/Type I card slot with CardBus support
One ExpressCard™ /54 Slot
Audio
Sound System: Sony® Sound Reality™ - Audio
Enhancer
Display
Screen Size: 19" WSXGA+5
Resolution: 1680x1050
XBRITE-HiColor™ Technology: Yes
Networking/Modem
Ethernet Protocol: 10Base-T/100Base-TX
Modem Type: V.92/V.90 compatible data/fax
modem (RJ-11)
Wireless LAN: IEEE 802.11b/g1
Power
Power Requirements: 100-240V
Power Consumption: 150W+10%
Software
Operating System: Windows Vista™ Home
Premium
Internet Services: AOL® 90-Day Risk Free Trial For new users only
Supplied Software: Microsoft® Works 8.5
60-Day Trial Version of Microsoft® Office
20079
Sony® Original Software: Click to DVD® - DVD
Creation, LocationFree® Player
*Please access VAIO® Help and Support from
your PC for a complete list of software and
trial applications.
Security and Anti-Virus Software: Norton®
Internet Security™ 2007 60-Day Trial with
spyware protection
Service and Warranty Information
Telephone Support: 1 Year toll-free technical
telephone assistance, available 24-hours, 7days-a-week7
Limited Warranty and Onsite Service: 1 Year
Limited Warranty with Onsite Service6
Online and Email Support: Support available
from
http://www.esupport.sony.com/EN/VAIO
Measurements: 20.94"(W) x 14.05"(H) x 7.44"(D)
(CPU and Display only)
Supplied Accessories
AC Adapter (VGP-AC19V15)
Wireless Keyboard (4 batteries)
Wireless Mouse (2 batteries)
8cm Disc Adapter
Optional Accessories
Additional AC Adapter (VGP-AC19V15)
200 Disc CD/DVD Changer/Recorder (VGPXL1B3)
UPC Code: 027242717923
1. Requires 802.11b or 802.11g compatible access point. Some
functionality may require Internet services, which may require a fee.
2. DVD media/formats are not universally compatible
3. Total Available Graphics Memory refers to the new Windows Vista
classification of graphics memory, which is the total of Dedicated Video
Memory, System Video Memory and Shared System Memory. Shared
System Memory varies depending on the operating condition and
system memory size.
4. GB means one billion bytes and TB means 1,000 GB when referring to
hard drive capacity. Accessible capacity may vary. A portion of hard disk
space is reserved as a recovery partition.
5. Viewable area measured diagonally
6. When available. Sony will provide Onsite Service in fulfillment of its limited
warranty obligations. Any such services are subject to the terms and
conditions of the limited warranty. See actual Limited Warranty for
details. Onsite Service will be provided via third-party technician to be
dispatched as needed following phone-base trouble-shooting. Some
repairs may be accomplished with self repair kits. Onsite Service may not
be available in all locations.
7. For certain third party software applications, Sony provides first level
phone support. Additional telephone support may be available from
the applicable 3rd party vendor. Availability and schedule for any such
support is determined by the applicable software vendor.
8. GHz denotes microprocessor internal clock speed; other factors may
affect application performance. CPU speed will be reduced under
certain operating conditions.
9. The Microsoft Office 2007 60-Day Trial software is intended for
evaluation purposes only. This trial software is installed on your system
and you must activate the software before you can use it. Product
activation procedures will be detailed during initial launch of the
software; activation requires Internet access. This software has an
expiration date of 60 days from date of first use, at which time the
software will operate under reduced-functionality mode, limiting enduser options and operations.
10. i.LINK is a trademark of Sony used only to designate that a product
contains an IEEE 1394 connector. All products with an i.LINK connector
may not communicate with each other.
11. Broadband internet service required along with third party services
which may require a subscription or other service fee.
Computer Interface: The computer industry lacks standards, and therefore,
there are a multitude of varying software packages and add-on hardware
options. This personal computer is not manufactured to any specific
software, and Sony does not and cannot make any warranty or
representation with respect to the performance of this product with any
particular software packages and/or non-Sony add-on hardware option
except those mentioned in this document. Sony hereby disclaims any
representations or warranty that this product is compatible with any
combination of non-Sony products you may choose to connect. While Sony
representatives or Sony authorized dealers may be able to assist you and
may make recommendations, they are NOT authorized to vary or waive this
disclaimer. Purchasers must determine for themselves the suitability and
compatibility of the hardware and software in each and every particular
instance. Some pre-installed software titles may not include full
documentation. Software titles pre-installed on the Sony Desktop
Computer are subject to change without notice. Simulated graphic shown
on display. This product meets the standards of the International Energy
Star Program for energy efficiency. Features and specifications are subject
to change without notice. Weights and measurements are approximateand
may vary.
© 2007 Sony Electronics Inc. All rights reserved. Reproduction in whole or in
part without written permission is prohibited. Sony, VAIO, XBRITE-HiColor,
i.LINK, VAIO, Memory Stick, Memory Stick Pro, Memory Stick Duo, Memory
Stick Pro Duo, MagicGate, LocationFree, Sound Reality, Click to DVD, and
like.no.other are trademarks of Sony. Microsoft, Windows and Windows
Vista are trademarks of Microsoft Corporation. Intel, Pentium, and Core are
trademarks of Intel corporation in the US and other countries. All other
trademarks are trademarks of their respective owners.
Printed in U.S.A. 04/07.
Dimensions
Weight: 15.0 lbs
Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com
Last Updated: 07/26/2007
