Sony VGC-LT25E Specification

Sony VGC-LT25E Specification

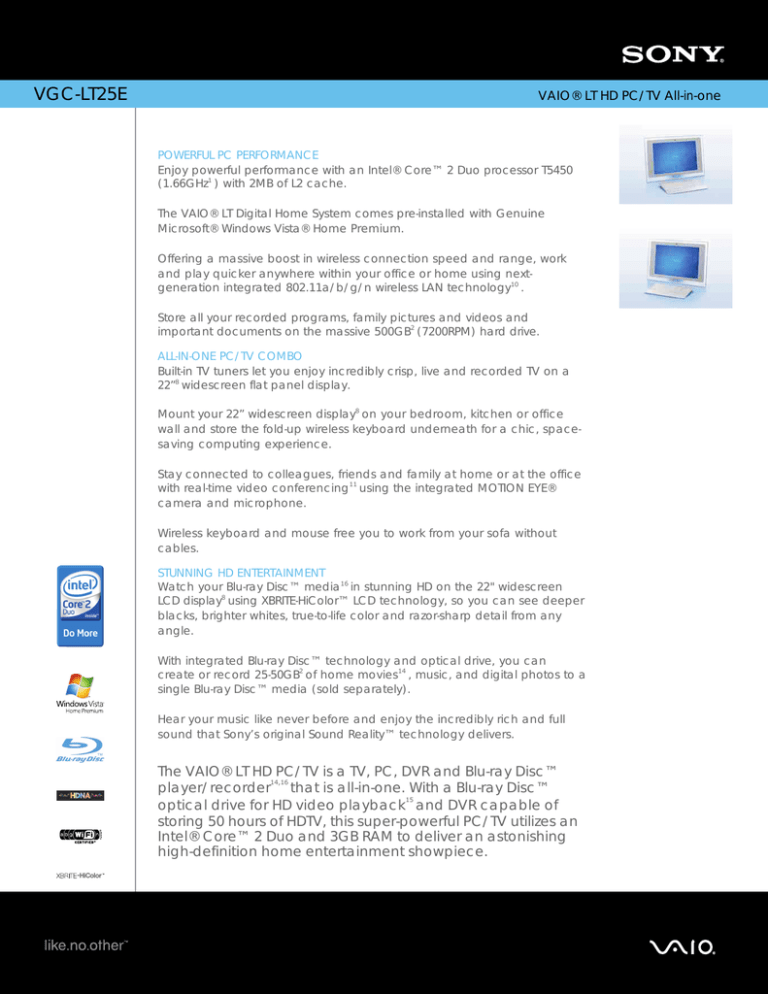

VGC-LT25E
VAIO® LT HD PC/TV All-in-one
POWERFUL PC PERFORMANCE
Enjoy powerful performance with an Intel® Core™ 2 Duo processor T5450
(1.66GHz1 ) with 2MB of L2 cache.
The VAIO® LT Digital Home System comes pre-installed with Genuine
Microsoft® Windows Vista® Home Premium.
Offering a massive boost in wireless connection speed and range, work
and play quicker anywhere within your office or home using nextgeneration integrated 802.11a/b/g/n wireless LAN technology10 .
Store all your recorded programs, family pictures and videos and
important documents on the massive 500GB2 (7200RPM) hard drive.
ALL-IN-ONE PC/TV COMBO
Built-in TV tuners let you enjoy incredibly crisp, live and recorded TV on a
22”8 widescreen flat panel display.
Mount your 22” widescreen display8 on your bedroom, kitchen or office
wall and store the fold-up wireless keyboard underneath for a chic, spacesaving computing experience.
Stay connected to colleagues, friends and family at home or at the office
with real-time video conferencing11 using the integrated MOTION EYE®
camera and microphone.
Wireless keyboard and mouse free you to work from your sofa without
cables.
STUNNING HD ENTERTAINMENT
Watch your Blu-ray Disc™ media16 in stunning HD on the 22" widescreen
LCD display8 using XBRITE-HiColor™ LCD technology, so you can see deeper
blacks, brighter whites, true-to-life color and razor-sharp detail from any
angle.
With integrated Blu-ray Disc™ technology and optical drive, you can
create or record 25-50GB2 of home movies14 , music, and digital photos to a
single Blu-ray Disc™ media (sold separately).
Hear your music like never before and enjoy the incredibly rich and full
sound that Sony’s original Sound Reality™ technology delivers.
The VAIO® LT HD PC/TV is a TV, PC, DVR and Blu-ray Disc™
14,16
player/recorder that is all-in-one. With a Blu-ray Disc™
15
optical drive for HD video playback and DVR capable of
storing 50 hours of HDTV, this super-powerful PC/TV utilizes an
Intel® Core™ 2 Duo and 3GB RAM to deliver an astonishing
high-definition home entertainment showpiece.
-HiColor
VGC-LT25E
Specifications
General
Computer Type: Desktop
Type of Use: All-in-one
Hardware
Keyboard: 99 keys, 19.05 mm pitch, 2.7 stroke
Action Buttons: Action Buttons on Keyboard Standby, S1, S2, S3, Volume, Muting, Power
On/Off.
Action Buttons on PC - Display On/Off, Wireless
On/Off, Keyboard/Mouse connection.
Camera: Built-in 1.3 megapixel MOTION EYE®
camera and microphone
Mount Design: VESA-100
Processor
Type: Intel® Core™ 2 Duo Processor T5450
Speed: 1.66GHz1
Front Side Bus Speed: 667MHz
L2 Cache: 2MB
Memory
Type: DDR2
Installed: 3GB13 (2GBx1+1GBx1) PC2-5300
Maximum: 4GB13
Speed: 667MHz
Hard Drive
Capacity: 500GB2
Speed: 7200rpm
Interface: Serial ATA
Optical Drive #1
DVD+R DL Write: 2.4x max.
DVD+R Write: 8x max.
DVD+RW Write: 4x max.
DVD-R Write: 8x max.
DVD-RW Write: 4x max.
CD-R Write: 8x max.
CD-RW Write: 8x max.
CD Read: 24x max.
DVD Read: 8x max.
DVD-RAM Write: 5x max.
DVD-R DL Write: 2x max.
BD-R Read: 2x max.
BD-R Write: 2x max.
BD-RE Write: 2x max.
BD-ROM Read: 2x max.
BD-RE Read: 2x max.
BD-R DL Read: 1.6x max.
BD-R DL Write: 1x max.
DVD-RAM Read: 5x max.
Blu-Ray Disc™ Support: Yes16,17 (BDRE/ROM/DVD±R DL/DVD±RW/-RAM)
BD-RE DL Read: 1.6x max.
BD-RE DL Write: 1x max.
Expansion Slots
Multimedia Card Reader: Supports optional
Memory Stick® and Memory Stick Duo™
media with MagicGate® functionality
One PCMCIA - Type II/Type I card slot with
CardBus support
One ExpressCard® /34 Slot
One Secure Digital (SD™ memory card) Slot
TV Tuner: Yes - ATSC and NTSC support
VAIO® LT HD PC/TV All-in-one
Audio
Dimensions
Sound System: Sony® Sound Reality™ - Audio
Enhancer
Speakers (Total): 2 x 3 Watt stereo speakers + 5
Watt subwoofer
Weight: 21.4 lbs.5
Measurements: 25.3"(W) x 16.5"(H) x 7"(D)5 (CPU
and Display only)
Supplied Accessories
Display
8
Screen Size: 22"
Resolution: 1680× 1050 WSXGA+
XBRITE-HiColor™ Technology: Yes
Graphics
Processor: NVIDIA® GeForce® 8400M GT GPU with
Total Available Graphics Memory of 1535MB
(max.)12
Video RAM: 256MB dedicated video memory
Chipset: Mobile Intel® PM965 Express Chipset
Inputs and Outputs
Audio In: 1 (Line In)
Headphone Jack: 1
i.LINK® Interface: 1 4-pin interface4
Modem Jack: 1
Microphone Input: 1
Optical Audio Output(s): 1
S-Video Input(s): 1
USB Port(s): 5 (2.0 compliant)
DC-In: 1
TV Tuner: NTSC and ATSC support
S/PDIF Output(s): 1
Ethernet Connection (s): 1
Networking/Modem
Ethernet Protocol: 10Base-T/100Base-TX/1000BaseT
Modem Type: V.92/V.90 compatible data/fax
modem (RJ-11)
Wireless LAN: Intel® PRO/Wireless 4965AGN
Network Connection (802.11 a/b/g/n)10
Power
Power Requirements: 168W+10%
Input Voltage: 100-240V
Software
Operating System: Genuine Microsoft® Windows
Vista® Home Premium
Internet Services: AOL® 90-Day Risk Free Trial - For
new users only
Supplied Software: Microsoft® Works SE 9.0 w/
60-Day Trial Version of Microsoft® Office Home
and Student 20079 .
Sony® Original Software: Click to Disc™ - DVD
Creation
LocationFree Player® Software
*Please access VAIO® Help and Support from
your PC for a complete list of software and trial
applications.
Security and Anti-Virus Software: Norton 360™ AllIn-One Security 60-day Trial
Service and Warranty Information
Telephone Support: 1 Year toll-free technical
telephone assistance, available 24-hours, 7days-a-week7
Online and Email Support: Online and Email
Support --- Limited Support available from
http://www.esupport.sony.com/EN/VAIO
See actual warranty for details.
Limited Warranty Term: 1 Year Limited Warranty6
Sony Electronics Inc. •16530 Via Esprillo •San Diego, CA 92127 •1.800.222.7669 •www.sony.com
AC Adapter (VGP-AC19V17)
Remote Control (2 batteries)
Wireless Keyboard (4 batteries)
Wireless Mouse (2 batteries)
8cm Disc Adapter
Color: Silver
UPC Code: 27242733824
1. GHz denotes microprocessor internal clock speed; other factors may
affect application performance. CPU speed will be reduced under
certain operating conditions.
2. GB means one billion bytes when referring to hard drive capacity.
Accessible capacity may vary. A portion of hard disk space is
reserved as a recovery partition.
3. DVD Media/Formats are not universally compatible.
4. i.LINK is a trademark of Sony used only to designate that a product
contains an IEEE 1394 connector. All products with an i.LINK
connector may not communicate with each other.
5. Non-metric measure is approximate and may vary.
6. See actual Limited Warranty for details. For a copy of Sony's warranty,
please visit www.esupport.sony.com, call toll-free 888-476-6972 (8884SONYPC), or write to Sony Electronics, 12451 Gateway Boulevard,
Fort Myers, FL 33913.
7. For certain third party software applications, Sony provides first level
phone support. Additional telephone support may be available from
the applicable 3rd party vendor. Availability and schedule for any
such support is determined by the applicable software vendor.
8. Viewable area measured diagonally.
9. 60-Day Trial Version of Microsoft® Office 2007 - This trial software will
work only for 60 days after you first use it. You will not be able to use
the software if you do not activate it as described the first time you use
the software. You can activate the software by Internet: Internet
service charges may apply. If you want to keep using the software
after the 60-day trial period, you must convert to the perpetual
version. You can convert online by following the conversion
instructions presented during setup and paying the required fees.
10. Requires compatible wireless LAN access point, sold separately.
Internet connection may require fees.
11. Broadband internet service required along with hird party services
which may require a subscription or other service fee.
12. Total Available Graphics Memory refers to the new Windows Vista
classification of graphics memory, which is the total of Dedicated
Video Memory, System Video Memory and Shared System Memory.
Shared System Memory varies depending on the operating condition
and system memory size.
13. A portion of the system memory over 3GB may not be available to
the operating system.
14. Video recording to Blu-ray Disc™ media is done in MPEG2 and AVC
formats only.
15. HD cable service required along with third party services which may
require a subscription or other service fee.
16. As with other optical media devices, circumstances may limit
compatibility or prevent Blu-ray Disc™ media playback. VAIO
computers may not support movie playback on packaged media
recorded in AVC or VC1 formats at high bit rates.
Computer Interface: The computer industry lacks standards, and
therefore, there are a multitude of varying software packages and add-on
hardware options. This personal computer is not manufactured to any
specific software, and Sony does not and cannot make any warranty or
representation with respect to the performance of this product with any
particular software packages and/or non-Sony add-on hardware option
except those mentioned in this document. Sony hereby disclaims any
representations or warranty that this product is compatible with any
combination of non-Sony products you may choose to connect. While
Sony representatives or Sony authorized dealers may be able to assist
you and may make recommendations, they are NOT authorized to vary
or waive this disclaimer. Purchasers must determine for themselves the
suitability and compatibility of the hardware and software in each and
every particular instance. Some pre-installed software titles may not
include full documentation. Software titles pre-installed on the Sony
Desktop Computer are subject to change without notice. Simulated
graphic shown on display. This product meets the standards of the
International Energy Star Program for energy efficiency. Features and
specifications are subject to change without notice. Weights and
measurements are approximate and may vary.
Lamp in this product contains mercury. Disposal of these materials may
be regulated due to environmental considerations. For disposal or
recycling information, please contact your local authorities or the
Electronic Industries Alliance (www.eiae.org).
©2007 Sony Electronics Inc. All rights reserved. Reproduction in whole or
in part without written permission is prohibited. Sony, i.LINK, VAIO, XBRITEHiColor, Sony logo, VAIO logo, Memory Stick, Memory Stick Duo,
Memory Stick Pro, MagicGate, LocationFree Player, Sound Reality, Click
to Disc and VAIO are trademarks of Sony. Intel, Centrino and Core are
registered trademarks of Intel Corporation in the U.S. and in other
countries. Microsoft and Windows Vista are registered trademarks of
Microsoft Corporation in the U.S. and in other countries. All other
trademarks are trademarks of their respective owners.
Printed 12/07.
Last Updated: 09/15/2008
