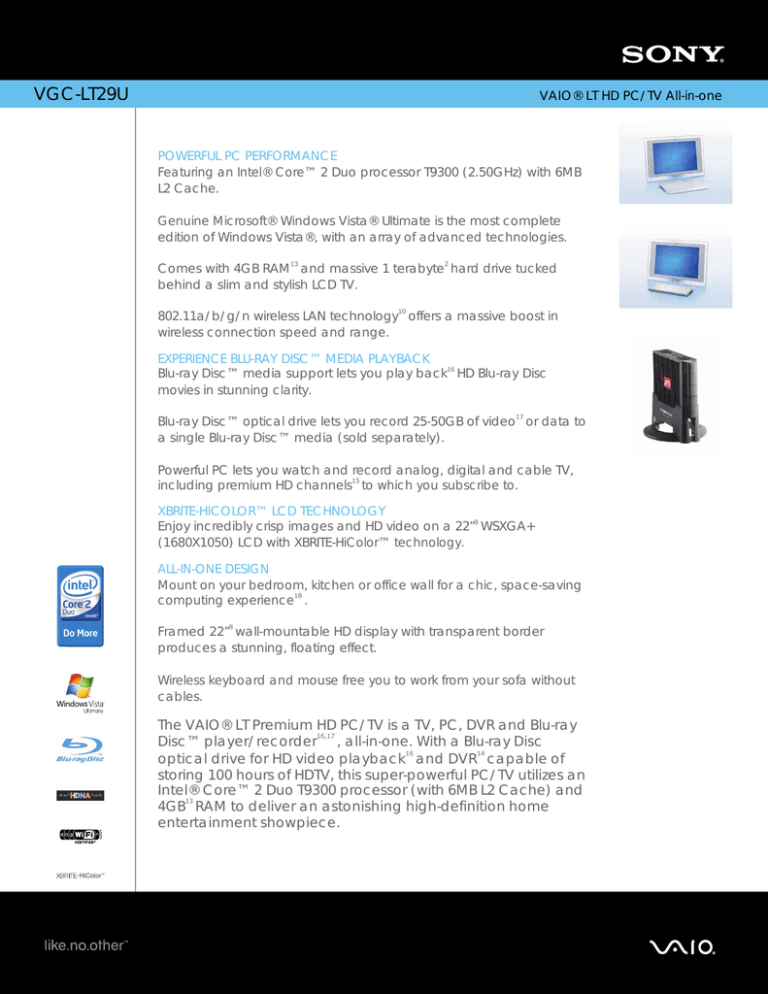

Sony VGC-LT29U Specification

Sony VGC-LT29U Specification
VGC-LT29U
VAIO® LT HD PC/TV All-in-one
POWERFUL PC PERFORMANCE
Featuring an Intel® Core™ 2 Duo processor T9300 (2.50GHz) with 6MB
L2 Cache.
Genuine Microsoft® Windows Vista® Ultimate is the most complete
edition of Windows Vista®, with an array of advanced technologies.
Comes with 4GB RAM13 and massive 1 terabyte2 hard drive tucked
behind a slim and stylish LCD TV.
802.11a/b/g/n wireless LAN technology10 offers a massive boost in
wireless connection speed and range.
EXPERIENCE BLU-RAY DISC™ MEDIA PLAYBACK
Blu-ray Disc™ media support lets you play back16 HD Blu-ray Disc
movies in stunning clarity.
Blu-ray Disc™ optical drive lets you record 25-50GB of video17 or data to
a single Blu-ray Disc™ media (sold separately).
Powerful PC lets you watch and record analog, digital and cable TV,
including premium HD channels15 to which you subscribe to.
XBRITE-HICOLOR™ LCD TECHNOLOGY
Enjoy incredibly crisp images and HD video on a 22”8 WSXGA+
(1680X1050) LCD with XBRITE-HiColor™ technology.
ALL-IN-ONE DESIGN
Mount on your bedroom, kitchen or office wall for a chic, space-saving
computing experience18 .
Framed 22”8 wall-mountable HD display with transparent border
produces a stunning, floating effect.
Wireless keyboard and mouse free you to work from your sofa without
cables.
The VAIO® LT Premium HD PC/TV is a TV, PC, DVR and Blu-ray
16,17
Disc™ player/recorder , all-in-one. With a Blu-ray Disc
16
14
optical drive for HD video playback and DVR capable of
storing 100 hours of HDTV, this super-powerful PC/TV utilizes an
Intel® Core™ 2 Duo T9300 processor (with 6MB L2 Cache) and
13
4GB RAM to deliver an astonishing high-definition home
entertainment showpiece.
-HiColor
VGC-LT29U
VAIO® LT HD PC/TV All-in-one
Specifications
Display
General
Screen Size: 22"8
Resolution: 1680× 1050 WSXGA+
XBRITE-HiColor™ Technology: Yes
Computer Type: Desktop
Type of Use: All-in-one
Hardware
Keyboard: 99 keys, 19.05 mm pitch, 2.7 stroke
Action Buttons: Action Buttons on Keyboard Standby, S1, S2, S3, Volume, Muting, Power
On/Off. Action Buttons on PC - Display On/Off,
Wireless On/Off, Keyboard/Mouse connection.
Camera: Built-in 1.3 megapixel MOTION EYE®
camera and microphone
Mount Design: VESA-100
Processor
Graphics
Processor: NVIDIA® GeForce® 8400M GT GPU with
Total Available Graphics Memory of 1535MB
(max.)12
Video RAM: 256MB dedicated video memory
Chipset: Mobile Intel® PM965 Express Chipset
TV Tuner: Yes - ATI TV Wonder™ Digital Cable
Tuner14 (NTSC, ATSC and CableCARD™
Support)
Inputs and Outputs
Type: DDR2
Installed: 4GB13 (2GBx2) PC2-5300
Maximum: 4GB13
Speed: 667MHz
Audio In: 1 (Line In)
Headphone Jack: 1
i.LINK® Interface: 1 4-pin interface4
Infrared Port: 1
Modem Jack: 1
Microphone Input: 1
Optical Audio Output(s): 1
USB Port(s): 5 (2.0 compliant)
DC-In: 1
S/PDIF Output(s): 1
Ethernet Connection (s): 1
Hard Drive
Networking/Modem
Capacity: 1TB (500GBx2) 2
Speed: 7200rpm
Interface: Serial ATA
Ethernet Protocol: 10Base-T/100Base-TX/1000BaseT
Modem Type: V.92/V.90 compatible data/fax
modem (RJ-11)
Wireless LAN: Intel® PRO/Wireless 4965AGN
Network Connection (802.11a/b/g/n)10
Type: Intel® Core™ 2 Duo Processor T9300
Speed: 2.50GHz1
Front Side Bus Speed: 800MHz
L2 Cache: 6MB
Memory
Optical Drive #1
DVD+R DL Write: 2.4x max.
DVD+R Write: 8x max.
DVD+RW Write: 4x max.
DVD-R Write: 8x max.
DVD-RW Write: 4x max.
CD-R Write: 8x max.
CD-RW Write: 8x max.
CD Read: 24x max.
DVD Read: 8x max.
DVD-RAM Write: 5x max.
DVD-R DL Write: 2x max.
BD-R Read: 2x max.
BD-R Write: 2x max.
BD-RE Write: 2x max.
BD-ROM Read: 2x max.
BD-RE Read: 2x max.
BD-R DL Read: 1.6x max.
BD-R DL Write: 1x max.
DVD-RAM Read: 5x max.
Blu-Ray Disc™ Support: Yes16,17 (BD-R/-RE/-ROM/
DVD±RW/±R DL/RAM Drive)
BD-RE DL Read: 1.6x max.
BD-RE DL Write: 1x max.
Expansion Slots
Multimedia Card Reader: Supports optional
Memory Stick® and Memory Stick Duo™
media with MagicGate® functionalityOne
PCMCIA - Type II/Type I card slot with CardBus
supportOne ExpressCard® /34 SlotOne Secure
Digital (SD™ memory card) Slot
Audio
Sound System: Sony's Sound Reality™ - Audio
Enhancer
Speakers (Total): 2 x 3 Watt stereo speakers + 5
Watt subwoofer
Wireless Keyboard (4 batteries)
Wireless Mouse (2 batteries)
8cm Disc Adapter
ATI TV Wonder™ Digital Cable Tuner (NTSC, ATSC
and CableCARD™ Support14 )
Power
Power Requirements: 168W+10%
Input Voltage: 100-240V
Software
Operating System: Genuine Microsoft® Windows
Vista® Ultimate
Internet Services: AOL® 90-Day Risk Free Trial - For
new users only
Supplied Software: Microsoft® Works SE 9.0 w/
60-Day Trial Version of Microsoft® Office Home
and Student 20079
Sony® Original Software: Click to Disc™ - DVD
CreationLocationFree Player® Software*Please
access VAIO® Help and Support from your PC
for a complete list of software and trial
applications.
Security and Anti-Virus Software: Norton 360™ AllIn-One Security 60-day Trial
Service and Warranty Information
Telephone Support: 1 Year toll-free technical
telephone assistance, available 24-hours, 7days-a-week7
Online and Email Support: Limited Support
available from
http://www.esupport.sony.com/EN/VAIOSee
actual warranty for details.
Limited Warranty Term: 1 Year Limited Warranty6
Dimensions
Weight: 21.4 lbs.5
Measurements: 25.3"(W) x 16.5"(H) x 7"(D)5 (CPU
and Display only)
Color: Silver
UPC Code: 27242733787
1. GHz denotes microprocessor internal clock speed; other factors may
affect application performance. CPU speed will be reduced under
certain operating conditions.
2. TB means one trillion bytes when referring to hard drive capacity.
Accessible capacity may vary. A portion of hard disk space is
reserved as a recovery partition.
3. DVD Media/Formats are not universally compatible.
4. i.LINK is a trademark of Sony used only to designate that a product
contains an IEEE 1394 connector. All products with an i.LINK
connector may not communicate with each other.
5. Non-metric measure is approximate and may vary.
6. See actual Limited Warranty for details. For a copy of Sony's warranty,
please visit www.esupport.sony.com, call toll-free 888-476-6972 (8884SONYPC), or write to Sony Electronics, 12451 Gateway Boulevard,
Fort Myers, FL 33913.
7. For certain third party software applications, Sony provides first level
phone support. Additional telephone support may be available from
the applicable 3rd party vendor. Availability and schedule for any
such support is determined by the applicable software vendor.
8. Viewable area measured diagonally.
9. 60-Day Trial Version of Microsoft® Office 2007 - This trial software will
work only for 60 days after you first use it. You will not be able to use
the software if you do not activate it as described the first time you use
the software. You can activate the software by Internet: Internet
service charges may apply. If you want to keep using the software
after the 60-day trial period, you must convert to the perpetual
version. You can convert online by following the conversion
instructions presented during setup and paying the required fees.
10. Requires compatible wireless LAN access point, sold separately.
Internet connection may require fees.
11. Broadband internet service required along with hird party services
which may require a subscription or other service fee.
12. Total Available Graphics Memory refers to the new Windows Vista
classification of graphics memory, which is the total of Dedicated
Video Memory, System Video Memory and Shared System Memory.
Shared System Memory varies depending on the operating condition
and system memory size.
13. A portion of the system memory over 3GB may not be available to
the operating system.
14. The digital TV tuner supports a CableCARD™ removable security
module. Contact your cable operator to receive a CableCARD
compatible with your operator’s network (additional charges may
apply). Not all functions that are available when using a set-top box
provided by your cable operator will be supported by CableCARD
(e.g. video-on-demand and pay-per-view functionality may not be
supported).
15. HD cable service required along with third party services which may
require a subscription or other service fee.
16. As with other optical media devices, circumstances may limit
compatibility or prevent Blu-ray Disc™ media playback. VAIO
computers may not support movie playback on packaged media
recorded in AVC or VC1 formats at high bit rates.
17. Video recording to Blu-ray Disc™ media is done in MPEG2 and AVC
formats only.
18. Requires wall mount bracket sold separately. Restrictions apply.
Computer Interface: The computer industry lacks standards, and
therefore, there are a multitude of varying software packages and add-on
hardware options. This personal computer is not manufactured to any
specific software, and Sony does not and cannot make any warranty or
representation with respect to the performance of this product with any
particular software packages and/or non-Sony add-on hardware option
except those mentioned in this document. Sony hereby disclaims any
representations or warranty that this product is compatible with any
combination of non-Sony products you may choose to connect. While
Sony representatives or Sony authorized dealers may be able to assist
you and may make recommendations, they are NOT authorized to vary
or waive this disclaimer. Purchasers must determine for themselves the
suitability and compatibility of the hardware and software in each and
every particular instance. Some pre-installed software titles may not
include full documentation. Software titles pre-installed on the Sony
Desktop Computer are subject to change without notice. Simulated
graphic shown on display. This product meets the standards of the
International Energy Star Program for energy efficiency. Features and
specifications are subject to change without notice. Weights and
measurements are approximate and may vary.
Lamp in this product contains mercury. Disposal of these materials may
be regulated due to environmental considerations. For disposal or
recycling information, please contact your local authorities or the
Electronic Industries Alliance (www.eiae.org).
©2007 Sony Electronics Inc. All rights reserved. Reproduction in whole or
in part without written permission is prohibited. Sony, i.LINK, VAIO, XBRITEHiColor, Sony logo, VAIO logo, Memory Stick, Memory Stick Duo,
Memory Stick PRO, MagicGate, LocationFree Player, Sound Reality, Click
to Disc and VAIO are trademarks of Sony. Intel and Core are trademarks
of Intel Corporation in the U.S. and other countries. Microsoft and
Windows Vista are registered trademarks of Microsoft Corporation in the
U.S. and other countries. Blu-ray Disc is a trademark. All other trademarks
are trademarks of their respective owners.
Printed 12/07.
Supplied Accessories
AC Adapter (VGP-AC19V17)
Remote Control (2 batteries)
Sony Electronics Inc. •16530 Via Esprillo •San Diego, CA 92127 •1.800.222.7669 •www.sony.com
