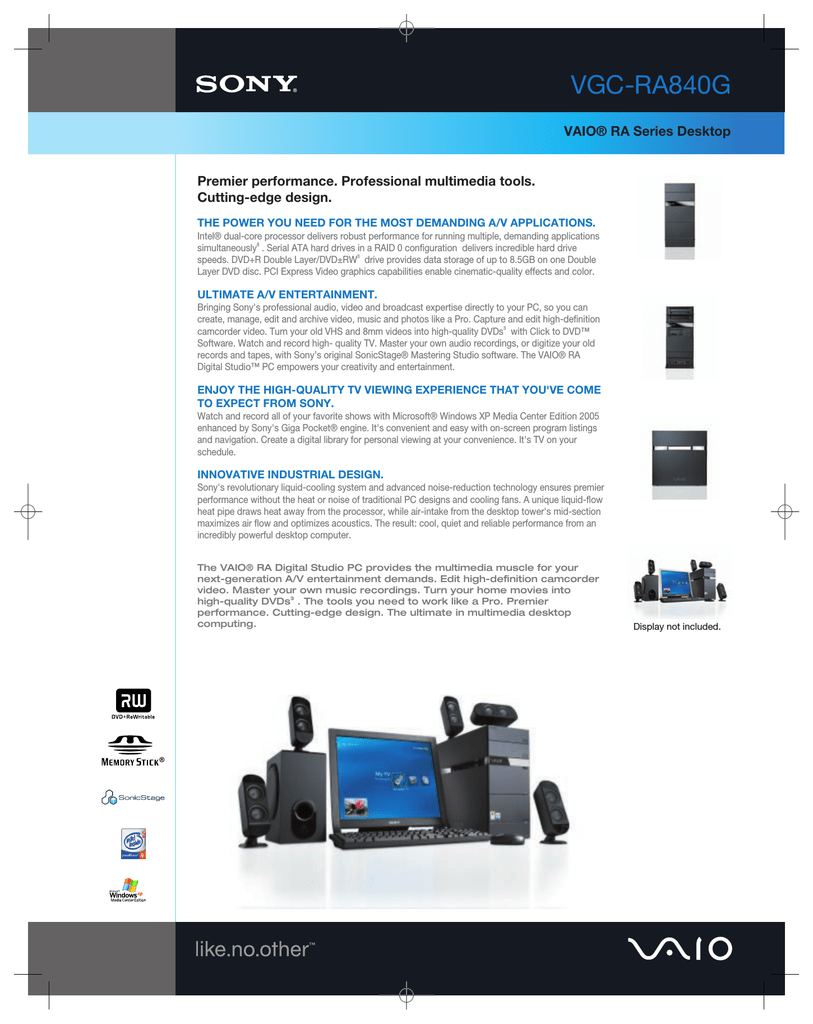

Sony VGC-RA840G Marketing Specifications

Sony VGC-RA840G Marketing Specifications | Manualzz
VAIO® RA Series Desktop
Premier performance. Professional multimedia tools.
Cutting-edge design.
Intel® dual-core processor delivers robust performance for running multiple, demanding applications
simultaneously8 . Serial ATA hard drives in a RAID 0 configuration delivers incredible hard drive
speeds. DVD+R Double Layer/DVD±RW3 drive provides data storage of up to 8.5GB on one Double
Layer DVD disc. PCI Express Video graphics capabilities enable cinematic-quality effects and color.
Bringing Sony's professional audio, video and broadcast expertise directly to your PC, so you can
create, manage, edit and archive video, music and photos like a Pro. Capture and edit high-definition
camcorder video. Turn your old VHS and 8mm videos into high-quality DVDs3 with Click to DVD™
Software. Watch and record high- quality TV. Master your own audio recordings, or digitize your old
records and tapes, with Sony’s original SonicStage® Mastering Studio software. The VAIO® RA
Digital Studio™ PC empowers your creativity and entertainment.
Watch and record all of your favorite shows with Microsoft® Windows XP Media Center Edition 2005
enhanced by Sony's Giga Pocket® engine. It's convenient and easy with on-screen program listings
and navigation. Create a digital library for personal viewing at your convenience. It's TV on your
Sony's revolutionary liquid-cooling system and advanced noise-reduction technology ensures premier
performance without the heat or noise of traditional PC designs and cooling fans. A unique liquid-flow
heat pipe draws heat away from the processor, while air-intake from the desktop tower's mid-section
maximizes air flow and optimizes acoustics. The result: cool, quiet and reliable performance from an
incredibly powerful desktop computer.
The VAIO® RA Digital Studio PC provides the multimedia muscle for your
next-generation A/V entertainment demands. Edit high-definition camcorder
video. Master your own music recordings. Turn your home movies into
high-quality DVDs3 . The tools you need to work like a Pro. Premier
performance. Cutting-edge design. The ultimate in multimedia desktop
Display not included.
VAIO® RA Series Desktop
Port Connectors
Seven USB 2.0 (three front/four rear)
Two PS/2® (Mouse/Keyboard)
One VGA/DVI-D Monitor Out Port
One TV-Out Port
One S/PDIF Out / One Parallel Port
One 6pin i.LINK®4 Port (rear)/ One 4pin (front)
One Headphone / One Microphone/ One Line In
S-Video: Two Inputs (front and rear)
Composite Video / Audio Inputs (front and rear)
Coaxial Input (VHF/UHF)
Intel® Pentium® D Processor 820
(2.80GHz1 , 2MB L2 Cache)
Front Side Bus Speed
Intel® 945P
1GB PC2-4200 533MHz DDR2
(Expandable to 2GB)
Power Requirements
364.7 watts max. / 100-240V ~7A (50/60Hz)
Hard Drive
250GB2 7200rpm SATA (RAID ready)
Power Managment
ACPI 1.0 Compliant
ATI Radeon® X300
34.17 lbs. (weight is approximate and may vary)
Graphics Interface
TV-Out / VGA-Out / DVI-D Out
16x PCI Express
Giga Pocket® MPEG2 Realtime Encoder board with TV
Optical Drive
DVD+R Double Layer/DVD±RW drive3
Double Layer +R
DVD+R DL write (6x MAX)
DVD-R write (16x MAX), DVD-RW write (6x MAX)
DVD+R write (16x MAX), DVD+RW write (8x MAX)
CD-R write (40x MAX), CD-RW write (24x MAX)
Additional Optical Drive
DVD-ROM Read (16xMAX), CD-ROM Read (40x MAX)
Floppy Disk Drive
3.5” 1.44MB Floppy Disk Drive
5.1 Channel - Intel® High Definition Audio
10Base-T/100Base-TX/1000Base-T Fast Ethernet (RJ-45)
V.90 compatible data/fax modem (RJ-11)
Expansion Slots
Multi-Media Card Reader5 (Memory Stick®, Memory Stick
PRO/Duo™, Compact Flash® Type I andType II, SD/
MultiMediaCard™, xD Picture Card®)
One x16 PCI Express (occupied by Graphics Card)
Two PCI (one available)
One PCI Express x1 (occupied)
Expansion Bays
Two 5.25” Half-Height (occupied)
One External 3.5” (occupied)
Three Internal 3.5” (one occupied)
(Four 3.5” SATA Hard Drives can be accomodated
if Floppy Drive is removed.)
7.4"(W) x 15.6"(H) x 15.3"(D)
Supplied Accessories
5.1 Surround Sound Speakers
IR Remote Control and Receiver / IR Blaster
PS/2® Keyboard/Mouse
Operating System
Microsoft® Windows® Media Center Edition 2005
Sony Original Software
Click to DVD™ - DVD Creation
SonicStage® Mastering Studio - Audio Mastering &
PictureGear Studio™ - Digital Photo
DVgate Plus™- Digital Video
SonicStage® - Digital Music
VAIO Media™ - Network File Sharing
Image Converter - PSP Transfer
Other Software Applications
Adobe® Premiere® Standard Edition
Adobe® Photoshop® Album Starter Edition
Adobe® Photoshop® Elements® 3.0
Microsoft® Works 8.0 - Word Processing, Spreadsheet,
Calendar, Scheduling, Contact Management, and
Microsoft® Office 2003 60-Day Student/Teacher Edition
Intuit Quicken® 2005 New User Edition (Previous Quicken
Users may require additional upgrade)
InterVideo® WinDVD®
Sonic RecordNow!® 7
Telephone Support
1 Year toll-free technical telephone assistance, available
24-hours, 7-days-a-week7
Online and Email Support
Support available from
1. GHz denotes microprocessor internal clock speed; other factors may
affect application performance. CPU speed will be reduced under certain
operating conditions.
2. GB means one billion bytes when referring to hard drive capacity.
Accessible capacity may vary. A portion of hard disk space is reserved
as a recovery partition.
3. DVD Media/Formats are not universally compatible.
4. i.LINK is a trademark of Sony used only to designate that a product
contains an IEEE 1394 connector. All products with an i.LINK connector
may not communicate with each other.
5. Does not support Memory Stick media and Memory Stick PRO media
using the MagicGate function. Tested to support Memory Stick PRO
media for up to 1GB. Does not support 5.0V SmartMedia media or the ID
function of SmartMedia media with IDs. Does not support the SD Memory
Card media copyright protection function.
6. When available. Sony will provide Onsite Service in fulfifillment of its
limited warranty obligations. Any such services are subject to the terms
and conditions of the limited warranty. See actual Limited Warranty for
details. Onsite Service will be provided via thrid-party technician to be
dispatched as needed following phone-base trouble-shooting. Some
repairs may be accomplished with self repair kits. Onsite Service may
not be available in all locations.
7. For certain third party software applications, Sony provides first level
Phone Support. Additional telephone support may be available from the
applicable 3rd party vendor. Availability and schedule for any such
support is determined by the applicable software vendor.
8. Performance will vary depending on specific hardware and software in
Computer Interface: The computer industry lacks standards, and
therefore, there are a multitude of varying software packages and
add-on hardware options. This personal computer is not manufactured
to any specific software, and Sony does not and cannot make any
warranty or representation with respect to the performance of this
product with any particular software packages and/or non-Sony add-on
hardware option except those mentioned in this document. Sony hereby
disclaims any representations or warranty that this product is
compatible with any combination of non-Sony products you may choose
to connect. While Sony representatives or Sony authorized dealers may
be able to assist you and may make recommendations, they are NOT
authorized to vary or waive this disclaimer. Purchasers must determine
for themselves the suitability and compatibility of the hardware and
software in each and every particular instance. Some pre-installed
software titles may not include full documentation. Software titles
pre-installed on the Sony Desktop Computer are subject to change
without notice. Simulated graphic shown on display.
©2005 Sony Electronics Inc. All rights reserved. Reproduction in whole
or in part without written permission is prohibited. Sony, i.LINK, VAIO
Digital Studio, SonicStage, Memory Stick, DVgate Plus, PictureGear
Studio, Giga Pocket, VAIO Media, Click to DVD, Like No Other, and VAIO
are trademarks of Sony. Intel and Pentium are registered trademarks of
Intel Corporation. Microsoft, Windows and Outlook are trademarks of
Microsoft Corporation. Realone is a trademark of RealNetworks, Inc. All
other trademarks are trademarks of their respective owners. This
product meets the standards of the International Energy Star Program
for energy efficiency. Features and specifications are subject to change
without notice. Weights and measurements are approximate.
Printed in U.S.A. 4/05.
Anti-Virus and Recovery Software
Norton® Internet Security™ 90-Day Subscription - Norton
AntiVirus®, Norton Personal Firewall, Norton Privacy
Control, Norton AntiSpam®, Norton Parental Control
Intermute™ SpySubtract™ 30-Day Subscription
VAIO® Recovery Wizard
VAIO® Control Center
VAIO® Update
Online Center
America Online® 90-Day Trial - For new users only
Service and Warranty
Limited Warranty and Onsite Service
1 Year Limited Warranty with Onsite Service6
Please visit the Dealer Network for more
information at
Sony Electronics, Inc. • 16450 West Bernardo Drive • San Diego, CA 92127 • 1-800-222-7669 •
Last Updated 2005-04-27
