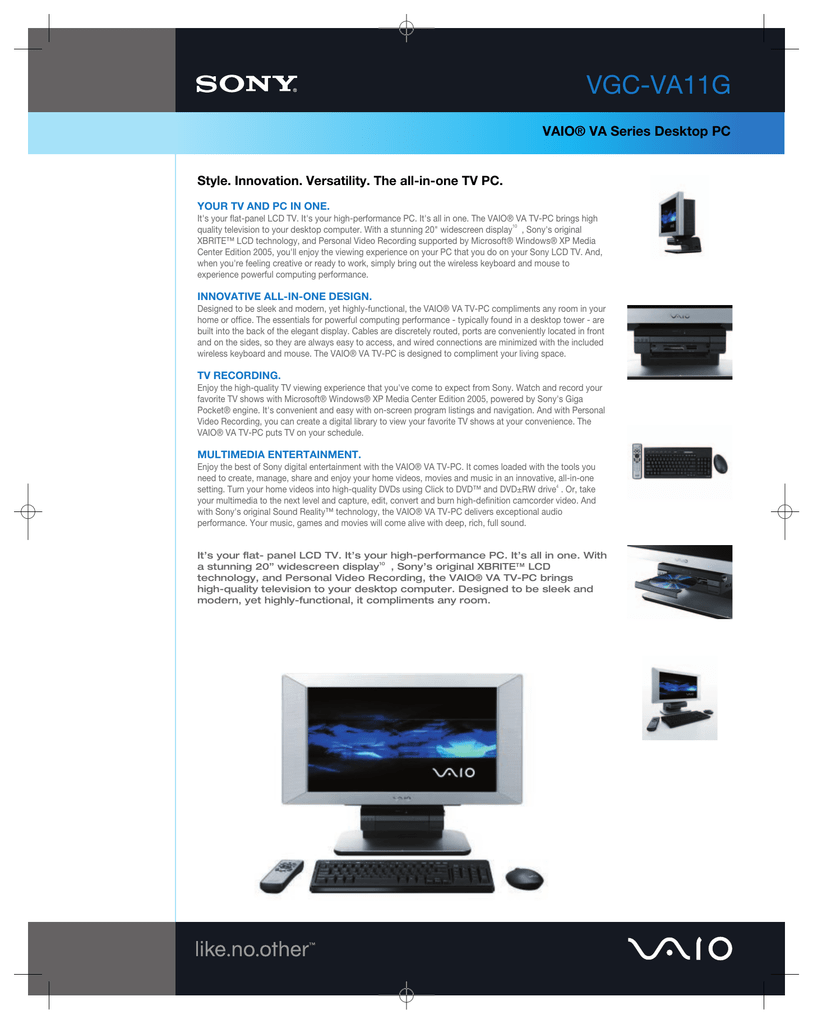

VAIO® VA Series Desktop PC
Style. Innovation. Versatility. The all-in-one TV PC.
It's your flat-panel LCD TV. It's your high-performance PC. It's all in one. The VAIO® VA TV-PC brings high
quality television to your desktop computer. With a stunning 20" widescreen display10 , Sony's original
XBRITE™ LCD technology, and Personal Video Recording supported by Microsoft® Windows® XP Media
Center Edition 2005, you'll enjoy the viewing experience on your PC that you do on your Sony LCD TV. And,
when you're feeling creative or ready to work, simply bring out the wireless keyboard and mouse to
experience powerful computing performance.
Designed to be sleek and modern, yet highly-functional, the VAIO® VA TV-PC compliments any room in your
home or office. The essentials for powerful computing performance - typically found in a desktop tower - are
built into the back of the elegant display. Cables are discretely routed, ports are conveniently located in front
and on the sides, so they are always easy to access, and wired connections are minimized with the included
wireless keyboard and mouse. The VAIO® VA TV-PC is designed to compliment your living space.
Enjoy the high-quality TV viewing experience that you've come to expect from Sony. Watch and record your
favorite TV shows with Microsoft® Windows® XP Media Center Edition 2005, powered by Sony's Giga
Pocket® engine. It's convenient and easy with on-screen program listings and navigation. And with Personal
Video Recording, you can create a digital library to view your favorite TV shows at your convenience. The
VAIO® VA TV-PC puts TV on your schedule.
Enjoy the best of Sony digital entertainment with the VAIO® VA TV-PC. It comes loaded with the tools you
need to create, manage, share and enjoy your home videos, movies and music in an innovative, all-in-one
setting. Turn your home videos into high-quality DVDs using Click to DVD™ and DVD±RW drive4 . Or, take
your multimedia to the next level and capture, edit, convert and burn high-definition camcorder video. And
with Sony's original Sound Reality™ technology, the VAIO® VA TV-PC delivers exceptional audio
performance. Your music, games and movies will come alive with deep, rich, full sound.
It’s your flat- panel LCD TV. It’s your high-performance PC. It’s all in one. With
a stunning 20” widescreen display10 , Sony’s original XBRITE™ LCD
technology, and Personal Video Recording, the VAIO® VA TV-PC brings
high-quality television to your desktop computer. Designed to be sleek and
modern, yet highly-functional, it compliments any room.
VAIO® VA Series Desktop PC
Action Buttons
Intel® Pentium® 4 Processor 640 with Intel®
Hyper-Threading Technology
(3.20GHz1 , 2MB L2 Cache)
LCD ON/OFF button
Brightness buttons
LED Lamp ON/OFF switch
Power Requirements
297 watts max. / 100-240V ~7A (50/60Hz)
20" WXGA LCD10 with XBRITE™ technology (1366 x 768)
Power Management
ACPI 1.0 Compliant
Front Side Bus Speed
35.93 lbs. (weight is approximate and may vary)
22.5"(W) x 17.5"(H) x 10.1"(D)
Integrated Wireless LAN
802.11b/g Wireless LAN
Supplied Accessories
1GB PC2-4200 533MHz DDR2 (512MB X 2)
Hard Drive
320GB2 (160GBx2) 7200rpm Serial ATA
ATI Mobility™ Radeon® X700
256MB Video Memory
128MB dynamically allocated shared video memory
Graphics Interface
AGP 8x
Giga Pocket® MPEG2 Realtime Encoder board with TV
Optical Drive
DVD+R Double Layer / DVD±RW Drive
DVD+R DL write (2.4x MAX)
DVD-R write (8x MAX), DVD-RW write (4x MAX)
DVD+R write (8x MAX), DVD+RW write (4x MAX)
CD-R write (24x MAX), CD-RW write (10x MAX)
DVD-ROM Read (8x MAX), CD-ROM Read (24x MAX)
Sony® Sound Reality™ - Audio Enhancer
Audio Interface
Mini microphone jack,
Stereo Headphone mini jack
5 Integrated speakers for 2.1 channel playback
S/PDIF Out supporting 5.1 channel output
V.90 compatible data/fax modem (RJ-11)
10Base-T/100Base-TX Fast Ethernet (RJ-45)
Remote Control
Wireless Keyboard
Wireless Optical Mouse
Power Cord
Modem Cable/ F type RF Cable
USB IR Receiver
IR Blaster
Operating System
Microsoft® Windows® XP Media Center Edition 2005 with
Update Rollup 2
Sony Original Software
Click to DVD™ - DVD Creation
SonicStage® Mastering Studio - Audio Mastering &
DVgate Plus™- Digital Video
SonicStage® - Digital Music
VAIO Media™ - Network File Sharing
Image Converter - PSP Transfer
Supplied Software
Adobe® Photoshop® Album Starter Edition
Adobe® Photoshop® Elements
Microsoft® Works 8.0 - Word Processing, Spreadsheet,
Calendar, Scheduling, Contact Management, and
Microsoft® Office 2003 60-Day Trial9 (Student/Teacher
Intuit Quicken® 2005 New User Edition (Previous Quicken
Users may require additional upgrade)
InterVideo® WinDVD®
Roxio® DigitalMedia SE
Anti-Virus and Recovery Software
Expansion Slots
Memory Stick®6 , Memory Stick PRO™, Memory Stick
Duo™ Reader, Smart Media, xD Picture Card, Secure
Digital (SD) and Compact Flash
One PCMCIA - Type II/Type I card slot with CardBus
Port Connectors
Four USB 2.0
One S/PDIF Out
One 4pin i.LINK®5 Port
One Headphone / One Microphone/ One Line In
Audio In
Composite S-Video / Audio Inputs
Norton® Internet Security™ 90-Day Subscription - Norton
AntiVirus®, Norton Personal Firewall, Norton Privacy
Control, Norton AntiSpam®, Norton Parental Control
Intermute™ SpySubtract™ 30-Day Trial
VAIO® Recovery Wizard
VAIO® Support Central
VAIO® Update
Online and Email Support
Support available from
1. GHz denotes microprocessor internal clock speed; other factors may
affect application performance. CPU speed will be reduced under certain
operating conditions.
2. GB means one billion bytes when referring to hard drive capacity.
Accessible capacity may vary. A portion of hard disk space is reserved
as a recovery partition.
3. Requires compatible wireless LAN access point, sold separately. Internet
connection may require fees.
4. DVD Media/Formats are not universally compatible.
5. i.LINK is a trademark of Sony used only to designate that a product
contains an IEEE 1394 connector. All products with an i.LINK connector
may not communicate with each other.
6. Supports Memory Stick PRO™ high capacity media tested up to 1GB.
Does not support MagicGate™ functionality.
7. When available. Sony will provide Onsite Service in fulfillment of its
limited warranty obligations. Any such services are subject to the terms
and conditions of the limited warranty. See actual Limited Warranty for
details. Onsite Service will be provided via third-party technician to be
dispatched as needed following phone-base troubleshooting. Some
repairs may be accomplished with self- repair kits. Onsite Service may
not be available in all locations.
8. For certain third party software applications, Sony provides first level
Phone Support. Additional telephone support may be available from the
applicable 3rd party vendor. Availability and schedule for any such
support is determined by the applicable software vendor.
9. The Microsoft Office 2003 60-Day Trial software is intended for
evaluation purposes only. This trial software is installed on your system
and you must activate the software before you can use it. Product
activation procedures will be detailed during initial launch of the
software; activation requires Internet access. This software has an
expiration date of 60 days from date of first use, at which time the
software will operate under reduced-functionality mode, limiting end-use
options and operations.
10. Viewable area measured diagonally.
Computer Interface: The computer industry lacks standards, and
therefore, there are a multitude of varying software packages and
add-on hardware options. This personal computer is not manufactured
to operate any specific software, and Sony does not and cannot make
any warranty or representation with respect to the performance of this
product with any particular software packages and/or non-Sony add-on
hardware option except those mentioned in this document. Sony hereby
disclaims any representations or warranty that this product is
compatible with any combination of non-Sony products you may choose
to connect. While Sony representatives or Sony authorized dealers may
be able to assist you and may make recommendations, they are NOT
authorized to vary or waive this disclaimer. Purchasers must determine
for themselves the suitability and compatibility of the hardware and
software in each and every particular instance. Software titles
pre-installed on the Sony computer are subject to change without
notice. Simulated graphic shown on display. Preinstalled software may
not be identical to retail versions or have all documentation. This
product meets the standards of the International Energy Star Program
for energy efficiency. Features and specifications are subject to change
without notice. Non-metric weights and measurements are approximate.
©2005 Sony Electronics Inc. All rights reserved. Reproduction in whole
or in part without written permission is prohibited. Sony, i.LINK, VAIO,
SonicStage, Memory Stick, Memory Stick PRO, Memory Stick Duo,
DVgate Plus, Giga Pocket, VAIO Media, XBRITE, Click to DVD, Sound
Reality and are trademarks of Sony. Intel and Pentium are
registered trademarks of Intel Corporation. Microsoft, Windows and
Outlook are trademarks of Microsoft Corporation. All other trademarks
are trademarks of their respective owners. This product meets the
standards of the International Energy Star Program for energy
efficiency. Features and specifications are subject to change without
notice. Non-metric weights and measurements are approximate.
Printed in U.S.A. 10/05.
Internet Services
America Online® 180-Day Trial - New Users Only
Service and Warranty
Limited Warranty and Onsite Service
1 Year Limited Warranty with Onsite Service7
Telephone Support
1 Year toll-free technical telephone assistance, available
24-hours, 7-days-a-week8
Sony Electronics Inc. • 16450 West Bernardo Drive • San Diego, CA 92127 • 1-800-222-7669
