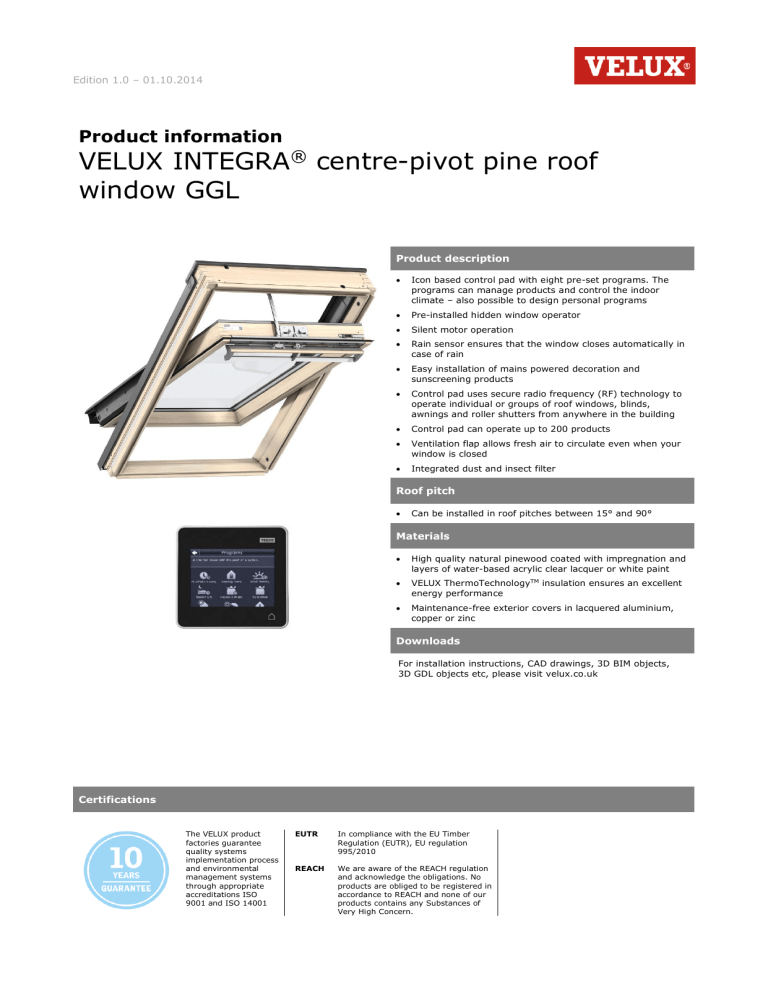

VELUX INTEGRA® centre-pivot pine roof window GGL
Edition 1.0 – 01.10.2014
Product information
VELUX INTEGRA® centre-pivot pine roof
window GGL
Product description

Icon based control pad with eight pre-set programs. The
programs can manage products and control the indoor
climate – also possible to design personal programs

Pre-installed hidden window operator

Silent motor operation

Rain sensor ensures that the window closes automatically in
case of rain

Easy installation of mains powered decoration and
sunscreening products

Control pad uses secure radio frequency (RF) technology to
operate individual or groups of roof windows, blinds,
awnings and roller shutters from anywhere in the building

Control pad can operate up to 200 products

Ventilation flap allows fresh air to circulate even when your
window is closed

Integrated dust and insect filter
Roof pitch

Can be installed in roof pitches between 15° and 90°
Materials

High quality natural pinewood coated with impregnation and
layers of water-based acrylic clear lacquer or white paint

VELUX ThermoTechnologyTM insulation ensures an excellent
energy performance

Maintenance-free exterior covers in lacquered aluminium,
copper or zinc
Downloads
For installation instructions, CAD drawings, 3D BIM objects,
3D GDL objects etc, please visit velux.co.uk
Certifications
The VELUX product
factories guarantee
quality systems
implementation process
and environmental
management systems
through appropriate
accreditations ISO
9001 and ISO 14001
EUTR
In compliance with the EU Timber
Regulation (EUTR), EU regulation
995/2010
REACH
We are aware of the REACH regulation
and acknowledge the obligations. No
products are obliged to be registered in
accordance to REACH and none of our
products contains any Substances of
Very High Concern.
Available sizes and daylight area
978 mm
778 mm
472
mm
550
660 mm
mm
GGL
CK02
780 mm
942 mm
Lining measurements
1140 mm
1340 mm
(0.22)
GGL
GGL
BK04 CK04
1178 mm
(0.29)
GGL
FK04
GGL
MK04
GGL
PK04
(0.29)
(0.38)
(0.47)
(0.60)
GGL
CK06
GGL
FK06
GGL
MK06
GGL
PK06
(0.91)
GGL
SK06
(0.47)
(0.59)
(0.75)
(0.95)
GGL
FK08
GGL
MK08
GGL
PK08
GGL
SK08
GGL
UK08
1398 mm
(0.37)
GGL
UK04
(0.72)
(0.92)
(1.16)
(1.40)
GGL
MK10
GGL
PK10
GGL
SK10
GGL
UK10
(0.85)
(1.07)
(1.35)
(1.63)
Width (mm)
BK--
417
CK--
495
FK--
605
MK--
725
PK--
887
SK--
1085
UK--
1285
Size
Height (mm)
--02
719
--04
919
--06
1119
--08
1339
--10
1549
1600 mm
(0.58)
Size
( ) = Effective daylight area, m
2
Recommended application
Mains powered VELUX INTEGRA® roof windows are

perfect for new installations where frequent use of the window is essential

ideal for out-of-reach situations or when extra convenience is needed
VELUX INTEGRA® control pad with intelligent programs ensures

a perfect level of energy efficiency and comfort

easy ventilation and better indoor air quality
Width
Height
30
49.3
4
4.
10
Daylight/sash aperture
e
ur
rt
12.5
27.3
Lining groove
e
ap
ve
e
oo
gr ram
ig
ng al f
l
i
n
ay
rn
Li
D
te
Ex
27.3
sh
/
ht
External frame
sa
.7
89
11
Product information: VELUX INTEGRA® top-operated centre-pivot polyurethane roof window GGL
.8
28
VELUX®
2
Technical values
--60
--62
--66
--70
Uw [W/m2K]
1.2
0.83
1.0
1.3
Ug [W/m2K]
1.0
0.5
0.7
1.1
Rw [dB]
37
40
37
35
g[]
0.30
0.50
0.50
0.64
V [ ]
0.61
0.65
0.69
0.79
UV [ ]
0.05
0.05
0.05
0.05
4
4
4
4
Air permeability [class]
Thermal improvements such as lower U-value (Uw) and lower linear heat loss coefficient (φ) can, for some variants, be obtained with frame insulation collar and/or recessed installation.
Glazing structure
--60
--62
--66
--70
Inner glass pane
2 x 3 mm laminated
float with
low ε coating
2 x 3 mm laminated
float with
low ε coating
2 x 3 mm laminated
float with
low ε coating
2 x 3 mm laminated
float with
low ε coating
Middle glass pane
-
3 mm heat
strengthened float with
low ε coating
3 mm heat
strengthened float with
low ε coating
-
Outer glass pane
6 mm toughened
with coatings
8 mm toughened with
coating
4 mm toughened
with coatings
4 mm toughened
Cavity
15 mm
2 x 10 mm
2 x 12 mm
15 mm
Glass panes
Double
Triple
Triple
Double
Gas filling
Argon
Krypton
Argon
Argon
Product information: VELUX INTEGRA® top-operated centre-pivot polyurethane roof window GGL
VELUX®
3
Glazing features
Heat insulation
Low energy glazing provides reduced heat loss through the window and
enhanced indoor comfort.
Solar gain
In the wintertime, the heat from the sun entering through the windows is a
usable solar gain.
--60
--62
--66
--70
●●
●●●
●●●
●
●
●●
●●
●●●
Solar protection
In warm climates and in rooms with large window areas, a sun protective
coating provides a better indoor climate during summer periods.
Alternatively, exterior sun screening can be installed.
●●●
Sound insulation
A combination of laminated glass and optimal glass thickness provides better
sound insulation.
Frame/sash construction and gaskets are equally important.
●●●
●●●
●●●
●●
●
●
●
●
Security
Thicker laminated inner glass pane designed to increase resistance to
manual attack (burglary).
Energy balance
The energy balance represents the ability of the roof window to utilise the
passive solar gain and keep in the heat during winter and its ability to
protect against the risk of overheating during summer. Sun screening
products can further improve indoor summer comfort.
Safety
Laminated inner glass is designed to hold the fragments together if the glass
breaks. We recommend that you consider using glass units with laminated
glass on the inside for windows placed above areas where people sleep, play
or work.
Outside strength
Toughened outer glass pane makes your glazing more resistant to hail,
heavy wind and snow loads.
Delayed fading of materials
Inner laminated glass protects materials behind the glass against the UV
radiation and therefore delays fading of the materials.
Rain noise reduction
The combination of laminated glass and extra thick glass helps provide a
significant, audible reduction of rainfall sound.
Frame/sash construction and gaskets are equally important.
Easy-to-clean
The easy-to-clean coating minimises the cleaning frequency of the outer
glass pane and gives you a clearer view in case of rain.
Anti-dew
The anti-dew coating significantly reduces the days with dew on the outer
glass pane and thus gives you a clear view.
●
Good
●●
Better
●●●
Best
Feature included in glazing variant
Product information: VELUX INTEGRA® top-operated centre-pivot polyurethane roof window GGL
VELUX®
4
Technical values, ventilation through ventilation flap
Windows with double glazing
Property
Width
CK--
FK--
MK--
PK--
SK--
UK--
1.9
2.3
2.8
3.4
4.1
4.8
0.53
0.53
0.53
0.53
0.53
0.53
Ventilation capacity at 4 Pa [l/s]
4.0
4.8
5.8
7.1
8.5
10.0
Ventilation capacity at 8 Pa [l/s]
5.7
6.9
8.4
10.2
12.3
14.5
Ventilation capacity at 10 Pa [l/s]
6.4
7.8
9.5
11.5
13.9
16.3
Ventilation capacity at 20 Pa [l/s]
9.3
11.3
13.7
16.6
20.1
23.5
Equivalent area through ventilation flap [mm2]
2600
3100
3700
4600
5600
6600
Geometrical free area [mm2]
2800
3700
4500
6100
7200
10600
Air flow characteristics [l/s]
Air flow exponent [-]
tbd: to be determined
Windows with triple glazing
Property
Width
CK--
FK--
MK--
PK--
SK--
UK--
1.2
1.3
1.5
1.7
2.1
2.4
0.63
0.63
0.63
0.63
0.63
0.63
Ventilation capacity at 4 Pa [l/s]
2.8
3.1
3.5
4.1
4.9
5.7
Ventilation capacity at 8 Pa [l/s]
4.3
4.8
5.4
6.3
7.6
8.9
Ventilation capacity at 10 Pa [l/s]
4.9
5.5
6.2
7.3
8.2
10.2
Ventilation capacity at 20 Pa [l/s]
5.5
6.2
6.9
8.1
9.8
11.5
Equivalent area through ventilation flap [mm2]
2000
2200
2500
2900
3500
4100
Geometrical free area [mm2]
2800
3700
4500
6100
7200
10600
Air flow characteristics [l/s]
Air flow exponent [-]
tbd: to be determined
Product information: VELUX INTEGRA® top-operated centre-pivot polyurethane roof window GGL
VELUX®
5
Visible features
Window opening
When operated with the
control pad, the window
opens variably up to
200 mm. The window can
also be opened manually,
eg in case of power failure
Excellent
insulation
Elements of expanded polystyrene ensure an excellent
energy performance
Data plate
Each VELUX roof window
has a unique data plate
showing type, size, variant
etc of the window. QR code
with link to local mobile
website
Barrel bolt
The roof window can be
rotated and secured in
position with a barrel bolt
to ensure safe and easy
cleaning of the outside
pane from the inside
Lock casing
Electro-galvanised steel
Brackets for
accessories
With the pre-installed
VELUX Pick&Click!TM
brackets, installation of
solar powered blinds could
not be easier
Product information: VELUX INTEGRA® top-operated centre-pivot polyurethane roof window GGL
Ventilation flap
with control bar
The ventilation flap is
designed with a control bar
to allow for manual
operation
Control pad
Unique VELUX INTEGRA®
control pad featuring touch
screen with swipe function
and pre-set programs
VELUX®
6
Visible features
Rain sensor
The rain sensor ensures
that the window closes
automatically if it starts
raining
Click-on covers
Click-on covers make
installation easier, faster
and safer
Window operator
and chain
Fully integrated, hidden
motor with chain. Silent
motor operation
Laminated pane
Laminated inner glass on all
variants for personal safety
Pivot hinge
VELUX high quality pivot
hinge provides stability and
perfect sash balance.
Electro-galvanised steel
Product information: VELUX INTEGRA® top-operated centre-pivot polyurethane roof window GGL
VELUX®
7
Cleaning and maintenance
To clean the outer
pane from the
inside, rotate sash
and secure in
cleaning position
with barrel bolt.
VELUX repair and
maintenance kits are
available.
Exterior covers
Blinds, awnings and shutters
NCS
standard colour
RAL
nearest standard
colour
Lacquered aluminium
(-0--) grey
S 7500-N
7043
Lacquered aluminium
(-5--) black
S 9000-N
9005
Copper
(-1--)
-
-
Titanium zinc
(-3--)
-
-
Material
Interior sunscreening
Blackout blind
Roller blind
Pleated blind
Flying pleated blind
Double pleated energy blind
Venetian blind
Duo blackout blind
●●●
●●●
★
●
●●
●●
●
Exterior sunscreening
Awning blind
Roller shutter
●●●
●●●
Additional accessories
Insect roller screen
●
Special colour requests, please contact [email protected]
Interior finish
Clear lacquer
Impregnation and layers of water-based
acrylic lacquer
White paint
Impregnation and layers of water-based
acrylic paint,
NCS standard colour: S 0500-N,
nearest RAL standard colour: 9003.
Special colour requests, please contact [email protected]
●●● Available in manual and mains/solar powered versions
●●
Available in manual and mains powered versions
●
Available in manual version
★
Available in mains powered version
The mains and solar powered versions are part of the VELUX INTEGRA® product
range.
Flashings and installation products
Flashings:
 ED- for single installation
 EB- for twin installation
 EK- for combi installation
Available for standard and recessed installation
Installation products:
 Installation set BDX 2000 (incl. BFX)
 Underfelt collar BFX 1000 incl. transverse drainage gutter
 Vapour barrier collar BBX 0000
 Linings LS- (incl. BBX)
 Kit for lining LSG 1000 (incl. BBX)
Product information: VELUX INTEGRA® top-operated centre-pivot polyurethane roof window GGL
VELUX®
8
Technical information
Material and colour
Roof window: See brochure or price list for variants.
Control pad: ABS, white (NCS S 1000-N), black (RAL 9005) and metallic grey.
Window operator: PBT with glass fibre, black (NCS S 9000-N) and stainless steel chain.
Rain sensor: Gold-coated sensor, grey (RAL 7022)
Size and weight
Size of product including packaging: The same as equivalent manually operated roof window.
Weight: Approx 3 kg more than equivalent manually operated roof window.
Control pad: 95 x 95 x 23 mm (W x H x D), 114 g (with batteries 184 g).
Installation and use
The window is classified in protection class IP44.
The window operator hidden in the top cover and functions at temperatures between -10°C and +60°C.
The control pad is for indoor use, maximum ambient temperature 50°C.
Radio frequency range: 200 m free field. Depending on building construction, the indoor range is approximately 20 m.
Installation in rooms with a high level of humidity must comply with relevant regulations (contact a qualified
electrician if necessary).
Window opening
Max 200 mm within 35 seconds.
Due to a shorter chain, small/special window sizes have a different window opening.
Window opening for sizes --01 and --02 = 135 mm. Window opening for sizes --25 and --27 = 38 mm.
Power consumption
230/240 V a.c. – 50 Hz / 40 VA
Control pad: 3 x alkaline AA/LR6 (1.5 V) batteries. Expected battery lifetime: Approximately 1 year.
Motor capacity
Traction capacity: Min 225 N
Pressure capacity: Min 150 N
Connection
The window is equipped with a 7.5 m 2-core cable (H05VV-F) with a standard mains plug for connection to the mains
supply (2.5 m for the UK).
Compatibility
The window is based on radio frequency (RF) technology, 868 MHz range, and is compatible with other products with
the io-homecontrol ® logo.
The window is prepared for subsequent installation of mains powered VELUX INTEGRA ® interior and exterior
decoration and sunscreening products as well as frame lights.
It is not compatible with battery powered or VELUX INTEGRA® Solar decoration and sunscreening products.
Connection to non-compatible products may cause damage or malfunction.
CE marking
The window is CE-marked to indicate that it is in accordance with the EU directives CPD, LVD, MD, R&TTE and EMC for
household, trade and light industry.
Note
This sheet describes the added features of mains powered VELUX INTEGRA ® roof window GGL compared with
manually operated VELUX roof window GGL. For further information on the features and specifications of GGL, please
see the main VELUX brochure.
© 2014 VELUX Group
® VELUX and the VELUX logo are registered trademarks used under licence by the VELUX Group
We reserve the right to make technical changes.
Product information: VELUX INTEGRA® top-operated centre-pivot polyurethane roof window GGL
VELUX®
9
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
