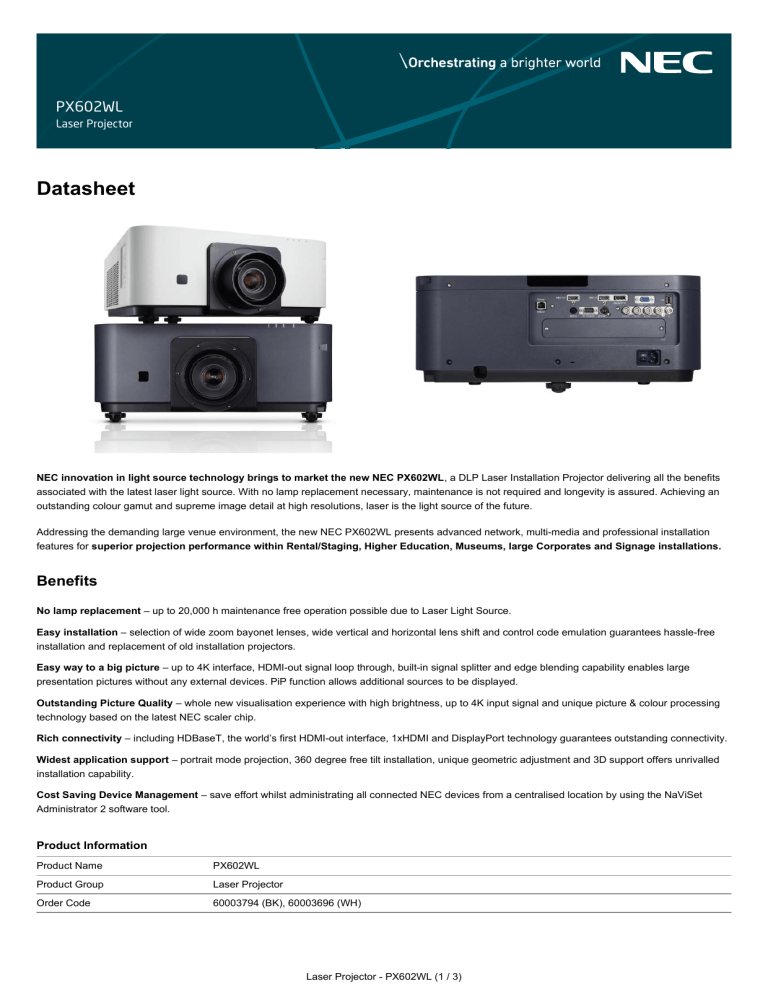

User manual | Datasheet

PX602WL
Laser Projector
Datasheet
NEC innovation in light source technology brings to market the new NEC PX602WL, a DLP Laser Installation Projector delivering all the benefits
associated with the latest laser light source. With no lamp replacement necessary, maintenance is not required and longevity is assured. Achieving an
outstanding colour gamut and supreme image detail at high resolutions, laser is the light source of the future.
Addressing the demanding large venue environment, the new NEC PX602WL presents advanced network, multi-media and professional installation
features for superior projection performance within Rental/Staging, Higher Education, Museums, large Corporates and Signage installations.
Benefits
No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source.
Easy installation – selection of wide zoom bayonet lenses, wide vertical and horizontal lens shift and control code emulation guarantees hassle-free
installation and replacement of old installation projectors.
Easy way to a big picture – up to 4K interface, HDMI-out signal loop through, built-in signal splitter and edge blending capability enables large
presentation pictures without any external devices. PiP function allows additional sources to be displayed.
Outstanding Picture Quality – whole new visualisation experience with high brightness, up to 4K input signal and unique picture & colour processing
technology based on the latest NEC scaler chip.
Rich connectivity – including HDBaseT, the world’s first HDMI-out interface, 1xHDMI and DisplayPort technology guarantees outstanding connectivity.
Widest application support – portrait mode projection, 360 degree free tilt installation, unique geometric adjustment and 3D support offers unrivalled
installation capability.
Cost Saving Device Management – save effort whilst administrating all connected NEC devices from a centralised location by using the NaViSet
Administrator 2 software tool.
Product Information
Product Name
PX602WL
Product Group
Laser Projector
Order Code
60003794 (BK), 60003696 (WH)
Laser Projector - PX602WL (1 / 3)
Projection Technology
1-chip DLP™ Technology
Native Resolution
1280 x 800 (WXGA)
Contrast Ratio
Brightness
1
1
10000:1
6000 ANSI Lumen, with std. optional lense
Lamp
Laser Light Source
Lamp Life [hrs]
20000
Lens
5 optional bayonet lenses
Projection Factor
depending on lens selection
Projection Distance [m]
1.02 – 19.39
Screen Size (diagonal) [cm] /
[inch]
Maximum: 760 / 300"; Minimum: 127 / 0"
Zoom
Motorized
Focus Adjustment
Motorized
Supported Resolutions
4096 x 2160 (4k); 2560 x 1600 (WQXGA); 2048 x 1080 (2k); 1920x1200 (WUXGA) - 640x480 (VGA); 1080i/
50/60; 1080p/24/25/30/50/60; 720p/60; 720p/50; 576i/50; 576p/50; 480p/60; 480i/50
Frequency
Horizontal: analog: 15/24-100 kHz, digital: 15/24-153 kHz; Vertical: analog: 48-120 Hz, digital: 24-120 Hz
Connectivity
RGB (analog)
Input: 1 x 5BNC, shared with Component Signal (YPbPr); 1 x Mini D-sub 15 pin
Digital
Input: 1 x DisplayPort supporting HDCP; 1 x HDBaseT; 1 x HDMI™ supporting HDCP
Output: 1 x HDMI supporting HDCP
Video
Input: 1 x BNC R Share
S-Video
Input: 1 x BNC G/B Share
Control
Input: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232); 1 x Ethernet shared with
HDBaseT
Option Slot
Input: 1 x Slot for optional OPS modules
USB
1 x Type A (USB 2.0 high speed for mouse support)
3D Sync
Output: 1 x Mini DIN 3pin
Video Signals
NTSC; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM
Remote Control
Remote Control
Auto Adjust; AV Mute; Direct Info; Direct Source Select; Eco Mode Control; Freeze-function; Full Lense
control; Help-function; ID Select; Illuminated Buttons; Input Control; Magnify-function; On Screen On/Off
Selection; Picture Adjust; PIP Function; Power (On-OFF); Select (up, down, left, right); Shutter function; Test
Picture; Wired / Wireless Connection
Electrical
Power Supply
100-240 V AC; 50 - 60 Hz
Power Consumption [W]
270 Eco Mode; 550 Normal Mode
Mechanical
Dimensions (W x H x D) [mm]
484 x 195 x 509 (without lens and feet)
Weight [kg]
18.5
Fan Noise [dB (A)]
38
Colour Versions
Black; White
Ergonomics
Safety and Ergonomics
CE; ErP; RoHS; TUEV Type Approved
Laser Projector - PX602WL (2 / 3)
Additional Features
Special Characteristics
3D ready; 4K Interface; AMX Beacon; Built-in Display/Multiscreen Splitter; Cinema Quality Picture (CQP)
Processing for best image quality; Crestron RoomView; DICOM Simulation; Digital 3D Reform™; Direct
Power-Off Function; Edge Blending Function (Build In); Free Tilt; Full 3D HDMI Support; Geometric
Correction; HDBaseT; Keystone Correction (H=±40°, V=±40°); LAN; Lens Shift (vertical +0.5 max/-0.5 max,
horizontal ± 0.15 max.); Light Source Adjustment; Manual Wall Color Correction; Multi-Screen compensation
mode; NaViSet Administrator 2; OPS module support; Optional User Logo; OSD with 27 languages;
Password Security System; Picture in Picture / Picture and Picture; PJ LINK; Portrait Setting; RS-232 Control;
Stacking Function; Timer-Function; Virtual Remote for direct PC control
Green Features
Energy Efficiency
Laser Light Source
Ecological Materials
100% recyclable packaging; Downloadable manuals
Ecological Standards
ErP compliant
Warranty
Projectors
3 years pan-European service
Light Source
3 years or 10000h (whatever comes first)
Shipping Content
Shipping Contents
IR Remote Control (RD - 465E); Network Set-up Guide; Power Cord; Projector; Quick Setup Guide; Stacking
Holder; Users Manual on CD-ROM; Utility software
Optional Accessories
Optional Accessories
Ceiling Mount Kit; DLP-Link 3D Glasses (VolfoniFit); Flightcase; Portrait Mode Cover (NP07CV); Stacking
Frame (PJ01FPX); XpanD 3D Glasses (X105-RF-X2); XpanD 3D RF Emitter (AD025-RF-X1)
Lenses
NP33ZL (0.79-1:1) available from 04/2015; NP34ZL (1-1.28:1); NP36ZL (1.28-1.61:1); NP37ZL (1.6-3.07:1);
NP38 (3.04-5.78:1)
OPS Slot-in Modules
Digital Signage Player; HD/SD-SDI Module; HDBaseT Receiver; Slot-in PCs
1
Compliance with ISO21118-2012
This product has been equipped with a laser module and is classified according to Class 2 of Safety of Laser Products IEC 60825-1.
DO NOT LOOK DIRECTLY INTO THE BEAM.
This document is © 2017 NEC Display Solutions Europe GmbH.
All rights reserved in favour of their respective owners. All hardware and software names are brand names and/or registered trademarks of the
respective manufacturers. All specifications are subject to change without notice. Errors and omissions are excepted. 22.03.2017
Laser Projector - PX602WL (3 / 3)
