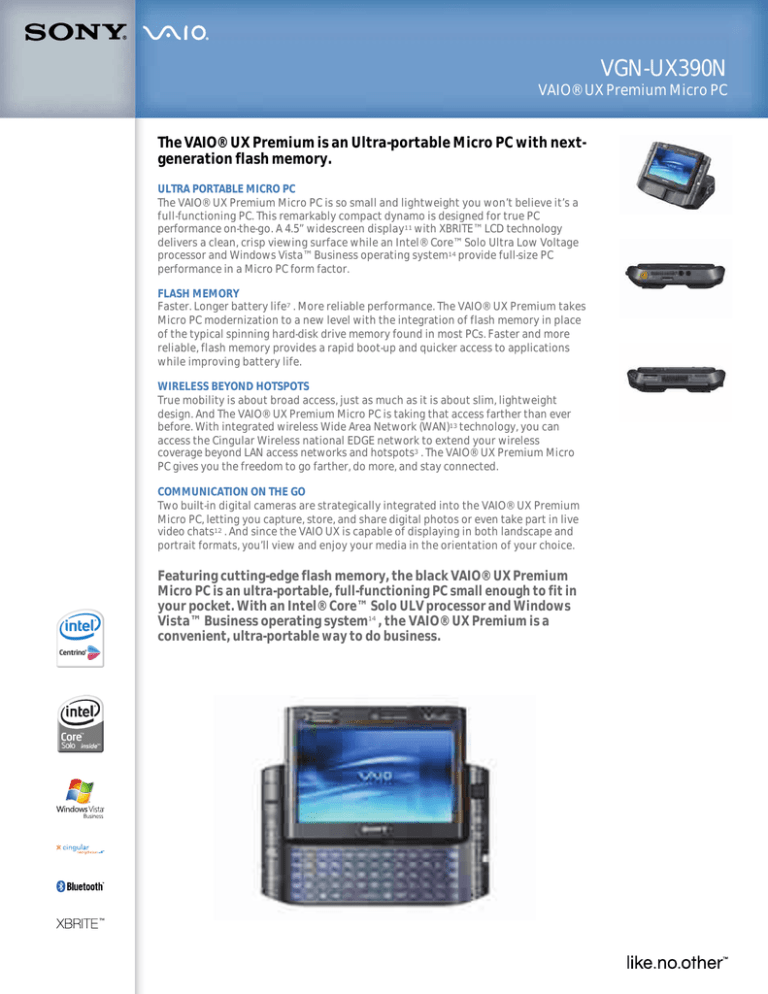

Sony VGN-UX390N Specification

Sony VGN-UX390N Specification
VAIO® UX Premium Micro PC
The VAIO® UX Premium is an Ultra-portable Micro PC with nextgeneration flash memory.
The VAIO® UX Premium Micro PC is so small and lightweight you won’t believe it’s a
full-functioning PC. This remarkably compact dynamo is designed for true PC
performance on-the-go. A 4.5” widescreen display11 with XBRITE™ LCD technology
delivers a clean, crisp viewing surface while an Intel® Core™ Solo Ultra Low Voltage
processor and Windows Vista™ Business operating system14 provide full-size PC
performance in a Micro PC form factor.
Faster. Longer battery life7 . More reliable performance. The VAIO® UX Premium takes
Micro PC modernization to a new level with the integration of flash memory in place
of the typical spinning hard-disk drive memory found in most PCs. Faster and more
reliable, flash memory provides a rapid boot-up and quicker access to applications
while improving battery life.
True mobility is about broad access, just as much as it is about slim, lightweight
design. And The VAIO® UX Premium Micro PC is taking that access farther than ever
before. With integrated wireless Wide Area Network (WAN)13 technology, you can
access the Cingular Wireless national EDGE network to extend your wireless
coverage beyond LAN access networks and hotspots3 . The VAIO® UX Premium Micro
PC gives you the freedom to go farther, do more, and stay connected.
Two built-in digital cameras are strategically integrated into the VAIO® UX Premium
Micro PC, letting you capture, store, and share digital photos or even take part in live
video chats12 . And since the VAIO UX is capable of displaying in both landscape and
portrait formats, you’ll view and enjoy your media in the orientation of your choice.
Featuring cutting-edge flash memory, the black VAIO® UX Premium
Micro PC is an ultra-portable, full-functioning PC small enough to fit in
your pocket. With an Intel® Core™ Solo ULV processor and Windows
Vista™ Business operating system14 , the VAIO® UX Premium is a
convenient, ultra-portable way to do business.
VAIO® UX Premium Micro PC
Computer Type: Micro PC
Type of Use: Ultra Portable
Action Buttons: Mouse Left, Mouse Right, Scroll,
Magnify Screen (Zoom In/Out), Capture, Center
Button, Wireless LAN On/Off, VAIO Touch Launcher
Pointing Device: Pointer
Security: Biometric Fingerprint Sensor
Keyboard: 64 keys with 0.15mm stroke and 8.6mm
Camera: 2 Built-in Cameras (front: 0.3M pixels and back:
1.3M pixels)
Built-in microphone
Type: Intel® Core™ Solo Processor U1500
Ultra Low Voltage
Speed: 1.33GHz 1
Front Side Bus Speed: 533MHz
L2 Cache: 2MB
Technology: Intel® Centrino® Mobile Technology
Type: DDR2
Installed: 1GB (1GBx1) PC2-3200
Maximum: 1GB
Speed: 400MHz
Flash Based Drive
Capacity: 32GB 2
Interface: PATA
Format: NAND
Sound System: Windows® sound system compatible
with Built-in monaural speakers
Screen or Display Technology: Wide SVGA LCD, Touch
Screen Size: 4.5” 11
Resolution: 1024x600
Processor: Intel® Graphics Media Accelerator 950
Video RAM: 224MB Total Available Graphics Memory15
Chipset: Intel® 945GMS
Inputs and Outputs
Headphone Jack: 1
Memory Stick®Media Slot: 1 - Supports Optional
Memory Stick DUO™ media with MagicGate®
Microphone Input: 1
Port Replicator Connector(s): 1 (Bottom)
USB Port(s): 1 (2.0 compliant)
DC-In: 1
Ethernet Protocol: Fast Ethernet (RJ-45) using Port
Replicator or VGA/LAN Adapter
Ethernet Speed: 10Base-T/100Base-TX
Wireless LAN: Intel® PRO/Wireless 3945ABG Network
Connection (802.11a/b/g)3
Wireless WAN: Integrated Wireless Wide Area
Network (WAN)13 accessing Cingular Wireless
National EDGE Network with SmartWi™ technology
(Wireless WAN and Wireless LAN radio do not
transmit simultaneously)
Bluetooth®Technology: Integrated Bluetooth®
Battery Type: Standard Capacity Lithium-ion Battery
Estimated Battery Life: 1.5-3.5 hours7 (Standard
3.0-7.0 hours7 (Large Capacity Battery)
Power Requirements: 41W+10%
Operating System: Windows Vista™ Business
Supplied Software: Microsoft® Works 8.5
60-Day Trial Version of Microsoft® Office 200710
Microsoft® Streets & Trips 2006 Essentials
PenPlus™ for VAIO
Sony®Original Software: VAIO® Touch Launcher
*Please access VAIO® Help and Support from your
PC for a complete list of software applications and
Security and Anti-Virus Software: Norton® Internet
Security™ 2007 60-Day Trial with spyware
Service and Warranty Information
Limited Warranty: 1 Year Limited Warranty 8
Telephone Support: 1 year (toll-free technical
telephone assistance, available 24/7)9
Online and Email Support: Support available from
Weight: 1.2 lbs with standard battery (weight is
approximate and may vary)
Measurements: 5.91” (W) x 3.74” (H) x 1.27-1.50” (D)
Supplied Accessories
Cingular SIM Card
Standard Lithium-ion battery (VGP-BPS6)
AC Adapter (VGP-AC16V7)
Port Replicator (VGP-PRUX1) - 1 4-pin i.LINK®
interface6 , 3 USB 2.0, Ethernet, VGA-Out, A/V-out and
Soft Carrying Case
Power Cord
VGA/LAN Adapter - Ethernet, VGA-Out and A/V-Out
Detachable Stand
2 Additional Stick Pointer Caps
AC Adapter (VGP-AC16V7)
LCD Protection Sheet (VGP-FLS8)
2-Pack Stylus (VGP-ST1)
Bluetooth® GPS Receiver (VGP-BGU1)
Leather Protection Case (VGP-CCUX1)
Stowaway Bluetooth® Keyboard (VGP-XTBTUE)
Color: Black
UPC Code: 027242711747
1. GHz denotes microprocessor internal clock speed; other factors may
affect application performance. CPU speed will be reduced under
certain operating conditions.
2. GB means one billion bytes when referring to hard drive capacity.
Accessible capacity may vary. A portion of hard disk space is reserved as
a recovery partition.
3. Requires compatible wireless LAN access point, sold separately. Internet
connection may require fees.
4. DVD Media/Formats are not universally compatible.
5. Interoperability among Bluetooth® devices varies.
6. i.LINK is a trademark of Sony used only to designate that a product
contains an IEEE 1394 connector. All products with an i.LINK connector
may not communicate with each other.
7. Actual battery life may vary based on product settings, usage patterns,
battery and environmental conditions.
8. See actual limited warranty for details. For a copy of Sony’s warranty,
please visit, call toll-free 888-476-6972 (8884SONYPC), or write to Sony Electronics, 12451 Gateway Boulevard, Fort
Myers, FL 33913.
9. For certain third party software applications, Sony provides first level
Phone Support. Additional telephone support may be available from
the applicable 3rd party vendor. Availability and schedule for any such
support is determined by the applicable software vendor.
10. The Microsoft Office 2007 60-Day Trial software is intended for
evaluation purposes only. This trial software is installed on your system
and you must activate the software before you can use it. Product
activation procedures will be detailed during initial launch of the
software; activation requires Internet access. This software has an
expiration date of 60 days from date of first use, at which time the
software will operate under reduced-functionality mode, limiting enduse options and operations.
11. Viewable area measured diagonally.
12. Broadband Internet service required along with third-party services
which may require a subscription fee or other service fee.
13. Subscription with Cingular Wireless required. See for complete offer details, price plans,
service terms and conditions and coverage map. Call 1-888-739-VAIO
(8246) for service activation.
14. Certain Tablet PC functions of Windows Vista Business not supported.
15. Total Available Graphics memory refers to the new Windows Vista
classification of graphics memory, which is the total of Dedicated Video
Memory, System Video memory and Shared System Memory. Shared
System Memory varies depending on the operating condition and
system memory size.
Computer Interface: The computer industry lacks standards, and therefore,
there are a multitude of varying software packages and add-on hardware
options. This personal computer is not manufactured to operate any
specific software, and Sony does not and cannot make any warranty or
representation with respect to the performance of this product with any
particular software packages and/or non-Sony add-on hardware options
except those mentioned in this document. Sony hereby disclaims any
representations or warranty that this product is compatible with any
combination of products you may choose to connect. While Sony
representatives or Sony authorized dealers may be able to assist you and
may make recommendations, they are NOT authorized to vary or waive this
disclaimer. Purchasers must determine for themselves the suitability and
compatibility of the hardware and software in each and every particular
instance. Software titles pre-installed on the Sony Notebook Computer are
subject to change without notice. Simulated graphic shown on display. Preinstalled software may not be identical to retail versions or have all
documentation. This product meets the standards of the International
Energy Star Program for energy efficiency. Features and specifications
are subject to change without notice. Non-metric weights and
measurements are approximate.
©2007 Sony Electronics Inc. All rights reserved. Reproduction in whole or in
part without written permission is prohibited. Sony, Sony logo, i.LINK,
Memory Stick, VAIO, VAIO logo, XBRITE, G-Sensor, Memory Stick Duo, SmartWi,
MagicGate and are trademarks of Sony. Intel and Centrino
are registered trademarks and Core is a trademark of Intel Corporation.
Microsoft and Windows are registered trademarks and Windows Vista is a
trademark of Microsoft Corporation. Cingular Wireless is a registered
trademark of Cingular Wireless LLC 2005. All other trademarks are
trademarks of their respective owners.
Printed in U.S.A. 01/07.
Optional Accessories
Additional Port Replicator (VGP-PRUX1)
Large Capacity Battery (VGP-BPL6)
Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 •
Last Updated: 08/28/2007
