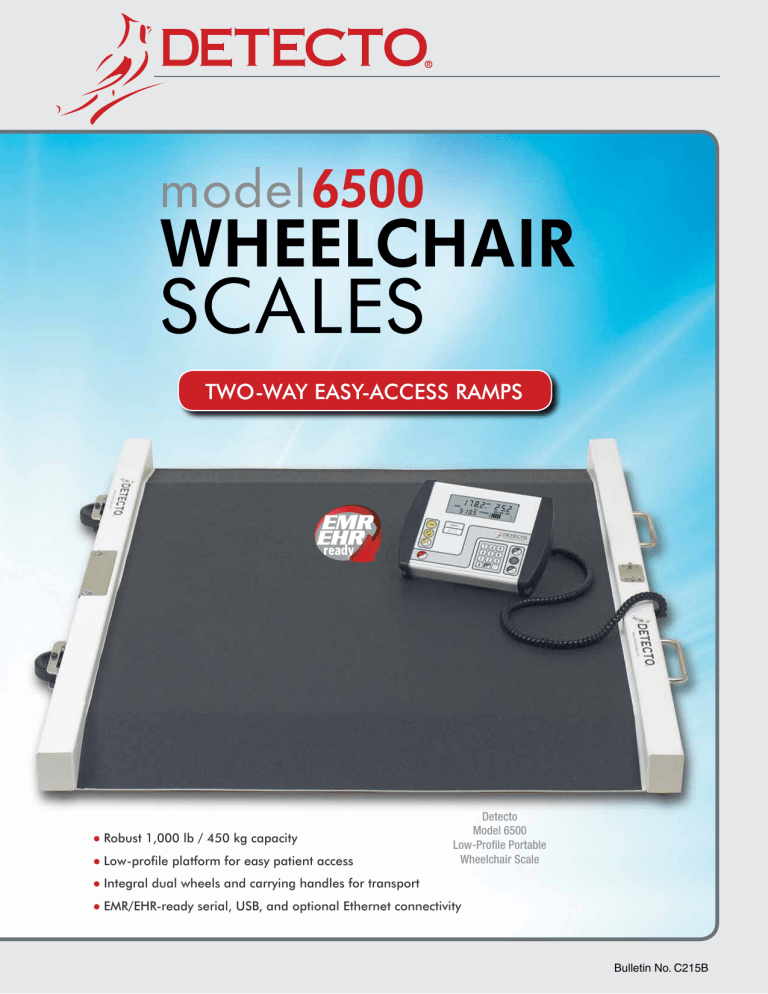

TWO-WAY EASY-ACCESS RAMPS
● Robust 1,000 lb / 450 kg capacity
● Low-profile platform for easy patient access
Detecto
Model 6500
Low-Profile Portable
Wheelchair Scale
● Integral dual wheels and carrying handles for transport
● EMR/EHR-ready serial, USB, and optional Ethernet connectivity
Bulletin No. C215B
With built-in ramps for entering and exiting the scale,
Detecto's 6500 portable wheelchair is perfect for clinical weighing
applications. For added convenience, you may enter the wheelchair
weight via pushbutton or keypad tare, so that only the patient weight is
displayed. With a high capacity of 1,000 lb / 450 kg, this scale is ideal
for bariatric weighing needs.
Versatile Weighing Options with the 6500:
Wheelchairs • Standing • Straight-legged Chairs • Walkers
1 Easy Transport
2 Lower into Position
3 Ready for Weighing
The 6500’s
indicator secures firmly
to the base for safer
movement and storage.
Carrying Handles ease transport
and allow the scale to be used in
multiple locations.
Optimum
patient weighing
"on-the-move"
Integral Wheels combined with a
lightweight frame and battery power
make the 6500 completely mobile.
EFFICIENT MEASUREMENT
The 6500's digital weight indicator is
the clinical industry's most advanced,
featuring EMR/EHR-ready serial, USB
and optional Ethernet interface, BMI calculation,
yellow "quick keys" for basic weighing, and a multiline LCD display. The scale is powered by 6 C
batteries (not included) or optional AC adapter.
● Up to 99 tares (optional) to store wheelchair weights
● Hold/Release key to retain weight after leaving the scale
Detecto's 6500 scale
features patient ID
barcode scanning
capability which sends
a 9-digit patient ID
to the indicator for
efficient EMR/EHR
recordkeeping.
The weight
indicator features
19 keys, 5,000
divisions, battery
or AC power, and
selectable key
lockout.
● Non-skid rubber mat for
patient assurance and safety
SIDE VIEW
OVERHEAD VIEW
(RAMP)
(RAMP)
(WEIGHING PLATFORM)
Capacity 1,000 lb x 0.2 lb / 450 kg x 0.1 kg
Display Weight: Five digit, seven segment .5 in / 13 mm H LCD
Height: Four digit, seven segment .375 in / 10 mm H LCD
Keyboard Membrane type with 19 keys
Connectivity Ports RS232 serial, USB, and optional Ethernet
Display Dimensions 9.5 W x 6.6 H x 2.1 D in / 24 W x 17 H x 5 D cm
Power 6 C cell Ni-Cad or NiMH batteries (not included) OR an optional 100 to 240 VAC 50/60Hz 12 VDC 1A
wall plug-in UL/CSA listed AC power adapter (Detecto part number 6800-1045)
Resolution 5,000 divisions, maximum
Operating Temperature 14º to 104º F (-10º to +40º C)
Enclosure Construction Aluminum
UPC Code 809161139204
Shipping Weight 65 lb / 29.4 kg
Detecto Scale reserves the right to improve, enhance, or modify features and specifications without prior notice.
DETECTO
Sold By:
®
A Division of Cardinal Scale Manufacturing Co.
203 E. Daugherty, Webb City, MO 64870 USA
Ph: 417-673-4631 or 1-800-641-2008 Fax: 417-673-5001
www.Detecto.com
© Copyright 2011 Cardinal Scale Mfg. Co.
• Printed in USA • ACG/4K/1111/C215A
