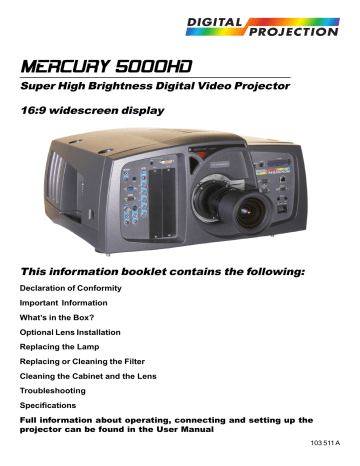

MERCURY 5000HD

Super High Brightness Digital Video Projector

16:9 widescreen display

This information booklet contains the following:

Declaration of Conformity

Important Information

What’s in the Box?

Optional Lens Installation

Replacing the Lamp

Replacing or Cleaning the Filter

Cleaning the Cabinet and the Lens

Troubleshooting

Specifications

Full information about operating, connecting and setting up the projector can be found in the User Manual

103 511 A

Digital Projection

MERCURY 5000HD

Declaration of Conformity

Directives covered by this Declaration

89/336/EEC Electromagnetic Compatibility Directive, amended by 92/31/EEC and 93/68/EEC.

73/23/EEC Low Voltage Equipment Directive, amended by 93/68/EEC.

Products covered by this Directive

Large Screen Projector type

MERCURY 5000HD

Basis on which Conformity is being declared

The products identified above comply with the protection requirements of the above EU directives, and the manufacturer has applied the following standards.

EN 50081-1:1992 - EMC Generic Emission Standard for Residential, Commercial and Light Industrial Equipment.

EN 50082-1:1992 - EMC Generic Immunity Standard for Residential, Commercial and Light Industrial Equipment.

EN 55022:1995 - Limits and Methods of Measurement of Radio Disturbance Characteristics of Information Technology

Equipment.

EN 60950:1992 - Specification for Safety of Information Technology Equipment, including Electrical Business equipment.

The technical documentation required to demonstrate that the products meet the requirements of the Low Voltage directive has been compiled by the signatory below and is available for inspection by the relevant enforcement authorities. The CE mark was first applied in 2004.

Signed:

Authority:

Date:

D.J. Quinn, Director - Product Development

23 April 2004

Attention!

The attention of the specifier, purchaser, installer, or user is drawn to special measures and limitations to use which must be observed when these products are taken into service to maintain compliance with the above directives.

Details of these special measures are available on request, and are also contained in the product manuals.

Important Information

Precautions

Please read this manual carefully before using your Digital

Projection MERCURY 5000HD Projector and keep the manual handy for future reference.

Your serial number is located on the side of your projector.

Record it here:

CAUTION

To turn off main power, be sure to remove the plug from power outlet.

The power outlet socket should be installed as near to the equipment as possible, and should be easily accessible.

CAUTION

TO PREVENT SHOCK, DO NOT OPEN THE

CABINET.

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED Digital

Projection SERVICE PERSONNEL.

Digital Projection

MERCURY 5000HD

RF Interference

WARNING

The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by Digital Projection in this manual. Failure to comply with this government regulation could void your right to operate this equipment.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio / TV technician for help.

This symbol warns the user that uninsulated voltage within the unit may be sufficient to cause electrical shock. Therefore, it is dangerous to make any kind of contact with any part inside of the unit.

This symbol alerts the user that important information concerning the operation and maintenance of this unit has been provided. The information should be read carefully to avoid problems.

WARNING

TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT

TO RAIN OR MOISTURE.

DO NOT USE THIS UNIT’S GROUNDED PLUG WITH AN

EXTENSION CORD OR IN AN OUTLET UNLESS ALL THREE

PRONGS CAN BE FULLY INSERTED.

DO NOT OPEN THE CABINET. THERE ARE HIGH-VOLTAGE

COMPONENTS INSIDE. ALL SERVICING MUST BE DONE BY

QUALIFIED Digital Projection SERVICE PERSONNEL.

DOC Compliance Notice

This Class B digital apparatus meets all requirements of the

Canadian Interference-Causing Equipment Regulations.

3. GSGV Acoustic Noise Information Ordinance:

The sound pressure level is less than 70 dB (A) according to

ISO 3744 or ISO 7779.

In UK, a BS approved power cable with moulded plug has a

Black (five Amps) fuse installed for use with this equipment. If a power cable is not supplied with this equipment please contact your supplier.

• IBM is a registered trademark of International Business Machines

Corporation.

• Macintosh and PowerBook are registered trademarks of Apple

Computer, Inc.

• Other product and company names mentioned in this user's manual may be the trademarks of their respective holders.

Important Safeguards

These safety instructions are to ensure the long life of your projector and to prevent fire and shock. Please read them carefully and heed all warnings.

Installation

1. For best results, use your projector in a darkened room.

2. Place the projector on a flat, level surface in a dry area away from dust and moisture. Do not tilt the projector more than

±12° from side to side, as this will reduce lamp life. The projector may be tilted forwards or backwards as necessary.

±12°

360°

3. Do not place your projector in direct sunlight, near heaters or heat radiating appliances.

4. Exposure to direct sunlight, smoke or steam can harm internal components.

5. Handle your projector carefully. Do not hold the lens hood and the terminal covers. Dropping or jarring can damage internal components.

6. Do not place heavy objects on top of the projector.

Digital Projection

MERCURY 5000HD

7. If you wish to have the projector installed on the ceiling:

a. Do not attempt to install the projector yourself.

b. The projector must be installed by qualified technicians in order to ensure proper operation and reduce the risk of bodily injury.

c. In addition, the ceiling must be strong enough to support the projector and the installation must be in accordance with any local building codes.

d. Please consult your dealer for more information.

To Dealer or Installer:

To prevent the projector from falling, install it in a place and fasten it in a way with sufficient strength to support the combined weight of the projector (25 kg / 55 lbs), the lens and any mounting hardware, for an extended period of time as well as to withstand earthquakes.

Power Supply

1. The projector is designed to operate on a power supply of

100-240 V 50/60 Hz AC. Ensure that your power supply fits this requirement before attempting to use your projector.

2. Handle the power cable carefully and avoid excessive bending. A damaged cord can cause electric shock or fire.

3. If the projector is not to be used for an extended period of time, disconnect the plug from the power outlet.

4. Do not touch the power plug with wet hand. Doing so can cause electrical shock or fire.

5. Do not touch the power plug during a thunder storm. Doing so can cause electrical shock or fire.

Cleaning

1. Unplug the projector before cleaning.

2. Clean the cabinet periodically with a damp cloth. If heavily soiled, use a mild detergent. Never use strong detergents or solvents such as alcohol or thinner.

3. Use a blower or lens paper to clean the lens, and be careful not to scratch or mar the lens.

CAUTION

Do not unplug the power cable from the wall outlet under any one of the following circumstances. Doing so can cause damage to the projector:

• While the message "Please wait a moment." appears. This message will be displayed after the projector is turned off.

• Immediately after the power cable is plugged into the wall outlet (the POWER indicator has not changed to a steady orange glow).

• Immediately after the cooling fan stops working (The cooling fan continues to work for 90 seconds after the projector is turned off).

CAUTION

• Do not try to touch the ventilation outlets as they can become heated while the projector is turned on.

• Do not put the projector on its side when the lamp is turned on.

Doing so may cause damage to the projector.

• Before shipping this projector, remove the lens and attach the lens hood cap.

The Lens Shift mechanism may encounter damage caused by improper handling during transportation.

• Do not eject a PC card or LAN card while its data is being accessed. Doing so can damage your PC card or LAN card.

Lamp Replacement

• To replace the lamp, follow all instructions provided on page

9-2.

• Be sure to replace the lamp when the message "The Lamp has reached the end of its usable life. Please replace the lamp." appears. If you continue to use the lamp after the lamp has reached the end of its usable life, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp case.

CAUTION

: Do not touch them as the pieces of glass may cause injury. If this happens, contact your Digital

Projection dealer for lamp replacement.

• Allow a minimum of 90 seconds to elapse after turning off the projector. Then turn off the main power and disconnect the power cable and allow 15 minutes to cool the projector before replacing the lamp.

• The projector must be operated with two lamps installed regardless of whether or not the lamp is active. Failure to do so may degrade the performance of the projector such as screen flicker or loss of lamp life. If one lamp has reached the end of its usable life, replace it with a new one as soon as possible.

Fire and Shock Precautions

1. Ensure that there is sufficient ventilation and that vents are unobstructed to prevent the build-up of heat inside your projector. Allow at least 3 inches (10 cm) of space between your projector and a wall, except to the rear and the ventilation outlet on the right side, where there should be at least 12 inches (30cm) of space.

2. Prevent foreign objects such as paper clips and bits of paper from falling into your projector. Do not attempt to retrieve any objects that might fall into your projector. Do not insert any metal objects such as a wire or screwdriver into your projector.

If something should fall into your projector, disconnect it immediately and have the object removed by a qualified

Digital Projection service personnel.

3. Do not place any liquids on top of your projector.

4. When using a LAN cable:

For safety, do not connect to the connector for peripheral device wiring that might have excessive Voltage.

CAUTION

• Do not look into the lens while the projector is on. Serious damage to your eyes could result.

• Keep any items such as magnifying glass out of the light path of the projector. The light being projected from the lens is extensive, therefore any kind of abnormal objects that can redirect light coming out of the lens, can cause unpredictable outcome such as fire or injury to the eyes.

• Do not cover the lens with the supplied lens hood cap or equivalent while the projector is on. Doing so can lead to melting of the cap and possibly burning your hands due to the heat emitted from the light output.

Digital Projection

MERCURY 5000HD

What's in the Box?

Make sure your box contains everything listed. If any pieces are missing, contact your dealer.

Please save the original box and packing materials if you ever need to ship your Projector.

NOTE: Lenses are optional. Order lenses from your Digital Projection dealer.

+

ZOOM

ENTER

GHI

3

INPUT

DEF

2

PQR

6

YZ /

9

MNO

5

ABC

1

JKL

4

VWX

8

OFF

POWER

ON

0

STU

7

OR

TEST

INFO

PROJECT

BAL.

HELP

OSD

IMAGE/


WHITE

SOUND

B E-LIST/

ADJUST

MUTE

SHUT

PICT/

G

AMP/

R

./

ST

LENS

KEY

POSI/

OFF

ON

S

PIXEL

ADDRES

O

AUT

MENU/

MAGNIFY/

+

FOCUS

CANCEL

UNDO

CTL

Remote control (102-161) and batteries (AAx2)

Projector

(102-834)

Power cable for United Kingdom (AC 230V)

(102-180)

Power cable for North America (AC 120V)

(102-165)

Remote cable

(102-162)

Remote cable

(102-162)

Power cable for Japan (AC 100V)

(102-164)

Power cable for Europe (AC 230V)

(102-163)

DVI cable

(102-166)

DVI cable

(102-166)

16Mb PC card

(102-112)

User Supportware

(102-191)

User Manual

(103-510)

Important Information

(103-511)

Digital Projection

MERCURY 5000HD

Optional Lens Installation

This section describes how to install the lens.

Before installation

* Determine the optional lens to be used to obtain a desired projection distance. There are six optional lenses available:

0.64 : 1 fixed

0.96 : 1 fixed

1.2 - 1.44 : 1 zoom

1.44 - 1.8 : 1 zoom

1.8 - 2.4 : 1 zoom

2.4 - 3.6 : 1 zoom

3.6 - 5.6 zoom part no. 001-734 part no. 001-735 part no. 001-736 part no. 001-737 part no. 001-738 part no. 001-739 part no. 001-740

* Press the power button (ON/STAND BY) on the projector or POWER OFF button on the remote control for a minimum of two seconds to turn off the power, wait 90 seconds for the cooling fan to stop, then disconnect the power cable.

Check that the projector has cooled off sufficiently before proceeding.

CAUTION

* The projector and lens contain high-precision parts. Do not induce shock to the projector or the lens.

* Do not touch the lens surface. Doing so can degrade the optical performance.

Preparation: Tools needed for installation:

A cross head screwdriver.

NOTE: It is possble that the ‘Lens Shift’ feature (described on the previous page and in Section 3. Projecting an Image) may have used to move the lens mount to the far right side, making installation difficult. If this is the case, then turn the projector back on again and use the Position buttons to shift the lens back towards the mid-position. When this has been done, turn the projector off as decribed above, before continuing.

1. Remove the rear lens cover, but leave the front cover on to protect the lens surface during installation.

2. Insert the lens into the lens mount with the connector to the right, taking care to line up the locating pin on the lens with the locating hole above the opening. Push the lens in firmly to engage the connector.

locating hole fixing screws

3. Secure the lens using the three cross-head screws.

NOTE. Remove the lens cover before use

Digital Projection

MERCURY 5000HD

Replacing the Lamp

The projector has two lamps pre-wired into one module, therefore it is not possible to replace a single lamp. After lamp

1 or lamp 2 has been operating for 1000 hours (Normal mode using the standard lamp, part number 001-742), the "Lamp" indicator on the control panel will blink red and a warning message will appear. Even though the lamp may still be working, replace it as soon as possible to maintain optimal projector performance.

CAUTION

• DO NOT TOUCH THE LAMP immediately after it has been used. It will be extremely hot. Turn the projector off, wait 90 seconds, and then disconnect the power cable. Allow at least 15 minutes for the lamp to cool before handling.

• DO NOT REMOVE ANY SCREWS except the rear cover screw and the two lamp module screws. You could receive an electric shock.

• If you continue to use the lamp after 1000 hours, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp module.

CAUTION

: Do not touch them as the pieces of glass may cause injury.

If this happens, contact your Digital

Projection dealer for lamp replacement.

• The projector will turn off and go into stand by mode after 1500 hours of service (Normal mode using the standard lamp - this time is extended when using Eco mode). If this happens, the lamp must be replaced.

• The projector contains high-precision parts, so make sure that no dust or dirt can get into the cabinet during lamp replacement. Clean the outside of the cabinet before opening the rear cover.

To replace the lamp module:

1. Loosen the rear cover fastening by turning it through 45° and open the cover, using the support if the projector is upside down.

NOTE: There is an interlock on the rear cover to prevent the risk of electrical shock. Do not attempt to circumvent this interlock.

2. Squeezing the plug latch firmly, unplug the lamp control cable from the connector at the rear of the lamp module.

4. Pull the lamp module to the right, then to the rear to remove it from the projector.

Cover

Support

3. Loosen the two screws securing the lamp module until the screws go into a freewheeling condition. The two screws are not removable.

5. Insert a new lamp module, manoeuvreing it carefully so that the plug on the top of the module mates properly with the socket in the roof of the cabinet.

CAUTION: Do not use a lamp other than the Digital Projection replacement lamp (Standard life lamp: 001-742).

6. Secure it in place with the two screws.

Be sure to tighten the screws.

7. Re-connect the lamp control cable to the connector at the rear of the lamp housing.

8. We recommend that you clean or change the filter, as described on the next page, whenever the lamp is changed.

9. Close the rear cover firmly, ensuring that the catch clicks shut.

NOTE: Installing a new lamp module automatically clears the lamp usage hours, as the lamp memory chip is built-in to the module. You can check the current lamp useage hours via the Projector Information Menu.

Digital Projection

MERCURY 5000HD

Replacing or Cleaning the Filter

The air-filter prevents dust or dirt from getting inside the projector and should be cleaned after every 100 hours of operation (more often in dusty conditions). If the filter is dirty or clogged, your projector may overheat.

NOTE: The message "Please clean the filters" will be displayed each time the projector is turned on after it has been used in excess of 168 hours. Should this message appear, clean the filters as a matter of urgency.

CAUTION

• Turn the projector off, wait 90 seconds, and then disconnect the power cable, before cleaning the filter.

• Do not attempt to operate the projector without a filter.

• The projector contains high-precision parts, so make sure that no dust or dirt can get into the cabinet during filter replacement. Clean the outside of the cabinet before opening the rear cover.

To replace or clean the filter:

1. Loosen the rear cover fastening by turning it through 45° and open the cover, using the support if the projector is upside down.

NOTE: There is an interlock on the rear cover to prevent the risk of electrical shock. Do not attempt to circumvent this interlock.

2. Remove the single cross-headed screw securing the top edge of the filter, and remove the filter.

Cleaning the Cabinet and the Lens

1. Turn off the projector before cleaning.

2. Clean the cabinet periodically with a damp cloth. If heavily soiled, use a mild detergent. Never use strong detergents or solvents such as alcohol or thinner.

3. Use a blower or lens paper to clean the lens, and be careful not to scratch or mar the lens.

Screw

Filter

Cover

Support

3. If the filter is severely clogged, or damaged, then it should be replaced.

NOTE: Do not wash the filter with water, as this will damage the filter membrane.

4. Clean the filter using a vacuum cleaner.

5. Install the new or cleaned filter by first locating the bottom edge into the recess, then hinging the filter upwards. Secure the filter by replacing the screw.

6. Close the rear cover firmly, ensuring that the catch clicks shut.

NOTE: After the filter has been changed, the message "Please clean the filters" will continue to be displayed until the Filter Usage Meter has been cleared

7. Following the instructions in Section 8, go to Page 5 in the Projector

Setup menu, and press the button marked “Clear Filter Usage Meter”.

Digital Projection

MERCURY 5000HD

Troubleshooting

This section helps you resolve problems you may encounter while setting up or using the projector.

Power Indicator

Blinking light

Steady light

Indicator Condition

Off

Green blinking

Orange blinking

0.5 sec ON,

0.5 sec OFF

2.5 sec ON,

0.5 sec OFF

0.5 sec ON,

0.5 sec OFF

2.5 sec ON,

0.5 sec OFF

Green

Orange

Projector Condition

The main power is off

The projector is getting ready to turn on.

Note

Wait for a moment.

Off Timer or Sleep Timer is active.

The projector is cooling down.

On Timer is active.

Wait for a moment.

The projector is turned on.

The projector is in Standby or Idle.

Status Indicator

Blinking light

Indicator Condition

Off

Red blinking 1 cycle (0.5 sec ON,

2.5 sec OFF)

2 cycle (0.5 sec ON,

0.5 sec OFF)

3 cycle (0.5 sec ON,

0.5 sec OFF)

4 cycle (0.5 sec ON,

0.5 sec OFF)

Steady light Red

Projector Condition

Normal

Lens hood or lamp cover error

Temperature error

Power error

Fan error

Circuit error

Orange

Green

Control key locked

Idle condition

Note

Replace the lens hood or the lamp cover correctly.

The projector is overheated. Move the projector to a cooler location.

Power unit will not work correctly.

Cooling fan has stopped. Contact your dealer.

A circuit has failed. Contack your dealer

You have pressed control panel key when Control Key Lock is enabled.

Lamp 1/2 Indicator

Indicator Condition

Blinking light

Off

Red blinking

Steady light

Green blinking

Orange blinking

Red

Green

Orange

2.5 sec ON,

0.5 sec OFF

1 cycle (0.5 sec ON,

2.5 sec OFF)

6 cycle (0.5 sec ON,

0.5 sec OFF)

7 cycle (0.5 sec ON,

0.5 sec OFF)

Projector Condition

Light off

Lamp has reached its end of life. Lamp replacement message will be displayed.

No lamp

Note

Replace the lamp.

Lamp error

Lamp data error

Re-firing the lamp

Switching from Lamp 1 to 2

Lamp has been used beyond its limit. The projector will not turn on until the lamp is replaced.

Lamp mode is set to Normal mode

Lamp mode is set to Eco mode.

Lamp is not installed. Turn off the power and install lamp.

Lamp fails to light. Wait a full minute and turn on the power again. If this will not solve the problem, consult your dealer.

Fails to read lamp data.

Consult your dealer.

Wait for a moment.

Wait for a moment.

Replace the lamp.

Digital Projection

MERCURY 5000HD

Common Problems & Solutions

Problem

Does not turn on

Check These Items

• Check that the power cable is plugged in. See pages 1-9 and 2-11.

• Ensure that the rear cover is installed correctly. See pages 1-4 and 9-2.

• Check to see if the projector has overheated or the lamp has reached the end of its usable life.

If there is insufficient ventilation around the projector or if the room where you’re presenting is particularly warm, move the projector to a cooler location.

No picture

Image isn’t square to the screen

Picture is blurred

• Use the menu or Source/Input button to select your source (RGB 1/2, DVI, Video, S-Video,

Viewer or LAN). See page 3-3 or 8-7.

• Ensure your cables are connected properly.

• Use menus to adjust the brightness and contrast. See page 8-8.

• Select correct option in the Signal Select for current signal. See page 8-16.

• Select RGB/Component when connecting DVD player to RGB connector of the projector. See page 8-11.

• Apply a standard RGB signal when using RGB connector.

• Adjust picture for RGB signal.

• Make sure each setting is correct.

• If the problem still persists, reset the settings or adjustments to factory preset levels using the

Factory Default in the Adjustment Menu. See page 8-13.

• If Security is enabled, a keyword or PC card as a protect key is required.

• Remove the lens cap.

• Reposition the projector to improve its angle to the screen. See page 3-3.

• Use the 3D Reform function to correct the trapezoid distortion. See page 3-4.

• Adjust the focus. See page 3-4.

• Reposition the projector to improve its angle to the screen. See page 3-3.

• Ensure that the distance between the projector and screen is within the adjustment range of the lens. See page 2-2.

• Condensation may form on the lens if the projector is cold, brought into a warm place and is then turned on. Should this happen, let the projector stand until there is no condensation on the lens.

Image is scrolling vertically, horizontally or both

Remote control does not work

• Use the menus or Source/Input button on the remote control or the cabinet to select the source you want to input. See page 3-3 or 8-7.

• Install new batteries. See page 1-12.

• Make sure there are no obstacles between you and the projector. See page 1-12.

• Stand within 22 feet (7 m) of the projector. See page 1-12.

• Check if one or more remote sensors are enabled. Select [Projector Options]

→ [Setup] → [Page

5]

→ [Remote Sensor] from the menu. See page 8-17.

• If the remote control cable plug is inserted into the REMOTE 2 IN jack, the remote control does not function wirelessly. See page 1-13.

• Make sure that the remote control’s ID corresponds with the projector’s ID. See page 7-2.

• See the Power/Status/Lamp Indicator on page 10-3.

Indicator is lit or blinking

Cross color in RGB mode

USB mouse does not work

No on-screen menu

• If Auto Adjust is off, turn it on or adjust the image manually with the Position/Clock in the Image

Options. See page 8-16.

• Make sure that your USB mouse is properly connected to the projector.

The projector may not support some brands of a USB mouse.

• Press MUTE OSD if the image is muted. Or press and hold CTL and press MUTE OSD button. See page 4-2.

Digital Projection

MERCURY 5000HD

Specifications

Part Number

Optical

Digital Light Processor

Lamp

Lamp Life (typical)

Lens Options

Lens Shift

Image Size

Projection Distance

Electrical

Input Connections

Output Connections

Other Input/Output

102-834

Texas Instruments DMD™, native resolution 1280 x 720

Standard Lamp (Part No. 001-742) 250 W AC x2

Normal mode 1500 hours

Motorized zoom and Motorized focus

0.64 : 1 fixed part no. 001-734

0.96 : 1 fixed

1.2 - 1.44 : 1 zoom part no. 001-735 part no. 001-736

1.44 - 1.8 : 1 zoom

1.8 - 2.4 : 1 zoom

2.4 - 3.6 : 1 zoom

3.6 - 5.6 zoom part no. 001-737 part no. 001-738 part no. 001-739 part no. 001-740 zoom lenses: Vertical +0.5 -0.16 Height, Horizontal +/-0.1 Width fixed lenses: cannot be shifted without losing corners of image

0.64 : 1 fixed

0.96 : 1 fixed

1.2 - 1.44 : 1 zoom

1.44 - 1.8 : 1 zoom

1.8 - 2.4 : 1 zoom

2.4 - 3.6 : 1 zoom

3.6 - 5.6 zoom

0.64 : 1 fixed

0.96 : 1 fixed

1.2 - 1.44 : 1 zoom

1.44 - 1.8 : 1 zoom

1.8 - 2.4 : 1 zoom

2.4 - 3.6 : 1 zoom

3.6 - 5.6 zoom

60” - 150” diagonal

60” - 400”

60” - 200”

60” - 250”

60” - 400”

60” - 300”

60” - 240”

1.0m - 2.3m (3ft 3in - 7ft 5in)

1.4m - 8.6m (4ft 7in - 28ft 3in)

1.7m - 6.5m (5ft 6in - 21ft 3in)

2.0m - 10.0m (6ft 5in - 32ft 10in)

2.4m - 21.3m (8ft - 70ft)

3.2m - 24.0m (11ft - 79ft)

4.8m - 29.8m (16ft - 98ft)

RGB/YCr/Cb/H(HV)V 5 BNCx1, Audio: RCA (L/MONO, R)x1

RGB D-Sub 15 pin x1, Audio: Stereo Mini Audio x1

DVI DIGITAL

Video

DVI-D (Max resolution : [email protected]) x1, Audio: Stereo Mini Audio x1

BNC x1, Audio: RCA (L/MONO, R) x1

S-Video

PC Card

Option Board

Mini DIN 4 x1, Audio: RCA (L/MONO, R) x1

Slot x2

Slot x2

RGB

Audio Out

D-Sub 15 pin x1

RCA (L/MONO, R) x1

Remote Control Stereo mini jack ;IN x 1; OUT x1

PC Control

Ex. Control

D-Sub 9 pin; IN x1, OUT x1

D-Sub 15 Din x1

SC. TRIGGER

LAN Port

USB Port

Stereo mini jack x1

RJ-45 x1

A Type x1, B Type x1

Digital Projection

MERCURY 5000HD

Input Compatibility NTSC / PAL / PAL60 / SECAM / NTSC4.43, YCbCr Component, HDTV-1080I, 1080p, 720p, 480p,

480I, VGA, SVGA, XGA, SXGA / UXGA (with Advanced AccuBlend)

Sychronization

Range

Video Bandwidth

Color Reproduction

Horizontal Resolution

Power Requirement

Input Current

Power Consumption

Horizontal Frequency : 15 - 100 kHz (RGB : 24 kHz or over)

Vertical Frequency : 48 - 120 Hz

RGB: 100 MHz

Full color, 0.5 trillion colors simultaneously

550 TV lines : NTSC / PAL / NTSC4.43 / YCbCr

350 TV lines : SECAM

RGB: 1024 dots horizontal, 768 dots vertical

100 - 240 VAC, 50 / 60 Hz

10.0 A (100 VAC) / 4.0A (240 VAC)

1000W (Dual Lamp mode)

750W (Single Lamp mode)

< 1W (Standby)

Mechanical

Dimensions 531 mm (W) x 270 mm (H) x 535 mm (D) / 20.9" (W) x 10.7" (H) x 21.1" (D) (not including protrusions)

Net Weight

Environment

Regulations

25 kg / 55 lbs (not including lens)

Operational Temperatures: 32° - 95°F (0° to 35°C), 20 - 80% humidity

Storage Temperatures: 14° - 122°F (-10° to 50°C), 20 - 80% humidity

Meets FCC Class A requirements

Meets EMC Directives (EN 50081-1, EN 50082-1, EN 55022, EN 60950)

Meets Low Voltage Directive (EN60950)

For additional information visit:

US: http://www.digitalprojection.com

Europe: http://www.digitalprojection.co.uk/

Asia: http://www.digitalprojection.co.uk/

The specifications are subject to change without notice.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
