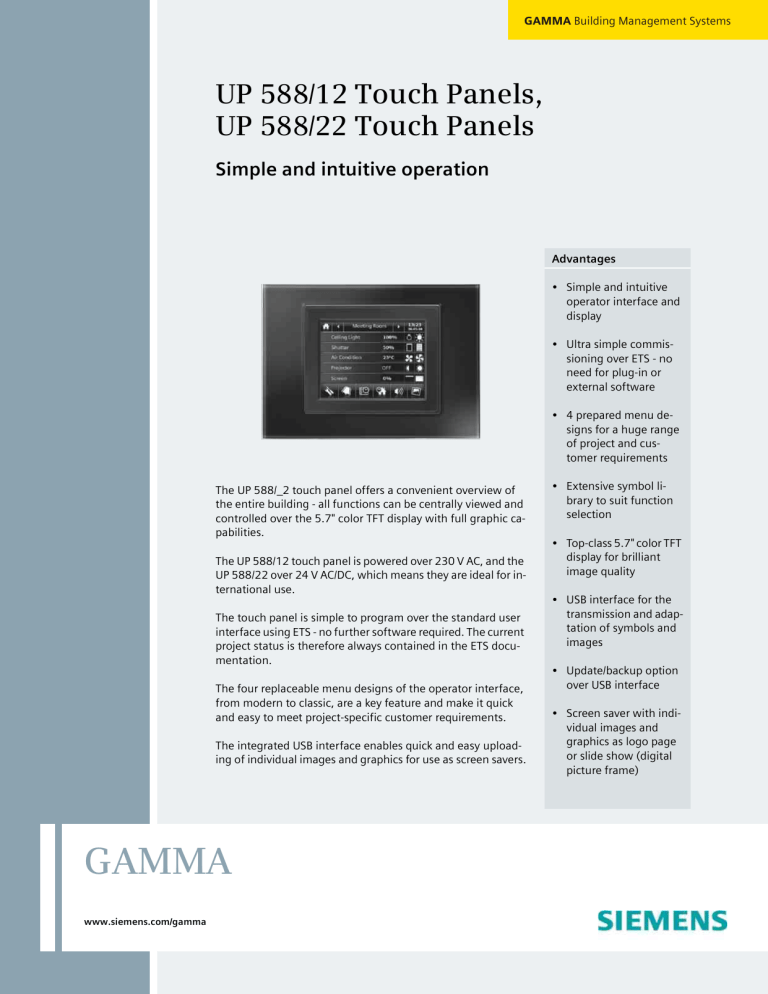

Simple and intuitive operation
Advantages
• Simple and intuitive
operator interface and
display
• Ultra simple commissioning over ETS - no
need for plug-in or
external software
• 4 prepared menu designs for a huge range
of project and customer requirements
The UP 588/_2 touch panel offers a convenient overview of
the entire building - all functions can be centrally viewed and
controlled over the 5.7" color TFT display with full graphic capabilities.
The UP 588/12 touch panel is powered over 230 V AC, and the
UP 588/22 over 24 V AC/DC, which means they are ideal for international use.
The touch panel is simple to program over the standard user
interface using ETS - no further software required. The current
project status is therefore always contained in the ETS documentation.
The four replaceable menu designs of the operator interface,
from modern to classic, are a key feature and make it quick
and easy to meet project-specific customer requirements.
The integrated USB interface enables quick and easy uploading of individual images and graphics for use as screen savers.
GAMMA
www.siemens.com/gamma
• Extensive symbol library to suit function
selection
• Top-class 5.7" color TFT
display for brilliant
image quality
• USB interface for the
transmission and adaptation of symbols and
images
• Update/backup option
over USB interface
• Screen saver with individual images and
graphics as logo page
or slide show (digital
picture frame)
Display, Operation
Touch panels
Overview
2
The color touch panel serves as a multifunctional display/operating device for GAMMA instabus based on the KNX bus system. A key feature is the versatile design:
• Color TFT display
• Analog touch screen in 4-wire technology
• Size: 5.7"
•
•
•
•
•
Design frame, black glass, menu design "magic"
Design frame, white glass, menu design "classic"
Design frame, stainless steel, menu design "modern"
Design frame, aluminum, menu design "elegant"
Display, Operation
320 x 240 pixels, ¼ VGA
Color intensity, 263 K (RGB, 6 bit)
Brightness of display, typically 280 cd/m²
LED background lighting, wear-resistant
4 menu designs: magic, modern, classic, elegant
Technical specifications
Type
Description
UP 588/12, UP 588/22 touch panels
• Multifunctional display/operating device for KNX, with 320 x 240
pixels, 5.7" TFT color display, with touch screen
• Dimming of LED background lighting over the operator interface
• For the display and operation of at least 210 communication objects on a minimum of 20 display pages, additional page for the
display and acknowledgement of at least 16 alarms
• Time program as weekly program for at least 110 communication objects and at least 10 switching tasks per weekday
• Presence simulation for at least 50 communication objects
• 1-bit or 8-bit scene control for at least 64 scenes
• At least 32 AND/OR operations, each comprising a minimum of
4 inputs and 1 output
• At least 16 reference conditions for tripping one switching task
respectively
• Individual password protection for each display page
• Buffered realtime clock and display of time and date
• Selection of at least 4 different design templates as operator
and display interface
• Display of a loadable image as a start screen page or a slide
show with several loadable images instead of a start screen
page (max. 500 MB)
• USB interface for loading images and symbols, with USB cable,
1 m, 480 MBit/s transfer rate
• Pushbutton for device reset
• Integrated bus coupling unit and bus terminal for connection to
the KNX network
• Connection of external power supply over screw terminals for
2.5 mm2
• Flush-mounting device for installation in a flush-mounting/hollow-wall box with the dimensions: 161.5 x 135 x 64 mm (WxHxD)
Versions
UP 588/12 • Rated operational voltage 230 V AC, 50 Hz
UP 588/22 • Rated operational voltage 24 V AC/DC
Selection and ordering data (Dated 11/2008)
Type
Version
DT
Order No.
PU
PS1)/
P. unit
PG
Unit(s) Unit(s)
UP 588/12 UP 588/12, touch panels
2) 3)
Weight
1 unit
approx.
kg
B
5WG1 588-2AB12
1
1
030
0.420
B
5WG1 588-2AB22
1
1
030
0.420
Rated operational voltage 230 V AC
UP 588/22 UP 588/22, touch panels2) 3)
Rated operational voltage 24 V AC/DC
5WG1 588-2AB12/
5WG1 588-2AB22
with design frame
black glass
1)
You can order this quantity or a multiple thereof.
2)
The required design frame must be ordered separately.
3)
The flush-mounting/hollow-wall box must be ordered separately.
Display, Operation
3
Type
Version
DT
Order No.
PU
PS1)/
P. unit
PG
Unit(s) Unit(s)
Weight
1 unit
approx.
kg
Accessories
Design frames
For UP 588/12, UP 588/22 touch panels
• Aluminum (WxHxD): 194 x 156 x 4 mm
B
5WG1 588-8AB02
1
1
030
0.330
• Stainless steel (WxHxD): 194 x 156 x
4 mm
B
5WG1 588-8AB03
1
1
030
0.960
• Black glass (WxHxD): 250 x 180 x 4 mm B
5WG1 588-8AB04
1
1
030
0.280
• White glass (WxHxD): 250 x 180 x 4 mm B
5WG1 588-8AB05
1
1
030
0.280
B
5WG1 588-8EB01
1
1
030
0.130
5WG1 588-8AB02
5WG1 588-8AB03
5WG1 588-8AB04
5WG1 588-8AB05
Flush-mounting/hollow-wall boxes
For UP 588 touch panels
1)
You can order this quantity or a multiple thereof.
