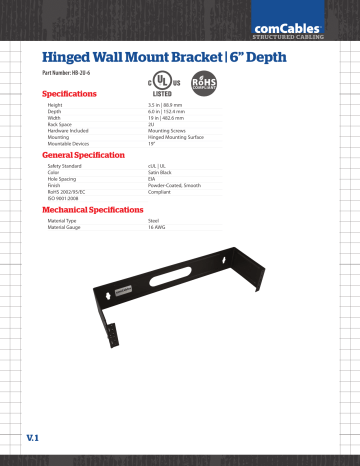

Hinged Wall Mount Bracket | 6” Depth
STRUCTURED CABLING
Hinged Wall Mount Bracket | 6” Depth
Part Number: HB-2U-6
RoHS
COMPLIANT
Specifications
Height
Depth
Width
Rack Space
Hardware Included
Mounting
Mountable Devices
3.5 in | 88.9 mm
6.0 in | 152.4 mm
19 in | 482.6 mm
2U
Mounting Screws
Hinged Mounting Surface
19”
General Specification
Safety Standard
Color
Hole Spacing
Finish
RoHS 2002/95/EC
ISO 9001:2008
cUL | UL
Satin Black
EIA
Powder-Coated, Smooth
Compliant
Mechanical Specifications
Material Type
Material Gauge
V. 1
Steel
16 AWG
