CDX-C7000X

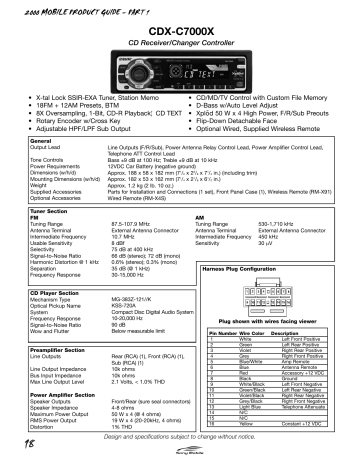

2000 MOBILE PRODUCT GUIDE – PART 1
CDX-C7000X
CD Receiver/Changer Controller
•
•
•
•
•
X-tal Lock SSIR-EXA Tuner, Station Memo
18FM + 12AM Presets, BTM
8X Oversampling, 1-Bit, CD-R Playback,† CD TEXT
Rotary Encoder w/Cross Key
Adjustable HPF/LPF Sub Output
General
Output Lead
Tone Controls
Power Requirements
Dimensions (w/h/d)
Mounting Dimensions (w/h/d)
Weight
Supplied Accessories
Optional Accessories
•
•
•
•
•
Line Outputs (F/R/Sub), Power Antenna Relay Control Lead, Power Amplifier Control Lead,
Telephone ATT Control Lead
Bass ±9 dB at 100 Hz; Treble ±9 dB at 10 kHz
12VDC Car Battery (negative ground)
Approx. 188 x 58 x 182 mm (71/2 x 23/8 x 71/4 in.) (including trim)
Approx. 182 x 53 x 162 mm (71/4 x 21/8 x 61/2 in.)
Approx. 1.2 kg (2 lb. 10 oz.)
Parts for Installation and Connections (1 set), Front Panel Case (1), Wireless Remote (RM-X91)
Wired Remote (RM-X4S)
Tuner Section
FM
Tuning Range
Antenna Terminal
Intermediate Frequency
Usable Sensitivity
Selectivity
Signal-to-Noise Ratio
Harmonic Distortion @ 1 kHz
Separation
Frequency Response
87.5-107.9 MHz
External Antenna Connector
10.7 MHz
8 dBf
75 dB at 400 kHz
66 dB (stereo); 72 dB (mono)
0.6% (stereo); 0.3% (mono)
35 dB (@ 1 kHz)
30-15,000 Hz
CD Player Section
Mechanism Type
Optical Pickup Name
System
Frequency Response
Signal-to-Noise Ratio
Wow and Flutter
MG-383Z-121//K
KSS-720A
Compact Disc Digital Audio System
10-20,000 Hz
90 dB
Below measurable limit
Preamplifier Section
Line Outputs
Line Output Impedance
Bus Input Impedance
Max Line Output Level
Rear (RCA) (1), Front (RCA) (1),
Sub (RCA) (1)
10k ohms
10k ohms
2.1 Volts, < 1.0% THD
Power Amplifier Section
Speaker Outputs
Speaker Impedance
Maximum Power Output
RMS Power Output
Distortion
Front/Rear (sure seal connectors)
4-8 ohms
50 W x 4 (@ 4 ohms)
19 W x 4 (20-20kHz, 4 ohms)
1% THD
18
CD/MD/TV Control with Custom File Memory
D-Bass w/Auto Level Adjust
Xplo-d 50 W x 4 High Power, F/R/Sub Preouts
Flip-Down Detachable Face
Optional Wired, Supplied Wireless Remote
AM
Tuning Range
Antenna Terminal
Intermediate Frequency
Sensitivity
530-1,710 kHz
External Antenna Connector
450 kHz
30 µV
Harness Plug Configuration
Plug shown with wires facing viewer
Pin Number Wire Color
1
White
2
Green
3
Violet
4
Grey
5
Blue/White
6
Blue
7
Red
8
Black
9
White/Black
10
Green/Black
11
Violet/Black
12
Grey/Black
13
Light Blue
14
N/C
15
N/C
16
Yellow
Design and specifications subject to change without notice.
Description
Left Front Positive
Left Rear Positive
Right Rear Positive
Right Front Positive
Amp Remote
Antenna Remote
Accessory +12 VDC
Ground
Left Front Negative
Left Rear Negative
Right Rear Negative
Right Front Negative
Telephone Attenuate
Constant +12 VDC
2000 MOBILE PRODUCT GUIDE – PART 1
CDX-C7000X
CD Receiver/Changer Controller
10
52 mm
2.1˝
3.5˝
OFF
MODE
89 mm
DSPL
161 mm / 6 5/16˝
MAX
MAX
182 mm / 7 3/16 ˝
19
