VPH-V20M Specifications
Optical
Projection system:
3 picture tubes, 3 lenses, direct projection system
CRT:
7-inch (Phosphor size: 5.5-inch) liquid cooled high
brightness monochrome tubes
INPUT A:
Analogue RGB/Component:
BNC
R/R-Y:
0.7 Vp-p ±2 dB, positive, 75 Ω
G:
0.7 Vp-p ±2 dB, positive, 75 Ω
Projection lens:
High performance hybrid multi-coated lens F1.0/130 mm
G with Sync/Y:
1.0 Vp-p ±2 dB, sync negative, 75 Ω
Screen:
70-inch (177.8 cm) to 250-inch (635 cm) measured
diagonally (Factory preset: 100-inch (254 cm))
B/B-Y:
0.7 Vp-p ±2 dB, positive, 75 Ω
Light output:
ANSI 100 lm (15 kHz: 60 Hz, 6500 K)
Peak white: 700 lm All white: 140 lm
Throwing distance:
100-inch (254 cm):
200-inch (508 cm):
SYNC/HD:
Composite sync: 0.6~8.0 Vp-p,
high impedance negative
Horizontal sync: 0.6~8.0 Vp-p,
high impedance negative
3301 mm (Approx. 11 ft)
6417 mm (Approx. 21 ft)
VD:
Vertical sync:
Signals
Color system:
NTSC, PAL, SECAM, NTSC4.43 automatically selected
Resolution:
700 TV lines (Composite video input)
1000 TV lines (RGB input)
Test signals:
Cross hair
CONTROL S:
0.6~8.0 Vp-p,
high impedance negative
Loop-through Stereo Mini Jack
Safety Regulations
EN60 065 (TÜV), CE, C-Tick, PTB
General
Power requirements:
220 V AC to 240 V AC, 50/60 Hz
Power consumption:
210 W
Operating temperature:
0 to 40 ºC (14 to 104 ºF)
Operating humidity:
35 to 85 %
Storage temperature:
-20 to 60 ºC (-4 to 140 ºF)
Storage humidity:
10 to 90 %
Dimensions:
532 (W) × 288 (H) × 597 (D) mm
(21 × 11 3/8 × 23 5/8 inches)
Mass:
Approx. 30 kg (66 lb 2 oz)
Heat dispersion:
716.6 BTU
S video*:
VIDEO OUT:
Video:
AA size Batteries (× 2) for remote commander
Spacer for 508 cm (200-inch ) front projection
Spacer (0.2 mm) for 254 cm (70 to 100-inch)
rear projcetion
Spacer (0.8 mm) for 254 cm (70 to 100-inch)
rear projection
Operating manual
Installation manual
Optional accessories:
BNC
1.0 Vp-p ±2 dB, sync negative, 75 Ω
Mini DIN 4-pin
Y (luminance): 1.0 Vp-p ±2 dB, sync negative, 75 Ω
C (chrominance): Burst 0.286 Vp-p ±2 dB (NTSC), 75 Ω
or 0.3 Vp-p ±2 dB (PAL), 75 Ω
BNC
*S video has priority over the video input.
Remote commander RM-PJV20
AC power cord
Inputs/Outputs
VIDEO IN:
Video*:
Accessories
Supplied accessories:
1.0 Vp-p ±2 dB, 75 Ω
Siganl Interface Cable
SIC-10
Interface Unit
IFU-1271M
Suspension Support
PSS-722
PSS-10
Remote Control Receiver
RM-PJ10
80-inch flat screen
VPS-80FH
100-inch flat screen
VPS-100FH
120-inch flat screen
VPS-120FH
70-inch rear screen
VPS-702R
Connector
Control Panel
Distributed by
MK7168/1OHB(8/98)
© 1998 Sony Corporation. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
All non-metric weights and measures are approximate.
Sony and Betacam are trademarks of Sony Corporation.
All other trademarks are the property of their respective owners.
Printed in Japan
©1998 Sony Corporation
Video Projector
VPH-V20M
T
he stunning pictures from the Sony VPH-V20M
CRT video projector ensure that your visual
messages have a powerful impact on audiences.
These large, bright, projected images are a clear demonstration of the
Sony commitment to the continuing development of optical and
electronic technologies for video projection.
The VPH-V20M features an RGB and component (Y/R-Y/B-Y, Y/CR/CB)
input facility, enabling the projector to show images from different
types of equipment while maintaining the superior quality of these
video signal formats. Projector adjustment and operation is easy with
the supplied RM-PJV20 Remote Control Unit. This includes switching
between 4:3 and 16:9 aspect ratio projection with the use of a single,
convenient push-button operation.
A unique combination of Sony projection technology and operation
convenience, the VPH-V20M is ideal for applications that require
visually striking images.
Superior Picture Performance
Incorporating cutting-edge optical and
electronic technologies, the VPH-V20M projects
the best possible pictures with its high resolution of
700 TV lines (composite video) and high light
output of 100 ANSI lumens/700 lumens (peak
white). The VPH-V20M uses high performance
CRTs with a very small spot size, making it possible
to reproduce clear, crisp video signals, with the
phosphor of the green CRT producing exceptionally
high level of colour purity.
A three-line logical comb filter provides accurate
Selectable Aspect Ratio
reference during operation. This on-screen menu
separation of luminance and chrominance signals,
Aspect ratio is selectable between 16:9
greatly reducing dot interference and cross colour.
and 4:3. This is easily selected with a key on the
French, Italian or Spanish. Once projection
projector control panel and on the supplied remote
settings have been determined, the data can be
commander RM-PJV20. This function is useful for
stored in one of the three user-memories. Fine
sources such as DVD software in 16:9 format.
adjustments can also be made to this memorized
Component and RGB input facility
The VPH-V20M has both Component
(Y/R-Y/B-Y, Y/CR/CB) and RGB inputs. These
enable the projector to show images from a variety
of signal sources, including Betacam or DVD, and
display can be selected to be in English, German,
data. A standard memory is also available for easy
Easy Adjustment and Operation
The supplied RM-PJV20 Remote
maintain the inherently superior quality of these
Commander and built-in remote control signal
types of signal.
receiver provide control of all operations of the
VPH-V20M. Adjustment status and information on
the input signals are displayed on the screen for
access to the factory preset data. Moreover, the
RM-PJV20 has a backlight feature to facilitate
operation in dark rooms.
Versatile projection
The VPH-V20M can be used with screen
sizes ranging from 177.8 to 635 cm (70 to
250-inch). It can be used in many different
applications and can be desktop mounted, floor
mounted and used for rear projection.
Worldwide standards
The VPH-V20M is compatible with the
three major TV standards: NTSC, PAL and SECAM.
NTSC4.43 can also be reproduced.
CRT
RM-PJV20
T
he stunning pictures from the Sony VPH-V20M
CRT video projector ensure that your visual
messages have a powerful impact on audiences.
These large, bright, projected images are a clear demonstration of the
Sony commitment to the continuing development of optical and
electronic technologies for video projection.
The VPH-V20M features an RGB and component (Y/R-Y/B-Y, Y/CR/CB)
input facility, enabling the projector to show images from different
types of equipment while maintaining the superior quality of these
video signal formats. Projector adjustment and operation is easy with
the supplied RM-PJV20 Remote Control Unit. This includes switching
between 4:3 and 16:9 aspect ratio projection with the use of a single,
convenient push-button operation.
A unique combination of Sony projection technology and operation
convenience, the VPH-V20M is ideal for applications that require
visually striking images.
Superior Picture Performance
Incorporating cutting-edge optical and
electronic technologies, the VPH-V20M projects
the best possible pictures with its high resolution of
700 TV lines (composite video) and high light
output of 100 ANSI lumens/700 lumens (peak
white). The VPH-V20M uses high performance
CRTs with a very small spot size, making it possible
to reproduce clear, crisp video signals, with the
phosphor of the green CRT producing exceptionally
high level of colour purity.
A three-line logical comb filter provides accurate
Selectable Aspect Ratio
reference during operation. This on-screen menu
separation of luminance and chrominance signals,
Aspect ratio is selectable between 16:9
greatly reducing dot interference and cross colour.
and 4:3. This is easily selected with a key on the
French, Italian or Spanish. Once projection
projector control panel and on the supplied remote
settings have been determined, the data can be
commander RM-PJV20. This function is useful for
stored in one of the three user-memories. Fine
sources such as DVD software in 16:9 format.
adjustments can also be made to this memorized
Component and RGB input facility
The VPH-V20M has both Component
(Y/R-Y/B-Y, Y/CR/CB) and RGB inputs. These
enable the projector to show images from a variety
of signal sources, including Betacam or DVD, and
display can be selected to be in English, German,
data. A standard memory is also available for easy
Easy Adjustment and Operation
The supplied RM-PJV20 Remote
maintain the inherently superior quality of these
Commander and built-in remote control signal
types of signal.
receiver provide control of all operations of the
VPH-V20M. Adjustment status and information on
the input signals are displayed on the screen for
access to the factory preset data. Moreover, the
RM-PJV20 has a backlight feature to facilitate
operation in dark rooms.
Versatile projection
The VPH-V20M can be used with screen
sizes ranging from 177.8 to 635 cm (70 to
250-inch). It can be used in many different
applications and can be desktop mounted, floor
mounted and used for rear projection.
Worldwide standards
The VPH-V20M is compatible with the
three major TV standards: NTSC, PAL and SECAM.
NTSC4.43 can also be reproduced.
CRT
RM-PJV20
VPH-V20M Specifications
Optical
Projection system:
3 picture tubes, 3 lenses, direct projection system
CRT:
7-inch (Phosphor size: 5.5-inch) liquid cooled high
brightness monochrome tubes
INPUT A:
Analogue RGB/Component:
BNC
R/R-Y:
0.7 Vp-p ±2 dB, positive, 75 Ω
G:
0.7 Vp-p ±2 dB, positive, 75 Ω
Projection lens:
High performance hybrid multi-coated lens F1.0/130 mm
G with Sync/Y:
1.0 Vp-p ±2 dB, sync negative, 75 Ω
Screen:
70-inch (177.8 cm) to 250-inch (635 cm) measured
diagonally (Factory preset: 100-inch (254 cm))
B/B-Y:
0.7 Vp-p ±2 dB, positive, 75 Ω
Light output:
ANSI 100 lm (15 kHz: 60 Hz, 6500 K)
Peak white: 700 lm All white: 140 lm
Throwing distance:
100-inch (254 cm):
200-inch (508 cm):
SYNC/HD:
Composite sync: 0.6~8.0 Vp-p,
high impedance negative
Horizontal sync: 0.6~8.0 Vp-p,
high impedance negative
3301 mm (Approx. 11 ft)
6417 mm (Approx. 21 ft)
VD:
Vertical sync:
Signals
Color system:
NTSC, PAL, SECAM, NTSC4.43 automatically selected
Resolution:
700 TV lines (Composite video input)
1000 TV lines (RGB input)
Test signals:
Cross hair
CONTROL S:
0.6~8.0 Vp-p,
high impedance negative
Loop-through Stereo Mini Jack
Safety Regulations
EN60 065 (TÜV), CE, C-Tick, PTB
General
Power requirements:
220 V AC to 240 V AC, 50/60 Hz
Power consumption:
210 W
Operating temperature:
0 to 40 ºC (14 to 104 ºF)
Operating humidity:
35 to 85 %
Storage temperature:
-20 to 60 ºC (-4 to 140 ºF)
Storage humidity:
10 to 90 %
Dimensions:
532 (W) × 288 (H) × 597 (D) mm
(21 × 11 3/8 × 23 5/8 inches)
Mass:
Approx. 30 kg (66 lb 2 oz)
Heat dispersion:
716.6 BTU
S video*:
VIDEO OUT:
Video:
AA size Batteries (× 2) for remote commander
Spacer for 508 cm (200-inch ) front projection
Spacer (0.2 mm) for 254 cm (70 to 100-inch)
rear projcetion
Spacer (0.8 mm) for 254 cm (70 to 100-inch)
rear projection
Operating manual
Installation manual
Optional accessories:
BNC
1.0 Vp-p ±2 dB, sync negative, 75 Ω
Mini DIN 4-pin
Y (luminance): 1.0 Vp-p ±2 dB, sync negative, 75 Ω
C (chrominance): Burst 0.286 Vp-p ±2 dB (NTSC), 75 Ω
or 0.3 Vp-p ±2 dB (PAL), 75 Ω
BNC
*S video has priority over the video input.
Remote commander RM-PJV20
AC power cord
Inputs/Outputs
VIDEO IN:
Video*:
Accessories
Supplied accessories:
1.0 Vp-p ±2 dB, 75 Ω
Siganl Interface Cable
SIC-10
Interface Unit
IFU-1271M
Suspension Support
PSS-722
PSS-10
Remote Control Receiver
RM-PJ10
80-inch flat screen
VPS-80FH
100-inch flat screen
VPS-100FH
120-inch flat screen
VPS-120FH
70-inch rear screen
VPS-702R
Connector
Control Panel
Distributed by
MK7168/1OHB(8/98)
© 1998 Sony Corporation. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
All non-metric weights and measures are approximate.
Sony and Betacam are trademarks of Sony Corporation.
All other trademarks are the property of their respective owners.
Printed in Japan
©1998 Sony Corporation

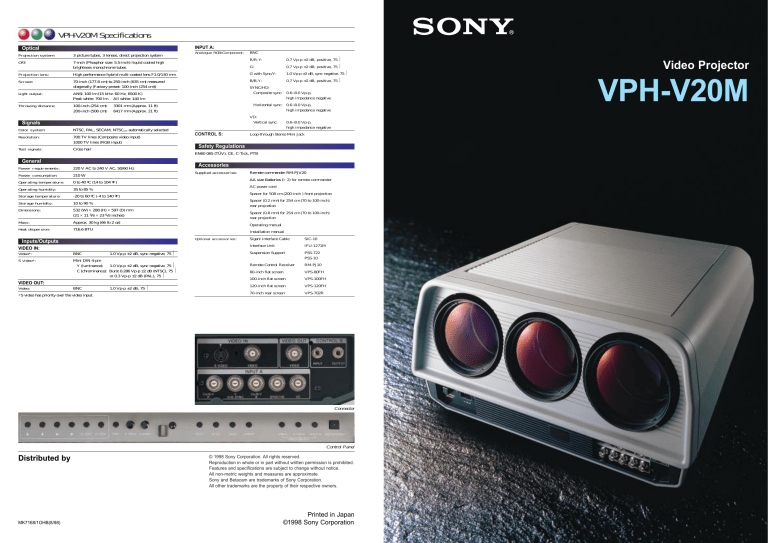

Video Projector
VPH-V20M
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
