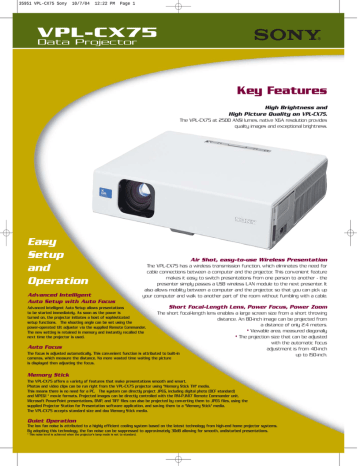

VPL-CX75
Data Projector
Key Features
High Brightness and
High Picture Quality on VPL-CX75.
The VPL-CX75 at 2500 ANSI lumes, native XGA resolution provides
quality images and exceptional brightness.
Easy
Setup
and
Operation
Advanced Intelligent
Auto Setup with Auto Focus
Air Shot, easy-to-use Wireless Presentation
The VPL-CX75 has a wireless transmission function, which eliminates the need for
cable connections between a computer and the projector. This convenient feature
makes it easy to switch presentations from one person to another - the
presenter simply passes a USB wireless LAN module to the next presenter. It
also allows mobility between a computer and the projector, so that you can pick up
your computer and walk to another part of the room without fumbling with a cable.
Advanced Intelligent Auto Setup allows presentations
to be started immediately. As soon as the power is
turned on, the projector initiates a host of sophisticated
setup functions. The shooting angle can be set using the
power-operated tilt adjuster via the supplied Remote Commander.
The new setting is retained in memory and instantly recalled the
next time the projector is used.
Short Focal-Length Lens, Power Focus, Power Zoom
The short focal-length lens enables a large screen size from a short throwing
distance. An 80-inch image can be projected from
a distance of only 2.4 meters.
• Viewable area, measured diagonally
• The projection size that can be adjusted
with the automatic focus
Auto Focus
adjustment is from 40-inch
The focus is adjusted automatically. This convenient function is attributed to built-in
up to 150-inch.
cameras, which measure the distance. No more wasted time waiting the picture
is displayed then adjusting the focus.
Memory Stick
The VPL-CX75 offers a variety of features that make presentations smooth and smart.
Photos and video clips can be run right from the VPL-CX75 projector using "Memory Stick TM" media.
This means there is no need for a PC. The system can directly project JPEG, including digital photo (DCF standard)
and MPEG1 * movie formats. Projected images can be directly controlled with the RM-PJM17 Remote Commander unit.
Microsoft PowerPoint presentations, BMP, and TIFF files can also be projected by converting them to JPEG files, using the
supplied Projector Station for Presentation software application, and saving them to a "Memory Stick" media.
The VPL-CX75 accepts standard size and dou Memory Stick media.
Quiet Operation
The low fan noise is attributed to a highly efficient cooling system based on the latest technology from high-end home projector systems.
By adopting this technology, the fan noise can be suppressed to approximately 30dB allowing for smooth, undisturbed presentations.
* This noise level is achieved when the projector's lamp mode is set to standard.
35951 VPL-CX75 Sony
10/7/04
12:22 PM
Page 2
Easy Setup and Operation
Powered Lens Protector
When power is switched on, the powered lens protector opens automatically. No more wasted time looking for a missing lens cover; It's
always on the projector.
Powered Tilt Adjuster
The VPL-CX75 offers a variety of features that make setup and operation quick and smart.
Auto Keystone Correction
Vertically keystone distortion is automatically corrected according to the tilt angle. Keystone distortion can be corrected up to 20 degrees.
This means images can be projected with correct geometry even when installation spaces is limited.
Auto Input Search
The VPL-CX75 automatically checks the projector's input connectors and selects the one to which an input signal is supplied. Images are
projected from the moment the power is turned on. Vertically keystone distortion is automatically corrected according to the tilt angle.
Keystone distortion can be corrected up to 20 degrees. This means images can be projected with correct geometry even when installation
spaces is limited.
Smart APA (Auto Pixel Alignment)
The smart APA functions automatically size and adjust PC image displays for optimum picture performance allowing users to concentrate on
their presentations, rather than time-consuming technical adjustments.
Side Shot TM Horizontal Keystone Adjustment
Side Shot digital horizontal keystone adjustment capabilities allow you to effortlessly align the picture at the press of a button. This
technology allows you the convenience of placing the projector off-axis from the center of the screen when necessary.
OFF&GO
The VPL-CX75 incorporates a built-in circuit that continues to run its cooling fan after the power is cut. This feature allows you to unplug the
projector and carry it away without waiting, because the fan continues to cool the unit. Turn off the projector in accordance with the
operating instructions. The projector should be cool before inserting into the carrying case.
Security Feature
The Air Shot wireless feature offers a high level of security preventing cross-communication between projectors and PCs by using an
encryption function, WEP (Wired Equivalency Protection). This secure transmission function is automatically set even in Simple Mode.
Multi-Connection Capability
Up to five VPL-CX75 can be connected wirelessly, with the image from a single PC projected on each. This feature is ideal for large venues in
which images have to be projected from various locations. In any of the various Air Shot configurations, including Simple Mode, LAN
Configuration, and Multi-Connection Configuration.
• Sony cannot guarantee the security of wireless communications
LAN Connection Capability
In office environments with a wireless LAN capability, the VPL-CX75 can be accessed via a wireless LAN access point and used by any PC on
he LAN. This configuration is convenient for remote maintenance and control of the projector.
Web Browser Access
VPL-CX75 projectors can be accessed via a web browser. The setup menu can be changed and maintenance information can be obtained via
a user-friendly GUI. Requires Microsoft Internet Explorer 5.0 or later.
Remote Control
Easy-to-Use Remote Commander Units The VPL- CX75 is supplied the RM-PJP1, which is very simple controls and a laser pointer, designed for
presentations with the Air Shot features.
Installation Flexibility
Ceiling Mountable
The VPL-CX75 is designed for use in a variety of environments. Even with its compact design, it functions equally well when installed for
ceiling or floor. The VPL-CX75 can be ceiling mounted. Screw holes on the bottom plate are provided for use with a suspension-type
bracket.
35951 VPL-CX75 Sony
10/7/04
12:22 PM
Page 3
Air Shot
Simple Mode
Air Shot simple mode is a revolutionary new way of
presenting, allowing you to establish wireless communication
between the projector and a PC and to instantly begin a
presentation. This feature is easy to use even for those not
familiar with setting up wireless network systems.
Making Air Shot wireless
presentations is as easy as 1, 2, 3!
1) Simply insert the wireless LAN
card into the VPL-CX85, and
turn on the projector.
High-Speed Image Transfer
Wireless connections can sometimes introduce delays when
transmitting images to the projector. However, the VPL-CX85
employs a Sony original compression and transmission
technique allowing for smooth presentations with high-quality
images.
2) Then, plug the USB wireless LAN
module into your PC...
Security Feature
The Air Shot wireless feature offers a high level of security
preventing cross-communication between projectors and PCs
by using an encryption function, WEP (Wired Equivalency
Protection). 7 This secure transmission function is
automatically set even in Simple Mode.
3) And voila! The image on your PC
is automatically projected from
the VPL-CX85.
7
Note: The Projector Station for Air Shot software application
must be installed on the PC the first time the projector’s Air
Shot feature is used. This can be
done by simply plugging the USB
storage media into your PC and
following the “Setup Wizard”
5
instructions on your PC display.
5
When using Windows XP or Windows
2000, the user must be logged into an account with computer
administrator access.
LAN Connection Capability
6
In office environments with a wireless LAN capability, the
VPL-CX85 can be accessed via a wireless LAN access point
and used by any PC on the LAN. This configuration is convenient for remote maintenance and control of the projector.
6
Simple mode cannot be used in this configuration. An IEEE
802.11b-compliant wireless LAN access point is required.
Channels: 1 to 11. WEP: 128-bit (104) / 64-bit (40). Air Shot
may not function properly in certain wireless LAN environments
Sony cannot guarantee the security of wireless communications.
Multi-Connection Capability
8
Up to five VPL-CX75 data projectors can be connected wirelessly, with the image from a single PC projected on each.
This feature is ideal for large venues in which images have to
be projected from various locations.
8
Simple mode cannot be used in this configuration. Up to 5 projectors can be connected to a single PC.
Web Browser Access 9
In any of the various Air Shot configurations, including Simple
Mode, LAN Configuration, and Multi-Connection Configuration,
all VPL-CX85 projectors can be accessed via a web browser.
The setup menu can be changed and maintenance information
can be obtained via a user-friendly GUI.
9
Requires Microsoft Internet Explorer 5.0 or later.
35951 VPL-CX75 Sony
10/7/04
12:22 PM
Page 4
VPL-CX75
Security
Control Panel Key Lock
The control panels on both the top and the side of the
projector can be locked, preventing inadvertent or unauthorized
adjustment of the controls.
Password-Authentication System
Once a user sets a password, the projector cannot be used
without it. This function prevents unauthorized use of the
projector.
Security Lock
It is possible to connect to an optional security cable such as
Kensington's.
Data
Model Name
Projection System
Panel
Lens
Zoom
F
f
Lamp
Screen Size
Keystone Correction Range
Light Output
Throwing Distance* 80-inch
100-inch
Resolution
Video
RGB
Acceptable Signals Computer
Video
General
Selectable Lamp Wattage
The lamp wattage is selectable between 165W and 135W in the
menu.
Colour System
Speaker
Input
On Screen Multi-Language
Setup Menu
The On-Screen Display for projector control is available in 15
languages: English, Dutch, French, Italian, German, Spanish,
Portuguese, Russian, Swedish, Norwegian, Japanese, Chinese
(Simplified), Chinese (Traditional), Korean, and Thai.
Eco-friendly
When set to "On" in OSD menu "Power Saving" the
VPL-CX75 goes into power saving mode if there is no operation
for 10 minutes with no signal input.
Freeze Function
The VPL-CX75 can freeze a picture when a signal from a PC is
input. During the picture freeze, the presenter can operate the
PC for setting up the next presentation file or images.
Digital Zoom Function
Up to 4x digital zoom is available which can be
controlled via the supplied Remote Commander unit.
One section of the projected image can be zoomed in
to show details of the image.
Picture and Audio Muting Function
The VPL-CX75 can mute the picture and audio
temporarily. It is useful for video presentation or
class discussions.
Mono
RGB/Component
S-Video
Composite
Audio
USB
Wireless LAN
Memory Stick
Output
HDTV/DTV
Dimension (WxHxD)
mm
inch
Weight
kg
lb
Power Requirements
Power Consumption Max
Standby
Operating Temperature
Operating Humidity
Heat Dissipation
Image Flip
Remote Commander
Off & Go
Security Lock (Kensington)
D. Zoom
Freeze
Security (by software)
Pasword
Panel Key Lock
Picture Mode
Illumination Menu
High Altitude Menu
OSD (language)
Safety Regulations
Laser
Sony of Canada
115 Gorden Baker Rd.
Toronto, Ontario
M2H 3R6
www.sonybiz.ca
© 2004 Sony Canada. All rights reserved. Reproduction in whole or in part
without written permission is prohibited. Features and specifications are
subject to change without notice. Non-metric weights and measurements
are approximate. Sony, Memory Stick, Remote Commander and VISCA are
trademarks of Sony. All other trademarks are property of their respective
owners.
Laser Type
Wavelength
Output
Supplied Accessories
P r oj e c t o r
VPL-CX75
3 LCD panels, 1 lens projection system
0.79-inch XGA LCD panel, 786,432 (1024 x 768) x3
1.2 times
1.6 to 1.78
f23.5 to 28.2mm
165/135W UHP
40” to 300” (measured diagonally)
Max. +/- 30 degrees vertically, +/- 20 degrees horizontally
2500/2000 ANSI Im (lamp mode high)
2.4 to 2.7 m
3.0 to 3.1 m
750TV lines
1024x768
fH: 19-72kHz, fV: 48-92Hz (Up to SXGA= (60Hz)
15kHz RGB/Component 50/60Hz,
Progressive Component 50/60Hz
DTV (480/60i, 575/50i, 480/60p, 575/50p, 540/60p
720/60p, 720/50p, 1080/60i, 1080/50i)
Composite video, Y/C video
NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
Mono 1W(max.)x1
Analog RGB (HD D-sub 15 pin x 1)
Y/C Mini DIN 4pin
Composite video (RCA pin jack)
stereo mini jack
Uptream (B type, x1)
Wireless LAN card slot x 1
Memory Stick slot x 1
NO
YES
298 X 69 X 243.5 mm
11 .7 x 2.7 x 9.6 inches
Approx. 2.9 kg
Approx. 6 lbs 4 oz
AC 100 to 240V, 50/60Hz
240W
9W
0 to 35 degrees Celsius (32 to 95 F)
35% to 85% (no condensation)
819 BTU
YES
KMPJP1 / RMPJM17
YES
YES
YES4 times
YES
YES
YES
YES
YES
YES
15-language ( English, French, German, Italian, Spanish, Portuguse,
Japanese, Chinese, Korean, Russian, Dutch, Norwegian, Swedish, Thai)
UL1950, oUL (CSA No.60950), FCC Class B, IC Class B, DEMKO
(EN60950), CE (LVD, EMC), C-Tick
Class 2
640 - 660
1mW
Remote Commander (RM-PJM17), AA size batteries (2),
HD D-sub 15 pin cable, Soft case, Air filter, Carrying Case,
Operating instructions (CD-ROM), USB Wireless LAN module :
IFU-WLM1, USB Storage Media, Wireless LAN card : IFU-WLC1
Quick reference manual, Security label
(Warranty [email protected])
(AC Power Cord, 2 pole @local)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
