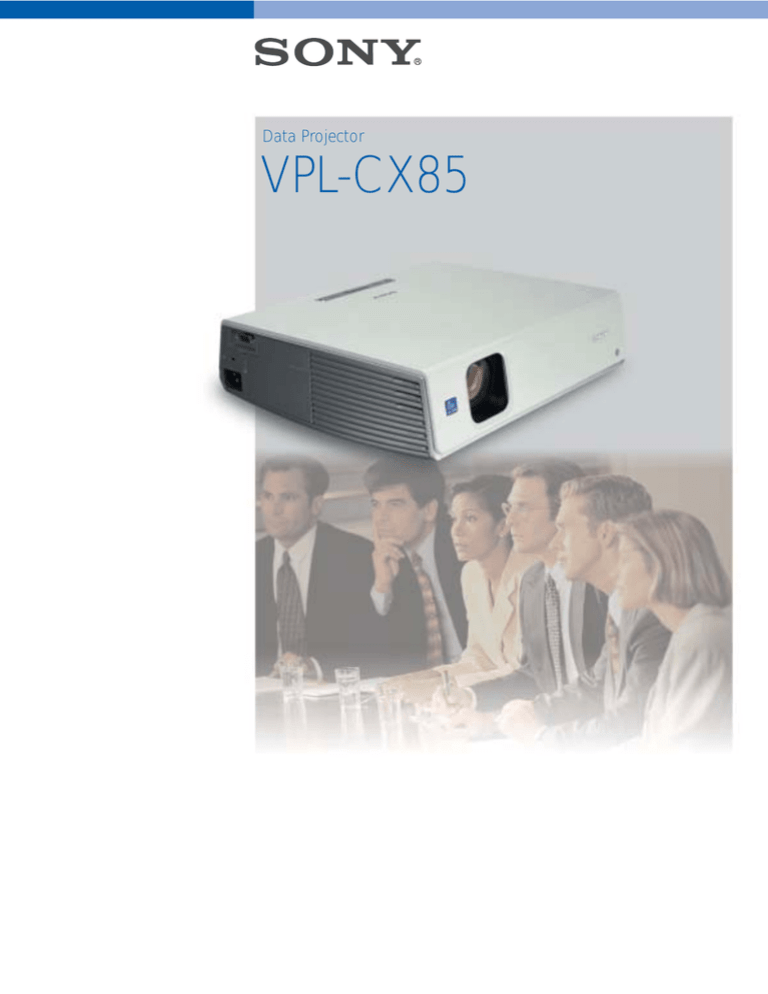

Data Projector
VPL-CX85
FEATURES
Incredible Brightness and a
Convenient Wireless Capability
– All Packed Into a Stylish and
Compact Body
3000 ANSI Lumens, Native XGA
(1024 x 768) Resolution
With an incredible brightness of 3000 ANSI lumens, 1
the VPL-CX85 is one of the brightest projectors in its
class. This, coupled with the projector's native XGA
(1024 x 768) resolution, provides outstanding image
quality even in extremely high ambient-light conditions.
1
The VPL-CX85 is a state-of-the-art compact
projector that boasts an incredible brightness of
3000 ANSI lumens by adopting a newly
developed 0.79-inch LCD panel and advanced
optical technology. This XGA (1024 x 768)
projector comes in a compact and stylish design
that is suitable for almost every environment,
including high ambient-light conditions. Clear
presentations can be made in classrooms and
meeting rooms of up to 50 people. The Air
Shot™ feature – a Sony original wirelesstransmission function – is ideal for smooth and
easy presentations without the inconvenience of
untidy cables.
The VPL-CX85 is easy to set up using the
Intelligent Auto Setup feature that instantly
readies your projector for use at the push of a
button. The projector’s Side Shot™ feature
allows you to place the projector off-axis from
the center of the screen. And with a newly
developed cooling system and fan, based on the
latest technology, the VPL-CX85 runs very
quietly so as not to disturb your presentations.
If you’re looking for an innovative compact
projector, the VPL-CX85 is the ideal choice.
ANSI lumen is a standard measuring method of the American National
Standards Institute IT7.228. Since there is no uniform method of
measuring brightness, specifications will vary among manufacturers.
Short Focal-Length Lens, Power Focus,
Power Zoom
The short focal-length lens enables a large screen size
from a short throwing distance. An 80-inch 2 image can
be projected from a distance of only 2.4 meters. This
feature is invaluable when room space is limited but
dynamic presentations are required.
2
Viewable area, measured diagonally.
Air Shot Wireless Presentations
3
The VPL-CX85 has a wireless transmission function, 4
which eliminates the need for cable connections between
PC and projector. This convenient feature makes it easy
to switch presentations from one person to another – the
presenter simply passes a USB wireless LAN module to the
next presenter. It also allows mobility between PC and
projector, so that you can pick up your PC and walk to
another part of the room without fumbling with a cable.
3
Requires the wireless LAN card, USB wireless LAN module, and the
Projector Station for Air Shot software application, all of which are supplied
with the VPL-CX85. This software application can be installed in a PC using
the supplied USB Storage Media. If Microsoft® Windows® 98 SE
operating system is being used, then a driver from the supplied CD-ROM
must be installed so that the USB Storage Media can be used.
Hardware/Software Requirements:
Sony cannot guarantee the Air Shot feature will function properly on some
computers even though the following requirements are satisfied.
CPU: Intel® Pentium® III 600-MHz processor or faster
Memory: 64 MB or more (128 MB or more is recommended). 128 MB or
more is required when using Microsoft Windows XP
HDD: 10 MB or more
Resolution: VGA, SVGA, XGA, or SXGA
Color: 16-bit, 24-bit, or 32-bit color
OS: Microsoft Windows 98 SE / Windows ME / Windows 2000 / Windows XP
(Home/Professional editions)
4
This wireless transmission function complies with IEEE 802.11b (2.4-GHz
frequency band). Transmission may slow or stop due to interference from
devices such as microwave ovens, wireless medical equipment, or barriers.
Animation effects and the slide show function in Microsoft PowerPoint®
presentations can be used; however, transmission delays may occur if a large
number of effects are performed at once or if several slides are turned at once.
Wireless transmission should not be used with video. Applications that use
DirectX® application programming interface may not be displayed properly.
Simple Mode
Air Shot simple mode is a revolutionary new way of
presenting, allowing you to establish wireless
communication between the projector and a PC and to
instantly begin a presentation. This feature is easy to use
even for those not familiar with setting up wireless
network systems.
Making Air Shot wireless presentations is as
easy as 1, 2, 3!
1) Simply insert the wireless LAN
card into the VPL-CX85, and
turn on the projector.
High-Speed Image Transfer
Wireless connections can sometimes introduce delays
when transmitting images to the projector. However, the
VPL-CX85 employs a Sony original compression and
transmission technique allowing for smooth presentations
with high-quality images.
2) Then, plug the USB wireless
LAN module into your PC...
Security Feature
3) The image on your PC is
automatically projected from
the VPL-CX85.
The Air Shot wireless feature offers a high level of security
preventing cross-communication between projectors and
PCs by using an encryption function, WEP (Wired
Equivalency Protection). 7 This secure transmission
function is automatically set even in Simple Mode.
7
Note: The Projector Station for Air Shot software
application must be installed on the PC the first time the
projector’s Air Shot feature is
used. This can be done by simply
plugging the USB storage media
into your PC and following the
“Setup Wizard” instructions on
your PC display. 5
5
When using Windows XP or Windows 2000, the user must be logged into
an account with computer administrator access.
LAN Connection Capability 6
In office environments with a wireless LAN capability, the
VPL-CX85 can be accessed via a wireless LAN access point
and used by any PC on the LAN. This configuration is
convenient for remote maintenance and control of the
projector.
Projector
PC
Access point
PC
6
PC
Simple mode cannot be used in this configuration. An IEEE 802.11bcompliant wireless LAN access point is required. Channels: 1 to 11. WEP:
128-bit (104) / 64-bit (40). Air Shot may not function properly in certain
wireless LAN environments
Sony cannot guarantee the security of wireless communications.
Multi-Connection Capability 8
Up to five VPL-CX85 data projectors can be connected
wirelessly, with the image from a single PC projected on
each. This feature is ideal for large venues in which
images have to be projected from various locations.
8
Simple mode cannot be used in this configuration. Up to 5 projectors can
be connected to a single PC.
Web Browser Access 9
In any of the various Air Shot configurations, including
Simple Mode, LAN Configuration, and Multi-Connection
Configuration, all VPL-CX85 projectors can be accessed
via a web browser. The setup menu can be changed and
maintenance information can be obtained via a userfriendly GUI.
9
Requires Microsoft Internet Explorer 5.0 or later.
Low Fan Noise
Intelligent Auto Setup Function
The VPL-CX85 is an incredibly quiet projector considering
its ability to produce a brightness of 3000 ANSI lumens.
This low fan noise is attributed to a highly efficient
cooling system based on the latest technology. By
adopting this technology, the fan noise is suppressed to
28dB 10 allowing for smooth, undisturbed presentations.
Intelligent Auto Setup allows presentations to be started
immediately. As soon as the power is turned on, the
projector initiates a host of sophisticated set-up functions.
10
This noise level is achieved when the projector’s lamp mode is set to
standard.
Powered Lens Protector
When power is switched on, the powered lens protector
opens automatically. No more wasted time looking for a
missing lens cover; it's always on the projector.
Stylish and Compact Design
At only 3.8 kg (8 lb 6 oz) in weight and with a
convenient carrying case, the VPL-CX85 has the
portability to go with you when you need it. 11 Its clean
and simple design keeps commonly used controls and
connectors at your fingertips, while concealing those used
less frequently behind an easily accessible side panel that
neatly slides open into the projector casing.
11
Carrying case is supplied.
Powered Tilt Adjuster and Auto Keystone
Correction
The shooting angle can be set using the power-operated
tilt adjuster via the supplied Remote Commander unit.
The new setting is retained in memory and instantly
recalled the next time the projector is used. Vertical
keystone distortion is automatically corrected according to
the tilt angle. Keystone distortion can be corrected up to
20 degrees. This means images can be projected with
correct geometry even when installation space is limited.
Easy-to-Use Remote Commander Units
(RM-PJM17, RM-PJP1)
Powered tilt adjuster
The VPL-CX85 is supplied with two handy Remote
Commander units, the RM-PJM17 and the RM-PJP1. The
RM-PJM17 is a full-function remote, to control and set up
the projector, while the RM-PJP1 has very simple controls
and a laser pointer, designed for presentations with the
Air Shot feature.
Auto keystone Correction
Auto Input Search
The VPL-CX85 automatically checks the projector's input
connectors and selects the one to which an input signal is
supplied. Images are projected from the moment the
power is turned on.
Smart APA (Auto Pixel Alignment)
RM-PJM17
RM-PJP1
The Smart APA function automatically sizes and adjusts
PC image displays for optimum picture performance
allowing users to concentrate on their presentations,
rather than time-consuming technical adjustments.
Side Shot™ Horizontal Keystone
Adjustment
Side Shot digital horizontal keystone adjustment
capabilities allow you to effortlessly align the picture at
the press of a button. This technology allows you the
convenience of placing the projector off-axis from the
center of the screen when necessary.
Various Inputs (Multiscan Converter)
The VPL-CX85 comes equipped with a scan converter to
accept a wide variety of input signals – both computer
images and video. For computer images, the VPL-CX85
supports signals ranging from VGA up to SXGA+ (1400 x
1050, fH 60 Hz), with horizontal frequencies of 19 to 92
kHz and vertical frequencies of 48 to 92 Hz. For video, it
accepts component and composite signals, in addition to
S-Video and RGB signals. Input signals with a variety of
scanning lines, as well as interlace and progressive modes,
are supported.
Preset Signals
Memory
No.
Without Side Shot
With Side Shot
PC-Less Presentations
50 Hz
15.625
50.000
—
15K RGB/Component 60Hz
480/60i
15.734
59.940
S on G/Y or Composite sync
4
15K RGB/Component 50Hz
575/50i
15.625
50.000
S on G/Y or Composite sync
5
1080/60i
1035/60i, 1080/60i
33.750
60.000
—
6
640 x 350
VGA mode1
31.469
70.086
H-pos, V-neg
VGA VESA 85 Hz
37.861
85.080
H-pos, V-neg
PC-9801 Normal
24.823
56.416
H-neg, V-neg
16
The VPL-CX85 incorporates a built-in circuit that
continues to run its cooling fan after the power is cut.
This feature allows you to unplug the projector and carry
it away without waiting, because the fan continues to
cool the unit.
13 Turn
off the projector in accordance with the operating instructions. The
projector should be cool before inserting it into the carrying case.
8
640 x 400
9
11
640 x 480
Monitor Output
Projected images can be monitored by connecting a PC
monitor to the monitor output and placing it in the
presenter's field of view. This allows the presenter to face
the audience for a fluid and professional delivery.
VGA mode 2
31.469
70.086
H-neg, V-pos
VGA VESA 85 Hz
37.861
85.080
H-neg, V-pos
VGA mode 3
31.469
59.940
H-neg, V-neg
Macintosh 13"
35.000
66.667
H-neg, V-neg
13
VGA VESA 72 Hz
37.861
72.809
H-neg, V-neg
14
VGA VESA 75 Hz
37.500
75.000
H-neg, V-neg
15
VGA VESA 85 Hz
43.269
85.008
H-neg, V-neg
SVGA VESA 56 Hz
35.156
56.250
H-pos, V-pos
17
SVGA VESA 60 Hz
37.879
60.317
H-pos, V-pos
18
SVGA VESA 72 Hz
48.077
72.188
H-pos, V-pos
19
SVGA VESA 75 Hz
46.875
75.000
H-pos, V-pos
20
SVGA VESA 85 Hz
53.674
85.061
H-pos, V-pos
800 x 600
21
832 x 624
Macintosh 16"
49.724
74.550
H-neg, V-neg
*22
1024 x 768
XGA VESA 43 Hz
35.524
86.958
H-pos, V-pos
23
XGA VESA 60 Hz
48.363
60.004
H-neg, V-neg
24
XGA VESA 70 Hz
6.476
69.955
H-neg, V-neg
25
XGA VESA 75 Hz
60.023
75.029
H-pos, V-pos
26
XGA VESA 85 Hz
68.677
84.997
H-pos, V-pos
SXGA VESA 70 Hz
63.995
70.019
H-pos, V-pos
28
SXGA VESA 75 Hz
67.500
75.000
H-pos, V-pos
29
SXGA VESA 85 Hz
77.487
85.057
H-pos, V-pos
SUN LO
61.795
65.960
H-neg, V-neg
SUN HIGH
71.713
76.047
Composite sync
SXGA VESA 60 Hz
60.000
60.000
H-pos, V-pos
SXGA VESA 75 Hz
75.000
75.000
H-pos, V-pos
SXGA VESA 43 Hz
46.433
86.872
H-pos, V-pos
35
SGI-5
53.316
50.062
S on G (H-pos, V-pos)
36
SXGA VESA 60 Hz
63.974
60.013
H-pos, V-pos
37
SXGA VESA 75 Hz
79.976
75.025
H-pos, V-pos
38
SXGA VESA 85 Hz
91.146
85.024
H-pos, V-pos
27
30
1152 x 846
1152 x 900
32
1280 x 960
33
The projector’s standby mode can be bypassed allowing
power to be directly applied or cut using a main power
breaker. This feature is ideal when multiple projectors
have to be turned on and off, such as in an art museum
or classroom.
—
12
31
Direct Power On/Off
Sync.
Video 50Hz
12 The
Off & Go
fV (kHz)
59.940
3
10
13
fH (kHz)
2
7
60 Hz
15.734
Video 60Hz
Photos and video clips can be run right from the VPL-CX85
projector using “Memory Stick™” media. This means
there is no need for a PC. The system can directly project
JPEG, including digital photo (DCF standard) and MPEG 1 12
movie formats. Projected images can be directly
controlled with the RM-PJM17 Remote Commander unit.
Microsoft PowerPoint presentations, BMP, and TIFF files
can also be projected by converting them to JPEG files,
using the Projector Station for Presentation software
application, and saving them to a “Memory Stick” media.
following MPEG-1 movie formats can be displayed from “Memory Stick”
media: MPEG MOVIE, MPEG MOVIE EX, MPEG MOVIE CV, MPEG MOVIE
HQ, MPEG MOVIE AD, and MPEG-1 from VAIO® Giga Pocket™ devices..
Preset signal
1
*34
1280 x 1024
43
480/60p
31.470
60.000
S on G
44
575/50p
31.250
50.000
S on G
45
1080/50i
28.130
50.000
—
47
720/60p
45.000
60.000
—
48
720/50p
37.500
50.000
—
50
540/60p
33.750
60.000
—
52
1400 x 1050
63.981
60.020
H-neg, V-neg
SXGA+ 60 Hz
*Memory numbers 22 and 34 accept the signal as an interlace signal.
Images may not be reproduced correctly when signals other than those listed above are input.
Contact your local Sony sales office for more information regarding signals not listed.
Control Panel Key Lock
Vertical Tilt
The VPL-CX85 can be tilted upwards or downwards up to
90 degrees, making it ideal for rear-projection applications.
Control panels on both the top and the side of the
projector can be locked, preventing inadvertent or
unauthorized adjustment of the controls.
Low-Power Consumption
On Screen Multi-Language Setup Menu
Standby power consumption of less than 0.5 W has been
achieved, making the VPL-CX85 a highly eco-friendly
projector.
The On-Screen Display for projector control is available in
thirteen languages: English, Dutch, French, Italian,
German, Spanish, Portuguese, Russian, Swedish,
Norwegian, Japanese, Chinese, and Korean. Its position
and color can be altered, depending on user preferences.
Other Features
Password Authentication System (Security Lock)
Digital Zoom
● Freeze Function
● Picture/Audio Muting
● Adjustable Rear Legs
●
●
Ceiling Mountable
The VPL-CX85 can be ceiling mounted. Screw holes on
the bottom plate are provided for use with a suspensiontype bracket.
Only Standard Mode (2200 ANSI lumens) is available when the image is
inverted.
Throwing Distance
Floor Installation
Screen Size (mm)
Screen
40
60
80
100
120
150
180
200
250
Minimum
1160
1760
2360
2970
3570
4470
5380
5980
7490
9000
Maximum
1350
2040
2740
3440
4140
5180
6230
6930
8670
10420
b
x-237
x-356
x-474
x-593
x-711
x-889
x-1067
x-1185
x-1482
x-1778
c
x-299
x-417
x-536
x-654
x-773
x-951
x-1129
x-1247
x-1543
x-1840
a
Projector
300
x
c b
Screen Size (inches)
a
a
a:
b:
c:
x:
40
60
80
100
120
150
180
200
250
300
Minimum
45 3/4
69 3/8
93
117
140 5/8
176 1/8
211 7/8
235 1/2
295
354 3/8
Maximum
53 1/4
80 3/8
108
135 1/2
163 1/8
204
245 3/8
272 7/8
341 1/2
410 3/8
3/4
3/8
x-70 1/8
x-60 7/8
x-72 1/2
300
3/8
b
x-9
c
x-11 7/8
x-14
x-16 1/2
x-18
3/4
x-21 1/8
x-23
3/8
x-25 7/8
x-28
x-35
x-42
x-30 1/2
x-37 1/2
x-44 1/2
x-46
x-49 1/8
x-58
distance between the screen to the center of the lens
distance between the floor and the center of the lens
distance between the floor and the foot of the projector
distance between the floor and the center of the screen, free
Ceiling Installation
Screen Size (mm)
40
60
80
100
120
150
180
200
250
Minimum
1260
1860
2470
3070
3670
4580
5480
6090
7600
9100
Maximum
1450
2140
2840
3540
4240
5280
6330
7030
8770
10520
x
b+293
b+411
b+530
b+649
b+767
b+945
b+1123
b+1241
b+1538
b+1834
b
free
a'
b
x
a'
Screen Size (inches)
a'
Minimum
40
60
80
100
120
150
180
200
250
300
49 5/8
73 1/4
97 3/8
121
144 5/8
180 3/8
215 7/8
239 7/8
299 1/4
358 3/8
57 1/8
84 3/8
111 7/8
139 1/2
167
208
249 1/4
276 13/16
345 3/8
414 1/4
x
b+11 5/8
b+16 1/4
b+20 7/8
b+25 5/8
b+30 1/4
b+37 1/4
b+44 1/4
b+48 7/8
b+60 5/8
b+72 1/4
b
free
Maximum
a': distance between the screen and the front mounting hole on the bottom surface of the projector
b : distance between the ceiling and the front mounting hole on the bottom surface of the projector
x: distance between the ceiling and the center of the screen
Ceiling mount is not supplied. Please contact your nearest Sony office for details on installing the VPL-CX85
SUPPLIED ACCESSORIES
IFC-WLC1
IFU-WLM1
Wireless LAN card
USB Wireless LAN module
USB Storage Media
Carrying Case
Remote Commander: RM-PJM17, AA sized batteries (x2), Presentation Tool: RM-PJP1, AAA sized batteries (x2), HD D-sub 15-pin cable (2m), USB cable
A type to B type, Security Label, Air Filter (replacement), Operating Instructions, Quick Reference Sheet, CD-ROM (application software), AC Power Cord
OPTIONAL ACCESSORY
LMP-C190
Replacement Lamp
DIMENSIONS
Front
Right Side
CONTROL PANELS AND CONNECTOR PANEL
Control Panel (Top)
Control Panel (Side)
Connector Panel (Side)
SPECIFICATIONS
Optical
Projection System
Panel
Projection lens
Lamp
Screen coverage
Keystone Correction Range
Light Output
Signals
Color System
Resolution
Acceptable Signals
General
Speaker
Power Requirements
Power Consumption
Operating Temperature
Operating Humidity
Dimensions (WxHxD)
Mass
Heat Dissipation
Input/Output
Video Input
3 LCD panels, 1 lens projection system
0.79-inch XGA LCD panel with Micro Lens Array 2,359,296 pixels (786,432 pixels x 3)
1.2 times F1.6 to 1.78, f23.5 to 28.2 mm
190 W/150 W UHP
40 to 300 inches (measured diagonally)
Max. ±30° horizantally, ±20° vertically*
3000 ANSI lm (lamp mode high); 2200 ANSI lm (lamp mode standard)
NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
Video
750 TV lines
RGB
1024 x 768 pixels
Computer
fH: 19-92 kHz, fV: 48-92 Hz (up to SXGA+ (fV: 60 Hz))
Video
15 kHz RGB/Component 50/60 Hz, Progressive Component 50/60 Hz,
DTV (480/60i, 575/50i, 480/60p, 540/60p, 575/50p, 720/60p, 720/50p, 1080/60i, 1080/50i), Composite video, Y/C video
Mono 1 W (max.) x 1
AC 100 to 240 V, 50/60 Hz
Max
280 W
Standby
7 W (standard), 0.5 W (low)
0 to 35 ºC (32 to 95 ºF)
35% to 85% (no condensation)
mm
328 x 92.6 x 283.8
inches
13 x 3 3/4 x 11 1/4
kg
Approx. 3.8 kg
lb
Approx. 8 lb 6 oz
921.3 BTU
Remote
S Video
Composite
Audio
RGB/Component
Audio
RGB
Audio
Upstream (B type, female x 1)
Wireless LAN card slot x 1
Memory Stick media slot x 1
RGB
Audio
RS-232C
Safety
Regulations
Laser
UL1950, cUL (CSA 60950), DHHS, DNHW, FCC Class B, IC Class B, DEMKO (EN60950), CE (LVD, EMC), C-Tick, Dentori, VCCI Class B
Class II, 1 mW output
Input A
Input B
USB
Wireless LAN
Memory Stick
Output
Y/C Mini DIN 4-pin
RCA pin jack
Stereo mini jack
Analog RGB/Component (HD D-sub 15 pin female x 1)
Stereo mini jack (A/B)
Analog RGB (HD D-sub 15 pin female x 1)
Stereo mini jack (A/B)
Analog RGB (HD D-sub 15 pin female x 1)
Stereo mini jack (variable out)
D-sub 9-pin female x 1
* Horizontal and vertical keystone correction ranges are dependent on one another.
Maximum keystone correction may vary with input signal.
·
·
·
·
·
Distributed by
MK10121V1IW04MAR
Halogenated flame retardants are not used in cabinets.
Halogenated flame retardants are not used in printed wiring boards.
Lead-free solder is used for soldering.
Polystyrene foam for the packaging cushions is not used in packaging.
Standby power consumption: 0.5 W (or less)
©2004 Sony Corporation. All rights reserved. Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice. All non-metric weights and measurements are approximate.
Sony is a registered trademark of Sony Corporation. All other trademarks are the property of their respective owners.
Australia:
Ph: 1800 017 669
Or visit www.sony.com.au/projectors
Sony Australia Limited
33-39 Talavera Road
North Ryde NSW 2113
Ph: 1800 017 669
Fax: 1800 117 669
New Zealand:
Ph: 0800 7669 776
Or email us at [email protected]
Sony New Zealand Limited
Akoranga business Park
Northcote Auckland
Ph: 0800 7669 776
Fax: (09) 488 0503
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
