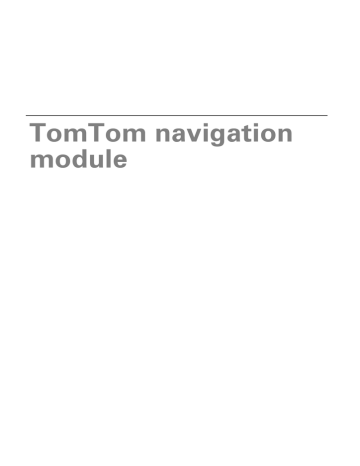

TomTom navigation
module
1. What’s in the box
What’s
in the
box
• TomTom navigation module
• Car dock
• USB cable
• MyTomTom leaflet
2
2. Read me first
Read
me first
Car dock
Push your TomTom navigation module into the car dock in your car. To remove your navigation module from the car dock, press the release button on the car dock. Your dealer
can install the car dock and connect it to the Sony XNV.
The display of the Sony XNV is also used as the navigation module display. Use the Sony
XNV touch screen to operate your navigation module.
Switching on and off
The TomTom navigation module switches on simultaneously with the Sony XNV. Select
Navi in the main menu of the Sony XNV.
Until a connection has been established between the Sony XNV and the navigation module, "waiting for Navi connection" is displayed. In the case of a cold boot of the navigation
module, the start-up image of the module is visible as soon as a connection has been
established.
Under extreme temperature conditions or if the battery of the navigation module is empty,
a warning screen will be displayed. The module will start up as soon as the battery temperature is within specifications and the battery is charged sufficiently.
Setting up
Important: Take care to select the correct language, since the language you choose will
be used for all menus and written instructions.
When you first switch on your device, you have to answer a few questions to set up the
device. Answer the questions by tapping the screen.
GPS reception
When you first start your TomTom navigation module, the device may need a few minutes
to determine your GPS position and show your current position on the map. In the future,
your position will be found much faster, usually within a few seconds.
To ensure good GPS reception, you should use your device outdoors. Large objects such
as tall buildings can sometimes interfere with reception.
About MyTomTom
MyTomTom helps you manage the contents and services of your TomTom navigation
module, as well as giving you access to the TomTom community. You log in to MyTomTom on the TomTom website. It is a good idea to frequently connect your navigation module to MyTomTom, to ensure you always have the latest updates.
3
Tip: We recommend using a broadband internet connection whenever you connect your
navigation device to MyTomTom.
Setting up MyTomTom
1
2
To set up MyTomTom, do the following:
1. Connect your computer to the internet.
2. Start a browser and go to tomtom.com/getstarted.
3. Click Download now.
Your browser downloads the MyTomTom support application, which you need to
install on your computer in order to connect your device to MyTomTom. Follow the
instructions on the screen if you are asked questions while downloading.
4. Connect your device to your computer using the USB cable.
Your device is then recognized, and possible updates are offered.
Important: You should plug the USB connector directly into a USB port on your computer
and not into a USB hub or USB port on a keyboard or monitor.
Once the MyTomTom support application is installed on your computer, you can access
MyTomTom from the system tray on your computer.
Tip: When you connect your navigation device to your computer, MyTomTom tells you if
there are any updates for your device.
Device not starting
In rare cases, your TomTom navigation module may not start correctly or may stop
responding to your taps.
The battery may not be charged enough. The battery charges when the navigation module
is docked in the car dock and the Sony XNV is powered, or when the module is connected
to the computer. The screen shows a warning if there is a problem with the battery.
The battery temperature may be too high or too low. Also in this case the screen shows a
warning. The navigation module will start-up if the battery temperature is within the specifications.
If the battery is charged but navigation is still not available, you may need to reset the navigation module. To reset your navigation module, first remove it from the car dock by
pressing the release button. Then press the reset button on the back of the navigation
module for at least 10 seconds. Push the navigation module back into the car dock.
4
Charging your TomTom navigation module
The LED on the navigation module is red while the battery is charging, and is green when
it is fully charged.
Important: You should plug the USB connector directly into a USB port on your computer
and not into a USB hub or USB port on a keyboard or monitor.
Take care of your navigation device
Never leave your TomTom navigation module or accessories on view when you leave the
car as they may become an easy target for thieves.
It is important to take care of your device:
• Your device is not designed for use in extreme temperatures and any such exposure
may cause permanent damage. Extended exposure to sunlight may lead to early deterioration of battery performance.
• Do not open the casing of your device under any circumstances. Doing so may be dangerous and will void the warranty.
5
3. Safety
Safety
Safety settings
We recommend using the safety settings to make your driving as safe as possible.
These are some of the options included in the safety settings:
• Show essential menu buttons while driving
• Show safety reminders
• Warn when driving faster than allowed
6
4. Planning a route
Planning a
route
Important: In the interest of safety and to reduce distractions while you are driving, you
should always plan a route before you start driving.
To plan a route on your TomTom navigation module, do the following:
1. Tap the screen to open the Main menu.
2. Tap Navigate to...
3. Tap Address.
Tip: The first time you plan a route, you are asked to select a country, state or region. Your
selection is saved and used for all future routes until you change this setting.
You can change this setting by tapping the flag before you select a city.
4. Enter the town or city name.
• Towns with similar names are shown in the list while you type.
• When the correct city or town appears in the list, tap the name to select the destination.
5. Enter the street name.
• Streets with similar names are shown in the list while you type.
7
• When the correct street name appears in the list, tap the name to select the destination.
6. Enter the house number, then tap Done.
7. The location is shown on the map. Tap Select to continue or tap Back to enter another
address.
Tip: If you want your final destination to be a car park, tap Parking facility and select a
location from the list of car parks close to your general destination.
8. Select the type of route you want to plan.
8
9. When the new route is shown, tap Done.
• For more information about the route, tap Details.
• To plan a different route, tap Change route.
Your TomTom navigation module starts to guide you to your destination, using spoken
instructions and on-screen directions.
Route summary
The route summary shows an overview of your route, the remaining distance to your destination and the remaining estimated trip time.
To view the route summary, tap the right-hand panel on the status bar in the Driving view
or tap View route in the Main menu and then tap Show route summary.
The route summary screen shows an overview of your route, the remaining distance to
your destination, the remaining estimated journey time, and expected delays on your
route using IQ Routes information about actual speeds on roads.
Frequent destinations
If you often make trips to the same destinations, you can set your TomTom navigation
module to ask if you want to plan a route to one of these locations, every time the device
starts. This is faster than planning a route in the normal way.
To select a new destination, tap Start-up settings in the Settings menu and select Ask for
a destination. Then select a button to use for this destination and answer the questions
about the destination.
9
Show my frequent destinations
You can set your TomTom navigation module to ask if you want to plan a route to one of
your frequently visited destinations every time the device starts.
To change this setting, do the following:
1. Tap Start-up settings in the Settings menu and then select Ask for a destination.
2. Tap Yes, then tap Yes again to begin entering information about the destination.
3. Select a symbol for the destination and tap Done to set the symbol, then tap Yes.
Tip: To add new destinations, select one of the numbered symbols and enter a name for
the new destination button.
4. Tap Yes and if required enter a new name, then tap Done.
5. Enter the address details in the same way you enter an address when planning a route,
then tap Done.
6. If you want to set more destinations, repeat the steps above. Otherwise, tap Done.
You are asked if you want to change the start-up image.
7. If you want to change the image, tap Yes, then follow the instructions shown on the
screen. Otherwise, tap No.
Every time your TomTom navigation module starts, you are asked if you want to plan a
route. If you tap Cancel, you are shown the Main Menu.
Using arrival times
When you plan a route, your TomTom navigation module asks you if you need to arrive
at a particular time.
Tap YES to enter a preferred arrival time.
Your navigation module calculates your arrival time and shows you whether you will
arrive on time.
You can also use this information to work out when you need to leave. If your navigation
module shows that you will arrive 30 minutes early, you can wait and leave in 30 minutes
time, rather than arrive early.
Your arrival time is constantly recalculated during your trip. The status bar shows whether
you will arrive on time or if you are going to be late, as shown below:
You will arrive 55 minutes before the arrival time you entered.
If the estimated arrival time is more than five minutes before the time
you entered, it is shown in green.
10
You will arrive 3 minutes before the arrival time you entered.
If the estimated arrival time is less than 5 minutes before the time
you entered, it is shown in yellow.
You will arrive 19 minutes late.
If the estimated arrival time is later than the time you entered, it is
shown in red.
Tap Status bar settings in the Settings menu, to enable or disable
arrival time notifications.
Status bar
preferences
To enable arrival time notifications, select Leeway.
Navigation menu options
When you tap Navigate to..., you can set your destination in many ways, not just by entering the address. The other options are listed below:
Tap this button to navigate to your Home location.
You will probably use this button more than any other.
Home
Tap this button to select a Favorite as your destination.
Favorite
Tap this button to enter an address as your destination.
Address
Tap this button to select your destination from a list of places you
have recently used as destinations.
Recent
destination
Tap this button to navigate to a Point of Interest (POI).
Point of Interest
Tap this button to select a point on the map as your destination using
the map browser.
Point on map
Tap this button to enter a destination using latitude and longitude
values.
Latitude
Longitude
11
Tap this button to select your last recorded position, as your destination.
Position of last
stop
Planning a route in advance
You can use your TomTom navigation module to plan a route in advance, selecting your
starting point and your destination.
Here are some more reasons to plan a route in advance:
• Find out how long a trip is going to take before you start.
You can also compare trip times for the same route at different times of the day or on
different days of the week. Your navigation module uses IQ Routes when planning a
route. IQ Routes calculates routes based on the real average speeds measured on
roads.
• Study the route of a trip you are planning.
• Check a route for someone who is coming to visit you and then explain the route to
them in detail.
To plan a route in advance, follow these steps:
1. Tap the screen to bring up the Main menu.
2. Tap Plan route.
This button is shown while there is no planned route on your navigation module.
Prepare route
3. Select the starting point for your trip in the same way that you would select your destination.
4. Set the destination for your trip.
5. Choose the type of route that should be planned.
• Fastest route - the route which takes the least time.
• Eco route - the most fuel-efficient route for your trip.
• Shortest route - the shortest distance between the locations you set. This may not
be the quickest route, especially if the shortest route is through a town or city.
• Avoid highways - a route which avoids highways.
6. Choose the date and time that you will make the trip you are planning.
Your navigation module uses IQ Routes to work out the best possible route at that time.
This is useful to see how long a trip takes at different times of the day or on different
days of the week.
7. Your TomTom navigation module plans the route between the two locations you
selected.
Viewing route information
You can access these options for the route you last planned by tapping View route in the
Main Menu or the Details button on the route summary screen.
12
You can then select from the following options:
Tap this button for a list of all the turn instructions on the route.
This is very useful if you need to explain a route to someone else.
Show instructions
Tap this button to see an overview of the route using the map
browser.
Show map of
route
Tap this button to watch a demo of the trip. You can interrupt the
demo at any time by tapping the screen.
Show route
demo
Tap this button to open the route summary screen.
Show route
summary
Tap this button to see a preview of your destination.
Show
destination
You can navigate to a parking lot near your destination, and view any
available information about your destination, for example, the phone
number.
13
5. Driving View
Driving
View
About the Driving View
When your TomTom navigation module device starts for the first time, you are shown the
Driving View along with detailed information about your current position.
Tap the center of the screen at any time to open the Main Menu.
You can choose the screen shown when you switch on your device by tapping Settings
in the Main Menu, then tapping Start-up settings.
The Driving View
1. Zoom button - tap the magnifying glass to show buttons for zooming in and out.
2. Quick menu - to enable the quick menu, tap Make your own menu in the Settings menu.
3. Your current position.
4. Road sign information or the next street name.
5. The time, your current speed and the speed limit, if known. To see the difference
between your preferred arrival time and your estimated arrival time, check the Leeway
checkbox in the Status bar settings.
Tap this part of the status bar to switch between a 3D map and a 2D map.
6. The name of the street you are on.
7. Navigation instruction for the road ahead and the distance to next instruction. If the second instruction is less than 500 feet after the first instruction, you see it shown immediately instead of the distance.
Tap this part of the status bar to repeat the last voice instruction and to change the volume. You can also tap here to mute the sound.
8. The remaining trip time, the remaining distance and your estimated arrival time.
14
Tap this part of the status bar to open the Route Summary screen.
To change the information shown in the status bar, tap Status bar in the Settings menu.
Driving View symbols
The following symbols are shown in the Driving View:
EPT - this symbol is shown when your device is using tacho information to estimate your current location. EPT is only used when you
have no GPS reception.
Sound muted - this symbol is shown when the sound has been
muted.
To turn the sound back on, tap the middle panel in the status bar.
15
6. Advanced Lane Guidance
Advanc
ed
Lane
Guidance
About lane guidance
Note: Lane guidance is not available for all junctions or in all countries.
Your TomTom navigation module helps you prepare for highway exits and junctions by
showing the correct driving lane for your planned route.
As you approach an exit or junction, the lane you need is shown on the screen.
Using lane guidance
There are two types of lane guidance:
• Lane images
To turn lane images off, tap Settings in the Main Menu, then tap Advanced settings.
Clear the checkbox for Show lane images.
Tip: Tap anywhere on the screen to return to the Driving View.
• Instructions in the status bar
16
Tip: If no lane guidance is shown in the status bar and all lanes are highlighted, you can
use any lane.
17
7. Making changes to your route
Making
change
s to
your
route
About route changes
After you plan a route, you may want to change the route or even the destination. There
are various ways to change your route without the need to completely replan the entire
trip.
To change the current route, tap Change route in the Main menu:
Tap this button to change the current route.
Change route
This button is only shown while there is a planned route on your
navigation module.
Change route menu
To change the current route or your destination, tap one of the following buttons:
Tap this button to find an alternative to the current route.
Calculate
alternative
This button is only shown while there is a planned route on your
navigation module.
This is a simple way to search for a different route to your current
destination.
Your navigation module calculates a new route from your current
location to reach your destination using completely different roads.
The new route is shown next to the original route so that you can
select the route you want to use.
Tap this button while driving on a planned route to avoid a roadblock
or traffic congestion on the road ahead.
Avoid roadblock
Your navigation module will suggest a new route which avoids the
roads on your current route for the selected distance.
If the roadblock or traffic congestion suddenly clears, tap Recalculate route to replan your original route.
Important: Be aware that when a new route is calculated, you might
be asked to turn off the current road immediately.
18
Tap this button to change the current destination.
Change
destination
When you change the destination, you are shown the same options
and asked to enter the new address in the same way as when you
plan a new route.
Tap this button to avoid part of the current route.
Avoid part of
route
You are shown a list of the street names on your route. When you
tap one of the street names, your navigation module calculates a
detour to avoid the selected street. The route summary shows both
the new route and your original route. Tap the panel at the right to
select one of the routes and then tap Done.
If you do not want to use either of the routes shown in the route
summary, tap Change route to find another way to alter your route.
Tap this button to change your route by selecting a location you
want to travel past, perhaps to meet someone along the way.
Travel via...
When you select a location to travel past, you are shown the same
options and asked to enter the new address in the same way as
when you plan a new route.
Your navigation module calculates the route to your destination via
the selected location.
The selected location is shown on the map using a marker. You can
only select one location to travel past on a route.
Unlike when you reach your destination, no warning is given when
you travel past a marked location.
19
8. View map
View
map
About viewing the map
You can view the map in the same way as you might look at a traditional paper map. The
map shows your current location and many other locations such as Favorites and POIs.
To view the map in this way, tap View map or View route in the Main menu.
You view different locations on the map by moving the map across the screen. To move
the map, touch the screen and drag your finger across the screen.
To select a location on the map, tap the location on the map. The cursor highlights the
location and displays useful information about the location in an information panel. Tap
the information panel to create a Favorite or plan a route to that location.
View map
1. The scale bar
2. Marker
Markers point to your current location (blue), your home location (yellow) and your destination (red). The marker shows the distance to the location.
Tap a marker to center the map on the location pointed to by the marker.
You can also set your own marker. Tap the cursor button, then tap Set marker position
to place a green marker at the cursor position.
To turn markers off, tap Options, then Advanced and clear the Markers checkbox.
3. Options button
4. The cursor with street name balloon.
Tap the button in the street name balloon to open the cursor menu. You can navigate
to the cursor position, make a Favorite of the cursor position, or find a Point of Interest
near the cursor position.
5. The Find button
20
Tap this button to find specific addresses, favorites or Points of Interest.
6. The zoom bar
Zoom in and out by moving the slider.
Options
Tap the Options button to set the information shown on the map and show the following
information:
• Names - select this option to show street and city names on the map.
• Points of interest - select this option to show POIs on the map. Tap Choose POI to
choose which POI categories are shown on the map.
• Satellite images - select this option to show satellite images of the area being viewed.
Satellite images are not available for every location on the map.
• Favorites - select this option to show your Favorites on the map.
Tap Advanced to show or hide the following information:
• Markers - select this option to enable markers. Markers point to your current location
(blue), your home location (yellow) and your destination (red). The marker shows the
distance to the location.
Tap a marker to center the map on the location the marker is pointing to.
To create your own marker, tap the cursor button. Then tap Set marker position to
place a green marker at the cursor position.
To disable markers, tap Options, then tap Advanced and deselect Markers.
• Coordinates - select this option to show GPS coordinates in the lower left corner of the
map.
Cursor menu
The cursor can be used to do more than highlight a location on the map.
Position the cursor on a location on the map, then tap Cursor and then tap one of the following buttons:
Tap this button to plan a route to the cursor position on the map.
Navigate there
Tap this button to view information about the location on the map
such as the address.
View location
Tap this button to create your own green marker and place it at the
cursor position.
Set marker
position
If a green marker exists, this button changes to Delete marker.
Tap this button to find a POI near the cursor position on the map.
Find POI nearby
For example, if the cursor currently highlights a restaurant location
on the map, you can search for a nearby parking garage.
21
Tap this button to make a map correction for the cursor position on
the map.
Correct location
You can make the correction only on your own map or you can share
the correction with the TomTom Map Share community.
Tap this button to create a Favorite at the cursor position on the map.
Add as Favorite
Tap this button to create a POI at the cursor position on the map.
Add as POI
Tap this button to travel via the cursor position on the map as part of
your current route. Your destination remains the same as before but
your route now includes this location.
Travel via...
This button is only available while there is a planned route.
Tap this button to center the map on the cursor position.
Center on map
22
9. Map corrections with TomTom Map Share™
Map
corrections
with
TomTo
m Map
Share™
About TomTom Map Share
TomTom Map Share helps you correct map errors and share map corrections with the rest
of the TomTom Map Share community.
To correct your map and share map corrections with other Map Share users, tap Map corrections in the Services menu.
Map Share allows you to send and receive map corrections for one year after the new version of a map is released.
This means that one year after the release date, you can still correct your own map but
you cannot send or receive map corrections until you upgrade your map to the latest version.
Note: TomTom Map Share is not available in all regions. For more information, go to
tomtom.com/mapshare.
TomTomMap Share community
To join the Map Share community, do the following:
1. Tap Map corrections in the Services menu.
2. Tap Corrections from others.
3. Read the description, then tap Join.
4. Read the description, then tap Continue.
5. Select the category of Map Share corrections you want to use for your maps.
6. Tap Done.
When you connect your navigation module to your computer, MyTomTom downloads
any new corrections and sends your corrections to the Map Share community.
Map corrections
Map corrections are reported by Map Share users and verified by TomTom.
• Corrections that are reported by Map Share community members include:
Changes to the traffic flow in a street, a street that has been blocked or renamed, and
POIs that have been added, removed or edited.
These corrections are immediately shared with the Map Share community.
• Corrections that are reported by Map Share members and verified by TomTom include:
Missing streets, incorrect highway entrances and exits and missing rotaries.
23
These corrections are investigated and verified by TomTom and are included when the
next map version is released.
Map correction settings
You can decide which map corrections from the Map Share community are used to correct your maps. To select a category, tap Map corrections settings in the Map corrections
menu.
There are three categories of map corrections:
• Corrections verified by TomTom - this category only includes corrections investigated
by TomTom.
• Corrections verified by TomTom or confirmed by many members - this category
includes corrections investigated by TomTom and corrections reported by a high number of Map Share community members.
• All reported map corrections - this category includes corrections investigated by
TomTom and corrections reported by a high number of Map Share community members and corrections reported by only a few Map Share community members.
Downloading and sending map corrections
To download the latest new map corrections and to send your own corrections, connect
your TomTom navigation module to MyTomTom.
If new map corrections are available for your maps, then your navigation module will automatically download the corrections and update your maps.
You can select the type of corrections you want to download in the Map corrections settings menu on your navigation module.
Reporting a map error
If you find an error on your map, you can mark the location using the report button in the
Driving view. You can then correct the error and send the correction when you have completed your trip.
For example, you are driving to a friend's house and you notice that the name of a street
on your map is different from the name on the street sign. To mark the location for later
correction, tap the report button and your navigation module will record the location.
24
Important: For safety reasons, do not enter the full details of a map correction while you
are driving. Mark the location of the map error instead and enter the full details later.
To show the report button in the Driving view, do the following:
1. Tap Map corrections in the services menu.
2. Tap Map correction settings.
3. Select the type of corrections you want to download. Then tap
Done.
4. Read the instructions on the screen. Then tap Continue.
5. Select how you want to share your map corrections. Then tap
Next.
6. Select Show report button. Then tap Done.
The report button is shown on the left-hand side of the Driving
view.
Correcting a map error
Correct a map
error
Important: For safety reasons, do not enter the full details of a map
correction while you are driving. Mark the location of the map error
instead and enter the full details later.
To correct a map error, do the following:
1. Tap Map corrections in the services menu.
2. Tap Correct a map error.
3. Select the type of map correction you want to report.
4. Select how you want to select the location.
5. Select the location. Then tap Done.
6. Enter the details of the correction. Then tap Done.
7. Tap Send.
The correction is saved and the information is sent to Map Share.
Types of map correction
To make a correction to your map, tap Map corrections in the services menu, then tap
Correct a map error. There are several types of map correction available.
25
Tap this button to block or unblock a street. You can block or unblock
the street in one or both directions.
(Un)block
street
For example, to correct a street near to your current location, do the following:
1. Tap (Un)block street.
2. Tap Near you to select a street near your current location. You can
select a street by name, a street near your Home location or a street
on the map.
3. Select the street or section of a street you want to correct by tapping
it on the map.
The street you select is highlighted and the cursor shows the name
of the street.
4. Tap Done.
Your device shows the street and whether the traffic is blocked or
allowed in each direction.
5. Tap one of the direction buttons to block or unblock the flow of traffic
in that direction.
6. Tap Done.
The next time you connect your device to MyTomTom, your corrections are shared with the TomTom Map Share community.
Tap this button to correct the traffic direction of a one-way street, where
the direction of traffic is different to the direction shown on your map.
Reverse traffic
direction
Note: Reverse traffic direction only works for one-way streets. If you
select a two-way street you will be given the chance to block/unblock
the street rather than changing the direction.
26
Tap this button to change the name of a street on your map.
For example, to rename a street near to your current location:
Edit street
name
1. Tap Edit street name.
2. Tap Near you.
3. Select the street or section of a street you want to correct by tapping
it on the map.
The street you select is highlighted and the cursor shows the name
of the street.
4. Tap Done.
5. Type the correct street name.
6. Tap Done.
Tap this button to change and report incorrect road turn restrictions.
Change turn
restrictions
Tap this button to change and report the road speed limit.
Change road
speed
Tap this button to add or remove a rotary.
Add or
remove rotary
Tap this button to add a new Point of Interest (POI).
For example to add a new restaurant near to your current location:
Add missing
POI
1. Tap Add missing POI.
2. Tap Restaurant in the list of POI categories.
3. Tap Near you.
4. Select the location of the missing restaurant.
You can select the location by entering the address or by selecting
the location on the map. Select Near you or Near home to open the
map at your current location or at your Home location.
5. Tap Done.
6. Type the name of the restaurant then tap OK.
7. If you know the telephone number of the restaurant you can type it,
then tap OK.
If you don’t know the number, just tap OK without typing a number.
27
Tap this button to edit an existing POI.
You can use this button to make the following changes to a POI:
Edit POI
• Delete the POI.
• Rename the POI.
• Change the telephone number of the POI.
• Change the category that a POI belongs to.
• Move the POI on the map.
Tap this button to enter a comment about a POI. Use this button if you
cannot edit the error with the POI using the Edit POI button.
Comment on
POI
Correct house
number
Tap this button to correct the location of a house number. Enter the
address that you wish to correct and then indicate on the map the correct location of that house number.
Tap this button to edit an existing street. Once you have selected the
street, you can select an error to report. You can select more than one
type of error for a street.
Existing
street
Tap this button to report a missing street. You have to select the start
and end points of the missing street.
Missing street
City
Tap this button to report an error about a city. You can report the following types of error:
• City is missing
• Wrong city name
• Alternative city name
• Other
Tap this button to report an error about a highway entrance or exit.
Highway
entrance/exit
Tap this button to report an error about a ZIP code.
ZIP code
Tap this button to report other types of corrections.
Other
These corrections are not immediately applied to your map. Your
TomTom navigation module sends a special report to TomTomMap
Share.
You can report missing streets, errors in highway entrances and exits
and missing rotaries. If the correction you want to report is not covered
by any of these report types, enter a general description then tap Other.
28
10. Sounds and voices
Sounds
and
voices
About sounds and voices
The front speaker of the Sony XNV is used to play sounds and voices from the TomTom
navigation module.Your TomTom navigation module uses sound for the following:
• Driving directions and other route instructions
• Warnings that you set
There are two types of voice available for your navigation module:
• Computer voices
Computer voices are generated by your navigation module. They provide route instructions and read aloud city and street names, traffic and weather reports, user messages
and tutorials.
• Human voices
These are recorded by an actor and only provide route instructions.
About computer voices
Your TomTom navigation module uses text-to-speech technology and computer voices
to read the street names on your map as it guides you on your route.
The computer voice analyses the whole phrase or sentence before speaking to ensure that
the sentence sounds as close as possible to natural speech.
Computer voices can recognize and pronounce foreign towns and street names. For
example, the English computer voice can read and pronounce French street names.
Important:
If you require a computer voice and your language is unavailable, then you need to install
and use the English language computer voice. For more information on computer voices,
go to tomtom.com/services.
Selecting a voice
To select a different voice on your TomTom navigation module, tap Voices in the settings
menu. Then tap Change voice and select the required voice.
Changing the volume level
You can change the volume on your TomTom navigation module in several ways.
• In the Driving view.
29
Tap the central panel on the status bar and move the slider to adjust the volume. The
last route instruction is played so you can hear the new volume level.
• In the Settings menu.
Tap Settings in the Main menu, then tap Volume settings and move the slider to adjust
the volume. Tap Test to listen to the new volume level.
30
11. Settings
Settings
About settings
You can change the way your TomTom navigation module looks and behaves. Most of
the settings on your device can be accessed by tapping Settings in the Main Menu.
Use night colors / Use day colors
Tap this button to display the map in darker colors.
Use night
colors
When driving at night or when driving through a dark tunnel, it is easier
to view the screen and less distracting for the driver, if the map is displayed in darker colors.
Tap this button to display the map in brighter colors.
Use day
colors
Turn off voice guidance / Turn on voice guidance
Tap this button to switch off voice guidance. You will no longer hear
spoken route instructions, but you will still hear information such as
traffic information and warnings.
Turn off Voice
guidance
Voice guidance is also switched off if you tap Turn off sound in the Settings menu.
Note: If you change the voice on your navigation module, then voice
guidance is automatically switched on for the new voice.
Tap this button to switch on voice guidance and hear spoken route
instructions.
Turn on Voice
guidance
Status & Information
Status &
Information
Tap this button to find technical information on your TomTom navigation module such as the device serial number, application version and
the map version.
You can also view the current status for GPS reception.
31
Manage Favorites
Tap this button to add, rename or delete Favorites.
Manage
Favorites
Favorites provide an easy way to select a location without the need to
enter the address. They do not need to be favorite places, they can simply be seen as a collection of useful addresses.
To create a new Favorite, tap Add. Then enter the location address in
the same way that you enter an address when you plan a route.
To view or change an existing Favorite, tap one of the items in the list.
To see more Favorites on the map, tap the left or right buttons.
Make your own menu
Tap this button to add up to six buttons to your own personalized menu.
Make your
own menu
If there are only one or two buttons in your menu, both buttons are
shown in the Driving view.
If you have three or more buttons in your menu, then a single button is
shown in the Driving view which opens your menu when tapped.
Voices
Tap this button to change the voice that gives spoken directions and
other route instructions.
Change voice
A wide range of voices are available. There are computer voices which
can read street names and other information directly from the map and
there are human voices which have been recorded by actors.
32
Tap this button to set the type of spoken directions and other route
instructions your TomTom navigation module will read aloud.
Voice settings
Volume settings
Tap this button to set the volume level for your TomTom navigation
module. Move the slider to change the volume.
Volume
settings
Start-up settings
Tap this button to set what happens when your TomTom navigation
module starts.
Start-up
settings
Set clock
Tap this button to select the time format. As soon as you have a GPS fix,
the time will be set automatically. If you don’t have a GPS fix, you can
choose to set the time manually.
Set clock
33
Manage POIs
Tap this button to manage your own POI categories and locations.
Manage POIs
Tip: To report incorrect or missing information about an existing Point
of Interest included with your map, use the Map Share service to share
your corrections with the Map Share community.
You can set your navigation module to let you know when you are near
selected POI locations. In this way you could, for example, set the
device to let you know when you are approaching a gas station.
You can create your own POI categories and add your own POI locations to these categories.
You can, for example create a new POI category called Friends. You
could then add all your friends’ addresses as POIs in this new category.
Tap the following buttons to create and maintain your own POIs.
• Add POI - tap this button to add a location to one of your own POI
categories.
• Warn when near POI - tap this button to set your navigation module
to warn you when you are near selected POIs.
• Delete POI - tap this button to delete one of your own POI categories.
• Edit POI - tap this button to edit one of your own POIs.
• Add POI category - tap this button to create a new POI category.
• Delete POI category - tap this button to delete one of your own POI
categories.
Show POI on map
Tap this button to select the types of Point of Interest (POI) you want to
see on the map.
Show POI on
map
1. Tap Show POI on map in the Settings menu.
2. Select the POI categories you want to be shown on the map.
Tap Search and use the keyboard to search for a category name.
3. Select whether you want POIs to be shown in 2D or 3D views of the
map.
4. Tap Done.
Point of Interest locations are shown on the map as symbols.
34
Change Home location
Tap this button to set or change your Home location. You enter the
address in the same way as you do when you plan a route.
Change Home
location
Your Home location provides an easy way to plan a route to an important location.
For most people, your Home location will be your home address. However, you might prefer to set the location to another regular destination,
such as your place of work.
Switch map
Tap this button to select the map you want to use for route planning and
navigation.
Switch map
Although you can store more than one map on the device, you can only
use one map at a time for planning and navigation.
To switch from the current map to plan a route in another country or
region, simply change this setting.
Note: When you first select a new map, you may need to connect to
your MyTomTom account and activate the map.
Planning settings
Tap this button to set the way your TomTom navigation module calculates the routes that you plan.
Planning
settings
Set the type of route you want your navigation module to calculate.
Tap IQ Routes to set if you want the device to use IQ Routes information
to help find the best route.
Set whether you want to be warned if your route passes through an
area where your map contains only limited information.
Set how your navigation module should manage toll roads and ferry
crossings when the device calculates a route.
Set whether you want the route summary screen to close automatically
after you plan a route. If you select No, then you will need to tap Done
to close the route summary screen every time you plan a route.
Safety settings
Tap this button to select the safety features you want to use on your
TomTom navigation module.
Safety
settings
35
Car symbol
Tap this button to select the car symbol that shows your current location in the Driving view.
Car symbol
2D/3D settings
Tap this button to set the default view of the map. To switch between
2D and 3D views while driving, tap the center part of the status bar in
Driving View.
2D/3D settings
It is sometimes easier to view the map from above, such as when
navigating a complex road network.
The 2D view shows a two dimensional view of the map as though
viewed from above.
The 3D view shows a three dimensional view of the map as though
you are driving through the landscape.
The following buttons are available:
• In 2D view: rotate map in direction of travel - tap this button so
the map is rotated automatically with the direction you are traveling always at the top.
• Switch to 3D view when following a route - tap this button to
show the map automatically in 3D view when you are following a
route.
Status bar settings
Tap this button to select the information you want to see on the status
bar.
Status bar
settings
• Horizontal - show the status bar at the bottom of the Driving view.
• Vertical - show the status bar on the right-hand side of the Driving
view.
• Maximum speed
Important: The speed limit is shown next to your current speed, and
your speed is shown in red if you drive faster than the speed limit.
Information about speed limits is not available for all roads.
• Current time
• Remaining distance - the distance to your destination.
• Leeway - your navigation module shows how late or early you will
arrive, compared with your preferred arrival time that was set when
you planned the route.
36
Change map colors
Change map
colors
Tap this button to select color schemes for day and night map colors
and to set Link night colors to headlights. To manually toggle between
the day color scheme and the night color scheme, tap Use night colors
or Use day colors in the Settings menu.
Tap Search to search for a color scheme by typing the name.
To download more color schemes, go to tomtom.com.
Keyboard settings
Tap this button to select the keyboards that should be available and the
layout of the Latin keyboard.
Keyboard
settings
You use the keyboard to enter names and addresses, such as when you
plan a route or search for the name of a town or a local restaurant.
Change language
Tap this button to change the language used for all the buttons and
messages you see on your navigation module.
Change
language
You can choose from a wide range of languages. When you change the
language, you are also given the opportunity to change the voice.
Set units
Tap this button to set the units used on your navigation module for features such as route planning.
Set units
Operate left-handed / Operate right-handed
Tap this button to make it easier for right- or left-handed operation.
Operate lefthanded /
Operate righthanded
This will affect items such as the zoom bar when you are viewing the
map.
37
Advanced settings
Tap this button to select the following advanced settings:
Advanced
settings
• Show house number before street name - when this setting is
selected, addresses are shown with the house number followed by
the street name, such as 1600 Pennsylvania Avenue.
• Show street names - when this setting is selected, street names are
shown on the map in the Driving View. You do not need to select this
option when your navigation module is set to read aloud street
names using a computer voice.
• Show next street name - when this setting is selected, the name of
the next street on your route is shown at the top of the Driving view.
• Show current street name on map - when this setting is selected, the
name of the street you are on is shown at the bottom of the Driving
view.
• Show location preview - when this setting is selected, a graphical
preview of your destination is shown during route planning.
• Enable automatic zooming in 2D view
• Enable automatic zooming in 3D view
• Show lane images - when this setting is selected, a graphical view of
the road ahead shows which lane you need when you approach a
junction or highway exit. This feature is not available for all roads.
• Automatically adjust clock for time zone
Reset factory settings
Tap this button to delete all your personal settings and restore the standard factory settings to your TomTom navigation module.
Reset factory
settings
This is not a software update and will not affect the version of the software application installed on your navigation module.
Important: This feature deletes all your personal settings!
If you want to keep your personal information and settings, you should
perform a full backup of your navigation module before you reset the
device. You can then restore all your personal information and settings
after you reset the device.
This includes items such as your Home and Favorite locations, your
personal menu and your POI categories and POI locations.
38
12. Points of Interest
Points
of Interest
About Points of Interest
Points of Interest or POIs are useful places on the map.
Here are some examples:
• Restaurants
• Hotels
• Museums
• Parking garages
• Gas stations
Tip: To report incorrect or missing information about an existing Point of Interest included
with your map, use the Map Share service to share your corrections with the Map Share
community.
Manage POIs
Tap this button to manage your POI categories and locations.
Manage POIs
Tip: To report incorrect or missing information about an existing Point
of Interest included with your map, use the Map Share service to share
your corrections with the Map Share community.
You can set your navigation module to let you know when you are near to selected POI
locations. In this way you could, for example, set the device to let you know you when you
are approaching a gas station.
You can create your own POI categories and add your own POI locations to these categories.
This means you can, for example, create a new POI category called Friends. You could
then add all your friends’ addresses as POIs in this new category.
Tap the following buttons to create and maintain your own POIs.
• Add POI - tap this button to add a location to one of your own POI categories.
• Warn when near POI - tap this button to set your navigation module to warn you when
you are near selected POIs.
• Delete POI - tap this button to delete one of your own POI categories.
• Edit POI - tap this button to edit one of your own POIs.
39
• Add POI category - tap this button to create a new POI category.
• Delete POI category - tap this button to delete one of your own POI categories.
Creating POIs
Tip: You can download POI sets and share your own POI sets using MyTomTom.
1. Tap the screen to open the Main Menu.
2. Tap Settings.
3. Tap Manage POIs.
4. If there are no POI categories or the one you want to use does not exist, tap Add POI
category and create a new category.
Every POI must be assigned to a POI category. This means you
need to have created at least one POI category before you can create your first POI.
Add POI
category
You can only add POIs to POI categories you have created.
For more information on creating POI categories, read Managing
POIs.
5. Tap Add POI.
6. Select the POI category you want to use for the new POI.
7. Tap a button to enter the POI address in the same way that you plan a route.
Tap this button to set your Home location as a POI.
Home
This is useful if you decide to change your Home location but first
want to create a POI using the current Home address.
Tap this button to create a POI from a Favorite.
Favorite
You might want to create a POI from a Favorite because you can
only create a limited number of Favorites. If you want to create
more Favorites you need to delete some Favorites. To avoid losing
a Favorite, save the location as a POI before you delete the Favorite.
Tap this button to enter an address as a new POI.
When you enter an address, you can choose from four options.
Address
• City center
• Street and house number
• ZIP code
• Cross street or intersection
Tap this button to select a POI location from a list of places you
have recently used as destinations.
Recent
destination
40
Tap this button to add a Point of Interest (POI) as a POI.
Point of Interest
For example, if you are creating a category of POIs for your favorite restaurants, use this option instead of entering the addresses of
the restaurants.
Tap this button to add your current location as a POI.
My location
For example, if you stop somewhere interesting, you can tap this
button to create a new POI at the current location.
Tap this button to create a POI using the map browser.
Use the cursor to select the location of the POI, then tap Done.
Point on map
Tap this button to create a POI by entering latitude and longitude
values.
Latitude
Longitude
Tap this button to select the location where your navigation module was last docked.
Position of last
stop
The POI is created and saved in the selected category.
Using POIs to plan a route
When you plan a route, you can use a POI for the destination.
The following example shows how to plan a route to a parking lot in a city:
1. Tap Navigate to... in the Main menu.
2. Tap Point of Interest.
3. Tap POI in city.
Tip: The last POI you viewed on your navigation module is also shown in the menu.
4. Enter the name of the town or city and select it when it is shown in the list.
5. Tap the arrow button to expand the list of POI categories.
Tip: If you already know the name of the POI you want to use, you can tap Search POI to
enter the name and select this location.
6. Scroll down the list and tap Parking lot.
The parking lot closest to your destination is shown at the top of the list.
The following table explains the distances shown next to each POI. How the distance is
measured varies depending on how you initially searched for the POI:
• POI near you - distance from your current location
• POI in city - distance from the city center
• POI near Home - distance from your Home location
41
• POI along route - distance from your current location
• POI near destination - distance from your destination
7. Tap the name of the parking lot you want to use and tap Done when the route has been
calculated.
Your TomTom navigation module starts to guide you to the parking lot.
Show POI on map
Tap this button to select the types of Point of Interest (POI) you want to
see on the map.
Show POI on
map
1. Tap Show POI on map in the Settings menu.
2. Select the POI categories you want to be shown on the map.
Tap Search and use the keyboard to search for a category name.
3. Select whether you want POIs to be shown in 2D or 3D views of the
map.
4. Tap Done.
Point of Interest locations are shown on the map as symbols.
Setting warnings for POIs
You can set a warning sound or message to be played or displayed when you approach a
selected type of POI, such as a gas station.
The following example will show how to set a warning sound to be played when you are
300 yards from a petrol station.
1. Tap Manage POIs in the settings menu.
2. Tap Warn when near POI.
3. Scroll down the list and tap Gas station.
Tip: To remove a warning, tap on the category name and then tap Yes. POI categories
which have been set with a warning have a sound symbol next to the category name.
4. Set the distance as 300 yards and tap OK.
5. Select Sound effect and then tap Next.
6. Select the warning sound for the POI and then tap Next.
7. If you only want to hear the warning when the POI is directly on a planned route, select
Warn only if POI is on route. Then tap Done.
The warning is set for the selected POI category. You will hear a warning sound when
you are 500 feet from a petrol station on your route.
42
13. Help
Help
About getting help
Tap Help in the Main Menu to navigate to emergency services centers and other specialist
services.
For example, if you are involved in a car accident, you could use the Help menu to find the
nearest hospital.
Tip: If you do not see the Help button in the Main Menu, tap Settings and then Safety settings. Clear the checkbox for Show only essential menu options while driving.
Help menu options
Note: In some countries, information may not be available for all services.
Tap this button to navigate your way by car to a service center.
Drive to help
Tap this button to see your current location on the map.
Where am I?
Tap this button to read a selection of guides including a First Aid
guide.
Safety and other
guides
Tap this button to read a selection of guides relating to your navigation device.
Product Manuals
43
14. Favorites
Favorites
About Favorites
Favorites provide an easy way to select a location without the need to enter the address.
They do not need to be favorite places; they can simply be seen as a collection of useful
addresses.
Creating a Favorite
To create a Favorite, do the following:
1. Tap the screen to bring up the Main Menu.
2. Tap Settings to open the Settings menu.
3. Tap Manage Favorites.
4. Tap Add.
5. Select the type of the Favorite by tapping one of the buttons described below:
You can set your Home location as a Favorite.
Home
You cannot create a Favorite from another Favorite. This option will
always be unavailable in this menu.
Favorite
To rename a Favorite, tap Manage Favorites in the Settings menu.
You can enter an address as a Favorite.
Address
Create a new Favorite by selecting a location from a list of your
recent destinations.
Recent
destination
If you visit a POI you particularly like, for example a restaurant, you
can add it as a Favorite.
Point of Interest
44
Tap this button to add your current location as a Favorite.
My location
For example, if you stop somewhere interesting, while you are there
you can tap this button to create the Favorite.
Tap this button to create a Favorite using the Map Browser.
Select the location of the Favorite using the cursor, then tap Done.
Point on map
Tap this button to create a Favorite by entering latitude and longitude
values.
Latitude
Longitude
Tap this button to select your last recorded position as your destination.
Position of last
stop
6. Your navigation module suggests a name for your new Favorite. To enter a new name,
there is no need to delete the suggested name, you just start typing.
Tip: It is a good idea to give your Favorite a name that is easy to remember.
7. Tap OK.
Your new favorite appears in the list.
After you have added two or more Favorites, you are asked whether you make regular
trips to the same locations. If you tap YES, you can enter these destinations as your
favorite destinations. Every time you switch on your device, you can immediately select
one of these locations as your destination.To change these destinations or select a new
destination, tap Start-up settings in the Settings menu, then select Ask for a destination.
Using a Favorite
You can use a Favorite as a way of navigating to a place without having to enter the
address. To navigate to a Favorite, do the following:
1. Tap the screen to bring up the main menu.
2. Tap Navigate to...
3. Tap Favorite.
4. Select a Favorite from the list.
You see your Favorite on the map. You can tap Parking facility to see a list of parking
POIs near to your Favorite. You can also call the Favorite or see more information about
it.
5. Tap Select to choose to navigate to this Favorite.
Tip: Use the left and right arrows to choose another Favorite from your list.
Your navigation module calculates the route for you.
6. When the route is calculated, tap Done.
45
Your navigation module will immediately start guiding you to your destination with spoken instructions and visual instructions on the screen.
Changing the name of a Favorite
To change the name of a Favorite, do the following:
1. Tap the screen to bring up the Main Menu.
2. Tap Settings to open the Settings menu.
3. Tap Manage Favorites.
4. Tap the Favorite you want to rename.
Tip: Use the left and right arrows to choose another Favorite from your list.
5. Type in the new name and then tap OK.
6. Tap Done.
Deleting a Favorite
To delete a Favorite, do the following:
1. Tap the screen to bring up the Main Menu.
2. Tap Settings to open the Settings menu.
3. Tap Manage Favorites.
4. Tap the Favorite you want to delete.
Tip: Use the left and right arrows to choose another Favorite from your list.
5. Tap Yes to confirm the deletion.
6. Tap Done.
46
15. Safety Cameras
Safety
Cameras
About Safety Cameras
The Safety Cameras service warns you about the following roadside camera
locations:
• Safety camera locations.
• Accident blackspot locations.
• Temporary safety camera locations.
• Average speed camera locations.
• Toll booth camera locations.
• Red light camera locations.
Safety camera warnings
By default, warnings are given 15 seconds before you reach a safety camera location.
You are warned in three ways:
• Your TomTom navigation module plays a warning sound.
• The type of safety camera and your distance from the camera location is shown in the
Driving View. If a speed restriction has been reported for the camera, the speed is also
shown in the Driving View.
• The location of the safety camera is shown on the map.
Note: For average speed cameras, you are warned by a combination of icons and sounds
at the start, middle and end of the average speed check zone.
47
Tip: To change the number of seconds or the warning sound, tap Alert settings in the
Safety Cameras menu.
Changing the way you are warned
To change the way your TomTom navigation module warns you about
safety cameras, tap the Alert settings button.
Alert settings
You can then set how close you want to be to a safety camera before
you are warned and what type of sound will be played.
For example, to change the sound that is played when you approach a
fixed safety camera, do the following:
1. Tap Services in the Main Menu.
2. Tap Safety Cameras.
3. Tap Alert settings.
A list of safety camera types is displayed. A speaker is shown next
to the safety camera types that have been set for an alert.
4. Tap Fixed cameras.
5. Tap NO to avoid removing the fixed safety camera alerts.
6. Enter the time in seconds for when a warning is given before you
reach a camera. Then tap OK.
7. Tap the sound you want to be used for the warning.
Tips: To switch off warning sounds for a camera type, tap Silence in
step 7 above. You still see a warning in the Driving View if you switch
off the warning sound.
8. Tap YES to save your changes.
Safety Camera Symbols
Safety cameras are shown as symbols on the Driving View.
When you approach an area where an alert is located, you see a symbol and a warning
sound is played.
You can change both the warning sound and the number of seconds that the warning is
issued before reaching the alert.
Fixed safety camera
Temporary safety camera
Red light camera
48
Toll booth camera
Restricted road camera - located on a minor road that reduces traffic on a
larger road
Other cameras
Temporary camera hotspot
Average speed check
Accident black spot
Bi-directional safety camera
Ungated railway crossing
Report button
To show the report button in the Driving View, do the following:
1. Tap Services in the Main Menu.
2. Tap Safety Cameras.
3. Tap Enable report button.
4. Tap Done.
The report button is shown on left-hand side of the Driving View or, if you are already
using the quick menu, it’s added to the buttons available in the quick menu.
Tip: To hide the report button, tap Disable report button in the Safety Cameras menu.
Reporting a new safety camera while on the move
1. Tap the report button shown in the Driving View or in the quick menu to record the location of the camera.
If you tap the report button within 20 seconds of receiving a safety camera warning, you
get the option to add a camera or remove a camera. Tap Add camera.
2. Tap Fixed camera or Temporary camera, depending on the type of camera you are
reporting.
3. Select the camera location on the map and confirm that it is correct.
4. Tap the type of fixed camera you want to report, for example, a red light camera.
49
Note: If the type of camera you choose has a speed restriction, you can also enter the
speed.
A message confirms that your camera will be reported to the Safety Camera team at
TomTom.
Reporting a new safety camera while at home
You do not need to be at the location of a safety camera to report the new location. To
report a new safety camera location while you are at home, do the following:
1. Tap Services in the Main Menu on your navigation device.
2. Tap Safety Cameras.
3. Tap Report safety camera.
4. Tap Fixed camera or Temporary camera depending upon the type of safety camera.
5. Use the cursor to mark the exact location of the camera on the map, then tap Done.
6. Tap Yes to confirm the location of the camera.
7. Tap on the type of camera you want to report and if necessary, choose the speed
restriction for the camera.
You see a message confirming that your camera will be reported to the Safety Cameras
team.
Reporting incorrect camera alerts
You may receive an alert for a camera that is no longer there. To report an incorrect camera alert, do the following:
1. While you are at the location of the missing camera, tap Report in the Driving View.
Note: This must be done within 20 seconds of receiving the camera alert.
2. Tap Remove.
The next time you connect your navigation device to the TomTom website, the camera
alert is reported as incorrect.
Types of fixed safety camera you can report
When you report a fixed safety camera, you can select the type of fixed camera you are
reporting.
These are the different types of fixed safety camera:
This type of safety camera checks the speed of passing vehicles.
Safety camera
This type of camera checks for vehicles breaking traffic rules at traffic
lights.
Red light
camera
50
This type of camera monitors traffic at toll road barriers.
Toll booth
safety camera
This type of safety camera checks the average speed of vehicles
between two fixed points.
Average
speed check
This type of camera checks traffic on roads where access is restricted.
Vehicle
restriction
All other types of cameras that do not fall into any of the above categories.
Other
cameras
Average speed check camera warnings
There are several types of visual and audible warnings that you may see and hear when
you meet an average speed check camera.
You always receive a start and end zone warning regardless of the speed you are traveling
at. Intermediate warnings, if given, occur every 200 meters.
All the warnings are described below:
Start of zone warning
As you approach the start of an average speed check zone, you see a
visual warning in the top left hand corner of the Driving View with a distance to the camera underneath it. You hear an audible warning.
You also see a small icon on the road showing the position of the average speed check camera at the start of the zone.
Intermediate warning - type 1
Once in the speed check zone, if you are not speeding and have already
received a start of zone warning, you see a visual warning in the Driving
View. This reminds you that you are still in the speed check zone.
Intermediate warning - type 2
Once in the speed check zone, if you are driving at over 100% of the
permitted speed and have already received a start of zone warning, you
see a visual warning in the Driving View indicating the maximum permitted speed. You also hear a small audible warning. These warnings
are there to remind you to slow down...
51
Intermediate warning - type 3
Once in the speed check zone, if you are driving at over 100% of the
permitted speed and have not received a start of zone warning, you see
a visual warning in the Driving View indicating the maximum permitted
speed. You also hear a loud audible warning.
These warnings occur at the FIRST intermediate point only and are
there to remind you to slow down...
End of zone warning
As you approach the end of an average speed check zone, you see a
visual warning in the Driving View with a distance to the camera shown
underneath it. You hear an audible warning.
You also see a small icon on the road showing the position of the average speed check camera at the end of the zone.
Safety Cameras menu
To open the Safety Cameras menu, tap Services in the Main Menu and then tap Safety
Cameras.
Tap this button to report a new safety camera location.
Report safety
camera
Tap this button to set the alerts you will receive and the sounds used for
each alert.
Alert settings
Tap this button to disable alerts.
Disable alerts
Tap this button to enable the report button. The report button is shown
in the Driving View or in the quick menu.
Enable report
button
When the report button is shown in the Driving View, this button
changes to Disable report button.
52
16. MyTomTom
MyTo
mTom
About MyTomTom
MyTomTom helps you manage the contents and services of your TomTom navigation
module, as well as giving you access to the TomTom community. You log in to MyTomTom on the TomTom website. It is a good idea to frequently connect your navigation module to MyTomTom, to ensure you always have the latest updates.
Tip: We recommend using a broadband internet connection whenever you connect your
navigation device to MyTomTom.
Setting up MyTomTom
1
2
To set up MyTomTom, do the following:
1. Connect your computer to the internet.
2. Start a browser and go to tomtom.com/getstarted.
3. Click Download now.
Your browser downloads the MyTomTom support application, which you need to
install on your computer in order to connect your device to MyTomTom. Follow the
instructions on the screen if you are asked questions while downloading.
4. Connect your device to your computer using the USB cable.
Your device is then recognized, and possible updates are offered.
Important: You should plug the USB connector directly into a USB port on your computer
and not into a USB hub or USB port on a keyboard or monitor.
Once the MyTomTom support application is installed on your computer, you can access
MyTomTom from the system tray on your computer.
53
Tip: When you connect your navigation device to your computer, MyTomTom tells you if
there are any updates for your device.
MyTomTom account
To download content and services from TomTom, you need a MyTomTom account. You
can create an account when you start using MyTomTom.
Note: If you have more than one TomTom device, you need a separate account for each
device.
54
17. Customer support
Customer
support
Getting help to use your navigation device
You can find further online help at tomtom.com/support.
Status & information
Tap this button to open the Status & information menu.
Status &
information
Tap this button to view technical information about your device, such as
your serial number for your device and the TomTom App version.
Version
information
Tap this button to see the current status for GPS reception.
GPS Status
55
18. Addendum
Addendum
Important Safety Notices and Warnings
Global Positioning System
The Global Positioning System (GPS) is a satellite-based system that provides location and
timing information around the globe. GPS is operated and controlled under the sole
responsibility of the Government of the United States of America, which is responsible for
its availability and accuracy. Any changes in GPS availability and accuracy, or in environmental conditions, may impact the operation of your TomTom device. TomTom does not
accept any liability for the availability and accuracy of GPS.
Use with Care
Use of a TomTom device for navigation still means that you need to drive with due care
and attention.
Taking care of your TomTom device
Do not leave your TomTom device or TomTom accessories in view when you leave your
car. They may become an easy target for thieves.
We recommend that you use the safety preferences on your TomTom device, where available. The safety preferences are available in the Preferences menu.
Take care of your TomTom device and clean it correctly.
• If your device gets wet, dry it with a soft cloth.
• Do not open the casing of your device under any circumstances. Doing so may be dangerous and will invalidate your warranty.
• Do not expose your device to high or low temperatures, which can cause permanent
damage. For example, don’t leave it in the car on hot summer days or during cold winter
nights.
Battery
This product uses a Lithium-Ion battery. Do not use it in a humid, wet and/or corrosive
environment. Do not put, store or leave your product in or near a heat source, in a high
temperature location, in strong direct sunlight, in a microwave oven or in a pressurized
container, and do not expose it to temperatures over 60 C (140 F). Failure to follow these
guidelines may cause the Lithium-Ion battery to leak acid, become hot, explode or ignite
and cause injury and/or damage. Do not pierce, open or disassemble the battery. If the
battery leaks and you come into contact with the leaked fluids, rinse thoroughly with water
and seek medical attention immediately. For safety reasons, and to prolong the lifetime of
the battery, charging will not occur at low (below 0 C/32 F) or high (over 45 C/113 F) temperatures.
Temperatures: Standard operation: -0 C (32 F) to +45 C (113 F); short-term storage: -20 C
(-4 F) to + 60 C (140 F); long-term storage: -20 C (-4 F) to +25 C (77 F).
Caution: risk of explosion if battery is replaced with an incorrect type.
56
Do not remove or attempt to remove the non-user-replaceable battery. If you have a problem with the battery, please contact TomTom customer support.
THE LITHIUM-ION BATTERY CONTAINED IN THE PRODUCT MUST BE RECYCLED
OR DISPOSED OF PROPERLY ACCORDING TO THE LOCAL LAWS AND REGULATIONS AND ALWAYS SEPARATE FROM HOUSEHOLD WASTE. BY DOING THIS
YOU WILL HELP CONSERVE THE ENVIRONMENT. CHARGE YOUR TOMTOM
BATTERY ONLY IN THE APPROVED CAR DOCK OR USE THE SUPPLIED USB CABLE TO
CONNECT TO A COMPUTER.
Do not disassemble or crush, bend or deform, puncture or shred.
Do not modify or remanufacture, attempt to insert foreign objects into the battery,
immerse or expose to water or other liquids, expose to fire, explosion or other hazard.
Only use the battery for a system for which it is specified.
Only use the battery with a charging system that has been qualified with the system per
this standard. Use of an unqualified battery or charger may present a risk of fire, explosion,
leakage or other hazard.
Do not short circuit a battery or allow metallic conductive objects to contact battery terminals.
Replace the battery only with another battery that has been qualified with the system per
this standard, IEEE-Std-1725-200x. Use of an unqualified battery may present a risk of fire,
explosion, leakage or other hazard.
Promptly dispose of used batteries in accordance with local regulations.
Battery usage by children should be supervised.
Avoid dropping the phone or battery. If the phone or battery is dropped, especially on a
hard surface and the user suspects damage, take it to a service center for inspection.
Improper battery use may result in a fire, explosion or other hazard.
For those host devices that utilize a USB port as a charging source, the host device’s user
manual shall include a statement that the phone shall only be connected to products that
bear the USB-IF logo or have completed the USB-IF compliance program.
The stated battery life is a maximum possible battery life. The maximum battery life will
only be achieved under specific atmospheric conditions. The estimated maximum battery
life is based on an average usage profile.
For tips on extending the battery life, go to the FAQ listed below for your country:
AU:www.tomtom.com/8703, CZ:www.tomtom.com/7509, DE:www.tomtom.com/
7508, DK:www.tomtom.com/9298, ES:www.tomtom.com/7507, FI:www.tomtom.com/9299, FR:www.tomtom.com/7506, HU:www.tomtom.com/10251,
IT:www.tomtom.com/7505, NL:www.tomtom.com/7504, PL:www.tomtom.com/7503,
PT:www.tomtom.com/8029, RU:www.tomtom.com/10250, SE:www.tomtom.com/
8704, UK:www.tomtom.com/7502, US:www.tomtom.com/7510
CE Marking
This equipment complies with the requirements for CE marking when used in a residential,
commercial, vehicular or light industrial environment, achieving all the appropriate provisions of the relevant legislation in the EU.
0682
57
Federal Communications Commission (FCC) Statement
THE DEVICE COMPLIES WITH PART 15 OF THE FCC RULES
Radio and Television Interference
This equipment radiates radio frequency energy and if not used properly - that is, in strict
accordance with the instructions in this manual - may cause interference to radio communications and television reception.
This device has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation distance between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user‘s authority to operate the equipment.
Important
This equipment was tested for FCC compliance under conditions that included the use of
shielded cables and connectors between it and the peripherals. It is important that you use
shielded cables and connectors to reduce the possibility of causing radio and television
interference. Shielded cables suitable for the product range can be obtained from an
authorised dealer. If the user modifies the equipment or its peripherals in any way, and
these modifications are not approved by TomTom, the FCC may withdraw the user’s right
to operate the equipment. For customers in the USA, the following booklet prepared by
the Federal Communications Commission may be of help: “How to Identify and Resolve
Radio-TV Interference Problems”. This booklet is available from the US Government Printing Office, Washington, DC 20402. Stock No 004-000-00345-4.
FCC Declaration of Conformity
Tested to comply with FCC Standards for Home or Office Use
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
Responsible party in North America
TomTom, Inc., 150 Baker Avenue Extension, Concord, MA 01742
Tel: 866 486-6866 option 1 (1-866-4-TomTom)
R&TTE directive
Hereby, TomTom declares that TomTom personal navigation devices and accessories are
in compliance with the essential requirements and other relevant provisions of the EU
58
Directive 1999/5/EC. The declaration of conformity can be found here: www.tomtom.com/legal.
WEEE directive
cling.
This symbol on the product or its packaging indicates that this product shall not
be treated as household waste. In line with EU Directive 2002/96/EC for waste
electrical and electronic equipment (WEEE), this electrical product must not be
disposed of as unsorted municipal waste. Please dispose of this product by
returning it to the point of sale or to your local municipal collection point for recy-
This Document
Great care was taken in preparing this manual. Constant product development may mean
that some information is not entirely up to date. The information in this document is subject to change without notice.
TomTom shall not be liable for technical or editorial errors or omissions contained herein;
nor for incidental or consequential damages resulting from the performance or use of this
material. This document contains information protected by copyright. No part of this document may be photocopied or reproduced in any form without prior written consent from
TomTom N.V.
Model names
1MJ01
59
19. Copyright notices
Copyright
notices
© 2010 TomTom N.V., The Netherlands. TomTom®, and the "two hands" logo, among others, are Trademarks owned by TomTom N.V. or one of its subsidiaries. Please see
www.tomtom.com/legal for warranties and end user licence agreements applying to this
product.
© 2010 TomTom N.V., Niederlande. TomTom®, das 'Zwei Hände'-Logo usw. sind registrierte Marken von TomTom N.V. oder eines zugehörigen Tochterunternehmens. Die für
dieses Produkt geltenden Garantien und Endnutzerlizenzvereinbarungen finden Sie unter
www.tomtom.com/legal.
© 2010 TomTom N.V., Pays-Bas. TomTom® et le logo composé de « deux mains », entre
autres, font partie des marques commerciales appartenant à TomTom N.V. ou l'une de
ses filiales. L'utilisation de ce produit est régie par notre garantie limitée et le contrat de
licence utilisateur final, que vous pouvez consulter à l'adresse suivante : www.tomtom.com/legal
© 2010 TomTom N.V., Nederland. TomTom® en het logo met twee handen zijn onder
andere handelsmerken die eigendom zijn van TomTom N.V. of een van haar dochterondernemingen. Ga naar www.tomtom.com/legal voor garanties en licentieovereenkomsten voor eindgebruikers die van toepassing zijn op dit product.
© 2010 TomTom N.V., The Netherlands TomTom® e il logo delle "due mani", fra gli altri,
sono marchi registrati di proprietà di TomTom N.V. o di una delle sue filiali. Consultare
www.tomtom.com/legal per le garanzie e i contratti di licenza per l'utente finale applicabili a questo prodotto.
© 2010 TomTom NV, Países Bajos. TomTom™ y el logotipo "dos manos" son marcas comerciales, aplicaciones o marcas registradas de TomTom NV. Nuestra garantía limitada y
nuestro acuerdo de licencia de usuario final para el software integrado son de aplicación
para este producto; puede consultar ambos en www.tomtom.com/legal.
© 2010 TomTom N.V., Països Baixos. TomTom®, i el logotip amb les "dues mans", entre
altres, formen part de les marques comercials de TomTom N.V. o d'una de les seves filials.
Visiteu www.tomtom.com/legal per a obtenir informació sobre les garanties i els acords
de llicència d'usuari final d'aquest producte.
© 2010 TomTom N.V., Holanda. TomTom® e o logótipo das "duas mãos", entre outras,
são marcas comerciais detidas pela TomTom N.V. ou por uma das suas subsidiárias. Vá
60
a www.tomtom.com/legal para consultar as garantias e o contratos de licença do utilizador final aplicáveis a este produto.
© 2010 TomTom NV, Holland. TomTom™ og logoet med "de to hænder" er blandt de
varemærker, produkter og registrerede varemærker, der tilhører TomTom International
B.V. Vores begrænsede garanti og slutbrugerlicensaftale for indlejret software gælder for
dette produkt; begge dokumenter findes på www.tomtom.com/legal.
© 2010 TomTom N.V., Alankomaat. Muun muassa TomTom® ja kaksi kättä -logo ovat
TomTom N.V:n tai sen tytäryhtiöiden omistamia tavaramerkkejä. Katso osoitteesta
www.tomtom.com/legal tätä tuotetta koskevat takuut ja käyttöehtosopimukset.
© 2010 TomTom N.V., Nederland. TomTom®, og de "to hender"-logoen, blant andre, er
varemerker eid av TomTom N.V. eller en av deres underleverandører. Vennligst se
www.tomtom.com/legal for gjeldende garantier og lisensavtaler for sluttbrukere for
dette produktet.
© 2010 TomTom NV, Nederländerna. TomTom™ och logotypen "två händer" tillhör de varumärken, programvaror eller registrerade varumärken som ägs av TomTom International
B.V. Vår begränsade garanti och vårt slutanvändarlicensavtal för inbyggd programvara
kan gälla för denna produkt. Du kan läsa dem båda på www.tomtom.com/legal.
© 2010 TomTom N.V., Nizozemsko. TomTom® a logo „dvou rukou“ jsou, mimo jiné,
ochranné známky společnosti TomTom N.V. nebo jejích poboček. Navštivte prosím
adresu www.tomtom.com/legal, kde naleznete informace o zárukách a licenčních
smlouvách s koncovým uživatelem vztahujících se k tomuto výrobku.
© 2010 TomTom N.V., Hollandia. A TomTom®, és a „két kéz” embléma, többek között, a
TomTom N.V. vagy leányvállalatai védjegye. A termékre vonatkozó garanciáról és a végfelhasználói licencszerződésekről részleteket a www.tomtom.com/legal oldalon
olvashat.
© 2010 TomTom N.V., Holandia. TomTom™ i logo z dwiema dłońmi, oraz inne, są zarejestrowanymi znakami towarowymi firmy TomTom N.V. lub jednej z jej spółek zależnych.
Informacje o gwarancjach i umowach licencyjnych dla końcowego użytkownika tego
produktu znajdują się na stronie www.tomtom.com/legal.
© 2010 TomTom N.V., Holandsko. TomTom® a logo „dve ruky“ sú okrem ďalších ochranné známky, ktoré vlastní spoločnosť TomTom N.V. alebo jedna z jej dcérskych spoločností. Pozrite si stránku www.tomtom.com/legal, ak chcete informácie o zárukách a
dohody o licencii pre koncového používateľa týkajúce sa tohto produktu.
© 2010 TomTom N.V., Madalmaad. TomTom® ja "kahe käe" logo kuuluvad nende kaubamärkide hulka, mille omanikuks on TomTom N.V. või mõni selle filiaal. Tootele kehtivad
garantiid ja lõppkasutaja litsentsilepingud leiad aadressilt www.tomtom.com/legal.
© 2010 TomTom N.V., Nyderlandai. TomTom® ir "dviejų plaštakų" formos logotipas, kaip
ir daugelis kitų, priklauso TomTom N.V. arba kuriai nors dukterinei įmonei. Apie šiam
61
produktui taikomas garantijas ir licencijavimo galutiniam vartotojui sutartis skaitykite
internete adresu www.tomtom.com/legal.
© 2010 TomTom N.V., Nīderlande. TomTom® un “divu rociņu” logotips ir prečzīmes, kas
pieder TomTom N.V. vai kādam tā meitas uzņēmumam. Garantijas un gala lietotāja
līgumus, kas piemērojami šim izstrādājumam, skatiet vietnē www.tomtom.com/legal.
© 2010 TomTom N.V., Hollanda. TomTom® ve diğer logolar ile birlikte "iki el" logosunun
mülkiyeti, TomTom N.V. veya bağlı şirketlerine aittir. Bu ürün için geçerli garanti ve son
kullanıcı lisans sözleşmeleri için www.tomtom.com/legal sayfasına bakın.
© 2010 TomTom N.V., Holanda. TomTom® e o logotipo "duas mãos" entre outros, são
marcas comerciais de propriedade da TomTom N.V. ou de uma de suas subsidiárias. Consulte www.tomtom.com/legal para obter garantias e contratos de licença de usuário
final que se aplicam a este produto.
Data Source
© 2010 Tele Atlas N.V. Based upon:
Topografische ondergrond Copyright © dienst voor het kadaster en de openbare registers, Apeldoorn 2006.
© Ordnance Survey of Northern Ireland.
© IGN France.
© Swisstopo.
© BEV, GZ 1368/2003.
© Geonext/DeAgostini.
© Norwegian Mapping Authority, Public Roads Administration / © Mapsolutions.
© DAV, violation of these copyrights shall cause legal proceedings.
This product includes mapping data licensed from Ordnance Survey with the permission
of the Controller of Her Majesty’s Stationery Office. © Crown copyright and/or database
right 2010. All rights reserved. Licence number 100026920.
© Roskartographia
Data Source
© 2010 Tele Atlas North America. Inc. All rights reserved.
SoundClear™ acoustic echo cancellation software © Acoustic Technologies Inc.
Text to Speech technology, © 2010 Loquendo TTS. All rights reserved. Loquendo is a registered trademark. www.loquendo.com
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.
62
Supply of this product does not convey a license nor imply any right to distribute content
created with this product in revenue-generating broadcast systems (terrestrial, satellite,
cable and/or other distribution channels), streaming applications (via Internet, intranets
and/or other networks), other content distribution systems (pay-audio or audio-ondemand applications and the like) or on physical media (compact discs, digital versatile
discs, semiconductor chips, hard drives, memory cards and the like). An independent
license for such use is required. For details, please visit mp3licensing.com
Some images are taken from NASA’s Earth Observatory.
The purpose of NASA’s Earth Observatory is to provide a freely-accessible publication on
the Internet where the public can obtain new satellite imagery and scientific information
about our home planet.
The focus is on Earth’s climate and environmental change: earthobservatory.nasa.gov/
The software included in this product contains copyrighted software that is licensed
under the GPL. A copy of that license can be viewed in the License section. You can obtain
the complete corresponding source code from us for a period of three years after our last
shipment of this product. For more information, visit tomtom.com/gpl or to call your local
TomTom customer support team, visit tomtom.com/support and upon your request we
will send you a CD with the corresponding source code.
Linotype, Frutiger and Univers are trademarks of Linotype GmbH registered in the U.S.
Patent and Trademark Office and may be registered in certain other jurisdictions.
MHei is a trademark of The Monotype Corporation and may be registered in certain jurisdictions.
63
Download PDF

advertising
