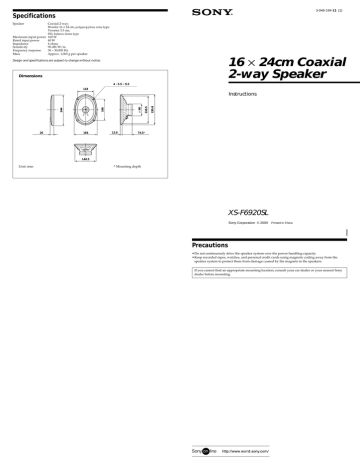

3-046-194-11 (1)
Specifications
Speaker
Coaxial 2-way:
Woofer 16 × 24 cm, polypropylene cone type
Tweeter 3.5 cm,
PEI, balance dome type
Maximum input power
Rated input power
Impedance
Sensitivity
Frequency response
Mass
160 W
40 W
4 ohms
90 dB/W/m
30 – 30,000 Hz
Approx. 1,065 g per speaker
16 × 24cm Coaxial
2-way Speaker
Design and specifications are subject to change without notice.
Dimensions
4 - 5.5 × 9.5
118
164
12.6
235.8
ø 90
166
244
26
216.5
Instructions
74.5*
148.5
Unit: mm
* Mounting depth
XS-F6920SL
Sony Corporation  2000
Printed in China
Precautions
•Do not continuously drive the speaker system over the power handling capacity.
•Keep recorded tapes, watches, and personal credit cards using magnetic coding away from the
speaker system to protect them from damage caused by the magnets in the speakers.
If you cannot find an appropriate mounting location, consult your car dealer or your nearest Sony
dealer before mounting.
Mounting
Parts List
Before Mounting
1
• A depth of at least 74.5 mm is required for
mounting the woofer. Keep the following in mind
when choosing a mounting location.
• A hole may already be provided in the metal
frame of the front door.
•Make sure that the speaker does not hinder the
movement of torsion bar springs, etc. of the trunk
lid.
•The speaker should not touch the window or the
seat.
2
3
5m
5
M4 × 30
×2
6
If you cannot find an appropriate mounting
location, check with your car dealer or consult
the nearest Sony dealer.
4
M4 × 60
×8
7
M4
×8
8
×2
×8
×2
Mounting example
1
2
Mark the four bolt holes. Make them 3.3 mm* in diameter for A or 4.3 mm in
diameter for B.
Remove the grille net.
* When using 5 = 5 mm
8
ø 150.5 mm
c
218.5 mm
1
3
7
A : ø 3.3*
B : ø 4.3
4A
Mounting from the car interior
(Top mounting)
B
Mounting from the trunk
(Buttom mounting)
Rear deck
7
Black-striped cord
3
4
5
2
7
*
Speaker
Metal partition
Power amplifier, etc.
Speaker
6
* White cord — Left speaker
Grey cord — Right speaker
5
Rear deck
Press and insert the edges of the grille net.
How to remove the grille net
8
8
7
7
×8
