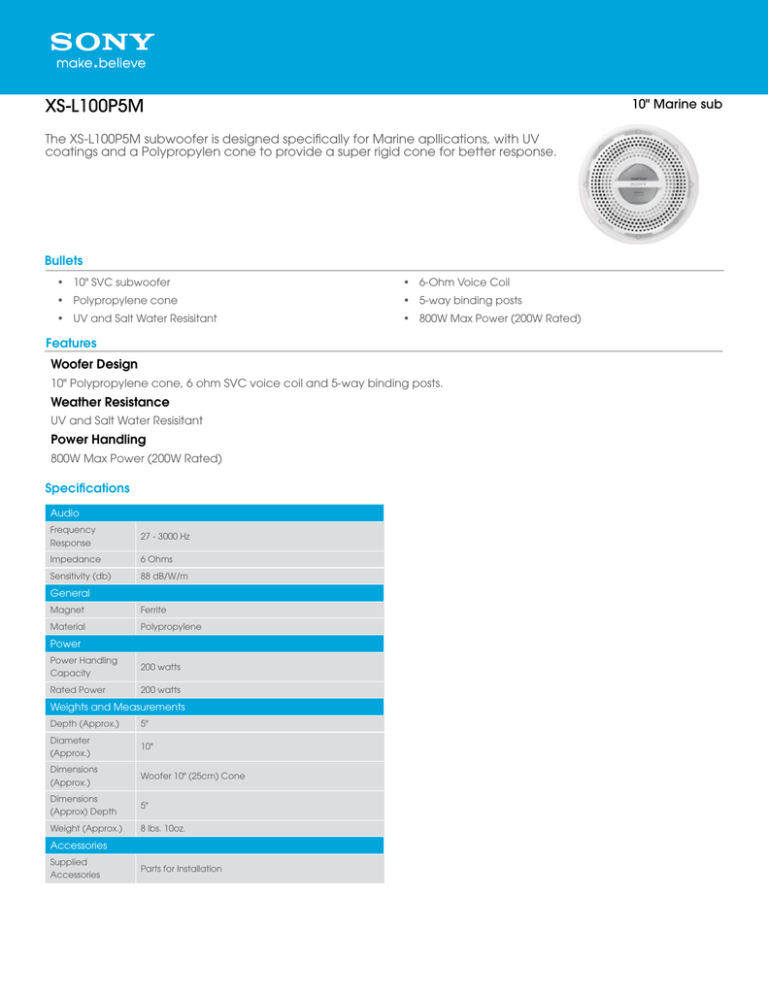

Sony XS-L100P5M Specification

Sony XS-L100P5M Specification
XS-L100P5M
10" Marine sub
The XS-L100P5M subwoofer is designed specifically for Marine apllications, with UV
coatings and a Polypropylen cone to provide a super rigid cone for better response.
Bullets
• 10" SVC subwoofer
• 6-Ohm Voice Coil
• Polypropylene cone
• 5-way binding posts
• UV and Salt Water Resisitant
• 800W Max Power (200W Rated)
Features
Woofer Design
10" Polypropylene cone, 6 ohm SVC voice coil and 5-way binding posts.
Weather Resistance
UV and Salt Water Resisitant
Power Handling
800W Max Power (200W Rated)
Specifications
Audio
Frequency
Response
27 - 3000 Hz
Impedance
6 Ohms
Sensitivity (db)
88 dB/W/m
General
Magnet
Ferrite
Material
Polypropylene
Power
Power Handling
Capacity
200 watts
Rated Power
200 watts
Weights and Measurements
Depth (Approx.)
5"
Diameter
(Approx.)
10"
Dimensions
(Approx.)
Woofer 10" (25cm) Cone
Dimensions
(Approx) Depth
5"
Weight (Approx.)
8 lbs. 10oz.
Accessories
Supplied
Accessories
Parts for Installation
© 2009 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, Memory Stick, nav-u, Quick-BrowZer, Walkman, Xplod,
ZAPPIN, and the Sony, nav-u and Xplod logos are trademarks of Sony. iPhone and iPod are trademarks of Apple Inc., registered in the U.S. and other countries. Bluetooth is a trademark
of Bluetooth SIG, Inc. NAVTEQ Maps & Traffic is a trademark of NAVTEQ. All other trademarks are trademarks of their respective owners. Features and specifications are subject to change
without notice. Non-metric weights and measures are approximate. Updated: April 24, 2013
