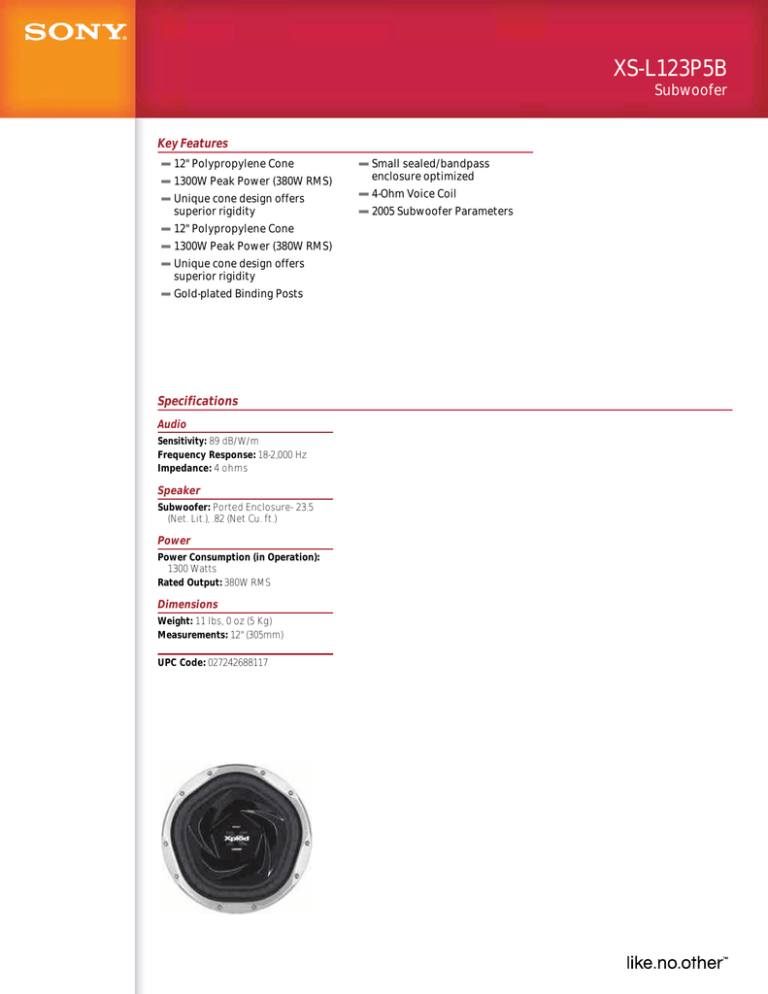

Sony XS-L123P5B Specification

Sony XS-L123P5B Specification
XS-L123P5B
Subwoofer
Key Features
12" Polypropylene Cone
1300W Peak Power (380W RMS)
Unique cone design offers
superior rigidity
12" Polypropylene Cone
1300W Peak Power (380W RMS)
Unique cone design offers
superior rigidity
Gold-plated Binding Posts
Specifications
Audio
Sensitivity: 89 dB/W/m
Frequency Response: 18-2,000 Hz
Impedance: 4 ohms
Speaker
Subwoofer: Ported Enclosure- 23.5
(Net. Lit.), .82 (Net Cu. ft.)
Power
Power Consumption (in Operation):
1300 Watts
Rated Output: 380W RMS
Dimensions
Weight: 11 lbs, 0 oz (5 Kg)
Measurements: 12" (305mm)
UPC Code: 027242688117
Small sealed/bandpass
enclosure optimized
4-Ohm Voice Coil
2005 Subwoofer Parameters
XS-L123P5B
Subwoofer
Please visit the Dealer Network for more information at www.sony.com/dn
©2006 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited.
Sony is a trademark of Sony. All other trademarks are property of their respective owners.
Features and specifications are subject to change without notice. Non-metric weights and measures are approximate.
Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1-800-222-7669 • www.sony.com
Last Updated: 02/02/2007
