3-866-689-01(1)

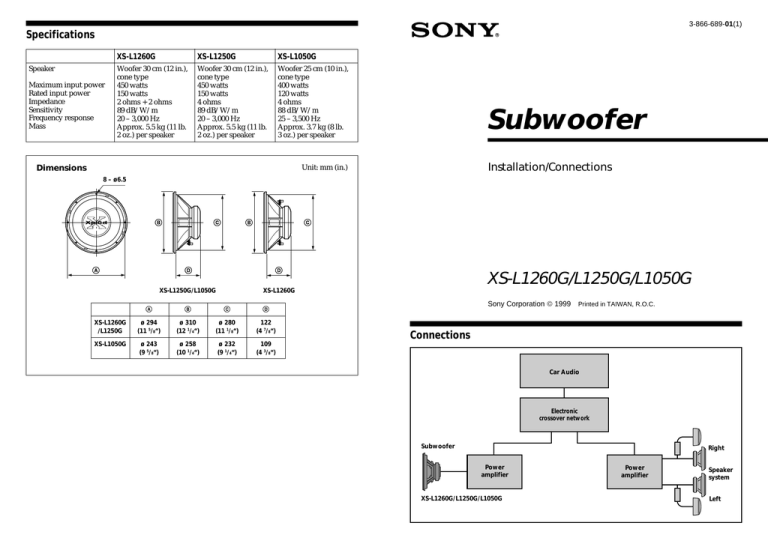

Specifications
Speaker
Maximum input power
Rated input power
Impedance
Sensitivity
Frequency response
Mass
XS-L1260G
XS-L1250G
XS-L1050G
Woofer 30 cm (12 in.),
cone type
450 watts
150 watts
2 ohms + 2 ohms
89 dB/W/m
20 – 3,000 Hz
Approx. 5.5 kg (11 lb.
2 oz.) per speaker
Woofer 30 cm (12 in.),
cone type
450 watts
150 watts
4 ohms
89 dB/W/m
20 – 3,000 Hz
Approx. 5.5 kg (11 lb.
2 oz.) per speaker
Woofer 25 cm (10 in.),
cone type
400 watts
120 watts
4 ohms
88 dB/W/m
25 – 3,500 Hz
Approx. 3.7 kg (8 lb.
3 oz.) per speaker
Subwoofer
Installation/Connections
Unit: mm (in.)
Dimensions
8 – ø6.5
XS-L1260G/L1250G/L1050G
XS-L1250G/L1050G
XS-L1260G
A
B
C
D
XS-L1260G
/L1250G
ø 294
(11 5/8“)
ø 310
(12 1/4“)
ø 280
(11 1/8“)
122
(4 7/8“)
XS-L1050G
ø 243
(9 5/8“)
ø 258
(10 1/4“)
ø 232
(9 1/4“)
109
(4 3/8“)
Sony Corporation  1999 Printed in TAIWAN, R.O.C.
Connections
Car Audio
Electronic
crossover network
Subwoofer
Right
Power
amplifier
XS-L1260G/L1250G/L1050G
Power
amplifier
Speaker
system
Left
Installation
Precautions
Parts list
•Be careful not to overload the speaker system beyond its power handling capacity.
•Keep recorded tapes, watches, and credit cards with magnetic coding, etc. away from the speaker
system to prevent damage caused by the magnets in the speakers.
•When installing the unit, be careful not to damage the diaphragm by hand or tools.
•The subwoofer is heavy, so attach it firmly to a solid, thick, base plate or metal board.
•When using a parallel connection (speaker impedance: 1 ohm) for the XS-L1260G speaker system,
the connected power amplifier shuld support an output of 1 ohm impedance.
1
Unit: mm (in.)
2
1
2
ø5 × 25
×8
3
Red ring: ]
Black ring: }
Speaker cord (not supplied)
Speaker cord
XS-L1050G: ø245 (9 3/4“)
XS-L1260G/XS-L1250G:
ø 282 (11 1/8“)
When connecting the speaker cords, be sure to match the polarities of the
speaker cords and the terminals on the speakers correctly; referr to the ] and
} marks engraved on the speaker terminal tab.
When using the XS-L1260G speaker system, you can connect the speaker
cords by using either of the two connection methods, a parallel or serial
connection as illustrated below.
Parallel connecion
(Speaker impedance: 1 ohm)
Serial connection
(Speaker impedance: 4 ohms)
1
ø 3.2 ( /8“)
to Power
amplifier
3
to Power
amplifier
Example
