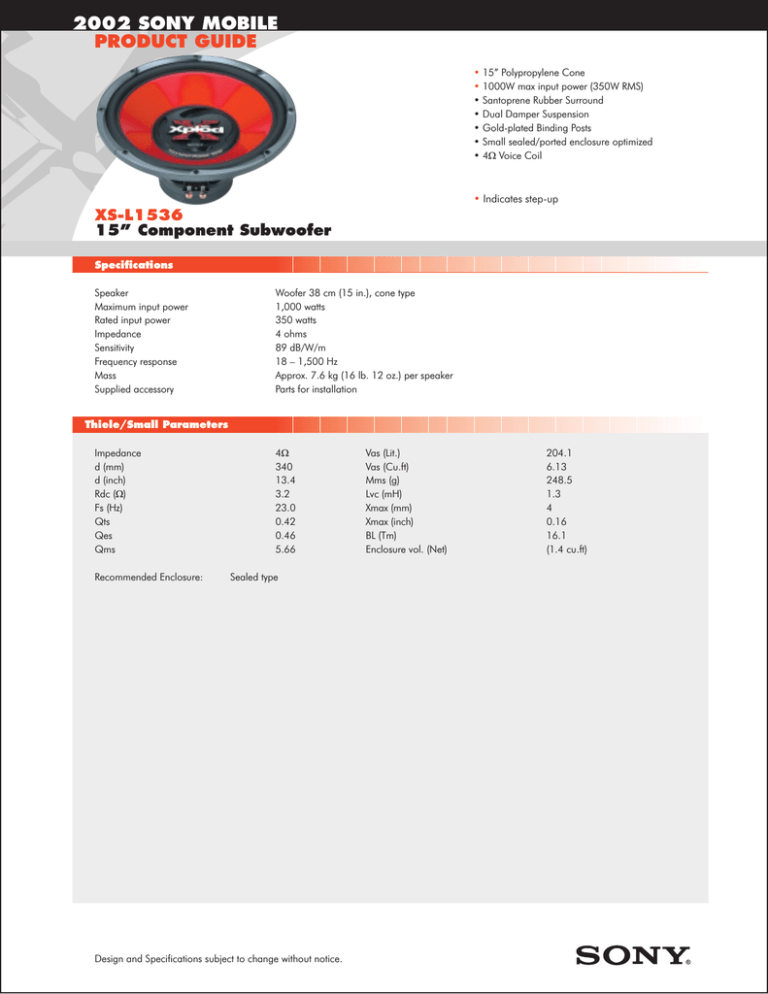

2002 SONY MOBILE
PRODUCT GUIDE
• 15” Polypropylene Cone
• 1000W max input power (350W RMS)
• Santoprene Rubber Surround
• Dual Damper Suspension
• Gold-plated Binding Posts
• Small sealed/ported enclosure optimized
• 4W Voice Coil
• Indicates step-up
XS-L1536
15” Component Subwoofer
Specifications
Speaker
Maximum input power
Rated input power
Impedance
Sensitivity
Frequency response
Mass
Supplied accessory
Woofer 38 cm (15 in.), cone type
1,000 watts
350 watts
4 ohms
89 dB/W/m
18 – 1,500 Hz
Approx. 7.6 kg (16 lb. 12 oz.) per speaker
Parts for installation
Thiele/Small Parameters
Impedance
d (mm)
d (inch)
Rdc (W)
Fs (Hz)
Qts
Qes
Qms
Recommended Enclosure:
4W
340
13.4
3.2
23.0
0.42
0.46
5.66
Sealed type
Design and Specifications subject to change without notice.
Vas (Lit.)
Vas (Cu.ft)
Mms (g)
Lvc (mH)
Xmax (mm)
Xmax (inch)
BL (Tm)
Enclosure vol. (Net)
204.1
6.13
248.5
1.3
4
0.16
16.1
(1.4 cu.ft)
2002 SONY MOBILE
PRODUCT GUIDE
XS-L1536
15” Component Subwoofer
Dimensions
Unit: mm (in.)
ø393 (15 1/2)
ø351 (13 7/8)
8 - ø5.5
ø370 (14 5/8)
Design and Specifications subject to change without notice.
175 (7)
