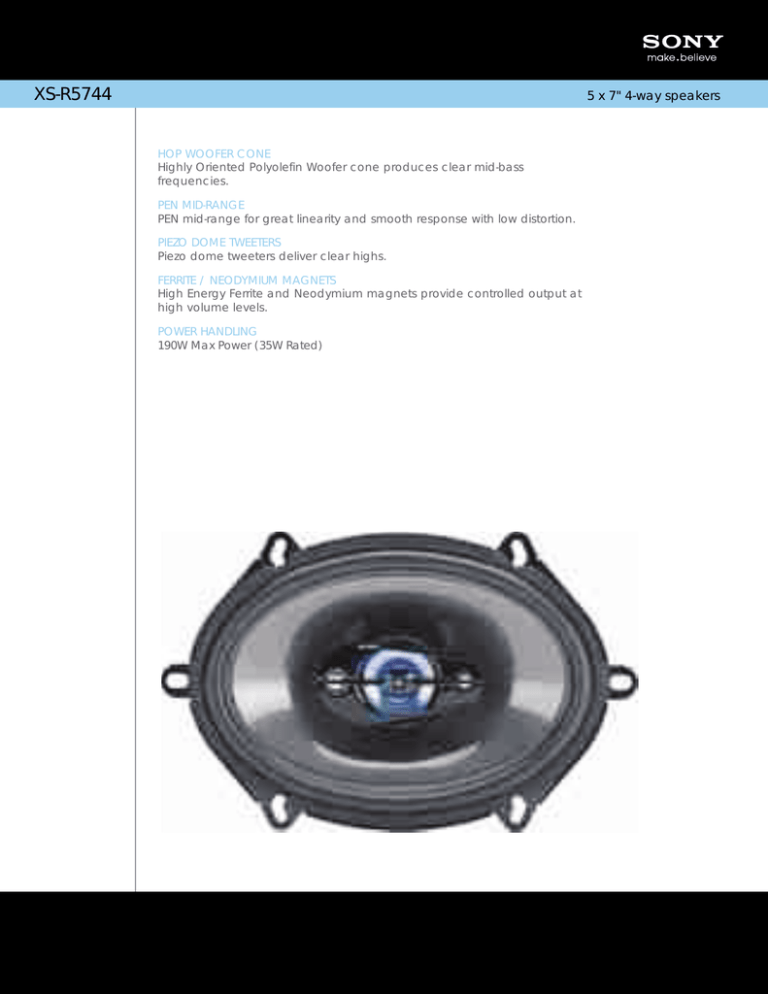

Sony | XS-R5744 | Marketing Specifications | Sony XS-R5744 Marketing Specifications

XS-R5744
5 x 7" 4-way speakers
HOP WOOFER CONE
Highly Oriented Polyolefin Woofer cone produces clear mid-bass
frequencies.
PEN MID-RANGE
PEN mid-range for great linearity and smooth response with low distortion.
PIEZO DOME TWEETERS
Piezo dome tweeters deliver clear highs.
FERRITE / NEODYMIUM MAGNETS
High Energy Ferrite and Neodymium magnets provide controlled output at
high volume levels.
POWER HANDLING
190W Max Power (35W Rated)
XS-R5744
5 x 7" 4-way speakers
Specifications
General
Material: HOP / PEN / PEI
Magnet: Ferrite / Neodymium
Audio
Frequency Response: 60 - 23,000 Hz
Impedance: 4 ohm
Sensitivity (db): 87 dB/1W/1m
Power
Power Handling Capacity: 190 watts
Rated Input: 35 watts
Dimensions
Weight: 1 lbs. 6 oz.
Measurements: 5 x 7"
Supplied Accessories
Parts for Installation
Color: Graphite and black
UPC Code: 027242798373
© 2010 Sony Electronics Inc. All rights reserved. Reproduction in whole or
in part without written permission is prohibited. Sony, Quick-BrowZer,
Walkman, Xplōd, ZAPPIN, and the Sony and Xplōd logos are trademarks of
Sony. iPod is a trademark of Apple Inc. All other trademarks are
trademarks of their respective owners. Features and specifications are
subject to change without notice. Non-metric weights and measures are
approximate and may vary.
Sony Electronics Inc. •16530 Via Esprillo •San Diego, CA 92127 •1.800.222.7669 •www.sony.com
Last Updated: 01/03/2011
