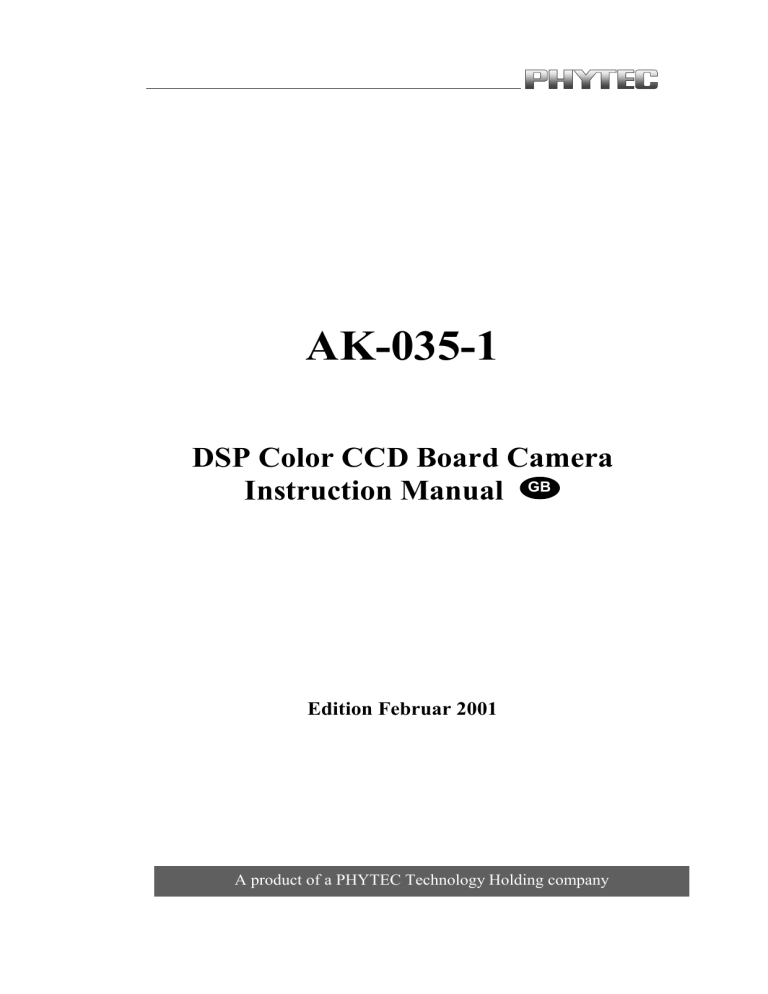

AK-035-1
AK-035-1
DSP Color CCD Board Camera
Instruction Manual GB
Edition Februar 2001
A product of a PHYTEC Technology Holding company
AK-035-1
In this manual are descriptions for copyrighted products which are not explicitly
indicated as such. The absence of the trademark () symbol does not infer that a
product is not protected. Additionally, registered patents and trademarks are
similarly not expressly indicated in this manual
The information in this document has been carefully checked and is believed to be
entirely reliable. However, PHYTEC Meßtechnik GmbH assumes no responsibility for any inaccuracies. PHYTEC Meßtechnik GmbH neither gives any guarantee
nor accepts any liability whatsoever for consequential damages resulting from the
use of this manual or its associated product. PHYTEC Meßtechnik GmbH
reserves the right to alter the information contained herein without prior
notification and accepts no responsibility for any damages which might result.
Additionally, PHYTEC Meßtechnik GmbH offers no guarantee nor accepts any
liability for damages arising from the improper usage or improper installation of
the hardware or software. PHYTEC Meßtechnik GmbH further reserves the right
to alter the layout and/or design of the hardware without prior notification and
accepts no liability for doing so.
 Copyright 2001
PHYTEC Meßtechnik GmbH, D-55129 Mainz. Rights including those of translation, reprint, broadcast, photomechanical or similar
reproduction and storage or processing in computer systems, in whole or in part are reserved. No reproduction may occur without the express written consent from
PHYTEC Meßtechnik GmbH.
Address:
EUROPE
NORTH AMERICA
PHYTEC Technologie Holding AG
Robert-Koch-Str. 39
D-55129 Mainz
GERMANY
PHYTEC America LLC
255 Ericksen Avenue NE
Bainbridge Island, WA 98110
USA
Ordering
+49 (800) 0749832
Information: [email protected]
+1 (800) 278-9913
[email protected]
Technical
Support:
+49 (6131) 9221-31
[email protected]
+1 (800) 278-9913
[email protected]
Fax:
+49 (6131) 9221-33
+1 (206) 780-9135
Web Site:
http://www.phytec.de
http://www.phytec.com
2nd Edition: February 2001
 PHYTEC Meßtechnik GmbH 2001
L-350e_2
Features
1 Features:
-
Board Size 32x32mm + 42x42mm Stack
1/3“ CCD Color DSP Camera
High Sensitivity (0,25Lux at Max Gain +48dB)
Y/C output as standard
3 types of External sync. selectable
Digital Zooming available (Stand. 4x)
Various mode setting available by Jumper Land
RS-232C control available through R/C unit
external parameter control (optional):
In delivery condition the camera in automatik mode. It is not external
control necessary.
A separate connector (the cable is not provided with the camera, order
nr.: WK 031) control the camera parameters via an RS232 and PC.
The PC-software (Win9x/Win2000/WinNT, is included with the
cable) loads the settings up to the camera. The settings can be stored
permanently in the camera. The describtion of camera parameters are
in the software manual of control program.
Figure 1:
controlprogram for VCAM-1-series
© PHYTEC Meßtechnik GmbH 2001
L-350e_2
1
AK-035-1
2 Specifications (Factory setting mentioned in
Gothic letter):
Image sensor
TV signal system
Effective pixels
Video Output
Scanning System
Synchronization
External Sync.
Horizontal resolution
Gamma correction
Min. Illumination
: 1/3” color CCD sensor (Sony ICX-059CK)
: PAL
: 752 (H) x 582 (V)
: VBS (1Vpp, 75 Ohm), Y/C separate
: 2 : 1 Interlace
: Internal / External
: VS/VBS or Sync. or HD/VD or Line Lock
: 450 TV lines or greater at Y-signal
: 0.45
: Standard 0.5 Lux (at AGC=ON +39dB, F1.4)
: Minimum 0.25 Lux (at AGC=ON +48dB, F1.4)
S/N ratio
: 50 dB or more (AGC= OFF)
AGC
: 39 dB Max. (Analog 24dB + Digital 15dB)
: Selectable 8 modes by Jumper (Max. +48 dB)
Electronic Iris/Shutter : E. Iris ON:1/50-1/30,000sec., FL:1/120sec.,
: OFF:1/50sec., shutter speed settable by Jumper
White Balance
: ATW ON (2600oK-9000oK) / OFF / selectable
BLC
: OFF / ON (Center) selectable
Temperatures
: 0 to +40 deg.C (-5 to +50 deg.C at working )
Storage-Temperatures : -25 to +60 deg.C
Standard Built-in Lens : Fixfocus f=5.6mm F3.0
Dimensions
: 42(W) x 42(L) x 34(H) mm
Weigh
: Approx. 35 g (with f=5.6mm lens)
2
 PHYTEC Meßtechnik GmbH 2001
L-350e_2
Connector Pin Assignment
3 Connector Pin Assignment
CN2
JP2
2
1
CN1
10
1
JP1
JP3
A K 035
CN 5:
1. white
2. white
3. yellow
4.
blue
5. black
6.
blue
7. black
8. white
9. black
10.
red
Y output
C output
IRIS output
SYNC / HD input (Ext. Sync)
GND
Ext.-VD input (Ext. Sync)
GND
VIDEO (FBAS) output
GND (DC)
POWER input (DC +12V)
CN 7:
1. GND
2. Remote (RS-232)
© PHYTEC Meßtechnik GmbH 2001
L-350e_2
3
AK-035-1
Jumper-land Setting
Open factory set
Function
JP 1 AGC/Gain ON / +39dB
ON elec. Iris
JP 2 Shutter
JP 3 WB/BLC ATW ON
BLC OFF
JP 4 Dig. Zoom Stop
22kOhm
short
OFF
ON / +24dB
OFF 1/120s fixed ON 1/50s fixed
ATW LOCK
ATW ON
BLC ON
Tele side
Wide side
More adjustments are possible with resistors combinations in jumper
land (OEM).
The connector CN2 in front of the camera, is used for DC-controlled
IRIS (OEM).
4
 PHYTEC Meßtechnik GmbH 2001
L-350e_2
Suggestions for Improvement
Document:
AK-035-1
Document number: L-350e_2, February 2001
How would you improve this manual?
Did you find any mistakes in this manual?
Submitted by:
Customer number:
Name:
Company:
Address:
Return to:
PHYTEC Technologie Holding AG
Postfach 100403
D-55135 Mainz, Germany
Fax : +49 (6131) 9221-33
© PHYTEC Meßtechnik GmbH 2001
L-350e_2
page
Published by
 PHYTEC Meßtechnik GmbH 2001
Ordering No. L-350e_2
Printed in Germany
Was this manual useful for you? yes no
Thank you for your participation!
