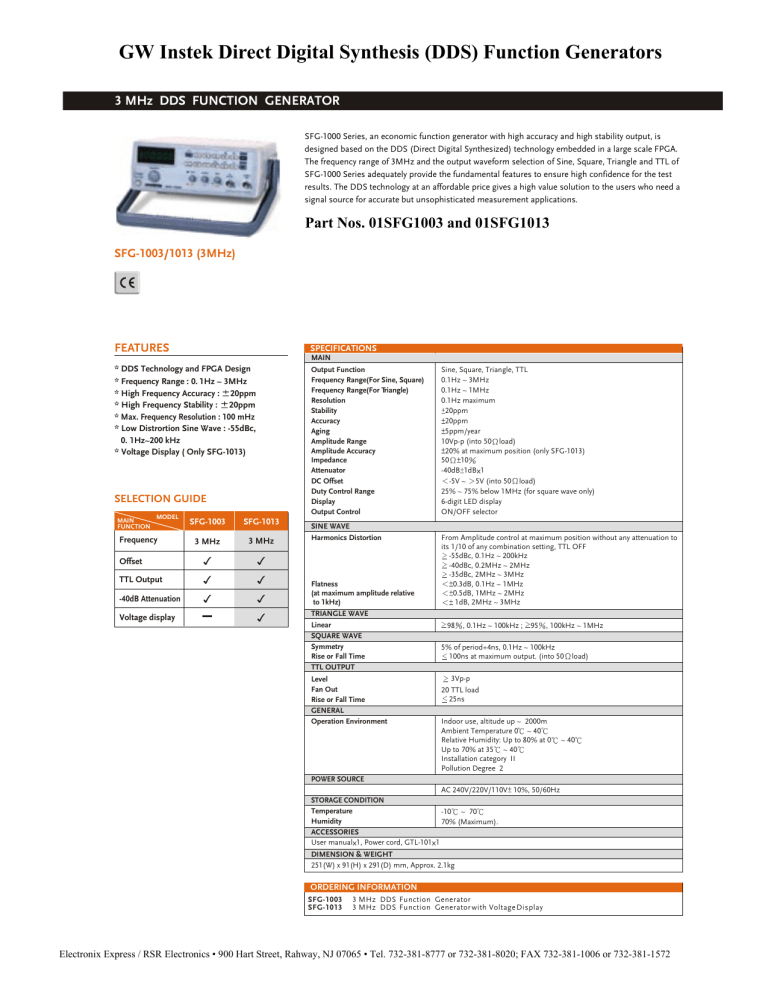

GW Instek Direct Digital Synthesis (DDS) Function Generators
3 MHz DDS FUNCTION GENERATOR
SFG-1000 Series, an economic function generator with high accuracy and high stability output, is
designed based on the DDS (Direct Digital Synthesized) technology embedded in a large scale FPGA.
The frequency range of 3MHz and the output waveform selection of Sine, Square, Triangle and TTL of
SFG-1000 Series adequately provide the fundamental features to ensure high confidence for the test
results. The DDS technology at an affordable price gives a high value solution to the users who need a
signal source for accurate but unsophisticated measurement applications.
SFG-1003/1013 (3MHz)
NEW
Part Nos. 01SFG1003 and 01SFG1013
FEATURES
SPECIFICATIONS
* DDS Technology and FPGA Design
* Frequency Range : 0. 1Hz ~ 3MHz
* High Frequency Accuracy : 20ppm
* High Frequency Stability : 20ppm
* Max. Frequency Resolution : 100 mHz
* Low Distrortion Sine Wave : -55dBc,
0. 1Hz~200 kHz
* Voltage Display ( Only SFG-1013)
Output Function
Frequency Range(For Sine, Square)
Frequency Range(For Triangle)
Resolution
Stability
Accuracy
Aging
Amplitude Range
Amplitude Accuracy
Impedance
Attenuator
DC Offset
Duty Control Range
Display
Output Control
n,
SELECTION GUIDE
MAIN
FUNCTION
MODEL
Frequency
SFG-1003
SFG-1013
3 MHz
3 MHz
MAIN
SINE WAVE
Harmonics Distortion
Offset
TTL Output
-40dB Attenuation
Voltage display
Flatness
(at maximum amplitude relative
to 1kHz)
TRIANGLE WAVE
Linear
SQUARE WAVE
Symmetry
Rise or Fall Time
TTL OUTPUT
Level
Fan Out
Rise or Fall Time
GENERAL
Operation Environment
POWER SOURCE
Sine, Square, Triangle, TTL
0.1Hz ~ 3MHz
0.1Hz ~ 1MHz
0.1Hz maximum
20ppm
20ppm
5ppm/year
10Vp-p (into 50 load)
20% at maximum position (only SFG-1013)
50 10
-40dB 1dB 1
-5V ~ 5V (into 50 load)
25% ~ 75% below 1MHz (for square wave only)
6-digit LED display
ON/OFF selector
From Amplitude control at maximum position without any attenuation to
its 1/10 of any combination setting, TTL OFF
-55dBc, 0.1Hz ~ 200kHz
-40dBc, 0.2MHz ~ 2MHz
-35dBc, 2MHz ~ 3MHz
0.3dB, 0.1Hz ~ 1MHz
0.5dB, 1MHz ~ 2MHz
1dB, 2MHz ~ 3MHz
98
, 0.1Hz ~ 100kHz ; 95 , 100kHz ~ 1MHz
5% of period+4ns, 0.1Hz ~ 100kHz
100ns at maximum output. (into 50 load)
3Vp-p
20 TTL load
25ns
Indoor use, altitude up ~ 2000m
Ambient Temperature 0 ~ 40
Relative Humidity: Up to 80% at 0
Up to 70% at 35 ~ 40
Installation category II
Pollution Degree 2
~ 40
AC 240V/220V/110V 10%, 50/60Hz
STORAGE CONDITION
Temperature
-10 ~ 70
Humidity
70% (Maximum).
ACCESSORIES
User manual 1, Power cord, GTL-101 1
DIMENSION & WEIGHT
251(W) x 91(H) x 291(D) mm, Approx. 2.1kg
ORDERING INFORMATION
SFG-1003
SFG-1013
3 MHz DDS Function Generator
3 MHz DDS Function Generator with Voltage Display
C6
