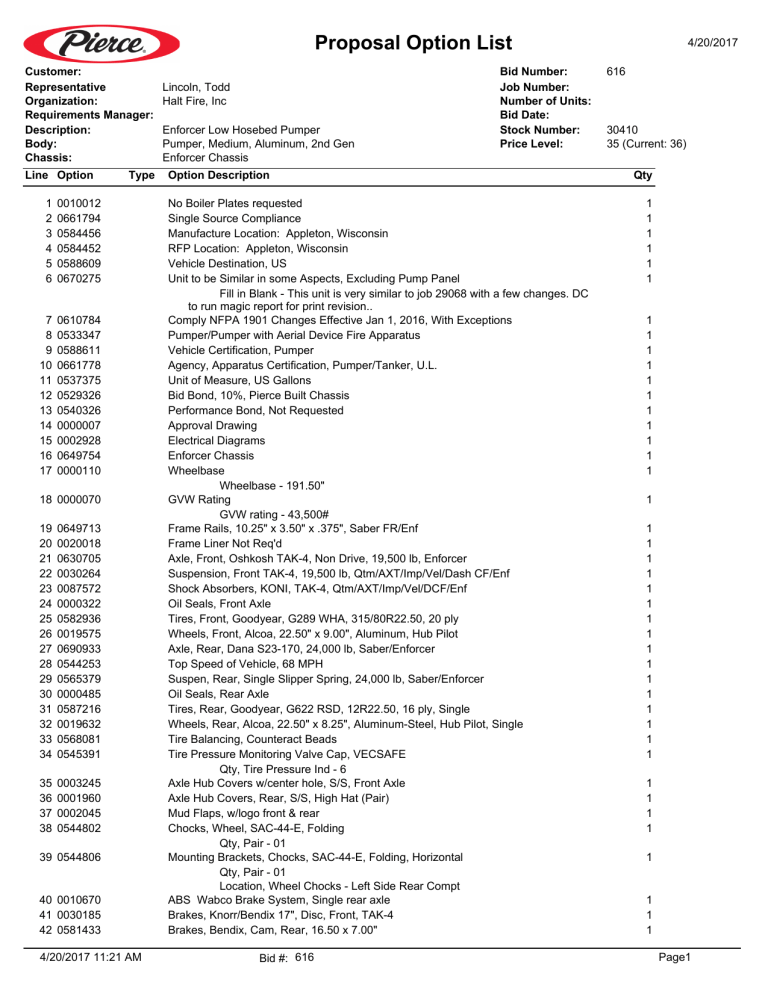

Proposal Option List
Customer:
Representative
Organization:
Requirements Manager:
Description:
Body:
Chassis:
Line Option
1
2
3
4
5
6
0010012
0661794
0584456
0584452
0588609
0670275
7
8
9
10
11
12
13
14
15
16
17
0610784
0533347
0588611
0661778
0537375
0529326
0540326
0000007
0002928
0649754
0000110
Type
18 0000070
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
0649713
0020018
0630705
0030264
0087572
0000322
0582936
0019575
0690933
0544253
0565379
0000485
0587216
0019632
0568081
0545391
35
36
37
38
0003245
0001960
0002045
0544802
39 0544806
40 0010670
41 0030185
42 0581433
4/20/2017 11:21 AM
Lincoln, Todd
Halt Fire, Inc
Enforcer Low Hosebed Pumper
Pumper, Medium, Aluminum, 2nd Gen
Enforcer Chassis
Bid Number:
Job Number:
Number of Units:
Bid Date:
Stock Number:
Price Level:
Option Description
No Boiler Plates requested
Single Source Compliance
Manufacture Location: Appleton, Wisconsin
RFP Location: Appleton, Wisconsin
Vehicle Destination, US
Unit to be Similar in some Aspects, Excluding Pump Panel
Fill in Blank - This unit is very similar to job 29068 with a few changes. DC
to run magic report for print revision..
Comply NFPA 1901 Changes Effective Jan 1, 2016, With Exceptions
Pumper/Pumper with Aerial Device Fire Apparatus
Vehicle Certification, Pumper
Agency, Apparatus Certification, Pumper/Tanker, U.L.
Unit of Measure, US Gallons
Bid Bond, 10%, Pierce Built Chassis
Performance Bond, Not Requested
Approval Drawing
Electrical Diagrams
Enforcer Chassis
Wheelbase
Wheelbase - 191.50"
GVW Rating
GVW rating - 43,500#
Frame Rails, 10.25" x 3.50" x .375", Saber FR/Enf
Frame Liner Not Req'd
Axle, Front, Oshkosh TAK-4, Non Drive, 19,500 lb, Enforcer
Suspension, Front TAK-4, 19,500 lb, Qtm/AXT/Imp/Vel/Dash CF/Enf
Shock Absorbers, KONI, TAK-4, Qtm/AXT/Imp/Vel/DCF/Enf
Oil Seals, Front Axle
Tires, Front, Goodyear, G289 WHA, 315/80R22.50, 20 ply
Wheels, Front, Alcoa, 22.50" x 9.00", Aluminum, Hub Pilot
Axle, Rear, Dana S23-170, 24,000 lb, Saber/Enforcer
Top Speed of Vehicle, 68 MPH
Suspen, Rear, Single Slipper Spring, 24,000 lb, Saber/Enforcer
Oil Seals, Rear Axle
Tires, Rear, Goodyear, G622 RSD, 12R22.50, 16 ply, Single
Wheels, Rear, Alcoa, 22.50" x 8.25", Aluminum-Steel, Hub Pilot, Single
Tire Balancing, Counteract Beads
Tire Pressure Monitoring Valve Cap, VECSAFE
Qty, Tire Pressure Ind - 6
Axle Hub Covers w/center hole, S/S, Front Axle
Axle Hub Covers, Rear, S/S, High Hat (Pair)
Mud Flaps, w/logo front & rear
Chocks, Wheel, SAC-44-E, Folding
Qty, Pair - 01
Mounting Brackets, Chocks, SAC-44-E, Folding, Horizontal
Qty, Pair - 01
Location, Wheel Chocks - Left Side Rear Compt
ABS Wabco Brake System, Single rear axle
Brakes, Knorr/Bendix 17", Disc, Front, TAK-4
Brakes, Bendix, Cam, Rear, 16.50 x 7.00"
Bid #: 616
4/20/2017
616
30410
35 (Current: 36)
Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Page1
Line Option
43
44
45
46
47
Type
0020784
0644232
0644228
0000790
0000854
48 0610776
49 0001244
50 0687994
51
52
53
54
55
56
57
58
0644227
0640477
0597542
0648346
0001090
0001125
0001129
0595087
59
60
61
62
63
64
65
66
67
68
69
70
71
72
0552793
0552712
0699437
0663938
0592809
0642572
0625329
0684459
0001370
0669988
0509229
0559647
0012246
0640195
73 0630813
74
75
76
77
78
0002270
0648332
0647919
0633594
0632103
79 0644201
80 0695930
81 0647989
82 0087357
83 0521669
84 0648170
85 0655543
86 0528958
87 0638310
88
89
90
91
0634786
0583698
0637984
0012090
4/20/2017 11:21 AM
Option Description
Air Compressor, Brake, Cummins/Wabco 18.7 CFM
Brake Reservoirs, 4,272 Cubic Inch Minimum Capacity, Saber FR/Enforcer
Air Dryer, Wabco System Saver 1200 IWT, Heated, Saber FR/Enforcer
Brake Lines, Nylon
Air Inlet, w/Disconnect Coupling
Location, Air Coupling(s) - a) DS Step Well
Qty, Air Coupling (s) - 1
Engine, Cummins ISL9, 450 hp, 1250 lb-ft, W/OBD, EPA 2016, Saber FR/Enforcer
High Idle w/Electronic Engine, Custom
Engine Brake, Jacobs Compression Brake, Cummins Engine
Switch, Engine Brake - e) ISC/ISM/ISL9/ISX Hi Med Lo
Clutch, Fan, Air Actuated, Saber FR/Enforcer
Air Intake, Metal Screen, Saber FR/Enforcer
Exhaust System, 4", 2010 ISL9/ISC 8.3 Engine, Horizontal, Right Side
Radiator, Saber FR/Enforcer
Cooling Hoses, Rubber
Fuel Tank, 65 Gallon, Left Side Fill
Lines, Fuel
DEF Tank, 4.5 Gallon, DS Fill, Forward of Rear Axle
Door, Material & Finish, DEF Tank - Polished Stainless
Not Required, Fuel Priming Pump
Not Required, Shutoff Valve, Fuel Line
Cooler, Chassis Fuel, Not Req'd.
Label, "DEF Fluid Only", Mounted On Inside Of DEF Fill Door
Fuel Fill, Lower
Trans, Allison 5th Gen, 3000 EVS P, w/Prognostics, Imp/Vel/DCF/SFR/Enf
Transmission, Shifter, 5-Spd, Push Button, 3000 EVS
Transmission Oil Cooler, Modine, External
Driveline, Spicer 1710
Steering, Sheppard M110 w/Tilt, TAK-4, Eaton Pump, w/Cooler
Steering Wheel, 2 Spoke
Pierce Logo on Horn Button
Bumper, 22" Extended, Saber FR/Enforcer
Tray, Hose, Center, 22" Bumper, Outside Air Horns
Grating, Bumper extension - Grating, Rubber
Capacity, Bumper Tray - 22) 175' of 1.75"
Cover, Aluminum Treadplate, One (1) D-Ring Latch, Hose Tray
Stay arm, Tray Cover - b) Pneumatic Stay Arm
Tow Hooks, Chrome
Cab, Enforcer, 7010
Engine Tunnel, ISL, Saber FR/Enforcer
Rear Wall, Interior, Adjustable Seating
Rear Wall, Exterior, Cab, Saber FR/Enforcer
Material, Exterior Rear Wall - Aluminum Treadplate
Cab Lift, Elec/Hyd, Saber FR/Enforcer
Grille, Bright Finished, Front of Cab, Dash CF/Enforcer
Trim, S/S Band, Across Cab Face, Arrow XT/Dash CF/Saber/Enforcer
Material Trim/Scuffplate - e) S/S, Patterned
Molding, Chrome on Side of Cab
Mirrors, Retrac, West Coast Style, Htd/Rmt, w/Htd/Rmt Convex
Door, Half-Height, Saber FR/Enforcer 4-Door Cab, Raised Roof
Key Model, Cab Doors Door Panel, Brushed Stainless Steel, Saber/Enforcer 4-Door Cab
Not Required, Controls, Electric Window, AXT, Quantum, Saber, Enforcer, Dash CF
Steps, 4-Door Cab, Saber FR/Enforcer
Step Well Material - Aluminum Treadplate
Lights, Cab and Crew Cab Access Steps, P25, LED w/Bezel, 1Lt Per Step 6lts
Fenders, S/S on cab, Extra Wide - Saber/Enf
Window, Side of C/C, Fixed, Saber FR/Enforcer
Not Required, Windows, Front/Side of raised roof
Bid #: 616
Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Page2
Line Option
Type
92 0634206
93 0622125
94 0012430
95
96
97
98
0052100
0644195
0644194
0639675
99 0634328
100 0583938
101
102
103
104
105
106
107
108
109
110
111
112
113
0631830
0583039
0622617
0636957
0636946
0620420
0631752
0102783
0631750
0108189
0632658
0108190
0089667
114 0543991
115 0603866
116 0602464
117 0647647
118 0602637
119 0644187
120 0002544
121 0543751
122
123
124
125
0637359
0632738
0644179
0548004
126 0626864
127 0610240
128 0696439
129 0653533
4/20/2017 11:21 AM
Option Description
Mounting Provisions, 1/4" Alum, Full Engine Tunnel, Saber FR/Enforcer
Mounting Provision Spacing - .50"
Material Finish, Cab Interior - Painted
Cab Interior, Imperial 1200 Headliner, Saber FR/Enforcer
Color, Cab Interior Vinyl/Fabric - h) Gray/Black
Engine Tunnel Cover - Gray/Black Imperial 1200
Cab Interior, paint color
Color, Cab Interior Paint - i) fire smoke gray
Floor, Rubber Padded, Cab & Crew Cab, Saber/Enforcer
Heater/Defroster, Saber FR/Enforcer
Air Conditioning, Saber FR/Enforcer
Sun Visor, Smoked Lexan, AXT, Dash CF, Imp/Vel, Saber FR/Enforcer
Sun Visor Retention - No Retention
Grab Handles, Driver and Officer Door Posts, Saber FR/Enforcer
Lights, Engine Compt, Custom, Automatic Sw, Whelen 3SC0CDCR, 3" LED, Trim
Qty, - 01
Fluid Check Access, Saber FR/Enforcer, Arrow XT
Not Required, Side Roll and Frontal Impact Protection
Seating Capacity, 6 Seats
Seat, Driver, Pierce PSV, Air Ride, High Back, Saber FR/Enforcer
Seat, Officer, Pierce PSV, Fixed, SCBA, Saber FR/Enforcer
Radio Compartment, Below Non-Air Ride Seat, Saber FR/Enforcer
Seat, Rear Facing C/C, DS Outboard, Pierce PSV, SCBA, 17" Btm, Saber FR/Enf
Not Required, Seat, Rr Facing C/C, Center
Seat, Rear Facing C/C, PS Outboard, Pierce PSV, SCBA, 17" Bottom, Saber FR/Enf
Not Required, Seat, Forward Facing C/C, DS Outboard
Seat, Forward Facing C/C, Center, (2) Pierce PSV, SCBA, Saber FR/Enforcer
Not Required, Seat, Forward Facing C/C, PS Outboard
Upholstery, Seats In Cab, All Imperial 1200, All 911
Color, Cab Interior Vinyl/Fabric - h) Gray/Black
Bracket, Air Bottle, Hands-Free II, Cab Seats
Qty, - 05
Seat Belt, Dual Retractor, ReadyReach, Saber FR/Enforcer
Seat Belt Color - Red
Helmet Storage, Provided by Fire Department, NFPA 2016
Lights, Dome, FRP Dual LED 4 Lts
Color, Dome Lt - Red & White
Color, Dome Lt Bzl - Black
Control, Dome Lt White - Door Switches and Lens Switch
Control, Dome Lt Color - Lens Switch
Portable Hand Light, Provided by Fire Dept, Pumper NFPA 2016 Classification
Cab Instruments, Black Gauges, Black Bezels, Saber FR/Enforcer
Emergency Switching - Individual Switches
Air Restriction Indicator - Pierce Chassis
Light, Do Not Move Apparatus
Alarm, Do Not Move Truck - Pulsing Alarm
Not Required, Door Open Indicator w/Do Not Move Truck Light, Enf/Saber FR
Switching, Cab Instrument Lower Console & Overhead, Rocker, Enforcer
Wiper Control, 2-Speed with Intermittent, Saber FR/Enforcer
Wiring, Spare, 15 A 12V DC 1st
Qty, - 01
12vdc power from - Battery direct
Wire termination - 15 amp power point plug
Location, Spare Wiring - Officer Dash
Not Required, Vehicle Information Center, No Multiplex System
Vehicle Data Recorder w/Seat Belt Monitor
Antenna Mount, Custom Chassis, Cable Routed to Instrument Panel Area
Qty, - 01
Location, Antenna Mount - Right Side
Camera, Pierce, 7" LCD, Rear Camera Only
Location, Camera Monitor - Driver Side Overhead
Bid #: 616
Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Page3
Line Option
Type
130 0523921
131
132
133
134
135
136
137
138
139
0624241
0624256
0079166
0008621
0002698
0531315
0662220
0530951
0016857
140 0026800
141
142
143
144
0647729
0644176
0648596
0648426
145
146
147
148
149
0647802
0620054
0647899
0627282
0564683
150
151
152
153
154
0561471
0664481
0556842
0589905
0644038
155 0617921
156 0645995
157 0556360
158 0640629
159 0640627
160 0618318
4/20/2017 11:21 AM
Option Description
Recess, Rear Vision Camera
Location, Camera, Recessed - Center Rear
Electrical Power/Signal Protection & Control, Enforcer
Electrical System, Enforcer Hard Wired
Batteries, (4) Exide Grp 31, 950 CCA ea, Threaded Stud
Battery System, Single Start, All Custom Chassis
Battery Compartment, Saber/Enforcer
Charger, Sngl Sys, IOTA, DSL-75, 75 Amp, Kussmaul 091-94-12 Ind, Qtm/Enf/SFR
Location, Charger, Behind Driver Seat, Dash CF/Saber FR/Enforcer
Location, Battery Charger Indicator, DS Behind Cab Door
Shoreline, 20A 120V, Kussmaul Auto Eject, 091-55-20-120, Super
Qty, - 01
Color, Kussmaul Cover - b) red
Shoreline Connection - Battery Charger
Shoreline Location
Location, Shoreline(s) - DS Cab Side
Alternator, 320 amp, Delco Remy 40SI
Load Manager, Integrated In Electrical System, Saber FR/Enforcer
Headlights, Rectangular Halogen, AXT/Dash CF/Saber/Enforcer
Light, Directional, Wln 60A00TAR LED Arrow, Common Bzl, Above Headlts,Sab/Enf
Color, Lens, LED's Lights, Clearance/Marker/ID, Front, P25 LED 5 Lts, Saber FR/Enforcer
Light, Directional/Marker, Intermediate, Weldon 9186-8580-29 LED 2lts
Lights, Directional/Marker, Cab Front Side, Weldon 9186-8580-29 LED, Sab/Enf
Lights, Clearance/Marker/ID, Rear, FRP LED Bar & P25 LED 4Lts
Lights, Tail, Whelen M6BTT* Red LED Stop/Tail & M6T* Amber LED Dir Arw For Hsg
Color, Lens - Clear
Lights, Backup, Whelen M6BUW, LED, For Tail Lt Housing
Bracket, License Plate & Light, P25 LED
Bezels, Whelen, (2) M6 Chrome Pierce, For mtg (4) Whelen M6 lights
Alarm, Back-up Warning, PRECO 1040
Lights, Perimeter Cab, Amdor AY-9500-012 LED 4Dr
Z location Lights, Perimeter Pump House, Amdor AY-9500-020 LED 2lts
Lights, Perimeter Body, Amdor AY-9500-020 LED 2lts, Rear Step
Control, Perimeter Lts - Parking Brake Applied
Lights, Step, P25 LED 4lts, Pump Pnl Sw
Light, Whelen, 12V PCPSM1* Pioneer LED Fld/Spt, Surface Mount 1st
Location, Lights - mount behind driver side crew cab doors, high as
possible.
Qty, - 01
Switch, Lt Control 1 DC,1 - a) DS Switch Panel
Switch, Lt Control 2 DC,2 - DS Pump Panel
Switch, Lt Control 3 DC,3 - d) No Control
Switch, Lt Control 4 DC,4 - d) No Control
Color, Wln Lt Housing - Chrome Flange
Light, Whelen, 12V PCPSM1* Pioneer LED Fld/Spt, Surface Mount 2nd
Location, Lights - mount behind passenger side crew cab doors, high as
possible.
Qty, - 01
Switch, Lt Control 1 DC,1 - a) DS Switch Panel
Switch, Lt Control 2 DC,2 - e) No Control
Switch, Lt Control 3 DC,3 - d) No Control
Switch, Lt Control 4 DC,4 - d) No Control
Color, Wln Lt Housing - Chrome Flange
Light, Visor, Whelen, 12V PCP2* Pioneer LED Fld/Spt 1st
Qty, - 01
Location, driver's/passenger's/center - centered
Switch, Lt Control 1 DC,1 - a) DS Switch Panel
Switch, Lt Control 2 DC,2 - f) Pump Operator's Panel
Switch, Lt Control 3 DC,3 - d) No Control
Color, Wln Lt Housing - White Paint
Bid #: 616
Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Page4
Line Option
Type
161 0532358
162 0645869
163 0635522
164 0645677
165 0645649
166
167
168
169
170
171
172
173
174
0709438
0060115
0554271
0013492
0003405
0028104
0652613
0074425
0633066
175
176
177
178
179
180
181
0553725
0003429
0003424
0048710
0030007
0514778
0556223
182 0003481
183 0003488
184 0651407
185 0589278
186 0655153
187 0010133
188 0089471
189 0076724
190 0688203
191 0690037
192
193
194
195
0003531
0003561
0023650
0063658
4/20/2017 11:21 AM
Option Description
Not Required, Deck Lights, Other Hose Bed & Rear Lighting
Lights, Hose Bed, Sides, Whelen 01-066D068-00 LED, 2.63" Lights 4lts
Control, Hose Bed Lts - Cup Switch At Rear
Light, Hose Bed, Amdor LumaBar H2O, AY-9500-040, 40" LED
Location - under flange of front hosebed cross divider.
Qty, - 01
Control, Hose Bed Lts - With Other Hosebed Lts
Lights, Not Required, Rear Work, Alt. 12 Volt Lights At Rear Body
Lights, Rear Scene, Whelen, M6ZC LED, M6P15C 15 Deg Brkt
Location, Lights - rear of truck, one each side, low as possible.
Qty, - 02
Control, Rear Scene Lts - Cab Switch Panel DS and Pump Panel DS
Light, Walking Surface, FRP Flood, LED
Pumper, Medium, Aluminum, 2nd Gen
Body Skirt Height, 20"
Tank, Water, 750 Gallon, Poly, Med, New York Style
Overflow, 4.00" Water Tank, Poly
Foam Cell Required
Aluminum Treadplate Flooring Top of Water Tank
Modified Poly Tank for Equipment Storage Rack
Sleeve through Tank
Qty, Sleeve - 1
Water Tank Sleeve - Plumbing/Hydraulic Diameter - 3" Plumbing
Restraint, Water Tank, Heavy Duty, Special Type Tank, 4x4, or Export
Not Required, Direct Tank Fill
Not Required, Dump Valve
Not Required, Jet Assist
Not Required, Dump Valve Chute
Not Required, Switch, Tank Dump Master
Hose Bed, Aluminum, Pumper, New York Style, Fill In Blank Height
Fill in Blank - 72" long hosebed
Material Trim/Scuffplate - b) S/S, Brushed
Hose Bed Capacity, Special
Capacity, Hosebed - Bed #1 - 500' of 2.5", Bed #2 - 1000' of 5.00", Bed #3
- 500' of 2.5"
Divider, Hose Bed, Unpainted
Qty, Hosebed Dividers - 2
Reinforcement, Hose Bed Divider Tied To Handrail
Qty, - 02
Hose Restraint, Hose Bed, Velcro Strap on Top, 2" Heavy Nylon Web at Rear
Type of fastener - seat belt buckle
Nylon Web Color - Black
Type of fastener, Rear - seat belt buckle - bottom of hosebed
Compt, Stokes/(2) Backboards, Vertical in Hose Bed w/Storage Compt Forward
Fill in Blank - vertically
Location, Backboard Comp - Passenger's Side
Size, Backboard - Stokes 80.50" x 8" x 23" and backboards are 2" x 18" x
72".
Latch, Door, Storage - "D" Handle Latch
Hinge, Location - Outboard
Cross-Divider, Hose Bed
Cutout, Handhold, in Hose Bed Divider
Qty, - 02
Running Boards, Bustin Bar Grating, Type N
Tailboard, T-Shaped, 26" & 10" Deep
Wall, Rear, Smooth Aluminum/Body Material
Material, Rear Wall Inboard Facing Surfaces - Aluminum Diamondplate
Tow Bar, Under Tailboard
Construction, Compt, Alum, Pumper
LS 152" Rollup, Full Height Front & Rear, FDLER
RS 152" Rollup, Full Height Front & Rear, FDLER
Bid #: 616
Qty
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
1
1
1
2
1
1
1
1
1
1
1
Page5
Line Option
Type
196 0692733
197 0013671
198 0692746
199 0554995
200 0625184
201 0616670
202 0687146
203 0600350
204 0647091
205
206
207
208
209
210
0004016
0004024
0519849
0626229
0012161
0014136
211 0657651
212 0004225
213 0004230
214 0049958
215 0014245
216 0548184
217 0548205
218 0593072
219 0592994
220 0591914
4/20/2017 11:21 AM
Option Description
Doors, Rollup, Gortite, Side Compartments
Qty, Door Accessory - 06
Color, Roll-up Door, Gortite - Painted to Match Lower Body
Latch, Roll-up Door, Gortite - Non-Locking Liftbar
Rear, Rollup, 30.75" FF
Door, Gortite, Rollup, Rear Compartment
Color, Roll-up Door, Gortite - Satin finish
Latch, Roll-up Door, Gortite - Non-Locking Liftbar
No Body Modification Required
Guard, Drip Pan, S/S, Rollup Door, Pumper
Qty, Door Accessory - 07
Location, Door Guard/Drip Pan - D3, D2, D1, R1, P3, P2 and P1
Lights, Compt, Pierce LED, Dual Light Strips, Each Side of Door, Pumper/Tanker
Qty, - 07
Location, Compartment Lights - All Body Compts
Shelf Tracks, Painted
Qty, Shelf Track - 06
Location, Shelf Track - D3, D2, D1, P1, P2 and P3
Shelves, Adj, 500 lb Capacity, Full Width/Depth, Predefined Locations
Qty, Shelf - 06
Material Finish, Shelf - Painted - Spatter Gray
Location, Shelves/Trays, Predefined - D1-Upper Third, D2-Upper Third, D3
-Upper Third, P1-Upper Third, P3-Upper Third and P2-Upper Third
Tray, Floor Mounted, Slide-Out, 500lb, 2.00" Sides
Qty, - 05
Location, Tray Slide-Out, Floor Mounted - D1, P1, D3, P3 and R1
Material Finish, Tray - Painted - Spatter Gray
Rub Rail, Aluminum Extruded, Side of Body
Fender Crowns, Rear, S/S
Not Required, Hose, Hard Suction
Handrails, Side Pump Panels, Per Print
Handrail, Beavertail, DS
Handrails, Rear, (2), (1) Above and (1) Below Hose Bed
Reinforcement, Hose Bed Divider - Tied to Upper Handrail/Crossbar
Compt, Air Bottle, Double, Full Width Door, Fender Panel
Qty, Air Bottle Comp - 4
Door Finish, Fender Compt - Polished
Location, Fender Compt - Double - DS Fwd, Double - DS Rear, Double PS Fwd and Double - PS Rear
Latch, Air Bottle Compt - Flush Lift & Turn
Insert, Air Bottle Compt - W-Shaped Insert
Ladder, 24' Duo-Safety 900A 2-Section
Ladder, 14' Duo-Safety 775A Roof
Ladders Btwn Tank & S.Sht, PS, Ext'd Rr, Encl'd Complete, RPH
Door, Material & Finish, Ladder Storage - c) smooth aluminum
Latch, Door Ladder Storage - "D" Handle latch
Ladder, 10' Duo-Safety Folding 585A, w/Mounting
Location, Folding Ladder - d) Ladder comp
Pike Pole, 8' Akron, Fiberglass
Qty, Pike Poles - 1
Location, Pike Pole - Ladder Storage Compt
Pike Pole, 6' Akron, Fiberglass
Qty, Pike Poles - 1
Location, Pike Pole - Ladder Storage Compt
Steps, Folding, Front of Body, One Each Side, w/LED, Trident
Coating, Step - black
Steps, Folding, Rear of Body, w/LED, Trident
Coating, Step - black
Step, Folding - Extra, Body Only, Black, w/LED, Trident
Qty, Folding Step - 04
Location, Steps Additional - DS Front Bulkhead - 2 and PS Front Bulkhead
-2
Bid #: 616
Qty
6
1
1
1
7
7
6
6
5
1
1
1
1
1
1
4
1
1
1
1
1
1
1
1
4
Page6
Line Option
Type
221 0586899
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
0004425
0004482
0559769
0635600
0605126
0003148
0004547
0014486
0004517
0564941
0072153
0058516
0602512
0064656
0004645
0004646
0084610
0004660
0004680
0016158
242
243
244
245
246
247
248
249
250
251
252
0004700
0092569
0092696
0064116
0009648
0586174
0092568
0563738
0029043
0004905
0004940
253 0092570
254 0004945
255 0092571
256 0048832
257 0649939
258 0004995
259
260
261
262
263
264
265
266
267
268
269
0092574
0092573
0065077
0563739
0005091
0035094
0025091
0089584
0045091
0085695
0005097
4/20/2017 11:21 AM
Option Description
Step, Cargo Area, Ea.
Qty, - 01
Fill in Blank - In the cargo area
Pump, Waterous, CSU, 1500 GPM, Single Stage
Seal, Mechanical, Waterous
Trans, Pump, Waterous C20 Series
Pumping Mode, Stationary Only
Pump Shift, Air w/Manual Override, Split Shaft, Interlocked, Waterous
Transmission Lock-up, EVS
Auxiliary Cooling System
Not Required, Transfer Valve, Stage Pump
Valve, Relief Intake, Elkhart, Set @ 125 PSI
Controller, Pressure, FRC, Pump Boss, PBA200
Primer, Trident, Air Prime, Air Operated
Manuals, Pump (2), CD
Plumbing, Stainless Steel and Hose, Single Stage Pump, Control Zone
Not Required, Black Iron Pipe with Stainless Steel Plumbing
Inlets, 6.00" - 1250 GPM or Larger Pump
Cap, Main Pump Inlet, Long Handle, NST, VLH
Valves, Akron 8000 series- All
Inlet, Left Side, 2.50"
Inlet, Right Side, 2.50"
Valve, Inlet(s) Recessed, Side Cntrl, "Control Zone"
Qty, Inlets - 2
Control, Inlet, at Valve
No Rear Inlet (Large Dia) Requested
Not Required, Cap, Rear Inlet
No Rear Inlet Actuation Required
No Rear Intake Relief Valve Required on Rear Inlet
Provision, Front Inlet
No Rear Auxiliary Inlet Requested
Valve, .75" Bleeder, Aux. Side Inlet, Swing Handle
Tank to Pump, (1) 3.00" Valve, 3.00" Plumbing
Outlet, Tank Fill, 1.50"
Outlet, Left Side, 2.50"
Qty, Discharges - 02
Not Required, Outlets, Left Side Additional
Outlet, Right Side, 2.50"
Qty, Discharges - 01
Not Required, Outlets, Right Side Additional
Outlet, 4.00" w/3.50", Right, Handwheel
Valve, Brand - Akron
Outlet, Front, 1.50" w/2.00" Plumbing
Fitting, Outlet - 1.50" NST with 90 degree swivel
Drain, Front Outlet - Class 1 Automatic
Location, Front, Single - in center bumper tray
Outlet, Rear, 2.50"
Qty, Discharges - 01
Location, Outlet - b) driver's side
Not Required, Outlet, Rear, Additional
Not Required, Outlet, Hose Bed/Running Board Tray
Caps for 1.50" to 3.00" Discharges, Vinyl Cable
Valve, 0.75" Bleeder, Discharges, Swing Handle
Elbow, Left Side Outlets, 45 Degree, 2.50" FNST x 2.50" MNST, VLH
Not Required, Elbow, Left Side Outlets, Additional
Elbow, Right Side Outlets, 45 Degree, 2.50" FNST x 2.50" MNST, VLH
Not Required, Elbow, Right Side Outlets, Additional
Elbow, Rear Outlets, 45 Degree, 2.50" FNST x 2.50" MNST, VLH
Not Required, Elbow, Rear Outlets, Large, Additional
Elbow, Large Dia Outlet, 30 Deg, 4.00" FNST x 5.00" Storz
Qty, - 01
Bid #: 616
Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Page7
Line Option
270
271
272
273
274
275
Type
0062133
0005065
0029302
0029304
0005070
0029167
276 0090442
277 0029260
278 0591145
279 0019853
280 0624939
281 0012126
282 0592527
283 0031916
284 0022539
285
286
287
288
289
290
0697589
0091079
0091112
0007590
0032479
0629252
291 0005578
292 0037731
293 0583824
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
0586382
0005601
0549333
0511078
0511100
0062586
0062992
0593161
0606697
0606835
0016065
0525667
0692039
0006149
0581959
309 0548456
310 0016080
311 0006095
312 0026170
313 0606710
314 0016380
4/20/2017 11:21 AM
Option Description
Control, Outlets, Manual, Pierce HW if applicable
Outlet, 3.00" Deluge Riser
No Monitor Requested
No Nozzle Req'd
Deluge Mount, NPT
Crosslays Sngl Sheet Unpainted, (2+) 1.50", Std. Cap
Qty, Crosslays - 2
Crosslays Sngl Sheet Unpainted, (1) 2.50" Std Cap
Not Required, Speedlays
Hose Restraint, Crosslay/Deadlay, Top and Ends, Elastic Netting
Qty, - 03
Crosslays, 8.00" Lower Than Standard - Control Zone with 9.00" Raised PH
Foam Sys, Husky 3, Single Agent, Multi Select Feature
Discharge, Foam Locations - Front Bumper Center, Rear Outlet Left Side,
Crosslay Front, Crosslay Center and Crosslay Rear
Discharge, Foam Locations - Front Bumper Center, Rear Outlet Left Side,
Crosslay Front, Crosslay Center and Crosslay Rear
Not Required, CAF Compressor
Refill, Foam Tank, Integral, Husky 3
Demonstration, Foam System, At Fire Department (Domestic Customer)
Vehicle, Qty, Training, D - 1 vehicle
Foam Cell, 20 Gallon, Reduce Water
Type of Foam - Class "A"
Drain, 1.00", Foam Tank #1, Husky 3 Foam System
Not Required, Foam Tank #2
Not Required, Foam Tank Drain
Pump House, Side Control, 52", Control Zone
Pump Panel Configuration, Control Zone
Material, Pump Panels, Side Control Black Vinyl
Material Finish, Pump Panel, Side Control - Black Vinyl
Material, Pump Panel, Side Control - Aluminum
Panel, Pump Access - Pass Side Only
Pump House Structure, Raised, Included with Ladder Storage
Light, Pump Compt, Whelen 3SC0CDCR LED White
Qty, - 01
Gauges, Engine, Included With Pressure Controller
Throttle Included w/ Pressure Controller
Indicators, Engine, Included with Pressure Controller
Gauges, 4.00" Master, Class 1, 30"-0-600psi
Gauge, 2.00" Pressure, Class 1, 30"-0-400psi
Gauge, Water Level, Class 1, Pierce Std
Gauge, Foam Level, (1) Tank, Class 1, 5lt
Light Shield, S/S LED
Air Horns, (2) Grover, In Bumper
Location, Air Horns, Bumper, Each Side, Outside Frame, Outboard (Pos #1 & #7)
Control, Air Horn, Horn Ring, PS Chrome Push Button
Siren, Whelen 295SLSA1, 100 or 200 Watt
Location, Electronic Siren, Center Console
Control, Elec Siren, PS Foot Sw
Speaker, Whelen SA315P w/Pierce Polished Stainless Steel Grille, 100 watt
Qty, Speakers - 1
Connection, Speaker - siren head
Location, Recessed in the Front Bumper, Center
Siren, Federal Q2B
Siren, Mechanical, Mounted Above Deckplate
Location, Siren, Mech - a) Left
Control, Mech Siren, DS Foot Sw, PS Push Button
Lightbar, Wln, Freedom IV-Q, 72", RR_R_W____W_R_RR
Filter, Whl Freedom Ltbrs - No Filters
No Additional Lights Req'd, Side Zone Upper
Bid #: 616
Qty
1
1
1
1
1
2
1
1
3
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Page8
Line Option
Type
315 0540384
316 0653937
317 0540692
318 0564655
319 0088745
320 0006551
321 0006615
322 0529684
323
324
325
326
327
328
0551728
0530282
0519934
0649753
0649736
0007150
329 0602516
330
331
332
333
334
335
336
0602407
0027023
0602538
0602360
0602679
0602667
0559685
337 0646897
338 0693797
339 0687653
340 0007230
341 0544129
342 0077356
343 0536954
344 0017359
345 0593225
346
347
348
349
0027286
0007472
0583553
0529225
4/20/2017 11:21 AM
Option Description
Lights, Front Zone, Whelen M6*C LED, Clear Lens, in Common Bzl
Color, Lt DS Front - Red
Color, Lt PS Front - Red
Flasher, Headlight Alternating
Headlt flash deactivation - a)w/high beam
Lights, Side Zone Lower, Whelen M6*C LED, Clear Lens, 3pr, Ovr 25
Location, Lights Front Side - b)each side bumper
Color, Lt Side Front - Red
Color, Lt Side Middle - Red
Color, Lt Side Rear - Red
Location, Lights Mid Side - Over Front Wheels
Location, Lights Rear Side - Over Rear Wheels
Lights, Rear Zone Lower, Whelen M6*C LED, Clear Lens, For Tail Lt Housing
Color, Lt DS Rear - r) DS Rear Lt Red
Color, Lt PS Rear - r) PS Rear Lt Red
Light, Rear Zone Upper, Whelen L31HRFN LED Beacon, Red LED
Color, Dome, Rear Warning - j) both domes clear
Not Required, Lights, Rear Upper Zone Blocking
Mtg, Rear Warn Lts, On Top of Compt
Light, Traffic Directing, Whelen TAL65, 36.01" Long LED DO NOT USE AFTER
9/16/16
Color, Light,One Activation, Traffic Dir L - Control Head Only
Location, Traf Dir Lt, Recessed with S/S Trim
Location, Traf Dir Lt Controller, Overhead Switch Panel DS Right End
Not Required, Brand, Hydraulic Tool System
Not Required, PTO Driven Hydraulic Tool System
Not Required, Hydraulic Tools
Bag of Nuts and Bolts
Qty, Bag Nuts and Bolts - 1
NFPA Required Loose Equipment, Pumper, NFPA 2016, Provided by Fire
Department
Soft Suction Hose, Provided by Fire Department, Pumper NFPA 2016 Classification
No Strainer Required
Extinguisher, Dry Chemical, Pumper NFPA 2016 Class, Provided by Fire Department
Extinguisher, 2.5 Gal. Pressurized Water, Pumper NFPA 2016,Provided by Fire Dept
Axe, Flathead, Pumper NFPA 2016 Classification, Provided by Fire Department
Axe, Pickhead, Pumper NFPA 2016 Classification, Provided by Fire Department
Paint, Two Tone, Cab, Custom Cab
Paint Color, Predefined - #90 Red
Paint Color, Upper Area, Predefined - #10 White
Paint Chassis Frame Assy, E-Coat, Standard
Paint Color, Frame Assembly, Predefined - Black
No Paint Required, Aluminum Front Wheels
Paint, Rear Wheels, Single Axle, Alum-Stl
Paint, Wheels - Red #90
Compartment, Painted, Spatter Gray
Reflective Band, 1"-6"-1"
Color, Reflect Band - A - a) white
Color, Reflect Band - B - l) white
Color, Reflect Band - C - w) white
Reflective, Cab Face, Below the S/S Trim Band
Stripe, Chevron, Rear, Diamond Grade, Pumper
Color, Rear Chevron DG - fluorescent yellow green
Stripe, Black Outline, Vinyl on Reflective Band
Qty, - 03
Stripe, Reflective, Cab Doors Interior, Diamond Grade
Color, Reflect Band - A - p) fluorescent yellow green diamond grade
Not Required, Lettering Specs
[Lettering not Requested]
Undercoating, Cab & Body, Stock/Demo Style, Pumper, Ziebart
Manuals, Two (2) CD, Fire Apparatus Parts, Custom Chassis
Bid #: 616
Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
3
1
1
1
1
1
Page9
Line Option
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
Type
0531636
0531638
0030008
0595239
0696698
0684953
0596017
0595698
0610485
0652758
0019914
0595813
0660535
0695416
0647720
0046369
0685945
0688798
0596025
0693127
0063510
0648675
0657990
0595820
0593921
0683627
0610736
0686786
0631980
0631973
0631978
0556828
0631977
0631976
0631971
0545073
0002758
0799247
0000018
0000012
0004713
0046395
0020011
0020009
0028048
0020006
0020007
0020015
0658751
4/20/2017 11:21 AM
Option Description
Manual, Two (2) CD, Chassis Service, Custom
Manual, Two (2) CD, Chassis Operation, Custom
Warranty, Basic, 1 Year, Apparatus, WA0008
(No Pick Required)
Warranty, Engine, Cummins, 5 Year, WA0181
Warranty, Steering Gear, Sheppard M110, 3 Year WA0201
Warranty, Frame, 50 Year, Custom Chassis, WA0013
Warranty, Axle, 3 Year, TAK-4, WA0050
Warranty, Axle, Eaton/Dana, 5 Year/100,000 Mile, Parts and Labor
Warranty, ABS Brake System, 3 Year, Meritor Wabco, WA0232
Warranty, Structure, 10 Year, Custom Cab, WA0012
Warranty, Paint, 10 Year, Cab, Pro-Rate, WA0055
Not Required, Warranty, Electrical System
Warranty, Pierce Camera System, WA0188
Warranty, Pierce LED Strip Lights, WA0203
Warranty, 5-year EVS Transmission, Standard Custom, WA0187
Warranty, Transmission Cooler, WA0216
Warranty, Water Tank, Lifetime, UPF, Poly Tank, WA0195
Warranty, Structure, 10 Year, Body, WA0009
Warranty, Gortite, Roll-up Door, 6 Year, WA0190
Warranty, Pump, Waterous, 5 Year Parts, WA0225
Warranty, 10 Year S/S Pumbing, WA0035
Warranty, Foam System, Husky 3, WA0231
Warranty, Paint, 10 Year, Body, Pro-Rate, WA0057
Not Required, Warranty, No Lettering
Certification, Vehicle Stability, CD0089
Certification, Engine Installation, Saber FR/Enf, ISL9, 2016, CD0128/CD0136
Certification, Power Steering, CD0098
Certification, Cab Integrity, Saber FR/Enforcer, CD0130
Certification, Cab Door Durability, Saber FR/Enforcer, CD0137
Certification, Windshield Wiper Durability, Saber FR/Enforcer, CD0132
Certification, Electric Window, Not Available
Certification, Seat Belt Anchors and Mounting, Saber FR/Enforcer, CD0134
Certification, Cab Heater and Defroster, Saber FR/Enforcer, CD0131
Certification, Cab Air Conditioning Performance, Saber FR/Enforcer, CD0135
Amp Draw Report, NFPA Current Edition
Amp Draw, NFPA/ULC Radio Allowance
Appleton/Florida Stock Unit
PUMPER, 2ND GEN
PIERCE CHASSIS
ENGINE, OTHER
EVS 3000 Series TRANSMISSION
WATEROUS PUMP
POLY TANK
FOAM SYSTEM
SIDE CONTROL
AKRON VALVES
ABS SYSTEM
Manufacturing Attribute
Bid #: 616
Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Page10

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
