UHF Components > Splitters > QS Series

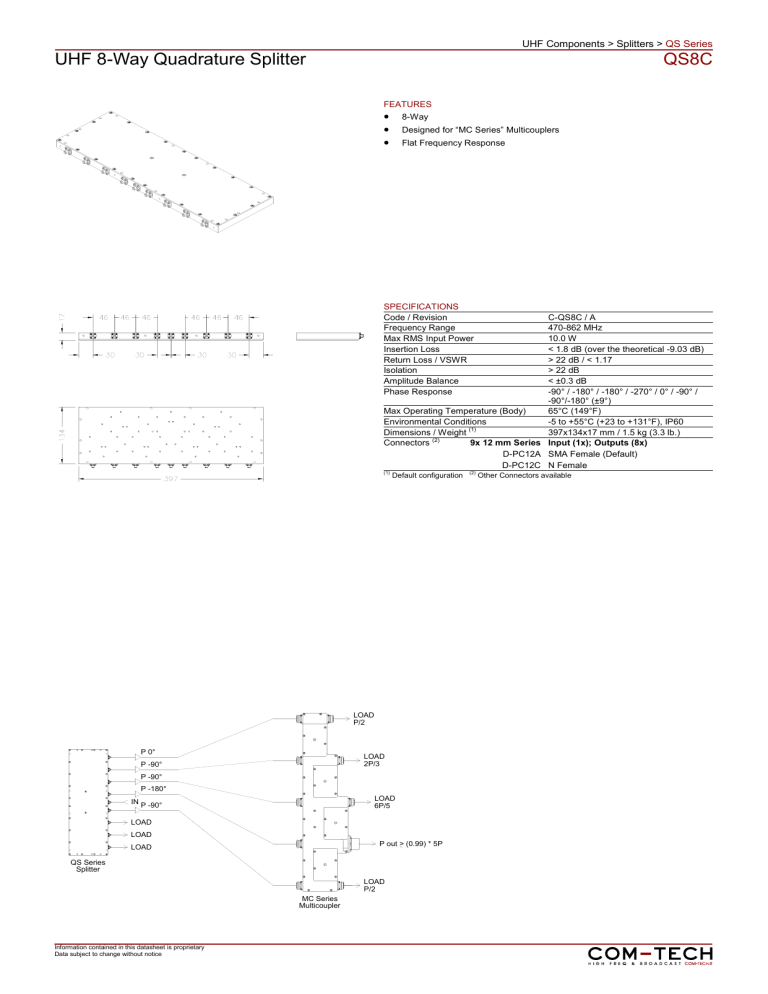

UHF 8-Way Quadrature Splitter
QS8C
FEATURES
 8-Way


Designed for “MC Series” Multicouplers
Flat Frequency Response
SPECIFICATIONS
Code / Revision
Frequency Range
Max RMS Input Power
Insertion Loss
Return Loss / VSWR
Isolation
Amplitude Balance
Phase Response
C-QS8C / A
470-862 MHz
10.0 W
< 1.8 dB (over the theoretical -9.03 dB)
> 22 dB / < 1.17
> 22 dB
< ±0.3 dB
-90° / -180° / -180° / -270° / 0° / -90° /
-90°/-180° (±9°)
Max Operating Temperature (Body)
65°C (149°F)
Environmental Conditions
-5 to +55°C (+23 to +131°F), IP60
Dimensions / Weight (1)
397x134x17 mm / 1.5 kg (3.3 lb.)
Connectors (2)
9x 12 mm Series Input (1x); Outputs (8x)
D-PC12A SMA Female (Default)
D-PC12C N Female
(1)
Default configuration
LOAD
P/2
P 0°
LOAD
2P/3
P -90°
P -90°
P -180°
LOAD
6P/5
IN P -90°
LOAD
LOAD
P out > (0.99) * 5P
LOAD
QS Series
Splitter
LOAD
P/2
MC Series
Multicoupler
Information contained in this datasheet is proprietary
Data subject to change without notice
217
(2)
Other Connectors available
