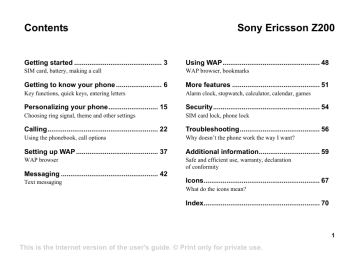

Contents
Sony Ericsson Z200
Getting started .............................................. 3
Using WAP................................................... 48
SIM card, battery, making a call
WAP browser, bookmarks
Getting to know your phone ........................ 6
More features .............................................. 51
Key functions, quick keys, entering letters
Alarm clock, stopwatch, calculator, calendar, games
Personalizing your phone.......................... 15
Security........................................................ 54
Choosing ring signal, theme and other settings
SIM card lock, phone lock
Calling.......................................................... 22
Troubleshooting.......................................... 56
Using the phonebook, call options
Why doesn’t the phone work the way I want?
Setting up WAP ........................................... 37
Additional information................................ 59
WAP browser
Safe and efficient use, warranty, declaration
of conformity
Messaging ................................................... 42
Text messaging
Icons............................................................. 67
What do the icons mean?
Index............................................................. 70
1
This is the Internet version of the user's guide. © Print only for private use.
Sony Ericsson
GSM 900/1800/1900
Forth edition (March 2004)
This user guide is published by Sony Ericsson
Mobile Communications AB, without any warranty.
Improvements and changes to this user guide
necessitated by typographical errors, inaccuracies
of current information, or improvements to programs
and/or equipment, may be made by Sony Ericsson
Mobile Communications AB at any time and without
notice. Such changes will, however, be incorporated
into new editions of this user guide.
All rights reserved.
© Sony Ericsson Mobile Communications AB, 2003
Publication number: AE/LZT 108 6475 R4A.
Please note:
Some of the services in this user guide are not
supported by all networks. This also applies to
the GSM International Emergency Number 112.
Please read the Guidelines for safe and efficient use
and the Limited warranty chapters before you use your
mobile phone.
T9™ Text Input is a trademark or a registered
trademark of Tegic Communications.
T9™ Text Input is licensed under one or more of
the following: U.S. Pat. Nos. 5,818,437, 5,953,541,
5,187,480, 5,945,928, and 6,011,554; Canadian Pat.
No. 1,331,057, United Kingdom Pat. No. 2238414B;
Hong Kong Standard Pat. No. HK0940329; Republic
of Singapore Pat. No. 51383; Euro. Pat. No. 0 842 463
(96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE, GB;
and additional patents are pending worldwide.
Other product and company names may be the
trademarks of their respective owners.
Any rights not expressly granted herein are reserved.
Please contact your network operator or service
provider if you are in doubt as to whether you can use
a particular service or not.
2
This is the Internet version of the user's guide. © Print only for private use.
Getting started
SIM card, battery, making a call
About this user’s guide
For ease of reference, the “Getting to know your
phone” chapter gives a quick overview of the main
functions of the phone, shortcuts and general
information.
More information and downloads are available at
www.SonyEricsson.com or wap.SonyEricsson.com.
Available services
Some services and functions described in this user’s
guide are network- or subscription-dependent.
Because of this, all menus may not be available
in your phone.
This symbol indicates that a service
or function is network- or subscriptiondependent.
Please consult your network operator for
more information about your subscription.
The SIM card
When you register as a subscriber with a network
operator, you get a SIM (Subscriber Identity
Module) card. The SIM card contains a computer
chip that keeps track of your phone number, the
services included in your subscription, and your
phonebook information, among other things.
Tip: Verify that your information is saved to the
SIM card before you remove it from another phone.
For example, phonebook entries may be saved in
the phone memory.
Assembly
Before you can use your phone you need to:
• Insert the SIM card.
• Attach and charge the battery.
Getting started
This is the Internet version of the user's guide. © Print only for private use.
3
SIM card and battery information
Always turn off the phone and detach the charger
before you insert or remove a SIM card.
≈ 30 min.
≈ 4 h.
To insert the SIM card and charge the battery
1. Insert the SIM card. Make sure the SIM card
is placed under the silvery holders.
2. Place the battery on the back of the phone with
the connectors facing each other, and push until
you hear a click.
3. Place the back cover into the slots on the phone
and push until you hear a click.
4. Connect the charger to the phone at the flash symbol
with the symbol on the charger plug facing upwards.
5. It may take up to 30 minutes before the battery
charging icon appears in the display.
6. Wait approximately 4 hours or until the icon indicates
that the battery is fully charged. If you do not see the
battery icon after this time, press any key to activate
the display.
7. Remove the charger by tilting the plug upwards.
Turning on the phone and making calls
Your PIN (Personal Identity Number) is provided
by your network operator but not all operators
require a PIN to activate services.
If your PIN starts with the same digits as an
emergency number, for example 112, the digits
are not hidden with an * when you enter them.
4
Getting started
This is the Internet version of the user's guide. © Print only for private use.
This is so that you can see and call an emergency
number without entering a PIN. See “Emergency
calls” on page 23 for more information.
If you make a mistake while entering your PIN,
delete the number by pressing
.
Note: If you enter the wrong PIN three times in a
row, the SIM card is blocked and the message PIN
blocked appears. To unblock it, you need to enter
your PUK (Personal Unblocking Key). Your PUK
is provided by your network operator.
To turn on thephone
1. Open the phone. Press and hold .
2. Enter your PIN, if you have one for your SIM card.
To make and receive calls
• Enter the area code and phone number, and press
YES to make the call.
• Press NO or close the phone to end the call.
• When the phone rings, press YES or open the
phone to answer the call. See “Phone functions”
on page 20.
Navigating the menus
The main menus are shown as icons on the desktop.
To go to the desktop, press the center of the navigation
key. (See “Key functions – phone open” on page 7.)
Press left, right, up, or down to move through menus.
Press the navigation key to select highlighted items.
Getting started
This is the Internet version of the user's guide. © Print only for private use.
5
Getting to know your phone
Key functions, quick keys, entering letters
Key functions – phone closed
Volume
keys
Increase or decrease the
speaker volume during a call.
Enter the status menu in
standby. Press twice to reject
an incoming call. Press once
to turn off the ring signal
when receiving a call.
Battery
status
A red light indicates charging
or low battery.
External Shows, for example,
display the time, battery status,
network strength, profile,
signal off, incoming call,
missed call, new text message.
Infrared Exchange data via the
IR port.
6
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
Key functions – phone open
1
1
2
3
4
2
5
9
3
4
5
10
6
7
8
9
6
7
8
11
12
10
11
12
Speaker.
Main display.
Make and answer calls. Select a menu, submenu or
an option.
Navigation key. Press to enter the desktop
menus. Press up, down, left, right to move
through menus, lists and texts.
Press the navigation key as an alternative to
.
Press for options or help. Press and hold
for WAP.
Enter digits, 0-9, and letters.
Enter *. Shift between lower or upper case.
Microphone.
Press to end or reject a call, go back one level in the
menus, or leave an option unchanged. Press and hold
to go back to standby mode from menus.
Delete numbers, letters or an item from a list.
Enter # or a space.
Press and hold to turn the phone on or off.
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
7
Quick keys
Useful key combinations (using shortcuts)
are described below.
When in standby:
press the position number
and
press any of the number
keys
–
and YES
press a volume key once.
To...
When in standby:
reach a phone number
at a specific position
speed dial
make an emergency call
enter the international
emergency number
and press YES
press the navigation
key or
press
enter the Status menu
to see today’s date,
the profile in use and the
model name of the phone
change the language
to Automatic
press
8888
press
0000
enter the menus
enter the first submenu
in My Shortcuts
enter Find and Call
or
enter Call List
call your voicemail
enter the + sign
turn off the ring signal
when receiving a call
press YES
press and hold
press and hold
press
, or a volume
key once
change the language
to English
press
reject a call
quickly press a volume
key twice when receiving
a call or press NO
set the phone to silent,
options
press and hold
or press
, YES
To...
In standby when phone
is closed:
change information
in external display
press a volume key once
reach a phonebook entry press and hold any of the
beginning with a specific keys
–
letter
8
To...
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
To...
During a call:
To...
put a call on hold
retrieve a call
press YES
press YES again
When entering letters
using multitap text input:
enter a space
press
To...
When in the menus:
To...
move through menus
or lists
enter a quick options menu
or help, if available
delete an item
go back to standby
use the navigation key
or press a volume key
press
When entering letters
using T9™ Text Input:
view alternative words
accept a word and add a
space
enter a period
view alternative
punctuation marks
press
press
press
when in lists
press and hold NO
To...
When entering letters:
shift between upper- and
lower-case letters
enter numbers
press
select multitap or
T9 Text input methods
select input languages
and other character or
numeric input methods
press and hold
, then the letter
press and hold any of the
number keys
delete letters and numbers press
press and hold
or
press
press
, then
repeatedly
or
Using shortcuts
A quicker way to move through the menus is to use
shortcuts. Enter the menus by pressing
and then
simply press the navigation key to enter the menu.
To get back to standby, press and hold NO.
You can quickly and easily reach the settings you
use most by placing them in the menu My Shortcuts.
See “My shortcuts” on page 20.
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
9
Delete, edit and rename
If you add items, for example, a phonebook entry,
a calendar item or a WAP bookmark, it can be
deleted, edited or renamed.
Note: This menu only appears if your SIM card
supports this service. Some operators may not use
the name “Online services”. Your phone may not
support all of the services offered.
To delete an item
• Select an item and press
.
• Select an item, press
, select Delete
or Delete All.
To enter your new menu system
Scroll to Connect, YES, Online Services, YES.
To edit items
Select an item, press
, select Edit.
Online services
Online services are customized services
offered by network operators, independently
of mobile phones and mobile phone
manufacturers.
A SIM card which supports online services works
in the same way as a normal SIM card. When you have
inserted your SIM card and turned on your phone,
your network operator can download data to your
SIM card. When you restart your phone after the
first data download, a new submenu appears under
the Connect menu.
10
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
Menu overview
Calls
WAP Services
My Shortcuts
Fun & Games
Messages
Missed Calls
Call List
Manage Calls
Time & Cost
Next Call
Options
Sony Ericsson
Bookmarks
Push Inbox
Enter Address
Resume
Select Profile
Advanced
Options
Write New
Ring Volume
Select Profile
My Numbers
Edit Shortcuts
Games
My Pictures
My Sounds
Themes
Composer
Operator link*
Write New
Inbox
Call Voicemail
Unsent
Templates
Sent Items
Options
Area Info.
SMS Memory
*Please note
that some
menus are
operator-,
network- and
subscriptiondependent.
Organizer
Connect
Phonebook
Settings
Ongoing Call*
Calendar
Alarms
Timer
Stopwatch
Calculator
Online Services*
Infrared Port
GSM Networks
Data Comm.
Find and Call
Add Number
Find and Edit
Personal Rings
Groups
Email Addresses
Options
Memory Status
Special Numbers
Sounds & Alerts
Profiles
Display
Language
Time and Date
Locks
Handsfree
Flip functions
Master Reset
Turn Off Tones**
Hold Call**
Switch Calls**
Release Active Call**
Retrieve Call**
Join Calls**
Transfer Call**
Extract Part**
Release All Calls**
Release Party**
Parties in Conf.**
Calls**
**Only
available
during a call
or conference
call.
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
11
Entering letters and characters
You can enter letters, for example, when you add
names to the phonebook, write text messages or
enter WAP addresses.
Apart from the way you normally enter letters
in your phone, using multitap input, you can use
T9™ Text Input for entering text messages
if the input language you select supports this.
T9 Text Input is a predictive input method and
is a quicker way to write texts.
Input languages
Before you start entering letters, you need to select
the input languages that you want to use when writing.
To select input languages
1. Scroll to Settings, YES, Language, YES, Input, YES.
2. Scroll to the language or alphabet that you want
to use for entering letters and press
for each
language you want.
3. Press YES to exit the menu.
When writing, you can switch to one of your
selected input languages by pressing
and then
selecting Language. See “The list of options”
on page 14.
12
Multitap text input
When saving names in the phonebook or when
writing WAP addresses, you enter letters using
multitap text input. You press each key as many
times as needed to show the letter you want.
The following example shows how to write a name
in the phonebook.
To enter letters using multitap text input
1. Scroll to Phonebook, YES, Add Number, YES,
Add New, YES.
2. Add the number, YES.
3. Press the appropriate key,
–
,
or
, repeatedly until the character you want
appears in the display, e.g., to enter an A, press
once, to enter a B, quickly press
twice, to shift
between upper- and lower-case letters, press
,
then enter the letter.
See the Latin alphabet, abc, table below:
Press…
to see/enter…
.,-?!'@:;/()1
ABCÅÄÆàÇ2Γ
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
Press…
–
to see/enter…
DEFèÉ3∆Φ
GHIì4
JKL5Λ
MNOÑÖØò6
PQRSß7ΠΣ
TUVÜù8
WXYZ9
+0ΘΞΨΩ
Space # * ↵ ¶
to delete letters and numbers
to shift between upper- and lowercase letters
press and hold to enter numbers
T9™ Text Input
You can use T9™ Text Input when writing text
messages. The T9™ Text Input method uses a builtin dictionary to recognize the most commonly used
words for each sequence of key presses. This way,
you press each key only once, even if the letter you
want is not the first letter on the key.
Note: A language must be selected in order to use
the T9™ Text Input method. If you change input
method in Settings/Language/T9 Input, this is valid
for all input of texts, not only for the text you are
currently writing.
The following shows how to start writing
a text message.
Tip: Press
to enter a period. To enter other
punctuation marks, press
and then
or
repeatedly. Press
to accept and add a space.
Press and hold
to select an input method for
the text you are currently writing.
To enter letters using T9™ Text Input
1. Scroll to Messages, YES, Text, YES, Write New, YES.
2. For example, if you want to write “Jane”, press
,
,
,
. A list of alternative words
or candidates are shown. If the candidates do not
include a word you want, you can add a new word
to the list whilst selecting.
3. Scroll
to select Jane.
4. When the word is highlighted, press YES to accept
without a space, or press
to accept and add
a space.
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
13
To add a word to candidates
1. Scroll to a candidate similar to the word you want
to add, press
, select Edit Word, YES.
2. Press
repeatedly to delete one letter at a time.
Write the new word using multitap text input, YES.
The word is added to the dictionary. The next time
you enter the word you just added to the dictionary,
it appears as one of the alternative words.
3. Continue writing your message. See also
“Text messages (SMS)” on page 43.
The list of options
Press
when writing to enter a list of options.
The list may contain some or all of the following
options:
• Add Symbol – Symbols and punctuation marks
such as ? and , are shown. Move between the
symbols by using the navigation key.
• Insert Item – Add a picture, sound effect,
melody or animation to a message.
• Edit Word – For T9™ Text Input only.
Edit the suggested word by using multitap
text input.
• Text Format – Edit size, style, alignment
or start a new paragraph.
14
• Language – Select an input language.
• Input Method – A list of input methods available
for the current input language is shown.
• Candidates – For T9™ Text Input only.
Turn on or off the alternative words list.
• National Char. – Turn off language-specific
characters to save space. This option only appears
for some input languages.
• Help.
To turn T9™ Text Input on or off
Scroll to Settings, YES, Language, YES, T9 Input, YES
or press and hold
when writing.
Getting to know your phone
This is the Internet version of the user's guide. © Print only for private use.
Personalizing your phone
Choosing ring signal, theme and other settings
Themes
You can change the appearance of the display,
for example, the colors and wallpaper, by using
themes. Your phone comes with a number of preset
themes.
To select a theme
Scroll to Fun & Games, YES, Themes, YES.
To adjust the display contrast
Scroll to Settings, YES, Display, YES, Contrast, YES.
Pictures
Your phone comes with a number of pictures.
All pictures are saved in Fun & Games/My Pictures.
You can:
• Set a picture as a wallpaper when in standby mode.
• Assign a picture to an entry in the phonebook.
When that person calls, the picture appears in the
display (provided your subscription supports the
Caller-ID service). See “To add a picture
to a phonebook entry” on page 26.
• Enclose a black and white picture in a text message.
• Send a picture via IR.
• Download a picture via WAP.
Handling pictures
You can also add, delete or rename pictures
in My Pictures. The number of pictures that can
be saved depends on the size of the pictures. File
types supported are GIF, JPEG and WBMP.
Tip: When viewing your pictures in Fun & Games/
My Pictures, you can set a wallpaper by pressing
.
To view your pictures
Scroll to Fun & Games, YES, My Pictures, YES.
The pictures are shown in thumbnail view. To get
a full view, press YES.
Animations can only be viewed when inserting
an item in a text message. See “To insert an item
in a text message” on page 43.
Personalizing your phone
This is the Internet version of the user's guide. © Print only for private use.
15
To select a picture as wallpaper
1. Scroll to Settings, YES, Display, YES, Wallpaper, YES,
Select Picture, YES.
2. Select a picture, YES.
To receive a picture via Infrared
1. From standby, press
, scroll to Activate IR, YES.
2. When you receive the picture, press YES to save it in
My Pictures.
To turn the wallpaper on or off
Scroll to Settings, YES, Display, YES, Wallpaper, YES,
Activate, YES.
To receive a picture via a message
When you receive a picture via a message, a new
message appears in your Inbox. Highlight the picture
in the message by using the navigation key to select it,
press
and select Save to save it in My Pictures.
Exchanging pictures
You can send and receive pictures via IR and in text
messages. For more information on sending pictures
in messages, see “Messaging” on page 42.
Note: You are not allowed to exchange copyrightprotected material.
1.
2.
3.
4.
16
To send a picture
Scroll to Fun & Games, YES, My Pictures, YES.
Select a picture, YES. Press
.
Select Send, YES.
Select a transfer method, YES.
Ring signals and melodies
Your phone comes with a number of standard
and polyphonic melodies which can be used as
ring signals. See “Icons” on page 67 for more
information. You can create and edit melodies,
and send them to a friend, in a text message.
You can also exchange melodies via IR or download
new via WAP.
Note: You are not allowed to exchange copyrightprotected material.
Personalizing your phone
This is the Internet version of the user's guide. © Print only for private use.
Managing ring signals and melodies
Exposure to a loud ring volume may damage hearing.
Answer the call or lower the volume before placing
the phone to your ear.
To select a ring signal
Scroll to Settings, YES, Sounds & Alerts, YES,
Ring Sounds, YES.
To set the ring signal volume
1. Scroll to Settings, YES, Sounds & Alerts, YES,
Ring Volume, YES.
2. Press
or
to decrease or increase the volume.
3. Press YES to save the setting.
•
•
•
•
to raise the note one octave.
once to raise the note one semitone.
twice to lower the note one semitone.
to remove notes.
To compose a ring signal
1. Scroll to Fun & Games, YES, Composer, YES.
2. Compose your ring signal using the options
described above.
3. To listen to your ring signal, press YES.
4. Press YES again to save and name it, or press NO
to continue composing.
Exchanging ring signals and melodies
You can send and receive a sound, ring signal or
melody via IR, text messages, or download it via WAP.
To send a ring signal or melody in a text message,
see “To insert an item in a text message” on page 43.
To turn the ring signal on or off
Press
or press and hold
from standby
and select Turn On Silent or Turn Off Silent.
All signals except the alarm signal are turned off.
Note: You cannot exchange a polyphonic melody
via text messages.
To compose your own ring signal
You can compose up to ten personal ring signals.
Options available when composing a ring signal are:
• Press a key to enter a note. Press and hold the key
to make it a long note.
Press
Press
Press
Press
1.
2.
3.
4.
To send a melody
Scroll to Fun & Games, YES, My Sounds, YES.
Select a melody and press
.
Select Send, YES.
Select a transfer method.
Personalizing your phone
This is the Internet version of the user's guide. © Print only for private use.
17
To receive a sound or melody via Infrared
1. From standby, press
, scroll to Activate IR, YES.
2. When you receive the sound or melody, press YES
to save it in My Sounds.
Increasing Ring
You can choose a ring signal that rises in steps from
the lowest volume to the highest, or you can choose
a ring signal with constant volume.
To turn increasing ring On or Off
Scroll to Settings, YES, Sounds & Alerts, YES,
Increasing Ring, YES.
Sounds & Alerts
You can choose to be notified of an incoming call
by the buzzing of the vibrating alert. You can set the
phone’s vibrating alert to On, On If Silent or Off.
From Settings/Sounds & Alerts, you can also select:
• Message Alert when messages are received.
• Key Sound when using the keypad.
• Minute Minder to beep after every minute
during calls.
18
To set the vibrating alert
1. Scroll to Settings, YES, Sounds & Alerts, YES,
Vibrating Alert, YES.
2. Select the setting you want, YES.
Menu language
Most SIM cards automatically set the menu language
to the language of the country where you bought
your SIM card. If this is not the case, the preset
language is English.
Note: You can always choose Automatic by pressing
8888
in standby. You can always choose
English by pressing
0000
in standby.
To change the menu language
1. Scroll to Settings, YES, Language, YES, Menus, YES.
2. Select a language, YES.
Display light
The display light can be set to Automatic, Off or On.
In automatic mode, the display light is turned off
a few seconds after you press the last key.
Note: If set to On, the display light consumes extra
battery power and reduces standby time.
Personalizing your phone
This is the Internet version of the user's guide. © Print only for private use.
To set the display light
Scroll to Settings, YES, Display, YES, Light, YES.
To set the display contrast
Scroll to Settings, YES, Display, YES, Contrast, YES.
Time settings
The time is displayed in the external display when
the phone is closed.
You can also see the time in the main display
in standby. The time can be displayed in a 12-hour
or a 24-hour clock.
Note: If you select the 12-hour clock, you can
alternate between am and pm by pressing
when setting the time.
To set the time
Scroll to Settings, YES, Time and Date, YES,
Set Time, YES.
To set the time format
Scroll to Settings, YES, Time and Date, YES,
Time Format, YES.
Date
When the phone is in standby, you can always see
today’s date in the main display or you can press one
of the volume keys to see the date in the status menu.
To return to standby, wait a few seconds.
To set the date
Scroll to Settings, YES, Time and Date, YES,
Set Date, YES.
To set the date format
Scroll to Settings, YES, Time and Date, YES,
Date Format, YES.
Advanced time settings
Under Advanced in the Settings/
Time and Date menu, you can set time zone
and daylight saving time. Modyfying these
settings changes the time accordingly if
your network operator supports this service.
When your phone changes network and the time
sent out from the network operator deviates from
the time in your phone, you are asked whether
you want to update the time if you have turned
on Auto Time Zone. If you press YES, the time
is updated automatically.
Personalizing your phone
This is the Internet version of the user's guide. © Print only for private use.
19
Note: Contact your network operator for more
information.
Answering mode
When using a portable handsfree kit, you can choose
to answer a call by opening the phone, pressing any
key (except the NO key), or setting the phone to
answer the call automatically.
To select answering mode
Scroll to Settings, YES, Handsfree, YES,
Answering Mode, YES.
Phone functions
You can answer a call by opening the phone.
To set the phone functions
1. Scroll to Settings, YES, Flip functions, YES.
2. Select Answer call or Off.
My phone numbers
You can check your own phone number(s).
To check your phone number
Scroll to Phonebook, YES, Special Numbers, YES,
My Numbers, YES. If your number is not saved
on your SIM card, you can enter it yourself.
20
My shortcuts
You can place your favorite functions that you want
to reach quickly and easily in the My Shortcuts menu.
To reach a shortcut from standby
Press
to enter the first shortcut in My Shortcuts.
To add a function to my shortcuts
1. Scroll to My Shortcuts, YES, Edit Shortcuts, YES.
2. Select a function from the list by pressing
.
3. Enter the position number you want for this function
in your menu and press YES.
4. Press YES to save and exit the list.
Profiles
Your phone has a number of preset profiles which
are set to suit a certain environment. You can rename,
change, or add accessories to the profiles. For example,
when you go to a meeting you can simply choose the
Meeting profile and a number of settings are changed,
such as the ring signal is turned off. You can reset all
profile settings to the default or the way they were
set when you bought your phone: for example
Normal.
Personalizing your phone
This is the Internet version of the user's guide. © Print only for private use.
Master reset
You can reset all the settings in the phone to the way
they were when you bought your phone by selecting
Reset Settings.
If you also want to delete all phonebook entries,
messages and other personal data, select Reset All
instead.
Accessories may change the selected profile
in your phone automatically. For example, when
using a portable handsfree the profile switches
from Normal to Port H-free. The profile should
automatically change back when the accessory
is disconnected.
To select a profile
Scroll to Settings, YES, Profiles, YES,
Select Profile, YES.
To change a profile setting
1. Scroll to Settings, YES, Profiles, YES,
Edit Profile, YES.
2. Select a setting, YES.
3. Change the profile settings and press YES to confirm.
To rename a profile
Scroll to Settings, YES, Profiles, YES, Edit Profile,
YES, Profile name:, YES.
To reset all profiles
Scroll to Settings, YES, Profiles, YES,
Reset Profiles, YES.
Note: If you select Reset All, content such as melodies
and pictures that you have downloaded, received
or edited is also deleted.
1.
2.
3.
4.
To reset the phone
Scroll to Settings, YES, Master Reset, YES.
Select Reset Settings or Reset All, YES.
Press YES to continue.
Enter the phone lock code (0000 or the new code
if you have changed it) and press YES.
The infrared (IR) port
The infrared port can be used to transfer and
exchange information with another device equipped
with an infrared port. See “Getting to know your
phone” on page 6 to locate the infrared port.
When used with certain functions, such as sending
a picture, IR is automatically activated for a shot while.
Personalizing your phone
This is the Internet version of the user's guide. © Print only for private use.
21
Note: Infrared ports must be facing each other
at a distance of 20 to 30 cm (7.9 to 11.8 Inches)
when used.
Calling
The infrared port can be activated in the
following ways:
• Press
from standby, scroll to Activate IR, YES.
• Scroll to Connect, YES, Infrared Port, YES, select
an option, YES.
• When selecting a transfer method, for example,
for sending a picture.
Making calls
Before you can make or receive any calls, you must
turn on the phone and be within range of a network.
See “SIM card and battery information” on page 4.
To turn infrared off
Scroll to Connect, YES, Infrared Port, YES, Off, YES.
Using the phonebook, call options
Tip: You can call numbers from the call list and
the phonebook. See “Call list” on page 25
and “Phonebook” on page 25.
To make a call
1. Enter the area code and the phone number, and press
YES to make the call.
2. Press NO or close the phone to end the call. See
“Phone functions” on page 20.
During calls
You can increase or decrease the speaker volume
during a call. The microphone must be turned on
to change the speaker volume during a call.
22
Calling
This is the Internet version of the user's guide. © Print only for private use.
To change the speaker volume
Press the volume keys to change the speaker volume.
To turn off the microphone during a call
1. Press and hold
until the display shows Muted.
2. Press
again to resume the conversation.
Automatic redialing
Automatic redialing is available for all calls except
data calls.
Note: Do not hold the phone to your ear while
waiting. When the call is connected, the phone
gives a loud signal.
The phone re-dials the number up to ten times or until:
• the call is connected
• you receive a call
• you press a key.
To re-dial a number
If the connection of the call failed and the display
shows Retry?, press YES.
International calls
It is useful to enter the + sign and country code
for all numbers in the phonebook as they can then
be easily used whether home or abroad.
To make international calls
1. Press and hold
until a + sign appears in the
display. The + replaces the international prefix
number of the country from which you are calling.
2. Enter the country code, area code (without the
leading zero) and phone number, YES.
Emergency calls
Your phone supports international
emergency numbers such as 112, 911,
and 08. This means that these numbers can
normally be used to make an emergency
call in any country, with or without a SIM card
inserted, if a GSM network is within range.
Note: Some network operators may require that
a SIM card be inserted, or in some cases, that
a correct PIN be entered, in order to make
an emergency call.
Calling
This is the Internet version of the user's guide. © Print only for private use.
23
In some countries, other emergency numbers may
also be promoted. Your operator may therefore have
saved additional local emergency numbers on the
SIM card.
To make an emergency call
Enter, for example, 112 (the international emergency
number), YES.
To view your local emergency numbers
Scroll to Phonebook, YES, Special Numbers, YES,
Emergency Nos., YES.
Receiving calls
If your subscription includes the Caller ID service
and the caller’s number is identified, the number
appears in the external display when the phone
is closed. If you have saved the number in your
phonebook, the name and number appear.
If the number is a restricted number, Withheld
appears.
Answer or reject calls
If you receive a call when the phone is closed, the phone
rings and a phone icon appears in the external display.
If the phone is open, Answer? appears in the main
display.
24
To answer a call
• Open the phone and press YES.
• Open the phone (if the phone function Answer call
is activated. See “Phone functions” on page 20.).
• If the phone is already open, press YES.
To reject a call
• Close the phone.
• Press NO.
• Quickly press a volume key twice.
Missed calls
If you have missed a call, Missed calls:1 appears
in the external display and in the main display,
indicating the number of missed calls.
The most recent missed call is first on the call list,
and the oldest call is last. Scroll to select and show
the time if the call occurred on the same day. Otherwise,
only the date appears for older missed calls.
To check your missed calls
1. When Missed calls: 1 is displayed, open the phone
and press YES to display the missed calls.
2. To call a number from the list, scroll to the
number, YES.
Calling
This is the Internet version of the user's guide. © Print only for private use.
Call list
The numbers of the last calls that you have made or
received are saved in the call list. If your subscription
includes the Calling Line Identification service and
the caller’s number is identified, you will also find
the numbers of answered and missed calls in the
call list.
To call a number from the call list
1. To enter the call list, press YES from standby.
2. Scroll to the number you want to call, YES.
To clear the call list
Scroll to Calls, YES, Options, YES, Clear Call List, YES.
To turn the call list on or off
Scroll to Calls, YES, Options, YES, Call Listing, YES.
Phonebook
Your phone has a phonebook in which you can save
numbers and accompanying names (an entry).
This means that you can retrieve a number from
the phonebook instead of entering the number again.
Saving a number
When you want to save a phone number, you use the
Add Number function in the phonebook menu. If you
have already made and received calls, you can find
these numbers in the Add numbers list.
Every phone number you save also gets a position
number. If you want to, you can choose to sort your
phonebook entries according to their position number
instead of the name.
If you intend to use your phone both at home and
abroad, it is a good idea to save all phone numbers
as international phone numbers, i.e. with the + sign,
followed by the country code, the area code and
the phone number. Press and hold
to enter
the + sign.
To save a number together with a name
1. Scroll to Phonebook, YES, Add Number, YES.
2. Select Add New or any of the numbers from the list
by pressing YES.
3. Enter the phone number that you want to save and
press YES.
Calling
This is the Internet version of the user's guide. © Print only for private use.
25
4. Enter a name that you want to associate with the
phone number and press YES. See “Entering letters
and characters” on page 12.
5. Press YES again to save the entry in the suggested
position.
Pictures and personal rings
You can add a picture to a phonebook entry.
If your subscription includes the CallerID (CID) service, you can assign a personal
ring signal to a caller.
1.
2.
3.
4.
To add a picture to a phonebook entry
Scroll to Phonebook, YES, Picture, YES.
Select Add New, press YES.
Press YES to go to the phonebook, YES.
This takes you to Picture. Select a picture
and press YES.
1.
2.
3.
4.
To add a ring signal to a phonebook entry
Scroll to Phonebook, YES, Personal Rings, YES.
Select Add New, press YES.
Press
to go to the phonebook, YES.
This takes you to Personal Rings. Select a ring
signal and press YES.
26
Calling a number saved in the phonebook
You use the Find and Call function to call a number
that you have saved in the phonebook.
To call a number saved in the phonebook
1. Scroll to Phonebook, YES, Find and call, YES.
2. Enter the name or the first few letters of the name
(sort order by name) associated with the number that
you want to call and press YES.
3. If the name displayed is not the one you want, press
or
until you find the correct name and number.
4. Press YES to make the call.
Speed dialing
You can call the phone numbers that you have saved
in positions 1–9 by entering the position number in
standby, and then pressing YES.
Example:
Press
and then YES.
Shortcuts to phonebook entries
When in standby, you can find an entry of the keys
–
to find an entry beginning with the first
letter on that key, or the closest following.
Calling
This is the Internet version of the user's guide. © Print only for private use.
Example:
Press and hold
to get to the first entry
beginning with the letter “G” (or the closest
following). Then scroll up or down, using
or
When you find the entry you want, press YES to
make the call.
.
Ask to save
If Ask to Save is on, you are asked if you want
to save any called or answered number that is not
already saved in your phonebook.
Note: Your subscription must include the Caller ID
service if you want to save answered numbers.
To turn the Ask to Save function on or off
1. Scroll to Phonebook, YES, Options, YES,
Ask to Save, YES.
2. Select On or Off and press YES.
Keeping the phonebook up to date
You can change and delete names and numbers
from the phonebook.
To edit an entry
1. Scroll to Phonebook, YES, Find and Edit, YES.
2. Enter the name (or the first few letters) for the
entry that you wish to edit and press YES.
3. Press YES to select the entry.
4. Select Edit and press YES.
5. When you have finished editing, press YES to save
your changes.
To delete an entry from the phonebook
1. Scroll to Phonebook, YES, Find and Edit, YES.
2. Enter the name (or the first few letters) for the entry
that you wish to delete and press YES.
When the entry you want to delete is highlighted,
press YES.
3. Press YES to confirm.
Sort order
You may change the sort order of your phonebook
entries, so that they are sorted according to their
position number instead of the name. This means
that you search for the position number when you
use the Find and Call or the Find and Edit
functions.
Calling
This is the Internet version of the user's guide. © Print only for private use.
27
To choose a sort order
1. Scroll to Phonebook, YES, Options, YES,
Sort Order, YES.
2. Select a sort order and press YES.
Phonebook memories
Your phonebook entries are saved in the memory
on your SIM card. The number of entries you can
save depends on your SIM card. By saving your
entries on the SIM card, you still have access to
them if you use the card with another phone.
You can also save your entries in the phone
memory. The phone memory holds a number of
positions in which your entries are saved when all
SIM positions are occupied. If you save your entries
in the phone memory, you still have access to them if
you use another SIM card with your phone.
Choosing where to save an entry
When you save an entry and are asked to enter the
position number, you can do the following:
• To save the number in the first empty position
suggested, press YES.
28
• To save the number in another position, press
to delete the position number, enter a new
position number and press YES.
• To save the number in the phone memory, you
first need to know how many positions you have
got on your SIM card. You can check this in the
Memory Status menu, see page 28. If, for example,
you have 200 positions on your SIM card, you can
enter position number 201 to save a number in the
first position of the phone memory.
Replacing entries
If you try to save a phone number in a position which
already contains a phone number, the message
Overwrite? appears together with the name saved
in that position. You now have two options:
• Press YES to replace the number with the new one.
• Press NO if you do not want to replace the old
number. Enter a new position and press YES.
Checking the status of the memory
You can check how many memory positions you
have in your memories and how many of them you
have used.
Calling
This is the Internet version of the user's guide. © Print only for private use.
To check the status of the memories
Scroll to Phonebook, YES, Memory Status, YES.
If you have saved entries in the phone memory,
you can delete them.
To delete all entries from the phone memory
1. Scroll to Phonebook, YES, Options, YES,
Delete all?, YES.
2. Press YES again. If you delete all entries from the phone
memory, the entries on your SIM card are not deleted.
Copy phonebook entries
You can copy the phonebook entries between your
phone’s memory and the SIM card. The number
of entries that can be saved depends on the type
of SIM card.
To copy entries to the SIM card
Scroll to Phonebook, YES, Options, YES,
Copy to SIM.
To copy entries to the phone
Scroll to Phonebook, YES, Options, YES,
Copy from SIM.
Groups
You can create a group of phonebook entries. You
can then send a text message to all members of that
group at the same time. See “Text messages (SMS)”
on page 43.
To create a new group
1. Scroll to Phonebook, YES, Groups, YES,
Add group?, YES.
2. Enter a name for the group and press YES.
3. Scroll to Add New and press YES.
4. Select an entry in your phonebook and press YES.
5. To add the next member, repeat steps 3 and 4.
6. Press NO to leave the menu.
To add a member to an existing group
Select the group you want and then select Edit, YES,
Add New, YES.
Voice mail
If your subscription includes an answering
service, callers can leave a voice mail
message when you cannot answer a call.
Calling
This is the Internet version of the user's guide. © Print only for private use.
29
Receiving a voice mail message
Depending on your network operator, you are
informed that someone has left a message by
a text message or by a voice mail indication.
Calling your voice mail service
You can easily call your voice mail service
by pressing and holding
, if you have saved
your voice mail number in the phone. You get the
number from your service provider.
30
Call cost
For cost information you need to verify
with your network operator or service
provider whether you can subscribe to such
a service where call cost (or the number
of call units) is displayed.
Cost information
If you have a subscription with a cost information
service, you can check the cost of your last call
and the total cost of your calls.
To enter a voice mail number
Scroll to Messages, YES, Options, YES,
Voicemail No., YES.
Note: If you subscribe to cost information, you must
enter your PIN2 to clear the cost or time counter.
Call time
During a call, the duration of the call is shown
in the display.
You can check the duration of your last call,
outgoing calls and the total time.
To check the call cost and reset cost meter
• Scroll to Calls, YES, Time & Cost, YES, Call Costs
and select an option, YES.
• Select Clear Total Cost to reset the call cost
meter.
To check the call time and reset timer
• Scroll to Calls, YES, Time & Cost, YES,
Call Timers and select an option, YES.
• Select Reset Timers to reset the call time meter.
Setting the call cost
You can use the rate function to specify the price per
call unit. If you do not specify a price per call unit,
the number of call units is displayed.
Calling
This is the Internet version of the user's guide. © Print only for private use.
To enter the price per call unit
1. Scroll to Calls, YES, Time & Cost, YES, Call Costs,
YES, Set Rate, YES.
2. Enter your PIN2, YES.
3. Select Change Rate, YES.
4. Enter the code for the currency you want
(for example USD for US Dollars), YES.
5. Enter the price per call unit, YES.
To enter a decimal point, press
.
Credit limit for calls
You can enter a total amount of money
that can be used for making calls. When
the amount reaches zero, no more calls
can be made. Please note that the credit
limit is only an estimated value.
To set a credit limit
1. Scroll to Calls, YES, Time & Cost, YES, Call Costs,
YES, Set Credit, YES.
2. Enter your PIN2, YES.
3. Select Change, YES.
4. Enter an amount, YES.
See “Security” on page 54 for more information
about PIN2.
Forwarding calls
If you cannot answer incoming voice or
data calls, you can forward them to another
number, for example your answering
service.
Note: When the Restrict Calls function is on,
some Forward Calls options cannot be activated.
For voice calls, you can choose between the
following forward alternatives:
• Always Forward – forward all voice calls.
• When Busy – forward calls if you are already
on the phone.
• Not Reachable – forward calls if your phone
is turned off or if you are unreachable.
• No Reply – forward calls that you do not
answer within a specified time limit
(operator-dependent).
To turn on a call forward
1. Scroll to Calls, YES, Manage Calls, YES,
Forward Calls, YES.
2. Select a call category and then a forward
alternative, YES.
Calling
This is the Internet version of the user's guide. © Print only for private use.
31
3. Select Activate, YES.
4. Enter the phone number to which you want your
calls to be forwarded and press YES, or retrieve it
from the phonebook.
To turn off a call forward
Select a forward alternative and select Cancel.
To check status
1. Scroll to Calls, YES, Manage Calls, YES,
Forward Calls, YES.
2. Select a call type, YES.
3. Scroll to the forward you want to check, YES.
Select Get Status, YES.
To check the status of all call forwards
Select Check All in the Forward Calls menu.
More than one call
You can handle more than one call
simultaneously. For example, you can
put an ongoing call on hold, while you
make or answer a second call, and then
switch between the two calls. You cannot answer
a third call without ending one of the first two calls.
32
Note: During a call the Ongoing Call menu replaces
the Calls menu.
Call waiting service
If the call waiting service is activated, you hear a beep
in the earpiece if you receive a second call during an
ongoing call.
To activate or deactivate the call waiting service
Scroll to Calls, YES, Manage Calls, YES,
Call Waiting, YES.
To make a second call
1. Press YES to put the ongoing call on hold. You can
only put one call on hold.
2. Enter the number you want to call and press YES,
or retrieve a number from the phonebook. You can
also reach different options by pressing
.
To receive a second call
• To answer the second call and put the ongoing call
on hold, press YES.
• To reject the second call and continue the ongoing
call, select Busy.
• To answer the second call and to end the ongoing
call, select Release & Answ.
Calling
This is the Internet version of the user's guide. © Print only for private use.
Handling two calls
When you have one ongoing call and one call on hold,
you can do the following:
• Press YES to switch between the two calls.
• Press
and select Join Calls to join the two
calls into a conference call.
• Press
and select Transfer Call to connect the
two calls. You are disconnected from both calls.
• Press NO to end the ongoing call, then press YES
to retrieve the held call.
• Press NO twice to end both calls.
Conference calls
You can have a joint conversation
(conference call) with up to five people.
You can also put a conference on hold
and make another call.
Note: There may be additional charges for calls
involving multiple parties. Contact your service
provider for more information.
Creating a conference call
To create a conference call, you must first have one
ongoing call and one call on hold.
To join the two calls into a conference call
Scroll to Ongoing Call, YES, Join Calls, YES.
To add a new participant
1. Press YES to put the conference call on hold.
2. Call the next person you wish to include in the
conference call.
3. Press
, select Join Calls, YES.
Repeat steps 1 to 3 to include more participants.
To release a participant
1. Press
, select Release Party, YES.
2. Select the participant, YES.
To end the conference call
Press NO.
Having a private conversation
You can have a private conversation with one of the
participants and put the other participants on hold.
To start a private conversation
1. Press
, then select Extract Part to select
the participant that you want to talk with.
2. Select Join Calls to resume the conference call.
Calling
This is the Internet version of the user's guide. © Print only for private use.
33
Restricted dialing
You can use the restrict calls service to
restrict outgoing and incoming calls. This
may be useful, for example, when you
are abroad. To use this service, you need
a password which you get from your service
provider.
Note: If you forward incoming calls, you cannot
activate some Restrict Calls options.
The following calls can be restricted:
• All Outgoing – All outgoing calls.
• Outgoing Intl. – All outgoing international calls.
• Outg. Intl. Roam – All outgoing international
calls except to your home country.
• All Incoming – All incoming calls.
• Inc. when Roam – All incoming calls when you
are abroad (when roaming).
To turn a call restriction on or off
1. Scroll to Calls, YES, Manage Calls, YES,
Restrict Calls, YES.
2. Select an option, YES.
3. Select Activate or Cancel, YES.
4. Enter your PIN, YES.
34
Fixed dialing
The fixed dialing function allows calls to be
made only to certain numbers saved on the
SIM card.
Note: Calls to international emergency numbers
can still be made even when the fixed dialing
function is on.
Fixed dialing requires a SIM card that allows
fixed numbers to be saved. The fixed numbers
are protected by your PIN2.
You can save partial numbers or numbers with
question marks.
• Partial numbers: Saving 0123456 allows calls
to be made to all numbers starting with 0123456.
• Numbers with question marks: Saving 01234567?0,
allows calls to be made to numbers from
0123456700 to 0123456790. To enter
a question mark, press and hold
.
To turn fixed dialing on or off
1. Scroll to Phonebook, YES, Options, YES,
Fixed Dialing, YES.
2. Enter your PIN2, YES.
3. Select On or Off, YES.
Calling
This is the Internet version of the user's guide. © Print only for private use.
To save a fixed number
1. Scroll to Phonebook, YES, Special Numbers, YES,
Fixed Numbers, YES.
2. Select Add New and enter the number.
Closed user groups
The Closed User Group function is a way of lowering
call costs. On some networks it is cheaper to make
calls within a call group. You can save ten groups.
To add a group
1. Scroll to Calls, YES, Manage Calls, YES,
Closed Groups, YES, Edit List, YES.
2. Scroll to Add New, YES.
3. Enter the name of the user group, YES.
4. Enter the index number, YES. You get the index
number from your operator.
To activate a group
1. Scroll to Calls, YES, Manage Calls, YES,
Closed Groups, YES, Edit List, YES.
2. Select a group, YES.
3. Select Activate, YES. Calls can only be made within
the selected group.
To call outside a Closed User Group
Select Open Calls and then select On.
Accept calls
With the accept calls service, you can choose to
receive calls only from certain numbers. Other calls
are automatically rejected by a busy tone. The phone
numbers of calls you have rejected are saved in the
Call List.
To add numbers to the accepted callers list
1. Scroll to Calls, YES, Manage Calls, YES,
Accept Calls, YES, Accepted List, YES.
2. Scroll to Add New, YES.
3. Select an option, YES.
4. Select an entry, YES.
To select an accept option
Scroll to Calls, YES, Manage Calls, YES,
Accept Calls, YES, Accept Options, YES.
Networks
When you turn on the phone it automatically
selects your home network if this is within
range. If it is not within range, you may use
another network. This is called roaming.
Calling
This is the Internet version of the user's guide. © Print only for private use.
35
Additional calling functions
Tone signals
You can use telephone banking services or
control an answering machine by sending
tone signals (also known as DTMF tones
or touch tones) during a call.
To show or hide your phone number
1. Enter the phone number you want to call.
2. Press
or scroll to Calls, YES, Next Call, YES.
3. Select Hide My Number or Show MyNumber and
press YES to make the call.
To send and clear tones
• Press the number keys 0-9,
and
.
• To clear the display after a call, press NO.
Notepad
You can use the phone to make note of a number
during a call. When you press the number keys, the
person you are talking to hears tone signals. To turn
these tone signals off during the call, press
,
select Turn Off Tones, YES. When you end the call,
the number remains in the display. You can then call
the number by pressing YES.
Showing or hiding your number
If your subscription supports the Caller
ID Restriction service, you can hide your
phone number when making a call.
36
Calling
This is the Internet version of the user's guide. © Print only for private use.
Setting up WAP
WAP browser
Requirements
In order to use the Internet or browse via
WAP services, the following are required:
• A phone subscription that supports data
transmission.
• Settings entered in your phone. Settings may
already be entered when you buy your phone
or you can receive settings in a text message from
your network operator or service provider. You
can also find settings at www.SonyEricsson.com.
• You may also have to register as a WAP user with
your service provider or network operator.
Receiving settings in a text message
Your GSM network operator or Internet service
provider may be able to send the required data
account and WAP settings direct to your phone
in a text message (SMS).
Request settings from Sony Ericsson
Use a PC to go to www.SonyEricsson.com. Select
your region and then use the Configurators to
request that a text message be sent to your phone
with the settings you need.
To install settings
When the message arrives, New settings received.
Install? appears:
• Press YES to install the new settings. If settings
already exist in your phone you can either keep
or replace them. See “Advanced setting
information” on page 38.
• Press NO to cancel installation.
After installation, see “Using WAP” on page 48.
Set up with the wizard
If your phone is not set up for WAP, you can ask
your network operator or service provider to provide
you with WAP settings information. Then you can
simply use the wizard in your phone to help guide
you through the relevant settings.
Setting up WAP
This is the Internet version of the user's guide. © Print only for private use.
37
To use the wizard for setting up WAP
1. Scroll to WAP Services, YES, homepage (for example
Sony Ericsson), YES. The wizard now starts if no WAP
settings exist.
2. Enter and save settings when asked, press YES
to confirm.
Advanced setting information
Some advanced settings that are described in the
following texts may not be mandatory, please
consult your network operator or service provider
for more information.
A data account includes connection settings
for access to a server at your service provider,
for example via WAP or via email.
A WAP profile includes user settings that
allow WAP browsing.
To use the WAP browser, via a WAP service
provider, you need settings for a specific data
account for WAP, and a WAP profile.
To send a text message (SMS) to an email address
via your network operator, you need to set an email
gateway phone number.
Data account settings
You can have several data accounts saved
in your phone with different settings for
different purposes. The main setting for
a data account is the Account Type
(connection method).
Tip: If there are no data account or WAP profile
settings in your phone, you can enter data account
settings when you enter WAP profile settings.
You can choose from GPRS Data or GSM Data
account types. If you want to change access type,
you have to create a new data account and select
the access type you want to use.
Note: Please contact your network operator
for charging details.
GPRS
GPRS (General Packet Radio Service)
allows fast and efficient access where you
can always be online.
Note: You need a subscription that supports GPRS.
38
Setting up WAP
This is the Internet version of the user's guide. © Print only for private use.
GPRS settings that are available:
• APN (Access point name address) – the address
of the external data network you want to connect
to, either an IP address or a text string.
• User ID – your user id to log on to the external
data network.
• Password – your password to log on to the external
data network.
• Pwd. Request (Password request) – if this setting
is on, you are asked for a password each time you
log on to the external data network.
• Allow Calls (Preferred service) – if you want
to be able to accept incoming calls during
a GPRS session, select Automatic. If not,
select GPRS Only.
• IP Address – the IP address that the phone uses
when communicating with the network. If you
do not enter an address, the network provides
you with a temporary IP address.
• DNS Address – if the network does not provide
the IP address to the DNS server automatically,
you may enter it here.
• Advan. Settings (Advanced settings) – these are
optional. Consult your network operator.
GSM
GSM settings include some settings that are
similar to GPRS settings and some that are
GSM-specific as follows:
• Phone Number – the phone number
of your Internet service provider.
• Data Rate – select the speed you want for the
connection.
• Dial Type – select analog or ISDN connection.
To create a data account manually
1. Scroll to Connect, YES, Data Comm., YES,
Data Accounts, YES, Add account?, YES.
2. Select an account type for access.
3. Enter a name for the data account.
4. Enter the settings that you have received from your
network operator or service provider.
Confirm each setting by pressing YES.
5. Scroll to Save?, YES.
To edit a data account
1. Scroll to Connect, YES, Data Comm., YES,
Data Accounts, YES.
2. Select a data account, YES.
3. Select Edit.
Setting up WAP
This is the Internet version of the user's guide. © Print only for private use.
39
4. Select the setting you want to edit, YES. Edit the
setting, YES.
5. Repeat step 4 for other settings you want to edit.
Preferred service
You can set GPRS or GSM as the preferred service.
Note: To see the status of GPRS coverage and
connection in standby look at the triangle above
the signal strength indicator. If the triangle is
filled GPRS is available. Otherwise it is not.
To select preferred mode
Scroll to Connect, YES, Data Comm., YES,
Pref. Service, YES, and select GPRS and GSM
or GSM Only.
WAP profile settings
The WAP settings are stored in a WAP profile.
In most cases you only need to use one profile
to access the Internet.
You set up and use additional WAP profiles, for
example, when accessing secure Internet sites such
as a banking site or a corporate intranet. You then
simply switch between profiles when you need
to change the network connection.
40
To enter WAP profile settings manually
1. Make sure you have a data account set up between
your phone and the Internet server, as described in
“Data account settings” on page 38.
2. Scroll to WAP Services, YES, Options, YES,
WAP Profiles, YES.
3. Select Add profile? to add a new profile or select
an existing profile that you want to edit, YES.
To enter information in a new profile
When selecting Add profile? enter a name for the
profile, YES, Connect using:, YES, select the data
account to be used, YES and enter the IP address:,
YES. A list appears. Scroll to Save?, YES.
To edit an existing profile
When selecting an existing profile, you can do the
following:
• Rename – Change the name of the profile.
• Connect Using – Select data account.
• IP Address – WAP gateway server address.
• Advanced – More profile settings, see below.
• Delete – Remove the profile.
Setting up WAP
This is the Internet version of the user's guide. © Print only for private use.
To use advanced profile settings
If you select Advanced you can do the following:
• Chg. Homepage – Enter the address of the WAP
site you want as the homepage.
• Second Account – Select an alternative data
account if the first in Connect Using fails.
• User ID – Enter your user id for the WAP
gateway.
• Password – Enter your password for the WAP
gateway.
• Security – See WAP security settings.
• Show Pictures – View pictures while browsing.
WAP security settings
Your phone has support for WAP secure
browsing. Security for a connection
between a WAP gateway and a WAP
service provider is the responsibility
of the WAP service provider.
Turning on security
When you turn on security, the connection between
your phone and the WAP gateway is secure.
To turn on a secure connection
1. Scroll to WAP Services, YES, Options, YES,
WAP Profiles, YES.
2. Select the profile to be used, YES.
3. Select Advanced, YES, Security, YES.
4. Select On, YES.
Trusted certificates
To establish a secure connection when using certain
WAP services, for example banking or WAP shopping,
you need certificates in your phone.
The different types of certificates are as follows:
• Server certificates are used to identify a WAP
gateway to the phone and to show that it is
certified by a trusted authority. The server
certificate is checked against trusted certificates
that are stored in the phone. If the phone cannot
verify the identity of a server, you are given the
options to terminate or continue the connection.
• Trusted certificates are used to verify the WAP
gateway that you are trying to connect to. Your
phone may already contain trusted certificates
when you buy it.You can also download trusted
certificates from Sony Ericsson or other WAP pages.
Setting up WAP
This is the Internet version of the user's guide. © Print only for private use.
41
To check the certificates in your phone
• Scroll to WAP Services, YES, Options, YES, Common,
YES, Security, YES, Trusted Certif., YES.
Messaging
Text messaging
Service numbers
The number to your service center is
provided by your operator. If the number
to your service center is not saved on your
SIM card, you must specify the number
yourself. Otherwise you cannot reply to
received messages or send your own messages.
Your phone also features enhanced messaging
services (EMS) that allow you to add pictures,
animations, sounds and melodies to text messages.
To check the number to your service center
1. Scroll to Messages, YES, Options, YES,
Service Centers, YES. If no number is found,
select Add New and press YES.
2. Enter the number, including the international + sign
and country code, and press YES.
42
Messaging
This is the Internet version of the user's guide. © Print only for private use.
Sending a text message to a group
You can send text messages to groups that you
have specified and saved in your phonebook, see
“Groups” on page 29. You will be charged for each
group member.
Text messages (SMS)
You can use the Short Message Service (SMS)
to send and receive text messages consisting
of up to 160 characters.
Note: Some language-specific characters use
more space. Turn off National Char. to save space.
See “The list of options” on page 14.
To send a text message
1. Scroll to Messages, YES, Write New, YES.
2. Enter your message and press YES. See “Entering
letters and characters” on page 12.
3. Enter the recipient’s phone number or retrieve
it from the phonebook by pressing .
4. Press YES to send the message.
1.
2.
3.
4.
5.
To insert an item in a text message
Scroll to Messages, YES, Write New, YES.
While writing your message press
to enter
the option menu.
Select Add Symbol or Insert Item, YES.
Select Picture, Sound, Melody or
Animation, YES.
Select an object or symbol, YES. Then press YES
again to confirm.
1.
2.
3.
4.
To send a text message to a group
Scroll to Messages, YES, Write New, YES.
Enter your message and press YES.
Press , select Groups and press YES.
Select a group and press YES.
Text formatting
You can change the style, size and alignment
of the text in a text message.
1.
2.
3.
4.
To format the text in a text message
Scroll to Messages, YES, Write New, YES.
Write the text message.
Press
.
Select Text Format, YES. Then select Text Size,
Text Style or Alignment, YES. Select a format
and press YES.
Messaging
This is the Internet version of the user's guide. © Print only for private use.
43
Long messages
A text message can contain up to 160 characters.
You can send a longer message by linking two or
more messages. Please note that you are charged
for the number of linked messages.
To turn long messages on
Scroll to Messages, YES, Options, YES,
Long Messages, YES, On, YES.
Message options
You can set a default value for the message options
below, or you can turn on the Set on Send option
which means that you choose the settings each time
you send a message.
• SMS Type – The phone supports different types
of messages. Your service provider may offer the
facility of converting a text message into a format
(email, for example) that suits the equipment that
is going to receive the message.
• Validity Period – If your message cannot be
delivered, for example, if the recipient has turned
off the phone, your service center can save the
message to send it later.
44
• Request Reply – Include a reply request if you
want the recipient of your message to reply.
• Status Request – Verify whether a message has
been delivered.
To set a default message option
1. Scroll to Messages, YES, Options, YES.
2. Select SMS Type, Validity Period, Request Reply,
or Status Request, YES.
3. Select an option from the list, YES.
To turn set on send on or off
Repeat steps 1 and 2 above, then select
Set on Send, YES.
Templates
If you have one or more messages that you send
often, you can save these as templates. You can save
20 templates consisting of up to 60 characters each.
Your phone may come with a set of templates that
your operator or service provider has prepared for
you. These templates appear in the list of templates,
indicated by an icon.
Messaging
This is the Internet version of the user's guide. © Print only for private use.
To create a template
1. Scroll to Messages, YES, Templates, YES,
Add New, YES.
2. Enter the message and press YES to save the
template.
To use a template
Select a template from the Templates list in the
Messages menu, and proceed as described in
“To send a text message” on page 43.
Message counter
You can check the number of text messages that
you have sent.
To check the number of sent messages
Scroll to Calls, YES, Time & Cost, YES,
SMS Counter, YES, Show Counter.
To reset the message counter
Scroll to Calls, YES, Time & Cost, YES,
SMS Counter, YES, Reset Counter.
Receiving a message
When you receive a message, the phone beeps and
the message New Messages appears in the display.
If the sender of the message wants you to reply,
the message Reply requested. Reply? appears in the
display. Press YES again to reply. If you do not want
to reply, press NO.
To read the message now
1. Press YES.
2. Use the navigation key to scroll through the message.
When you have read the message, press YES. A new
menu with different options appears. These options
are described on the following pages.
To read the message later
Press NO to save the message in your Inbox in the
Messages menu.
To reply to a message
1. When you have read the message, press YES.
2. Select Reply in the option list and press YES.
Messaging
This is the Internet version of the user's guide. © Print only for private use.
45
3. Select the message you want to send as a reply
and press YES. You can choose between: Write New,
Include This Msg. or Templates.
4. Write your message and press YES.
To forward a message
1. When you have read the message, press YES.
2. Select Forward and press YES.
Continue in the same way as when sending a new
text message.
To call a phone number found in a message
When the number is highlighted, press YES.
To call the sender of the message
1. When you have read the message, press YES.
2. Select Call and press YES.
To read the next message
1. When you have read the message, press YES.
2. Select Read Next and press YES.
To delete a message
1. When you have read the message, press YES.
2. Select Delete and press YES.
46
Saving incoming messages
Incoming messages are saved in the phone memory.
When both the phone memory and the SIM memory
are full, a flashing envelope in the display indicates
that you have to empty the inbox to be able to receive
new messages.
If the phone memory becomes full of unread
messages, new messages are automatically saved
on the SIM card. Messages that are saved on the
SIM card remain there until you delete them.
To save a message on the SIM card
1. When you have read the message, press YES.
2. Select Save on SIM and press YES.
Area information
The ordinary Short Message Service is a
personal service that carries your private
messages. Area Information is another
type of text message that is sent to all
subscribers in a certain network area.
This information could, for example, be a local
traffic report or the phone number of a local taxi
company.
Messaging
This is the Internet version of the user's guide. © Print only for private use.
Area information usage
Please refer to the information provided by your
operator for more information about the area
information codes.
To turn area information on or off
1. Scroll to Messages, YES, Area Info., YES, Reception.
2. Select On or Off and press YES.
To enter an area information code
1. Scroll to Messages, YES, Area Info., YES,
Message List, YES, Add New, YES.
2. Enter the new code and press YES.
Cell information
The “Cell information channel” is used
by some network operators for sending
messages to their subscribers within a
certain network area. You read messages
on the Cell information channel in the same
way as when reading area messages.
To turn the Cell information channel on
Scroll to Messages, YES, Area Info., YES,
Cell Information, YES and then select On.
Receiving an area message
When you receive an Area Information message,
the message automatically appears in the display.
You read the message in the same way as you read
an ordinary text message. You cannot save area
messages. When you have read the message and
press YES or NO, it is deleted.
Messaging
This is the Internet version of the user's guide. © Print only for private use.
47
Using WAP
WAP browser, bookmarks
Your phone has a WAP (Wireless
Application Protocol) browser which
is designed to bring a modified Internet
to your mobile phone. A wide range of
services are available, for example, news,
entertainment, timetables, reservations, banking,
e-commerce, positioning and email.
Before you start
First make sure that you have:
• A phone subscription that supports data
transmission.
• Correct settings in your phone for WAP.
See “Setting up WAP” on page 37.
• Registered as a WAP user with your network
operator or service provider.
Using the WAP browser
Settings may already be entered when you buy the
phone. Otherwise you can receive the settings from
your network operator or your service provider in a
text message.
48
To start browsing
First select the WAP profile you want to use.
Scroll to WAP Services, YES, Select Profile, YES.
Then select one of the following:
• Open your homepage, for example,
Sony Ericsson.
• Go to one of your bookmarks. Select
Bookmarks, YES.
• Enter the address of a WAP site. Select
Enter Address, YES, New address? to enter
a new WAP address or select one of the 10 most
recently entered addresses. When you enter a
WAP address, the normal http:// prefix is not
needed.
To exit WAP and disconnect
• Press and hold NO or
• Press
, select Exit.
Options when browsing
When you have started browsing, you can reach
different browsing options by pressing
.
The options menu is dynamic. Its content may
vary depending on which WAP site you are visiting.
The options menu contains the following:
Using WAP
This is the Internet version of the user's guide. © Print only for private use.
• Go to the homepage set for the current WAP profile.
If you select an email address when browsing
a WAP site, you can reply with a text message.
• Bookmarks – Add the site you are currently
browsing to your list of bookmarks, or see the list
of bookmarks for the current profile.
• Push Inbox – Displays received push messages.
• Enter Address – Enter the WAP address of a site
you want to visit.
• Save Picture – Save a picture from the site.
• Send via SMS – Send a text message with a link
to the current WAP page to another phone.
• Reload – Refresh the contents of the WAP page.
• Exit – Disconnect and go to standby.
• Status – Display current status information, for
example, profile, access type, connection time,
data rate, security, address.
• Set as homepg – Set the current site as the
homepage of the WAP profile you are using.
• Edit – Edit the name and/or the WAP address
of the bookmark.
• Delete – Delete the bookmark.
Using bookmarks
You use bookmarks in your mobile phone just as you
do with a PC Internet browser. You can have up to
a maximum of 25 bookmarks.
To work with bookmarks
1. Scroll to WAP Services, YES, Bookmarks, YES.
2. Select the bookmark you want to work with,
.
Select Go to Bookmark, Edit, Delete, Send via SMS,
or Set as homepg and press YES.
Downloading
You can download, for example, pictures and ring
signals, from WAP sites directly to your phone.
Note: Make sure the file sizes do not exceed the
free memory in your phone, see “Memory status”
on page 55 for more information.
To download from wap.SonyEricsson.com
1. Scroll to WAP Services, YES, Bookmarks, YES,
Sony Ericsson, YES.
2. Select what you want to download and follow
the instructions that appear, YES.
Using WAP
This is the Internet version of the user's guide. © Print only for private use.
49
WAP push messages
You can receive push messages via WAP Services.
This means that a service provider sends WAP
content (information) to your phone without
you having to do anything. You can, for example,
get updated news or new WAP settings from your
service provider.
There are two kinds of push messages:
• Text messages that inform you about WAP services
by sending a link. To go to the WAP service, click
the link and select Load.
• Updated information from a WAP service is sent
to appear in the WAP browser.
Receiving a push message
You can set your phone to either accept or reject push
messages. This is valid for all your WAP profiles.
To set push message acceptance
Scroll to WAP Services, YES, Options, YES, Common,
YES, Push Access, YES and select one of the following
settings:
• On – You allow push messages to be automatically
loaded.
50
• Prompt – You allow push messages, but only
when you confirm.
• Off – You do not allow push messages.
To respond to a push message
Scroll to WAP Services, YES, Push Inbox, YES,
scroll to any push message, YES and select one
of the following:
• Load – The browser starts and loads the WAP
site so that you can see the push content.
• Delete – Deletes the push message.
• Postpone – Save the message to be loaded later.
Stored information
The following information can be saved in your phone:
• Cache – improves memory efficiency.
• Passwords – improves server access efficiency.
• Cookies – improves site access efficiency.
It is advisable to clear any sensitive information
about previously visited WAP services. This is to
avoid a security risk if your phone is misplaced,
lost or stolen.
Using WAP
This is the Internet version of the user's guide. © Print only for private use.
Note: See “WAP security settings” on page 41
for more information regarding security and
certificates.
To allow WAP information in your phone
1. Scroll to WAP Services, YES, Options, YES,
Common, YES.
2. Select the information to allow, YES.
To clear cache, password list, cookies
or push inbox
1. Scroll to WAP Services, YES, Advanced, YES.
2. Select the information to be cleared.
3. Press YES to confirm.
More features
Alarm clock, stopwatch, calculator, calendar, games
Alarm clock
The alarm can be set to ring at a specific time within
24 hours, or recurrently at a specific time on several
days. You can have both these alarms set at the same
time. Even if you have set your phone to silent, the
alarm signals ring. The alarm clock also rings if the
phone is turned off.
To set an alarm
1. Scroll to Organizer, YES, Alarms, YES, Alarm
or Recurrent Alarm, YES.
2. Enter the time, YES and day, if recurrent, by scrolling
and pressing
, YES.
To change the alarm time
1. Scroll to Organizer, YES, Alarms, YES, Alarm, YES,
Set New Time, YES.
2. Press any key to turn the alarm signal off when it
rings. If you do not want the alarm to be repeated,
press YES.
More features
This is the Internet version of the user's guide. © Print only for private use.
51
To cancel the alarm
Scroll to Organizer, YES, Alarms, YES, Alarm
or Recurrent Alarm, YES, Cancel, YES.
To select an alarm signal
Scroll to Settings, YES, Sounds & Alerts, YES,
Alarm Signal, YES.
Stopwatch
The stopwatch is turned off when you answer an
incoming call or when you exit the stopwatch menu.
To use the stopwatch
Scroll to Organizer, YES, Stopwatch, YES, then press:
to reset (when stopped).
to save up to nine lap times.
YES to start, stop or restart.
NO to stop.
or
to check saved lap times.
Calculator
The phone has a built-in calculator which can add,
subtract, divide and multiply.
52
Note: The accuracy of the calculator function
is limited.
To use the calculator
1. Scroll to Organizer, YES, Calculator, YES.
2. Enter digits with the keypad, then press:
or
to get ÷, x, -, +, a decimal point or %.
to delete the figure.
YES to calculate a result, equals to (=).
to save to memory.
to retrieve from memory.
Timer
The phone has a 24-hour timer.
To set the timer
Scroll to Organizer, YES, Timer, YES. When the
signal rings, press any key to turn it off.
Calendar
In the calendar you can add tasks for things that
you have to remember. The tasks can be edited
or deleted.
More features
This is the Internet version of the user's guide. © Print only for private use.
1.
2.
3.
4.
5.
6.
To delete all tasks
Scroll to Organizer, YES, Calendar, YES,
Delete All, YES.
To add a task
Scroll to Organizer, YES, Calendar, YES.
Select Add task?, YES.
Enter a description, YES.
Enter the start/end dates and times, YES.
Scroll to Continue?, YES.
Set a reminder, if required, or select None
and press YES to save.
To edit a task
1. When the task is displayed, press YES.
2. Select Edit, YES.
3. Edit the task, YES, edit the date, YES, edit the
reminder, YES.
To set the reminder
Select any of the predefined values or select
Other Reminder, and enter the alarm date, YES
and the alarm time. Press YES to save the task.
Games
Your phone has several entertaining games.
Game controls are specified with help for
each game.
To view a task
1. Scroll to Organizer, YES, Calendar, YES.
2. Select View Today, View All Tasks, View Week,
or View Month. Press YES.
To delete a task
Scroll to the task that you want to delete, press
1.
2.
3.
4.
To start a game
Scroll to Fun & Games, YES, Games, YES.
Select a game, YES.
Select New Game or Resume Game, YES.
Start the game.
.
More features
This is the Internet version of the user's guide. © Print only for private use.
53
Security
SIM card lock, phone lock
SIM card lock
The SIM card lock protects your subscription,
but not your phone itself, from unauthorized use.
If you change SIM cards, the phone still works with
the new SIM card.
PIN and PUK code
Most SIM cards are locked at the time of purchase.
If the SIM card lock is on, you have to enter a “PIN”
(Personal Identity Number) every time you turn on
your phone.
As you enter your PIN, the digits are hidden with
an *. However digits are shown if your PIN starts
with the same digits as an emergency number,
for example 112. This is so that you can see and call
an emergency number without entering a PIN. See
“Emergency calls” on page 23 for more information.
If you enter your PIN incorrectly three times in
a row, the SIM card is blocked. This is indicated by
the message PIN blocked. To unblock it you need
to enter your “PUK” (Personal Unblocking Key).
Your PIN and PUK are supplied by your operator.
54
1.
2.
3.
4.
To unblock your SIM card
PIN blocked. appears.
Enter your PUK and press YES.
Enter a new four- to eight-digit PIN and press YES.
Reenter the new PIN to confirm and press YES.
To edit your PIN
Scroll to Settings, YES, Locks, YES, SIM Lock, YES,
Change PIN, YES. If the message Codes do not match.
appears, you entered the new PIN incorrectly. If the
message Wrong PIN. appears, followed by Old PIN:,
you entered your old PIN incorrectly.
PIN2
Certain services are protected by a second PIN.
To edit your PIN2
Scroll to Settings, YES, Locks, YES, SIM Lock, YES,
Change PIN2, YES.
To turn the SIM card lock on or off
1. Scroll to Settings, YES, Locks, YES,
SIM Lock, YES, Protection, YES.
2. Select On or Off, and press YES.
3. Enter your PIN and press YES.
Security
This is the Internet version of the user's guide. © Print only for private use.
Phone lock
The phone lock protects the phone against
unauthorized use if it is stolen and the SIM card
is exchanged. It is not on when you buy the phone.
You can change the phone lock code (0000) to any
four- to eight-digit personal code. The phone lock
can be set to on, automatic or off.
Note: The phone lock code must be entered to use
Master Reset. See “Master reset” on page 21 for
more information.
Phone lock on
If the phone lock is on, the message Phone locked.
appears each time you turn on the phone. You have
to enter your code followed by YES to use your phone.
Automatic
If the phone lock is set to automatic, you do not need
to enter your phone lock code until a different SIM
card is inserted in the phone.
To set the phone lock
1. Scroll to Settings, YES, Locks, YES, Phonelock, YES,
Protection, YES.
2. Select an alternative and press YES.
3. Enter the phone lock code and press YES.
Editing the phone lock code
It is important that you remember your new code.
If you should forget it, you will need to bring your
phone in to your local Sony Ericsson retailer.
To edit your phone lock code
Scroll to Settings, YES, Locks, YES, Phonelock, YES,
Change Code, YES.
Memory status
Check for example, how many positions are left
in your phonebook or how much memory is used.
To check the memory of the phonebook
Scroll to Phonebook, YES, SMS Memory, YES.
Security
This is the Internet version of the user's guide. © Print only for private use.
55
To check the memory for themes, pictures,
sounds, games
Scroll to Fun & Games, YES, select one of the
menus, YES,
, select Memory Status, YES.
To check memory for text messages
Scroll to Messages, YES, SMS Memory, YES.
Memory full
Free memory by deleting unused files or information.
To delete saved files or information
Some factory default files and information cannot
be deleted.
• Select a file or information, press
, YES.
• Select a submenu option or advanced option
to delete.
56
Troubleshooting
Why doesn’t the phone work the way I want?
This chapter lists some problems that you might
encounter while using your phone. Some problems
require that you call your service provider, but most
of the problems you can easily correct yourself.
The phone cannot be switched on
Hand-held phone
Recharge or replace the battery. See “SIM card and
battery information” on page 4.
No indication of charging
When you start charging a battery that is empty or a
battery that has not been used for a long time, it may
take up to 30 minutes before the battery icon appears
in the display.
Troubleshooting
This is the Internet version of the user's guide. © Print only for private use.
Menu language
If the display shows a language that you do not
understand, you can always set the following from
standby:
• Press
0000
for English menus.
• Press
8888
for automatic, local menus.
Grey menu options
Grey text indicates a function that is
temporarily unavailable, for example,
due to your subscription or due to a certain
setting which has not been turned on.
Since you cannot send pictures and sounds that
are copyright-protected, the Send menu is sometimes
unavailable.
Error messages
Insert SIM.
There is no SIM card in the phone, it may need
cleaning or you may have inserted it incorrectly.
See “SIM card and battery information” on page 4.
Insert correct SIM card.
The phone is set to work only with certain SIM
cards. Insert the correct SIM card.
Inactive SIM
The SIM card is not activated. Contact your network
operator for more information.
Emergen. Calls Only
You are within range of a network, but you are
not allowed to use it. However, in an emergency,
some operators allow you to call, for example,
the international emergency number 112.
See “Emergency calls” on page 23.
No network.
There is no network within range or the received
signal is too weak. You have to move to get a signal
that is strong enough.
Wrong PIN./Wrong PIN2.
You have entered your PIN or PIN2 incorrectly.
Enter the correct PIN or PIN2, and press YES.
See “SIM card lock” on page 54.
Troubleshooting
This is the Internet version of the user's guide. © Print only for private use.
57
Codes do not match.
When you want to change a security code
(for example your PIN) you have to confirm the
new code by entering it again. The two codes that
you have entered do not match. See “SIM card lock”
on page 54.
Number not permitted.
The Fixed Dialing function is on and the number
you have dialed is not on your fixed numbers list.
See “Fixed dialing” on page 34.
PIN blocked./PIN2 blocked.
You have entered your PIN or PIN2 incorrectly three
times in a row. To unblock, see “SIM card lock”
on page 54.
PUK blocked. Contact operator.
You entered your personal unblocking key code (PUK)
incorrectly 10 times in a row. Contact your network
operator or service provider.
Phone locked.
The phone is locked. To unlock the phone,
see “Phone lock” on page 55.
Phone lock code:
Your phone comes with the phone lock code, 0000.
You can change it to any four- to eight-digit code.
See “Phone lock” on page 55.
58
Troubleshooting
This is the Internet version of the user's guide. © Print only for private use.
Additional information
Safe and efficient use, warranty, declaration
of conformity
Exchangeable front covers
You can replace the front cover.
To change the front cover
1. Gently pull the front cover away, starting from
the top of the phone.
2. Slide the front cover and lift it off the phone.
3. Insert the notches of the new front cover into the
corresponding slots on the phone. Slide and push
the front cover up until it locks into place.
Sony Ericsson Consumer web site
At www.SonyEricsson.com there is a support section
where help and tips are only a few clicks away. Here
you find the latest software updates, tips on how to
use your product more efficiently, function guides
for some of the products and additional help when
you require it.
Additional information
This is the Internet version of the user's guide. © Print only for private use.
59
Guidelines for Safe and Efficient Use
Please read this information before using
your mobile phone.
• Do not attempt to disassemble
your product. Only Sony Ericsson
authorised personnel should perform
service.
RECOMMENDATIONS
ANTENNA
• Always treat your product with care
and keep it in a clean and dust-free
place
• Do not expose your product to liquid or
moisture or humidity.
• Do not expose your product to extreme
high or low temperatures.
• Do not expose your product to open
flames or lit tobacco products.
• Do not drop, throw or try to bend your
product.
• Do not paint your product.
• Do not use your product near medical
equipment without requesting permission.
• Do not use your product when in, or around aircraft,
or areas posted “turn off two-way radio”.
• Do not use your product in an area
where a potentially explosive
atmosphere exists.
• Do not place your product or install
wireless equipment in the area above
your car’s air bag.
60
Only use an antenna that has been specifically
designed by Sony Ericsson for your mobile phone.
Use of unauthorised or modified antennas could
damage your mobile phone and may violate
regulations, causing loss of performance and SAR
levels above the recommended limits (see below).
EFFICIENT USE
Hold your mobile phone as you would any other phone.
Do not cover the top of the phone when in use, as this
affects call quality and may cause the phone to operate
at a higher power level than needed, thus shortening
talk and standby times.
RADIO FREQUENCY (RF) EXPOSURE
AND SAR
Your mobile phone is a low-power radio transmitter
and receiver. When it is turned on, it emits low levels
of radio frequency energy (also known as radio waves
or radio frequency fields).
Governments around the world have adopted
comprehensive international safety guidelines,
developed by scientific organizations, e.g. ICNIRP
Additional information
This is the Internet version of the user's guide. © Print only for private use.
(International Commission on Non-Ionizing Radiation
Protection) and IEEE (The Institute of Electrical and
Electronics Engineers Inc.), through periodic and
thorough evaluation of scientific studies. These
guidelines establish permitted levels of radio wave
exposure for the general population. The levels include
a safety margin designed to assure the safety of all
persons, regardless of age and health, and to account
for any variations in measurements.
Specific Absorption Rate (SAR) is the unit of
measurement for the amount of radio frequency
energy absorbed by the body when using a mobile
phone. The SAR value is determined at the highest
certified power level in laboratory conditions, but the
actual SAR level of the mobile phone while operating
can be well below this value. This is because the
mobile phone is designed to use the minimum power
required to reach the network.
Variations in SAR below the radio frequency exposure
guidelines do not mean that there are variations in
safety. While there may be differences in SAR levels
among mobile phones, all Sony Ericsson mobile phone
models are designed to meet radio frequency exposure
guidelines.
Before a phone model is available for sale to
the public, it must be tested and certified to the FCC
that it does not exceed the limit established by the
government-adopted requirement for safe exposure.
The tests are performed in positions and locations
(that is, at the ear and worn on the body) as required
by the FCC for each model. For body worn operation,
this phone has been tested and meets FCC RF
exposure guidelines when the handset is positioned
a minimum of 15 mm from the body without any metal
parts in the vicinity of the phone or when used with the
original Sony Ericsson body worn accessory intended
for this phone. Use of other accessories may not
ensure compliance with FCC RF exposure guidelines.
A separate leaflet with SAR information for this
mobile phone model is included with the material that
comes with this mobile phone. This information can
also be found, together with more information on
radio frequency exposure and SAR, on:
www.SonyEricsson.com.
DRIVING
Please check if local laws and regulations restrict
the use of mobile phones while driving or require
drivers to use handsfree solutions. We recommend
that you use only Ericsson or Sony Ericsson handsfree
solutions intended for use with your product. Please
note that because of possible interference to electronic
equipment, some vehicle manufacturers forbid
the use of mobile phones in their vehicles unless
a handsfree kit with an external antenna supports
the installation.
Additional information
This is the Internet version of the user's guide. © Print only for private use.
61
Always give full attention to driving and pull off the road
and park before making or answering a call if driving
conditions so require.
PERSONAL MEDICAL DEVICES
Mobile phones may affect the operation of cardiac
pacemakers and other implanted equipment. Please
avoid placing the mobile phone over the pacemaker,
e.g. in your breast pocket. When using the mobile
phone, place it at the ear opposite the pacemaker.
If a minimum distance of 15 cm (6 inches) is kept
between the mobile phone and the pacemaker,
the risk of interference is limited. If you have any
reason to suspect that interference is taking place,
immediately turn off your mobile phone. Contact
your cardiologist for more information.
For other medical devices, please consult
the manufacturer of the device.
CHILDREN
DO NOT ALLOW CHILDREN TO PLAY
WITH YOUR MOBILE PHONE OR ITS
ACCESSORIES. THEY COULD HURT
THEMSELVES OR OTHERS, OR
COULD ACCIDENTALLY DAMAGE THE MOBILE
PHONE OR ACCESSORY. YOUR MOBILE PHONE
OR ITS ACCESSORY MAY CONTAIN SMALL
PARTS THAT COULD BE DETACHED AND
CREATE A CHOKING HAZARD.
62
DISPOSING OF THE PRODUCT
Your mobile phone should not be placed
in municipal waste. Please check local
regulations for disposal of electronic
products.
POWER SUPPLY
Connect the AC power adapter only to designated
power sources as marked on the product. Make sure
the cord is positioned so that it will not be subjected
to damage or stress. To reduce risk of electric shock,
unplug the unit from any power source before attempting
to clean it. The AC power adapter must not be used
outdoors or in damp areas. Never alter the cord or
plug. If the plug will not fit into the outlet, have a proper
outlet installed by a qualified electrician.
EMERGENCY CALLS
Mobile phones operate using radio signals, which
cannot guarantee connection under all conditions.
Therefore you should never rely solely upon any
mobile phone for essential communications (e.g.
medical emergencies).
Emergency calls may not be possible on all cellular
networks or when certain network services and/or
mobile phone features are in use. Check with your
local service provider.
Additional information
This is the Internet version of the user's guide. © Print only for private use.
BATTERY USE AND CARE
We recommend that you fully charge the battery
before you use your mobile phone for the first time.
The battery should only be charged in temperatures
between +5°C (+41°F) and +45°C (+113°F).
A new battery or one that has not been used for a long
time could have reduced capacity the first few times it
is used.
The talk and standby times depend on the actual
transmission conditions when using the mobile phone.
If the mobile phone is used near a base station, less
power is required and talk and standby times are
prolonged.
• Warning! May explode if disposed of in fire.
• Use only Sony Ericsson branded original batteries
and chargers intended for use with your mobile
phone. Other chargers may not charge sufficiently
or may produce excessive heat. Using other
batteries and chargers could be dangerous.
• Do not expose the battery to liquid.
• Do not let the metal contacts on the battery touch
another metal object. This could short-circuit and
damage the battery.
• Do not disassemble or modify the battery.
• Do not expose the battery to extreme
temperatures, never above +60°C
(+140°F). For maximum battery
capacity, use the battery in room
temperature.
• Turn off your mobile phone before removing
the battery.
• Keep out of children’s reach.
• Use the battery for the intended
purpose only.
• Do not allow the battery to be put into
the mouth. Battery electrolytes may
be toxic if swallowed.
DISPOSING OF THE BATTERY
Please check local regulations for
disposal of batteries or call your local
Sony Ericsson Customer Care Center for
information.
The battery should never be placed in municipal
waste. Use a battery disposal facility if available.
Limited Warranty
Sony Ericsson Mobile Communications AB, S-221 88
Lund, Sweden, (Sony Ericsson), provides this Limited
Warranty for your mobile phone and original accessory
delivered with your mobile phone (hereinafter referred
to as “Product”).
Should your Product need warranty service,
please return it to the dealer from whom it was
purchased, or contact your local Sony Ericsson
Customer Care Centre (national rates may apply)
or visit www.SonyEricsson.com to get further
information.
Additional information
This is the Internet version of the user's guide. © Print only for private use.
63
Our warranty
Subject to the conditions of this Limited Warranty,
Sony Ericsson warrants this Product to be free from
defects in design, material and workmanship at the
time of its original purchase by a consumer, and for
a subsequent period of one (1) year.
What we will do
If, during the warranty period, this Product fails to
operate under normal use and service, due to defects
in design, materials or workmanship, Sony Ericsson
authorised distributors or service partners, in the
country/region* where you purchased the Product,
will, at their option, either repair or replace the Product
in accordance with the terms and conditions stipulated
herein.
Sony Ericsson and its service partners reserve
the right to charge a handling fee if a returned Product
is found not to be under warranty according to the
conditions below.
Please note that your personal settings/downloads
might be lost when the Product is repaired or replaced.
Conditions
1. The warranty is valid only if the original proof of
purchase issued to the original purchaser by an,
for this Product, Sony Ericsson authorised dealer,
specifying the date of purchase and serial number**,
is presented with the Product to be repaired or replaced.
64
Sony Ericsson reserves the right to refuse warranty
service if this information has been removed or
changed after the original purchase of the Product
from the dealer.
2. If Sony Ericsson repairs or replaces the Product,
the repaired or replaced Product shall be warranted for
the remaining time of the original warranty period or for
ninety (90) days from the date of repair, whichever is
longer. Repair or replacement may involve the use of
functionally equivalent reconditioned units. Replaced
parts or components will become the property of
Sony Ericsson.
3. This warranty does not cover any failure of the
Product due to normal wear and tear, or due to
misuse, including but not limited to use in other than
the normal and customary manner, in accordance
with the Sony Ericsson instructions for use and
maintenance of the Product. Nor does this warranty
cover any failure of the Product due to accident,
software or hardware modification or adjustment,
acts of God or damage resulting from liquid.
A rechargeable battery can be charged and
discharged hundreds of times. However, it will
eventually wear out – this is not a defect. When
the talk-time or standby time is noticeably shorter,
it is time to replace your battery. Sony Ericsson
recommends that you use only batteries and
chargers approved by Sony Ericsson.
Additional information
This is the Internet version of the user's guide. © Print only for private use.
4. Since the cellular system on which the Product is
to operate is provided by a carrier independent from
Sony Ericsson, Sony Ericsson will not be responsible
for the operation, availability, coverage, services or
range of that system.
5. This warranty does not cover Product failures caused
by installations, modifications, or repair or opening of
the Product performed by a non-Sony Ericsson
authorised person.
6. The warranty does not cover Product failures which
have been caused by use of accessories or other
peripheral devices which are not Ericsson or Sony
Ericsson branded original accessories intended for
use with the Product.
7. Tampering with any of the seals on the Product will
void the warranty.
8. THERE ARE NO EXPRESS WARRANTIES, WHETHER
WRITTEN OR ORAL, OTHER THAN THIS PRINTED
LIMITED WARRANTY. ALL IMPLIED WARRANTIES,
INCLUDING WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, ARE LIMITED TO
THE DURATION OF THIS LIMITED WARRANTY.
IN NO EVENT SHALL SONY ERICSSON OR ITS
LICENSORS BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY NATURE
WHATSOEVER, INCLUDING BUT NOT LIMITED TO
LOST PROFITS OR COMMERCIAL LOSS, TO THE
FULL EXTENT THOSE DAMAGES CAN BE
DISCLAIMED BY LAW.
Some countries/states do not allow the exclusion
or limitation of incidental or consequential damages,
or limitation of the duration of implied warranties,
so the preceding limitations or exclusions may
not apply to you.
The warranty provided does not affect the consumer's
statutory rights under applicable legislation in force,
nor the consumer's rights against the dealer arising
from their sales/ purchase contract.
* European union (EU)
If you have purchased your Product in an EU country
you can have your Product serviced, under the
conditions set out above, within the warranty period
in any EU country where an identical Product is sold
by an authorised Sony Ericsson distributor. To find
out if your Product is sold in the EU country you are
in, please call the local Sony Ericsson Customer Care
Centre. Please observe that certain services may not
be possible elsewhere than in the country of original
purchase, for example due to the fact that your Product
may have an interior or exterior which is different from
equivalent models sold in other EU countries. It may
not be possible to repair SIM-locked Products.
** In some countries/regions additional information is
requested. If so, this is clearly shown on the valid proof
of purchase.
Additional information
This is the Internet version of the user's guide. © Print only for private use.
65
FCC Statement
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference,
and (2) This device must accept any interference
received, including interference that may cause
undesired operation.
Declaration of Conformity
We, Sony Ericsson Mobile Communications AB of
Nya Vattentornet
S-221 88 Lund, Sweden.
declare under our sole responsibility that our product
Sony Ericsson type AAB-1021021-BV
and in combination with our accessories, to which this
declaration relates is in conformity with the appropriate
standards 3GPP TS 51.010-1, EN 301489-7, EN 60950,
following the provisions of, Radio Equipment and
Telecommunication Terminal Equipment directive
99/5/EC with requirements covering EMC directive
89/336/EEC, and Low Voltage directive 73/23/EEC.
Lund, June 2003
0682
Hiroshi Yoshioka, Head of Product Business Unit
GSM/UMTS
We fulfill the requirements of the R&TTE Directive
(99/5/EC).
66
Additional information
This is the Internet version of the user's guide. © Print only for private use.
Icons
Icon
What do the icons mean?
The table below shows icons which may appear
in standby or in the menus.
Icon
Description
Main menus
Your personal phonebook.
Description
Receive items via infrared, networks, data
communications settings and accessories.
Create your own menu for the functions you
use most often.
Standby
Tells you the strength of the GSM network
signal.
GPRS is within range, but can not be used.
Handling of text (SMS) and voice messages.
Handling of outgoing/incoming calls, call time
and cost information.
Handling of pictures, sounds and themes.
Play games.
Personal settings including profiles, display,
language, time and locks.
Gives you access to WAP services on the
Internet.
Events, alarm clock and other extras.
GPRS is within range and can be used.
Tells you the status of the battery.
You cannot receive any incoming calls.
You have missed an incoming call.
All incoming calls are forwarded to a defined
number.
No calls or only certain calls from numbers
in a list are received.
Icons
This is the Internet version of the user's guide. © Print only for private use.
67
Icon
Description
Description
All signals are off.
Ciphering is currently not being provided
by the network.
The alarm clock has been set and is on.
The network is preferred and can be used.
The timer has been set and is on.
The network is forbidden and cannot be used.
A profile other than Normal has been chosen.
Your home network is within range and can
be used.
The card lock is on or a secure WAP
connection is established.
An ongoing call.
You have received a text message.
Phonebook
You have received a voice message.
You can enter the phonebook by pressing
You have received a WAP push message.
A picture is connected to a phonebook entry.
The infrared port is on.
Infrared communication is in progress.
A GPRS session is in progress.
68
Icon
Messages
A text message is saved on the SIM card.
A voice message has not been checked.
Icons
This is the Internet version of the user's guide. © Print only for private use.
.
Icon
Description
Icon
Description
A message has not been read.
Fun & Games
A message has been read.
A standard melody saved in My Sounds.
A damaged message.
A polyphonic melody saved in My Sounds.
The message has not been sent.
The message has been sent.
Pre-defined message template (not editable).
User-defined message template.
Calls
A missed call in the call list.
An answered call in the call list.
A dialed number in the call list.
Icons
This is the Internet version of the user's guide. © Print only for private use.
69
Index
A
Alarm clock 51
Animations 15
Answering mode 20
Area information 46
Ask to save 27
B
Battery 4
C
Calculator 52
Calendar 52
Call costs 30
credit limit 31
minute minder 18
Call time 30
Calls
accept 35
answer 5, 24
automatic re-dialling 23
call list 25
emergency 23
70
fixed dialing 34
forward 31
international 23
make 5, 22
missed 24
put on hold 32
receive 5, 24
reject 24
restrict 34
Cell information 47
Charging (battery) 4
Conference calls 33
Contrast (display) 19
D
Declaration of conformity 66
Display
contrast 19
icons 67
light 18
Downloading 49
E
Emergency calls 23
Error messages 57
F
Fixed dialing 34
Flip functions 20
Forwarding calls 31
G
Games 53
memory status 55
GPRS 38
Groups
closed user groups 35
conference calls 33
Groups. See Phonebook 29
GSM 39
GSM frequencies 2
H
Handsfree 20
I
Icons (display) 67
Infrared port 21
International
calls 23
emergency number 23
Index
This is the Internet version of the user's guide. © Print only for private use.
K
Key functions
flip closed 6
flip open 7
Key sound 18
My numbers 20
My shortcuts 20
L
Language (display) 18
Locks
phone 55
SIM card 54
O
Online services 10
Own number 20
M
Master reset 21
Melodies, see Ring signals 16
Memory
full 56
status 55
Menu language 18
Menu navigate 5
Menu overview 11
Messages. See Text messages
Minute minder 18
Missed calls 24
Multitap text input 12
N
Networks 5, 35
P
Personal ring signal 26
Phone lock 55
Phonebook 25
ask to save 27
call from 26
card memory 28
check the memory 28
delete a phone number 27
edit a name 27
edit a phone number 27
groups 29
memory 28
memory status 55
phone memory 28
replacing entries 28
save a number 25
shortcuts 26
sort order 27
Pictures 15
animations 15
exchange 16
memory status 55
send 16
wallpaper 16
PIN
change 54
enter 5
PIN2 54
Profiles 20
PUK 54
Q
Quick keys 8
R
Reading a message 45
Redialling 23
Reset 21
Ring signals 16
Index
This is the Internet version of the user's guide. © Print only for private use.
71
S
Save a number 25
Security
phone lock 55
SIM card 54
WAP 41
Send a message 43
Service centre 42
Shortcuts 8, 9, 20
Silent ring signal 17
SIM card 4, 10
copy phonebook entries 29
lock 54
unblock 54
SMS. See Text messages
Sony Ericsson
web site 59
Sounds
memory status 55
Speed dial 26
Stopwatch 52
72
T
T9 Text input 13
Text messages
call phone number 46
delete 46
forward 46
insert item 43
memory status 55
options 44
read 45
reply 45
save 46
send 43
Themes 15
memory status 55
Time settings 19
Turning the phone on/off 5
W
WAP
bookmarks 48
downloading 49
options 48
security 41
setting up 37
using WAP 48
Warranty 63
V
Vibrating alert 18
Voice mail 29
Volume
change speaker volume 22
Index
This is the Internet version of the user's guide. © Print only for private use.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
