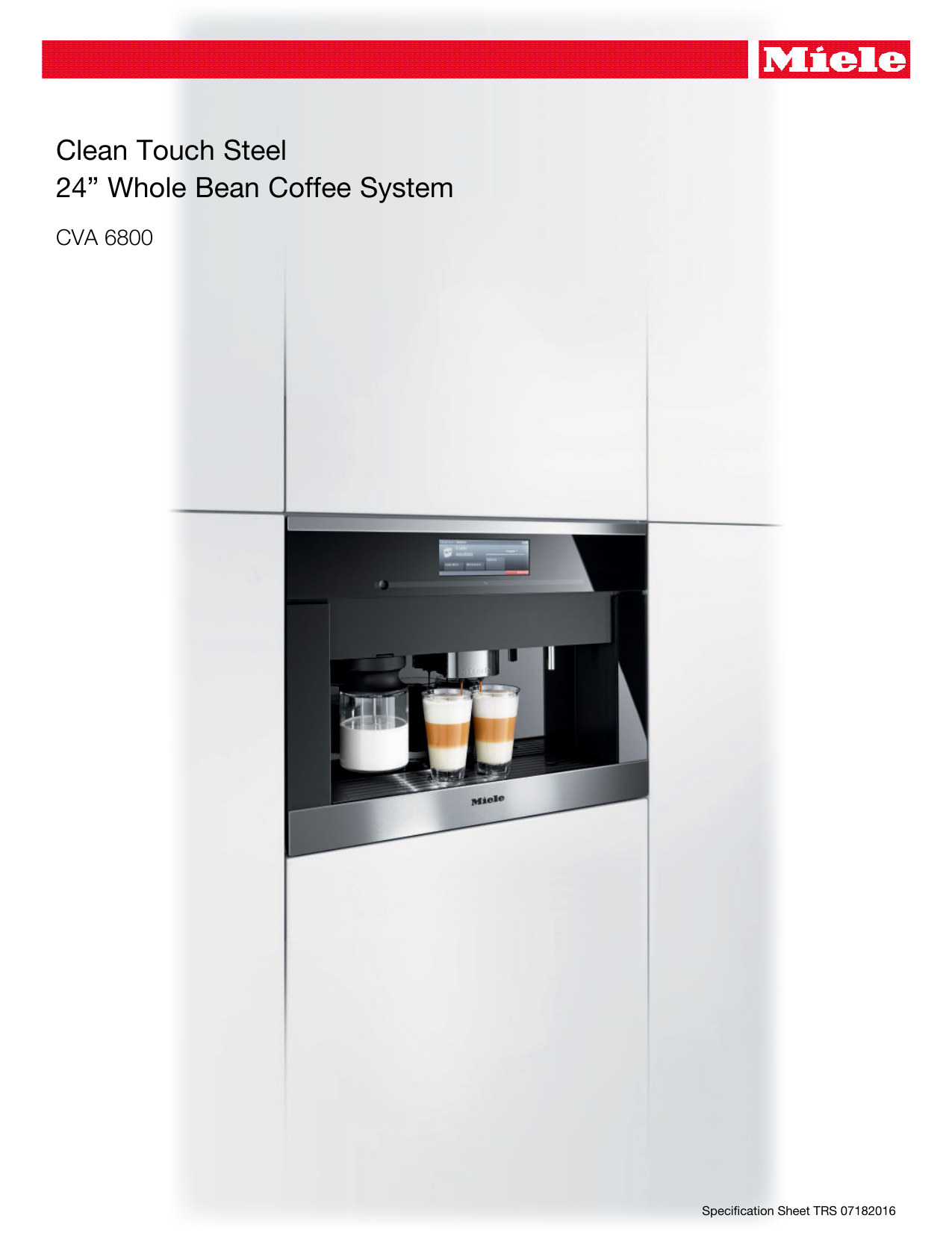

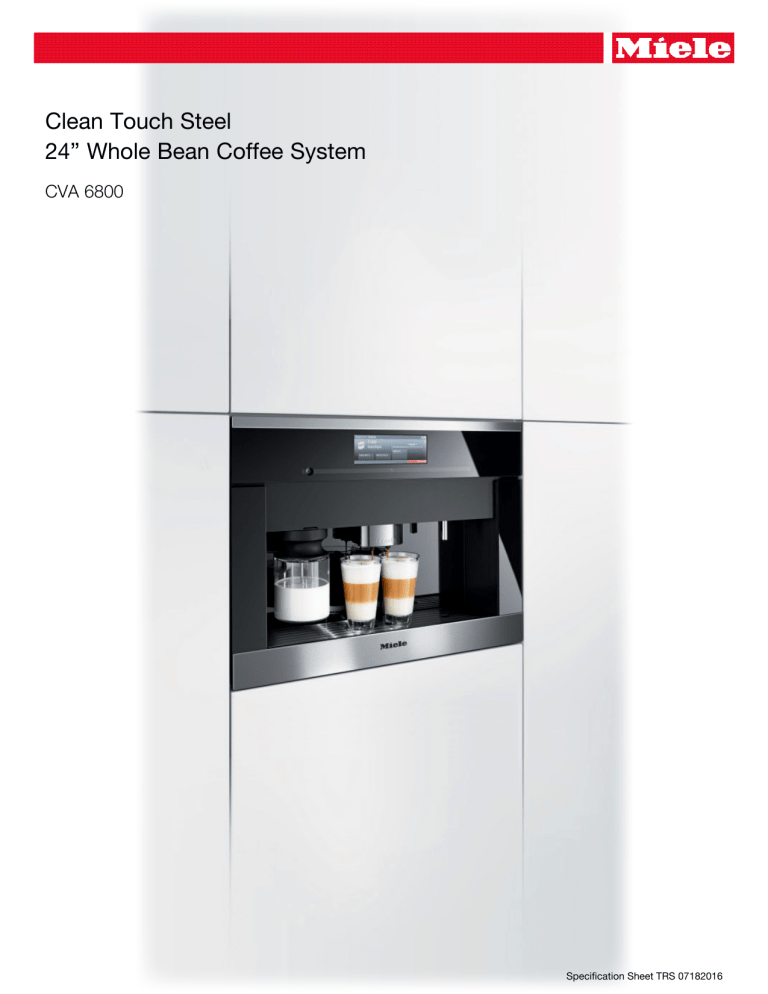

Clean Touch Steel
24” Whole Bean Coffee System
CVA 6800
8mieleusa.com
Specification Sheet TRS 07182016
07142015
Whole Bean Coffee System
CVA 6800
FOREVER BETTER
SPECIFICATIONS
CVA 6800 — Item 29680050USA
Overall Unit Width - Excluding Fascia Dimension
217/16” (545 mm)
Overall Unit Height - Excluding Fascia Dimension 171/2” (445 mm)
Overall Unit Depth - Excluding Fascia Dimension
181/8” (460 mm)
Door Depth When Open
237/16” (594 mm)
Overall Fascia Dimensions
237/16” (595 mm) W x 1715/16” (455.5 mm) H
x 13/16” (22 mm) D
Built-In
Minimum Cabinet Width
221/16” (560 mm)
Minimum Cabinet Depth
215/8” (550 mm)
CVA 6800
Minimum Cabinet Height
1711/16” (450 mm)
Features:
Minimum Base Support
• M Touch innovative and revolutionary
controls are both easy to operate
and navigate. An intuitive swipe of
the screen will quickly lead you to
your desired selection
Additional Cut-outs Required
62 lbs
Venting:
1911/16” (500 mm) x 19/16” (40 mm)
or 31” in2 (200 cm2)
• OneTouch function prepares two hot
beverages in succession when
pressing the button twice
Shipping
• OneTouch for Two operation dispenses
two cappuccino or latte macchiato
drinks, coffee or espresso simultaneously
Support
• CupSensor recognizes the rim of the
cup and alters the spout accordingly
Electrical
Electrical Requirements
120V, 60Hz, 15A
Power Cord
Molded NEMA 5-15A plug, 6 ft (1.8 m)
Shipping Weight
70 lbs
Shipping Dimensions
235/8” W x 221/16” H x 26” L
Call Miele
800.843.7231
Miele Website
8www.mieleusa.com
20/20 Link
82020technologies.com
• EasyClick Milk System simply clicks
the milk reservoir into and out of
place at the front of the machine
• Dishwasher-safe milk flask
• Automatic rinsing and cleaning
programs
• Up to 10 user profiles
• The coffee pot function allows up to
eight cups of coffee to be brewed at
one time
• BrilliantLight
• Timer function
• Ground coffee chute for whole bean
bypass
• Removable brew unit for easy
cleaning
• Removable water tank
CVA 6800
Page 2 of 8
Specification Sheet TRS 07182016
Whole Bean Coffee System
CVA 6800
FOREVER BETTER
PRODUCT VIEWS
Isometric View
Top View, Door Open
CVA 6800
Page 3 of 8
Specification Sheet TRS 07182016
Whole Bean Coffee System
CVA 6800
FOREVER BETTER
PRODUCT VIEWS
Front View
Side View
CVA 6800
Page 4 of 8
Specification Sheet TRS 07182016
Whole Bean Coffee System
CVA 6800
FOREVER BETTER
PRODUCT VIEWS
Rear View
Electrical
Connection
CVA 6800
Page 5 of 8
Specification Sheet TRS 07182016
Whole Bean Coffee System
CVA 6800
FOREVER BETTER
INSTALLATION SPECIFICATIONS
Cutout Dimensions
Lower gap adjustment detail when
solo installed.
(Adjusted by feet of CVA unit.)
PLEASE NOTE: Condensation water can damage the coffee system or
surrounding cabinets. The specified ventilation cross-sections absolutely
must be observed.
CVA 6800
Page 6 of 8
Specification Sheet TRS 07182016
Whole Bean Coffee System
CVA 6800
FOREVER BETTER
INSTALLATION SPECIFICATIONS
Ventilation Requirements
Air intake j occurs via the plinth at the bottom of the appliance and the air
escapes at the top k at the rear of the surrounding cabinets.
j directly above the coffee system with a ventilation grille (free
airflow of at least 31 square inches / 200 cm2)
k between the surrounding cabinets and the ceiling
l through a suspended ceiling
PLEASE NOTE: Condensation water can damage the coffee system or
surrounding cabinets. The specified ventilation cross-sections absolutely
must be observed.
CVA 6800
Page 7 of 8
Specification Sheet TRS 07182016
Whole Bean Coffee System
CVA 6800
FOREVER BETTER
INSTALLATION SPECIFICATIONS
With Warming Drawer
Lower gap adjustment detail when
stacked over a 24” warming drawer.
(Adjusted by feet of CVA unit.)
PLEASE NOTE: Condensation water can damage the coffee system or
surrounding cabinets. The specified ventilation cross-sections absolutely
must be observed.
CVA 6800
Page 8 of 8
Specification Sheet TRS 07182016
